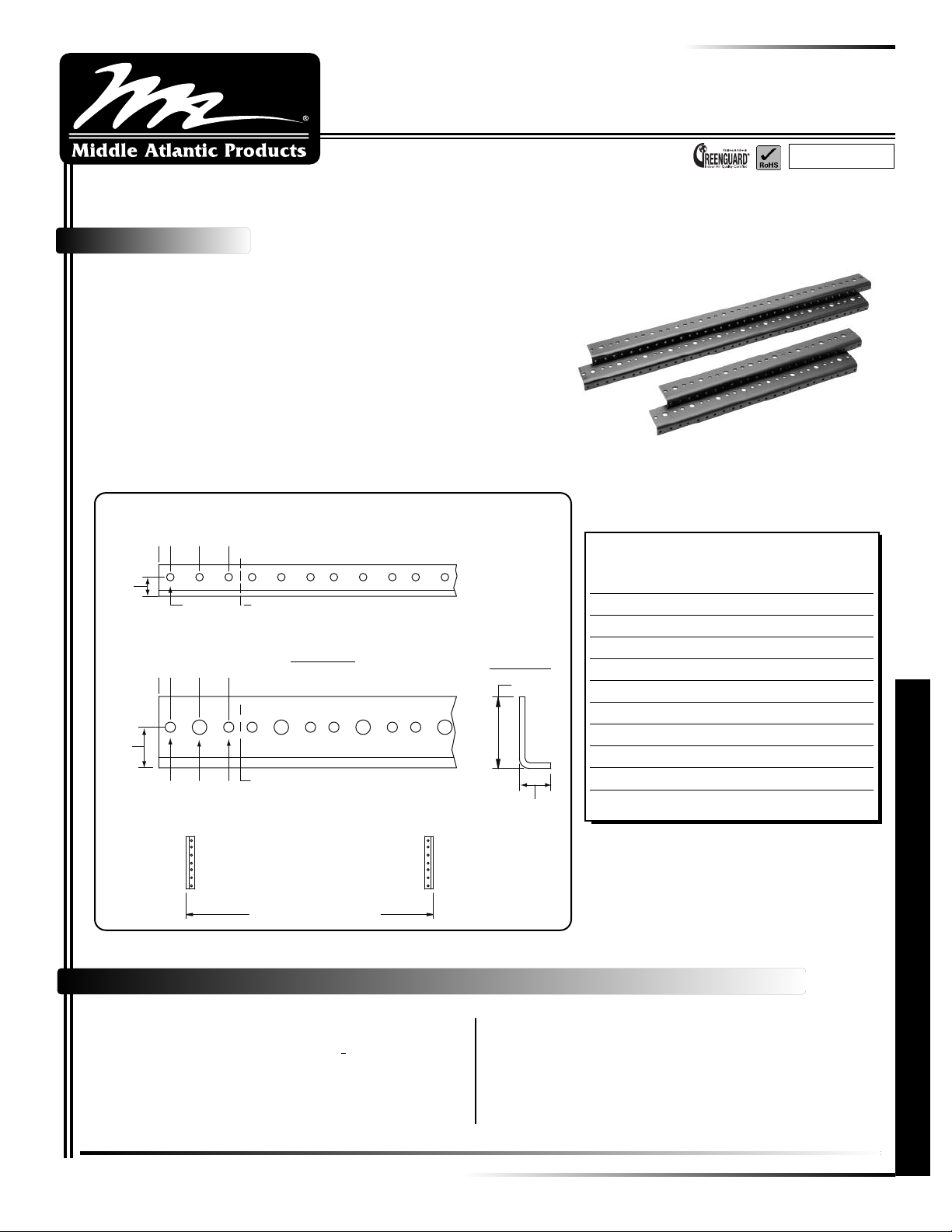

Middle Atlantic RRF12 Specifications

96-033 / rev 3b / 07-16-10

RRF Full-Hole Rackrail

EXCEPTIONAL SUPPORT & PROTECTION

™

Features

• Tapped for 10-32 threads

• Threaded rack rail is 1/8” [3mm] thick

• Suitable for use in 19-1/8” [486mm] wide openings

• Sold in pairs

RRF basic dimensions

1.50 [38]

.875 [22]

.250 [6]

.000 [0]

.41

[10]

.87

[22]

.000 [0]

.250 [6]

ø.218 [6]

threads

.875 [22]

ø.312 [8]

1.75 [45] (1 space) pattern repeated10-32

SIDE VIEW

1.50 [38]

1.75 [45] (1 space) pattern repeated

ø.218 [6]

* All dimensions in inches unless noted
[bracketed dimensions are in millimeters]

TOP VIEW

1.53 [39]

.68 [17]

EIA/ TIA Complia nt

RRF

RACKING

PART # LENGTH HEIGHT MATERIAL
RRF2 3.50” (2 spaces) 0.125” steel
RRF4 7.00” (4 spaces) 0.125” steel
RRF6 10.50” (6 spaces) 0.125” steel
RRF8 14.00” (8 spaces) 0.125” steel
RRF12 21.00” (12 spaces) 0.125” steel
RRF14 24.50” (14 spaces) 0.125” steel
RRF16 28.00” (16 spaces) 0.125” steel
RRF18 31.50” (18 spaces) 0.125” steel
RRF21 36.75” (21 spaces) 0.125” steel
RRF27 47.25” (27 spaces) 0.125” steel

RRF45 78.75” (45 spaces) 0.125” steel

96-033 / rev 3b / 07-16-10 / RRF Rackrail

19.125 [486] wide rough opening
(19” [482] EIA Standard)

Architects’ and Engineers’ Specifications

EIA/TIA compliant RRF Series Rackrail shall be Middle Atlantic Products model number RRFx

(refer to chart). Rackrail shall be 1/8” thick steel. Rail shall be x

rackspaces in length (refer to

chart) pre-treatment process shall be 3 stage iron phosphate. Steel rackrail shall be finished

with a durable black e-coat. Rackrail shall be GREENGUARD Indoor Air Quality Certified for

Children and Schools. Rackrail shall be RoHS EU Directive 2002/95/EC compliant. Rackrail

C U S T O MI ZA BL E S P E C IF IC AT IO N CL I P S A V A I L A B LE A T M ID D L E AT L A N T I C . C OM

C U S T O MI ZA BL E S P E C IF IC AT IO N CL I P S A V A I L A B LE A T M ID D L E AT L A N T I C . C OM

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: [phone] • middleatlantic.com

Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: [phone] • middleatlantic.ca

shall be manufactured by an ISO 9001 and ISO 14001 registered company. Rackrail shall

be warrantied to be free from defects in material or workmanship under normal use and

conditions for the lifetime of the product.
