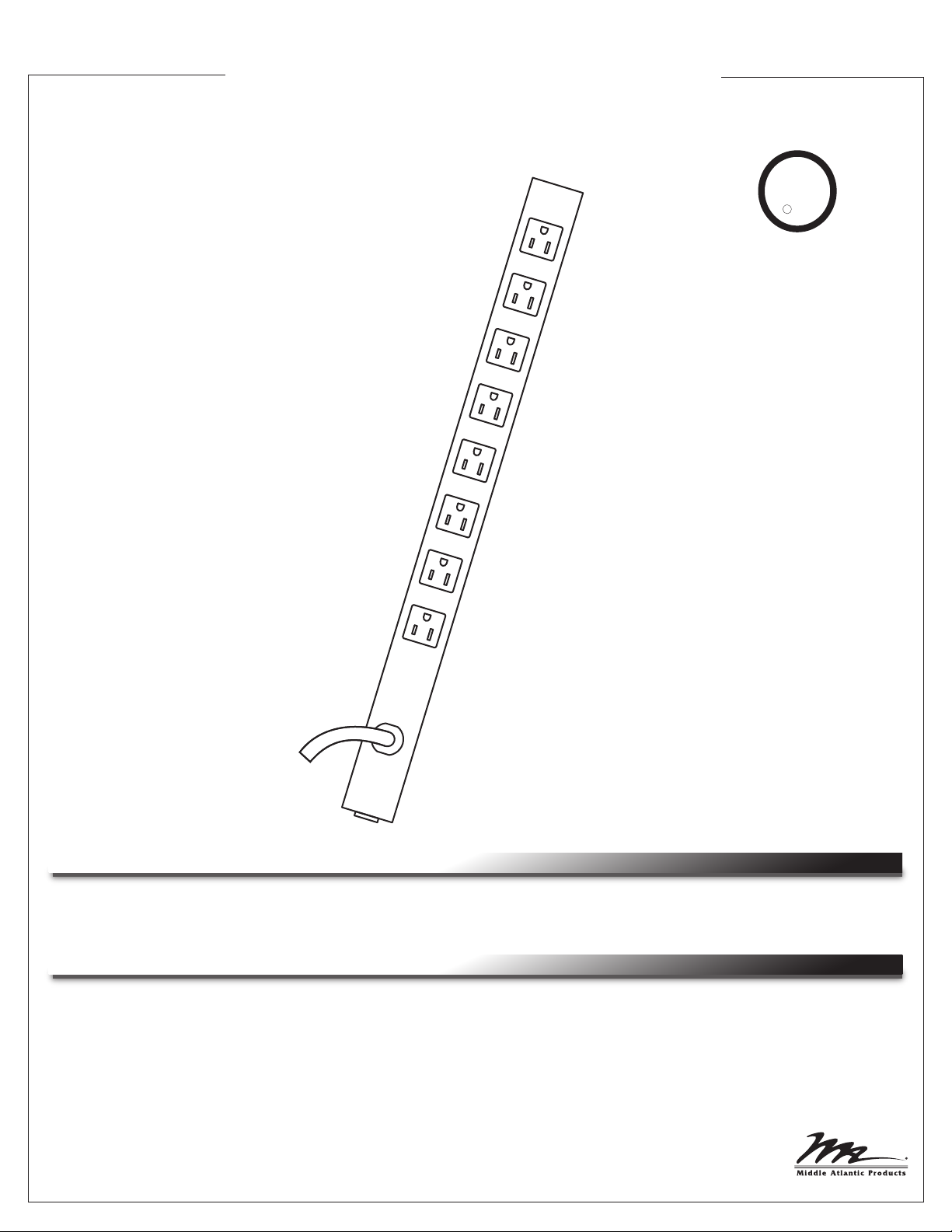

Middle Atlantic PWR-8-V Users Guide

Instruction Sheet

D

PWR-X-V

ESSEX Vertical Power Strips

U

C US

R

L

LISTE

THANK YOU

Thank you for purchasing the PWR-X-V. Please read these instructions thoroughly before installing
this product.

PRODUCT FEATURES

- Value priced power specially designed for the Essex collection.

- Available with 8, 16, and 24 outlets that are spaced to accommodate AC
adapters and wall-wart plugs.

I-00679 Rev B

PACKAGE CONTENTS

NOTE: 24 outlet models have three pieces of hardware/brackets.

POWER STRIP

STANDARD POWER

MOUNTING BRACKET

NOTE:

The provided wood screws allows the mounting clip to be installed to a wood surface.

QTY

1

QTY

2/3

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS!

CONSERVER CES INSTRUCTIONS!

• Do not overload the wall outlet where this device is being connected. Do not
overload this device. Ensure the total load to this device does not exceed that
which is listed in the specifications section of this manual

Ne surchargez pas le réceptacle de mur ou le circuit qui fournit l'énergie à ce
appareil. Ne pas surcharger cette appareil. S'assurer que la charge totale à cet
appareil ne dépasse pas celle qui est répertoriée dans la section des
spécifictions de ce manuel

• Ensure this device is connected to a properly grounded AC power source.
Ensure the device is plugged into a source providing the required 120V. Do not
use a plug adapter that defeats the ground pin of the AC plug

Assurez-vous cet appareil est connecté à une source d'alimentation C/A avec
mise à la terre. Assurez-vous cet appareil est branché sur une source
d’alimentation fournissant les nécessaires 120V. Ne pas utiliser un adaptateur
qui contrecarre la broche de terre de la prise du cordon d’alimentation

There are no user-serviceable components within this device. Removal of the
cover from this device may present a shock hazard, and void the warranty

Il n'ya pas de composants réparables par l'utilisateur au sein de cet appareil.
Retrait de la couverture de cet appareil peut présenter un danger
d'électrocution et annuler la garantie

To be used indoors in a dry location only

Pour être utilisé en intérieur dans un endroit sec seulement

Do not operate with a damaged cord or plug

Ne pas faire fonctionner avec un cordon ou une prise endommagée

Clean only with dry cloth

Nettoyer avec un chiffon sec seulement

WOOD SCREWS

MOUNTING

BRACKET SCREWS

BLOCK NUT

DANGER HAZARDOUS VOLTAGE/DANGER HAUTE
TENSION
The lightning flash with the arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

L'éclair avec le symbole de flèche dans un triangle
équilatéral est destiné à alerter l'utilisateur de la présence
d'une tension dangereuse non isolée dans l'enceinte du
produit qui peut être d'une ampleur suffisante pour constituer
un risque de choc électrique pour les personnes.

CAUTION/ATTENTION
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

Le point d'exclamation dans un triangle équilatéral est
destiné à alerter l'utilisateur de la présence d'importants
instructions d’opération et de maintenance (entretien) dans la
documentation accompagnant l'appareil.

QTY

2/3

QTY

2/3

QTY

2/3

Page 2

PRODUCT FEATURES

NOTE: Outlet quantity is model specific.

9 FOOT POWER CORD

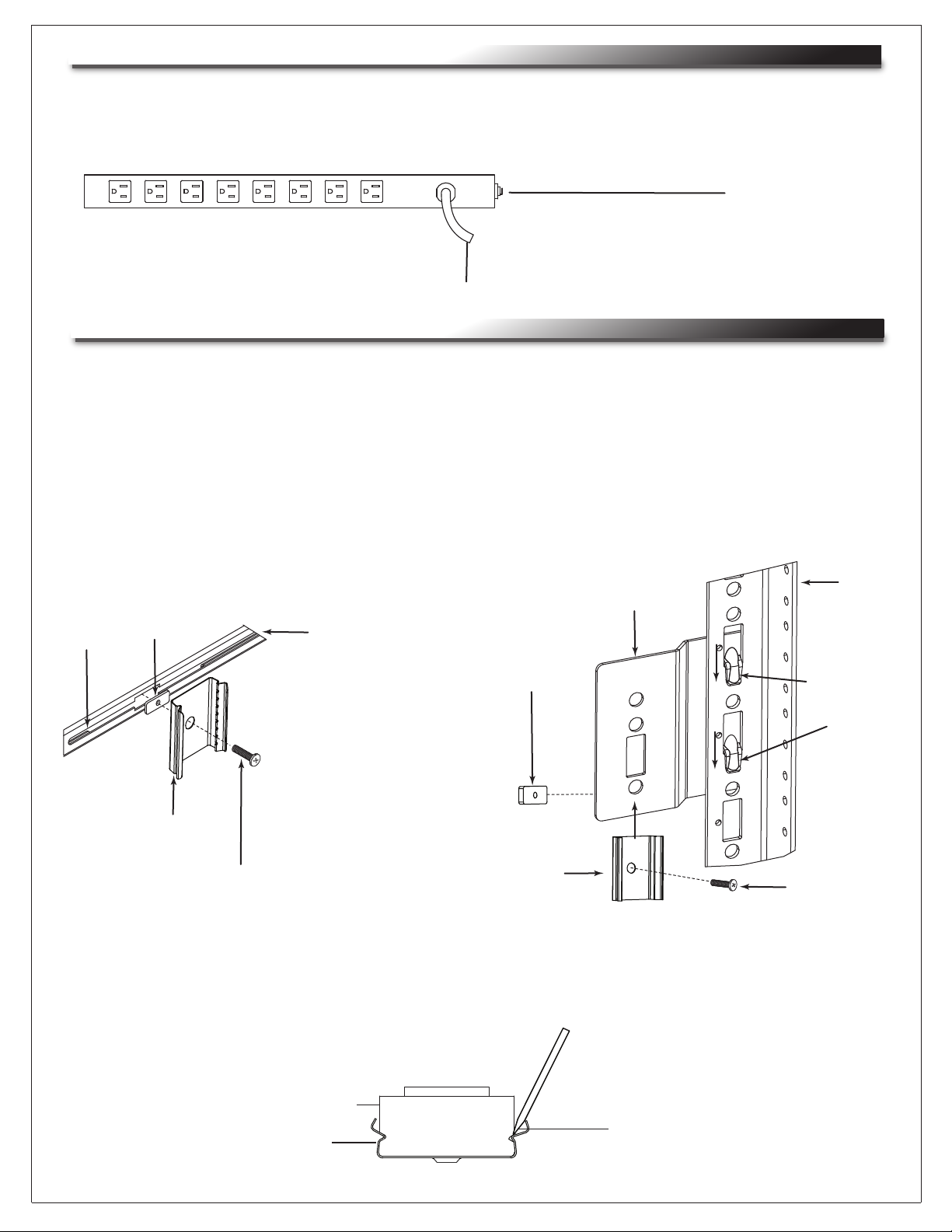

RACK INSTALLATION

RAIL BRACKET INSTALLATION

1) Using the provided hardware, secure the mounting bracket. (FIGURE A)

2) Align the power strip with mounting bracket and snap into place.

CIRCUIT BREAKER

ACCESSORY

BRACKET

INSTALLATION

1) Install the accessory mounting bracket by inserting the hooks into the rectangular slots on the Essex rail.
The hooks must face inside the rack (FIGURE B). The accessory mounting bracket comes with the rack.

2) Using the provided hardware, secure the power mounting bracket (any of the three mounting holes on the
accessory mounting bracket can be used). (FIGURE B)

3) Align the power strip with mounting bracket and snap into place.

SLOT

BLOCK

NUT

MOUNTING

BRACKET

BRACKET

SCREW

RAIL

BRACKET

BLOCK

NUT

MOUNTING

BRACKET

ACCESSORY

MOUNTING

BRACKET

(ESX-ACC-BKT)

ESSEX

RAIL

ACCESSORY

MOUNTING

BRACKET

HOOKS

BRACKET

SCREW

FIGURE A FIGURE B

TIP: To remove the power strip from the mounting bracket, wedge a flat tip screwdriver between side of power

strip and clip, gently prying the power strip from the clip.

POWER STRIP

CLIP

Page 3

SCREWDRIVER TIP

middleatlantic.com/essex
