Midco G58B Installation Manual

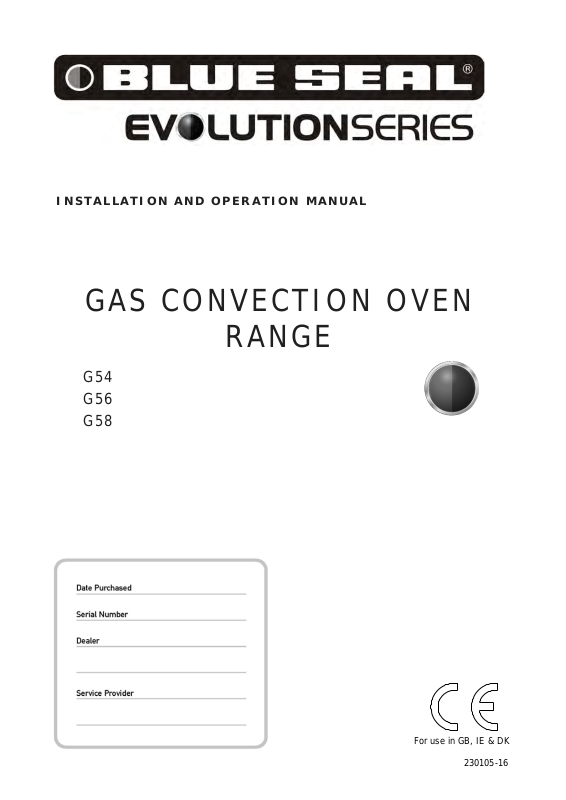

INSTALLATION AND OPERATION MANUAL

GAS CONVECTION OVEN

RANGE

G54
G56
G58

For use in GB, IE & DK

230105-16

MANUFACTURED BY

Moffat Limited

Rolleston 7675
New Zealand

INTERNATIONAL CONTACTS

AUSTRALIA

Moffat Pty Limited
Web: www.moffat.com.au
E.Mail: [e-mail]
Main Office: (tel) [phone]

(fax) [phone]

Service: (tel): 1800 622 216
Spares: (tel): 1800 337 963
Customer Service: (tel): 1800 335 315
(fax): 1800 350 281

CANADA

Serve Canada
Web: www.servecanada.com
E.Mail: [e-mail]
Sales: (tel): 800 551 8795 (Toll Free)
Service: (tel): 800 263 1455 (Toll Free)

NEW ZEALAND

Moffat Limited
Web: www.moffat.co.nz
E.Mail: [e-mail]
Main Office: (tel): 0800 663328

UNITED KINGDOM

Blue Seal
Web: www.blue-seal.co.uk
E.Mail: [e-mail]
Sales: (tel): [phone]

(fax): [phone]
Spares: (tel): [phone]
(fax): [phone]
Service: (tel): [phone]
(fax): [phone]

UNITED STATES

Moffat
Web: www.moffat.com
Sales: (tel): 800 551 8795 (Toll Free)

(tel): [phone]
(fax): [phone]
Service: (tel): 800 858 4477 (Toll Free)
(tel): [phone]
(fax): [phone]

REST OF WORLD

Moffat Limited
Web: www.moffat.co.nz
E.Mail: [e-mail]

The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless auth orized previously in
writing by the manufacturer.

In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and
design without prior notice.

© Copyright Moffat Ltd. December 2014.

Contents List

Blue Seal Gas Range Convection Oven

G54 Gas Convection Oven Range - 750mm wide.
G56 Gas Convection Oven Range - 900mm wide.
G58 Gas Convection Oven Range - 1200mm wide.

Introduction ............................................................................................... 2

Specification ............................................................................................... 3

Model Numbers Covered in this Specification
General
Gas Supply Requirements
Gas Connection
Electrical Supply Requirements

Dimensions ................................................................................................. 6

Installation ................................................................................................. 9

Installation Requirements
Unpacking
Location
Clearances
Assembly
Gas Connection
Electrical Connection
Commissioning

Operation ................................................................................................ 12

Operation Guide
Description of Controls
Open Burners
Griddles
Oven Pilot Ignition
Oven - Main Burner / Thermostat
Oven Fan
Turning the Oven to ‘Stand-By’ (Pilot ‘ON’ Only)
Oven ‘Shut Down’

Cleaning and Maintenance ...................................................................... 16

Before Commencing Cleaning
Open Burner Cleaning
Griddle Plate Cleaning
Oven Interior Cleaning
Stainless Steel Surfaces

Fault Finding ........................................................................................... 19

Wiring Schematic .................................................................................... 20

Gas Conversion and Specifications ......................................................... 21

Conversion Procedure
Gas Specifications

Replacement Parts List ........................................................................... 27

Introduction

We are confident that you will be delighted with your BLUE SEAL Gas Range Convection Oven , , and it will
become a most valued appliance in your commercial kitchen.

To ensure you receive the utmost benefit from your new Blue Seal appliance, there are two important
things you can do.

Firstly:

Please read the instruction book carefully and follow directions given. The time taken will be well spent.

Secondly:

If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your BLUE SEAL dealer promptly. In many cases a phone call could answer your questi on.

CE Only:

These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.

Warning

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY

DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.

INSTRUCTIONS
LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.

TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN A PROMINENT

Warning

Warning

GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK OF

FIRE.

 T
 I

 DO NOT



HE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.

T IS RECOMMENDED THAT A REGULAR INSPECTION IS MADE BY A COMPETENT SERVICE PERSON TO

ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.

STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.



This appliance is for professional use and is only to be used by qualified
persons.



Only authorised service persons are to carry out installation, servicing or gas
conversion operations.



Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.



DO NOT operate the appliance without the legs supplied fitted.

Caution

2

Model Numbers Covered in this Specification

G54D[1] 4 Open Burners + Turbofan Convection Oven.
G54C[1] 2 Open Burners + 300mm Griddle + Turbofan Convection Oven.

G56D[1] 6 Open Burners + Turbofan Convection Oven.
G56C[1] 4 Open Burners + 300mm Griddle + Turbofan Convection Oven.
G56B[1] 2 Open Burners + 600mm Griddle + Turbofan Convection Oven.
G56A 900 mm Griddle + Turbofan Convection Oven.

G58D[1] 8 Open Burners + Turbofan Convection Oven.
G58C[1] 6 Open Burners + 300mm Griddle + Turbofan Convection Oven.
G58B[1] 4 Open Burners + 600mm Griddle + Turbofan Convection Oven.
G58A 2 Open Burners + 900mm Griddle + Turbofan Convection Oven.

[1] - Open Burner Options;

F - With Flame Failure Protection.
PF - With Pilot and Flame Failure Protection.

General

Specifications

A heavy duty, general purpose gas range created for compact modular kitchens. It has a high option
Cook Top / Griddle arrangement and is available on industrial adjustable feet or on robust rollers.

Open Burners are available in either 'PF' (Pilot and Flame Failure) or 'F' (Flame Failure Only) options.
Open Burner and Griddle options are fitted with individual flame failure for each open burner.

Griddles are fitted with pilot, flame failure and piezo ignition as standard.

Range is fitted with a turbofan convection oven which has pilot and flame failure with piezo ignition.
Easy clean stainless external finish.

3

Specifications

Gas Supply Requirements

- Australia:

Input Rate (N.H.G.C.)

- each Open Burner

Natural Gas LP Gas (Propane)

28 MJ/hr

28 MJ/hr

- each 300mm Griddle Section 21 MJ/hr 21 MJ/hr

- Oven 30 MJ/hr 30 MJ/hr

Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.95 kPa 2.6 kPa
Gas Connection

3

/4” B.S.P. Male

- New Zealand:

Input Rate (N.H.G.C.)

- each Open Burner

Natural Gas LP Gas

28 MJ/hr

28 MJ/hr

- each 300mm Griddle Section 21 MJ/hr 21 MJ/hr

- Oven 30 MJ/hr 30 MJ/hr

Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.95 kPa 2.6 kPa
Gas Connection

3

/4” B.S.P. Male

- UK Only:

Category: II

2H3P

(20, 37).

Flue Type: A1.

Natural Gas (G20) Propan e (G3 1)

Heat Input
(nett)

Gas Rate
(nett)

Supply Pressure
Burner Operating

Pressure (*)
Gas Connection

Nominal 6.5 kW 5.5 kW 7.8 kW 6.5 kW 5.5 kW 7.8 kW
Reduced 1.75 kW 1.85 kW --- 1.75 kW 1.95 kW ---
Nominal 0.69 m3/hr 0.58 m3/hr 0.83 m3/hr 0.51 kg/hr 0.43 kg/hr 0.61 kg/hr
Reduced 0.19 m3/hr 0.20 m3/hr --- 0.14 kg/hr 0.15 kg/hr ---

Open Burner

(each)

Griddle

(each 300mm section)

Oven Open Burner

(each)

(each 300mm section)

20 mbar 37 mbar

9.5 mbar 26 mbar

3

/4” B.S.P. Male

Griddle

Oven

* Measure burner operating pressure at manifold test point with two burners operating at full

setting. Operating pressure is ex-factory set through the appliance regulator and is not to be
adjusted, apart from when carrying out gas conversion, if required. (Refer to ‘Gas
Conversion’ section for details).

4

- All Other Markets:

Specifications

Input Rate (N.H.G.C.)

- each Open Burner

- each 300mm Griddle Section 21MJ/hr 21MJ/hr

- Oven 30 MJ/hr 30 MJ/hr

Supply Pressure 1.13 - 3.40kPa 0.75 - 1.50kPa
Burner Operating Pressure (*) 0.95kPa 0.63 Pa
Gas Connection See ‘Gas Connection’ information overleaf

Input Rate (N.H.G.C.)

- each Open Burner

- each 300mm Griddle Section 21MJ/hr 21MJ/hr

- Oven 30 MJ/hr 30 MJ/hr

Supply Pressure 2.75 - 4.50kPa 2.75 - 4.50kPa
Burner Operating Pressure (*) 2.6kPa 2.6kPa

Natural Gas Town Gas (**)

28MJ/hr 28MJ/hr

LP Gas (Propane) Butane

28MJ/hr 28MJ/hr

Gas Connection See ‘Gas Connection’ information overleaf

NOTE:

 (*) Measure Burner operating pressure at manifold test point with 2 burners operating at

'High Flame' setting.

 NAT, LPG & Butane Only - Operating pressure is ex-factory set and is not to be adjusted,

unless when converting between gases, if required.

 (**) TOWN GAS Only - Adjust burner operating pressure using adjustable gas regulator

supplied.

 Refer to ‘Gas Conversion and Specifications' section in this manual for further details.

Gas Connection

Gas supply connection point is located at rear of appliance, approximately 130mm from right hand
side, 32mm from rear and 655mm from floor and is reached from beneath appliance. (Refer to
‘Dimensions’ section).

Connection is ¾" BSP male thread.

Electrical Supply Requirements

230-240 V a.c, 50 Hz, 1.6A, 1P+N+E.

0.4kW.
Oven Fan Motor - 100W.

5

Dimensions

Dimensions G54

Cook Top Options G54D

Cook Top Options G54C

6

Dimensions G56D, G56C, G56B & G56A Models

Dimensions

Cook Top Options G56D

Cook Top Options G56B

Cook Top Options G56C

Cook Top Options G56A

7

Dimensions

Dimensions G58D, G58C, G58B & G58A Models

Cook Top Options G58D

Cook Top Options G58B

Cook Top Options G58C

Cook Top Options G58A

8

Installation

Installation Requirements

NOTE:

 It is most important that this appliance is installed correctly and that operation is correct

before use. Installation shall comply with local gas, electrical and health and safety
requirements.

 This appliance shall be installed with sufficient ventilation to prevent occurrence of

unacceptable concentrations of health harmful substances in room, appliance is installed
in.

Blue Seal Gas Range Convection Ovens are designed to provide years of satisfactory service, and correct
installation is essential to achieve the best performance, efficiency and trouble-free operation.

This appliance must be installed in accordance with National installation codes and in addition, in
accordance with relevant National / Local codes covering gas, electrical and fire safety.

AUSTRALIA: - AS 5601 - Gas Installations.
NEW ZEALAND: - NZS 5261 - Gas Installation.
Australia / New Zealand: - AS/NZS 3000 - Wiring Rules.
UNITED KINGDOM: - Gas Safety (Installation & Use) Regulations 1998.

- BS 6173 - Installation of Catering Appliances.

- BS 5440 1 & 2 - Installation Flueing & Ventilation.

- BS 7671 - Requirements for Electrical Installation.

IRELAND: - IS 820 - Non - Domestic Gas Installations.

Installation must be carried out by authorised persons only. Failure to install equipment to
relevant codes and manufacturer’s specifications shown in this section will void the
warranty.
Components having adjustments protected (e.g. paint sealed) by manufacturer are only
to be adjusted by an authorised service agent. They are not to be adjusted by the installation
person.

Unpacking

 Remove all packaging and transit protection from appliance including all protective plastic coating

from exterior stainless steel panels.

 Check equipment and parts for damage. Report any damage immediately to carrier and distributor.
 Report any deficiencies to distributor who supplied appliance.
 Check that available gas and electrical supply is correct to as shown on rating plate located on front

right hand corner of bottom sill.

Location

1. Installation must allow for a sufficient flow of fresh air for the combustion air su pply.

Combustion Air Requirements:

Natural Gas 37 m3/hr 51 m3/hr 66 m3/hr
LPG / Butane 38 m
Town Gas 37 m

G54 G56 G58

3

/hr 53 m3/hr 68 m3/hr

3

/hr 51 m3/hr 66 m3/hr

2. Installation must include adequate ventilation means, to prevent dangerou s build up of combustion
products.

3. Never directly connect a ventilation system to appliance flue outlet.

4. Position appliance in its approximate working position.

5. All air for burner combustion is supplied from underneath appliance. Legs must always be fitted and
no obstructions placed under or around base of the appliance, as obstructions will cause incorrect
operation and / or failure of the appliance.

NOTE: Do not obstruct or block the appliances flue. Never directly connect a ventilation system to

the appliance flue outlet.

9

Installation

Clearances

NOTE: Only non-combustible materials can be used in close proximity to this appliance.

Combustible Surface Non Com bustible Surface

Left / Right hand side 250mm (*) 0mm
Rear 100mm 0mm

* Side clearances can be 50mm when the adjacent surface is at least 100mm below cooking surface.

Assembly



This appliance is for professional use and is only to be used by qualified
persons.



Only authorised service persons are to carry out installation, servicing or gas
conversion operations.

Caution

NOTE:

 All Models are delivered completely assembled. No further assembly is required.
 This appliance is fitted with adjustable feet to enable appliance to be positioned securely

and level. This should be carried out on completion of gas connection. Refer to ‘Gas
Connection’ section.

Optional Accessories (Refer to Replacement Parts List)

 Plinth Kit. For installation details, refer to instructions supplied with each kit.
 Rear Adjustable Legs.

1. Check that all feet (or castors) are securely fitted.

2. Adjust feet to make convection oven range steady and level.

Gas Connection

NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON.

1. It is essential that gas supply is correct for appliance being installed and that adequate supply
pressure and volume are available. The following checks should be made before installation:-

a. Gas Type the appliance has been supplied for is shown on

coloured stickers located above gas connection and on rating
plate. Check that this is correct for gas supply, appliance is being
installed for. Gas conversion procedure is detailed in this manual.

b. Supply Pressure required for this appliance is shown in

‘Specifications’ section of this manual. Check gas supply to ensure
adequate supply pressure exists.

c. The Input Rate of this appliance is shown on Rating Plate and in

‘Specifications’ section of this manual. Input rate should be

Rating Plate

Location

checked against available gas supply line capacity. Particular

note should be taken if appliance is being added to an
existing installation.

Fig 1

NOTE: It is important that adequately sized piping runs directly to connection joint on appliance

with as few tees and elbows as possible to give maximum supply volume.

2. Fit gas regulator supplied, into gas supply line as close to appliance as possible.

NOTE: Gas pressure regulator provided with this appliance is convertible between Natural Gas and

LPG as shown in ‘Gas Conversion Section’ in this manual.
Ensure regulator is converted to correct gas type that appliance will operate on.
Regulator outlet pressure is fixed ex-factory for gas type that regulator is converted to and it

is NOT to be adjusted.

10

Installation

Regulator connections are 3/4" BSP female.
Connection to appliance is

3

/4" BSP male.

(Refer to ‘Specifications’ section for gas supply location dimensions).

NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line.

3. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that

appliance is level and at correct height.

4. Connect gas supply to appliance. A suitable jointing compound which resists breakdown action of

LPG must be used on every gas line connection, unless compression fittings are used.

5. Check all gas connections for leakages using soapy water or other gas detecting equipment.

Warning

DO NOT USE A NAKED FLAME TO CHECK FOR GAS LEAKAGES.

6. Check gas operating pressure is as shown in the ‘Specifications’ section.

NOTE: Measure burner operating pressure at manifold test point

with two burners operating at ‘Full’ setting.

Manifold
Test Point

7. Verify operating pressure remains correct.

Electrical Connection

Fig 2

NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY AN AUTHORISED

PERSON.

Each appliance should be connected to an adequately protected power supply and isolation switch mounted
adjacent to, but not behind appliance. This switch must be clearly marked and readily accessible in case of
fire.

1. Check electricity supply is correct as shown on Rating Plate attached to front right hand corner of

bottom sill.

2. Appliance is fitted with a 10 Amp, 3 pin plug cordset for connection to a properly earthed, 3 pin

switched electrical socket.

Commissioning

1. Before leaving the new installation;

a. Check the following functions in accordance with operating instructions specified in ‘Operation’

section of this manual.

 Lighting the Griddle.
 Light the Open Burners. (F - Flame Failure Option).
 Light the Open Burners. (PF - Pilot and Flame Failure Option).
 Check the Low Fire Burner operation.
 Check the High Fire Burner operation.
 Light the Oven Pilot and Main Burners.
 Check the Oven Main Burner Thermostat operation.
 Check the Oven Fan operation.

b. Ensure operator has been instructed in areas of correct lighting, operation, and shutdown

procedure for appliance.

2. This manual must be kept by owner for future reference, and a record of

and

of Installation

Serial Number of Appliance

recorded and kept with this manual. (

Date of Purchase, Date

These
details can be found on Rating Plate attached to front right hand corner of bottom sill.
Refer to ‘Gas Connection’ section)

.

NOTE: If it is not possible to get appliance to operate correctly, shut off gas supply and contact

supplier of this appliance.

11

Operation

Operation Guide



This appliance is for professional use and is only to be used by qualified
persons.



Only authorised service persons are to carry out installation, servicing or gas
conversion operations.



Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.

Caution

1. Blue Seal appliances have been designed to provide simplicity of operation and 100% safety
protection.

2. Improper operation is almost impossible, however bad operating practices can reduce the life of the
appliance and produce a poor quality product. To use this appliance correctly please read the
following sections carefully:-

 Lighting the Open Burners (F - Flame Failure Option).
 Lighting the Open Burners (PF - Pilot and Flame Failure Option).
 Lighting the Griddles (If fitted).
 Oven Pilot Ignition.
 Oven Main Burner / Thermostat.
 Oven Fan.

Gas Control Knobs

Griddle Option

Burner Control

 Turning Oven to ‘Stand-By’ Mode.
 Oven ‘Shut-Down’.

Description of Controls

OFF Position

PILOT Burner

HIGH Flame

LOW Flame

Piezo Igniter (Griddle)
(Located here when fitted

with Griddle Option)

Fig 3

Heating Indicator
Lamp (Amber)

Power Indicator
Lamp (White)

Piezo Igniter (Oven)

Oven Thermostat

Temperature
Graduations 50°C to
320°C

Oven Gas Control

OFF Position

PILOT Burner

HIGH Flame

Open Burner Option

OFF Position

HIGH Flame

LOW Flame
Rear Burner
Front Burner

(Indicators located above
the Gas Control Knobs).

12

Operation

Open Burners ('F' - Flame Failure Option)

Lighting the Open Burners

Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which
will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not
expelled.

a. Select burner required, depress and turn the gas control knob anti-clockwise to ‘HIGH’ position.
b. Hold gas control knob depressed and manually light main burner.
c. Release gas control knob after approximately 10-20 seconds after lighting burner.
d. Burner should stay alight - if not, repeat Steps (a. to (c. above.
e. To adjust the temperature required, depress and rotate gas control knob between ‘HIGH’ and

‘LOW’ positions.

Turning 'OFF' the Open Burners

a. When main burner is not required, depress and turn gas control knob clockwise back to ‘OFF’

position. 'MAIN' burner will extinguish.

Open Burners ('PF' - Pilot and Flame Failure Option)

Lighting the Open Burners

These hobs are fitted with individual standing pilots for each open burner which allows main burners
to be turned 'ON' - 'OFF' without having to manually re-light burner each time that it is turned 'ON',
as burner will automatically light itself off the pilot burner.
Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which
will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not
expelled.

a. Select burner required, depress and turn the gas control knob anti-clockwise to ‘PILOT’ position.
b. Hold gas control knob depressed and manually light pilot burner.
c. Release gas control knob after approximately 10-20 seconds after lighting pilot burner.
d. Pilot burner should stay alight - if not, repeat Steps (b. to (c. above.

e. To select ‘Full Flame’, depress and rotate gas control knob anti-clockwise to first stop 'HIGH'

flame position.

f. To select ‘Low Flame’, depress and rotate gas control knob fully anti-clockwise to ‘LOW' flame

position.

g. To adjust the temperature required, depress and rotate gas control knob between ‘HIGH’ and

‘LOW’ positions.

Turning 'OFF' the Open Burners / Pilots

a. To turn 'OFF' main burner, but keep pilot burner alight, rotate gas control knob to 'PILOT'

position. Main burner will extinguish and pilot will remain alight.

b. To turn 'OFF' the 'PILOT', depress and turn gas control knob clockwise back to ‘OFF’ position.

'PILOT' burner will extinguish.

13

Operation

Griddle

Lighting the Griddle

a. Depress gas control knob and rotate anti-clockwise to ‘PILOT’ position.
b. Hold gas control knob depressed, press piezo ignition button to ignite pilot burner. Repeat Items

1 to 2 until pilot is lit.
c. Release gas control knob approximately 10-20 seconds after lighting pilot.
d. Pilot should now remain alight - if not, repeat Steps (b. to (c. above.
e. To select ‘Full Flame’, depress and rotate gas control knob anti-clockwise to ‘HIGH’ position.
f. To select ‘Low Flame’, depress and rotate gas control knob fully anti-clockwise to ‘Low Flame’

position.
g. When main burner is not required, depress and turn gas control knob clockwise back to ‘OFF’

position.

Turning 'OFF' the Griddle Burner / Pilot

a. To turn 'OFF' griddle, but keep pilot burner alight, rotate gas control knob to 'PILOT' position.

Griddle burner will extinguish and pilot will remain alight.
b. To turn 'OFF' 'PILOT', depress and turn gas control knob clockwise back to ‘OFF’ position. 'PILOT'

burner will extinguish.

Oven Pilot Ignition

! IMPORTANT

DO NOT USE aluminium foil or trays directly on cast iron sole plate(s). NEVER block or cover
openings on each side of sole plate(s).

This oven is fitted with a pilot as a standard option and flame failure protection, which is incorporated by
way of a thermo-electric system for the main burner. Flame failure protection will shut off gas supply to
burner in the event that pilot burner goes out, so that un-burnt gas is not expelled.

safety feature which is slowly becoming law throughout the world

.

This is an important

1. Open oven door.

2. Depress oven gas control knob and rotate anti-clockwise
to ‘PILOT’ position.

Pilot Burner

Inspection Covers

3. While holding oven gas control knob depressed, press
piezo ignition button to ignite pilot burner. Repeat Items
1 and 2 until pilot burner is lit.

4. Release gas control knob approximately 10-20 seconds
after lighting pilot.

5. Pilot should now remain alight - if not, repeat Steps 2 to
3 above.

6. Ensure that pilot burner is alight by opening pilot burner

Pilot Burner
viewing holes

Sole Plate

Fig 4

inspection covers and looking through pilot burner
viewing holes in cast oven sole plate.

NOTE: Ensure that pilot burner inspection covers are closed once pilot is lit.

14

Operation

Oven - Main Burner / Thermostat

1. Ensure oven door is closed.

2. Turn ‘ON’ electrical power at mains supply, (white) power indicator light will illuminate on oven
control panel.

3. With pilot burner alight, depress and rotate oven gas control knob to 'Main Flame' position. (This
puts gas valve in 'Stand-By' position and control of main burner is now carried out through oven
thermostat control).

4. Turn oven thermostat to desired oven temperature setting required, this will regulate gas supply to
oven main burner.

5. Oven fan will start up and oven main burner will ignite.

6. Amber heating indicator light will show that oven main burner is ‘ON’ and oven is heating. When
amber heating indicator light goes out, oven has reached pre-selected temperature, burner will cycle
‘OFF’.

Oven Fan

1. Fan is operational only when oven thermostat is set to a temperature. Fan is controlled by a
microswitch which in turn is controlled by opening and closing oven door. Oven fan is operational
only with oven door closed.

Turning the Oven to ‘Standby’ (Pilot ‘ON’ Only)

1. To turn ‘Off’ oven main burner / heating, set oven thermostat to '0' temperature position, this will
turn oven main burner ‘OFF’, but will leave oven pilot burner ‘ON’.

2. In this position pilot burner will remain alight, but oven main burner will not operate until thermostat
control knob is set to a temperature.

3. If oven pre-heating is required, set thermostat control knob to temperature 190°C and allow 20
minutes before cooking in oven to allow oven to warm up.

Oven ‘Shut-Down’

1. To ‘Shut Down’ oven, turn oven thermostat to ‘0’ position, oven main burners will go out.

2. Turn gas control valve to 'OFF' position and this will extinguish pilot burner. (To relight pilot burner,
refer to ‘Oven Pilot Ignition’ above).

3. Turn ‘OFF’ electrical power at mains supply, (white) power indicator light will extinguish.

NOTE: If main burner has recently been turned 'OFF', should you wish to re-light oven, the

interlock will not allow gas valve to be turned to main burner position until interlock has
reset (Approximately 1 minute). DO NOT FORCE GAS VALVE TO MAIN BURNER POSITION
UNTIL INTERLOCK HAS RESET, as this will damage gas control valve.

IMPORTANT:

Should any abnormal operation like;

- ignition problems,

- abnormal burner flame,

- burner control problems,

- partial or full loss of burner flame in normal operation, appliance requires IMMEDIATE
service by a qualified service person and should not be used until a service is carried out.

15

Cleaning and Maintenance

Before Commencing Cleaning

Always turn off the gas / electrical supply before cleaning the appliance.
This appliance is not water proof. Do not use water jet spray to clean interior

or exterior of this appliance.

Caution

NOTE:

 Allow appliance to cool before commencing cleaning.
 DO NOT use abrasive or strong caustic detergents as they could corrode or damage the

Cooktop.

 Ensure that any detergent or cleaning material has been completely removed after each

cleaning.

To keep your Cooktop clean and operating at peak efficiency, follow the procedures shown overleaf:-

Griddle Plate

Grease Tray

Burner Mounting Rail

Spill Tray

Pot Stand

Burner Cap

Burner Body

16

Cleaning and Maintenance

Open Burner Cleaning

1. Remove pot stands, burner caps, burner bowls
and pot stand supports from top of cooktop.
Wash with hot soapy water, using a soft
bristled brush. Dry thoroughly with a dry cloth.
Any baked-on deposits can be scraped off
using a scraper tool.

NOTE: Pot stands, burner bowls and pot stand

supports can be washed in a dish
washer. Do Not wash burner caps in
dishwasher.

Burner Cap

Burner Body

2. Burner mounting rails should not be removed.
Clean in situ with hot soapy water.

Burner Mounting

Rail

Pot Stand

Support

3. Clean burner venturi with a bottle brush and
hot soapy water, as required.

Bottle Brush

Burner Venturi

4. Empty spill tray and wash with warm soapy
water.

5. Dry all components thoroughly and
re-assemble.

Griddle Plate Cleaning

It is recommended that a flat blade scraper is used
to clean the griddle surface, these are not supplied
with griddle but may be purchased separately.
Refer to 'Replacement Parts List' at rear of this
manual.

T

HE BLADES FITTED TO THE SCRAPER TOOL ARE EXTREMELY SHARP

Always ensure that even pressure is
applied over whole surface of scraper tool
when using on flat surface of griddle, to
prevent scoring of griddle surface.

NEVER bang sharp edge of scraper tool on
flat surface of griddle as this will damage
the griddle and invalidate the warranty.

AND ARE TO BE USED WITH CARE.

Warning

Caution

1. Clean griddle plate surface thoroughly with a
scraper tool and brush off any deposits with a
soft bristled brush.

2. Stubborn or accumulated carbon deposits can
be removed with a griddle stone or a scotch
bright pad.

3. Wipe down griddle surface with a cloth and
then clean with hot soapy water and a soft
bristled brush. Dry thoroughly with a dry cloth.

4. Occasionally bleach griddle plate with vinegar
when plate is cold.

5. Empty grease tray and wash with warm soapy
water. Dry thoroughly with a dry cloth. Refit
grease tray.

6. Briefly turn ‘On’ griddle until griddle plate is
dry.

7. Spread a thin smear of cooking oil over griddle
plate to form a protective film.

17

Cleaning and Maintenance

Oven Interior Cleaning

1. Do not use wire brushes, steel wool or other
abrasive materials to clean oven interior.

2. Clean oven regularly with a good quality
domestic oven cleaner.

3. Weekly - Remove and clean any built up of
grease etc. from oven racks and bottom spill
cover.

4. Dry oven thoroughly with a dry cloth and polish
with a soft dry cloth.

Stainless Steel Surfaces

1. Clean stainless steel surfaces with hot soapy
water and a soft bristled brush.

2. Baked on deposits or discolouration, use a
good quality stainless steel cleaner or stainless
steel wool. Always rub in direction of grain.

18

Fault Finding

This section provides an easy reference guide to more common problems that may occur during operation
of your appliance. The fault finding guide in this section is intended to help you correct, or at least
accurately diagnose problems with your equipment.

Although this section covers most common problems reported, you may encounter a problem not covered
in this section. In such instances, please contact your local authorised service agent who will make every
effort to help you identify and resolve the problem. Please note that the service agent will require the
following information:-

 Model Code and Serial Number of appliance. (Both can be found on the Rating Plate

located on the appliance).

Fault Possible Cause Remedy

Pilot won’t light. No gas supply.

Blocked pilot injector.

Pilot goes out when gas control
knob released.

Main burner will not light. Incorrect supply pressure.

Releasing knob before thermo­couple has heated.

Pilot flame too small.

- Gas pressure too low.

- Partially blocked pilot injector.
Thermocouple connection to gas

control is loose or faulty.
Thermocouple faulty.

Electromagnet in rear of gas con­trol unit is faulty.

Faulty gas control.

Ensure gas isolation valve is turned
on, and bottles are not empty.

Call service provider.
Hold knob in for at least 20

seconds following ignition of pilot.
Clean or replace pilot injector.

Tighten thermocouple connection.

Check thermo couple is producing
between 20-30mV.

Inspect and replace if not in good
working order.

Call service provider.

Call service provider.
Call service provider.

Piezo Ignition spark is being
generated but not sparking
from ignition electrode to pilot
burner hood. (On Griddle and
Oven Options).

NOTE: Components having adjustments protected (e.g. paint sealed) by the manufacturer, are only

to be adjusted by an authorised service agent. They are not to be adjusted by an
unauthorised service person.

HT lead damaged or broken.
Check ignition electrode is not

cracked and is correctly
positioned.

Piezo igniter faulty.

19

Repair or replace the HT lead.
Re-position or replace ignition

electrode.

Replace piezo igniter.
Call service provider.

Wiring Schematic

G54 / G56 / G58

WHEN VIEWED FROM INSIDE OVEN

FAN DIRECTION ANTI-CLOCKWISE

E

13

12

E

GREEN

MOTOR

GREEN
BLUE
BLACK
BROWN

BLOCK

TERMINAL

12

11

GREEN
BLUE

8

10

BLUE

P N

7

BROWN

BLACK

11

BROWN

6

CAPACITOR

8

HEAT

8

1

2

ORANGE/CLEAR

CORDSET

10

6

E

7

1

3

4

1

11

N.O.

2

1

5

GREEN

P5

2

POWER

5

11987 THERMOSTAT

9

4

COM

003004

MICROSWITCH

5

20

7

Conversion Procedure

Gas Conversion and Specifications

Ensure that the Appliance is isolated from the gas supply before commencing

servicing.

Caution

NOTE:



These conversions should only be carried out by qualified persons. All connections must be
checked for leaks before re-commissioning the appliance.

 Adjustment of components that have adjustments / settings sealed (e.g. paint sealed) can only be

adjusted in accordance with the following instructions and shall be re-sealed before
re-commissioning this appliance.

 For relevant gas specifications refer to ‘Gas Specifications Tables’ at end of this section.

Open Burners.

1. Remove the pot stands, burner caps and burner bodies and the pot stand supports.

2. Remove injectors and replace with correct size injectors as sh own in ‘Gas Specifications Tables’ at
end of this section.

For F Options Only,

Unscrew and remove Main Injectors.

For PF Options Only,

Unscrew and remove Main and
Pilot Injectors.

3. Refit the pot stand supports, pot stands, burner caps and burner bodies.

4. Re-light main burners and check flame size on simmer (LOW) position.



Adjust low fire adjustment screw on open burner gas control valves to
obtain desired flame size.

NOTE: The 'Low Fire Screw' should be sealed with coloured paint on

completion of low fire adjustment.

21

Low Fire Screw

Gas Conversion and Specifications

Griddle

Piezo Igniter

1. Carry out the following:-

 Remove griddle plate section and heat

shield.

 Remove main burner.
 Disconnect piezo igniter from mounting

bracket. (For access purposes).

Pilot Burner

 Disconnect pilot supply tube from pilot

burner to access pilot injector.

2. With Main Burner removed, ensure aeration gap is adjusted for
type of gas being used as shown in ‘Gas Specifications Tables’
at rear of this section.

3. Remove pilot and main injectors and replace with correct size
injectors as shown in ‘Gas Specifications Tables’ at rear of this
section.

4. Refit the following:-

 Re-connect pilot supply tube to pilot burner.
 Re-connect piezo igniter to mounting bracket.
 Refit main bu rner, gas control heat shield and griddle plate to cooktop.

5. Re-light main burners and check flame size on ‘Low’ flame position.

Pilot Supply

Tube

Main Burner Injector

Burner Adjustment Screw

Aeration Slide

Adjust low fire adjustment screw on open burner gas control valves to



obtain desired flame size.

NOTE: The 'Low Fire Screw' should be sealed with coloured paint on

completion of low fire adjustment.

Convection Oven

1. Carry out the following:-

Thermocouple

Piezo Igniter

 Remove lower lintel at front of oven.
 Open oven door and remove sole plate(s).
 Loosen clamp bracket and remove main

Pilot Burner
Main Burner

burner.

 Remove thermocouple and piezo igniter

from mounting bracket. (For access
purposes).

 Disconnect pilot supply tube from pilot

burner to access pilot injector.

Main Burner Injector

2. With Main Burner removed, ensure aeration gap is adjusted for
type of gas being used as shown in ‘Gas Specifications Tables’ at
end of this section.

Low Fire Screw

Aeration Slide

22

Burner Adjustment Screw

Gas Conversion and Specifications

3. Remove pilot and main injectors and replace with correct size injectors as shown in ‘Gas
Specifications Tables’ at end of this section.

4. Refit the following:-

 Re-connect pilot supply tube to pilot burner.
 Re-connect piezo igniter and thermocouple to mounting bracket.
 Refit main burner and secure clamp bracket.
 Refit sole plate(s) and lower lintel.

NOTE: There is no 'Low Fire' adjustment on the gas control valve for the GC Oven.

 Refit the oven control panel.

Gas Regulator

NOTE: Gas regulator supplied is

convertible between Natural
Gas and LP Gas, but it’s outlet
pressure is fixed ex-factory
and is NOT to be adjusted.

- Town Gas Only.

1. Remove slotted cap from regulator.

2. Turn ‘On’ gas supply and appliance.

3. Adjust pressure adjusting screw to achieve correct burner
operating pressure.

NOTE: Measure operating pressure at manifold test point

with two burners operating at 'High Flame' setting.

4. Verify operating pressure remains correct (Re-adjust regulator if required).

5. Screw cap nut back onto regulator.

Gas Type Identification Label

NOTE, Pin rotated
for Natural Gas

NOTE, Pin rotated
for LPG

Cap Nut

Pressure Adjusting

Screw

On completion of gas conversion, replace gas type identification label located at:-

- Rear of appliance, above gas connection.

- Beside the rating plate.

Commissioning

Before leaving the installation;

1. Check all gas connections for leakage using soapy water or other gas detecting equipment.

Warning

DO NOT USE A NAKED FLAME TO CHECK FOR GAS LEAKAGES.

2. Carry out a ‘Commissioning’ check of appliance as shown in Installation Section of this manual.

3. Ensure any adjustments done to components that have adjustments / settings paint sealed are to be
re-sealed.

23

Gas Conversion and Specifications

Gas Specifications

- Australia:

Open Burner

Griddle

Oven

Supply Pressure
Burner Operating Pressure (*)

Gas Regulator Cap Screw

- New Zealand):

Open Burner

Griddle

Oven

Supply Pressure
Burner Operating Pressure (*)

Main Burner Injectors
Pilot Burner ('PF' Option Only)
Main Burner
Pilot Burner
Burner Aeration Setting
Main Burner
Pilot Burner
Burner Aeration Setting

Main Burner Injectors
Pilot Burner ('PF' Option Only)
Main Burner
Pilot Burner
Burner Aeration Setting
Main Burner
Pilot Burner
Burner Aeration Setting

Natural Gas LP Gas (Propane)

Ø 2.45mm Ø 1.50mm

0.30 0.20

Ø 2.10mm Ø 1.30mm

0.35 0.23
Fully Open Fully Open
Ø 2.60mm Ø 1.60mm

0.35 0.23
Fully Open Fully Open

1.13 - 3.40 kPa 2.75 - 4.50 kPa

0.95 kPa 2.6 kPa

Natural Gas LP Gas

Ø 2.45mm Ø 1.50mm

0.30 0.20
Ø 2.10mm Ø 1.30mm

0.35 0.23
Fully Open Fully Open
Ø 2.60mm Ø 1.60mm

0.35 0.23
Fully Open Fully Open

1.13 - 3.40 kPa 2.75 - 4.50 kPa

0.95 kPa 2.6 kPa

Gas Regulator Cap Screw

- (*) Measure burner operating pressure at manifold test point with two burners operating at full setting.
Operating pressure is ex-factory set, through the appliance regulator and is not to be adjusted, apart from
when carrying out Gas Conversion, if required. (Refer to information in this section for details).

24

- UK Only:

Category: II
Flue Type: A1.

2H3P

(20, 37).

Gas Conversion and Specifications

Open Burner

Griddle

Oven

Supply Pressure
Burner Operating Pressure (*)

Gas Regulator Cap Screw

Main Burner Injectors
Pilot Burner ('PF' Option Only)

Main Burner
Pilot Burner
Burner Aeration Setting

Main Burner
Pilot Burner
Burner Aeration Setting

Natural Gas (G20) Propane (G31)

Ø 2.30mm Ø 1.40mm

0.30 0.20

Ø 2.10mm Ø 1.30mm

0.35 0.23
Fully Open Fully Open
Ø 2.60mm Ø 1.60mm

0.35 0.23
Fully Open Fully Open

20 mbar 37 mbar

9.5 mbar 26 mbar

- (*) Measure burner operating pressure at manifold test point with two burners operating at full setting.
Operating pressure is ex-factory set, through the appliance regulator and is not to be adjusted, apart from
when carrying out Gas Conversion, if required. (Refer to information in this section for details).

25

Gas Conversion and Specifications

- All Other Markets:

Open Burner

Main Burner Ø 2.45mm Ø 4.50mm

Natural Gas Town Gas (**)

Pilot Burner ('PF' Option Only) 0.30 0.60
Main Burner Ø 2.10mm Ø 3.40mm

Griddle

Pilot Burner 0.35 0.60
Burner Aeration Setting Fully open Fully open

Main Burner Ø 2.6mm Ø 5.0mm

Oven

Pilot Burner 0.35 0.60
Burner Aeration Setting Fully Open Fully Open

Supply Pressure 1.13 - 3-4 kPa 0.75 - 1.50 kPa
Burner Operating Pressure (*) 0.95 kPa 0.63 kPa

Adjustable Regulator

(Adjust to Burner Operating

Pressure specified).

Gas Regulator Cap Screw

LP Gas (Propane) Butane

Open Burner

Griddle

Oven

Supply Pressure
Burner Operating Pressure (*)

Gas Regulator Cap Screw

Main Burner
Pilot Burner ('PF' Option Only)

Main Burner
Pilot Burner
Burner Aeration Setting

Main Burner
Pilot Burner
Burner Aeration Setting

Ø 1.50mm Ø 1.40mm

Ø 1.30mm Ø 1.20mm

Ø 1.60mm Ø 1.45mm

NOTE:

 (*) Measure Burner operating pressure at manifold test point with two burners operating at

'High Flame' setting.

 NAT, LPG & Butane Only - Operating pressure is ex-factory set and is not to be adjusted,

unless when converting between gases, if required.

 (**) TOWN GAS Only - Adjust burner operating pressure using adjustable gas regulator

supplied.

0.20 0.20

0.23 0.23
Fully open

0.23

Fully Open

2.75 - 4.50 kPa

2.6 kPa

26

Replacement Parts

Replacement Parts List

IMPORTANT:

Only genuine authorized replacement parts should be used for servicing and
repair of this appliance. Instructions supplied with parts should be followed
when replacing components.

For further information and servicing instructions, contact your nearest
authorized service branch (contact details are as shown on reverse of front
cover of this manual).

When ordering replacement parts, please quote part number and description as listed below. If part
required is not listed below, request part by description and quote model number and serial number which
is shown on rating plate.

Cooktop

Open Burners

235678 Burner Body.
227017 Burner Cap.
030245 Injector (Nat. Gas) Ø 2.45mm.
030230 Injector (Natural Gas - G20) Ø 2.30mm (UK Only).
030150 Injector (LP Gas / Propane) Ø 1.50mm.
030140 Injector (LP Gas / Butane) Ø 1.40mm.
030450 Injector (Town Gas) Ø 4.50mm.
026134 Pilot Injector (Nat Gas) 0.30.
026136 Pilot Injector (LP Gas / Butane) 0.20.
232309 Pilot Injector (Town Gas) 0.60.

229442 Pilot Bracket Assembly.
229444 Pilot Burner Shield.
227379 Knob - Open Burner (Standard).
227378 Knob - Open Burner (with Pilot).
227403 Gas Control (with Pilot and Flame Failure).
227405 Gas Control (With Flame Failure).
228167 Thermocouple - Front.
228166 Thermocouple - Rear.

Griddle

014105 Burner.
032210 Burner Injector (Nat. Gas) Ø 2.10mm.

032130 Burner Injector (LP Gas) Ø 1.30mm.
032120 Burner Injector (Butane) Ø 1.20mm
032340 Burner Injector (Town Gas) Ø 3.40mm.

026488 Pilot Injector (Nat. Gas) 0.35.
019217 Pilot Injector (LP Gas / Butane) 0.23.
018067 Pilot Injector (Town Gas) 0.60.

227403 Gas Control (with Flame Failure and Pilot).
227378 Knob - Griddle.
019215 Pilot Burner.
019428 Thermocouple.
227508 Piezo Ignitor.
228047 Piezo H.T. Lead.
018744 Piezo Ignition Electrode.
228288 Grease Tray (Griddle Plates).

27

Replacement Parts

Oven

232234 Knob Thermostat 80-300°.
227933 Oven Burner.
018691K Oven Pilot.
020253 Oven Thermocouple.
018743 Thermocouple Spacer.

032260 Burner Injector (Nat Gas) Ø 2.60mm.
032160 Burner Injector (LPG) Ø 1.60mm.
032145 Burner Injector (Butane) Ø 1.45mm.
032500 Burner Injector (Towns Gas) Ø 5.00mm.

026488 Pilot Injector (Nat. Gas) 0.35.
019217 Pilot Injector (LPG / Butane) 0.23.
018067 Pilot Injector (Town Gas) 0.60.

011987 Thermostat.
020103 Gas Control.
227508 Piezo Ignitor.
019407 H.T Lead.
019479K Motor Kit.
010866 Cooling Disc.
228116 Fan 200 x 40mm.
010909 Motor Capacitor 4µf.
026160 Terminal Block - Mains.
228704 Door Spring Kit.
227963 Indicator Neon Amber.
228922 Indicator Neon White.
228938 Door Microswitch.
230268 Pilot Viewing Hole Lid.
748001 Taptite Screw M5 x 16.
044018 Nut M5 Glenloch Locknut.

General

227014 Pot Stand.
230282 Spill Tray - 750mm (G54 Series).
230273 Spill Tray - 450mm (G56 Series).
230277 Spill Tray - 600mm (G58 Series).
227892 Side Rack LH.
227893 Side Rack RH.
023068 Side Rack Screw.
232350 Baffle.
227896 Oven Rack (G56 / (G58 Series).
228106 Oven Rack (G54 Series).
227850 Adjustable Leg - 150mm.
229674 Rear Roller Assy.

Accessories

228566 Griddle Scraper Tool.
228567 Smooth Plate Scraper Blades (Pack of 5 Blades).
228568 Ribbed Plate Scraper Blade (Individual Blade).
228797 750mm Plinth Kit.
228800 900mm Plinth Kit.
228804 1200mm Plinth Kit.

28

Gas Regulators

Replacement Parts

Gas Type

Part No.

Description

Nat. Gas

Gas Regulators

LPG

228531 ¾” B S P F / F Co n v e r t i b l e .

Butane

Town Gas 230185 ¾” B S P F / F A d j u s ta b l e .

Gas Conversion Kits

Models

'F' Models

G54
G56
G58
G54
G56

Nat. Gas LPG Butane Town Gas

231885 231884 231886 231887
231889 231888 231890 231891
231893 231892 231894 231895
231897 231896 231898 231899
231901 231900 231902 231903

Gas Type to Convert to

Nat. Gas (UK)

231909
231911
231913
231915
231917

Propane (UK)

231908
231910
231912
231914
231916

G58

'PF' Models

231905 231904 231906 231907

231919

231918

NOTE: Each gas conversion kit is universal for all hob open burners and griddle variations

possible within the model specified.

29
