MW-Series Ionizer fan
Operating Instructions
for replacing the electrode needle hub
1
A. Overview
PO WER
A LAR M
H .V
ION ADJ
OFF
ON
MW-05
O
I

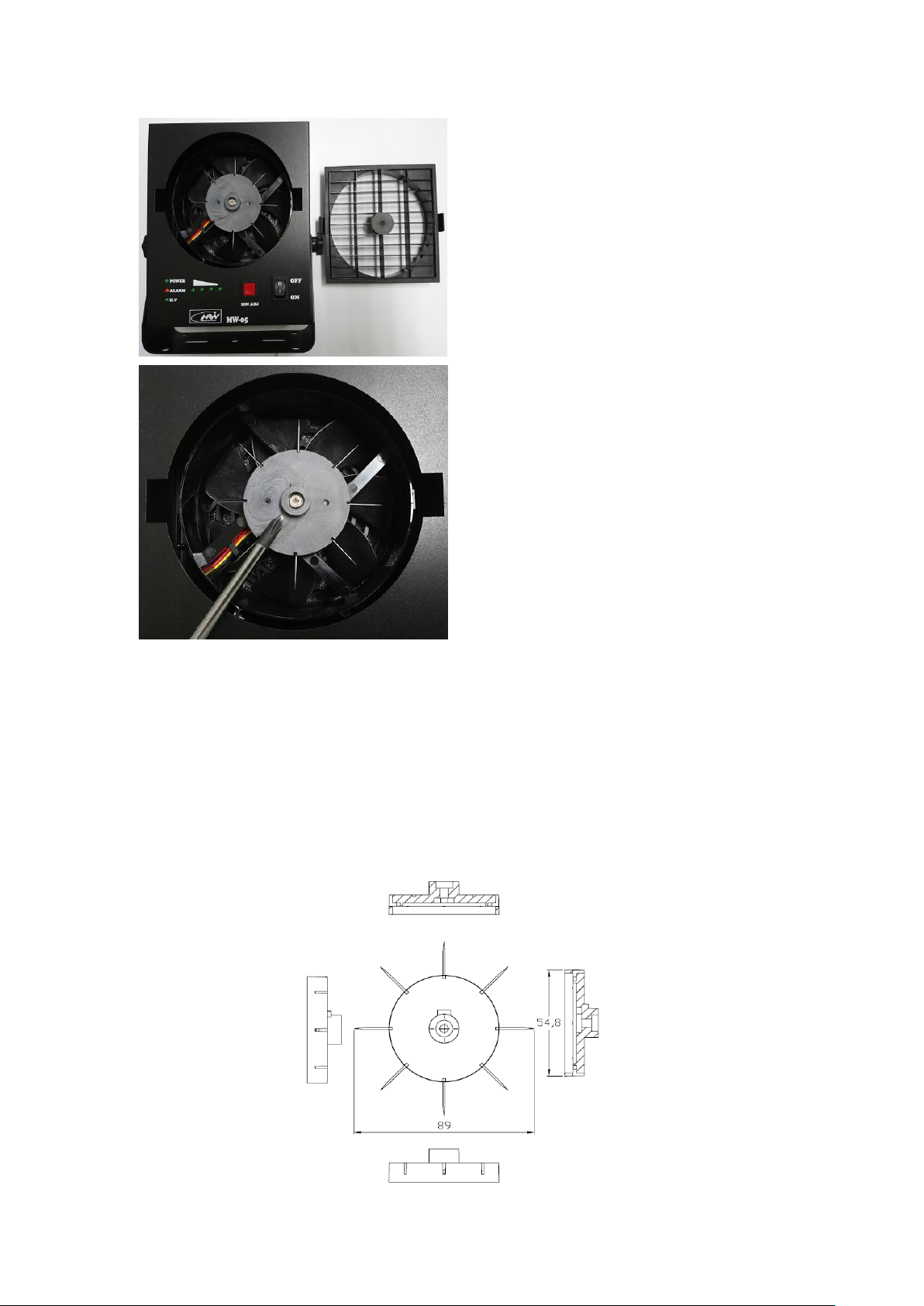

Step 1. Unplug the power supply and lay
the MW-Series Ionizer Fan on a
flat surface.
Step 2. Push the latches on both sides of
the Fan Cover (the position of
the blue arrow in the left figure)
and remove the Fan Cover.
Fan Cover
B. Instructions
2
Step 3. After removing the Fan Cover, as
shown in the left figure.
Step 4. Use a Phillips screwdriver to
remove the electrode needle hub
unit.
Step 5. Replace MW-DN01 to new
product.
C. Attention
1. The tip of the electrode needle is sharp. Be careful in installation to prevent
stab wounds.
2. The electrode needle hub has the positioning groove, which must be installed
after positioning.
D. Dimension
3
E. Specification of Outer Case

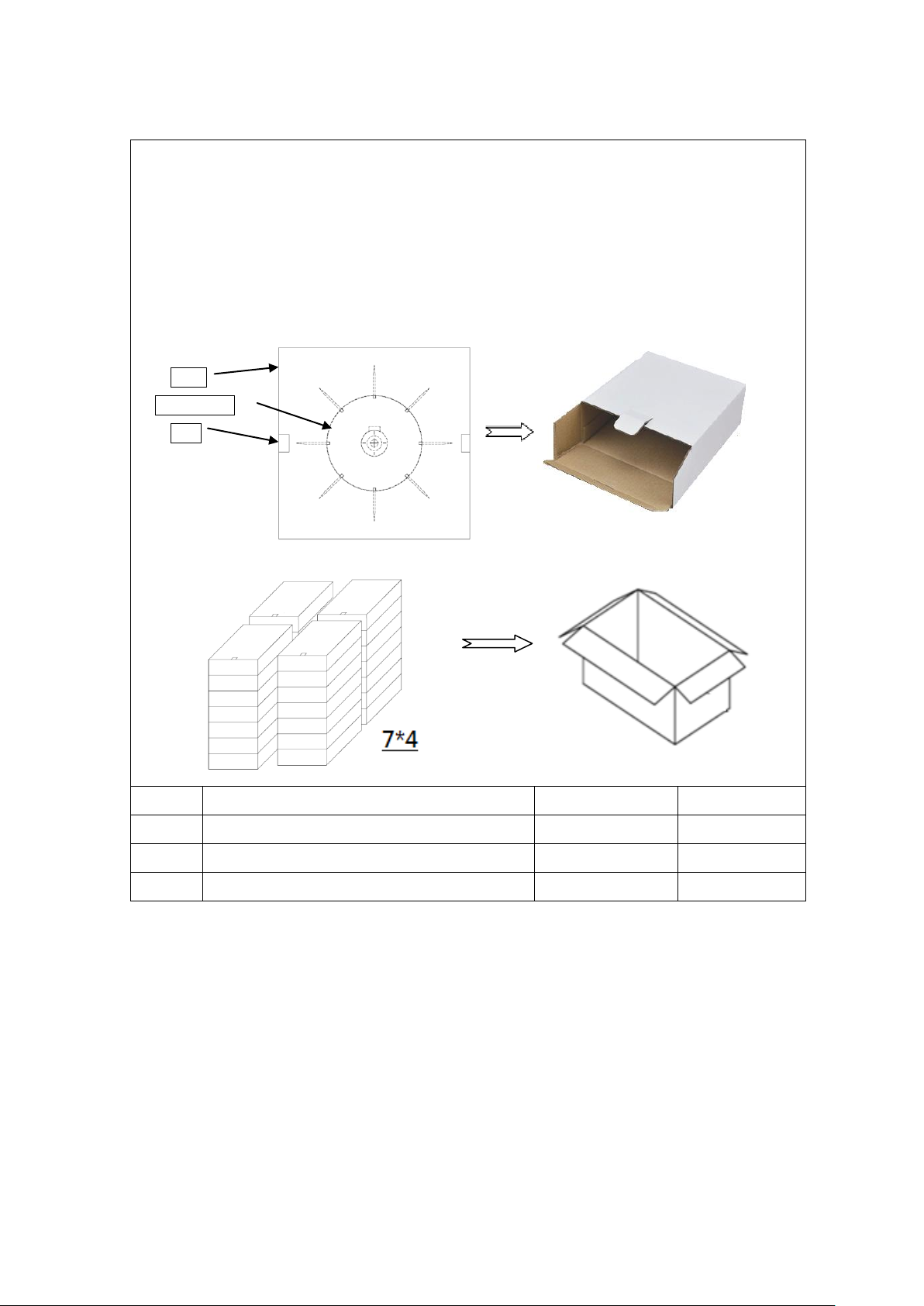

1. The electrode needle is covered with 2 pieces of foams
and the sides are fixed with tape.
2. Place the 2PCS electrode needle hub in the
110mm*110mm*35mm paper box.
3. 110mm*110mm*35mm carton 7 pcs is 1 stack.
4. 251mm*242mm*270mm carton can be put into 28pcs
carton.
Foam
MW-DN01
Tape
110mm*110mm*35mm paper box
251mm*242mm*270mm carton
ITEM
NAME
Qty
pcs
01
Electrode needle hub MW-DN01
1
1
02
110mm*110mm*35mm paper box
1
2
03
251mm*242mm*270mm carton
1
56
4
