OPERATORS MANUAL

IMPORTANT SAFETY INSTRUCTIONS

These symbols are internationally accepted symbols that warn of potential hazards with electrical products.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments / accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long periods oftime.

13. Refer all servicing to qualified personnel. Servicing is required when the apparatus is damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Walter Nash Road, Kidderminster, Worcestershire. DY11 7HJ. England

Tel: +44 1562 741515. Fax: +44 1562 745371

Company Registration No: 2414018

abc abc

SIGNAL PROCESSING BY DEFINITION DESIGNEDFOR APUREPERFORMANCE

DECLARATION OF CONFORMITY

We,

of, Klark Teknik Building, Walter Nash Road, Kidderminster, Worcestershire, DY11 7HJ.

Declare that a sample of the following product:-

to which this declaration refers, is in conformity with the following directives and/or standards:-

Klark Teknik Group (UK) Plc

Product Type Number Product Description Nominal Voltage (s) Current Freq

A Subsidiary of Telex Communications, Inc.

Verona Professional Audio 115V AC 2.2A 50/60Hz

Mixing Desk 230V AC 1.1A

Directive(s) Test Standard(s)

Generic Standard using EN55103 Limits and Methods Class B Conduct Emissions EN55103 Class B Radiated Emissions EN55103 Fast Transient Bursts EN61000-4-4 Static Discharge EN61000-4-2 Electrical Safety

EN60065:2002 UL60065-03 CAN/CSA60065-03 IEC60065-2001

Pending

Signed:............................ Date: 1st January 2004

Name: Simon Harrison

Authority: Research and Development Director, Klark Teknik Group (UK) Plc

Attention! Where applicable, the attention of the specifier, purchaser, installer or user is drawn to special limitations of use which must be observed when these products are taken into service to maintain compliance with the above directives. Details of these special measures and limitations to use are available on request and are available in product manuals.

Thank You for using a Midas Verona mixing console. The Verona has been developed to meet the needs of demanding live sound engineers and meets the quality of build and performance that you would expect from a Midas.

The Verona is an all purpose FOH, Monitor or FOH and Monitor Hybrid console that is quickly and easily configurable. Each mono input channel offers microphone and line inputs, direct output and insert points and four band sweep equaliser stage. In addition the Verona has a flexible buss structure allowing the engineer to mix in stereo or LCR.

The Verona, also allows the user to route to any of 20 other busses (8 Auxiliary Busses, 8 Group Busses and 4 Matrix Busses) for even the most demanding application.

All backed up, of course, by the standard Midas Three Year Warranty.

Please take the time to complete and return the registration card and, to obtain the best results with a minimum of effort, also read this operators manual.

Finally,

Enjoy your new Midas Verona Console!

Operators Manual - Page 5

Contents

ATTENTION: Installation and power 6

Mono Input Channels 7

Multifunction Input Channels 13

Output Module 19

Setting up the Verona 27

Functional Block Diagrams 33

Dimensions and Weights 39

Rear Panel Description 41

Specification and Features 43

Crib Sheet 47

Rear Panel and Gain 8 Equalisation 9 Auxiliary Outputs 10 Pan and Routing 11 Metering and Automutes 12

Rear Panel and Gain 14 Channel Equalisation 15 Auxiliary Outputs 16 Pan and Routing 17 Metering, Automutes and Hints and Tips 18

Output Module notes 20 Groups 21 Matrix 22 Meters 24 Features 26

Mono Input 34 Multifunction Input 35 Group/Matrix Module 36 Master Module 37

ATTENTION

The following special limitations must be observed in order to maintain safety and electromagnetic compatibility performance.

Power Connection

The console should only be operated with the power supply connected to ground via the ground in the mains connector.

Audio Connections

The console should only be operated with high quality twisted-pair audio cables. All connector shells should be of metal construction so that they provide a screen when connected to the console. All jack connector shells should be connected to the cable screen. All XLR plugs should have pin one (1) connected to the cable screen.

Electric Fields

If the console is operated in an electromagnetic field that is amplitude modulated by an audio frequency signal, the signal to noise ratio may be degraded. Degradation of up to 60dB may be experienced under extreme conditions (3V/m, 90% modulation).

INSTALLATION

Position

Power

The position of the console will vary from venue to venue. However, when positioning the console for front of house usage it is worth placing the console in a position where the sound system used can be heard properly from the mix position. Try to avoid placing the console behind pillars or large objects , or mixing from a level above the speaker position (e.g. from a balcony).

Also try to avoid placing the console near or on any power distribution units or power amplifiers.

If using an external power supply, it should be located as far away from the console as the connecting cable will allow. The power supply should be set for the voltage supply available in your area and plugged into the mains outlet using the cable provided.

THE POWER SUPPLY SHOULD NEVER BE OPERATED WITH

THE MAINS EARTH DISCONNECTED

Please note that the power supply contains LETHAL VOLTAGES greatly in excess of

the mains voltage and that it’s rails can produce extremely large currents which

could burn out equipment and wiring if shorted. All testing and servicing should

ONLY be carried out by a qualified engineer.

RCA (Tape In/Out)

Centre - Signal Surround - Screen

The Venice’s Tape In/Out sockets are unbalanced and operate at a nominal signal level of -10dBu.

For increased protection against interference use metal bodied RCA plugs.

Female XLR

Male XLR

Pin 1 - Screen/Ground Pin 2 - Hot Signal Pin 3 - Cold Signal

Note: Sockets are viewed from the front face.

To ensure the correct and reliable operation or your Midas Verona console, only high quality screened twisted pair audio cable and metal bodied connectors should be used.

Connections

Quarter Inch Jack

TRS Signal TRS Insert TRS Headphone

Sleeve Screen/Ground Screen/Ground Screen/Ground Ring Cold Signal Insert Return Right Tip Hot Signal Insert Send Left

Operators Manual - Page 6

Mono Input Channel

Operators Manual - Page 7

line L

PUSH

insert

mic

line

direct

out

(stereo only)

line in left

line in right

Mono Input ChannelsMono Input Channels

The Verona channel inputs are located on the rear of the console. Each mono channel provides

one line in quarter-inch TRS balanced jack socket

The insert point is unbalanced and requires a conventionally wired insert lead where:

one insert point on a single TRS jack socket. one direct output on a single impedance balanced quarter-inch jack socket

one mic XLR female

- Channel Signal Send

- Channel Signal Return

- Signal Common Ground

The direct out and insert points operate at a nominal level of 0dBu.

Balanced XLR and Jack inputs are conventionally wired:

- 1. Screen - 2. Hot Signal - 3. Cold Signal

- T. Hot Signal - R. Cold Signal - S. Screen

: Direct outputs as standard are set post EQ pre mute, however there is an

internal jumper which will set them pre EQ and pre insert

Tip Ring Sleeve

XLR TRS

Note

(refer to the service manual

or contact your authorised Midas service agent).

ins

mic gain

+30 +45

+60+15

mic

padpower

48v -15

160

400

hi-pass

Front Panel

The actual number of mono input channels on your Verona will depend upon your choice of frame, however functionality remains the same

Rear Panel

48V Power - When depressed, the Verona

will apply 48 volts phantom power to the microphone input. This is used to power condenser microphones, direct inject boxes and other devices that require phantom power.

The red phantom LED will light to indicate that 48V phantom is in operation.

-15dB Pad - The Pad switch provides 15dB attenuation to the input signal allowing for the connection of high output microphones and line level signals without overloading the channel input amplifier. Overloads are indicated on the in-channel meter by the red LED at the top.

Mic Gain - The mic gain is continuously variable from +15dB to +60dB (0dB to +45dB with the Pad enabled). The actual value of the gain required will depend upon the source and should ideally be set such that peaks in level on the input should not cause the input amplifier to overload (occasional peaks of +12dB is okay, +18dB is too high).

Mic Ø - The mic phase switch, when depressed, causes a 180 degree phase change (with respect to the input signal) to occur in the input amplifier such that the channel signal will have opposite polarity to the input signal.

The mic phase switch is commonly needed where two microphones are used facing each other (for example when using a microphone on both the top and bottom of a snare drum). Ordinarily the two microphones would be out of phase causing cancellation when the console sums the two signals into the output. Reversing the phase of one signal causes the microphones to have the same phase and no cancellation.

Ins - The ins switch enables the channel insert point by connecting the insert return to the channel signal path so that compressors, gates or other dynamic and signal processors or effects can be used.

Hi-Pass - The high pass switch enables high pass filter on the microphone input. This is commonly used to remove handling noise, bass rumble through coupling with the stage or mains hum.

High Pass Frequency - The cutoff frequency of the high pass filter is continuously variable from 20Hz to 400Hz.

Operators Manual - Page 8

ins

MIDAS

mic gain

100

300 1k

50 100

200

4003k8k

5k 10k

20k

160

400

-15 +15

-15

+15

+30 +45

+60+15

mic

padpower

48v -15

eq on

aux pre

off

treble

hi-mid

lo-mid

bass

hi-pass

pan

groups master pan s i s

-18

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

SOLO

MUTE

Channel Equalisation

Each mono input channel of the Verona has a four (4) band sweep EQ allowing tonal control over the input signal.

- The gain of the treble equaliser is continuously variable from -15dB to +15dB with

a centre detent at 0dB.

- The centre frequency of the treble equaliser is continuously variable from

2kHz to 20kHz.

- The gain of the hi-mid equaliser is continuously variable from -15dB to +15dB

with a centre detent at 0dB.

- The centre frequency of the hi-mid equaliser is continuously variable from

400Hz to 8kHz.

- The centre frequency of the lo-mid equaliser is continuously variable from

100Hz to 2kHz.

- The gain of the lo-mid equaliser is continuously variable from -15dB to +15dB

with a centre detent at 0dB.

- The centre frequency of the bass equaliser is continuously variable from 20Hz

to 200Hz.

- The gain of the bass equaliser is continuously variable from -15dB to +15dB with a

centre detent at 0dB.

- The Equaliser can be enabled by depressing the EQ On switch. Otherwise changes on the Equaliser controls have no effect. This can be used to compare the sound with and without EQ during sound check.

- If desired, the channel signal can be sent to the auxiliary outputs without

equalisation. Depressing the EQ Off (Aux Pre) switch causes pre-fader auxiliary sends 1-6 to be

sourced before the channel equaliser (Pre-EQ) as the factory standard. However aux sends 7-8 can be linked to the pre EQ off switch, as well as 1-6, via an internal jumper (refer to the service manual or contact your authorised Midas service agent). Note: Post fader sends are always Post EQ.

Treble (Gain)

Treble (frequency)

Hi-Mid (Gain)

Hi-Mid (frequency)

Lo-Mid (frequency)

Lo-Mid (Gain)

Bass (frequency)

Bass (Gain)

EQ On

EQ Off (aux pre)

50 100

200

-15

+15

eq on

aux pre

off

bass

100

300 1k

4003k8k

-15 +15

hi-mid

lo-mid

Operators Manual - Page 9

5k 10k

-15 +15

treble

Mono Input ChannelsMono Input Channels

ins

MIDAS

mic gain

100

300 1k

50 100

200

4003k8k

5k 10k

20k

160

400

-15 +15

-15

+15

+30 +45

+60+15

mic

padpower

48v -15

eq on

aux pre

off

treble

hi-mid

lo-mid

bass

hi-pass

pan

groups master pan s i s

-18

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

SOLO

MUTE

Auxiliary Outputs

The Verona has 8 auxiliary outputs which can be used for effects sends, monitors or as extra assignable outputs from the console.

auxiliary (aux) sends are sourced after the channel Insert,

Mute and EQ but before the channel fader (and EQ if the Aux Pre EQ

switch is depressed). As a result, the actual level sent to the aux buss is proportional to the aux send control only.

aux sends are sourced after the channel Insert, Mute, EQ and channel Fader. As a result, the actual

level sent to the aux buss is proportional to the aux send control AND the channel fader.

Typical uses of auxiliaries are:

Stage Monitors Pre (Post-EQ) The level in the monitor stays constant so that

the engineer can change the FOH level without affecting the performer.

Effects Sends Post The level sent to the effects is proportional to the

level on the fader so the balance between wet (processed) and dry (un-processed) sound stays the same even when the channel level is changed

Multi Track Recording Pre (Pre-EQ) The recording is made at constant level without or Monitors from FOH any equalisation so that changes in the mix level

and EQ can be set in post-production. (You can also use the Direct Out for this but the output will be at unity).

Mixed Recording Post(Post-EQ) If the aux is set to unity, the FOH mix is (for the artist) replicated on the aux output including EQ but

excluding PAN

Aux sends 1 through 6 are globally switched Pre or Post Fader. However, Aux 7 and 8 may be individually sourced either Post Fader or Pre Fader using the selector switch on the channel and can not be set pre-EQ. However aux sends 7-8 can be linked to the pre EQ off switch, as well as 16, via an internal jumper (refer to the service manual or contact your authorised Midas service agent).

Please note that, for illustration purposes, auxiliary 1 through 5 sends have been omitted but work in the same manner as auxiliary 6 (illustrated).

- The auxiliary send level is continuously variable from off (-inf) to +6dB.

- Auxiliary 7 and 8 sends are assignable Pre of Post fader. When depressed, the auxiliary is sources

pre-fader (i.e. the channel fader has no effect upon the level of the signal sent to the auxiliary).

Note: When a channel Mute is enabled, aux sends for the channel are also muted.

Pre-Fade

Post-Fade

Application Pre/Post Fade Reason

Aux Send Level

Aux 7/8 Pre

Operators Manual - Page 10

Mono Input ChannelsMono Input Channels

aux 8

pre

aux 7

aux 6

ins

MIDAS

mic gain

100

300 1k

50 100

200

4003k8k

5k 10k

20k

160

400

-15 +15

-15

+15

+30 +45

+60+15

mic

padpower

48v -15

eq on

aux pre

off

treble

hi-mid

lo-mid

bass

hi-pass

pan

groups master pan s i s

-18

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

SOLO

MUTE

Pan and Routing

The Verona is a flexible mixing console with eight group buss outputs plus stereo and mono outputs.

Signal can be routed to any of the eight group busses by depressing the corresponding group select switch.

Group sends are post channel equalisation, mute and fader.

The group sends can be configured in either of two modes:-

1. Each group is sent the same mono signal.

i.e. Selecting 1, 2 & 3 will send to each group equally.

2. Each pair of groups behave as if they were stereo groups. The mono signal is positioned in a stereo field by the pan control. The Left signal is routed to the odd numbered buss and the right to the even numbered buss. i.e. Selecting groups 1, 2 & 3 with pan hard left will result in signal being routed to groups 1 & 3 only. Similarly, with pan hard right, signal will be sent only to group 2.

This configuration is made by depressing the ‘Groups Pan’ key for stereo group operation or released for mono group mode.

This selection, however, is on a channel-by-channel basis and so some may be assigned to the groups as mono or as stereo depending upon the desired usage.

For example:

Multitrack Recording Mono Inputs can be sent to a particular input on the multitrack recorder

without affecting the stereo image used at FOH.

Alternative/Delay Output Stereo The Group would behave in the same manner as the stereo

output allowing for separate levelcontrol but retaining the original

stereo image from FOH.

Groups

Pre-Pan (mono)

Post-Pan (stereo)

Application Config. Reason

pan

groups master pan s i s

mono

groups

stereo

1-2

5-6

7-8

3-4

MUTE

Operators Manual - Page 11

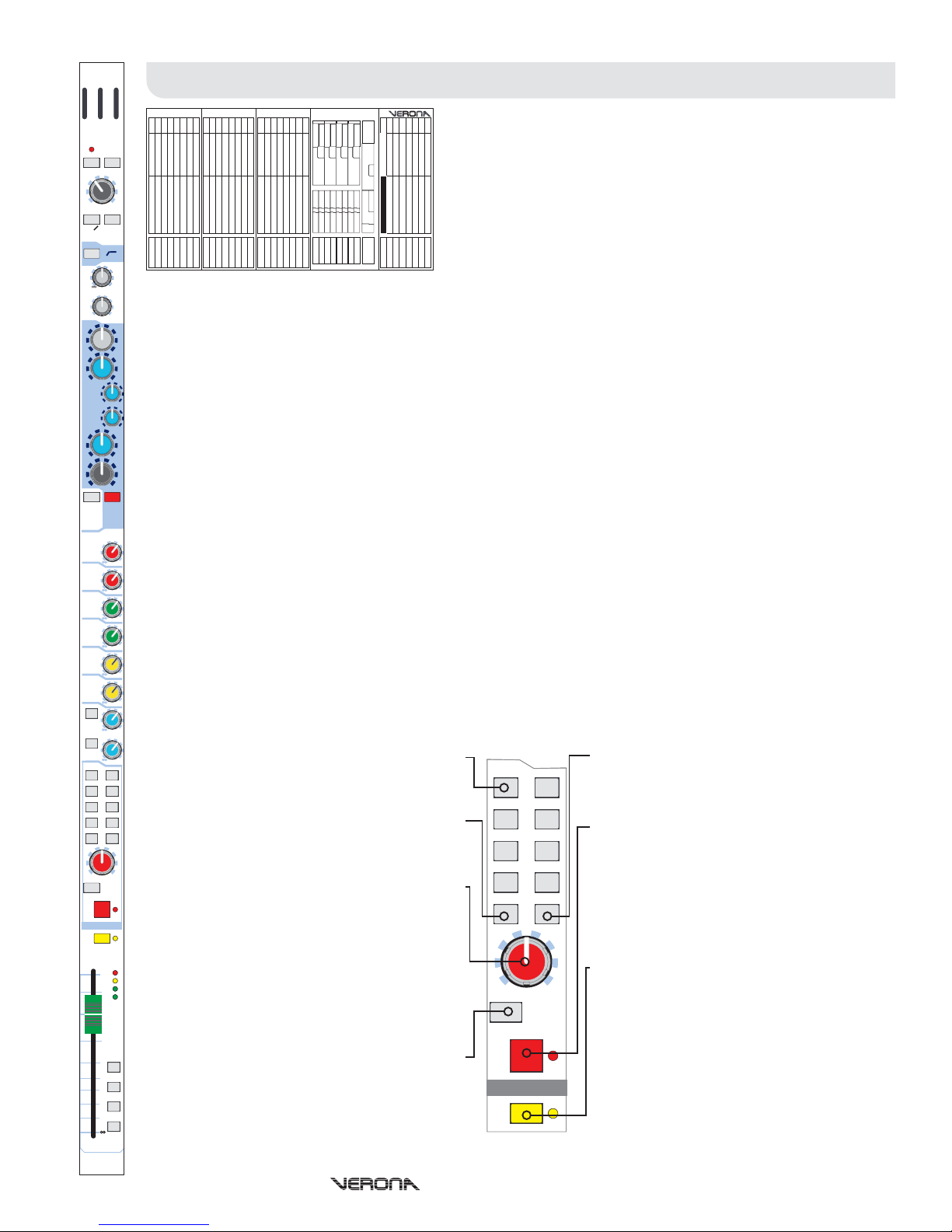

Mono Input ChannelsMono Input Channels

Group 1-8

Mono

Pan

Groups Pan

- Depressing the group switch routes the channel signal to the group busses as described above.

- Depressing the mono switch routes the channel signal to the mono buss (postEQ, mute and fader).

- The pan control allows the channel signal to be positioned in a stereo field when routed to the stereo buss or when group sends are configured to be stereo. The pan control allows continuous adjustment of the image from hard left, to hard right with a centre detent and obeys a constant power law (i.e. -3dB at the centre so that the output power remains at unity).

- As described above the Verona’s group sends may be configured by depressing the ‘Groups Pan’ key for stereo group operation or released for mono group mode.

Stereo

Master SIS

- Depressing the stereo switch routes the channel signal to the stereo (main left and right) buss (post-EQ, pan, mute and fader).

- The master SIS switch will enable the spacial imaging system whereby the channel pan control operates in a different way. When panned hard left, signal is routed to the stereo left output as normal, similarly when panned hard right, the signal is routed to the stereo right output as normal. However, when panned centre, the signal is routed ONLY to the mono output creating a LCR (left-centreright) system instead of the normal LR (left-right) system.

You may use SIS mode if using a centre speaker for speech or solo instruments while retaining the stereo for backing vocals and instruments.

Mute - The mute switch mutes the channel signal. Note that signal will still be sent to the insert point and to the direct output. The mute status of the channel is indicated by the corresponding mute LED

ins

MIDAS

mic gain

100

300 1k

50 100

200

4003k8k

5k 10k

20k

160

400

-15 +15

-15

+15

+30 +45

+60+15

mic

padpower

48v -15

eq on

aux pre

off

treble

hi-mid

lo-mid

bass

hi-pass

pan

groups master pan s i s

-18

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

SOLO

MUTE

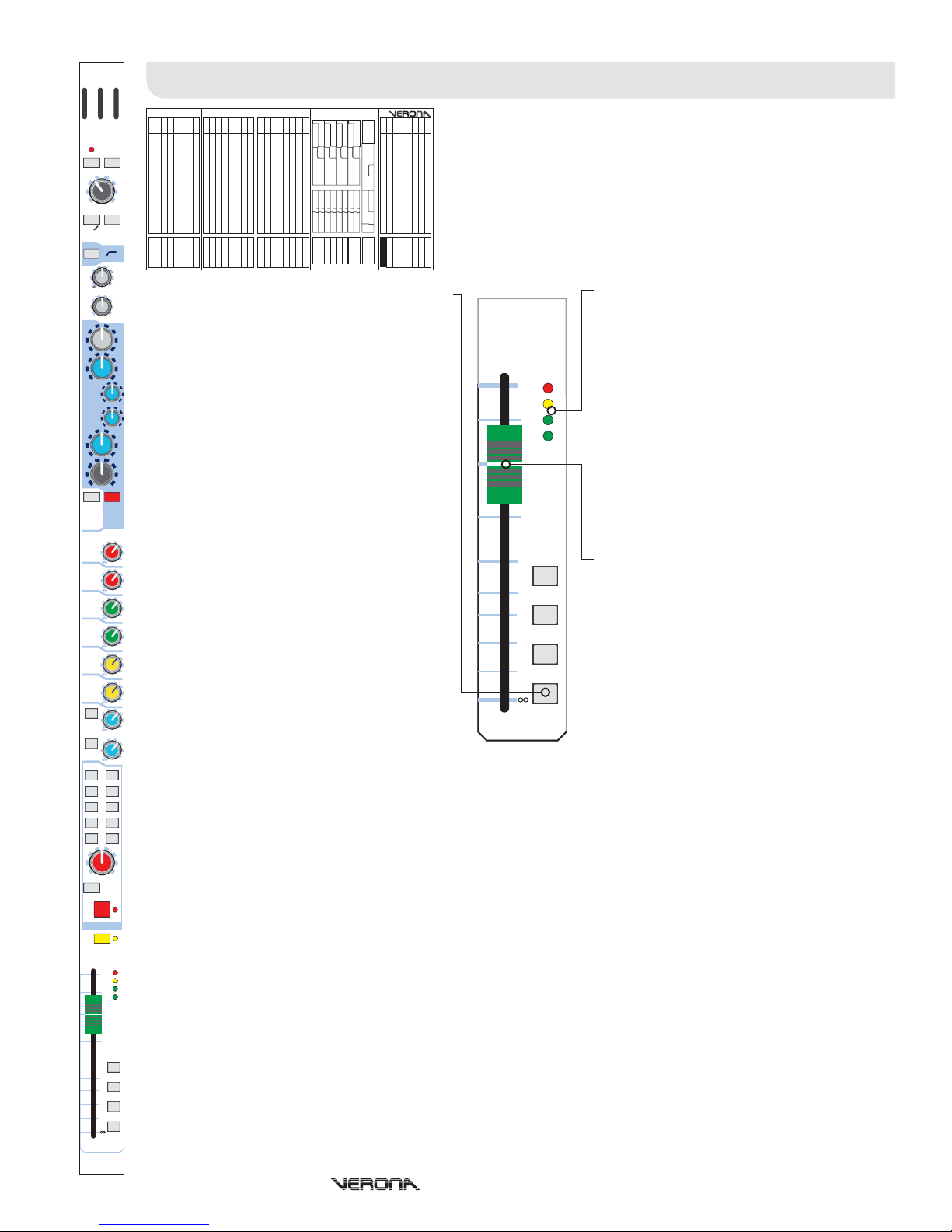

Solo

Channel Fader

- When depressed, the channel signal will be sent to the After Fade Listen (AFL) stereo and Pre Fade Listen (PFL) mono outputs. The solo LED indicator will illuminate to show that the channel solo is active.

The Left and Right Monitor and the PFL console outputs can be used, for example, when operating from within a booth to hear selected solos and not the whole FOH mix.

Note: If Solo In Place is activated on the console, any active input solos will replace the master outputs completely until the solo is removed.

- The channel fader allows for continuous adjustment of the channel level from off (-inf) to +10dB.

At 0dB, the output of the channel to the Stereo, Mono and Group busses will be at unity (i.e. no boost or cut in level from the input).

4 LED Meter - Each input channel contains in-channel monitoring allowing the user to monitor the input signal without the need for using the PFL.

The in-channel meter is especially useful when setting the microphone gain of a channel. Also, as the, meter is post-EQ, it is possible to see the effect that the channel equalisation has upon the level. It may be necessary to turn the input gain down when excessive EQ is used to prevent the channel from overloading.

-18db - Signal Present 0dB - Normal Level +12dB - High Level +18dB - Overload (Peak)

Note: The LED meter and the direct output are fed from the same source and are PostInsert and EQ but Pre-Fader and Mute. The channel in-line meter and direct output are unaffected by the channel mute or automutes.

-18

mute 1

mute 2

mute 3

mute 4

SOLO

Operators Manual - Page 12

Mono Input ChannelsMono Input Channels

Mute 1,2,3 & 4

Channels Reason

- The Verona has four (4) automute busses that can be controlled from the centre section of the

console. To assign an input channel to an automute, switch in the desired mute switch.

Commonly, these are used to mute similar channels, for example:

Drum Mics Allows the engineer to mute the whole drum kit at once.

Choir Overheads Allows the engineer to quickly remove all choir mics at once

Orchestra Parts Allows the engineer to zone mics together (e.g. Brass, Strings,

etc.) and mute sections together if they were not playing.

Note that if any assigned automute or the channel mute is activated then the channel will be muted until all assigned automutes and the channel mute are removed (i.e. the mutes work like a logical OR where any single or combination of mutes will mute the channel output).

ins

MIDAS

mic gain

100

300 1k

50 100

200

4003k8k

5k 10k

20k

160

400

-15 +15

-15

+15

+30 +45

+60+15

mic

padpower

48v -15

eq on

aux pre

off

treble

hi-mid

lo-mid

bass

hi-pass

pan

groups master pan s i s

-18

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

SOLO

MUTE

Operators Manual - Page 13

Multi Function

Input Channel

line L

PUSH

insert

mic

line

direct

out

(stereo only)

line in left

line in right

Hi-Pass

Line Gain


- The high pass switch enables an 80Hz high pass filter on the microphone input. This is commonly used to remove handling noise, bass rumble through coupling with the stage or mains hum.

- The line gain is continuously variable from off (-inf) to +20dB allowing for low level line signals to be trimmed to obtain the optimal signal level. The pre-fade input signal level can be monitored using the in-channel LED meter (discussed later in this section).

- The image control controls the stereo image of the channel and is continuously variable from mono through Left-Right stereo to a wide stereo image. The wide stereo image uses phase cancellation techniques to create a ‘wider’ sounding signal by removing an amount of signal common to both the left and right signals.

Note: On stereochannels, the channel HPF has no effect upon the left andright line inputs.

Note: The Lineand MIC inputs are summedtogether and can be used simultaneouslysharing the channel controls.

Front Panel

The actual number of multifunction input channels on your Midas Verona will depend upon your choice of frame. However, each frame functions in essentially the same way.

mic gain

+30 +45

+60+15

mic

padpower

48v -15

ins

mono

wide

stereo


line gain

hi-pass

80Hz

+20

Multi Function Input ChannelsMulti Function Input Channels

The Verona channel inputs are located on the rear of the console. Each multifunction channel provides:

one insert point on a single TRS jack socket;

The insert point operates on the XLR microphone input only (i.e. not on the line inputs) and is unbalanced and conventionally

two quarter-inch TRS balanced line in jack socket inputs; one mic XLR female.

wired insert where:

- Channel Signal Send

- Channel Signal Return

- Signal Common Ground

The insert points operate at a nominal level of 0dBu and acts only upon the MIC input.

Balanced XLR and Jack inputs are conventionally wired:

- 1. Screen - 2. Hot Signal - 3. Cold Signal

- T. Hot Signal - R. Cold Signal - S. Screen

Tip Ring Sleeve

XLR TRS

Operators Manual - Page 14

Rear Panel

48v Power

Mic Ø

- When depressed, the Verona will apply 48 volts phantom power the channel’s microphone input to power condenser microphones, direct inject boxes or other devices that require phantom power.

The red phantom power LED will light to indicate that phantom power is being applied.

- The microphone phase switch causes a 180 degree phase change (with respect to the input) to occur in the input amplifier inverting the phase of the microphone signal to the channel. This is generally desirable when trying to sum two signals that are out of phase which would lead to cancellation (especially at low frequencies). For example, when trying to use microphone signals from both the top and bottom head of a snare drum.

Note: On stereo channels, the phase switch has no effect upon the leftand right line inputs.

Mic Pad

Mic Gain

Ins

- The Pad switch provides 15dB attenuation on the input to allow the connection of high output microphones and line level signals (to the microphone input) without overloading the channel’s input amplifier.

Note: On multifunction channels, the Pad switch has no effect upon the left & right line level inputs.

- The microphone gain is continuously variable from +15dB to +60dB (effective channel input gain 0dB to +45dB with pad enabled). The pre-fade channel input level can be monitored on the in-channel LED meter (discussed later in this section).

- The insert switch enables the channel insert point by connecting the insert return to the channel signal signal path. This allows for the insertion of dynamic processors or effects into the signal path (for example, compression, limiting or gating of microphone signals).

Note: On stereo channels, the channel insert has no effect upon theleft and right line inputs.

Channel Equalisation

The Verona’s multifunction channels each have treble and bass shelving EQ and hi and lo-mid sweep EQ stages for tonal control.

- The treble shelving EQ gain is continuously variable from -15dB to +15dB.

- The Hi-mid gain is continuously variable from -15dB to +15dB.

- The centre frequency of the hi-mid EQ is continuously variable from

600Hz to 8kHz allowing the operator to select the desired centre frequency for the equaliser.

- The bass shelving EQ gain is continuously variable from -15dB to +15dB.

The channel equalisation stages are enabled by depressing the EQ on switch.

Otherwise the settings of the channel EQ will have no effect.

- When depressed, auxiliary sends 1 through 6 will be sourced preequalisation. Otherwise auxiliary sends will be sourced post EQ. The use of this option depends upon how the auxiliary sends are to be used.

Treble

Hi-Mid Gain

Hi-Mid Frequency

Bass Gain

EQ On -

EQ Off (aux Pre)

Lo-Mid Frequency

Lo-Mid Gain

- The centre frequency of the lo-mid EQ is continuously variable from

100Hz to 1.2kHz allowing the operator to select the desired centre frequency for the equaliser.

- The Lo-mid gain is continuously variable from -15dB to +15dB.

Aux sends 7-8 can be linked to the pre EQ off switch, as well as 1-6, via an internal jumper (refer to the service manual or contact your authorised Midas service agent).

100

-15

+15

treble

bass

eq on

aux pre

off

300

500

6003k8k

1k2

1k5

hi-mid

lo-mid

Operators Manual - Page 15

Multi Function Input ChannelsMulti Function Input Channels

mic gain

100

-15

+15

+30 +45

+60+15

mic

padpower

48V -15

mono

wide

stereo


line gain

treble

bass

stereo

hi-pass

80Hz

pan

+20

groups pan

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

-18

eq on

aux pre

off

MIDAS

ins

300

500

6003k8k

1k2

1k5

hi-mid

lo-mid

SOLO

MUTE

Auxiliary Outputs

Note: Multifunction L and R channel signals are summed into a

to be routed to the auxiliary busses by the channel aux sends.

The Verona has eight (8) auxiliary outputs which can be used for effects sends, monitor sends or as extra assignable outputs from the

console.

mono

signal

Pre-Fade

Post-Fade

Application Pre/Post Fade Reason

Aux Send Level

Aux 7/8 Pre

auxiliary (aux) 1-6 sends are sourced after the channel Insert, Mute and EQ but before the channel fader (and EQ if the Aux Pre EQ switch is depressed). As a result, the actual level sent to the aux buss is proportional to the aux send control only.

aux sends are sourced after the channel Insert, Mute, EQ and channel Fader. As a result, the actual

level sent to the aux buss is proportional to the aux send control AND the channel fader.

Typical uses of auxiliaries are:

Stage Monitors Pre (Post-EQ) The level in the monitor stays constant so that

the engineer can change the FOH level without affecting the performer.

Effects Sends Post The level sent to the effects is proportional to the

level on the fader so the balance between wet (processed) and dry (un-processed) sound stays the same even when the channel level is changed

Multi Track Recording Pre (Pre-EQ) The recording is made at constant level without

any equalisation so that changes in the mix level and EQ can be set in post-production. (You can also use the Direct Out for this but the output will be at unity).

Mixed Recording Post (Post-EQ) If the aux is set to unity, the FOH mix is

replicated on the aux output including EQ but excluding PAN

Aux sends 1 through 6 are always globally switchable pre or post fader. However, Aux 7 and 8 may individually be sourced either Post Fader or Pre Fader using the selector switch on the channel and can not be pre-EQ.

Please note that, for illustration puposes, auxiliary 1 through 4 sends have been omitted but work in the same

manner as auxiliary 6 (illustrated).

- The auxiliary send level is continuously variable from off (-inf) to +6dB.

- Both aux 7 and aux 8 are assignable Pre or Post fader. When depressed, the auxiliary is sourced pre-fader (i.e. the channel fader has no effect upon the level of the signal sent to the auxiliary).

NOTE: Stereo modules can equally be used for mono signals (plugged in via the microphone socket). The EQ on the stereo channels has fixed frequency high and low sections which are optimised for vocals.

Operators Manual - Page 16

aux 8

pre

aux 7

aux 6

aux 5

Multi Function Input ChannelsMulti Function Input Channels

mic gain

100

-15

+15

+30 +45

+60+15

mic

padpower

48V -15

mono

wide

stereo


line gain

treble

bass

stereo

hi-pass

80Hz

pan

+20

groups pan

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

-18

eq on

aux pre

off

MIDAS

ins

300

500

6003k8k

1k2

1k5

hi-mid

lo-mid

SOLO

MUTE

Pan and Routing

The Verona is a flexible mixing console with eight group buss outputs plus stereo and mono outputs.

Groups

Signal can be routed to any of the eight group busses by depressing the corresponding group select switch.

Group sends are post channel equalisation, mute and fader.

The group sends can be configured in either of two modes:-

1. The stereo signals are sent to the busses as a regardless of the pan control.

2. Each pair of groups behave as if they were groups. The relative odd and even numbered send level is controlled by the pan control.

This configuration is made by depressing the ‘Groups Pan’ key for stereo group operation or released for mono group mode.

This selection is on a channel-by-channel basis and so some may be assigned to the groups as mono or as stereo depending upon the desired usage which is especially useful if the stereo input is to be used as a mono input.

For example:

Multitrack Recording Mono Inputs can be sent to a particular input on the

multitrack recorder without affecting the stereo image used at FOH.

Alternative/Delay Output Stereo The Group would behave in the same manner as

the stereo output allowing for separate level control but retaining the original stereo image from FOH.

Pre-Pan (mono)

mono sum of L & R

Post-Pan (stereo)

stereo

Application Config. Reason

Operators Manual - Page 17

stereo

pan

groups pan

mono

groups

stereo

1-2

5-6

7-8

3-4

SOLO

MUTE

Multi Function Input ChannelsMulti Function Input Channels

Group 1-8

Mono

Pan

Groups Pan

- Depressing the group switch routes the channel signals as described above.

- Depressing the mono switch routes the channel signals to the mono buss (postEQ and fader).

- The pan control allows continuous reciprocal adjustment of the stereo image created by the channel. In the case of a mono microphone signal this will be a simple L-R pan, where, with a stereo signal this will be a balance allowing the user to determine the relative output power to each the Left and Right ouput. At all points the pan retains constant power (i.e. -3dB at the centre, 0dB at each extreme).

- As described above the Verona’s group sends may be configured by depressing the ‘Groups Pan’ key for stereo group operation or released for mono group mode.

Note: That SISis not available on stereo inputchannels.

Stereo - Depressing the stereo switch routes the channel signals to the stereo (main left and right) buss (post-EQ, pan and fader).

Mute

Solo

- The mute switch mutes the channel signal. Note that signal will still be sent to the insert point and to the direct output. The mute status of the channel is indicated by the corresponding mute LED.

The channel can also be muted by the four (4) assignable mute groups which will be explained later in this section.

- When depressed, the channel signal will be sent to the AFL stereo and PFL mono outputs. The solo LED indicator will illuminate to show that the channel solo is active.

The Left and Right Monitor and the PFL console outputs can be used, for example, when operating from within a booth to hear selected solos and not the whole FOH mix.

Note: If Solo In Place is activated on the console, any active solos will replace the master outputs completely until the solois removed.

mic gain

100

-15

+15

+30 +45

+60+15

mic

padpower

48V -15

mono

wide

stereo


line gain

treble

bass

stereo

hi-pass

80Hz

pan

+20

groups pan

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

-18

eq on

aux pre

off

MIDAS

ins

300

500

6003k8k

1k2

1k5

hi-mid

lo-mid

SOLO

MUTE

Mute 1,2,3 & 4

Channels Reason

- The Verona has four (4) automute busses that can be controlled from the centre section of the console. To assign an input channel to an automute, switch in the desired mute switch.

Commonly, these are used to mute similar channels, for example:

Drum Mics Allows the engineer to

mute the whole drum kit at once.

Choir Overheads Allows the engineer to

quickly remove all choir mics at once

Orchestra Parts Allows the engineer to

zone mics together (e.g. Brass, Strings, etc.) and mute sections together if they were not playing.

4 LED Meter

Channel Fader

- Each input channel contains in-channel monitoring allowing the user to monitor the input signal without the need for using the PFL.

Note: The LED meter is Post-Insert and EQ but Pre-Fader and Mute.

- The channel fader allows for continuous adjustment of the channel level from off (-inf ) to +10dB.

At 0dB, the output of the channel to the Stereo, Mono and Group busses will be at unity (i.e. no boost or cut in level from the input).

Operators Manual - Page 18

-18

mute 1

mute 2

mute 3

mute 4

Multi Function Module hints & Tips

I want direct outs for recording but multi function channels don’t have any . . .

I’m running monitors from FOH and I've run out of auxes for effects . . .

The multi function channels don’t have a specifically labelled direct output BUT, if you are using a microphone input and don’t need to use the insert channel, you can insert a standard unbalanced quarter-inch jack lead into the insert point and use this as a direct output. This will work on the condition that you do not activate the insert point on the channel strip (the insert switch) as this will cause signal to the channel to be lost.

To see for yourself why this works, look at the block diagrams later in the manual.

To add effects to a mono mic input on a multifunction channel, use the insert send of the channel into the effects unit input and the stereo outputs of the effects unit into the stereo line inputs of the same channel on the Verona. Use the mic gain for the mic and the line gain for the effect return level. Now the aux sends and channel fader will control both the mic level and effects return level.

Multi Function Input ChannelsMulti Function Input Channels

mic gain

100

-15

+15

+30 +45

+60+15

mic

padpower

48V -15

mono

wide

stereo


line gain

treble

bass

stereo

hi-pass

80Hz

pan

+20

groups pan

mute 1

mute 2

mute 3

mute 4

aux 1

aux 2

aux 3

aux 4

aux 8

mono

groups

stereo

1-2

5-6

7-8

3-4

pre

aux 7

aux 6

aux 5

-18

eq on

aux pre

off

MIDAS

ins

300

500

6003k8k

1k2

1k5

hi-mid

lo-mid

SOLO

MUTE

groups -

auxes -

masters -

matrices -

talk buss -

solo control -

automutes -

Output Module

Operators Manual - Page 19

The Verona is a dual purpose console. That is, that the Verona is equally as comfortable as a monitor console as it is as a front of house console.

engineers tend to prefer the output faders on their console to operate the auxiliary outputs (for monitors) where engineers would rather have their output faders for groups (either for sub mixes or delay/alternative outputs).

The Verona achieves this flexibility using the (changeover) switch. Each output can be individually ‘changed over’ so that the group output path becomes that of the aux output and vice versa.

The Verona has been developed with real world sound engineers in mind. The real flexibility of the Verona is in the speed in which the change over can be made and also the ability to create a console that can be used for FOH and monitors for the smaller venue where you still need monitors but don’t have space or money for a monitor engineer or console.

Depressing the group aux changeover switch (using a pointed object such as a pencil) will connect the auxiliary buss to the group , group , group , group and finally the group

The group buss is connected to the auxiliary output and to the auxiliary .

This routing flexibility is available on each group/aux buss.

What does this actually mean?

Monitor

Front of House

group aux c/o

Why not buy a monitor or FOH console?

hybrid

insert mute fader pan output

XLR

pot output XLR

Output Module NotesOutput Module Notes

aux aux

mtx

+21 +21

+18 +18

+15 +15

+12 +12

+9 +9

+6 +6

+3 +3

-3 -3

-6 -6

-9 -9

-12 -12

-15 -15

-18 -18

-21 -21

-24 -24

group meters

+20

direct

input to

mono

stereomtx

SOLO

Before looking at the function of the output section of the console it is essential that the user is first comfortable with a few of the consoles features that affect groups, matrixes and auxes. Rather than discuss these features in each section (although they will be repeated there) an understanding of their function in a more general context is desirable.

Group Aux Changeover

Meter Changeover

Direct Inputs

aux

aux c/o

pre

group

It is possible on the Verona to change the group meters to monitor the aux or matrix output rather than the group output. For example, if using the matrix outputs to drive delay speakers, it may be desirable to monitor the output from those outputs.

When depressed, the switch will send the aux signal to the meter array (note that, if you have used group aux c/o, the aux switch should really read group!).

When depressed, the switch will send the matrix signal to the meter array. This switch ALWAYS overrides the aux meter select switch and must be released to allow the aux signal to be sent to the meter array.

Note: Meters are Post Fader and Post Mute

If you wish to understand more about how the Verona routes it’s signals, please refer to the block diagram section of this manual.

aux

mtx

TIP

Operators Manual - Page 20

The Verona has four (4) direct inputs on balanced TRS quarter-inch jack sockets located next to the matrix outputs on the rear panel which can be used for console linking or effects returns.

Mono

Mtx

Solo

- Routes the direct input to the

main mono buss.

- Routes the direct input to the similarly numbered matrix buss (i.e. 1 through 4).

- Routes the direct input to the

mono PFL and stereo AFL buss

Stereo

Level

- Routes the mono direct input to the main stereo Left and Right busses equally.

- The direct input level is continuously variable from off (-inf) to +20dB.

group group

matrix direct

aux out aux out

insert

G2 G1

in 1

insert

Each group buss can be connected to external equipment by means of one single balanced male XLR socket (0dBu nominal level).

In addition to this, each group can be inserted into by means of a single unbalanced quarter-inch TRS jack conventionally wired (0dBu nominal level).

Group Insert Group Output

XLR Sockets 12 3

TRS Insert Jacks TR S

- Screen - Signal Hot - Signal Cold

- Signal Send - Signal Return - Screen

Verona Group OutputsVerona Group Outputs

Operators Manual - Page 21

Rear Panel

Front Panel

Group Aux C/O - The group auxiliary

changeover switch is described on the previous page. When enabled, auxiliary signals are routed into the group output controls and hence group should be mentally changed to ‘aux’.

Group to Mtx - The group to mtx switch routes the group signal to the matrix send pots (discussed later in this section).

Mono

Pan

Mute

Solo

Fader

- When depressed, the signal will be sent to the main mono buss via the master sis switch.

- The pan control allows the channel signal to be positioned in a stereo field when routed to the stereo buss. The pan control allows continuous adjustment of the image from hard left, to hard right with a centre detent and obeys a constant power law (i.e.

-3dB at the centre so that the output remains at unity).

- The mute switch mutes the group signal at all points after the insert return (and hence any matrix sends).

- The solo switch sends the group signal to the AFL stereo and PFL mono busses.

- The fader allows continuous adjustment of the group output level from off (-inf ) to +10dB.

Pre-Fade (Group to Mtx)

Stereo

- When depressed, the signal sent to the matrix send pots is sourced pre-fader and hence the level will be proportional to the matrix send pot only. This may be desirable if using the matrix for recording or monitoring (e.g. stage side fills).

- When depressed, the signal will be sent to the main stereo buss via the pan and master sis switch.

Master SIS - The master SIS switch will enable the spacial imaging system whereby the channel pan control operates in a different way. When panned hard left, signal is routed to the stereo left output as normal, similarly when panned hard right, the signal is routed to the stereo right output as normal. However, when panned centre, the signal is routed ONLY to the mono output creating a LCR (left-centreright) system instead of the normal LR (left-right) system.

aux

c/o

pre

group

pan

group

fade

pre

mono

stereo

to mtx

group 1

master

sis

SOLO

MUTE

aux

mtx

-24

pan

group

fade

pre

mono

stereo

to mtx

+10

group 1

aux 1

aux

aux c/o

pre

group

master

sis

SOLO

MUTE

aux aux

mtx

+21 +21

+18 +18

+15 +15

+12 +12

+9 +9

+6 +6

+3 +3

-3 -3

-6 -6

-9 -9

-12 -12

-15 -15

-18 -18

-21 -21

-24 -24

group meters

direct

mono

The matrix provides another four outputs from the console which can be ‘made’ from a combination of the consoles other outputs.

The matrix signal can be made by combination of the group buss signals and mono, left and right master signals. They can be used to drive additional speaker zones or as effects sends from the groups (like the auxes from inputs)

Verona Matrix OutputsVerona Matrix Outputs

+20

matrix 1

group 6

group 7

group 8

group 5

group 4

group 3

group 2

group 1

right master

matrix 1

left master

mono master

direct

input to

mono

stereomtx

+10

SOLO

MUTE

Operators Manual - Page 22

Rear Panel

Front Panel

Group (1-8) - The group level

sent to the matrix is continuously variable from off (-inf ) to +6dB. Unity (0dB) is also marked on the scale allowing signal to be routed to the matrix without any attenuation or gain.

Each of the groups (1-8) has it’s own individual matrix send level.

Mono Master - The master mono signal sent to the matrix is continuously variable from off (-inf) to +6dB. Unity (0dB) is also marked on the scale allowing signal to be routed to the matrix without any attenuation or gain.

- The master left signal sent to the matrix is continuously variable from off (-inf) to +6dB. Unity (0dB) is also marked on the scale allowing signal to be routed to the matrix without any attenuation or gain.

- The master right signal sent to the matrix is continuously variable from off (-inf) to +6dB. Unity (0dB) is also marked on the scale allowing signal to be routed to the matrix without any attenuation or gain.

Alternatively, the auxiliaries can be routed to the matrix by depressing the group/aux changeover switch. This is especially useful for generating additional monitor mixes or re-routing existing monitor mixes (for example if artists are moving around to other parts of the stage).

The overall level of the matrix output is controlled by the pot (where x is the number of the matrix 1 through 4) and is continuously variable from off (-inf) to +10dB.

- The matrix output can be muted immediately after the group and master matrix sends.

- The solo switch routes the matrix signal to the mono PFL and the stereo AFL buss.

Left Master

Right Master

Matrix x

Mute

Solo

matrix matrix matrix matrixdirect direct direct direct

4321in 4 in 3 in 2 in 1

The Verona’s matrix outputs can be found on the rear of the console.

Four male XLR sockets are provided, one for each matrix output.

XLR Wiring

Pin 1 - Shield, Pin 2 - Hot Signal, Pin 3 - Cold Signal

-24

pan

group

fade

pre

mono

stereo

to mtx

+10

group 1

aux 1

aux

aux c/o

pre

group

master

sis

SOLO

MUTE

aux aux

mtx

+21 +21

+18 +18

+15 +15

+12 +12

+9 +9

+6 +6

+3 +3

-3 -3

-6 -6

-9 -9

-12 -12

-15 -15

-18 -18

-21 -21

-24 -24

group meters

direct

mono

The Verona provides eight independent auxiliary outputs which are controlled in this section.

- The group auxiliary changeover is described at the beginning of this section. When depressed, group signals will be controlled in this section and hence aux should be mentally interchanged with ‘group’.

- The auxiliary pre switch is the global control which determines whether the auxiliary is taken from the input channel pre fader or post fader. This switch can be found on each of the auxiliaries 1 through 6. On aux 7 and 8 these are assignable individually pre/post on the channel modules.

Group Aux C/O

Aux Pre

Pre-Fade

Post-Fade

Application Pre/Post Fade Reason

Auxiliary Master Level

Auxiliary Mute

Auxiliary Solo

auxiliary (aux) sends are sourced after the channel Insert, Mute and EQ but before the channel fader (and EQ on 1-6 if the Aux Pre EQ switch is depressed). As a result, the actual level sent to the aux buss is proportional to the aux send control only.

aux sends are sourced after the channel Insert, Mute, EQ and channel Fader. As a result, the actual

level sent to the aux buss is proportional to the aux send control AND the channel fader.

Typical uses of auxiliaries are:

Stage Monitors Pre (Post-EQ) The level in the monitor stays constant so that

the engineer can change the FOH level without affecting the performer.

Effects Sends Post The level sent to the effects is proportional to

the level on the fader so the balance between wet (processed) and dry (un-processed) sound stays the same even when the channel level is changed

Multi Track Recording Pre (Pre-EQ) The recording is made at constant level without or Monitors from FOH any equalisation so that changes in the mix level

and EQ can be set in post-production. (You can also use the Direct Out for this but the output will be at unity).

Mixed Recording Post (Post-EQ) If the aux is set to unity, the FOH mix is (for the artist) replicated on the aux output including EQ but

excluding PAN

- The output level of the auxiliary is continuously variable from off (-

inf) to +10dB.

- When depressed, the auxiliary signal is muted at every point after the master

send level.

- When depressed, the auxiliary signal is sent to the stereo AFL and mono PFL

busses.

Verona Aux OutputsVerona Aux Outputs

aux

aux c/o

pre

group

Operators Manual - Page 23

Rear Panel

Front Panel

+10

aux 1

SOLO

MUTE

aux out aux out aux out aux outaux out aux out aux out aux out

86427531

The Verona’s auxiliary outputs can be found on the rear of the console.

Eight male XLR sockets are provided, one for each auxiliary output.

XLR Wiring

Pin 1 - Shield, Pin 2 - Hot Signal, Pin 3 - Cold Signal

-24

pan

group

fade

pre

mono

stereo

to mtx

+10

group 1

aux 1

aux

aux c/o

pre

group

master

sis

SOLO

MUTE

aux aux

mtx

+21 +21

+18 +18

+15 +15

+12 +12

+9 +9

+6 +6

+3 +3

-3 -3

-6 -6

-9 -9

-12 -12

-15 -15

-18 -18

-21 -21

-24 -24

group meters

direct

mono

Master Meters

Solo Meters

Freq

Generator Level

Generator On

Talk Mic Gain

Talk Mic

Talk On

The master meters show the actual peak ouput level from the console’s left, right and centre (mono) busses (Post Fader).

Note that these meters are post master fader and post master output mute.

The solo (AFL L, AFL R and PFL) buss levels are shown on the solo meters. The solo meters are pre monitor or phones output mute and level and so are unaffected by changes in the headphone level or the level sent to the monitor ouptuts.

The Verona provides a signal generator which can be routed to any of the console’s outputs.

- The output frequency of the generator is continuously variable from 50Hz to 5kHz allowing the user to test, for example, three or four bands of a crossover system.

- The level of the generator output is continuously variable

from off (-inf) to +10dB.

- Enables the Signal Generator

- The gain of the talk microphone input

is continuously variable from +15dB to +60dB.

- The talk mic socket is a conventionally wired XLR male and is supplied with 48v phantom power allowing the connection of condenser microphones.

- When depressed, the talk microphone input is enabled and routed to the talk buss. When enabled, all local outputs are attenuated by 20dB to help prevent feedback.

Verona Master OutputsVerona Master Outputs

+21

+18

+15

+12

+9+9+9+9+9

+6+6+6+6+6

+3+3+3+3+3

00000

-3-3-3-3-3

-3

-6-6-6-6-6

-6

-9-9-9-9-9

-9

-12

-15

-18

-21

-24

left

mono

pfl

right

master meters

solo meters

+20

1505k500

+10

tape

generator

freq

+15 +60

talk

mono

stereo

mic

talk

SOLO

NEUTRIK

The Verona’s main outputs are located on the rear of the console and provide:

Master L Left Buss XLR Male (Bal) 0dBu Master C Mono Buss XLR Male (Bal) 0dBu Master R Right Buss XLR Male (Bal) 0dBu Monitor L AFL Solo L Buss XLR Male (Bal) 0dBu PFL Out PFL Solo Buss XLR Male (Bal) 0dBu Monitor R AFL Solo R Buss XLR Male (Bal) 0dBu Tape Out L Master Left RCA Phono -10dBu Tape Out R Master Right RCA Phono -10dBu Talk Out Talk Buss XLR Male (Bal) 0dBu

Also provided are Master L-C-R insert points on conventionally wired quarterinch TRS jacks (0dBu nominal level), tape inputs (RCA Phono, -10dBu nominal level) and Talk Input (Male XLR balanced, 0dBu nominal level).

Output Source Connector Nom. Level

Operators Manual - Page 24

master

monitor

monitorpfl out

master master

talk

talk out

tape

out

insert

MLMC

insert insert

PUSH

+10

1505k500

+10

+21

+18

+15

+12

+9+9+9+9+9

+6+6+6+6+6

+3+3+3+3+3

00000

-3-3-3-3-3

-3

-6-6-6-6-6

-6

-9-9-9-9-9

-9

-12

-15

-18

-21

-24

tape

generator

freq

groups

to mono

stereo pre

insert

pfl

left

right

mono

+10

phones

local

stereo mono

monitor

+15 +60

talk

external

left

mono

pfl

right

master meters

solo meters

mono

aux

stereo

matrix

1-2

5-6

7-8

3-4

mono

stereo

solo in

master

place

auto

mute

masters

mic

talk

MUTE MUTE

SOLO SOLO

SOLO

NEUTRIK

MUTE

SOLO

Talk External

Groups 1-8

PFL Solo

Phones/Local Level

Phones/Local Mute

- Talk external enables the talk out and talk in signals on the rear of the console. The talk in signal is summed with the internal talk mic and generator signals.

- When depressed, the talk buss signal is routed to the group

buss.

Note: Essentially with all buttons depressed, the talk buss signal is routed to all the consoles busses (except the local outputs and direct outputs).

- When depressed, the local monitor and headphones signal is

sourced from the PFL mono signal rather than the AFL stereo default.

- The local and headphones level is continuously

variable from off (-inf) to +10dB.

- The local and headphones signal can be muted by

depressing the mute switch.

Mono

Stereo

Aux

Matrix

- When depressed, the talk buss signal is routed to the mono buss.

- When depressed, the talk buss signal is routed to the stereo buss.

- When depressed, the talk buss signal is routed to all aux busses.

- When depressed, the talk buss signal is routed to all matrices.

Verona Master OutputsVerona Master Outputs

Operators Manual - Page 25

groups

pfl

+10

phones

local

monitor

talk

external

mono

aux

stereo

matrix

1-2

5-6

7-8

3-4

solo insolo in place

auto

mute

masters

MUTE

SOLO

+10

1505k500

+10

+21

+18

+15

+12

+9+9+9+9+9

+6+6+6+6+6

+3+3+3+3+3

00000

-3-3-3-3-3

-3

-6-6-6-6-6

-6

-9-9-9-9-9

-9

-12

-15

-18

-21

-24

tape

generator

freq

groups

to mono

stereo pre

insert

pfl

left

right

mono

+10

phones

local

stereo mono

monitor

+15 +60

talk

external

left

mono

pfl

right

master meters

solo meters

mono

aux

stereo

matrix

1-2

5-6

7-8

3-4

mono

stereo

solo in

master

place

auto

mute

masters

mic

talk

MUTE MUTE

SOLO SOLO

SOLO

NEUTRIK

MUTE

SOLO

The tape input on the rear of the console can be routed to the main mono or stereo busses by pressing the or switches. The level of the tape input is continuously variable from off (-inf) to +20dB (the nominal input level is referenced to -10dB).

- When depressed, the tape input signal is

routed to the stereo AFL and mono PFL busses.

- When depressed with a small object (eg. screwdriver or pencil tip), the solo in place switch causes all active input solos on the console to be exclusively routed to the main outputs of the console. (i.e. mute all un-soloed inputs).

i.e. If a solo is in place, only those active solos will be heard from the main front of house speakers. This is a major function worthy of note.

The solo in place function is more at home in studio surroundings where the engineer would expect only to hear active solos through the monitors. It’s uses in live sound reinforcement are limited but include:

At sound check, Solo In Place could be used to check or EQ (or adjust insertions,

effects etc.) for one or a number of channels at once without having to turn down or mute each of the undesired channels (which may upset the onstage monitors an hence the musicians!).

- The auto mute masters are used to enable the mute groups (1

through 4) as assigned on the input channels.

Again, these switches are a major function worthy of note (i.e. don’t forget that you have them enabled and the channels assigned or channel mutes will not be released).

Mono Stereo

Solo

WARNING: Solo in place is a major function and should be used for sound check ONLY. Please read this information carefully!

Solo in Place

Auto Mute Masters

Stereo to Mono

Pre Insert

Mute

Solo

Output Level

- When depressed, a sum of the stereo left and right signals are routed to the mono signal buss via the pre insert switch.

- When depressed, the stereo signal sent to the mono buss is sourced from the stereo signals before the stereo insert points. Otherwise the signal is taken after the stereo inserts.

The setting of this depends upon the circumstances (and the usage of the centre mono ouptut). For example, if an independent graphic EQ or limiter is required to control the mono centre speaker, then it may not be required (or desired) to have the graphic EQ/limiter inserted into the left and right output affect the mono centre.

- Each of the left right and centre outputs have individual channel mutes

which mute the signal post fader.

- When depressed, the stereo or mono signal is routed to the PFL mono and

AFL stereo busses.

- Each output level is continuously variable from off (-inf) to

+10dB.

Verona Master OutputsVerona Master Outputs

+10

tape

mono

stereo

SOLO

solo in

place

master

auto

mute

masters

to mono

stereo pre

insert

left

right

mono

stereo mono

MUTE MUTE

SOLO SOLO

MUTE

Verona FeaturesVerona Features

Operators Manual - Page 26

The controls on this page are those directly responsible for the main outputs from the console.

+10

1505k500

+10

+21

+18

+15

+12

+9+9+9+9+9

+6+6+6+6+6

+3+3+3+3+3

00000

-3-3-3-3-3

-3

-6-6-6-6-6

-6

-9-9-9-9-9

-9

-12

-15

-18

-21

-24

tape

generator

freq

groups

to mono

stereo pre

insert

pfl

left

right

mono

+10

phones

local

stereo mono

monitor

+15 +60

talk

external

left

mono

pfl

right

master meters

solo meters

mono

aux

stereo

matrix

1-2

5-6

7-8

3-4

mono

stereo

solo in

master

place

auto

mute

masters

mic

talk

MUTE MUTE

SOLO SOLO

SOLO

NEUTRIK

MUTE

SOLO

Setting up the

Verona

Operators Manual - Page 27

Setting Up The VeronaSetting Up The Verona

The Verona was designed with real world sound engineers in mind, working in the real world. With it’s flexible routing and dual purpose functionality, the Verona is as happy running monitors as it is front of house. For engineers that haven’t got a great deal of experience in live sound engineering, here are a few helping guidelines.

The Verona has two types of input channel; Mono and Multi Function (Stereo) both of also have a mono microphone input. Gain is provided on these channels to allow the operator to obtain the optimal signal for the system.

Microphone Gain +15dB to +60dB (0dB to +45dB with pad switch enabled) Mono Channel Line Gain 0dB to +45dB (-15dB to 30dB with pad switch enabled) Stereo Channel Line Gain Off to +20dB

Each channel of the Verona includes an in-line channel LED meter indicating the channel level (measured after the channel insert and EQ but before the channel fader). With the insert and EQ disabled, the in-channel meter will show the level at the input in four stages:-

-18dB - Signal Present 0dB - Normal operating level

+12dB - High Signal Level +18dB - 3dB before channel overload (clipping)

The input gain of the channel can be used to obtain the best operating level for the console. Too small a signal level (too little gain) and the best signal to noise ratio will not be achieved; too high a signal level (too much gain) and there is the chance of overloading the channel causing distortion.

Clearly, the gain should be positioned between these two points, to gain an optimal signal to noise ratio without overloading the channel. The ideal level for input channels would be around +6dB with occasional illumination of +12dB.

A channel signal is only permitted to swing high and low by an amount fixed by the power supply. If the maximum output of the Verona channel strip is +21dBu (0dBu = 0.775 volts RMS) then imagine the following situation:

Headroom is the amount of spare ‘swing’ available to the system. If 6dB headroom was desired at all times, a maximum level of +15dB is required to retain the headroom.

To prevent overload, the gain must be set to a point that even the highest output from the microphone during sound check has some headroom left to prevent any surprises during the show!

The consoles Busses (e.g. Left and Right Main buss) are the point where all channel signals are summed together. In normal operation, it is unlikely that all channels will receive the same signal at the same time so typically when 48 channels are summed together a gain of around 6 to 9dB will be seen. It is important to leave some headroom in the summing amplifiers so that they do not overload, should the sum exceed the maximum level.

Channel equalisation should be used with care. Boosting or cutting equaliser bands can make monitoring your actual input level very difficult. Excessive boosting of EQ (+15dB is available on each band)will have the same effect as applying more gain to the input, taking up valuable headroom. Consider backing off the channel gain when using large amounts of boost (if you have to use large amounts of boost) to retain a sensible level at the output.

Excessive EQ cut can have a similarly undesirable effect. If a large amount of signal is cut in the equaliser section, gain may be used to ‘make up’ the level lost in the equaliser. However, the input pre-amplifier still has the same amount of available headroom. If gain, added to ‘make up’ the loss in the equaliser, exceeds the maximum level into the microphone pre-amp then the channel won’t appear to be overloaded but the microphone pre-amp will. Turning off the equaliser will reveal the true story, whereby the microphone pre-amp may be overloaded. It is worth considering whether such large amounts of EQ cut is really required, or whether it is being used rather more as a volume control (in which case the input gain could be set to a normal operating level and the output adjusted on the channel fader).

TIP: You can monitor the level pre-EQ and post-EQ using the in-channel LED meter by switching the EQ in and out during sound check.

Gain

Headroom

The Effect of EQ

Operators Manual - Page 28

Dynamic Processing

Unity Gain

When working with signals that are constantly at a high level, the channel gain can accommodate these signals with ease. When working with varying signals (such as the vocalist discussed earlier) it may be desirable to reduce the dynamic range of the signal so that the loud parts aren’t so loud (and don’t overload your channel input) and the quiet bits aren’t too quiet (so the signal to noise ratio would be increased).

Limiters and Compressors have a similar function which is to reduce the dynamic range of a signal. The means by which they do this won’t be discussed here but, these devices have the ability to reduce the level of loud signals automatically and also raise the gain to ‘make up’ the level as desired. The channel gain can now be set with adequate headroom to accommodate both loud and quiet signals and the compressor can reduce the dynamic range and ‘make up’ any reduction in level. By inserting such a device into the channel’s insert point you have the ability to remove the guesswork from setting your system gain.

However (and this is a big however), there are still sources of potential problems. The Verona is able to operate at levels up to +21dBu on both the insert send and return. If the maximum input level of the compressor was less than +21dBu then it is possible to overload the input of the compressor. The only way to resolve this situation would be to drop the channel input gain so that the input level of the compressor was not being overloaded. Bear in mind however, the level returned from the compressor would also be lower than +21dBu and excessive use of the compressor ‘make up’ gain would overload the output of the compressor!

Unity gain is a gain of 1 (i.e. no gain or attenuation is applied to a signal).

If a signal entered a mono line level input of the Verona at 0dBu and the gain was set to +15dB (an internal 15dB attenuation sets the net gain to 0dB), then the signal was routed to each output at 0dB, the channel fader was set to 0dB and each output fader was set to 0dB, the output should be 0dBu (or unity). Some console manufacturers mark the 0dB level of their faders and pots ‘U’.

Simple. But that’s just one signal. If we have two 0dBu signals entering the Verona (assuming they are coherent i.e. the same level and phase) to be summed in the busses, the output would no longer be 0dBu.

Simply,

0dBu = 0.775 volts

0.775 volts + 0.775 volts = 1.55 volts

1.55 volts is 0.775 volts +6dB (or a gain of 2)

To retain an output of 0dBu (our previous unity level) each input must be reduced.

0.775 volts / 2 = 0.3875 volts

0.3875 volts is 0.775 volts -6dB (or a gain of 1/2)

So each fader must be reduced to -6dB to retain the unity gain level of 0dBu on the console output. When using four inputs at 0dBu, the faders must be reduced to -12dB. Real life signals are not continuous, but the principal is the same. If you have a sinusoidal input that is nominally 0dBu on all 48 inputs with the channel faders at 0dB, the output is likely to be well above the 21dBu maximum output of the console and leave no headroom spare. With real world signals, 48channels summed together will give around 6 to 9dB gain because it is unlikely that all 48 channels will receive the same signal at the same time. Instead signals will occur at different times, and there will be cancellation due to phase and frequency differences.

Operators Manual - Page 29

Setting Up The VeronaSetting Up The Verona

Operators Manual - Page 30

Setting Up The VeronaSetting Up The Verona

Signal Processing and Amplifiers

The final links in the system tend to be graphical equalisers, loudspeaker processors and finally amplifiers and speakers.

Graphical equalisers have the same problems as the Verona’s EQ. If excessive boost is applied to the signal, the graphic equaliser’s output may be overloaded. If, the output of the Verona is higher than the maximum input level of the graphic, the input of the graphic may be overloaded.

Loudspeaker processors have similar problems. If the input level to the processor is too high, the input may be overloaded and introduce distortion into the outputs (and to the speakers!). In addition to this, any boost on the processors outputs (say you want 3dB more bass) will cause that output to overload earlier (in this case 3dB before the other outputs).

Finally, amplifiers can introduce the most interesting results.

An amplifier has a sensitivity. That is, an input signal level that causes the amplifier to produce it’s maximum output level. For many amps this is 0dBu (0.775 volts RMS), others use 0dBV (1 volt RMS) others use different levels. Beyond this sensitivity, the amplifiers output will not be able to produce any more power and ‘CLIP’ (usually indicated by some serious looking red lights). Sending +21dBu level from the Verona will clip the output of most amplifiers causing damage to your loudspeaker system.

There are a number of solutions to this problem:

Reduce the amplifiers input attenuators to a level where the amplifier and console clip at the same point.

e.g. The input sensitivity is 0dBu, setting the input attenuator on the amplifier to -21dB would mean that the console would clip at the same time as the amplifier. So operating the console sensibly the amplifier should never be clipped. The console led Meters will also accurately show the available headroom left in the entire system.

-21dB may not be a sensible level to set as many operators choose not to run the output of the console so high. That is personal choice.

Run the output of the console at a level below 0dBu

This solution means that you won’t get full benefit of the console, and may suffer a reduced signal to noise ratio especially when running over long signal cables. But the amplifiers should be saved from clipping.

As with many things in the audio world, use your ears. If something sounds distorted check:

Input Gain too high? (lower input gain and check) EQ Too Much Boost? (disable eq and check) EQ Too Much Cut coupled with a High Input Gain? (disable eq and check) Too High a level into Inserted Processor? (disable insert and check) Clipping Loudspeaker controller or Amplifiers (Check CLIP lights on amps etc.)

The flexible routing of the Verona allows the console to operate as both a Front of House (FOH) and Monitor console, or as a combination of both. For operators that haven’t got a great deal of experience, here are a few helping guidelines.

The group aux changeover switch on each group should be released (i.e. off) so that the group fader controls the group buss signal.

Uses for groups vary, but include:

Submixes are a common way of saving time (and possibly embarrassment) when using a large number of microphones at once. For example: Multiple Microphones for Choirs, Drum Kits/Percussion, Orchestras, etc . . .

The channel to be submixed should be routed to the group and any aux sends ONLY (i.e. not to the master L-C-R). The fader is, as normal, used to set the relative level between the channels in the submix. The group chosen for the submix should then be routed to the master L-C-R and panned as required.

The submix is now set up. The group level can be used to control the overall level of the channels (retaining their relative levels), mute the submix output or solo the submix signal.

Note: Muting the submix is not the same as muting the channels. Aux sends and other group sends will remain active. If channels in a submix are required to be muted, use the automute facility.

Often, it is either too expensive or undesirable to apply processing to each channel individually (for

example: compression on a whole choir, graphic eq on a number of microphones, etc...). Setting up a submix as above, the signal is grouped together. Now the desired processor can be inserted into the group inserts applying the process to all of the submix channels (in their relative levels).

example:, you were mixing a number of speakers in a venue and each needed a different level and

processing.

Route the desired channels to any group or master output as necessary. Make sure the group is not routed to the main outputs. The group outputs should be wired into the necessary amplification and the insert points into any necessary processing (e.g. delay, EQ, etc...).

The levels are now individually controllable.

Front of House Mode

Submixes

Common EQ/Processing

Alternative Outputs

Monitor Mode

Dual FOH/Monitor Mode

The group aux changeover switch on each group should be depressed (i.e. on) so that the group fader controls the aux buss signal.

Channel signal should be sent to the auxiliary as required and the aux sends should usually be configured to pre-fader. The console group output sockets should be wired into the necessary amplification and the insert points into any necessary processing (e.g. EQ, etc...).

The monitor levels are now individually controllable on the group faders.

The group aux changeover switch on each group should be depressed (i.e. on) so that the group fader controls the aux buss signal for monitors or released (i.e. off) so that the group fader controls the group buss signal for FOH. The usage in this split mode can be any combination of the above!

Note: When the group aux changeover switch is depressed, control over the groups is performed by the auxiliary controls and hence, and group outputs may still be used. Submixes could be used by connecting the auxiliary output sockets on the rear of the console to four unused stereo input channels and routed to the Left and Right master busses.

pan

group

fade

pre

mono

stereo

to mtx

group 1

aux

aux c/o

pre

group

master

sis

SOLO

MUTE

+10

aux 1

aux

c/o

pre

group

SOLO

MUTE

Operators Manual - Page 31

Setting Up The VeronaSetting Up The Verona

Routing

Functional

Block Diagrams

Operators Manual - Page 33

Operators Manual - Page 34

MUTE

mute 1

mute 2

mute 3

mute 4

-18

aux 1

aux 2

aux 3

aux 4

aux 6

aux 5

insert

hi-pass

160

400

power

48v

mic gain

+30

+45

+60

+15

mic

automute 1 bus

phantom

hi-pass

filter

phase

reverse

insert

return

send

VERONA MONO INPUT MODULE

BLOCK DIAGRAM

left bus

mono bus

group 7 bus

aux pre 2 bus

right solo bus

pfl bus

direct out

aux pre 1 bus

aux post 1 bus

aux post 2 bus

aux pre 3 bus

aux post 3 bus

aux pre 4 bus

aux post 4 bus

aux pre 5 bus

aux post 5 bus

aux pre 6 bus

aux post 6 bus

aux 7 bus

aux 8 bus

automute 2 bus

automute 3 bus

automute 4 bus

right bus

left solo bus

group 5 bus

group 3 bus

group 1 bus

group 8 bus

group 6 bus

group 4 bus

group 2 bus

direct option

pfl meter

aux 7&8 pre option

line in

-15

+10dB

pan in stereo mode

solo on bus

solo in place bus

pan in sis mode

solo logic

mic O

aux 7

aux 8

pan

pad

-15

aux pre

off

groups

master

pan

sis

aux 8

mono

grp 1

stereo

pre

aux 7

SOLO

grp 3

grp 5

grp 7

grp 2

grp 4

grp 6

grp 8

pre eq

post eq

0+60

10k

20k

treble

-15

+15

-15

+15

400

hi-mid

100

300

-15

+15

lo-mid

100

200

-15

+15

bass

equaliser

Operators Manual - Page 35

MUTE

mute 1

mute 2

mute 3

mute 4

-18

aux 1

aux 2

aux 3

aux 4

aux 6

aux 5

insert

hi-pass

power

48v

mic gain

+30

+45

+60

+15

mic

automute 1 bus

phantom

phase

reverse

insert

return

send

VERONA MULTI FUNCTION INPUT MODULE

BLOCK DIAGRAM

left bus

mono bus

group 7 bus

aux pre 2 bus

right solo bus

pfl bus

aux pre 1 bus

aux post 1 bus

aux post 2 bus

aux pre 3 bus

aux post 3 bus

aux pre 4 bus

aux post 4 bus

aux pre 5 bus

aux post 5 bus

aux pre 6 bus

aux post 6 bus

aux 7 bus

aux 8 bus

automute 2 bus

automute 3 bus

automute 4 bus

right bus

left solo bus

group 5 bus

group 3 bus

group 1 bus

group 8 bus

group 6 bus

group 4 bus

group 2 bus

pfl meter

aux 7&8 pre option

+10dB

solo on bus

solo in place bus

solo logic

mic O

aux 7

aux 8

pan

pad

-15

aux pre

off

groups

Pan

aux 8

mono

grp 1

stereo

pre

aux 7

SOLO

grp 3

grp 5

grp 7

grp 2

grp 4

grp 6

grp 8

pre eq

post eq

80Hz

mono

wide

stereo


line gain

+20

treble

-15

+15

-15

+15

bass

equaliser

-15

+15

hi-mid

600

1k5

-15

+15

lo-mid

300

100

500

1k2

+10dB

post eq

lineinL

lineinR

Operators Manual - Page 36

insert G1

return

send

VERONA GROUP/MATRIX MODULE

BLOCK DIAGRAM

aux post 1 bus

group 1 bus

+10dB

solo on bus

SOLO

aux

mtx

group

to mtx

aux

pre

direct

input to

mono

stereo

mtx

+21

+18

+15

+12

-3

-6

-9

-12

-15

-18

-21

-24

group meter 1

+20

direct

fade

pre

+10

aux 1

MUTE

matrix 1

+10

aux pre 1 bus

aux

c/o

group

MUTE

pan

left bus

mono bus

right bus

pan in stereo mode

pan in sis mode

master

sis

stereo

right solo bus

pfl bus

left solo bus

SOLO

aux

group

group 3-matrix

group 1-matrix

group 4-matrix

group 5-matrix

group 6-matrix

group 7-matrix

group 8-matrix

mono-matrix

left-matrix

right-matrix

group 2-matrix

MUTE

aux out 1

group 1

matrix 1

SOLO

direct in 1

mono

+10dB

meter source select

matrix

dir input

group 6

group 7

group 8

group 5

group 4

group 3

group 2

group 1

right master

left master

mono master

talk-matrix

+10dB

+20dB

Operators Manual - Page 37

insert ML

return

send

VERONA MASTER MODULE

BLOCK DIAGRAM

left bus

solo on bus

solo in place bus

SOLO

+10

generator

to mono

stereo

pre

insert

pfl

left

mono

+10

phones

local

monitor

mic

talk

external

Grp 1

mono

stereo

auto

mute

masters

solo in

place

MUTE

+21

+18

+15

+12

-3

-6

-9

-12

-15

-18

-21

-24

left

center

right

master meters

+15

+60

150

500

freq

+20

tape

SOLO

right solo bus

pfl bus

left solo bus

SOLO

stereo

mono

master L

+10dB

master R

insert MC

return

send

right bus

+10dB

insert MR

return

send

mono bus

+10dB

MUTE

master C

tape out

tape in

MUTE

monitor L

monitor R

MUTE

mono

right

MUTE

left

talk in

talk out

OSC

group 1 bus

group 3 bus

group 5 bus

group 7 bus

group 2 bus

group 4 bus

group 6 bus

group 8 bus

aux

matrix

talk-matrix

mono

mono bus

stereo

right bus

left bus

aux pre 2 bus

aux pre 1 bus

aux post 1 bus

aux post 2 bus

aux pre 3 bus

aux post 3 bus

aux pre 4 bus

aux post 4 bus

aux pre 5 bus

aux post 5 bus

aux pre 6 bus

aux post 6 bus

aux 7 bus

aux 8 bus

grp 3

grp 5

grp 7

grp 8

grp 6

grp 4

grp 2

automute 1 bus

automute 2 bus

automute 3 bus

automute 4 bus

left bus

right bus

mono bus

left

right

-20dB

tape

(dim)

pfl out

+48V

phantom

+21

+18

+15

+12

-3

-6

-9

-12

-15

-18

-21

-24

left

pfl

right

solo meters

+20dB

phones

Dimensions and

Weights

Operators Manual - Page 39

Dimensions and Weights

Operators Manual - Page 40

Rear panel

Description

Operators Manual - Page 41

Rear Panel Description

Operators Manual - Page 42

Standard location of

Multi-function Input

module

Mono Input module

Internal switching

mode power supply

mains inlet

External linear power

supply connector

Littlite connector

Output module

Recessed Littlite clip

Actual number of input banks depends Verona model2Refer to specifications for PSU fitting option

Specification and

Features

Operators Manual - Page 43

The following list of features is based upon the thirty-two channel frame size console.

24 mono input channels 8 stereo input channels 8 Auxiliary Outputs

1 through 6 with Global Pre/Post Fader selection and selectable Pre/Post EQ 7 & 8 with Channel selectable Pre/Post Fader selection and jumper selectable Pre/Post EQ For jumper selection configurations, contact you local Midas service agent.

8 Group Outputs

With Aux/Group Changeover option for dual purpose FOH/Monitor applications

4 Band Equaliser

Mono Channels: 4 Swept Frequency Bands (Treble, Hi Mid, Lo Mid, Bass) Stereo Channels: 2 Shelving Bands (Bass, Treble), 2 Swept Frequency Bands (hi mid, lo mid)

48 volt phantom power independantly switchable on each channel (always on talk mic) Hi-Pass filter on all inputs (Mono Channels: Variable 20Hz to 400Hz, Stereo Channels: Fixed 80Hz) Signal Generator 32 Channel Inserts (jumper selectable pre/post insert and eq)

Microphone XLR(f) 1k5 ohm Yes Variable (+21dBu) 32

Direct Input 1/4” TRS Jack 10k ohm Yes Variable (+26dBu) 4

Direct Out 1/4” TRS Jack 100 ohm Impedance Bal. 0dBu (

Auxiliary XLR(m) 50 ohm Yes 8 Matrix XLR(m) 50 ohm Yes 4 Talk Out XLR(m) 50 ohm Yes 1 Master Out XLR(m) 50 ohm Yes 3 (LCR) Monitor Out XLR(m) 50 ohm Yes 2 (LR) PFL Out XLR(m) 50 ohm Yes 1 (M) Tape Out RCA Phono 600 ohm No -1 2 Headphones 1/4” TRS Jack To drive headphones > 100 ohm +1 1

Input 1/4” TRS Jack 50/10k ohm (s/r) No 32 Group Master

The thirty-two channel Verona features:

Type Connector Impedance Balanced No.

Inputs

Out

Inserts

Level Nom (max)

puts

M Ch Line Input 1/4” TRS Jack 10k ohm Yes Variable (+36dBu w/pad) 24 MF Ch Line Input 1/4” TRS Jack 10k ohm Yes Variable (+26dBu) 16

Tape Input RCA Phono 47k ohm No -10dBu (+26dBu) 2 Talk Mic XLR(f) 1k5 ohm Yes Variable (+6dBu) 1 Talk Input XLR(f) 10k ohm Yes 0dBu (+26dBu) 1

+21dBu) 24

Groups XLR(m) 50 ohm Yes 0dBu (+21dBu) 8

0dBu (+21dBu) 0dBu (+21dBu) 0dBu (+21dBu) 0dBu (+21dBu) 0dBu (+21dBu) 0dBu (+21dBu)

0dBu (+11dBu)

0dBu (+21dBu)

0dBu (+21dBu) (send/ret) 1/4” TRS Jack 50/10k ohm (s/r) No 0dBu (+21dBu) (send/ret) 8 1/4” TRS Jack 50/10k ohm (s/r) No 0dBu (+21dBu) (send/ret) 3

Total XLR input count 34 Total Jack input count 44 Total RCA Phono input count 2

Total XLR output count 27 Total Jack output count 25 Total RCA Phono output count 2

Total insert count 43

Quarter Inch Jack

TRS Signal TRS Insert TRS Headphone

Sleeve Screen/Ground Screen/Ground Screen/Ground Ring Cold Signal Insert Return Right Tip Hot Signal Insert Send Left

Verona FeaturesVerona Features

RCA (Tape In/Out)

Centre (Tip) - Signal Surround (Sleeve) - Screen

XLR

Pin 1 - Screen/Ground Pin 2 - Hot Signal Pin 3 - Cold Signal

Note: Sockets are viewed from the front face.

Operators Manual - Page 44

Verona SpecificationVerona Specification

Internal Power Supply

Type Switching Line Voltage 90 - 240V AC Line Frequency 50/60Hz

Input Impedance

Microphone 1k5 ohm Balanced Line 10k ohm Balanced

Input Gain (all faders at 0dB)

Microphone Continuously variable from +15dB to +60dB Microphone + Pad Continuously variable from 0dB to +45dB Mono Channel Line Continuously variable from 0dB to +45dB

(-15dB to +30dB Pad enabled) Stereo Channel Line Continuously variable from off to +20dB Direct Inputs Continuously variable from off to +20dB

Maximum Input Level

Mic +6dBu Mic + Pad +21dBu Mono Channel Line +21dBu (+36dBu pad enabled) Stereo Channel Line +26dBu

CMR at 100Hz

Microphone (Gain +40dB) Typ 95dB Microphone + Pad(Gain 0dB) Typ 80dB Line (Gain 0dB) Typ 80dB

CMR at 1kHz

Microphone (Gain +40dB) Typ 95dB Microphone + Pad(Gain 0dB) Typ 80dB Line (Gain 0dB) Typ 80dB

Frequency Response (20Hz to 20kHz)

Microphone to Mix +0 to -1dB

Noise 20Hz to 20kHz Microphone EIN ref. 150 ohms (Gain +60dB) -129dBu

System Noise (20Hz to 20kHz)

Summing Noise (48 channels routed with faders down) -80dB

Line to Mix Noise (48 channels routed at 0dB, pan centre) -75dB

Distortion at 1kHz

Microphone to Mix (Gain +40dB, 0dBu output) <0.03%

Crosstalk at 1kHz

Channel to Channel < -90dB Mix to Mix < -90dB Channel to Mix < -90dB Max. Fader Attenuation > 100dB Max. Mute Attenuation > 100dB

Output Impedance

All Line Outputs 50 ohms Balanced Source to drive > 600 Ohms Tape Output 600 ohms unbalanced Direct Output 100 ohms impedance balanced Insert Output 50 ohms unbalanced Headphones to drive > 100 ohms

Maximum Output Level

All Line Outputs +21dBu Headphones +21dBu

Nominal Signal Level

Microphone -60dBu to 0dBu Line 0dBu Headphones +10dBu

Operators Manual - Page 45

Verona SpecificationVerona Specification

Equalisation

Mono Hi-pass slope 12dB/octave Channels

Stereo

Treble Band Cut/Boost +/-15dB

Frequency range 2kHz to 20kHz

Hi Mid Band Cut/Boost +/-15dB

Frequency range 400Hz to 8kHz Bandwidth 1 Octave

Lo Mid Band Cut/Boost +/-15dB

Frequency range 100Hz to 2kHz Bandwidth 1 Octave

Bass Band Cut/Boost +/-15dB

Frequency range 20Hz to 400Hz

Bandwidth 1 Octave

Treble Band Cut/Boost +/-15dB

Frequency (-3dB) 12kHz

Hi Mid Band Cut/Boost +/-15dB

Frequency range 600Hz to 8kHz

Lo Mid Band Cut/Boost +/-15dB

Frequency range 100Hz to 1.2kHz

Bass Band Cut/Boost +/-15dB

Frequency (-3dB) 100Hz

The number of power supplies shipped as standard with the Verona varies with the frame size as follows:

24-32 1 0 NO 40 - 56 2 0 YES 64 2 1 YES

The internal supplies on the 64 channel Verona should be switched on at approximately the same time so that excessive load is not applied to any single supply.

The external power supply can be used to add or increase redundancy or to replace the internal supplies. The external supply has a “daisy chain” facility (as shown below) allowing for a number of power supplies to be used together adding redundancy to the system in the event of a power supply failing.

Connection 6 Pin Male XLR

Pin 1 0V Analogue Pin 2 +18V Analogue Pin 3 -18V Analogue Pin 4 +12V Gooseneck Light Pin 5 +48V Phantom Pin 6 0V Gooseneck Light Case Chassis

Under NO circumstances should the Venice series power supply be used with the Verona. Only the Midas V190 Linear External Power Supply is approved for use with Verona consoles.

Both the Verona and the Midas V190 linear external power supply both contain potentially lethal voltages and should only be serviced by authorised Midas service agents. In the event of malfunction, please refer servicing to qualified personnel. Contact your Midas dealer for more information.

Channels

Channels Internal External Redundancy

Servicing and Maintenance

Power Supply Information

Due to a policy of continual improvement, Midas reserves the right to alter the specification and performance at any time without prior notification.

Operators Manual - Page 46

Low

DCOutput/ Link

Power

Mains

48V

PUSHPUSH

Low

DCOutput/ Link

Power

Mains

48V

8V 1

PUSHPUSH

BEFOREAPPLYINGMAINS.

CHECKVOLTAGESELECTOR

100V/120V/220V/240V

FUSE:5x20mm T5AL250V

AC~50-60Hz460W

SUPPLY VOLTAGE

CAUTION:

FORCONTINUEDPROTECTIONAGAINST RISK OFFORCONTINUEDPROTECTIONAGAINST RISK OF

FIREREPLACEWITHTHE SAME TYPE AND VALUE FUSE INDICATED.FIREREPLACE WITH THE SAME TYPE AND VALUE FUSE INDICATED.

ATTENTION:

REMPLACERPARUMFUSIBLE DE MÊME TYPEREMPLACERPARUMFUSIBLE DE MÊME TYPE

COMMEINDIQUÉ.

CAUTION

RISKOFELECTRICSHOCK

DONOTOPEN

NOUSERSERVICEABLEPARTS INSIDE REFER SERVICING TO QUALIFIEDSERVICEPERSONNEL.

DONOTEXPOSETHIS APPLIANCE TO RAIN OR MOISTURE

TOREDUCETHERISK OF ELECTRIC SHOCK,

WARNING:

RISQUEDECHOCELECTRIQUE. NE PAS OUVRIR.

AVIS:

THISDEVICECOMPLIESWITH PART15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: (1)THISDEVICEMAYNOT CAUSE HARMFUL INTERFERENCE, AND (2)THISDEVICEMUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

DCOutput/ Link

Pin6-

0VL

Pin1Pin2Pin3Pin4Pin5-

0VA

8V 1

1 48V

MADEINKIDDERMINSTER,ENGLAND

CUS

PUSH

BEFOREAPPLYINGMAINS.

CHECKVOLTAGESELECTOR

100V/120V/220V/240V

FUSE:5x20mm T5AL250V

AC~50-60Hz460W

SUPPLY VOLTAGE

CAUTION:

FORCONTINUEDPROTECTIONAGAINST RISK OFFORCONTINUEDPROTECTIONAGAINST RISK OF

FIREREPLACEWITHTHE SAME TYPE AND VALUE FUSE INDICATED.FIREREPLACE WITH THE SAME TYPE AND VALUE FUSE INDICATED.

ATTENTION:

REMPLACERPARUMFUSIBLE DE MÊME TYPEREMPLACERPARUMFUSIBLE DE MÊME TYPE

COMMEINDIQUÉ.

CAUTION

RISKOFELECTRICSHOCK

DONOTOPEN

NOUSERSERVICEABLEPARTS INSIDE REFER SERVICING TO QUALIFIEDSERVICEPERSONNEL.

DONOTEXPOSETHIS APPLIANCE TO RAIN OR MOISTURE

TOREDUCETHERISK OF ELECTRIC SHOCK,

WARNING:

RISQUEDECHOCELECTRIQUE. NE PAS OUVRIR.

AVIS:

DCOutput/ Link

Pin6-

0VL

Pin1Pin2Pin3Pin4Pin5-

0VA

8V 1

1 48V

MADEINKIDDERMINSTER,ENGLAND

CUS

PUSH

To console

PSU 1

PSU 2

Front View

Rear View

To subsequent supplies

Crib Sheet Mono InputCrib Sheet Mono Input

Notes:

Crib Sheet

Multi Function Input

Crib Sheet

Multi

Function Input

Notes:

Midas Verona Operators Manual

Issue 1.1 - February 2004

DOC02-Verona

Due to a policy of continual product improvement, specification and features

may be subject to change without notice.

Midas VERONA Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
