MicW Audio E418, E418-Pair User Manual

MicW

Audio

a member of BSWA Technology Ltd.
Unit 1003, North Ring Center, No.18 Yumin Road, Xicheng District
Beijing 100029, China
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.mic-w.com

2008,

MicW

microphones

Product features and specifications are subject to change without notice.

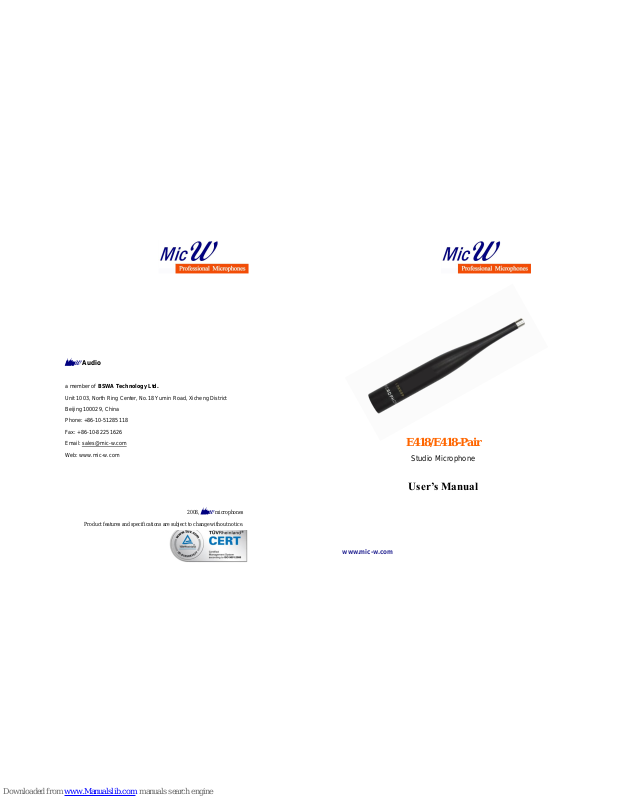

E418/E418-Pair

Studio Microphone

User’s Manual

www.mic-w.com

1. INTRODUCTION

Welcome to use

MicW

series professional microphones!

MicW

E418 has outstanding characteristics that make the microphone a valuable

tool in the studio, measurement and on the stage.

2. SAFETY INSTRUCTION

It is important to read all safety precautions and operating instructions before
attempting to operate the unit. Keep all safety precautions and operating
instructions for future reference.

Warning:

Condenser microphones are extremely moisture-sensitive. Never use your
microphone in close proximity to water (e.g. bath tubs, wash basins, sinks,
washing machines, pools, etc.). When doing voice recordings, always use the
enclosed windscreen to safely protect the capsule from moisture.

Please don’t touch the vibration parts especially the diaphragm behind the
protection grid. Don’t move the capsule when it is in operation. Take care not to
drop your microphone as this can lead to severe damage.

MicW

assumes no

liability for any damage caused by the user.
After each use, place it back into its protective casing. Then, lay the small bag

containing the moisture-absorbing crystals on top of the microphone head.

3. POWER SUPPLY

Phantom power (+48 V) is required to operate your microphone. We assume no
liability for damage caused to your E418 through defective phantom power.
Before activating phantom power, mute your playback system and connect the
E418 to the microphone input of your mixing console. After activating phantom
power, the E418 requires several seconds to stabilize itself.

4. APPLICATIONS

The

MicW

E418 is a state-of-the-art stereo kit. Therefore, it is particularly
well-suited for stereo recordings. Regardless of whether you are miking an entire
ensemble or a single sound source (e.g. drums, piano or background vocals), this
microphone lets you achieve outstanding spatial impressions in every recording
session.

MICROPHONE E418/E418-Pair

Capsule diameter

7 mm

Polar pattern

Omni

Sensitivity (±2dB)

10mv/Pa; -40 dB re. 1v/Pa

Frequency Response

20 Hz ~ 20kHz

Power Supply

48 V Phantom power

Total harmonic distortion
(THD)

＜1% up to 135 dB SPL peak

Thermal Noise

＜26 dBA

Output impedance

＜75 Ohm

Length

145mm

weight

135g

Connector

3-pin XLR

8. SPECIFICATIONS:

9. Contents in the case

 E418/E418-Pair/M418 microphone(s);
 Wind screen;
 User’s manual..

Polar Pattern
