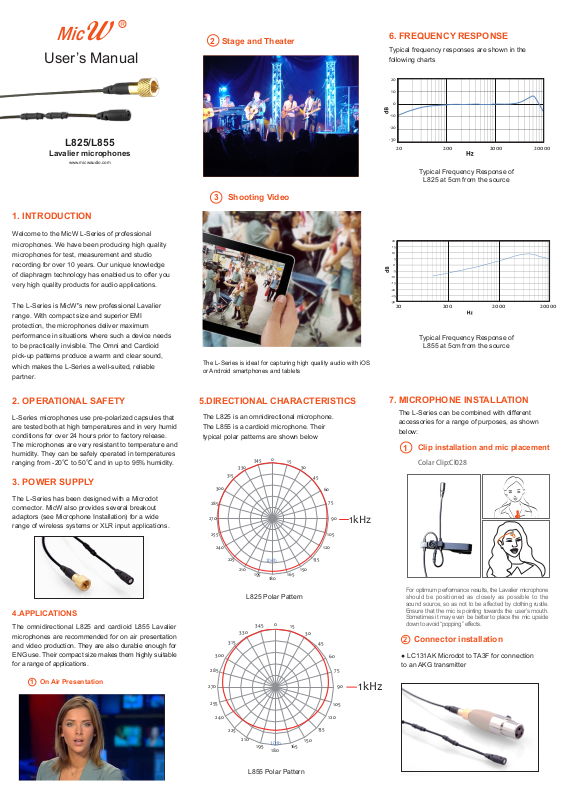

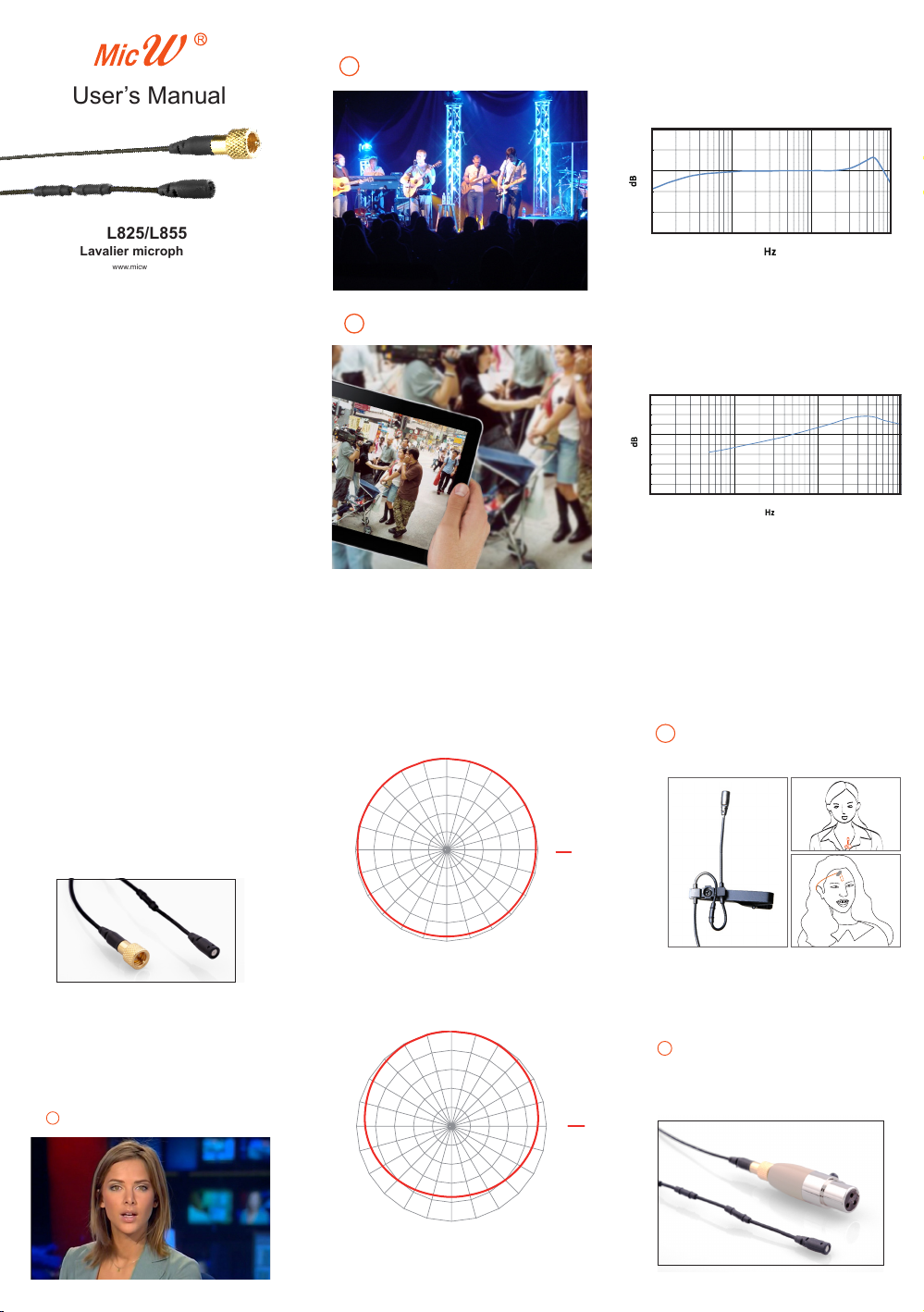

Page 1
User’s Manual
L825/L855
Lavalier microphones
www.micwaudio.com
1. INTRODUCTION
Welcome to the MicW L-Series of professional
microphones. We have been producing high quality
microphones for test, measurement and studio
recording for over 10 years. Our unique knowledge
of diaphragm technology has enabled us to offer you
very high quality products for audio applications.
The L-Series is MicW'’s new professional Lavalier
range. With compact size and superior EMI
protection, the microphones deliver maximum
performance in situations where such a device needs
to be practically invisible. The Omni and Cardioid
pick-up patterns produce a warm and clear sound,
which makes the L-Series a well-suited, reliable
partner.
2 Stage and Theater
3 Shooting Video
The L-Series is ideal for capturing high quality audio with iOS
or Android smartphones and tablets
6. FREQUENCY RESPONSE
Typical frequency responses are shown in the
following charts
20
10
0
-10
-20
-30
20 200 2000 20000
Typical Frequency Response of
L825 at 5cm from the source
20
15
10
5
0
-5
-10
-15
-20
-25
-30
20 200 2000 20000
Typical Frequency Response of
L855 at 5cm from the source
2. OPERATIONAL SAFETY
L-Series microphones use pre-polarized capsules that
are tested both at high temperatures and in very humid
conditions for over 24 hours prior to factory release.
The microphones are very resistant to temperature and
humidity. They can be safely operated in temperatures
ranging from -20℃ to 50℃ and in up to 95% humidity.
3. POWER SUPPLY
The L-Series has been designed with a Microdot
connector. MicW also provides several breakout
adaptors (see Microphone Installation) for a wide
range of wireless systems or XLR input applications.
4.APPLICATIONS
The omnidirectional L825 and cardioid L855 Lavalier
microphones are recommended for on air presentation
and video production. They are also durable enough for
ENG use. Their compact size makes them highly suitable
for a range of applications.
1 On Air Presentation
5.DIRECTIONAL CHARACTERISTICS
The L825 is an omnidirectional microphone.
The L855 is a cardioid microphone. Their
typical polar patterns are shown below
0
345
10db
195 165
180
0
345
10db
195 165
180
15
30
45
60
75
105
120
135
150
15
30
45
60
75
105
120
135
150
330
315
300
285
270 90
255
240
225
210
L825 Polar Pattern
330
315
300
285
270 90
255
240
225
210
1kHz
1kHz
7. MICROPHONE INSTALLATION
The L-Series can be combined with different
accessories for a range of purposes, as shown
below:
Clip installation and mic placement
1
Colar Clip:Cl028
For optimum performance results, the Lavalier microphone
should be positioned as closely as possible to the
sound source, so as not to be affected by clothing rustle.
Ensure that the mic is pointing towards the user’s mouth.
Sometimes it may even be better to place the mic upside
down to avoid “popping” effects.
2
Connector installation
● LC131AK Microdot to TA3F for connection
to an AKG transmitter
L855 Polar Pattern

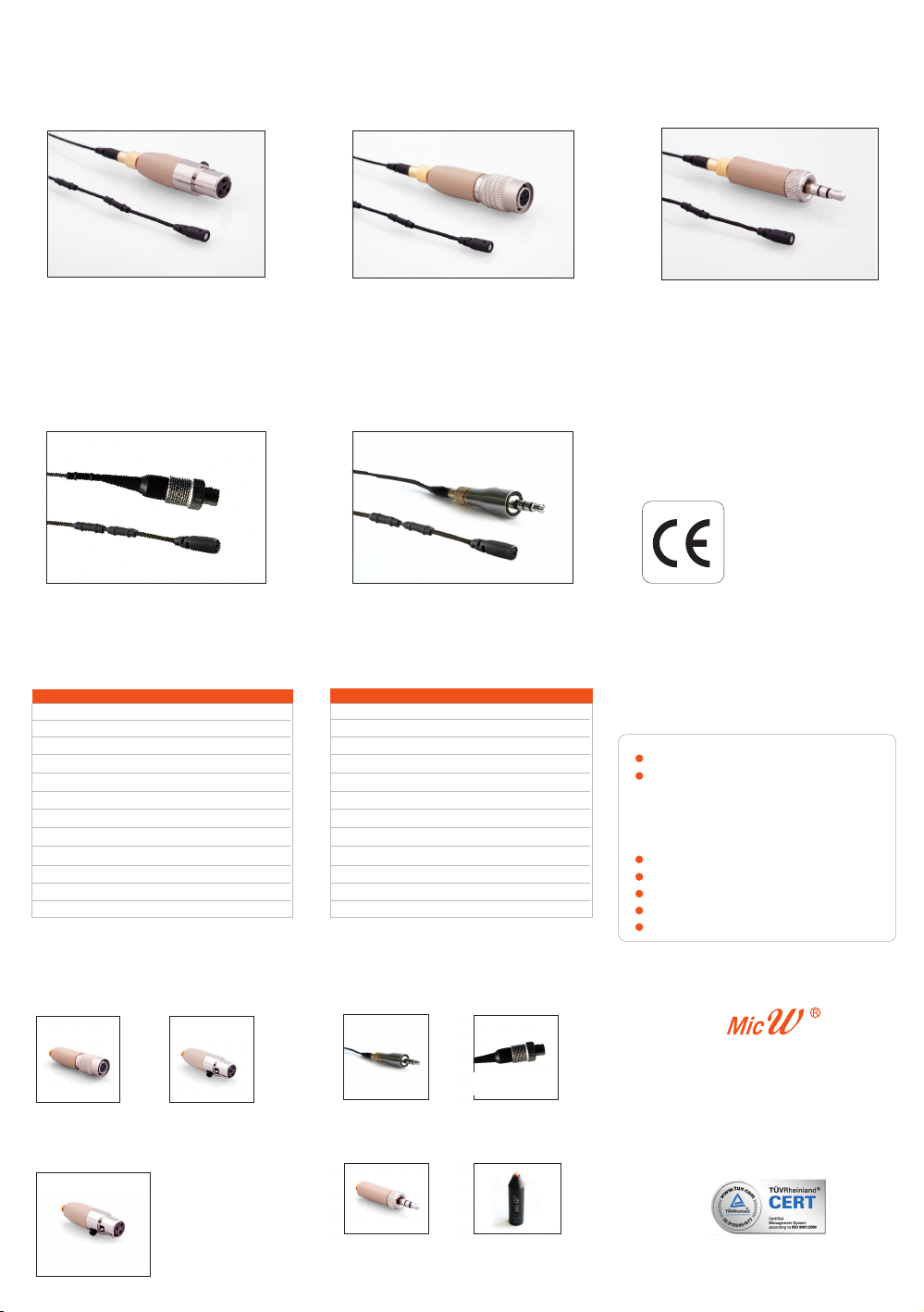

Page 2
● LC241SH Microdot to 3-PIN XLR for
connection to a SHURE transmitter.
● LC341AT Microdot to 4pin Hirose for
connection to an Audio-Technica transmitter.
● LC031SE Microdot to mini jack with thread
for connection to a Sennheiser transmitter.
● LC032SE Microdot to Lemo, for connection
to a Sennheiser transmitter.
10. SPECIFICATIONS
Type
Capsule diameter
Principe of operation
Polar Pattern
Sensitivity(±3dB)
Frequency Response
Max. SPL(<0.1% THD)
Equ. noise level
Power
Operating
Temperature
Cable Length
Microphone L825
Condenser
4.0mm
Pressure
Omni
5.6mV/Pa
20Hz~20kHz
126dB
31dB(A)
0.8-5V DC
-17℃~+60
1.6m
℃
● LC441MW Microdot to mobile device for
connection to iPhone, iPad and other smart
devices.
Type
Capsule diameter
Principe of operation
Polar Pattern
Sensitivity(±4dB)
Frequency Response
Max. SPL(<0.1% THD)
Equ. noise level
Power
Operating
Temperature
Cable Length
Microphone L855
Condenser
4.0mm
Pressure Gradient
Cardiod
3.5mV/Pa
10Hz~10kHz
130dB
40dB(A)
1.3-3V DC
-10℃~+50
1.6m
℃
8. WARRANTY POLICY
MicW Audio warrants that its products
will be free from defects in material and
workmanship for two (2) years from the date
of purchase by the Original Purchaser.
9. CE MARKING
MicW L825 and L855
microphones conform
to the relevant CE mark
directives approved by
the European commission
11.WHAT'S IN THE KIT
The L825/855 Kits contain the
following items:
Microphone with Microdot connector
1 Connector Choice of
microdot to Sennheiser Mini jack (LC031SE)
or microdot to AKG(LC131AK)
or microdot to Shure(LC241SH)
or microdot to Senn 3-pin Lemo(LC032SE)
5 Windscreen black(WS018)
5 Windscreen yellow(WS018)
1 Croc Clip(CL028)
10 sticky tapes(TP011)
User manual
12. OPTIONAL ACCESSORIES
LC341AT
Microdot to 4-pin Hirose
(Audio-Technica)
LC241SH
Microdot to TA4F
Switchcraft (Shure)
LC131AK
Microdot to TA3F
Switchcraft (AKG)
LC441MW
Microdot to iPhone
or other mobile
device
LC031SE
Microdot to mini jack with
thread (Sennheiser)
LC032SE
Microdot to 3-pin
Lemo (Sennheiser)
PI50
Microdot to XLR
adaptor – provides
48V phantom power
A division of BSWA Technology Ltd.
Unit 1003, North Ring Center, No.18 Yumin Road,
Xicheng District
Beijing 100029, China
Phone: +86-10-5128 5118
Fax: +86-10-8225 1626
Email: [email protected]
Web: www.micwaudio.com
Product features and specications are subject to change without notice
