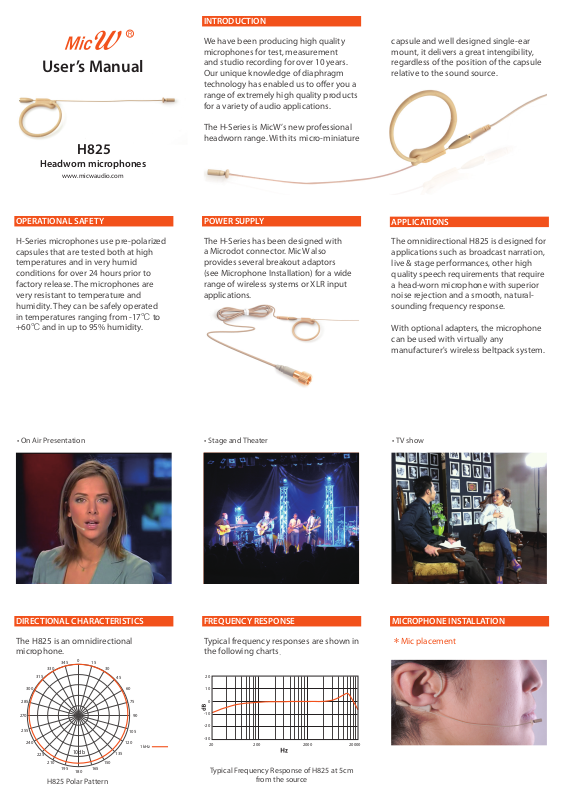

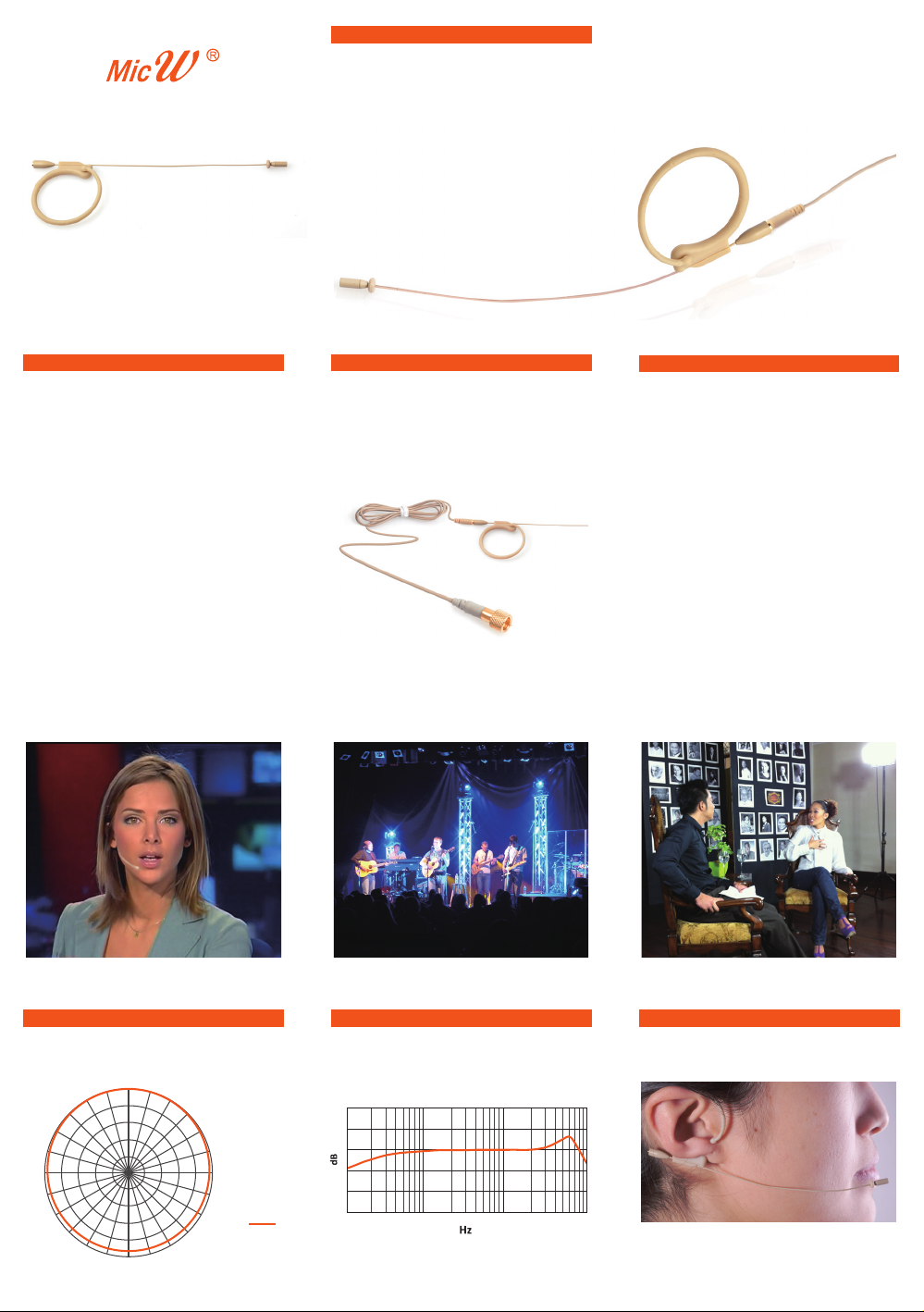

INTRODUCTION
User’s Manual
H825
Headworn microphones
www.micwaudio.com
OPERATIONAL SAFETY
H-Series microphones use pre-polarized
capsules that are tested both at high
temperatures and in very humid
conditions for over 24 hours prior to
factory release. The microphones are
very resistant to temperature and
humidity. They can be safely operated
in temperatures ranging from -17℃ to
+60℃ and in up to 95% humidity.
We have been producing high quality
microphones for test, measurement
and studio recording for over 10 years.
Our unique knowledge of diaphragm
technology has enabled us to oer you a
range of extremely high quality products
for a variety of audio applications.
The H-Series is MicW’s new professional
headworn range. With its micro-miniature
POWER SUPPLY
The H-Series has been designed with
a Microdot connector. MicW also
provides several breakout adaptors
(see Microphone Installation) for a wide
range of wireless systems or XLR input
applications.
capsule and well designed single-ear
mount, it delivers a great intengibility,
regardless of the position of the capsule
relative to the sound source.
APPLICATIONS
The omnidirectional H825 is designed for
applications such as broadcast narration,
live & stage performances, other high
quality speech requirements that require
a head-worn microphone with superior
noise rejection and a smooth, naturalsounding frequency response.
With optional adapters, the microphone
can be used with virtually any
manufacturer's wireless beltpack system.
• On Air Presentation • Stage and Theater • TV show
DIRECTIONAL CHARACTERISTICS
The H825 is an omnidirectional
microphone.
315
300
285
270 90
255
240
225
0
345
10db
195 165
180
15
330
210
H825 Polar Pattern
30
45
60
75
105
120
135
150
1kHz
FREQUENCY RESPONSE
Typical frequency responses are shown in
the following charts
20
10
0
-10
-20
-30
20 200 2000 20000
Typical Frequency Response of H825 at 5cm
.
from the source
MICROPHONE INSTALLATION
Mic placement
✽
Page 2
Connector installation
✽

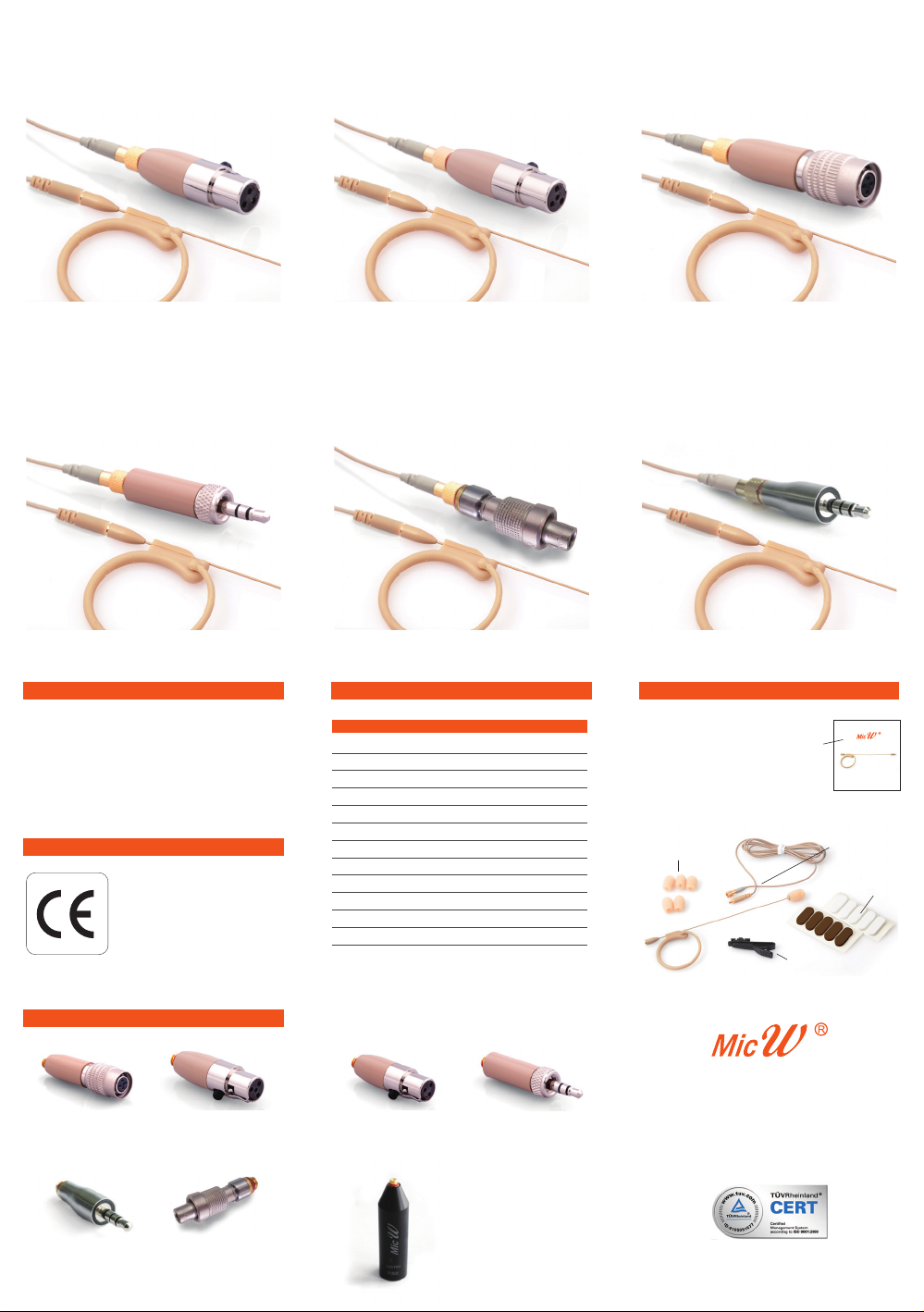

• LC131AK Microdot to TA3F for connection to
an AKG transmitter.
• LC241SH Microdot to 3-PIN XLR for connection
to a SHURE transmitter.
• LC341AT Microdot to 4pin Hirose for
connection to an Audio-Technica transmitter.
• LC031SE Microdot to mini jack with thread for
connection to a Sennheiser transmitter.
WARRANTY POLICY
MicW Audio warrants that its products
will be free from defects in material and
workmanship for two (2) years from
the date of purchase by the Original
Purchaser.
CE MARKING
MicW H825 microphones
conform to the relevant
CE mark directives
approved by the
European commission
• LC032SE Microdot to Lemo, for connection to
a Sennheiser transmitter.
• LC441MW Microdot to mobile device for
connection to iPhone, iPad and other smart
devices.
SPECIFICATIONS WHAT'S IN THE KIT
Type
Microphone H825
Capsule diameter
Principe of operation
Polar Pattern
Sensitivity(±3dB)
Frequency Response
Max. SPL(<0.1% THD)
Equ. noise level
Power
Operating Temperature
Cable Length
Connector
Condenser
4.0mm
Pressure
Omni
5.6mV/Pa
20Hz~20kHz
126dB
31dB(A)
0.8-5V DC
-17℃~+60
1.6m
Microdot*
℃
The H825 Kit contains
the following items:
• 1 Connector to choose
- Microdot to Sennheiser Minijack
(LC031SE) or
- Microdot to AKG (LC131AK) or
- Microdot to Shure (LC241SH) or
- Microdot to Sennh 3-pin Lemo (LC032SE) or
- Microdot to iPhone 3.5mm Jack (LC441MW)
5 Windscreen Yellow (WS018)
User Manual
1 Croc Clip
(CL028)
User’s Manual
H825
Headworn microphones
www.micwaudio.com
H825 Microphone
with Microdot
Connector
10 Sticky Tape
(TP011)
OPTIONAL ACCESSORIES
LC341AT
Microdot to 4-pin Hirose
(Audio-Technica)
LC441MW
Microdot to iPhone or
other mobile device
LC241SH
Microdot to TA4F
Switchcraft (Shure)
LC032SE
Microdot to 3-pin Lemo
(Sennheiser)
LC131AK
Microdot to TA3F
Switchcraft (AKG)
LC031SE
Microdot to mini jack with
thread (Sennheiser)
PI50
Microdot to XLR adaptor
– provides 48V phantom
power
