E150 Series
Modular microphones
User Manual
Page 2
INTRODUCTION
POWER SUPPLY
Welcome to MicW’s E-Series professional microphones!
The E150 modular microphone series oers a choice of omni (E153), cardioid (E151)
and super-cardioid (E152) condenser capsules combined with a universal, well-
designed preamp.
SAFETY INSTRUCTION
It is important to read all the safety and operating instructions before
attempting to use your microphone. You are also advised to keep this
information for future reference.
Warning:
Condenser microphones are extremely moisture-sensitive. Never use your
microphone in close proximity to water (e.g. bath tubs, wash basins, sinks,
washing machines, pools, etc.). When recording voices, always use the supplied
windscreen to protect the capsule from moisture.
Please don’t touch any vibrating parts, especially the diaphragm behind the
protection grid. Don’t move the capsule when it is in operation. Take care not
to drop your microphone as this can lead to severe damage. MicW assumes no
liability for any damage caused by the user.
Phantom power (+48 V) is required in order to operate your microphone. We
assume no liability for damage caused to your microphone through defective
phantom power. Before activating the
phantom power, mute your playback
system and connect the microphone to
the mic input of your mixing console.
After the phantom power has been
activated, the microphone will require
several seconds to stabilize itself.
APPLICATIONS
E150 Series microphones are widely used for recording acoustic instruments,
guitar, piano, strings, drums, percussion, brass and vocals.
• Instrument recording • Vocal recording
Put the microphone back in its protective casing after each use. Lay the
supplied bag of moisture-absorbing crystals on top of the microphone head.
Page 3

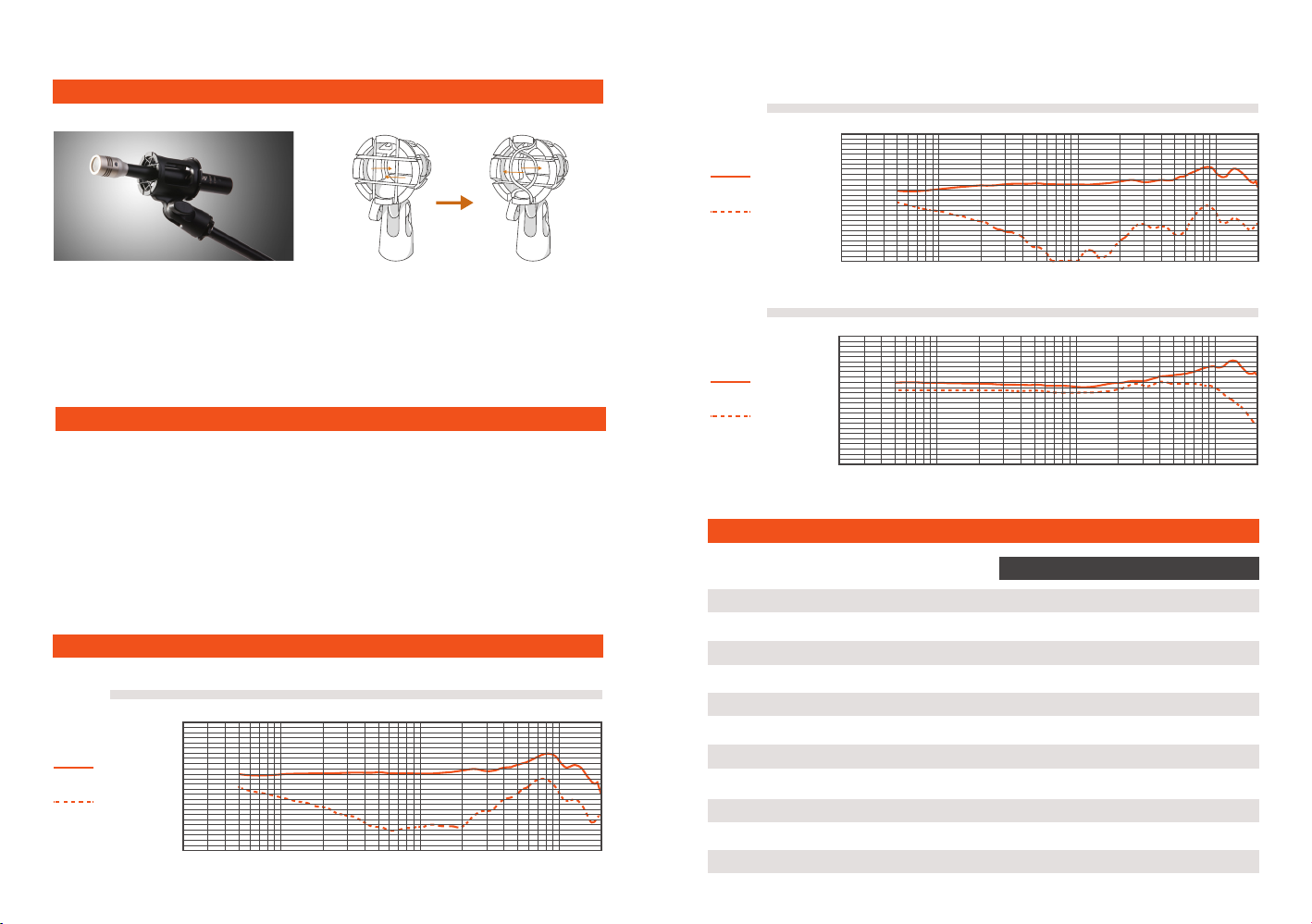

MICROPHONE INSTALLATION
First attach the microphone
capsule then screw a clamp onto
the stand.
If the microphone is not stable, you
could cross the elastic band to hold it
rm. .
AUDIO CONNECTION
To connect the microphone to your equipment, use a balanced XLR
microphone cable with the following pin assignment: Pin 1 = shielding, pin 2
= +, pin 3 = -. Since all the microphone contact points are gold-plated, your
microphone cable should also have gold-plated connectors, if possible.
•
E152
20
10
0
-10
-20
-30
20 200 2K
20
10
0
-10
-20
-30
20 200 2K 20K
•
E153
0 Deg
180 Deg
0 Deg
180 Deg
SPECIFICATIONS
Capusle E151 | E152 | E153
20K
Directional characteristic
•
E151
20
0 Deg
180 Deg
10
0
-10
-20
-30
20 200 2K 20K
Polar pattern
Capsule diameter
Sensitivity (±3dB)
Frequency Response
Power Supply
Total harmonic distortion (THD)
Thermal Noise
Output impedance
Length
weight
Connector
Cardioid | Super-cardioid | Omni
20 mm
-42 dB re. 1v/Pa
20 Hz ~ 20kHz
48 V Phantom power
< 1% up to 135 dB SPL peak
< 17 dBA
< 100 Ohm
155mm
185g
3-pin XLR
Page 4
WARRANTY POLICY
MicW Audio warrants that its products will be free from defects in materials
and workmanship for one (1) year from the date of purchase by the Original
Purchaser.

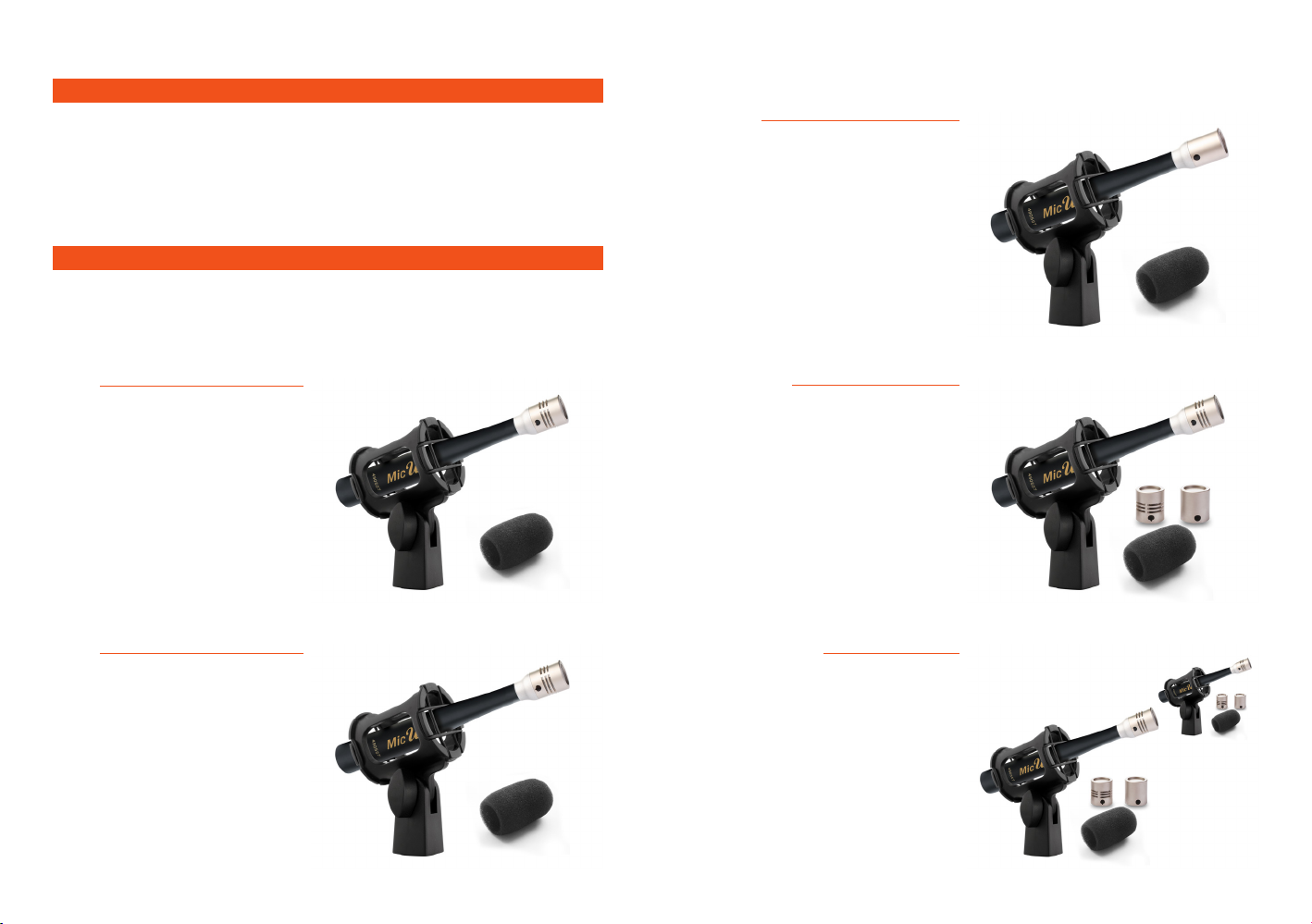

WHAT’ S IN THE BOX
The following packages cater for a range of recording applications and are
highly recommended for students and start-up engineers:
• E153
- Microphone Preamplier
- Omni capsule
- Windscreen
- Shock Mount
- User manual
• E151
- Microphone Preamplier
- Cardioid capsule
- Windscreen
- Shock Mount
- User manual
• E152
- Microphone Preamplier
- Super-Cardioid capsule
- Windscreen
- Shock Mount
- User manual
• E150 set1
- Microphone Preamplier
- Cardioid capsule
- Super-Cardioid Capsule
- omni capsule
- Windscreen
- Shock Mount
- Box
- User manual
• E150 pair set2
- 2 x Microphone Preampliers
- 2 x Cardioid Capsules
- 2 x Super-Cardioid Capsules
- 2 x Omni Capsules
- 2 x Windscreens
- 2 x Shock Mounts
- User Manual
