Page 1
MT600 Plus User Manual V1.0
http://www.mictrack.com

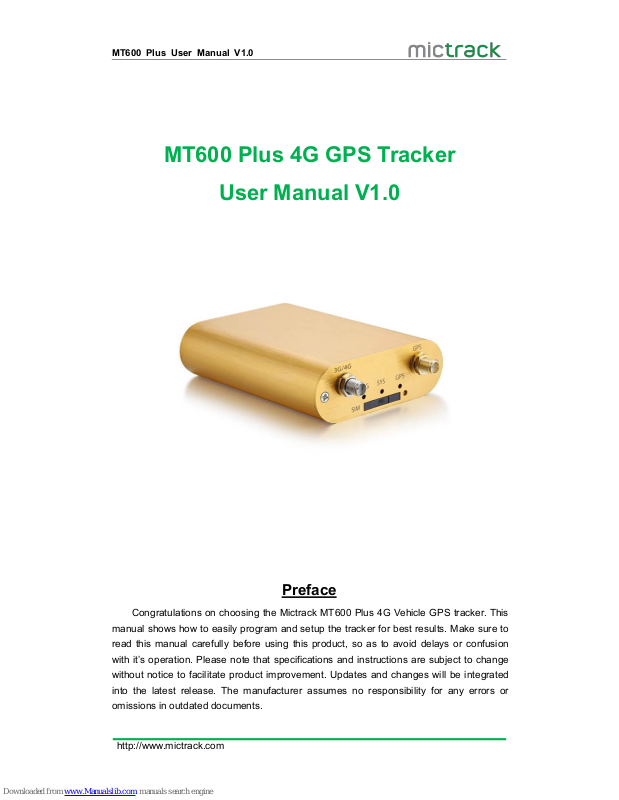

MT600 Plus 4G GPS Tracker
User Manual V1.0
Preface
Congratulations on choosing the Mictrack MT600 Plus 4G Vehicle GPS tracker. This
manual shows how to easily program and setup the tracker for best results. Make sure to
read this manual carefully before using this product, so as to avoid delays or confusion
with it’s operation. Please note that specifications and instructions are subject to change
without notice to facilitate product improvement. Updates and changes will be integrated
into the latest release. The manufacturer assumes no responsibility for any errors or
omissions in outdated documents.
Page 2
MT600 Plus User Manual V1.0
http://www.mictrack.com
Contents
1. Overview
.............................................................................................................................................
1
2. Application
...........................................................................................................................................
1
3. Specifications..................................................................................................................................... 1
4. MT600 Plus and Accessories........................................................................................................ 3
5. Unit Diagram...................................................................................................................................... 3
6. Installation
...........................................................................................................................................
3
6.1 SIM Card installation
.............................................................................................................
3
6.2 LED Indications
.......................................................................................................................
4
6.2.1 CHG-Charge indicator (RED).................................................................................. 4
6.2.2 SYS-System indicator (BLUE)................................................................................. 4
6.2.3 GPS-GPS indicator (GREEN)................................................................................. 5
6.3 Device Button Instruction
.....................................................................................................
5
6.4 Install 4G & GPS Antenna
..................................................................................................
5
6.5 J1 Connection (6PIN wired)
................................................................................................
6
6.6 Install the SOS button.......................................................................................................... 6
6.7 J2 Connection (8PIN wired)................................................................................................ 6
7. Setup and Configuration................................................................................................................. 7
7.1 Setting Authorized Phone Numbers
..................................................................................
7
7.2 Instant Location Request (used to receive unit location via SMS)
..........................
7
7.3 SOS Alarm (optional)
............................................................................................................
8
7.4 Geo-fence (Setting of size of Geo-Fence)...................................................................... 8
7.5 Remote cut off fuel and ignition (optional)..................................................................... 8
7.6 External power cut off alarm.............................................................................................. 8
7.7 Towing Alarm
...........................................................................................................................
8
7.8 Low Battery Alarm (backup battery)
.................................................................................
8
7.9 Low Battery Alarm (Vehicle Battery)
.................................................................................
8
7.10 Door Siren Alarm (optional).............................................................................................. 9
7.10.1 Enable Door Siren Alarm....................................................................................... 9
7.10.2 Disable Door Siren Alarm...................................................................................... 9
7.11 Over-Speed Alarm
................................................................................................................
9
7.11.1 Setup Over-speed value
.........................................................................................
9
7.11.2 Over-speed siren alarm
..........................................................................................
9
7.12 External output (Reserved).............................................................................................. 9
7.13 Set Time Zone..................................................................................................................... 9
7.14 Set APN (Access Point Name)...................................................................................... 10
7.15 Set Tracking Server IP and PORT
...............................................................................
10
7.16 Set Upload Interval Time
.................................................................................................
10
7.16.1 ACC ON (Upload status is AUTO)
...................................................................
10
7.16.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF)........... 10
7.16.3 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW).................10
7.17 SMS Response ON/OFF................................................................................................. 10
Page 3
MT600 Plus User Manual V1.0
http://www.mictrack.com
7.18 Unit Phone Calling Control (useful for SIM Card data cost saving)
...................
11
8. App & PC Tracking platform
.......................................................................................................
11
8.1 Subscribe the server plan with your sales
...................................................................
11
8.2 App install & Login.............................................................................................................. 11
8.3 PC login................................................................................................................................. 12
9. Troubleshooting............................................................................................................................... 12
Page 4
MT600 Plus User Manual V1.0
http://www.mictrack.com
1
1. Overview
MT600 Plus is a multifunctional 4G GPS tracker, fully supporting 4G LTE mobile
networks, and also can extend to support Fuel sensor, temperature sensor, door sensor
and siren etc. It is commonly used to track and locate individual vehicles, motorbikes or
boats, and is a valuable tool for enhanced fleet management.
The MT600 Plus has an excellent track record for stable performance and possesses
a wide variety of features.
2. Application
4G LTE network support
Real-time tracking
Vehicle trip history
SOS report (optional)
Two way voice(optional)
Voice monitor(optional)
ACC switch status report
Geo-Fence report
External power cut off alarm
Remote cut off fuel / ignition (optional)
Vehicle towing alarm
Over-Speed alarm
Backup battery low power alarm
Car battery low power alarm
Power saving mode/Sleep mode
Door status report (optional)
Temperature report (optional)
Fuel level sensor (optional)
Siren (optional)
3. Specifications
Item
Specifications
Dimension
90(L) x 70(W) x 24(H) mm
Weight
138g
Input Voltage
12-36 VDC
Backup battery
3.7 V 500 mAh
Power consumption
50mA standby current
Page 5
MT600 Plus User Manual V1.0
http://www.mictrack.com
2
Item
Specifications
Working temperature
-20°C to 60°C
Humidity
5%~95% non-concretion
Working Hours
10 hours in power-saving mode, 4 hours in normal mode
LED Indicator
4G(blue), GPS(green), Power(red)
Microphone & Speaker
External (optional)
Sensor
3D acceleration/movement sensor/ temperature sensor
Antennas
External 4G & GPS antennas
GPS Sensitivity
-162dBm
Positioning Accuracy
2.5m
4G Frequency bands
MT600 Plus E
4G LTE: B1/B3/B5/B7/B8/B20
3G WCDMA : 850/900/2100MHz
2G: 900/1800MHz
MT600 Plus A
4G LTE: B2/B4/B12
3G WCDMA: 850/1700/1900MHz
MT600 Plus V
4G LTE: B4/B13
MT600 Plus AU
4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40
3G WCDMA: 850/900/1900/2100MHz
2G :850/900/1800/1900MMz
MT600 Plus AUT
4G LTE: B1/B3/B5/B7/B28
3G WCDMA: 850/2100MHz
Note: Please select correct device according to your
local frequency band, or contact us for help.
I/O Port
2 digital inputs (12-24V),2 digital output (12-24V)
1 analog inputs (0-5V) Fuel sensor
1 Audio
1 USB port
1-Wire® temperature sensor
Page 6
MT600 Plus User Manual V1.0
http://www.mictrack.com
3

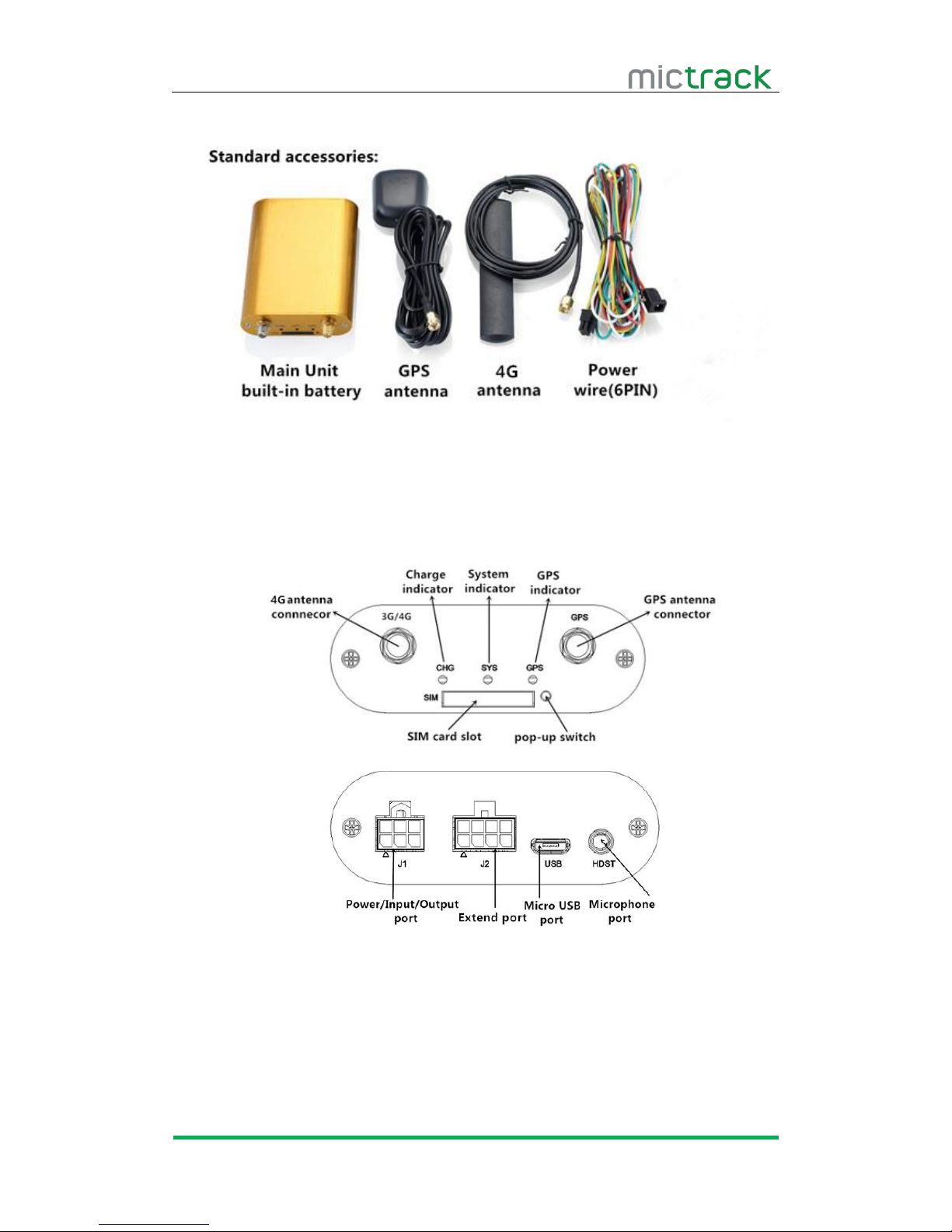

4. MT600 Plus and Accessories
Optional accessories:
Siren/Speaker/Microphone/Temperature sensor/door sensor/SOS/Relay
5. Unit Diagram
6. Installation
6.1 SIM Card installation
Pay attention to the following items before installing the SIM card:
Ensure the SIM card have enough balance
Ensure the SIM card enable caller ID and GPRS function
Page 7
MT600 Plus User Manual V1.0
http://www.mictrack.com
4
Ensure the SIM card disable PIN password and call forwarding function.
Power off the device before installing the SIM card

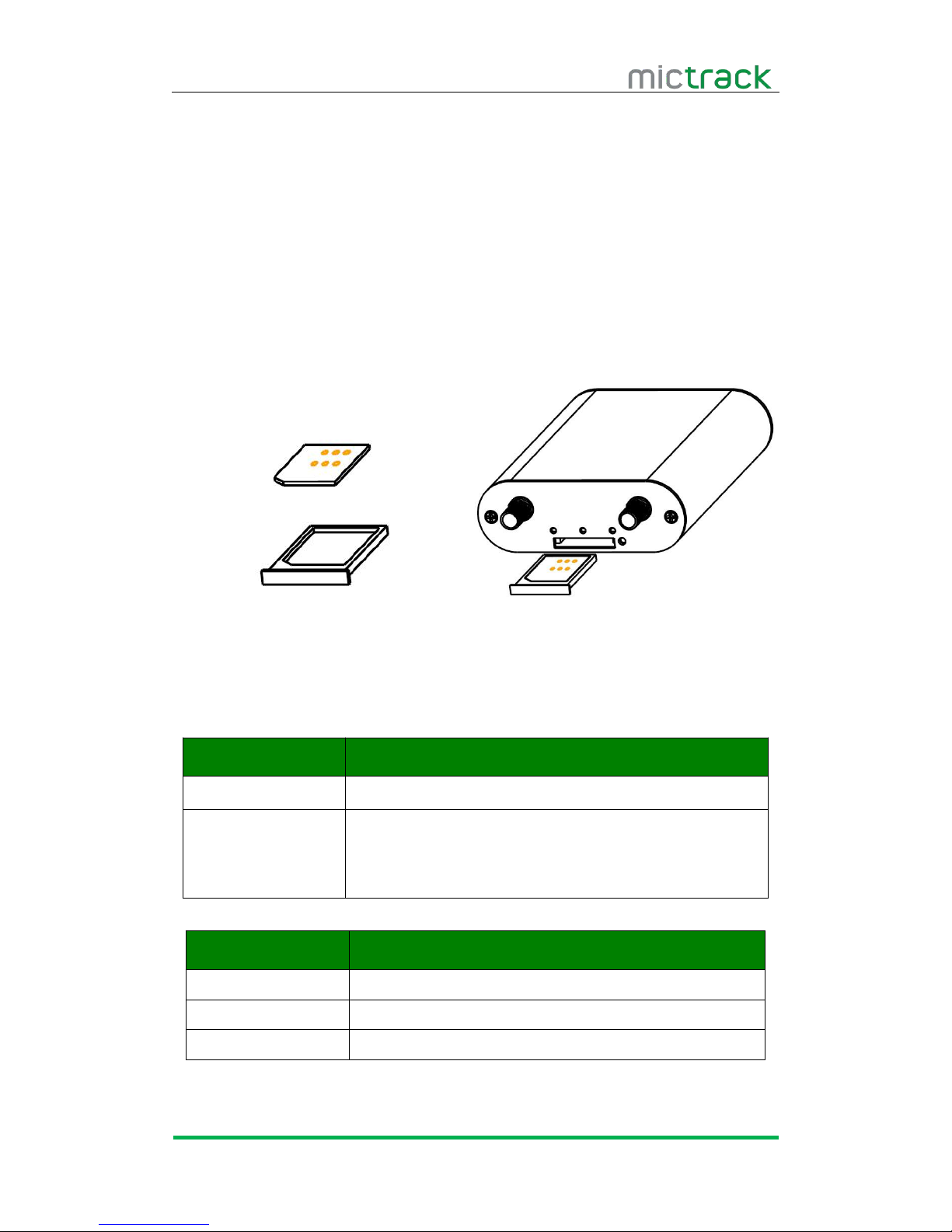

To install the SIM card, perform the following operations:
1. Insert the SIM card into the SIM card plastic tray.
2. Ensure the SIM card has metal contacts facing up (Diagram #1).
3. Gently slide the SIM Tray into the SIM Slot (Diagram #2).
Note:
This device only support Standard SIM card
If you want to take out the SIM card, use the tweezers to press the SIM card pop-up
switch,the SIM card slot will pop up.
Diagram #1 Diagram #2
6.2 LED Indications
6.2.1 CHG-Charge indicator (RED)
6.2.2 SYS-System indicator (BLUE)
Status
Description
Constant ON
No SIM Card or Network unavailable
OFF
Vehicle Parked – ACC Power OFF
Quick flash
Normal Working Mode
Status
Description
Constant ON
Currently Charging
OFF
Charging Complete/Battery full
(Note: it will auto-charging when backup battery voltage is
low and LED light, or LED no light.)
Page 8
MT600 Plus User Manual V1.0
http://www.mictrack.com
5
6.2.3 GPS-GPS indicator (GREEN)
6.3 Device Button Instruction
Button
Description
Power
ON/OFF
Insert the SIM tray to POWER ON the unit; Take out SIM tray to
POWER OFF the unit
Connect the external power to POWER ON; Disconnect the
power to POWER OFF
SOS Button
Press and hold the button for 3 seconds, the unit will send
position data to authorized phone numbers and Web Tracking
Platform.

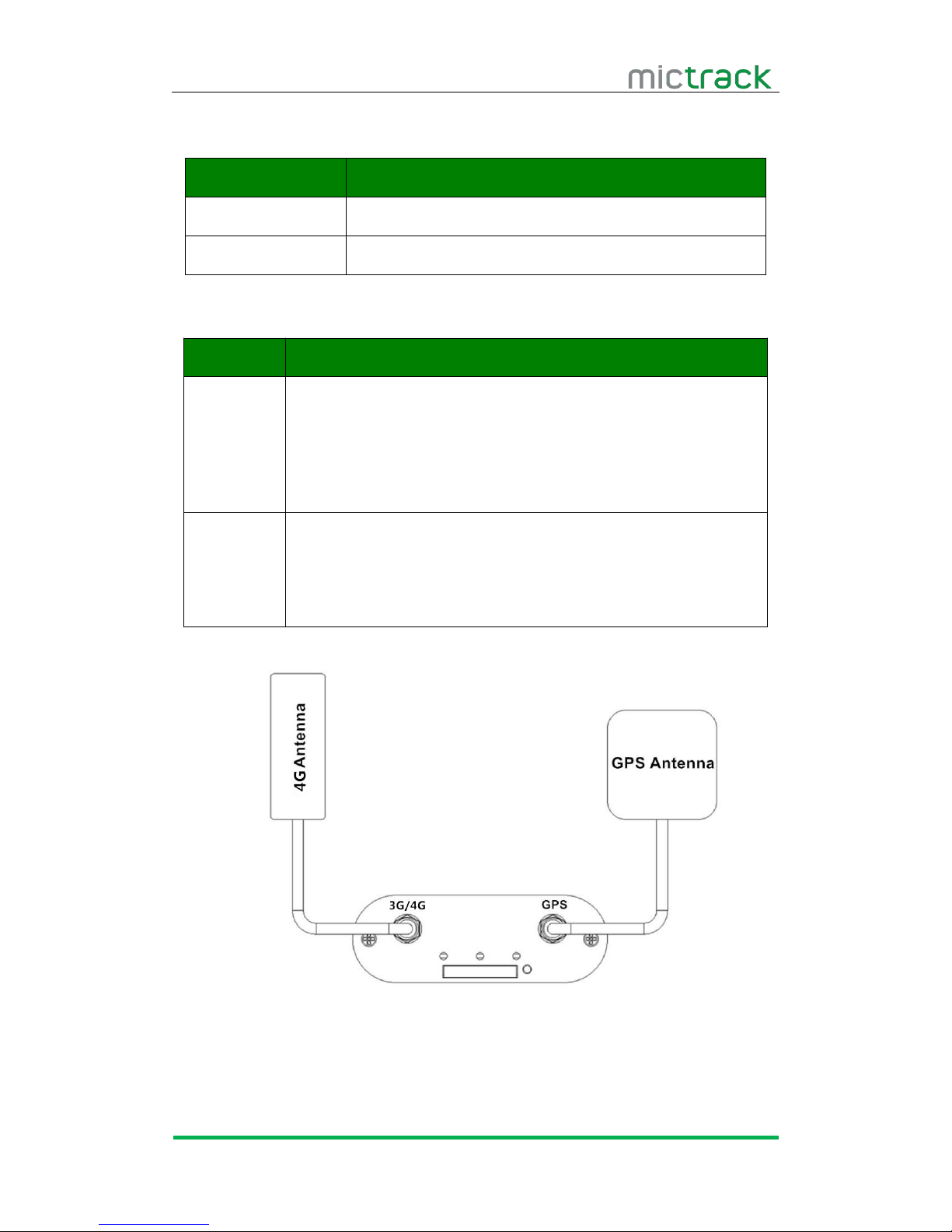

6.4 Install 4G & GPS Antenna
Connect the 4G Antenna firmly to "3G/4G" Socket
Connect the GPS Antenna firmly to “GPS” socket
Note: Do not install the GPS antenna at a place with metal.
Status
Description
OFF
GPS Unavailable
Quick flash
GPS available
Page 9
MT600 Plus User Manual V1.0
http://www.mictrack.com
6

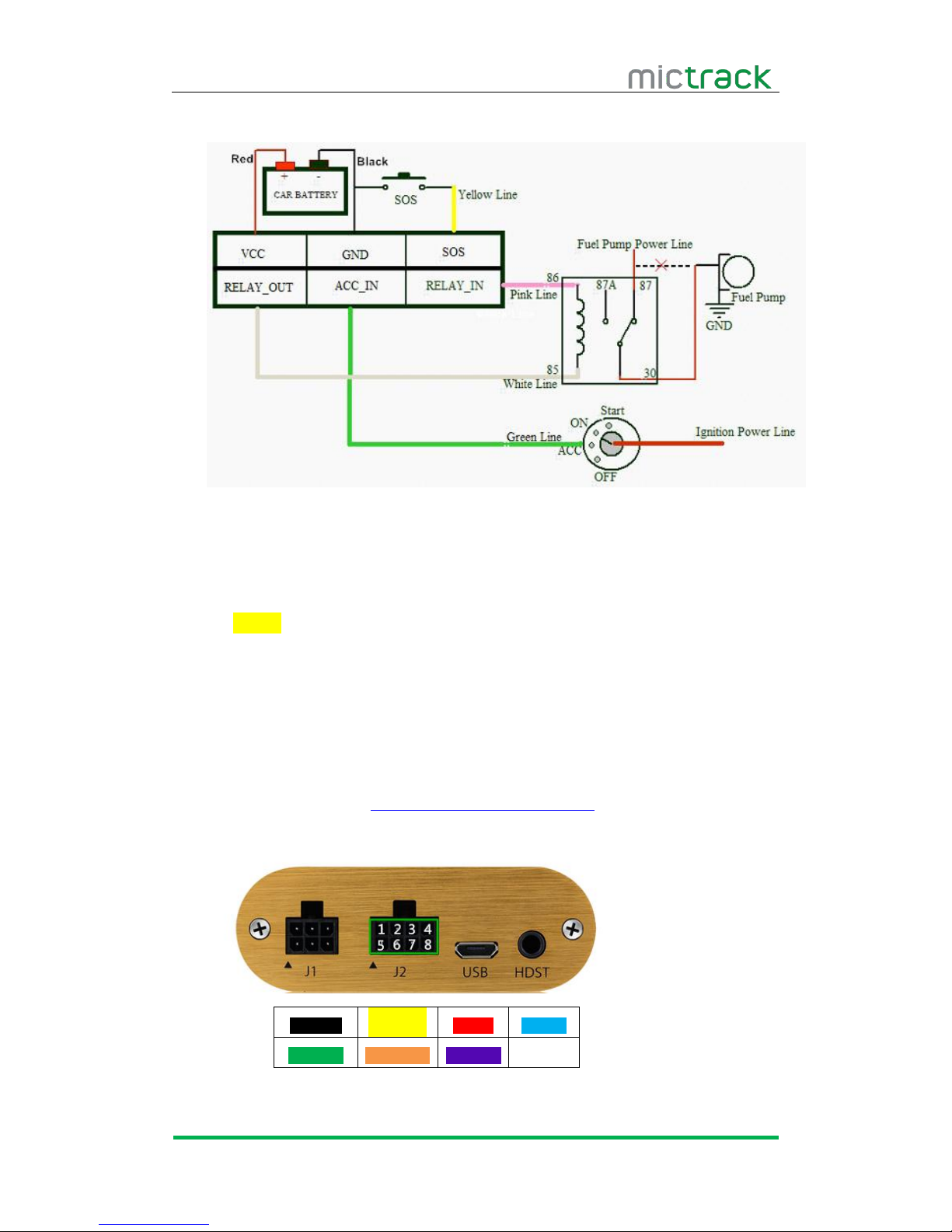

6.5 J1 Connection (6PIN wired)
When installing the device, please connect supplied wiring loom as follows: (or
contact our sales team for help)
Red: Connect to constant 12V Car Battery(+)
Black: Connect to Earth (Chassis) Car battery(-)
Green: Connect to ACC switched 12V Power
Yellow: Connect to red wire of supplied SOS switch
White: Connect to Relay terminal (85)
Pink: Connect to Relay terminal (86)
Note: Relay is optional for remote fuel / ignition shut-off.
6.6 Install the SOS button
Red: connect to Yellow wire from supplied wiring loom
Black: connect to Earth (Chassis) Car battery(-)
Note: installation Video: http://youtube.com/c/mictrackgps

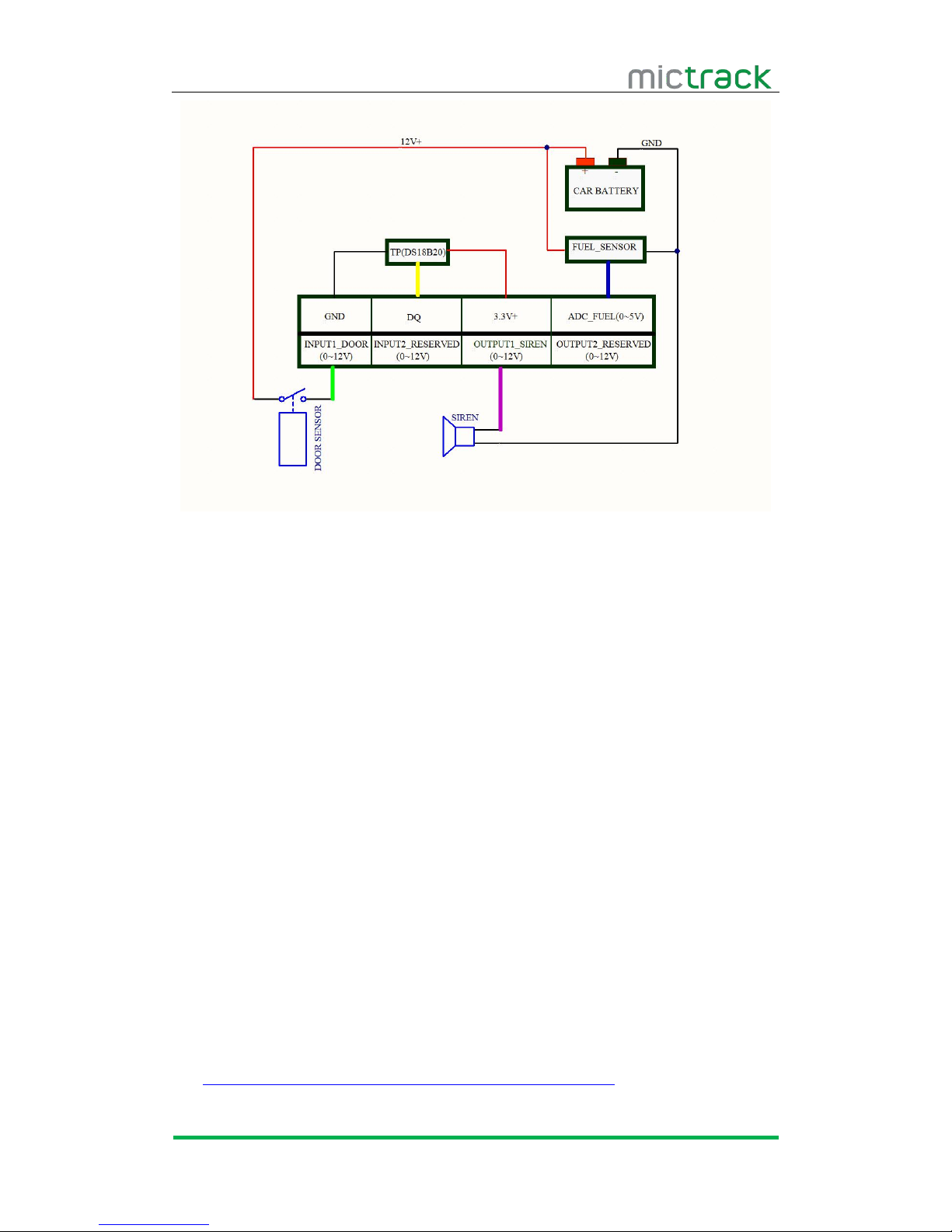

6.7 J2 Connection (8PIN wired)
1-Black
2-Yellow
3-Red
4-Blue
5-Green
6-Orange
7-Purple
8-White
Page 10
MT600 Plus User Manual V1.0
http://www.mictrack.com
7
7. Setup and Configuration
Note: When sending SMS command to the unit, do NOT use spaces or symbols not
listed below. * and # are valid command parameters.
7.1 Setting Authorized Phone Numbers
SMS Command format: mobile number+password+[command parameter]
Note: Command Parameter here is the sequence of the mobile number
i.e. [1=Admin] or [2=SOS call number]
For example: *13424392330*0000*1**
Unit Reply: SET USER NUMBER 1 OK.
Note:
The defaulted password is 0000.
It can authorize up to 3 phone numbers.
7.2 Instant Location Request (used to receive unit location via SMS)
SMS Command format: 666+password
For example: 6660000
When sent, this command will result in a Unit Reply SMS as follows:
ID:865662000409210
Date:05:36:59 05/26/2018
Fix:A State:SMS
http://maps.google.com/maps?q=+22.63146%2c1+14.03701
Page 11
MT600 Plus User Manual V1.0
http://www.mictrack.com
8
Note: This link can to be opened on any Smart Phone to reveal the Google Maps
Location of the unit at the time of request
7.3 SOS Alarm (optional)
When the SOS button is pressed for 3 seconds, the unit will automatically send it’s
location to authorized phone number via SMS, and also upload location data to the Web
Tracking Platform server along with the status description “SOS”
7.4 Geo-fence (Setting of size of Geo-Fence)
SMS Command format: 005+password+R+[Command Parameter]
Note: Command Parameter here is fence diameter in KM [0.1~999.9]
For example: 0050000R1.0
Unit Reply: SET ROUND GEO-FENCE:ON
7.5 Remote cut off fuel and ignition (optional)
To remotely Cut-Off fuel or power
SMS Command format: 940+password
For example: 9400000
Unit Reply: SET OILWAY DISCONNECT.
To remotely Resume fuel or power
SMS Command format: 941+password
For example: 9410000
Unit Reply: SET OILWAY RECOVERY CONNECT.
Note: The default setting for the Cut-Off feature is OFF
7.6 External power cut off alarm
If the external power to the unit is disconnected, the unit will call the authorized phone
numbers, and then send location data to the authorized phone number and upload
location data to the Web Tracking Platform server along with the status description “DEF”
7.7 Towing Alarm
If the vehicle was be moved or towed when ACC is turned OFF, it will SMS location
data to the authorized phone number, and upload location data to the Web Tracking
Platform server along with the status description “TOWED”
7.8 Low Battery Alarm (backup battery)
When the unit’s internal backup battery is low, it will SMS the authorized phone
number, and upload location data to the Web Tracking Platform server along with the
status description “BLP”
7.9 Low Battery Alarm (Vehicle Battery)
When the vehicle battery is low, it will SMS the authorized phone number, and upload
location data to the Web Tracking Platform server along with the status description “CLP”
Page 12
MT600 Plus User Manual V1.0
http://www.mictrack.com
9
7.10 Door Siren Alarm (optional)
7.10.1 Enable Door Siren Alarm
SMS Command format : 130+password
For example: 1300000
Unit Reply: SET DOOR SIREN ON
7.10.2 Disable Door Siren Alarm
SMS Command format : 130+password
For example: 1310000
Unit Reply: SET DOOR SIREN OFF
7.11 Over-Speed Alarm
7.11.1 Setup Over-speed value
To enable the Over-Speed Alarm
SMS Command format : #122#password#speed value##
Example: #122#0000#100##
Unit Reply: SET SPEED LIMIT:ON
To disable the Over-Speed Alarm
SMS Command format: #122#0000#0##
Note: Command Parameter here is [0=OFF]
Unit Reply: SET SPEED LIMIT:OFF.
Note: Speed is in KM/H, Maximum setting = [999].
7.11.2 Over-speed siren alarm
Enable Over-speed siren alarm : 132+password
For example: 1320000
Unit Reply: SET SPEED SIREN ON
Disable over-speed siren alarm : 133+password
For example: 1330000
Unit Reply: SET SPEED SIREN OFF
7.12 External output (Reserved)
Enable External output : 960+password
For example: 9600000
Unit Reply: SET OUTPUT2 ON
Disable External output : 961+password
For example: 9610000
Unit Reply: SET OUTPUT2 OFF
7.13 Set Time Zone
SMS Command format: 896+password+ [+/-]HH:MM
Note: Command Parameter here is [Plus or Minus GMT]&[Hours/Minutes]
For example: 8960000+10:00
Reply: SET TIME ZONE:+08:00
Page 13
MT600 Plus User Manual V1.0
http://www.mictrack.com
10
Note: The default is Greenwich Time (UTC). [i.e. Melbourne Australia = +10:00]
7.14 Set APN (Access Point Name)
SMS Command format 1: #803# password#APN##
For example : #803#0000#telstra.internet##
SMS Command format 2: #803#password#APN#APN user name# APN password##
For example:
#803#0000#CMNET#INTERNET#INTERNET##
Reply: SET GPRS APN OK.
Note: please contact your SIM Card provider to get the correct APN details
7.15 Set Tracking Server IP and PORT
SMS Command format: #804#password#IP#port##
Example:#804#0000#112.95.164.248#7700##
Reply: SET SERVER IP AND PORT OK.
7.16 Set Upload Interval Time
This sets how often [in seconds] the unit sends location data back to the Tracking
Platform whilst the ACC is switched on. This will affect accuracy and data usage.
7.16.1 ACC ON (Upload status is AUTO)
SMS Command format: #805#password#interval time#[command parameter]##
Note: Command Parameter here [1=ON] & [0=OFF]
For example:#805#0000#10#1##
Unit Reply: SET GPS PERIODIC UPLOAD ON.
Note: interval time maximum [10,65535]seconds
Unit Reply: SET GPS PERIODIC UPLOAD OFF.
7.16.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF)
SMS Command format: #809#password#interval time#[command parameter]##
Note: Command Parameter here [1=ON] & [0=OFF]
For example:#809#0000#10#1##
Unit Reply: SET GPS TOWED UPLOAD ON.
Note: interval time maximum [10,65535]seconds
Unit Reply: SET GPS TOWED UPLOAD OFF.
7.16.3 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW)
SMS Command format: #807#password#interval time##
For example: #807#0000#2##
Unit Reply: SET GPS POWER SAVING UPLOAD ON.
Note: interval time maximum [2,1440] minutes [If interval time = 0, it will stop upload]
Unit Reply: SET GPS POWER SAVING UPLOAD OFF.
7.17 SMS Response ON/OFF
To turn SMS messages OFF
SMS Command format: 160+password
For example: 1600000
Page 14
MT600 Plus User Manual V1.0
http://www.mictrack.com
11
Unit Reply: SET SEND SMS:OFF.
To turn SMS messages back ON
SMS Command format: 161+password
For example: 1610000
Unit Reply: SET SEND SMS:ON.
Note: if you want to disable the SMS alerts, send 1600000
7.18 Unit Phone Calling Control (useful for SIM Card data cost saving)
To turn OFF unit Calling Alerts
SMS Command format: 150+password
For example: 1500000
Unit Reply: SET VOICE CALL:OFF
To turn ON unit Calling Alerts
SMS Command format: 151+password
For example: 1510000
Unit Reply: SET VOICE CALL: ON
Note: if you want to disable the call alerts, send 1500000
8. App & PC Tracking platform
8.1 Subscribe the server plan
Contact your sales or distributor to active your device
Subscribe the server from our official shop:
https://www.mictrack.com/shop/gps-tracking-platform-service
8.2 App install & Login
Search “Yi tracker” in Google Play or iOS store to download App(choose Yi
tracker)
Choose the”Login by Device No.”
Input server www.trackits.com
Input your device’s ID number and password(default is 123456)
Page 15
MT600 Plus User Manual V1.0
http://www.mictrack.com
12

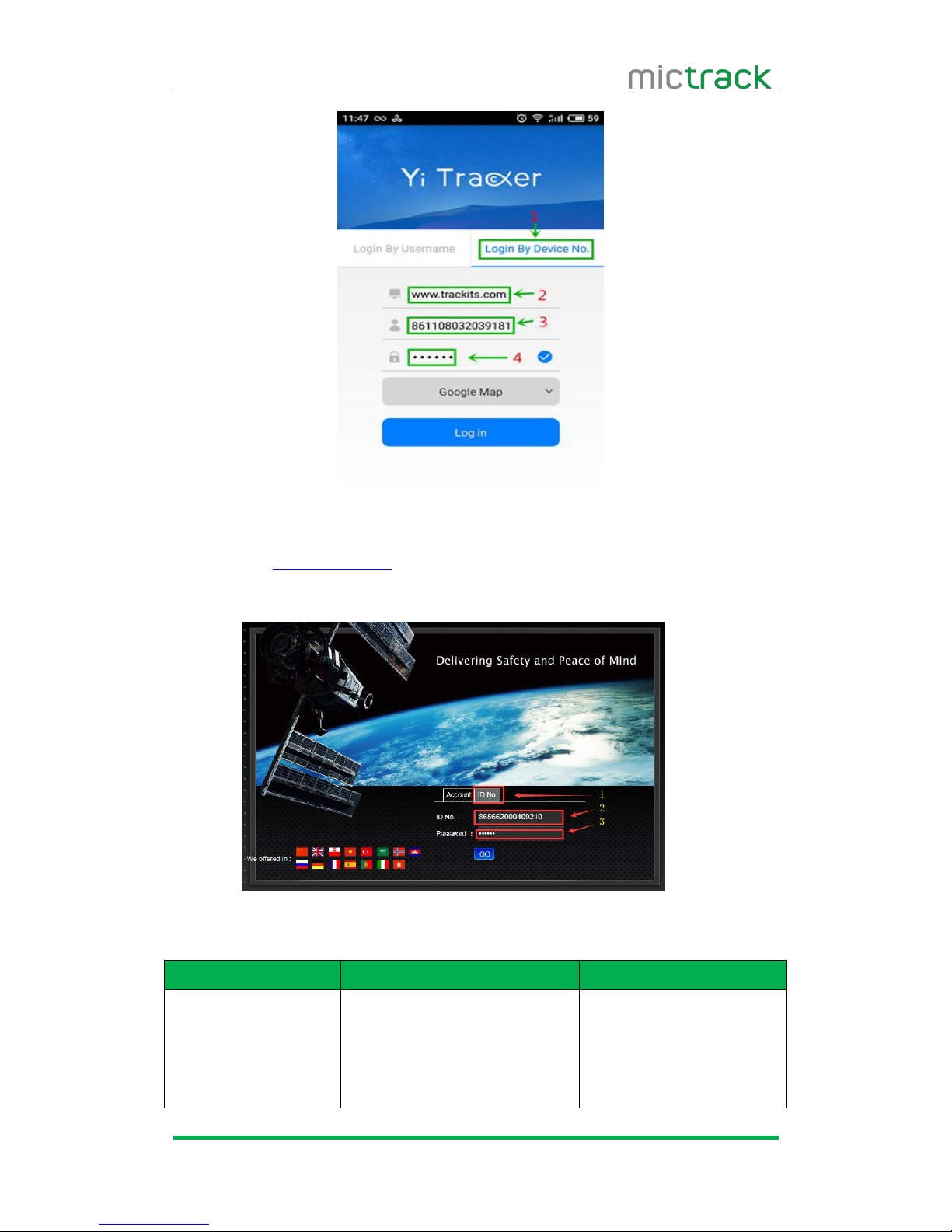

8.3 PC login
Web: www.trackits.com
Choose “ID No.”
Input your device’s ID number and password(default is 123456)
9. Troubleshooting
Issues
Caused
Solutions
Send SMS to the
device but no reply
1>Data only SIM card and don't
supported SMS service,
2>New SIM card have not
active
Please check the SIM card
status and make sure it
can work.
Page 16
MT600 Plus User Manual V1.0
http://www.mictrack.com
13
3>Card balance is not enough
Command is wrong
Please check the command
format again
Password is wrong
Please check the password
again (default is 0000)
4G antenna install wrong
Please check the 4G anten
na if install correct.
Can not get the locatio
n
GPS antenna install wrong
Please check again
Can not power on
Backup battery is low voltage
Please try to connect 12V
Charge Led no light
Backup battery voltage is over
3.7V.
The device will auto-charge
once detect to low voltage
and then LED light, or LE
D will not night.
Device Can not show
on server
Device ID is wrong
Please check the ID
Device have not active on serv
er
Please contact your sales t
o active your device
The IP and port setup wrong
Check the IP and port agai
n
APN error
Check the APN again
Tips:
How to setup APN: https://www.mictrack.com/apn-settings-for-mictrack-gps-trackers
How to use Mictrack Server: https://www.mictrack.com/how-to-use-mictrack-server
Global Frequency bands check: https://www.mictrack.com/4g-lte-frequency-bands-list
Note: Please remember to monitor the credit balance of your SIM card, to
avoid confusion or delays in setting up your new unit. This can be a common issue,
especially when initially setting up a new unit, and the unit fails to reply to a correct
SMS command sequence.
If you have any questions please do not hesitate to contact us [email protected].
Loading...
