Page 1

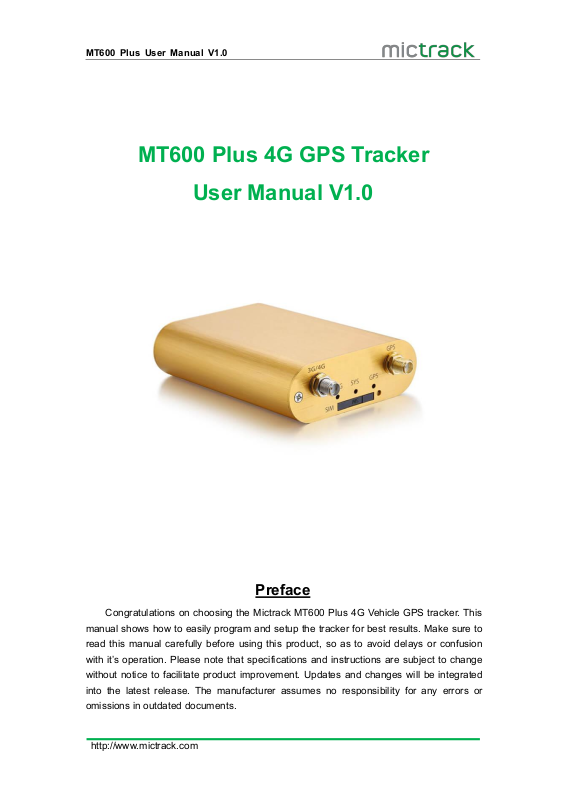

MT600 Plus User Manual V1.0

http://www.mictrack.com

MT600 Plus 4G GPS Tracker

User Manual V1.0

Preface

Congratulations on choosing the Mictrack MT600 Plus 4G Vehicle GPS tracker. This

manual shows how to easily program and setup the tracker for best results. Make sure to

read this manual carefully before using this product, so as to avoid delays or confusion

with it’s operation. Please note that specifications and instructions are subject to change

without notice to facilitate product improvement. Updates and changes will be integrated

into the latest release. The manufacturer assumes no responsibility for any errors or

omissions in outdated documents.

Page 2

MT600 Plus User Manual V1.0

http://www.mictrack.com

Contents

1. Overview

2. Application

3. Specifications..................................................................................................................................... 1

4. MT600 Plus and Accessories........................................................................................................ 3

5. Unit Diagram...................................................................................................................................... 3

6. Installation

6.1 SIM Card installation

6.2 LED Indications

6.3 Device Button Instruction

6.4 Install 4G & GPS Antenna

6.5 J1 Connection (6PIN wired)

6.6 Install the SOS button.......................................................................................................... 6

6.7 J2 Connection (8PIN wired)................................................................................................ 6

7. Setup and Configuration................................................................................................................. 7

7.1 Setting Authorized Phone Numbers

7.2 Instant Location Request (used to receive unit location via SMS)

7.3 SOS Alarm (optional)

7.4 Geo-fence (Setting of size of Geo-Fence)...................................................................... 8

7.5 Remote cut off fuel and ignition (optional)..................................................................... 8

7.6 External power cut off alarm.............................................................................................. 8

7.7 Towing Alarm

7.8 Low Battery Alarm (backup battery)

7.9 Low Battery Alarm (Vehicle Battery)

7.10 Door Siren Alarm (optional).............................................................................................. 9

7.11 Over-Speed Alarm

7.12 External output (Reserved).............................................................................................. 9

7.13 Set Time Zone..................................................................................................................... 9

7.14 Set APN (Access Point Name)......................................................................................10

7.15 Set Tracking Server IP and PORT

7.16 Set Upload Interval Time

7.17 SMS Response ON/OFF................................................................................................. 10

.............................................................................................................................................

...........................................................................................................................................

.............................................................................................................

.......................................................................................................................

6.2.1 CHG-Charge indicator (RED).................................................................................. 4

6.2.2 SYS-System indicator (BLUE).................................................................................4

6.2.3 GPS-GPS indicator (GREEN)................................................................................. 5

.....................................................................................................

..................................................................................................

................................................................................................

..................................................................................

..........................

............................................................................................................

...........................................................................................................................

.................................................................................

7.10.1 Enable Door Siren Alarm.......................................................................................9

7.10.2 Disable Door Siren Alarm...................................................................................... 9

................................................................................................................

7.11.1 Setup Over-speed value

7.11.2 Over-speed siren alarm

7.16.1 ACC ON (Upload status is AUTO)

7.16.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF)........... 10

7.16.3 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW).................10

.........................................................................................

..........................................................................................

...............................................................................

.................................................................................................

...................................................................

Page 3

MT600 Plus User Manual V1.0

http://www.mictrack.com

7.18 Unit Phone Calling Control (useful for SIM Card data cost saving)

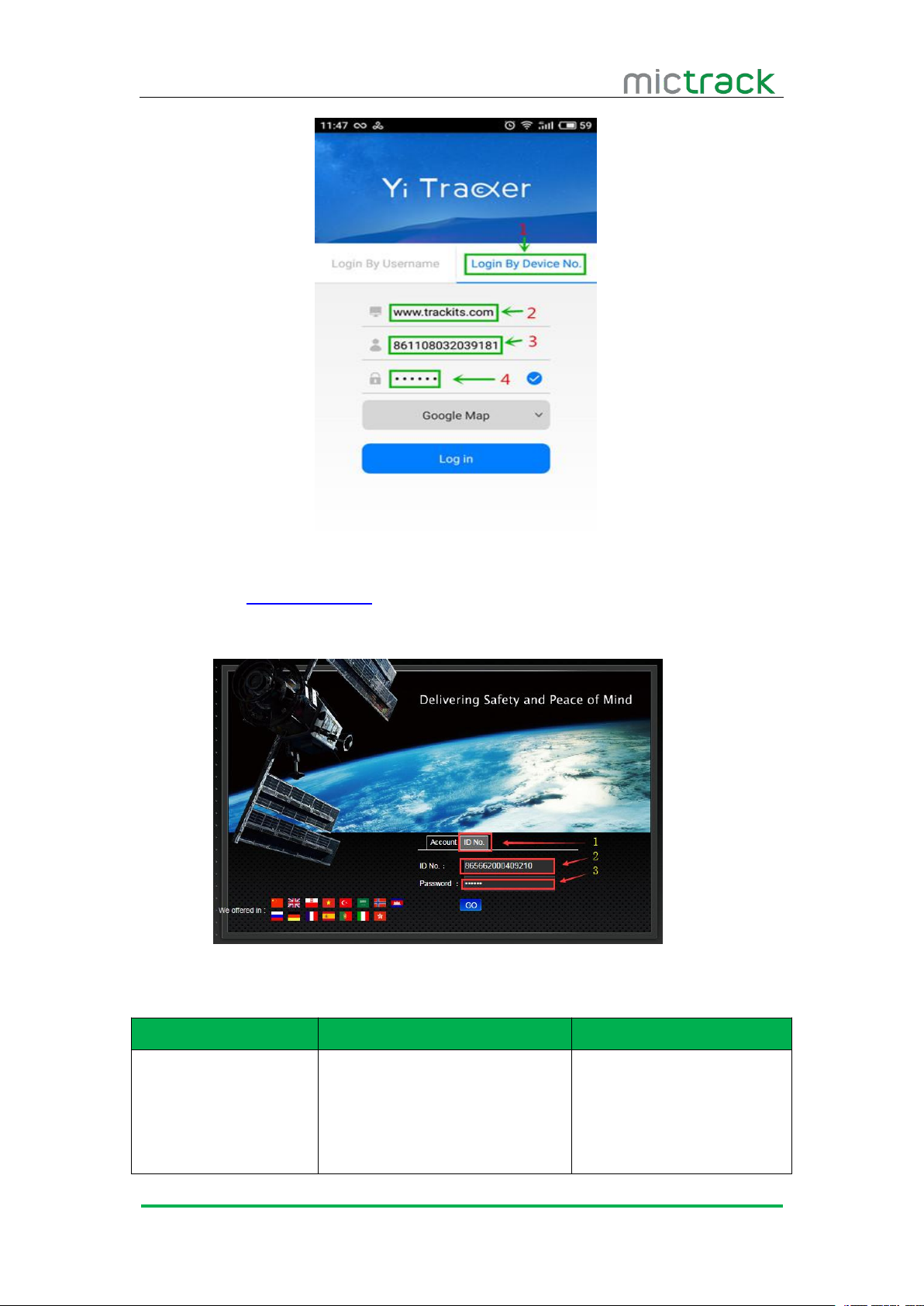

8. App & PC Tracking platform

8.1 Subscribe the server plan with your sales

8.2 App install & Login.............................................................................................................. 11

8.3 PC login................................................................................................................................. 12

9. Troubleshooting............................................................................................................................... 12

.......................................................................................................

...................................................................

...................

Page 4

MT600 Plus User Manual V1.0

http://www.mictrack.com

1. Overview

MT600 Plus is a multifunctional 4G GPS tracker, fully supporting 4G LTE mobile

2. Application



4G LTE network support



Real-time tracking

 Vehicle trip history

 SOS report (optional)

 Two way voice(optional)



Voice monitor(optional)



ACC switch status report



Geo-Fence report

 External power cut off alarm

 Remote cut off fuel / ignition (optional)

 Vehicle towing alarm



Over-Speed alarm



Backup battery low power alarm



Car battery low power alarm

 Power saving mode/Sleep mode

 Door status report (optional)

 Temperature report (optional)



Fuel level sensor (optional)



Siren (optional)

3. Specifications

Item

Specifications

Dimension

90(L) x 70(W) x 24(H) mm

Weight

138g

Input Voltage

12-36 VDC

Backup battery

3.7 V 500 mAh

Power consumption

50mA standby current

networks, and also can extend to support Fuel sensor, temperature sensor, door sensor

and siren etc. It is commonly used to track and locate individual vehicles, motorbikes or

boats, and is a valuable tool for enhanced fleet management.

The MT600 Plus has an excellent track record for stable performance and possesses

a wide variety of features.

Page 5

MT600 Plus User Manual V1.0

http://www.mictrack.com

Item

Specifications

Working temperature

-20°C to 60°C

Humidity

5%~95% non-concretion

Working Hours

10 hours in power-saving mode, 4 hours in normal mode

LED Indicator

4G(blue), GPS(green), Power(red)

Microphone & Speaker

External (optional)

Sensor

3D acceleration/movement sensor/ temperature sensor

Antennas

External 4G & GPS antennas

GPS Sensitivity

-162dBm

Positioning Accuracy

2.5m

4G Frequency bands

MT600 Plus E

4G LTE: B1/B3/B5/B7/B8/B20

3G WCDMA : 850/900/2100MHz

2G: 900/1800MHz

MT600 Plus A

4G LTE: B2/B4/B12

3G WCDMA: 850/1700/1900MHz

MT600 Plus V

4G LTE: B4/B13

MT600 Plus AU

4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40

3G WCDMA: 850/900/1900/2100MHz

2G :850/900/1800/1900MMz

MT600 Plus AUT

4G LTE: B1/B3/B5/B7/B28

3G WCDMA: 850/2100MHz

Note: Please select correct device according to your

local frequency band, or contact us for help.

I/O Port

2 digital inputs (12-24V),2 digital output (12-24V)

1 analog inputs (0-5V) Fuel sensor

1 Audio

1 USB port

1-Wire® temperature sensor

Page 6

MT600 Plus User Manual V1.0

http://www.mictrack.com

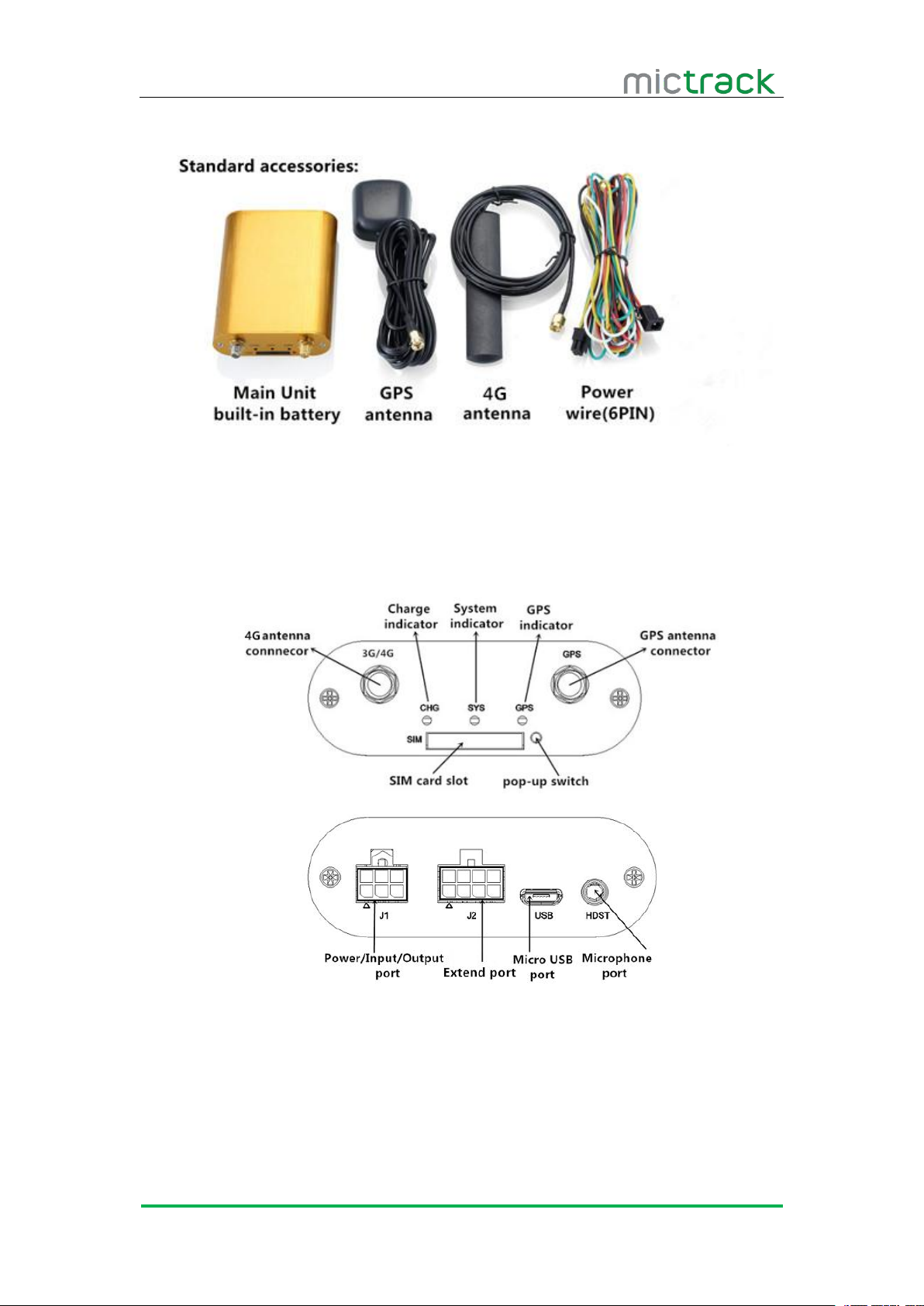

4. MT600 Plus and Accessories

Optional accessories:

5. Unit Diagram

6. Installation

6.1 SIM Card installation

 Ensure the SIM card have enough balance

 Ensure the SIM card enable caller ID and GPRS function

Siren/Speaker/Microphone/Temperature sensor/door sensor/SOS/Relay

Pay attention to the following items before installing the SIM card:

Page 7

MT600 Plus User Manual V1.0

http://www.mictrack.com

 Ensure the SIM card disable PIN password and call forwarding function.

 Power off the device before installing the SIM card

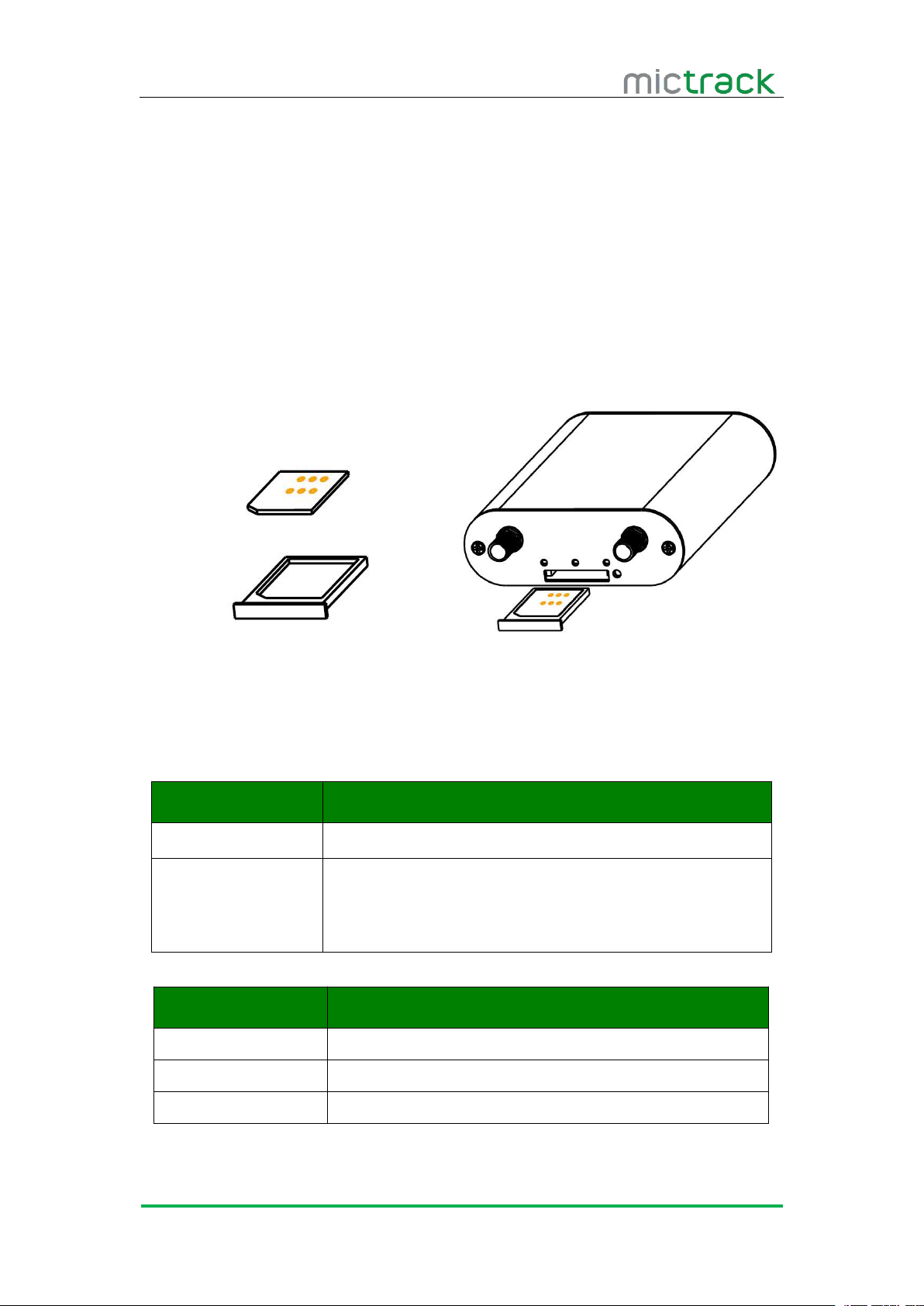

To install the SIM card, perform the following operations:

1. Insert the SIM card into the SIM card plastic tray.

2. Ensure the SIM card has metal contacts facing up (Diagram #1).

3. Gently slide the SIM Tray into the SIM Slot (Diagram #2).

 This device only support Standard SIM card

 If you want to take out the SIM card, use the tweezers to press the SIM card pop-up

6.2 LED Indications

6.2.1 CHG-Charge indicator (RED)

6.2.2 SYS-System indicator (BLUE)

Status

Description

Constant ON

No SIM Card or Network unavailable

OFF

Vehicle Parked – ACC Power OFF

Quick flash

Normal Working Mode

Status

Description

Constant ON

Currently Charging

OFF

Charging Complete/Battery full

(Note: it will auto-charging when backup battery voltage is

low and LED light, or LED no light.)

Note:

switch,the SIM card slot will pop up.

Diagram #1 Diagram #2

Page 8

MT600 Plus User Manual V1.0

http://www.mictrack.com

6.2.3 GPS-GPS indicator (GREEN)

6.3 Device Button Instruction

Button

Description

Power

ON/OFF

 Insert the SIM tray to POWER ON the unit; Take out SIM tray to

POWER OFF the unit



Connect the external power to POWER ON; Disconnect the

power to POWER OFF

SOS Button



Press and hold the button for 3 seconds, the unit will send

position data to authorized phone numbers and Web Tracking

Platform.

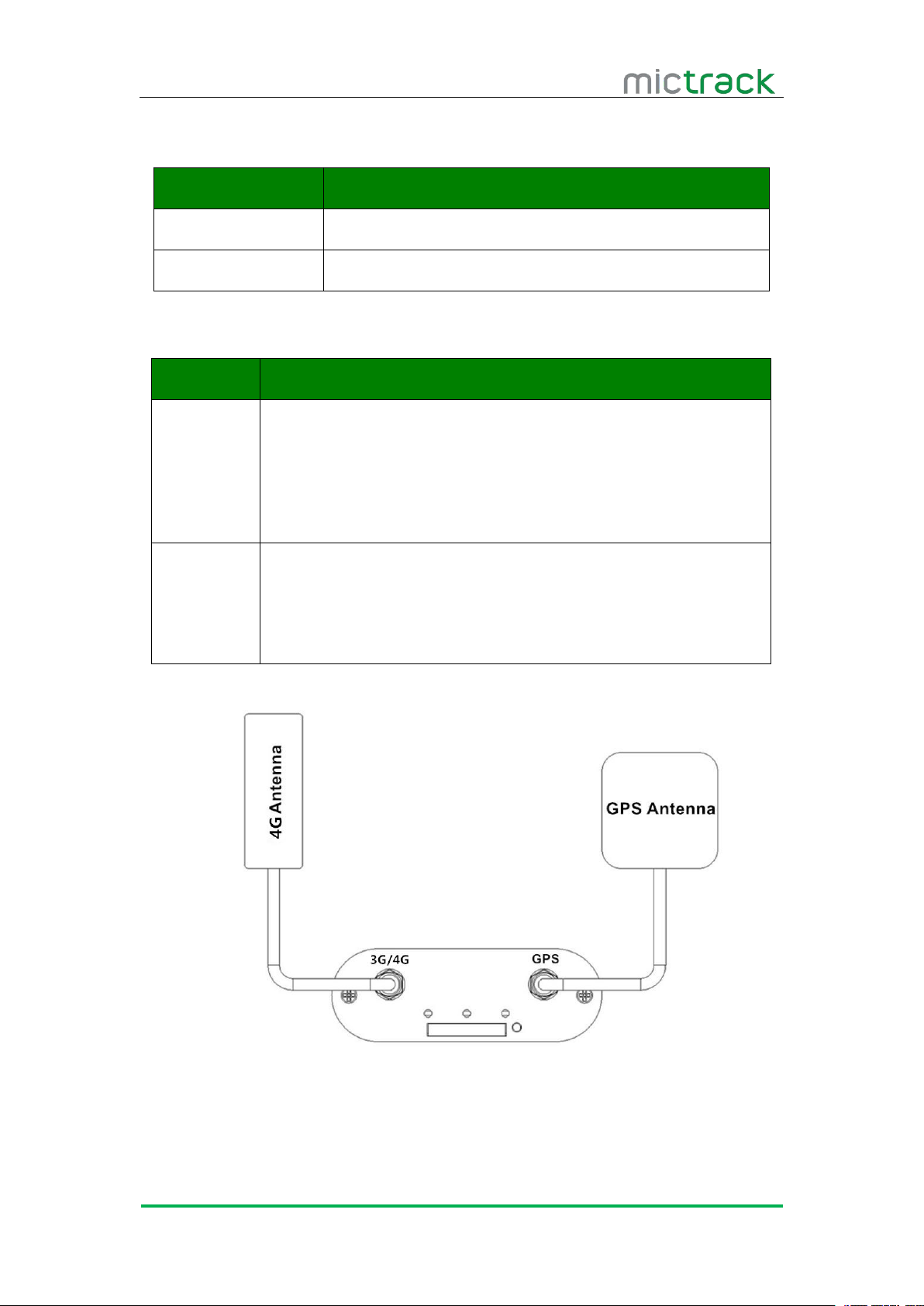

6.4 Install 4G & GPS Antenna

 Connect the 4G Antenna firmly to "3G/4G" Socket

 Connect the GPS Antenna firmly to “GPS” socket

Note: Do not install the GPS antenna at a place with metal.

Status

Description

OFF

GPS Unavailable

Quick flash

GPS available

Page 9

MT600 Plus User Manual V1.0

http://www.mictrack.com

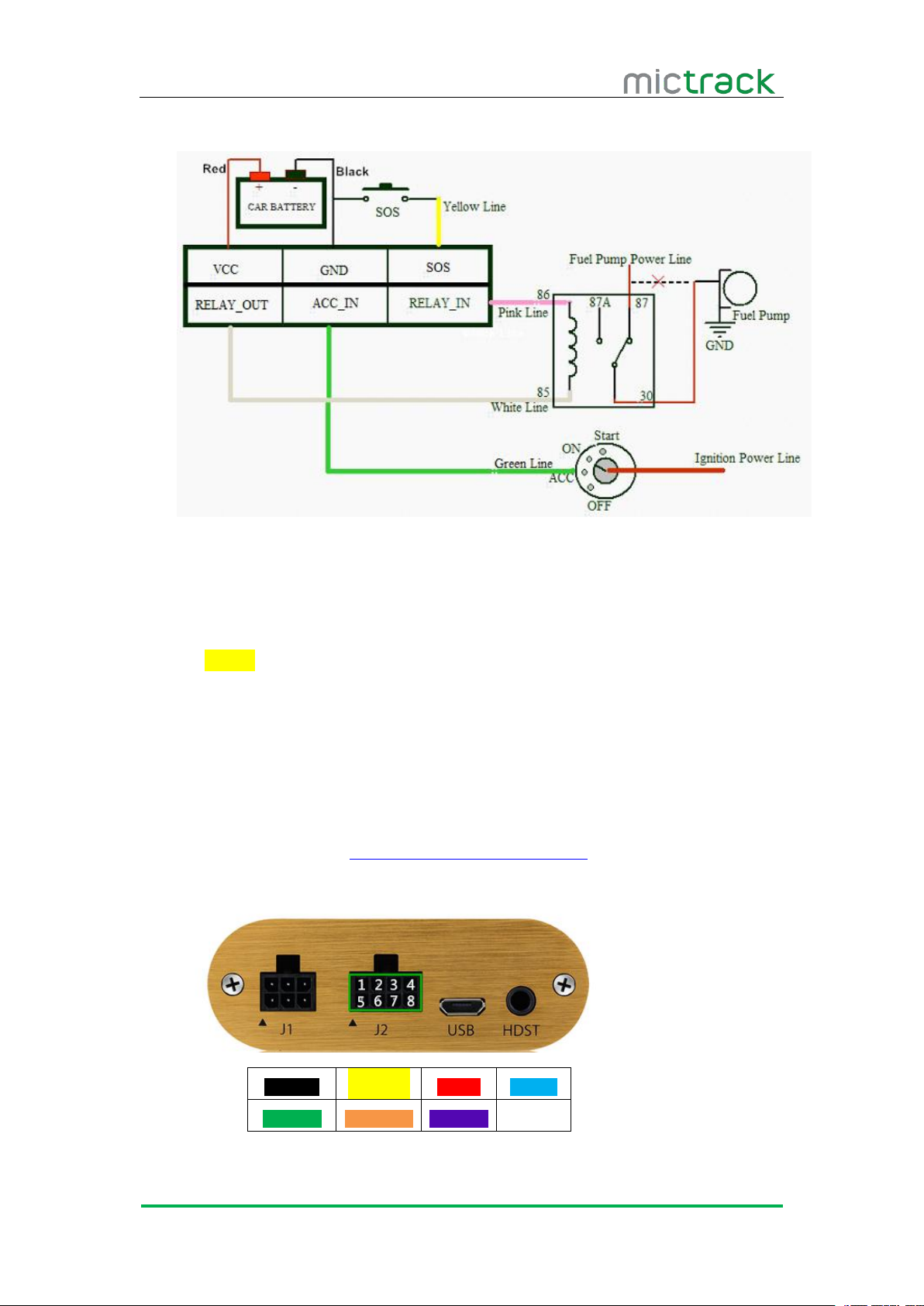

6.5 J1 Connection (6PIN wired)

When installing the device, please connect supplied wiring loom as follows: (or



Red: Connect to constant 12V Car Battery(+)



Black: Connect to Earth (Chassis) Car battery(-)

 Green: Connect to ACC switched 12V Power

 Yellow: Connect to red wire of supplied SOS switch

 White: Connect to Relay terminal (85)



Pink: Connect to Relay terminal (86)

6.6 Install the SOS button



Red: connect to Yellow wire from supplied wiring loom

 Black: connect to Earth (Chassis) Car battery(-)

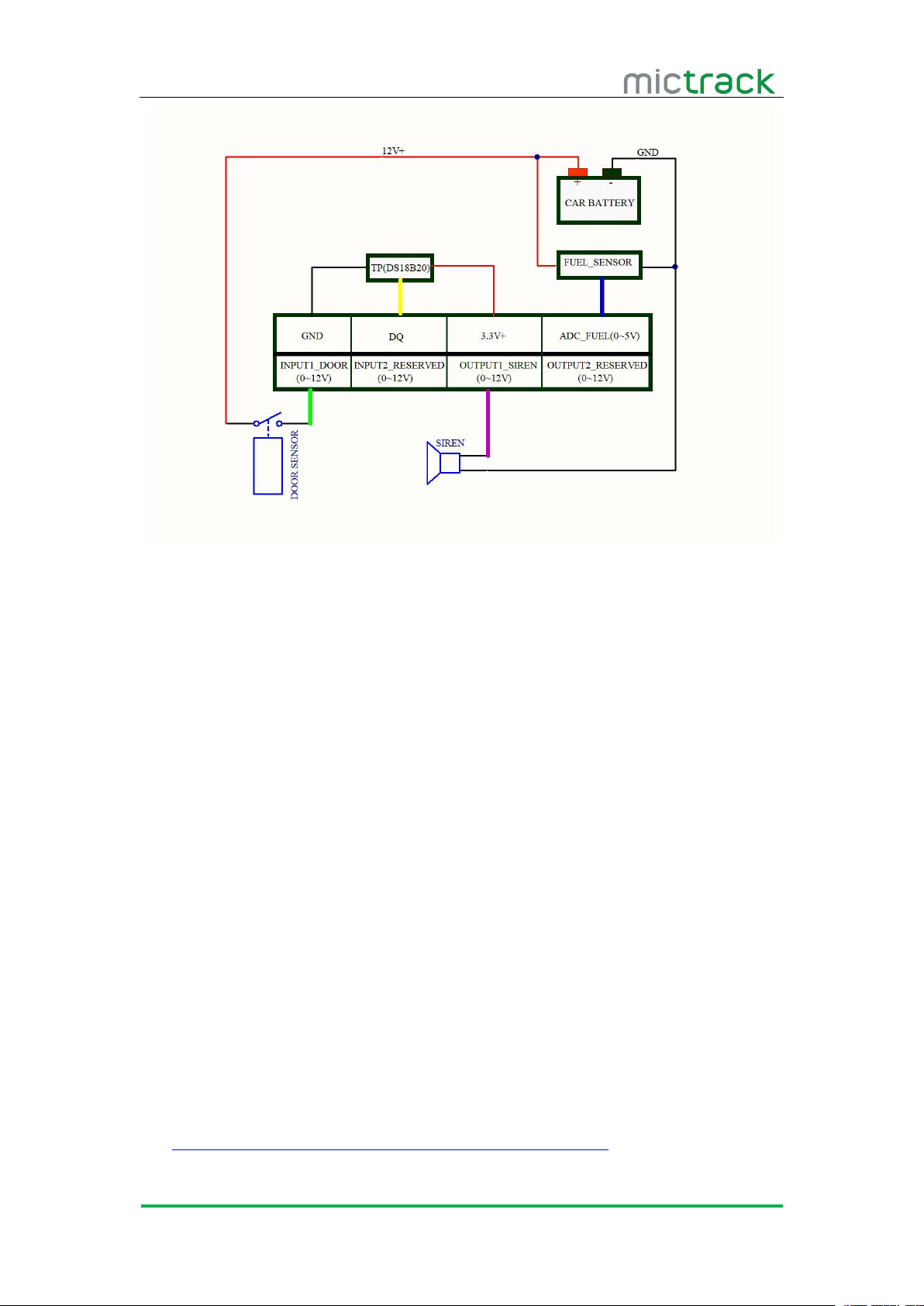

6.7 J2 Connection (8PIN wired)

1-Black

2-Yellow

3-Red

4-Blue

5-Green

6-Orange

7-Purple

8-White

contact our sales team for help)

Note: Relay is optional for remote fuel / ignition shut-off.

Note: installation Video: http://youtube.com/c/mictrackgps

Page 10

MT600 Plus User Manual V1.0

http://www.mictrack.com

7. Setup and Configuration

Note: When sending SMS command to the unit, do NOT use spaces or symbols not

7.1 Setting Authorized Phone Numbers

 The defaulted password is 0000.

 It can authorize up to 3 phone numbers.

7.2 Instant Location Request (used to receive unit location via SMS)

listed below. * and # are valid command parameters.

SMS Command format: mobile number+password+[command parameter]

Note: Command Parameter here is the sequence of the mobile number

i.e. [1=Admin] or [2=SOS call number]

For example: *13424392330*0000*1**

Unit Reply: SET USER NUMBER 1 OK.

Note:

SMS Command format: 666+password

For example: 6660000

When sent, this command will result in a Unit Reply SMS as follows:

ID:865662000409210

Date:05:36:59 05/26/2018

Fix:A State:SMS

http://maps.google.com/maps?q=+22.63146%2c1+14.03701

Page 11

MT600 Plus User Manual V1.0

http://www.mictrack.com

Note: This link can to be opened on any Smart Phone to reveal the Google Maps

7.3 SOS Alarm (optional)

7.4 Geo-fence (Setting of size of Geo-Fence)

7.5 Remote cut off fuel and ignition (optional)

7.6 External power cut off alarm

7.7 Towing Alarm

7.8 Low Battery Alarm (backup battery)

7.9 Low Battery Alarm (Vehicle Battery)

Location of the unit at the time of request

When the SOS button is pressed for 3 seconds, the unit will automatically send it’s

location to authorized phone number via SMS, and also upload location data to the Web

Tracking Platform server along with the status description “SOS”

SMS Command format: 005+password+R+[Command Parameter]

Note: Command Parameter here is fence diameter in KM [0.1~999.9]

For example: 0050000R1.0

Unit Reply: SET ROUND GEO-FENCE:ON

To remotely Cut-Off fuel or power

SMS Command format: 940+password

For example: 9400000

Unit Reply: SET OILWAY DISCONNECT.

To remotely Resume fuel or power

SMS Command format: 941+password

For example: 9410000

Unit Reply: SET OILWAY RECOVERY CONNECT.

Note: The default setting for the Cut-Off feature is OFF

If the external power to the unit is disconnected, the unit will call the authorized phone

numbers, and then send location data to the authorized phone number and upload

location data to the Web Tracking Platform server along with the status description “DEF”

If the vehicle was be moved or towed when ACC is turned OFF, it will SMS location

data to the authorized phone number, and upload location data to the Web Tracking

Platform server along with the status description “TOWED”

When the unit’s internal backup battery is low, it will SMS the authorized phone

number, and upload location data to the Web Tracking Platform server along with the

status description “BLP”

When the vehicle battery is low, it will SMS the authorized phone number, and upload

location data to the Web Tracking Platform server along with the status description “CLP”

Page 12

MT600 Plus User Manual V1.0

http://www.mictrack.com

7.10 Door Siren Alarm (optional)

7.10.1 Enable Door Siren Alarm

SMS Command format : 130+password

7.10.2 Disable Door Siren Alarm

7.11 Over-Speed Alarm

7.11.1 Setup Over-speed value

7.11.2 Over-speed siren alarm

7.12 External output (Reserved)

7.13 Set Time Zone

For example: 1300000

Unit Reply: SET DOOR SIREN ON

SMS Command format : 130+password

For example: 1310000

Unit Reply: SET DOOR SIREN OFF

To enable the Over-Speed Alarm

SMS Command format : #122#password#speed value##

Example: #122#0000#100##

Unit Reply: SET SPEED LIMIT:ON

To disable the Over-Speed Alarm

SMS Command format: #122#0000#0##

Note: Command Parameter here is [0=OFF]

Unit Reply: SET SPEED LIMIT:OFF.

Note: Speed is in KM/H, Maximum setting = [999].

Enable Over-speed siren alarm : 132+password

For example: 1320000

Unit Reply: SET SPEED SIREN ON

Disable over-speed siren alarm : 133+password

For example: 1330000

Unit Reply: SET SPEED SIREN OFF

Enable External output : 960+password

For example: 9600000

Unit Reply: SET OUTPUT2 ON

Disable External output : 961+password

For example: 9610000

Unit Reply: SET OUTPUT2 OFF

SMS Command format: 896+password+ [+/-]HH:MM

Note: Command Parameter here is [Plus or Minus GMT]&[Hours/Minutes]

For example: 8960000+10:00

Reply: SET TIME ZONE:+08:00

Page 13

MT600 Plus User Manual V1.0

http://www.mictrack.com

Note: The default is Greenwich Time (UTC). [i.e. Melbourne Australia = +10:00]

7.14 Set APN (Access Point Name)

7.15 Set Tracking Server IP and PORT

7.16 Set Upload Interval Time

7.16.1 ACC ON (Upload status is AUTO)

7.16.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF)

7.16.3 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW)

7.17 SMS Response ON/OFF

SMS Command format 1: #803# password#APN##

For example : #803#0000#telstra.internet##

SMS Command format 2: #803#password#APN#APN user name# APN password##

For example:

Reply: SET GPRS APN OK.

#803#0000#CMNET#INTERNET#INTERNET##

Note: please contact your SIM Card provider to get the correct APN details

SMS Command format: #804#password#IP#port##

Example:#804#0000#112.95.164.248#7700##

Reply: SET SERVER IP AND PORT OK.

This sets how often [in seconds] the unit sends location data back to the Tracking

Platform whilst the ACC is switched on. This will affect accuracy and data usage.

SMS Command format: #805#password#interval time#[command parameter]##

Note: Command Parameter here [1=ON] & [0=OFF]

For example:#805#0000#10#1##

Unit Reply: SET GPS PERIODIC UPLOAD ON.

Note: interval time maximum [10,65535]seconds

Unit Reply: SET GPS PERIODIC UPLOAD OFF.

SMS Command format: #809#password#interval time#[command parameter]##

Note: Command Parameter here [1=ON] & [0=OFF]

For example:#809#0000#10#1##

Unit Reply: SET GPS TOWED UPLOAD ON.

Note: interval time maximum [10,65535]seconds

Unit Reply: SET GPS TOWED UPLOAD OFF.

SMS Command format: #807#password#interval time##

For example: #807#0000#2##

Unit Reply: SET GPS POWER SAVING UPLOAD ON.

Note: interval time maximum [2,1440] minutes [If interval time = 0, it will stop upload]

Unit Reply: SET GPS POWER SAVING UPLOAD OFF.

To turn SMS messages OFF

SMS Command format: 160+password

For example: 1600000

Page 14

MT600 Plus User Manual V1.0

http://www.mictrack.com

Unit Reply: SET SEND SMS:OFF.

7.18 Unit Phone Calling Control (useful for SIM Card data cost saving)

8. App & PC Tracking platform

8.1 Subscribe the server plan

 Contact your sales or distributor to active your device

 Subscribe the server from our official shop:

8.2 App install & Login



Search “Yi tracker” in Google Play or iOS store to download App(choose Yi

 Choose the”Login by Device No.”

 Input server www.trackits.com

 Input your device’s ID number and password(default is 123456)

To turn SMS messages back ON

SMS Command format: 161+password

For example: 1610000

Unit Reply: SET SEND SMS:ON.

Note: if you want to disable the SMS alerts, send 1600000

To turn OFF unit Calling Alerts

SMS Command format: 150+password

For example: 1500000

Unit Reply: SET VOICE CALL:OFF

To turn ON unit Calling Alerts

SMS Command format: 151+password

For example: 1510000

Unit Reply: SET VOICE CALL: ON

Note: if you want to disable the call alerts, send 1500000

https://www.mictrack.com/shop/gps-tracking-platform-service

tracker)

Page 15

MT600 Plus User Manual V1.0

http://www.mictrack.com

8.3 PC login



Web: www.trackits.com



Choose “ID No.”



Input your device’s ID number and password(default is 123456)

9. Troubleshooting

Issues

Caused

Solutions

Send SMS to the

device but no reply

1>Data only SIM card and don't

supported SMS service,

2>New SIM card have not

active

Please check the SIM card

status and make sure it

can work.

Page 16

MT600 Plus User Manual V1.0

http://www.mictrack.com

3>Card balance is not enough Command is wrong

Please check the command

format again

Password is wrong

Please check the password

again (default is 0000)

4G antenna install wrong

Please check the 4G anten

na if install correct.

Can not get the locatio

GPS antenna install wrong

Please check again

Can not power on

Backup battery is low voltage

Please try to connect 12V

Charge Led no light

Backup battery voltage is over

3.7V.

The device will auto-charge

once detect to low voltage

and then LED light, or LE

D will not night.

Device Can not show

on server

Device ID is wrong

Please check the ID

Device have not active on serv

Please contact your sales t

o active your device

The IP and port setup wrong

Check the IP and port agai

APN error

Check the APN again

Tips:

 How to setup APN: https://www.mictrack.com/apn-settings-for-mictrack-gps-trackers

 How to use Mictrack Server: https://www.mictrack.com/how-to-use-mictrack-server

 Global Frequency bands check: https://www.mictrack.com/4g-lte-frequency-bands-list

Note: Please remember to monitor the credit balance of your SIM card, to

avoid confusion or delays in setting up your new unit. This can be a common issue,

especially when initially setting up a new unit, and the unit fails to reply to a correct

SMS command sequence.

If you have any questions please do not hesitate to contact us [email protected].
