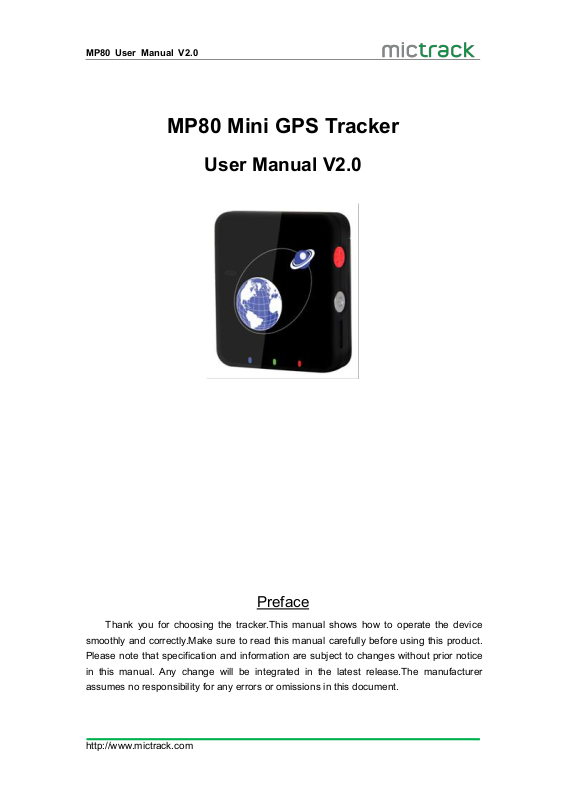

MP80 User Manual V2.0
http://www.mictrack.com
MP80 Mini GPS Tracker
User Manual V2.0
Preface
Thank you for choosing the tracker.This manual shows how to operate the device
smoothly and correctly.Make sure to read this manual carefully before using this product.
Please note that specification and information are subject to changes without prior notice
in this manual. Any change will be integrated in the latest release.The manufacturer
assumes no responsibility for any errors or omissions in this document.
Page 2
MP80 User Manual V2.0
http://www.mictrack.com
Contents
1. Overview...............................................................................................................................1
2. Application............................................................................................................................1
3. Specifications.......................................................................................................................1
4. Hardware Description........................................................................................................2
4.1 Appearance........................................................................................................................2
4.2 LED Indications................................................................................................................ 2
4.2.1 Green LED-GPS indicator..........................................................................................2
4.2.2 Blue LED-GSM indicator............................................................................................ 2
4.2.3 Red LED-charge indicator..........................................................................................3
4.3 Device Button Instruction...............................................................................................3
5. Main Operation and Application.................................................................................... 3
5.1 Set Authorization Phone Number................................................................................3
5.2 Delete authorization number.........................................................................................4
5.3 Position Mode...................................................................................................................4
5.4 Change the password.................................................................................................... 4
5.5 Single Locating.................................................................................................................4
5.6 Calling Switch................................................................................................................... 4
5.7 SMS Response ON/OFF............................................................................................... 5
5.8 Call Restriction Switch................................................................................................... 5
5.9 GPRS Upload ON/OFF..................................................................................................5
5.10 Monitor(Voice Surveillance).........................................................................................5
5.11 Geo-fence........................................................................................................................ 5
5.11.1 Enable the Geo-fence...............................................................................................6
5.11.2 Disable the Geo-fence.............................................................................................. 6
5.12 SOS Alarm...................................................................................................................... 6
5.13 Low battery Alarm.........................................................................................................6
5.14 Set Time Zone...............................................................................................................6
5.15 Set APN(Access Point Name)...................................................................................6
5.16 Set Server IP and PORT........................................................................................... 6
5.17 Set GPRS Upload Interval Time.............................................................................. 6
5.18 Set LBS upload interval time.....................................................................................7
5.19 Power Saving Mode..................................................................................................... 7
5.20 Invalid GPS Data Upload........................................................................................... 7
5.21 G-sensor mode.............................................................................................................. 7
5.22 Pedometer check...........................................................................................................7
5.23 Over-speed alarm..........................................................................................................8
5.24 Mileage report................................................................................................................ 8
5.24.1 Set report interval time............................................................................................ 8
5.24.2 Clear the Mileage...................................................................................................... 8
5.24.3 Check the current mileage......................................................................................8
Page 3
MP80 User Manual V2.0
http://www.mictrack.com
-1-
1. Overview
This device is the latest Mini Personal GPS Tracker.This device can locate and
2. Application
GSM 850/900/1800/1900Mhz works worldwide.
Track by SMS/GPRS
LBS Position when GPS is unavailable
Real-time Position inquire
Report SMS with Google Maps Link
Two-way Voice Communication
Listen-in(Voice Monitoring)
History trace Display
SOS Alarm
Geo-fence Alarm
Low battery Alarm
Over-speed alarm
Pedometers:Step, Calories and Distance Counter
Mileage report
Long Standby Time for 8 days
3. Specifications
Item
Specifications
GSM Frequency
GSM 850/900/1800/1900Mhz
GPS Chip
U-blox7
GPS Sensitivity
-162dBm
Channel
56 Channel
Positioning Accuracy
10 Meters
Hot start
1s on average
Warm start
28s on average
Cold start
29s on average
Working temperature
-25°C to 60°C
Humidity
5%~95% non-concretion
monitor any remote targets by SMS or Internet. It also has two-way voice communication
and remote listen-in functions.The unit features excellent and stable work performance.It
used for personal(kids/elderly)tracking and fleet management.
Page 4
MP80 User Manual V2.0
http://www.mictrack.com
-2-
Item
Specifications
Backup battery
Chargeable 3.7V 700mAh Li-ion battery
Charging Voltage
Micro USB interface DC 5V
Weight
40g
Dimension
50(L)*43(W)*16(H)mm
Standby
8 days
4. Hardware Description

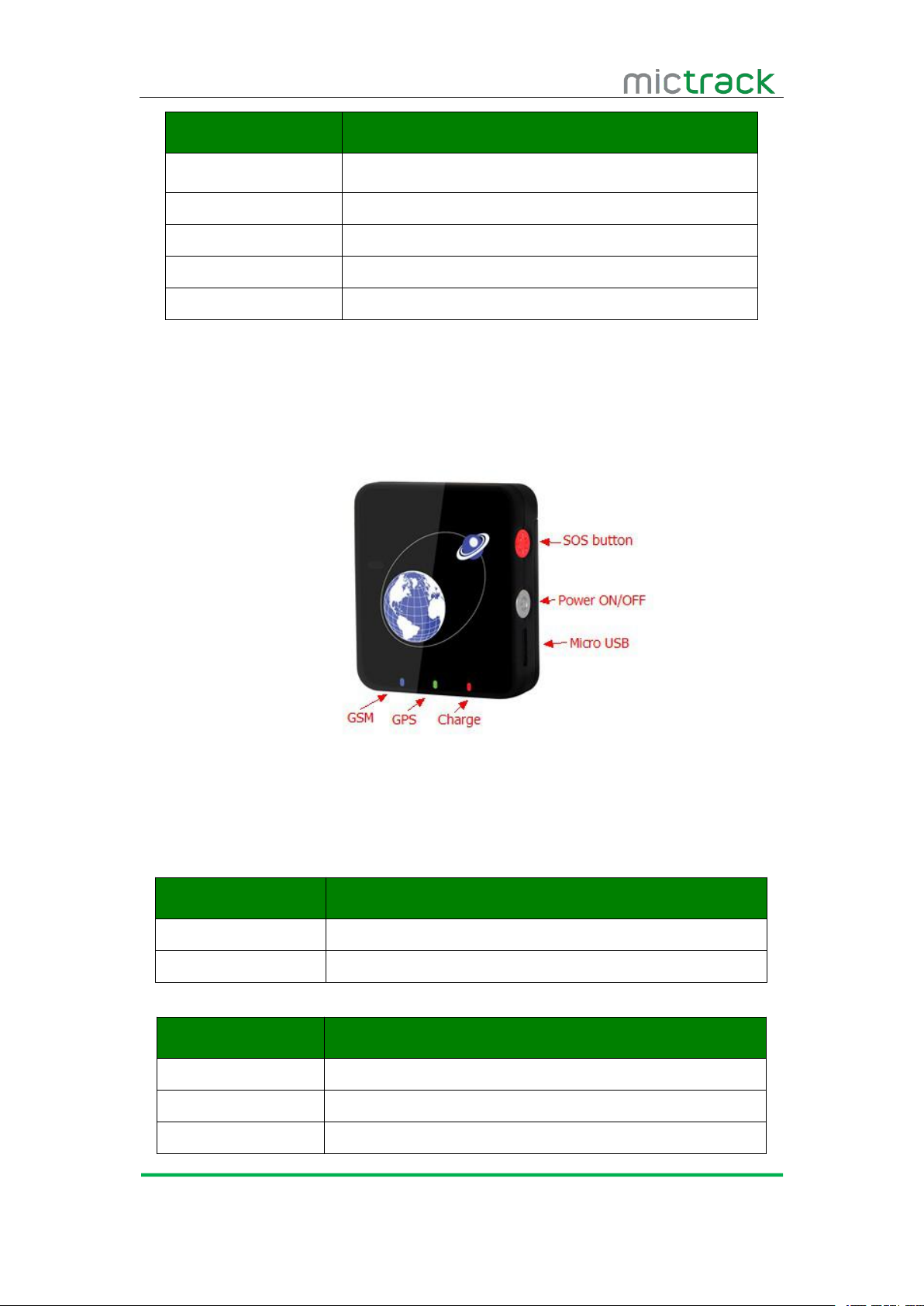

4.1 Appearance
4.2 LED Indications
4.2.1 Green LED-GPS indicator
4.2.2 Blue LED-GSM indicator
Status
Description
Always ON
No SIM Card or no GSM network
Slow flash (4s/time)
GPRS upload or incoming calls;
Quick flash (8s/time)
SIM card registration Successful or standby mode
Status
Description
OFF
GPS unavailable
Quick flash(1s/time)
GPS available
Page 5
MP80 User Manual V2.0
http://www.mictrack.com
-3-
4.2.3 Red LED-charge indicator
4.3 Device Button Instruction
Button
Description
Power Button
Press and hold the button (about 3 seconds) until vibrate one
time to POWER ON.
Press and hold the button (about 3 seconds) until vibrate twice
to POWER OFF.
Short press(about 1 second) until vibrate one time to HANG
UP THE CALL.
SOS Button
Short press(about 1 second) until vibrate one times to
ANSWER THE CALL.
Press and hold the button (about 3 seconds) until vibrate
twice, the unit will send position to authorization 3 phone
numbers (or upload to server in GPRS Mode), and then will
also dial the authorization 3 phone numbers by sequence
Combinations
Press and hold the power and SOS button for 3 seconds,the
pedometer data will be reset.
5. Main Operation and Application
5.1 Set Authorization Phone Number
Instruction format: *cell phone number *password*serial number(1-3)**
The device defaulted password is 0000.
The device can only authorized 3 cell phone numbers
Status
Description
Always ON
Under charging
Light bright
Charging completed
Flashing
Low battery
For example:*13900000000*0000*1**
Reply:SET USER NUMBER 1 OK.
Note:
Page 6
MP80 User Manual V2.0
http://www.mictrack.com
-4-
5.2 Delete authorization number
Instruction format:**password*number(1-3)**
5.3 Position Mode
5.4 Change the password
5.5 Single Locating
5.6 Calling Switch
In case of calling off(150), when SOS,Geo-fence alarm or over speed alarm
For example:**0000*1**
Reply:DELETE USER NUMBER 1 OK.
When user want to get accurate positioning information and history trace,it is
recommended the GPS mode.When user need general location information and longer
standby time,LBS model is better.Users can select the mode via the following two
commands:
LBS model:
Format:800+user password
For example:8000000
Reply:SET LOCATION MODE: LBS
GPS mode:
Format:810+user password
For example:8100000
Reply:SET LOCATION MODE:GPS.
Instruction format:777+new password+old password
For example:77712340000
Reply:SET PASSWORD OK.
Instruction format:666+password
For example:6660000
Description:Send this SMS command to unit,it will reply SMS as follow:
ID:865662000409210
Date:05:36:59 15/09/2014
Fix:A State:SMS
http://maps.google.com/maps?q=22.63146%2c114.03701
Calling OFF:150+password
For example:1500000
Reply:SET VOICE CALL:OFF
Calling on:151+password
For example:1510000
Reply:SET VOICE CALL: ON
occurs, message will be returned instead of call.
Page 7
MP80 User Manual V2.0
http://www.mictrack.com
-5-
5.7 SMS Response ON/OFF
SMS OFF:160+ user password
5.8 Call Restriction Switch
171mode,it can only receive incoming call from 3 authorization numbers.
170mode the device can answer incoming call from any cell phone.
5.9 GPRS Upload ON/OFF
5.10 Monitor(Voice Surveillance)
5.11 Geo-fence
For example:1600000
Reply:SET SEND SMS:OFF.
SMS ON:161+ user password
For example:1610000
Reply:SET SEND SMS:ON.
Note:If the SMS is turned off during Geo-fences,low battery,SOS,only upload GPRS
data and do not reply SMS to user.
Call restriction OFF:170+password
For example:1700000
Reply:SET INCOMING CALLS:OFF.
Call restriction ON:171+password
For example:1710000
Reply: SET INCOMING CALLS : ON
Note:
GPRS Upload OFF:180+ user password
For example:1800000
Reply:SET GPRS UPLOAD:OFF
GPRS Upload ON:181+ user password
For example: 1810000
Reply: SET GPRS UPLOAD: ON.
Note:If the GPRS Upload is turned off during Geo-fences,low battery,SOS,only reply
SMS and do not upload data to server.
Disable the monitor format: 000+password
For example: 0000000
Reply: SET VOICE MONITOR:OFF.
Enable monitor format:001+password
For example:0010000
Reply:SET VOICE MONITOR:ON.
Note:Default is MONITOR OFF
Instruction format:006+password+G1,IO/I/O,E/W longitude upper limit+N/S latitude
upper limit,E/W longitude lower limit+N/S latitude lower limit.
Page 8
MP80 User Manual V2.0
http://www.mictrack.com
-6-
For example:0060000G1,IO,E114.04540N22.59034,E114.05978N22.59797
5.11.1 Enable the Geo-fence
5.11.2 Disable the Geo-fence
5.12 SOS Alarm
5.13 Low battery Alarm
5.14 Set Time Zone
The default is Greenwich time(UTC).
5.15 Set APN(Access Point Name)
5.16 Set Server IP and PORT
5.17 Set GPRS Upload Interval Time
Reply:SET SQUARE GEO-FENCE G1(IO/I/O) OK..
Instruction format:311+password
For example:3110000
Reply:SET ALL SQUARE GEO FENCE: ON.
Instruction format:310+password
For example:3100000
Reply:SET SQUARE GEO FENCE: OFF.
When press SOS button for 3 seconds,it will send location to authorization phone
number and also upload data to server, the state is “SOS” and also will call the
authorization phone number.
When the device battery is low power,it will send SMS to authorization phone number
and upload data to server, the state is:LP.
Instruction format:896+password+ +/-HH:MM
For example:8960000+08:00
Reply:SET TIME ZONE:+08:00
Instruction format 1:#803#user password#APN##
For example: #803#0000#CMNET##
Instruction format 2:#803#password#APN#APN user name# APN password##
Reply: SET GPRS APN OK.
Instruction format:#804#password#IP address(or domain) #port##
Example: #804#0000#112.95.164.248#7780##(or) #804#0000#e.trackits.com#7700##
Reply:SET SERVER IP AND PORT OK.
Instruction format:#805#password#interval time# upload quantity##
For example:#805#0000#60#1##
Reply:SET GPS PERIODIC UPLOAD OK.
Note: interval time define is[10,65535],unit is second.upload quantity is[0,50]. If
quantity is 0, it will stop upload and reply: SET GPS PERIODIC UPLOAD OK
Page 9
MP80 User Manual V2.0
http://www.mictrack.com
-7-
5.18 Set LBS upload interval time
Format:#808#password#interval time#upload quantity##
5.19 Power Saving Mode
5.20 Invalid GPS Data Upload
5.21 G-sensor mode
5.22 Pedometer check
For example:#808#0000#120#1##
Reply:SET LBS PERIODIC UPLOD OK.
Note:interval time define is[120,65535],unit is second.upload quantity is[0,50]. If
quantity is 0, it will stop upload and reply: SET LBS PERIODIC UPLOAD STOP.
Format:#807#user password#upload interval time#
For example:#807#0000#10##
Reply:SET GPS POWER SAVING UPLOAD ON.
Note:
1. The interval time range is[10,1000],unit is minute.if the interval is 0 it will disable
this mode and reply: SET GPS POWER SAVING UPLOAD OFF.
2. In this mode, the GPS will only wake up and upload a data to server when
the interval time is arrive and then go to sleep again
Invalid data upload ON:081+users password
For example:0810000
Reply:INVALID DATA UPLOAD:ON
Invalid data upload OFF:080+user password
For example:0800000
Reply:INVALID DATA UPLOAD:OFF
Format:#999#password#mode#parameter1#parameter2##
For example 1:#999#0000#0##
For example 2:#999#0000#1#50#30##
Re:SET GSENSOR MODE:OFF/VIBRATE/PEDOMETER
Description: mode define is [0,2]
0:Disable G-sensor, parameter1 and parameter 2 is omitted;
1:Vibrate Mode,parameter1 is[100,2000],units is mg, parameter2 is[0,100].
2:Pedometer mode, parameter1 is height and define is[100,300], unit is CM,
parameter2 is for weight and define is[10,150],unit is KG.
Format:998+password
For example, 9980000
Reply:GSENSOR MODE:PEDOMETER
CURRENT MILEAGE:1.77KM
CURRENT CALORIE:142.57
CURRENT STEPS:2517
Page 10
MP80 User Manual V2.0
http://www.mictrack.com
-8-
TOTAL MILEAGE:5.10KM
5.23 Over-speed alarm
5.24 Mileage report
5.24.1 Set report interval time
5.24.2 Clear the Mileage
5.24.3 Check the current mileage
Tips:
How to setup APN: https://www.mictrack.com/apn-settings-for-mictrack-gps-trackers
How to use Mictrack Server: https://www.mictrack.com/how-to-use-mictrack-server
Global Frequency bands check: https://www.mictrack.com/4g-lte-frequency-bands-list
TOTAL CALORIE:411.41
TOTAL STEPS:7046
Command:#122#user password#X##
Example:#122#0000#100##
Reply:SET SPEED LIMIT:100
Close command: #122#0000#0##
Note:X is speed value, unit is KM/H definition is [0, 999].
Format:#141#password#X##
Reply:SET GPS MILEAGE STATISTICS:ON/OFF
Note:X is the mileages and define is [0,1000]
Format:#142#password#T##
Reply:SET MILEAGE CURRENT/ALL.
Note:T is [0,1].T=0,clear current mileage;T=1,clear total mileage.
Format:#143#password##
For example:#143#0000##
Reply: TOTAL GPS MILEAGE:XXX.
CURRENT GPS MILEAGE:XXX.
Note: mileage unit is KM
Note: Please remember to monitor the credit balance of your SIM card, to
avoid confusion or delays in setting up your new unit. This can be a common issue,
especially when initially setting up a new unit, and the unit fails to reply to a correct
SMS command sequence.
If you have any questions please do not hesitate to contact us [email protected].
Loading...
