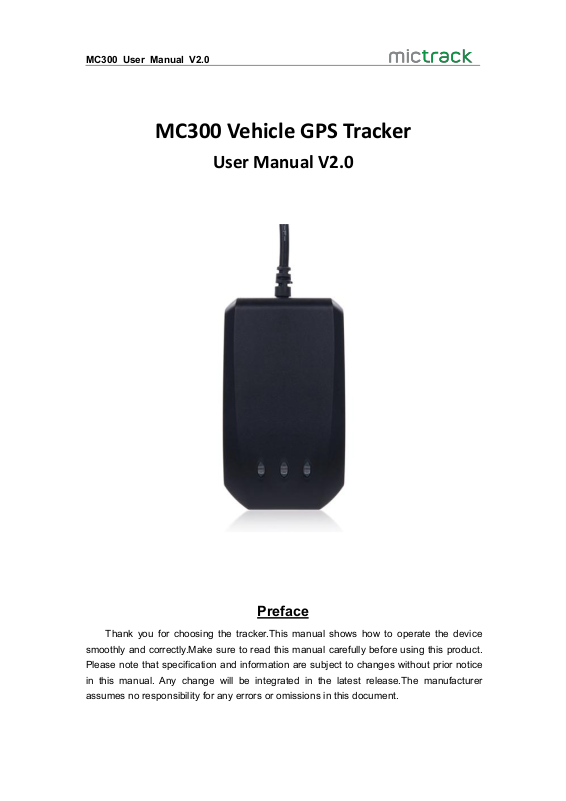

MC300 User Manual V2.0

MC300 Vehicle GPS Tracker

User Manual V2.0

Preface

Thank you for choosing the tracker.This manual shows how to operate the device

smoothly and correctly.Make sure to read this manual carefully before using this product.

Please note that specification and information are subject to changes without prior notice

in this manual. Any change will be integrated in the latest release.The manufacturer

assumes no responsibility for any errors or omissions in this document.

Page 2

MC300 User Manual V2.0

http://www.mictrack.com

Contents

1. Overview

2. Features.............................................................................................................................................. 1

3. Specification....................................................................................................................................... 2

4. Hardware description....................................................................................................................... 3

4.1 Appearance

4.2 LED Status

4.3 Wiring connections................................................................................................................. 5

4.4 Install the SOS

4.5 Connect the Relay(optional)

5. Install the SIM Card

6. Work Mode......................................................................................................................................... 6

7. Detail Operation................................................................................................................................ 6

7.1 Set the Authorized phone number.................................................................................... 6

7.2 Work Mode Exchange

7.3 Change user password

7.4 Request the single position

7.5 Request location with Google Map link........................................................................... 7

7.6 Daily Report.............................................................................................................................7

7.7 SOS Alarm...............................................................................................................................7

7.8 Geo-Fence

7.9 Low Battery Alarm................................................................................................................. 8

7.10 Cut Off Oil Alarm................................................................................................................ 8

7.11 Power OFF alarm

7.12 Tow alarm

7.13 Phone Tracking

7.14 Time Zone............................................................................................................................. 9

7.15 Over speed Alarm............................................................................................................... 9

7.16 ACC Illegal Start Alarm..................................................................................................... 9

7.17 Sleep Mode

7.18 Voice ON/OFF

7.19 Set Access Point Name(APN)

7.20 Set server IP address and Port.................................................................................... 10

7.21 Set Data upload interval time........................................................................................ 10

8. Special Command.......................................................................................................................... 10

.............................................................................................................................................

..............................................................................................................................

4.2.1 Yellow LED-GSM indication

4.2.2 Blue LED-GPS indication......................................................................................... 4

4.2.3 Red LED-Charge indication..................................................................................... 5

.......................................................................................................................

........................................................................................................................

..........................................................................................................

.........................................................................................................

...............................................................................................................................

7.8.1 Set Geo Fence

7.8.2 Turn On Geo-fence

7.8.3 Turn Geo-fence off.................................................................................................... 8

..............................................................................................................................

...........................................................................................................................

...........................................................................................................

...................................................................................................

................................................................................................................

....................................................................................................................

.....................................................................................

................................................................................................

.................................................................................................

........................................................................................

Page 3

MC300 User Manual V2.0

http://www.mictrack.com

1. Overview

2. Features

 GSM 850/900/1800/1900MHz Global support

 Track by SMS/GPRS/APP

 Real-time position inquire

 Trajectory tracking



Get the location with Google link



SOS alarm

 Remote cut off oil and power (optional)

 ACC detection

 Inbuilt Motion Sensor

 Geo-fence alarm



Low battery alarm



Over-speed alarm

 CE Certificate

MC300 is the 2G vehicle tracker support GSM/GPRS.This device can locate and

monitor any remote targets by SMS/App/PC. The user also can remote cut off oil/power

and check the historical record.

It used for vehicle/motorcycle/truck/Vans tracking and fleet management.

Page 4

MC300 User Manual V2.0

http://www.mictrack.com

3. Specification

General Specifications

Dimensions

87mm x 50 mm x 12mm

Weight

65g

Battery

Li- Polymer 700mAh, 3.7V

Standby time

Work mode: 1day; Sleep mode: 5days Operation Voltage

12 to 24V DC

Operation Temperature

-20°C to 80°C

User Interface

Connector (5 pin power wire)

Red: 12V-24V(+)

Black: Ground(-)

Yellow: SOS button

White: dedicated for ignition

Green: dedicated for ACC

USB port

Configuration the device or upgrade firmware

GSM Antenna

Internal Only

GPS Antenna

Internal Only

Indicator LED

GPS, GSM, Battery status

GSM/GPS Specifications

Frequency

Quad band: 850/900/1800/1900MHz

Power transmission

GSM 850: less than 31 dBm

GSM 900: less than 31 dBm

GSM 1800: less than 28 dBm

GSM 1900: less than 28 dBm

Modulation Type

GMSK; 8-PSK

GPS Chipset

56 Channels U-blox7020 All-in-one GPS module

Sensitivity

Autonomous: -147dBm

Hot Start: -156dBm

Reacquisition: -160dBm

Tracking: -162dBm

Position Accuracy

10m

TTFF(Open Sky)

Cold start: 27s

Warm start: 27s

Hot start: 1s

Page 5

MC300 User Manual V2.0

http://www.mictrack.com

Air Interface Protocol

Transmit Protocol

TCPIP

Scheduled Timing Report

Geo-fence

Power On/Off Report

Report when the device is powered on or off

Low Power Alarm

Alarm when battery is low

SOS/Emergency:

SOS alarm when function key is pressed

Over Speed Alarm

Alarm when car is over speed

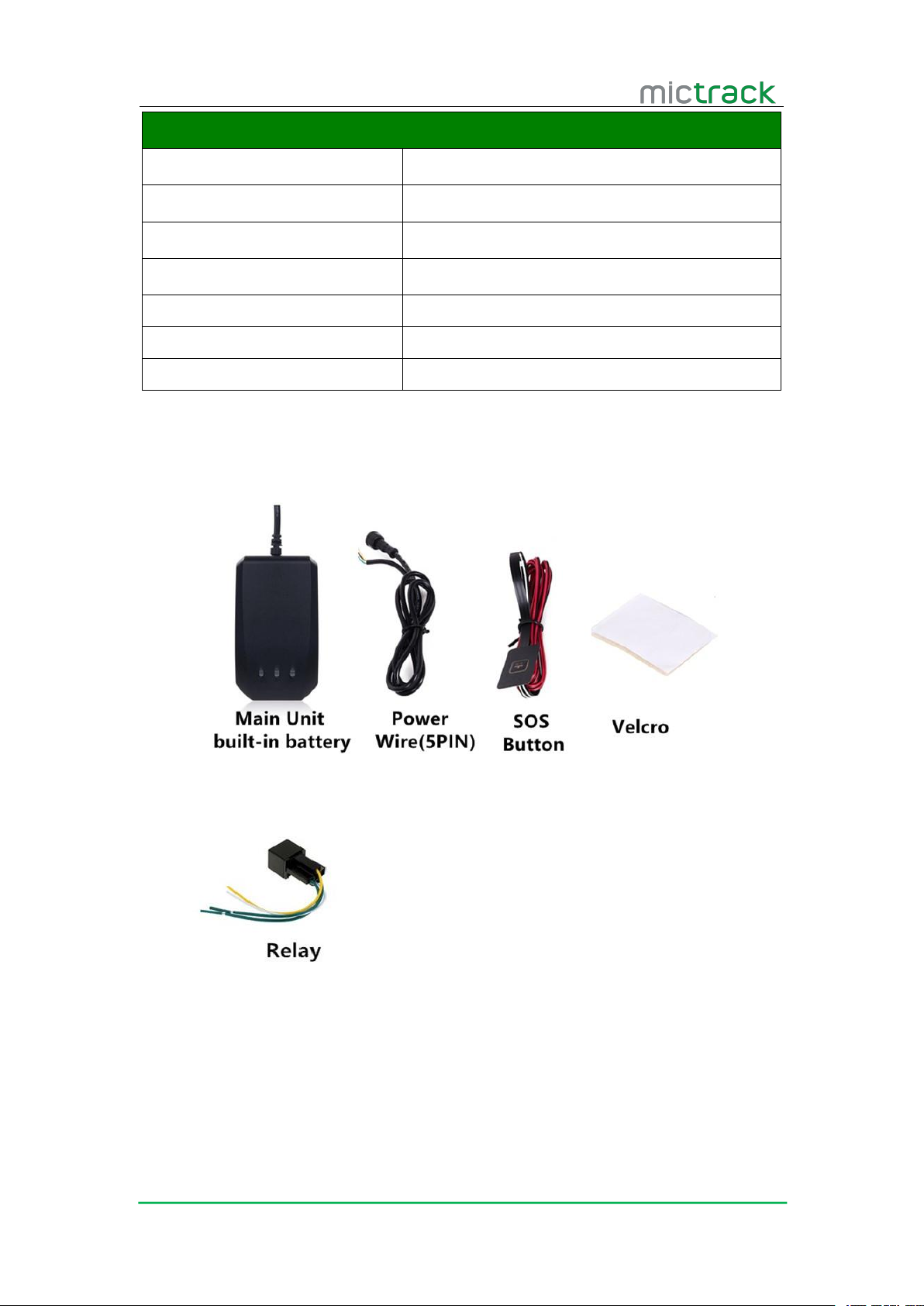

4. MC300 and Accessories

Standard accessories

Optional accessories

Page 6

MC300 User Manual V2.0

http://www.mictrack.com

5. Hardware description

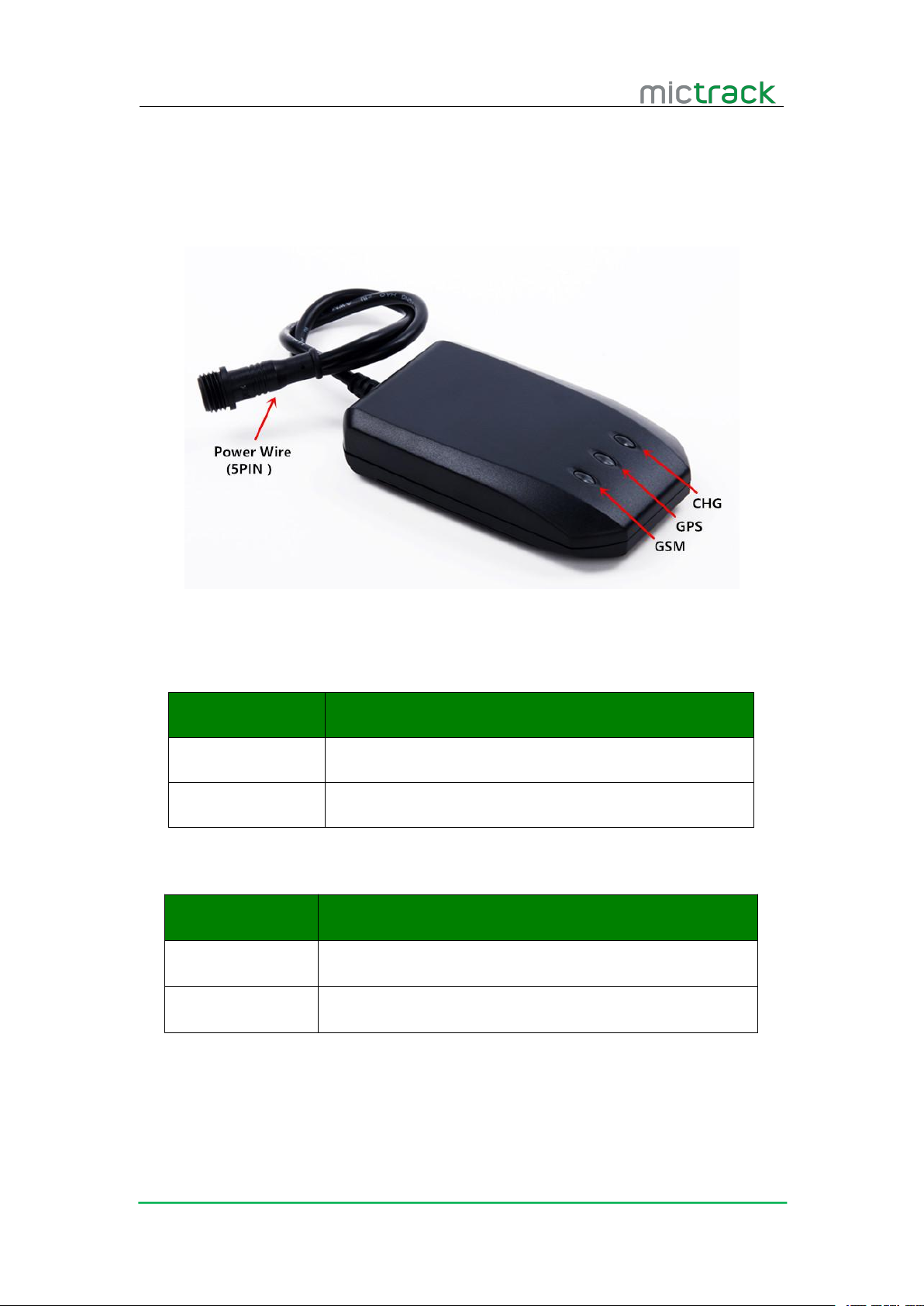

5.1 Appearance

5.2 LED Status

5.2.1 Yellow LED-GSM indication

5.2.2 Blue LED-GPS indication

Status

Description

Light On

GSM work

Flash

No GSM network or SIM card not detected

Status

Description

Flash

GPS No Work or No GPS Signal

Light On

GPS Work

Page 7

MC300 User Manual V2.0

http://www.mictrack.com

5.2.3 Red LED-Charge indication

5.3 Wiring connections



Red - 12V-24V(+)



Black - Ground(-)



Yellow - SOS button(red wire)

 White - Engine immobilizer (-) ( optional connection)

 Green - ACC Detect, stop battery charge while vehicle off.

5.4 Install the SOS

 Red: connect to yellow of Power wire

 Black: connect to black of power wire

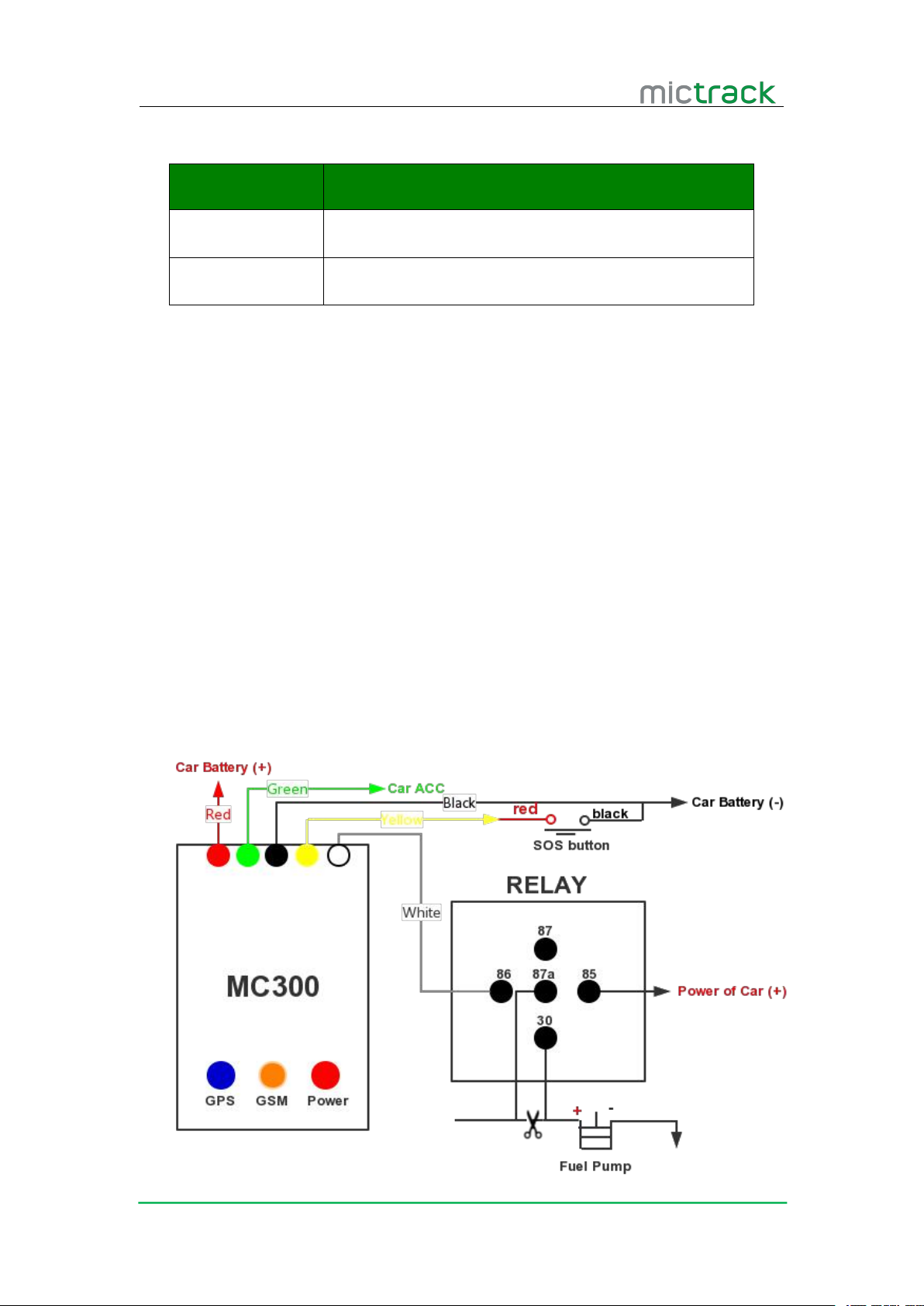

5.5 Connect the Relay(optional)

Status

Description

Flash

Charging/working

Light Off

No Power

The White wire is control the fuel of the car and connect to pin 86 of relay. Pin 85 of

relay connect to supply 12V power (please note working volt of the relay is consistent with

working volt of the product). Pin 30 and Pin 87a are always closed and connect fuel

channel power circuit in series. Please install wire in a correct way and we will not be

responsible for device damage caused by wrong installation.

Page 8

MC300 User Manual V2.0

http://www.mictrack.com

6. Install the SIM Card

7. Work Mode

8. Detail Operation

8.1 Set the Authorized phone number

 Unauthorized number also can control the tracker, but alarm information only to



The defaulted password is:0000

8.2 Work Mode Exchange

8.3 Change user password

8.4 Request the single position

Remove the back plate, insert SIM card into SIM slot.Make sure enough charges in

the SIM card.

This tracker have two work mode which is SMS and GPRS Mode. SMS mode is for off line

tracking by Mobile phone. GPRS Mode is for on line tracking by computer and mobile

phone .

Command: Cell phone number+password+space+Sequence number(1-3)

Example: 134243923300000 1

Reply: SET OK

Note:

Authorized number

SMS Mode Command:700+ user password

Example:7000000

Reply: SET OK.

GPRS Mode Command:710+ user password

Example: 7100000

Reply: SET OK.

Command: 777+new password+old password (4 figures)

Example: 77712340000

Reply: SET OK

Command: 666+user password

Example: 6660000

Reply: when the tracker receive the command, then will send the position with longitude

and latitude as follow:

ID: 8151023474

FIX:A

Lat: N22.62963

Page 9

MC300 User Manual V2.0

http://www.mictrack.com

8.5 Request location with Google Map link

8.6 Daily Report

8.7 SOS Alarm

8.8 Geo-Fence

8.8.1 Set Geo Fence

Command: 005+user password+R

8.8.2 Turn On Geo-fence

Long: E114.03546

Speed:0KM/H

Date:2015-09-13

Time:04:58:3002

BS:2531 6447

STATE:SMS

Command:669+ user password

Example: 6690000

Reply: When the tracker receive the command, tracker will send a Google link to the

sender.

http://maps.google.com/maps?q=22.56312%2c114.09191

FIX:A,2013-12-27

10:15:30

Command: 665+user password+HHMM

Example: 66500001022

Reply:SET OK.

Close timing report: 665+user password+OFF

Example: 6650000OFF

Reply: SET OFF

Note: HH stands for hour with defined range of [00, 23]. MM stands for minute with

defined range of [00, 59].

When press the SOS button more than 3 seconds, it will send location to authorized

phone number, the information state included "STATE: SOS"

Example: 0050000R1000

Reply: SET OK

Command: 211+ password

Example: 2110000

Reply: SET OK

Note : The default is 500 meter

Page 10

MC300 User Manual V2.0

http://www.mictrack.com

8.8.3 Turn Geo-fence off

8.9 Low Battery Alarm

8.10 Cut Off Oil Alarm

8.11 Power OFF alarm

8.12 Tow alarm

8.13 Phone Tracking

Command: 210+ password

Example: 2100000

Reply: SET OK

Note :Tracker will call and send alarm message to the first authorized phone number.

While device detect internal battery is low power, it will send coordinate SMS with

STATE:LOW POWER

Open Cut Oil Command: 940+user password

Example: 9400000

Reply : SET OK

Close Cut Oil command : 941+user password

Example:9410000

Reply: SET OK

Open Power OFF alarm: 011+user password

Example: 0110000

Reply: SET ON

Close Power OFF alarm:011 + user password

Example: 0110000

Reply: SET OK

Note: Tracker will send message to the three authorized phone number and call the first

authorized phone number.

Turn on tow truck alert: 181+user password + TX

Example: 181000015

Reply : TOWED ALERT ON

Turn off tow truck alert:180+user password

Example: 1800000

Reply : TOWED ALERT OFF Note: 1. X is the continuous time, the wide is【15,100】,the unit is second

2.Tracker will send message to the first authorized number

Any phone can call the tracker and tracker will hang off the phone automatically,then

send a position message to the sender, if GPS no work, tracker will send a invalid

message to sender , tracker will send a valid position message to the sender again once

Page 11

MC300 User Manual V2.0

http://www.mictrack.com

8.14 Time Zone

8.15 Over speed Alarm

8.16 ACC Illegal Start Alarm

8.17 Sleep Mode

GPS work normally by automatically.

Command:896+user password+D+NN

Example:8960000E08

Reply:SET OK

Note:D takes E or W to indicate east or west time zone respectively. N takes a 2-digit

number (1-12) to indicate time zone number.

Command:122+user password+space+X

Example: 1220000 100

Reply: SET OK

Close command: 1220000 0

Note: 1. X is speed benchmark value, which is an integral number. unit is KM/H definition

domain of [0, 999].

2. Tracker will call and send alarm message to three authorized number.

Enable ACC Illegal SMS Alarm：886+Password

Example: 8860000 Reply：SET OK Disable ACC Illegal SMS Alarm：887+Password

Example: 8870000 Reply：SET OK Enable ACC Illegal Phone Alarm：888+Password

Example: 8880000

Reply: SET OK Disable ACC Illegal Phone Alarm：888+Password

Example: 8890000 Reply：SET OK

Note : 1.Tracker need connect the ACC wire to the car .

2. Device will send alarm information to three authorized number and call the first

authorized number.

Enable Sleep Mode command : SLEEP+Password+Space+ number

Example : SLEEP0000 1 Reply：SET OK

Disable Sleep command : SLEEP+Password+Space+ 0

Example : SLEEP0000 0 Reply：SET OK

Page 12

MC300 User Manual V2.0

http://www.mictrack.com

8.18 Voice ON/OFF

8.19 Set Access Point Name(APN)

8.20 Set server IP address and Port

8.21 Set Data upload interval time

9. Special Command



Reset Command: RESET



Restart Command: RESTART

 Read Configuration Command: RCONF

Note : 1 is mean the sleep time, the wide is 1-720 , the unit is “minute” , Tracker will close

GPS/GSM/POWER in sleep mode for save power, once shake, tracker will work again.

Voice ON command:150+password

Example:1500000

Reply :SET OK

Voice OFF Command:151+password

Example:1510000

Reply :SET OK

Explanation :tracker will call and send message to authorized number in Voice on mode

when take alarm, and will not call but only send message to authorized number in voice

off when take alarm.

Command1:803+user password+space+APN

Example: 8030000 CMNET

Command2:803+user password+space+APN+space+APN user name+space+APN password

Example: 8030000 INTERNET INTERNET INTERNET

Reply:SET OK

Command:804+user password+space+IP+space+Port

Example: 8040000 192.168.1.1 2014

Reply:SET OK

Command:805+user password+space+X(ACC ON)

Example: 8050000 30

Reply:SET OK

Command:809+user password+space+X(ACC OFF)

Example:8090000 60

Reply: SET OK Note :X is mean interval time, the unit is seconds，the wide is【10,59999】,1 is mean the

when X=0,Close the upload function

Page 13

MC300 User Manual V2.0

http://www.mictrack.com

Tips:

 How to setup APN: https://www.mictrack.com/apn-settings-for-mictrack-gps-trackers

 How to use Mictrack Server: https://www.mictrack.com/how-to-use-mictrack-server

 Global Frequency bands check: https://www.mictrack.com/4g-lte-frequency-bands-list

Note: Please remember to monitor the credit balance of your SIM card, to

avoid confusion or delays in setting up your new unit. This can be a common issue,

especially when initially setting up a new unit, and the unit fails to reply to a correct

SMS command sequence.

If you have any questions please do not hesitate to contact us [email protected].
