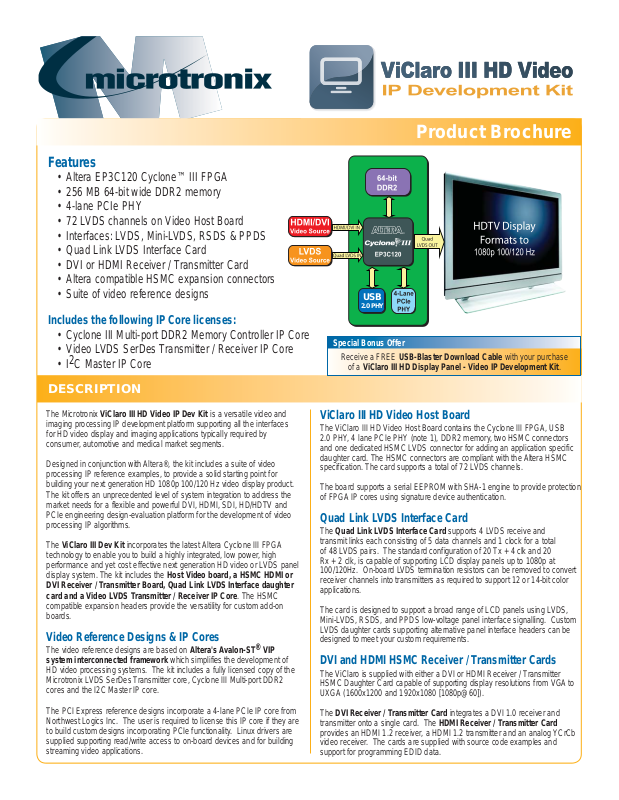

Microtronix VICLARO III DATASHEET

Features

• Altera EP3C120 Cyclone™ III FPGA

• 256 MB 64-bit wide DDR2 memory

• 4-lane PCIe PHY

• 72 LVDS channels on Video Host Board

• Interfaces: LVDS, Mini-LVDS, RSDS & PPDS

• Quad Link LVDS Interface Card

• DVI or HDMI Receiver / Transmitter Card

• Altera compatible HSMC expansion connectors

• Suite of video reference designs

Includes the following IP Core licenses:

• Cyclone III Multi-port DDR2 Memory Controller IP Core

• Video LVDS SerDes Transmitter / Receiver IP Core

• I2C Master IP Core

DESCRIPTION

Product Brochure

USB

2.0 PHY

Special Bonus Offer

Receive a FREE USB-Blaster Download Cable with your purchase

of a ViClaro III HD Display Panel - Video IP Development Kit.

The Microtronix ViClaro III HD Video IP Dev Kit is a versatile video and
imaging processing IP development platform supporting all the interfaces
for HD video display and imaging applications typically required by
consumer, automotive and medical market segments.

Designed in conjunction with Altera®, the kit includes a suite of video
processing IP reference examples, to provide a solid starting point for
building your next generation HD 1080p 100/120 Hz video display product.
The kit offers an unprecedented level of system integration to address the
market needs for a flexible and powerful DVI, HDMI, SDI, HD/HDTV and
PCIe engineering design-evaluation platform for the development of video
processing IP algorithms.

The ViClaro III Dev Kit incorporates the latest Altera Cyclone III FPGA
technology to enable you to build a highly integrated, low power, high
performance and yet cost effective next generation HD video or LVDS panel
display system. The kit includes the Host Video board, a HSMC HDMI or

DVI Receiver / Transmitter Board, Quad Link LVDS Interface daughter
card and a Video LVDS Transmitter / Receiver IP Core. The HSMC

compatible expansion headers provide the versatility for custom add-on
boards.

Video Reference Designs & IP Cores

The video reference designs are based on Altera's Avalon-ST® VIP
system interconnected framework which simplifies the development of

HD video processing systems. The kit includes a fully licensed copy of the
Microtronix LVDS SerDes Transmitter core, Cyclone III Multi-port DDR2
cores and the I2C Master IP core.

ViClaro III HD Video Host Board

The ViClaro III HD Video Host Board contains the Cyclone III FPGA, USB

2.0 PHY, 4 lane PCIe PHY (note 1), DDR2 memory, two HSMC connectors
and one dedicated HSMC LVDS connector for adding an application specific
daughter card. The HSMC connectors are compliant with the Altera HSMC
specification. The card supports a total of 72 LVDS channels.

The board supports a serial EEPROM with SHA-1 engine to provide protection
of FPGA IP cores using signature device authentication.

Quad Link LVDS Interface Card

The Quad Link LVDS Interface Card supports 4 LVDS receive and
transmit links each consisting of 5 data channels and 1 clock for a total
of 48 LVDS pairs. The standard configuration of 20 Tx + 4 clk and 20
Rx + 2 clk, is capable of supporting LCD display panels up to 1080p at
100/120Hz. On-board LVDS termination resistors can be removed to convert
receiver channels into transmitters as required to support 12 or 14-bit color
applications.

The card is designed to support a broad range of LCD panels using LVDS,
Mini-LVDS, RSDS, and PPDS low-voltage panel interface signalling. Custom
LVDS daughter cards supporting alternative panel interface headers can be
designed to meet your custom requirements.

DVI and HDMI HSMC Receiver / Transmitter Cards

The ViClaro is supplied with either a DVI or HDMI Receiver / Transmitter
HSMC Daughter Card capable of supporting display resolutions from VGA to
UXGA (1600x1200 and 1920x1080 [1080p@60]).

The PCI Express reference designs incorporate a 4-lane PCIe IP core from
Northwest Logics Inc. The user is required to license this IP core if they are
to build custom designs incorporating PCIe functionality. Linux drivers are
supplied supporting read/write access to on-board devices and for building
streaming video applications.

The DVI Receiver / Transmitter Card integrates a DVI 1.0 receiver and
transmitter onto a single card. The HDMI Receiver / Transmitter Card
provides an HDMI 1.2 receiver, a HDMI 1.2 transmitter and an analog YCrCb
video receiver. The cards are supplied with source code examples and
support for programming EDID data.

27 MHz OSC

J4: High Speed Mezzanine Connector (HSMC)

• 4 Single-ended IO

• 48 LVDS pairs

• 2 Differential Clock Inputs

Quad Link LVDS

Interface Card

HDMI Receiver /

Transmitter Card

AD9880

Receiver

NXP ISP1506A

USB 2.0 PHY

J3: High Speed Mezzanine

Connector (HSMC)

• 52 I/O

• 1 Clock Input

• 1 Clock Output

Genesys GL9714

• 4 Lane PCI Express PHY
PCI Express 1.0a and 1.1

2.5 Gbit/S per lane

ViClaro III HD Video Host Board

Altera Cyclone III

EP3C120F780C7

JTAG

2

C

I

Interface

POWER PLUG

12V DC

Center Positive

• 4 Single-ended I/O

• 11 LVDS Receive pairs*

• 11 LVDS Transmit pairs*

• 1 Single-ended Clock Input

• 1 Single-ended Clock Output

• 1 Differential Clock Input
data rate / channel

*LVDS pairs can also be
used as a single-ended I/O

DDR2 SDRAM

MT47H32M16BN-3

Total capacity: 512 Mbit x 64

Transmitter

J2: High Speed Mezzanine

Connector (HSMC)

AD9889B

TI TFP401

TI TFP410

DVI Receiver /

Transmitter Card

*Supplied Quartus Reference Designs

• Quad LVDS links driving 1080p 100/120 Hz display panel

• Looped DVI-DVI video at 720p/1080i/1080p

• Looped DVI-LVDS HD video

• Looped LVDS-LVDS HD video

• Video capture at 720p/1080i/1080p

• Picture-in-Picture (PIP)

• 1080i-50 Input - VIP de-interlacer

• 720p to 1080p video scaling

*Release for Quartus 8.0 will have slightly different designs. Please contact sales for details.

Kit Contents Include:

• ViClaro III HD Video Host Board

• Quad Link LVDS Interface Card

• DVI or HDMI Receiver / Transmitter Card

• Video LVDS SerDes Tx / Rx IP Core

• 12VDC-120/240VAC power adapter

• 2 – LVDS Loopback Cables

• CD with Reference Designs, Linux drivers &
Documentation

Design Security

An on-board EEPROM can be used to generate encryption keys at start-up for
validation of the IP cores and prevent unauthorized copying of proprietary IP
technology.

ORDERING INFORMATION

microtronix.com

North American Head Office:

9-1510 Woodcock Street
London, Ontario N6H 5S1
CANADA
Tel: [phone]
Tel: [phone]
Fax: [phone]

PART NUMBER DESCRIPTION

6252-01-01 ViClaro III HD Video IP Dev. Kit with DVI
6252-02-01 ViClaro III HD Video IP Dev. Kit with HDMI

*HDCP License is not included. Please contact sales for details.

Microtronix reserves the right to change specifications without notice.

Rev. 2.6 Copyright ©2008 Microtronix Datacom Ltd. ALL RIGHTS RESERVED.
