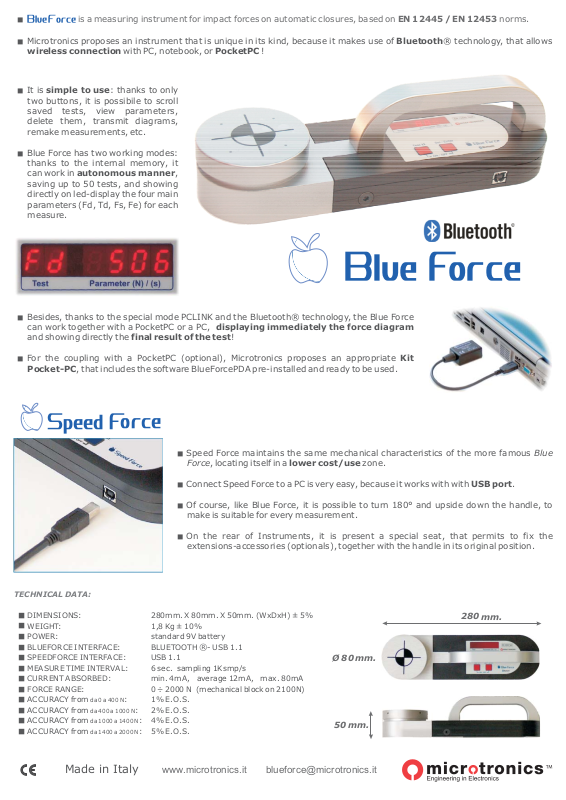

Blue Force
n
is a measuring instrument for impact forces on automatic closures, based on norms.EN 12445 / EN 12453
Microtronics proposes an instrument that is unique in its kind, because it makes use of ® technology, that allows
n
wireless connection PocketPC
simple to use
It is : thanks to only
n
two buttons, it is possibile to scroll
saved tests, view parameters,
delete them, transmit diagrams,
remake measurements, etc.
Blue Force has two working modes:
n
thanks to the internal memory, it
can work in ,
saving up to 50 tests, and showing
directly on led-display the four main
parameters (Fd, Td, Fs, Fe) for each
measure.
autonomous manner
with PC, notebook, or !
Blue F
Bluetooth
orce
Besides, thanks to the special mode PCLINK and the Bluetooth® technology, the Blue Force
n
can work together with a PocketPC or a PC,
and showing directly the !
For the coupling with a PocketPC (optional), Microtronics proposes an appropriate
n
Pocket-PC
, that includes the software BlueForcePDA pre-installed and ready to be used.
Speed F
final result of the test
orce
Speed Force maintains the same mechanical characteristics of the more famous
n
Force lower cost/use
Connect Speed Force to a PC is very easy, because it works with with .
n
Of course, like Blue Force, it is possible to turn 180° and upside down the handle, to
n
make is suitable for every measurement.
On the rear of Instruments, it is present a special seat, that permits to fix the
n
extensions-accessories (optionals), together with the handle in its original position.
displaying immediately the force diagram
, locating itself in a zone.
Kit
Blue
USB port
TECHNICAL DATA:
DIMENSIONS: 280mm. X 80mm. X 50mm. (WxDxH) ± 5%
n
WEIGHT: 1,8 Kg ± 10%
n
POWER: standard 9V battery
n
BLUEFORCE INTERFACE: BLUETOOTH - USB 1.1
n
SPEEDFORCE INTERFACE: USB 1.1
n
MEASURE TIME INTERVAL: 6 sec. sampling 1Ksmp/s
n
CURRENT ABSORBED: min. 4mA, average 12mA, max. 80mA
n
FORCE RANGE: 0 ÷ 2000 N (mechanical block on 2100N)
n
ACCURACY from : 1% E.O.S.
n
ACCURACY from : 2% E.O.S.
n
ACCURACY from : 4% E.O.S.
n
ACCURACY from : 5% E.O.S.
n
da 0 a 400 N
da 400 a 1000N
da 1000 a 1400N
da 1400 a 2000N
Made in Italy
www.microtronics.it blueforce@microtronics.it
®
280 mm.
Ø 80 mm.
50 mm.
Accessories
Linear Extension
n
Angular Extension
n
During the use, the instrument has to be supported in way to not alter the results of
n
measures.
The optional accessories, (thanks to the fast-joint mechanism), permit to carry out
n
measures by using only one hand, while with the other hand it is possible to drive the
opening/closing device.
Two versions are available:
n
The Linear Extension, for measures at 30 or 50 cm. and Angular Extension, for measures
n
from 0,5 mt. to 2,5 mt.
The materials used for manufacturing are the right balance between: praticality, lightness and usability (Anodized Aluminium,
n
Steel and Plastic Polymer).
Detail: juncion of angular accessory (on the right), rapid joint (on center), extended handle (on the left).
n
Made in Italy
www.microtronics.it blueforce@microtronics.it
