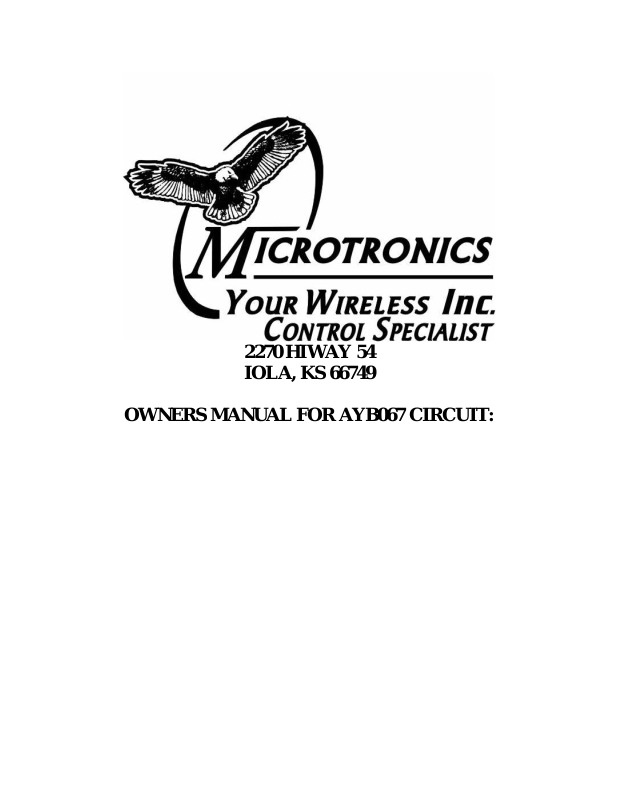

OWNERS MANUAL FOR AYB067 CIRCUIT:
TABLE OF CONTENTS:
INFORMATION TO USER:
BLOCK DIAGRAM:
GENERAL PURPOSE HEADER:
CONNECTOR DRAWING:
FCC I.D. LABLE
INFORMATION TO USER:
IF CHANGES OR MODIFICATIONS ARE DONE TO
AYB067 CIRCUIT BOARD WITH OUT EXPRESSLY
APPROVED BY THE PARTY RESONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
NOTE:THIS EQUIPMENT HAS BEEN TESTED AND
FOUND TO COMPLY WITH THE LIMITS FOR A
CLASS B DIGITAL DEVICE,PURSUANT TO PART 15
OF THE FCC RULES.THESE LIMITS ARE DESIGN TO
PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERANCE IN A RESIDENTIAL
INSTALLATION.THIS EQUIPMENT GENERATES,
USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTIONS,MAY
CAUSE HARMFUL INTERFERANCE TO RADIO
COMMUNICATIONS.HOWEVER, THERE IS NO
GUARANTEE THAT INTERFERANCE WILL NOT
OCCUR IN A PATICULAR INSTALLATION.IF THIS
EQUIPMENT DOES CAUSE HARMFUL
INTERFERANCE TO RADIO OR TELEVISION
RECEPTION, WHICH CAN BE DETERMINED BY
TURNING THE EQUIPMENT OFF AND ON, THE
USER IS ENCOURAGED TO TRY TO CORRECT THE
INTERFERANCE BY ONE OR MORE OF THE
FOLLOWING MEASURES.
- REORIENT OR RELOCATE THE RECEIVING
ANTENNA.
- INCREASE THE SEPARATION BETWEEN THE
EQUIPMENT AND RECEIVER.
- CONNECT THE EQUIPMENT INTO AN OUTLET ON
A CIRCUIT DIFFERENT FROM THAT TO WHICH
THE RECEIVER IS CONNECTED.
CONSULT THE DEALER OR AN EXPERIENED
RADIO/TV TECHNICIAN FOR HELP.
BLOCK DIAGRAM:
GENERAL PUPOSE HEADER:
SERIAL 1:
HDR.
PIN MCU PORT/PIN FUNCTION REMARKS
1 GND
2 PTE O/Tx D1 GENERAL PURPOSE 3.3 VOLT LOGIC
3 PTE 1/Rx D1 DIGITAL I/O UART
SERIAL 2:
HDR.
PIN MCU PORT/PIN FUNCTION REMARKS
1 GND
2 PTC 0/Tx D2 GENERAL PURPOSE 3.3 VOLT LOGIC
3 PTC 1/Rx D2 DIGITAL I/O UART
CN 1:
HDR.
PIN MCU PORT/PIN FUNCTION REMARKS
8 PTA 0
7 PTA 1 GENERAL PURPOSE CAN WAKE MCU FROM
6 PTA 2 DIGITAL I/O STOP 3 OR WAIT MODE.
5 PTA 3 CAN DETECT FALLING/RISING
4 PTA 4 EDGES WHEN KEYBOARD
3 PTA 5 INTERRUPT IS ENABLING.
2 PTA 6
1 PTA 7
A PTD 0
B PTD 1
C PTD 2
D PTD 3
E PTD 4
CN 3:
HDR. PIN MCU PORT/PIN FUNCTION REMARKS
1 VCC/3.3 VOLT
2 PTB 7 ANALOG INPUT OR CONNECTED TO MCU
3 PTB 6 GENERAL PUPOSE ANALOG TO DIGITAL
4 PTB 5 DIGITAL I/O 10 BIT A/D CONVERTER,
5 PTB 4 CHANNELS 0-7.
6 PTB 3
7 PTB 2
8 PTB 1
9 PTB 0
10 GND
CN 4:
HDR. PIN MCU PORT/PIN FUNCTION REMARKS
1 GPIO 7
2 GPIO 6 GENERAL PURPOSE COMMUNICATES TO MCU
3 GPIO 5 DIGITALI/O ON RF. THRU SPI PORT.
4 GPIO 3
5 GND
CN 5:
HDR. PIN MCU PORT/PIN FUNCTION REMARKS
1 GND
2 PTE 2 SLAVE SELECT SPI USED FOR RF AND
3 PTE 3 MISO SPI THE PROCESSOR TO
4 PTE 4 MOIS SPI SERIAL COMMUNICATION.
5 PTE 5 SPSCK SPI
6PIN:
HDR.
PIN MCU PORT/PIN FUNCTION REMARKS
1 GND POWER GROUND
2 POWER 3.5v TO 29v
3 GND POWER GROUND
4 GND BOARD GROUND
5 ENABLE ALLOWS UNIT TO POWER
UP WHEN ON
6 PTA 7,PTA 6 EN-3 COMMUNICATES TO
PTA 5,PTA 4 PROCESSOR THAT
POWER SWITCH IS OFF.
J101 PROGRAMMING HEADER :
HDR.
PIN MCU PORT/PIN FUNCTION REMARKS
1 PTG 0/BK GO SERIAL PROGRAMMING
GENERAL PUPOSE I/O ACTIVE LOW RESET.
2 GND GROUND
3 NC NC
4 RESET RESET TO MCU
5 NC NC
6 VCC PROVIDES
POWER
CONNECTOR DRAWING:
FCC I.D. LABLE
1.1INCHS
1.5 INCHS
CANADA ID: ----------------------------------------------------
“This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.”
S/N
FCC ID: I7CAYB06724
MICROTRONICS, INC.
PH-620-365-8264
