The LCD Monitor
Your New LCD Monitor
Your LCD monitor is designed to be versatile, ergonomic and
user-friendly. It is capable of displaying most standards, from
640 x 400 VGA to 1280 x 1024 SXGA. The digital controls located
on the front panel allow the user to easily adjust the monitor’s
display parameters, and the monitor’s small footprint gives you
more room in your workspace for other peripherals.
Lightweight and compact, the LCD monitor is the perfect
solution for users on the go. You can use it for everything from
making business presentations to playing computer games. The
monitor also has a wall-mountable stand for added
convenience.
The architecture of the LCD monitor incorporates an LCD panel
that produces a clear display with low radiation emission. And
with its low power consumption, the monitor helps you reduce
your power bill as well.
Unpacking
Before unpacking your LCD monitor, prepare a suitable
workspace for it and the computer. Look for a stable, level and
clean surface near a wall outlet. Even though the LCD monitor
uses very little power, you should put it in a location which
allows sufficient airflow to ensure that the LCD monitor and
your computer do not overheat. Set up your LCD monitor so
that the panel is not facing a window where sunlight often
comes in. The glare caused by sunlight reflecting off of the LCD
monitor’s screen will make it difficult to use the monitor for
viewing.
Note: Using a computer for an extended period of time with a
poor workstation set-up and incorrect working habits can cause
health problems. The science of ergonomics studies the
relationship between health and a suitable working
environment. There is a section on ergonomics at the end of
this chapter. For more information on ergonomics, contact your
nearest computer bookstore, or local library. The Internet also
has information on this and other subjects.
1
After unpacking your LCD monitor, make sure the following
items are included in the box and are in good condition:
• LCD monitor
• AC/DC adapter
• Power cord
• Audio cable
• VGA cable
• User Guide
If you find any item to be missing or appear to be damaged,
contact your dealer immediately. Do not throw away the
packing material or shipping carton in case you need to ship or
store the LCD monitor in the future.
2
Identifying Components
A. The LCD Monitor — Front View
Figure-1: The LCD Monitor Front View
1. Power-On Indicator
This Circular LED indicator stays lit when the power is on
and blinks when the LCD monitor is in power-saving mode.
2. Monitor Stand
3. LCD Screen
The LCD monitor screen is a 17-inch TFT 1280 x 1024 screen.
4. LCD Monitor Control Panel
Refer to the next chapter for more details.
3
B. Hot Keys
Figure-2: Hot Keys
1. Auto: Auto adjustment
“hot key”:
Press the Auto button to apply
monitor adjustments
automatically for optimized
visual settings and quality.
2. Brightness adjust hot key “ ”:
Press the buttons to allow
you to adjust the Brightness
level of the LCD monitor
directly. A small “Brightness”
OSD is also displayed.
3. Volume adjust hot key “ ”:
Press the button to adjust the
Volume level of the LCD monitor
directly. A small “Volume” OSD
is also displayed.
4
C. The LCD Monitor — Rear View
Figure-3: LCD Monitor Rear View
1. VGA cable with 15-pin D-sub VGA connector
2. DC power jack
3. Audio jack
5
Connecting the AC Power and Video Cable
Note: Turn off your PC and the LCD monitor before connecting
your LCD monitor to the computer.

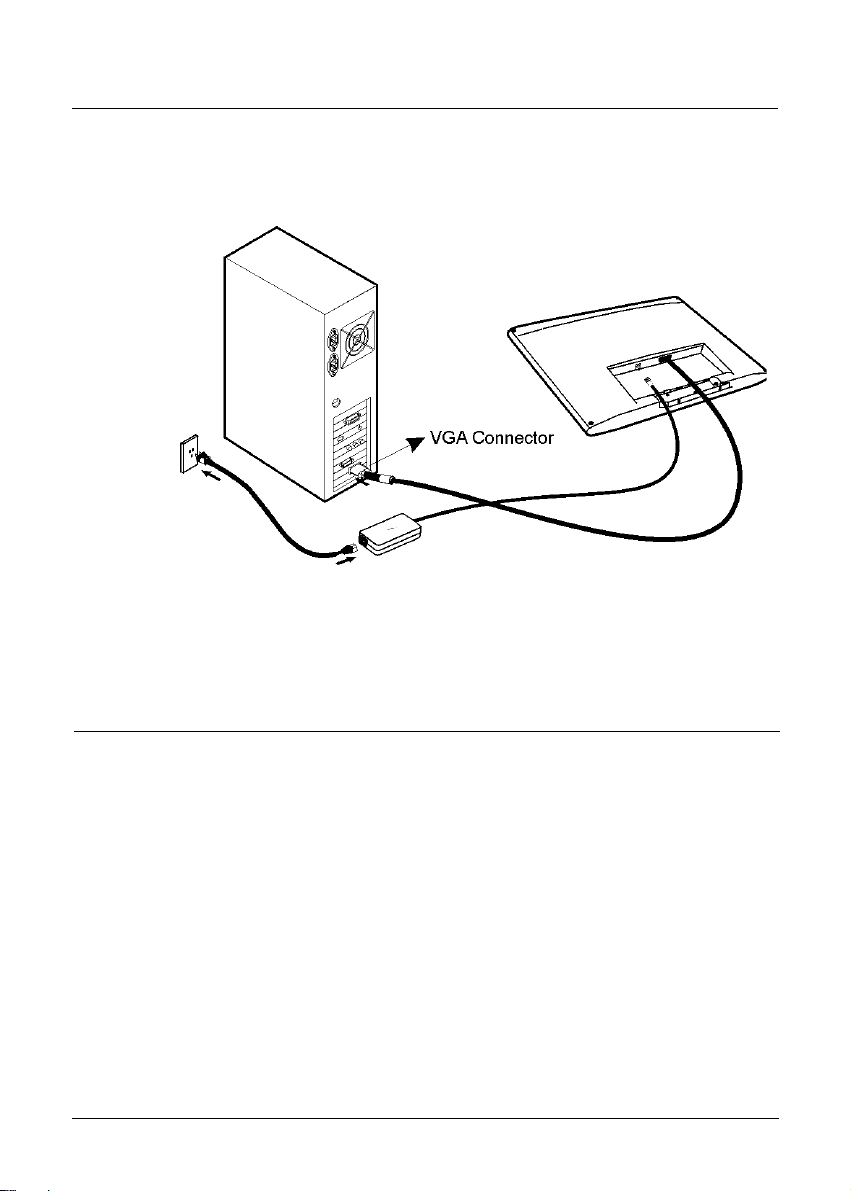

Figure-4: The AC Adapter
Power Management System
This LCD monitor complies with the VESA DPMS power
management proposal.
When the LCD monitor is in power-saving mode or detects an
incorrect timing, the monitor screen will be blank, and the
power LED indicator starts blinking.
6
The Display Controls
The LCD Monitor’s Control Panel
Figure-5: The Control Panel
1. : Power Switch
This button lets you turn power for the LCD monitor ON or
OFF.
2. Auto: Auto Adjustment hot key/Exit key
This button lets you apply monitor adjustments for
optimized visual settings and quality.
3. Menu: OSD Menu button/Enter key
Press this button to display the OSD (On-Screen Display)
menu.
4. Adjustment button &
These buttons let you move horizontally across your settings
or selections.
7
Adjusting the Monitor’s Display
OSD Main Menu
1. Pressing the OSD Menu button causes the screen below
(Figure 6) to appear.
2. Use the & key to select the desired group, then press
“M” to go to the submenu.
3. Repeat step 2 to select the changed item.
4. Press the & key to change the value.
5. Press the Auto Adjustment key to exit the selected item.
Figure-6: The OSD Main Menu
OSD Main Screen
Brightness Adjustment
Adjusts the level of brightness on the display screen.
Contrast Adjustment
Adjusts the level of contrast on the display screen.
8
Color Adjustment
Changes the color temperature and adjusts colors individually.
Figure-7: The Color Adjustment Submenu
Management
Figure-8: The Management Submenu
H Position Moves the LCD monitor’s display left or right
on a horizontal plane.
V Position Moves the LCD monitor’s display up or down
on a vertical plane.
Sharpness Adjusts the LCD monitor display to sharpen
the image.
Phase Adjusts the focus and clarity of the display.
Clock Adjusts the display’s pixel alignment.
9
Tools
Figure-9: The Tools Submenu
OSD H Position adjustment:
Moves the position of the OSD horizontally.
OSD V Position adjustment:
Moves the position of OSD vertically.
Language: Changes the OSD language, including
English, French, Spanish, Italian, Dutch,
Chinese, and Japanese.
OSD Timer: Changes the OSD display time.
Volume
Reset setting: Resets all of the monitor's settings to their
default values.
Adjusts the volume.
10
TFT LCD Monitor Specifications
LCD Panel: 17" SXGA
Control Functions Power: Power switch with LED indicator
(ON/OFF)
On-Screen Display (OSD):
Main Menu
• Brightness/Contrast
• Color
• Management
• Tools
Display Area (inches): 17” diagonal
Display Colors: 16 million
Video Interface: VGA-compatible analog RGB
Scanning Frequency: 31-80 K, 60-75 Hz
(H/V, Hz)
Power Management: VESA DPMS
Power Consumption: 40 Watts (max) / 5 Watts
Dimensions (W x H x D): 16.14” x 15.75” x 8.27”
Submenu
• User mode, 9300K, 6500K, 5800K
• H Position/V Position/Sharpness/
Phase/Clock
• OSD location (H/V)/Language/OSD
timmer/Reset
(Power-save mode)
(410 mm x 400 mm x 210 mm)
Gross/Net Weight: 16.91/12.26 lbs. (7.67/5.56 Kg)
Regulatory FCC Class B, ETL, Energy star
11
Supported Timing
metIsdradnatSnoituloseR
1edom"31CAM084x0467.660.53
2edom"61CAM426x2386.477.94
3AGV053x0460.075.13
4AGV084x0460.065.13
5ASEV084x0460.2768.73
6ASEV084x0460.5705.73
7ASEV006x0083.652.53
8AGVS006x0083.069.73
9ASEV006x0080.271.84
01ASEV006x0080.579.64
11ASEV004x0271.075.13
21ASEV867x42010.064.84
31ASEV867x42011.075.65
41ASEV867x42010.570.06
gninnacSlacitreV
)zH(ycneuqerF
gninnacSlatnoziroH
)zHK(ycneuqerF
51ASEV4201x082120.0689.36
61ASEV4201x082120.5779.97
*Once a mode is optimized, there is no need to make any
further adjustment as long as the VGA card remains unchanged.
*Specifications are subject to change without notice.
12
Troubleshooting
This LCD monitor comes pre-adjusted with standard VGA
timing. Due to output timing differences among various VGA
cards, you may initially experience an unstable or unclear
display when a new display mode or new VGA card is selected.
Before applying any of the following troubleshooting
procedures, you should first apply the Auto Adjust option in the
OSD menu.
PROBLEM: Display is unclear and unstable
To stabilize and clarify your display, press the OSD menu
button, and adjust the clock and phase to obtain a clear display.
PROBLEM: There is no LCD display
If there is no display on the LCD, refer to the following:
1. Make sure that the power indicator on the LCD monitor is lit,
that all connections are secure, and that the system is
running on the correct timing. Refer to “Supported Timing”
on page 12.
2. Turn off the LCD monitor and then turn it back on again.
Press the OSD Menu button once and then press one of the
Adjustment Control buttons several times. If there is still no
display, press the other Adjustment Control button several
times.
3. If step 2 does not work, connect your PC system to another
external CRT. If your PC system functions properly with a
CRT monitor but it does not function with the LCD monitor,
and the LCD monitor’s power LED is blinking, the output
timing of the PC’s VGA card may be out of the LCD’s
synchronous range. Change to one of the alternate modes
listed in the “Supported Timing” section on page 12, or
replace the VGA card and repeat steps 1 and 2.
4. If the power LED is not lit, check that the AC power connector
is securely connected, and verify that the AC adapter LED is
lit. If the AC adapter LED is not lit, please contact your
dealer for assistance.
13
Loading...
