Microtek GNC M 512M REV0620 User Manual
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful inerference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
To comply with the limits for an FCC Class B computing device, always
use the shielded signal cord supplied with this unit.
The Federal Communications Commission warns that changes or
modifications of the unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
i
CE mark for Class B ITE (Following European standard EN55022/1998; EN610003-2/1995; EN61000-3-3/1995, EN55024/1998, EN60950/1992+A1+A2+A3+A4+A11)
Radio Frequency Interference Statement
Warning:
This is a Class B product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.
Canadian Doc Notice
For Class B Computing Devices
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulation of the Canadian Department of Communications.
“Le présent appareil numérique n’èmet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la class B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par
le ministère des Communications du Canada."
ii
Table of Contents
The LCD Monitor 1
Contents in the Box 2

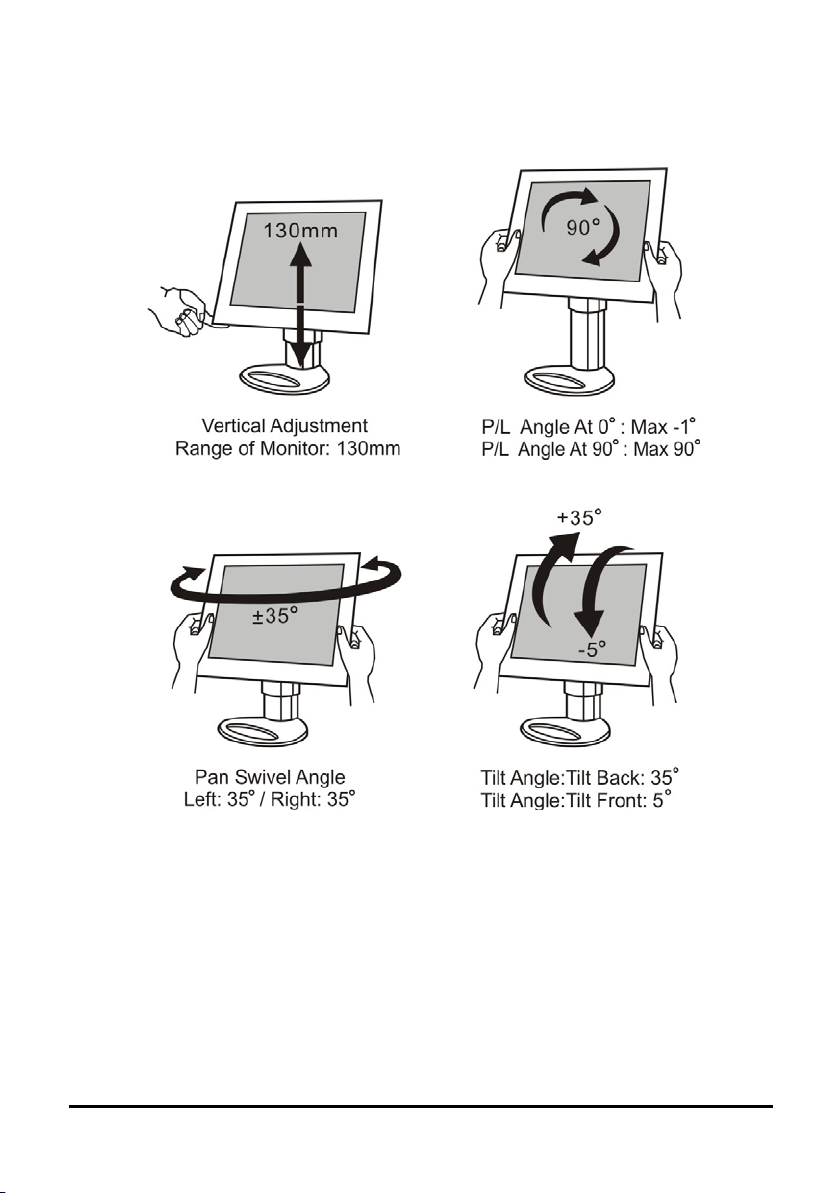

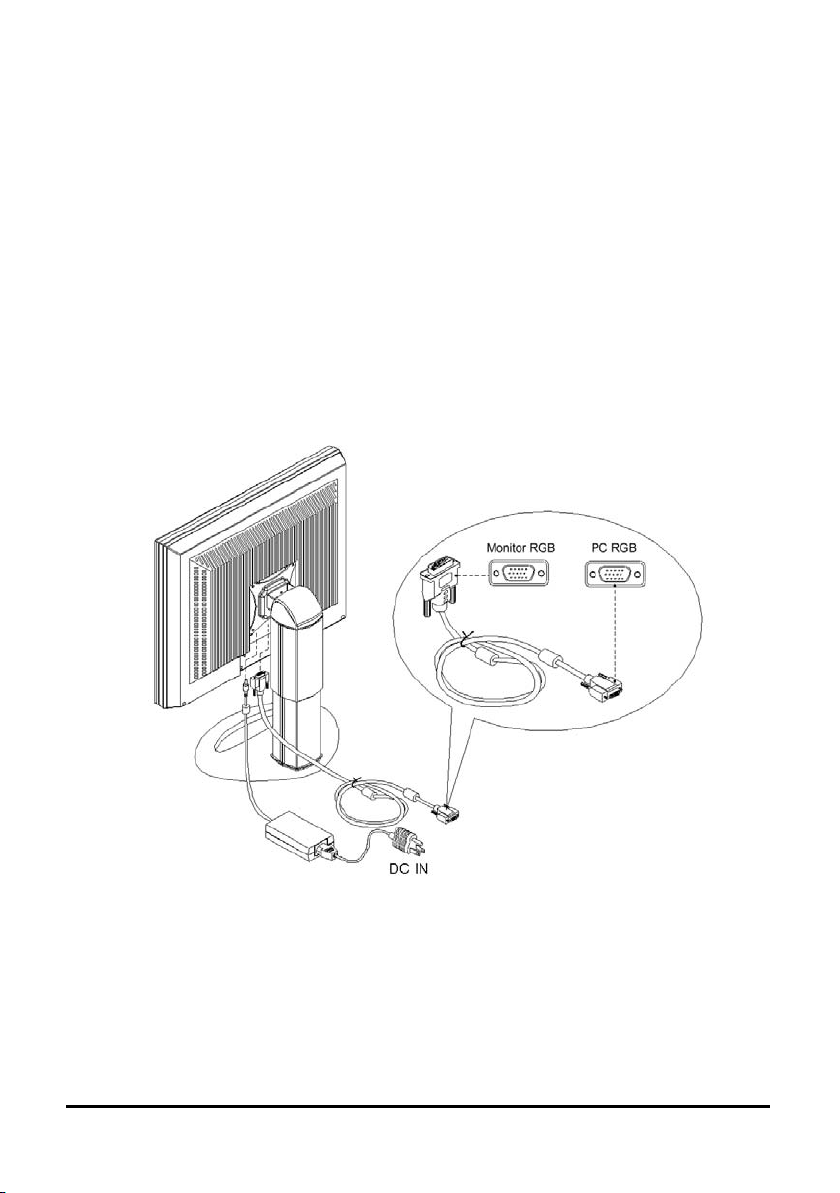

Installing the Monitor 3
Cleaning 6

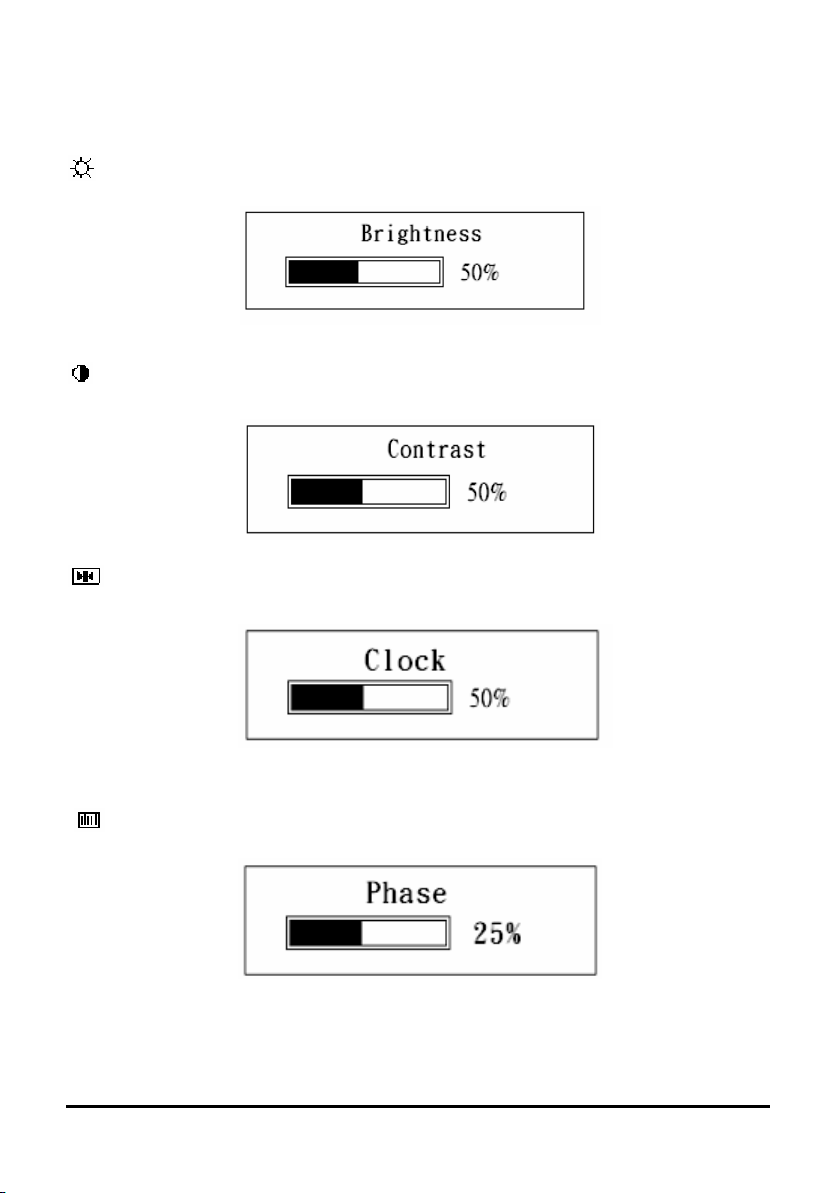

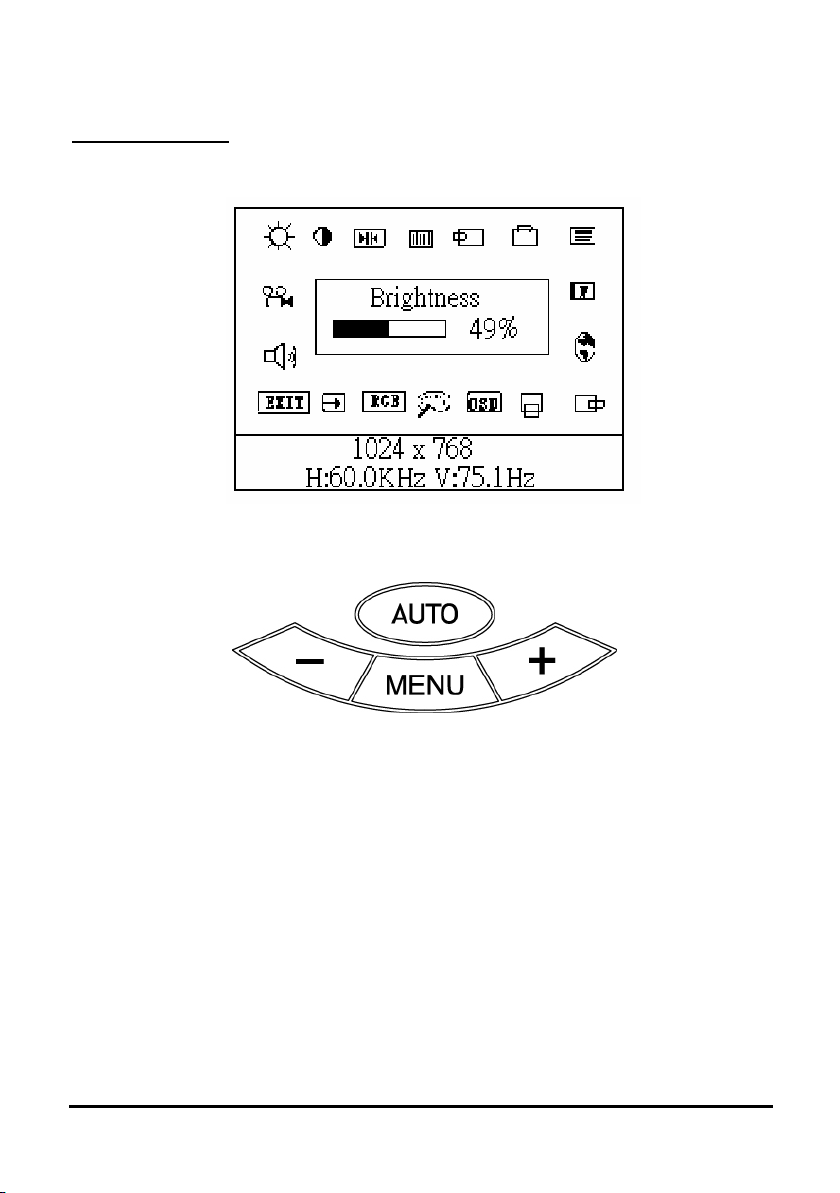

OSD Controls
Troubleshooting
7
12
Specifications 13
Supported Timing 15
iii
The LCD Monitor
Precautions
z Read all of these instructions and save the manual for later use.
z Follow all warning and instructions on the product.
z Do not cover or block the vent holes in the case.
z Do not insert sharp objects or spill liquid into the LCD monitor through the
cabinet slots; this may cause accidental fire, electric shock or failure.
z Disconnect the power plug from the AC outlet if you will not use it for an
extended period of time.
z Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks.
z Do not touch the screen directly with your fingers, as you may damage
the screen, and oil from your skin is difficult to remove.
z Do not apply pressure to screen, as the LCD is very delicate.
z Keep the monitor away from extreme heat, cold or humid places.
z Do not place directly under sunlight, dusty surroundings, or near
equipment which may generate strong magnetic fields.
Product Features
z High-contrast color TFT LCD display
z Supports resolution of up to XGA 1024 X 768
z Compatible with IBM VGA/XGA and Macintosh standards
z Built-in audio system provides sound
z Supports DDC 1/2 & Windows PNP function
z Easy-to-use OSD (On-Screen Display) feature
z Intelligent time-out feature for energy savings and prevention of eye
fatigue
z Optional: Audio-1 and PC line-in sound application
1
Contents in the Box
15” TFT LCD MONITOR
VGA Cable Audio Cable Power Cord Adapter
Note: Remember to save your original box and packaging material to
transport or ship the monitor.
