Microtek 211SD User Manual

i
Copyright © 2005 Microtek International,Inc.
Microtek® is a registered trademark of Microtek International, Inc. All other trademarks or registered trademarks are the property of their respective holders. Specifications, software and hardware bundles are subject to change without notice. Delivery of technical support services subject to change without notice. Not responsible for typographical errors.
A new FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution:
To comply with the limits for an FCC Class B computing device, always use the shielded signal cord supplied with this unit.
The Federal Communications Commission warns that changes or modifications of the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
ii
CE mark for Class B ITE (Following European standard EN55022/ 1998; EN61000-3-2/1995; EN61000-3-3/1995, EN55024/1998, EN60950/1992+A1+A2+A3+A4+A11)
Radio Frequency Interference Statement
Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.
Canadian Doc Notice
For Class B Computing Devices
This digital apparatus does not exceed the Class B limits for radio noise emissions
219-20-990423 A
iii
Table of Contents
Introduction .................................................................................. 1
Product Features..................................................................... 1
Unpacking ............................................................................... 2
Precautions ............................................................................. 2
Cleaning .................................................................................. 3
Connecting the Monitor ............................................................... 4
Adjusting the Viewing Angle........................................................ 5
Operating the Monitor .................................................................. 6
A. The LCD Monitor’s Control Panel...................................... 6
B. Hot Keys ............................................................................. 6
C. Adjusting the Monitor’s Display ....................................... 7
The Menu Table ...................................................................... 8
TFT LCD Monitor Specifications .................................................. 9
Supported Timing .......................................................................10
Troubleshooting........................................................................... 11
1
Introduction
Congratulations on the purchase of your new Microtek LCD monitor! With a 21" TFT active matrix color crystal display and offering a maximum resolution of 1024 x 768 pixels, your Microtek 21" LCD monitor offers sharp and vibrant color display with low radiation emission. And with its low power consumption, the monitor helps you reduce your power bill as well.
Product Features
• 21” high-contrast TFT color Liquid Crystal Display
• Supports XGA resolution of 1024 x 768 pixels
• VESA PMS-compliant power saving: Automatically powers down the monitor after a defined period of inactivity
• Compatible with Windows 95/98/2000/XP and Macintosh
• Easy-to-use OSD (On-Screen Display)
• Plug & Play: Conforms to VESA standards and supports DDC1/2B specifications
• Multiscan functions of XGA 1024 x 768, SVGA 800 x 600, VGA 640 x 480 and 720 x 350 for perfect graphics performance
• Includes built-in speakers
2
Unpacking
Before unpacking your LCD monitor, prepare a stable, level, and clean surface near a wall outlet for your LCD monitor.
1. Set the LCD monitor box in an upright position and open
from the top of the box before removing the right/left cushions.
2. Check to see that you have the following accessories shown
below:
LCD monitor
Power cord
15-pin D-sub signal cable
DVI cable
Audio cable
User Guide
Note: Remember to save your original box and packaging material in case you need to transport or ship the monitor. If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or nearest service center for advice or replacement of packaging.
Precautions
• Read all of these warnings and save the manual for later use.
• Follow all warnings and instructions on the product.
• Do not cover or block the vent holes in the case.
• Do not insert sharp objects or spill liquid into the LCD monitor through the cabinet slots; this may cause accidental fire, electric shock or failure.
• Disconnect the power plug from the AC outlet if you are not going to use the monitor for an extended period of time.
• Do not attempt to service this product yourself, as opening or removing the cover may expose you to dangerous voltage points or other risks.
3
• Do not touch the screen directly with your fingers as you may damage the screen, and oil from your skin is difficult to remove.
• Do not apply pressure to the screen, as the screen is very delicate.
• Keep the monitor away from extremely hot, cold or humid places.
• Do not place the monitor directly under sunlight, in dusty surroundings, or near equipment which may generate strong magnetic fields.
Cleaning
Warning:
If you drop any material or liquid such as water onto the monitor when cleaning, unplug the power cable immediately and contact your dealer or the nearest service center. Always make sure your hands are dry when unplugging the power cable.
Caution:
• For safety reasons, turn off the power switch and unplug the monitor before cleaning.
• Do not scratch or rub the screen with a hard object.
• Never use any of the following solvents on the LCD monitor: Thinner; spray-type cleaners; benzene; wax; abrasive cleaners; and acid or alkaline solvents. Such harsh chemicals may cause damage to the cabinet and the LCD screen.
• Rubbing the cabinet with products made of rubber or plastic for prolonged periods may cause degeneration or loss of paint on the cabinet.
Cabinet
• Remove dirt with a lightly moistened cloth and a mild solvent detergent. Then wipe the cabinet with a soft dry cloth.
LCD
• Periodic cleaning with a soft dry cloth is recommended.
• Do not use tissue to clean the LCD screen, as this may damage the screen.
4
Connecting the Monitor
Note:
• Turn off your PC and the LCD monitor before connecting your LCD monitor to the computer.
• Place the monitor on a flat and level surface.
• Usage of incorrect voltage will cause malfunction and may cause fire or electric shock.
• Do not pull or bend the power cable or place the monitor or any heavy objects on the cables. If the cables are damaged, they may cause fire or electric shock.
1. DC power jack: Plugs into the AC power adapter.
2. PC IN: Connects with the 15-pin D-Sub signal cable.
3. DVI: Connects with the DVI cable.
4. Audio jack: Connects with the Audio cable.
12 3 4
Figure-1: The LCD Monitor Rear View
5
Adjusting the Viewing Angle
For optimal viewing, the viewing angle of the monitor can be adjusted 35 degrees up and 5 degrees down.
Figure-2: Tilting the LCD Monitor
6
Operating the Monitor
A. The LCD Monitor’s Control Panel
Figure-3: The Control Panel
1. Auto: Automatically fixes, centers and fine-tunes the video
signal to eliminate noise and distortion.
2. OSD Menu/select: Displays the OSD menu and selects a
submenu item.
3. Adjustment button —: Indicates cursor movement, or
decreases the value of a selected OSD setting.
4. Adjustment button +: Indicates cursor movement, or
increases the value of a selected OSD setting.
5. Power switch: Turns power for the LCD monitor ON
or OFF.
6. Power LED: Indicates various status levels for the monitor,
such as Green - Normal operation, Orange - Power management, depending on its operating mode.
7
B. Hot Keys
1. Volume adjust hot key —: Decreases the volume.
2. Volume adjust hot key +: Increases the volume.

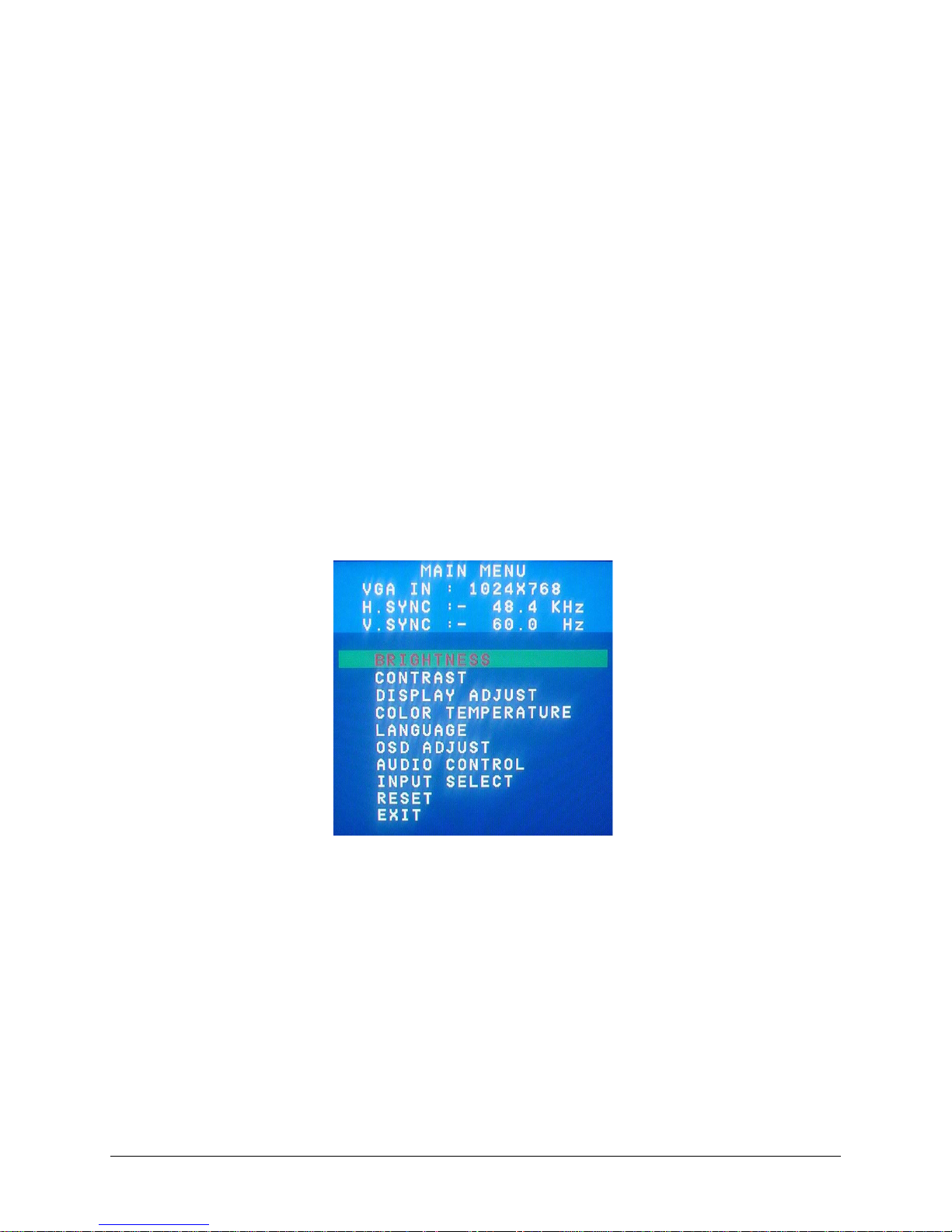

Figure-4: The OSD Main Menu
C. Adjusting the Monitor’s Display
1. Pressing the OSD Menu button causes the screen below
(Figure 4) to appear.
2. Press the + or — button to select a menu item.
3. Press the OSD Menu button again to enter the selected
submenu.
4. Press the + or — button to change the value.
5. Select EXIT and press the OSD Menu button when finished
adjusting.
8
The Menu Table
Main Menu Submenu Function
BRIGHTNESS Adjusts the level of brightness and darkness.
CONTRAST Adjusts the RGB color pattern set of the contrast.
V-POSITION Moves the screen vertically (up/down).
H-POSITION Moves the screen horizontally (left/right).
PITCH Adjusts image distortion appearing as vertical bars or
noise.
DISPLAY ADJUST PHASE Adjusts image distortion appearing as horizontal bars or
noise.
SHARPNESS Adjusts the LCD monitor display to sharpen the image.
AUTO TUNING Automatically fixes, centers and fine-tunes the video signal
to eleminate noise and distortion.
RECALL Resets all of the DISPLAY ADJUST settings to their default
values.
RETURN Returns to the previous menu.
COLOR TEMPERATURE Adjusts the colors in the LCD monitor to a warmer or
cooler shade, depending on the selected color temperature.
LANGUAGE Changes the OSD language, including English, French,
German, Italian, Spanish, and Chinese.
OSD V-POSITION Moves the OSD menu vertically (up/down).
OSD H-POSITION Moves the OSD menu horizontally (left/right).
OSD TIMER Sets the length of time an OSD screen is displayed.
OSD ADJUST OSD TRANSPARENCY Adjusts the transparency of the OSD screen.
TEA TIME Sets a user-specified or user-preferred break time.
RECALL Resets all of the OSD ADJUST settings to their default
values.
RETURN Returns to the previous menu.
MUTE Turns the audio on or off.
AUDIO CONTROL VOLUME Adjusts the volume.
RECALL Resets all of the AUDIO CONTROL settings to their default
values.
RETURN Returns to the previous menu.
INPUT SELECT Selects the input signal.
RESET Resets all of the monitor’s settings to their default values.
EXIT Exits the OSD screen.
9
TFT LCD Monitor Specifications
LCD Type 21” XGA Color TFT Display Area 13.3” x 10.6” (337.9 x 270.3 mm) Input Signal Analog (0.7 Vp-p/75 ohm positive) Dot Pitch 0.420 mm Resolution 1024 x 768 pixels Display Color 16.77 million colors Contrast Ratio 400:1
Brightness 450 nit
Contrast Ratio 450:1 Response Time 30 ms Display Mode VGA, SVGA, XGA Viewing Angle (H) 170°/(V) 170°
Dimensions (H x W x D) 18.7” x 15.5" x 7.7"
(572 x 475 x 235 mm)
Gross/Net Weight 24.3/21.6 lbs. (11/9.8 Kg) AC Input AC 100 V ~ 240 V, 1.2 A, 50-60 Hz Power Consumption 100 W (max.) Regulatory Compliance FCC Class B, cUL, Energy Star Environment Operating Temperature:
32° F to 113° F (0° C to 45° C ) Humidity: 20% to 80%
Important: Specifications, bundles, and accessories are subject to change without notice.
10
metInoituloseR
gninnacSlatnoziroH
)zHK(ycneuqerF
gninnacSlacitreV
)zH(ycneuqerF
0053x027964.13780.07
1084x046964.
13049.95
2084x046000.53766.66
3084x046168.73908.27
4084x046005.73000.57
5004x027964.13780.07
6006x008651.53052.65
7006x008978
.73713.06
8006x008770.84881.27
9006x008578.64000.57
01426x238057.94005.47
11867x4201363.84400.06
21867x4201674.65960.07
3186
7x4201830.85819.17
41867x4201320.06920.57
Supported Timing
11
Troubleshooting
This LCD monitor comes pre-adjusted with standard VGA timing. Due to output timing differences among various VGA cards, you may initially experience an unstable or unclear display when a new display mode or new VGA card is selected.
Before applying any of the following troubleshooting procedures, you should first apply the Auto Adjust option in the OSD menu.
PROBLEM: Display is unclear and unstable
To stabilize and clarify your display, press the OSD menu button, and adjust the clock and phase to obtain a clear display.
PROBLEM: There is no LCD display
If there is no display on the LCD, refer to the following:
1. Make sure that the power indicator on the LCD monitor is lit,
that all connections are secure, and that the system is running on the correct timing. Refer to “Supported Timing” on page 10.
2. Turn off the LCD monitor and then turn it back on again.
Press the OSD Menu button once and then press one of the Adjustment Control buttons several times. If there is still no display, press the other Adjustment Control button several times.
3. If step 2 does not work, connect your PC system to another
external CRT. If your PC system functions properly with a CRT monitor but it does not function with the LCD monitor, and the LCD monitor’s power LED is blinking, the output timing of the PC’s VGA card may be out of the LCD’s synchronous range. Change to one of the alternate modes listed in the “Supported Timing” section on page 10, or replace the VGA card and repeat steps 1 and 2.
4. If the power LED is not lit, check that the AC power connector
is securely connected, and verify that the AC adapter LED is lit. If the AC adapter LED is not lit, please contact your dealer for assistance.
