Microstar Computers CSM-Q87M-E43 Preface
CSM-Q87M-E43
Motherboard
G52-78301X5
Preface
iiPreface
Preface
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no
guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks in this manual are properties of their respective owners.
MSI® is registered trademark of Micro-Star Int’l Co.,Ltd.
NVIDIA® is registered trademark of NVIDIA Corporation.
ATI® is registered trademark of AMD Corporation.
AMD® is registered trademarks of AMD Corporation.
Intel® is registered trademarks of Intel Corporation.
Windows® is registered trademarks of Microsoft Corporation.
AMI® is registered trademark of American Megatrends Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
Sound Blaster® is registered trademark of Creative Technology Ltd.
Realtek® is registered trademark of Realtek Semiconductor Corporation.
JMicron® is registered trademark of JMicron Technology Corporation.
Netware® is registered trademark of Novell, Inc.
Lucid® is trademark of LucidLogix Technologies, Ltd.
VIA® is registered trademark of VIA Technologies, Inc.
ASMedia® is registered trademark of ASMedia Technology Inc.
iPad, iPhone, and iPod are trademarks of Apple Inc.
Qualcomm Atheros and Killer are trademarks of Qualcomm Atheros Inc.
Revision History
Revision Revision History Date
V2.0 First release 2013/ 09
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
Preface
iii Preface
Smartphone Application
MSI+ is a smart web gadget that works as a shopping navigator and
provides specs comparison for IT buyers. With a simple tap of the
smartphone, you'll eciently locate your ideal products from a wide
variety of choices and, if product details are required, you may easily
download user manuals within minutes. Better yet, the power calculator
provides accurate estimates of power unit capacity for DIY users.
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.
Visit the MSI website for technical guide, BIOS
updates, driver updates, and other information:
http://www.msi.com/service/download/
Contact our technical sta at:
http://support.msi.com
ivPreface
Preface
Safety Instructions
Always read the safety instructions carefully.
Keep this User’s Manual for future reference.
Keep this equipment away from humidity.
Lay this equipment on a reliable at surface before setting it up.
The openings on the enclosure are for air convection hence protects the equipment
from overheating. DO NOT COVER THE OPENINGS.
Make sure the voltage of the power source is at 110/220V before connecting the
equipment to the power inlet.
Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
Always Unplug the Power Cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
Never pour any liquid into the opening that can cause damage or cause electrical
shock.
If any of the following situations arises, get the equipment checked by service
personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according to
User’s Manual.
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.
DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT ABOVE 60oC (140oF),
IT MAY DAMAGE THE EQUIPMENT.
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
◯
◯
◯
◯
◯
◯
￭
Preface
v Preface
CE Conformity
Hereby, Micro-Star International CO., LTD declares that this device is
in compliance with the essential safety requirements and other relevant
provisions set out in the European Directive.
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the
measures listed below.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice 1
The changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply
with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.
◯
◯
◯
◯
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
this device may not cause harmful interference, and
this device must accept any interference received, including interference that may
cause undesired operation.
1)
2)
Micro-Star International
MS-7830
viPreface
Preface
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment and its antenna should be installed and
operated with minimum distance 20 cm between the radiator and your body. This
equipment and its antenna must not be co-located or operating in conjunction with any
other antenna or transmitter.
European Community Compliance Statement
The equipment complies with the RF Exposure Requirement 1999/519/EC, Council
Recommendation of 12 July 1999 on the limitation of exposure of the general public
to electromagnetic elds (0–300GHz). This wireless device complies with the R&TTE
Directive.
Taiwan Wireless Statements
無線設備警告聲明
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線
電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之
干擾。
警告使用者:這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在
這種情況下，使用者會被要求採取某些適當的對策。
Japan VCCI Class B Statement
クラス B 情報技術装置
この装置は、情報技術装置等電波障害自主規制協議会（VCCI）の基準に基づくクラ
スB情報技術装置です。この装置が家庭内でラジオやテレビジョン受信機に近接して
使われると、受信障害を引き起こすことがあります。取扱説明書にしたがって正しい
取り扱いをしてください。
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음
Preface
vii Preface
California, USA:
The button cell battery may contain perchlorate material and requires
special handling when recycled or disposed of in California.
For further information please visit:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Taiwan:
For better environmental protection, waste batteries should be collected
separately for recycling or special disposal.
廢電池請回收
European Union:
Batteries, battery packs, and accumulators should not be disposed of
as unsorted household waste. Please use the public collection system
to return, recycle, or treat them in compliance with the local regulations.
Battery Information
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at:
http://www.msi.com/html/popup/csr/evmtprtt_pcm.html
CAUTION: There is a risk of explosion, if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
viiiPreface
Preface
WEEE (Waste Electrical and Electronic Equipment) Statement
ENGLISH
To protect the global environment and as an environmentalist, MSI must
remind you that...
Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2002/96/EC, which takes eect on August
13, 2005, products of “electrical and electronic equipment” cannot be
discarded as municipal wastes anymore, and manufacturers of covered
electronic equipment will be obligated to take back such products at the end of their
useful life. MSI will comply with the product take back requirements at the end of life
of MSI-branded products that are sold into the EU. You can return these products to
local collection points.
DEUTSCH
Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt
Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen
Elektro- und Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden.
MSI hat europaweit verschiedene Sammel- und Recyclingunternehmen beauftragt,
die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines
Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen
Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.
FRANÇAIS
En tant qu’écologiste et an de protéger l’environnement, MSI tient à rappeler ceci...
Au sujet de la directive européenne (EU) relative aux déchets des équipement
électriques et électroniques, directive 2002/96/EC, prenant eet le 13 août 2005,
que les produits électriques et électroniques ne peuvent être déposés dans les
décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements
seront obligés de récupérer certains produits en n de vie. MSI prendra en compte
cette exigence relative au retour des produits en n de vie au sein de la communauté
européenne. Par conséquent vous pouvez retourner localement ces matériels dans
les points de collecte.
РУССКИЙ
Компания MSI предпринимает активные действия по защите окружающей среды,
поэтому напоминаем вам, что....
В соответствии с директивой Европейского Союза (ЕС) по предотвращению
загрязнения окружающей среды использованным электрическим и электронным
оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13
августа 2005 года, изделия, относящиеся к электрическому и электронному
оборудованию, не могут рассматриваться как бытовой мусор, поэтому
производители вышеперечисленного электронного оборудования обязаны
принимать его для переработки по окончании срока службы. MSI обязуется
соблюдать требования по приему продукции, проданной под маркой MSI на
территории EC, в переработку по окончании срока службы. Вы можете вернуть
эти изделия в специализированные пункты приема.
Preface
ix Preface
ESPAÑOL
MSI como empresa comprometida con la protección del medio ambiente, recomienda:
Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o
equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos
clasicados como “eléctricos y equipos electrónicos” no pueden ser depositados en
los contenedores habituales de su municipio, los fabricantes de equipos electrónicos,
están obligados a hacerse cargo de dichos productos al termino de su período de
vida. MSI estará comprometido con los términos de recogida de sus productos
vendidos en la Unión Europea al nal de su periodo de vida. Usted debe depositar
estos productos en el punto limpio establecido por el ayuntamiento de su localidad o
entregar a una empresa autorizada para la recogida de estos residuos.
NEDERLANDS
Om het milieu te beschermen, wil MSI u eraan herinneren dat….
De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische
en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan
kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort
producten worden verplicht om producten retour te nemen aan het eind van hun
levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten
die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen
geretourneerd worden op lokale inzamelingspunten.
SRPSKI
Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj
sredini, MSI mora da vas podesti da…
Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi,
Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji
spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan
otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju
njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih
proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU.
Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.
POLSKI
Aby chronić nasze środowisko naturalne oraz jako rma dbająca o ekologię, MSI
przypomina, że...
Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów
elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13
sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie
mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów
będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z
użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie
Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w
wyznaczonych punktach zbiorczych.
xPreface
Preface
TÜRKÇE
Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır:
Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/EC
Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere,
elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik
cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla
yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri
bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi
yerel toplama noktalarına bırakabilirsiniz.
ČESKY
Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje...
Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků
2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické
výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které
se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení
jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky
MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete
odevzdat v místních sběrnách.
MAGYAR
Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve
az MSI emlékezteti Önt, hogy ...
Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos
és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint
az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági
hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az
ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a
termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n
belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket
a legközelebbi gyűjtőhelyre viheti.
ITALIANO
Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che….
In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici
ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti
alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati
come riuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni
prodotto alla ne del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i
prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla ne
del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta
Preface
xi Preface
CONTENTS
Preface ............................................................................................................i
Copyright Notice ......................................................................................................ii
Trademarks ..............................................................................................................ii
Revision History ......................................................................................................ii
Smartphone Application ..........................................................................................iii
Technical Support ..................................................................................................iii
Safety Instructions ..................................................................................................iv
FCC-B Radio Frequency Interference Statement ................................................... v
CE Conformity ......................................................................................................... v
Radiation Exposure Statement ...............................................................................vi
European Community Compliance Statement ........................................................vi
Taiwan Wireless Statements ...................................................................................vi
Japan VCCI Class B Statement ..............................................................................vi
Korea Warning Statements .....................................................................................vi
Battery Information .................................................................................................vii
Chemical Substances Information .........................................................................vii
WEEE (Waste Electrical and Electronic Equipment) Statement ...........................viii
Chapter 1 Getting Started............................................................................1-1
Packing Contents .................................................................................................1-2
Optional Accessories ...........................................................................................1-2
Assembly Precautions ..........................................................................................1-3
Motherboard Specications ..................................................................................1-4
Connectors Quick Guide ......................................................................................1-6
Back Panel Quick Guide ......................................................................................1-8
CPU (Central Processing Unit) ..........................................................................1-10
Introduction to the LGA 1150 CPU ..............................................................1-10

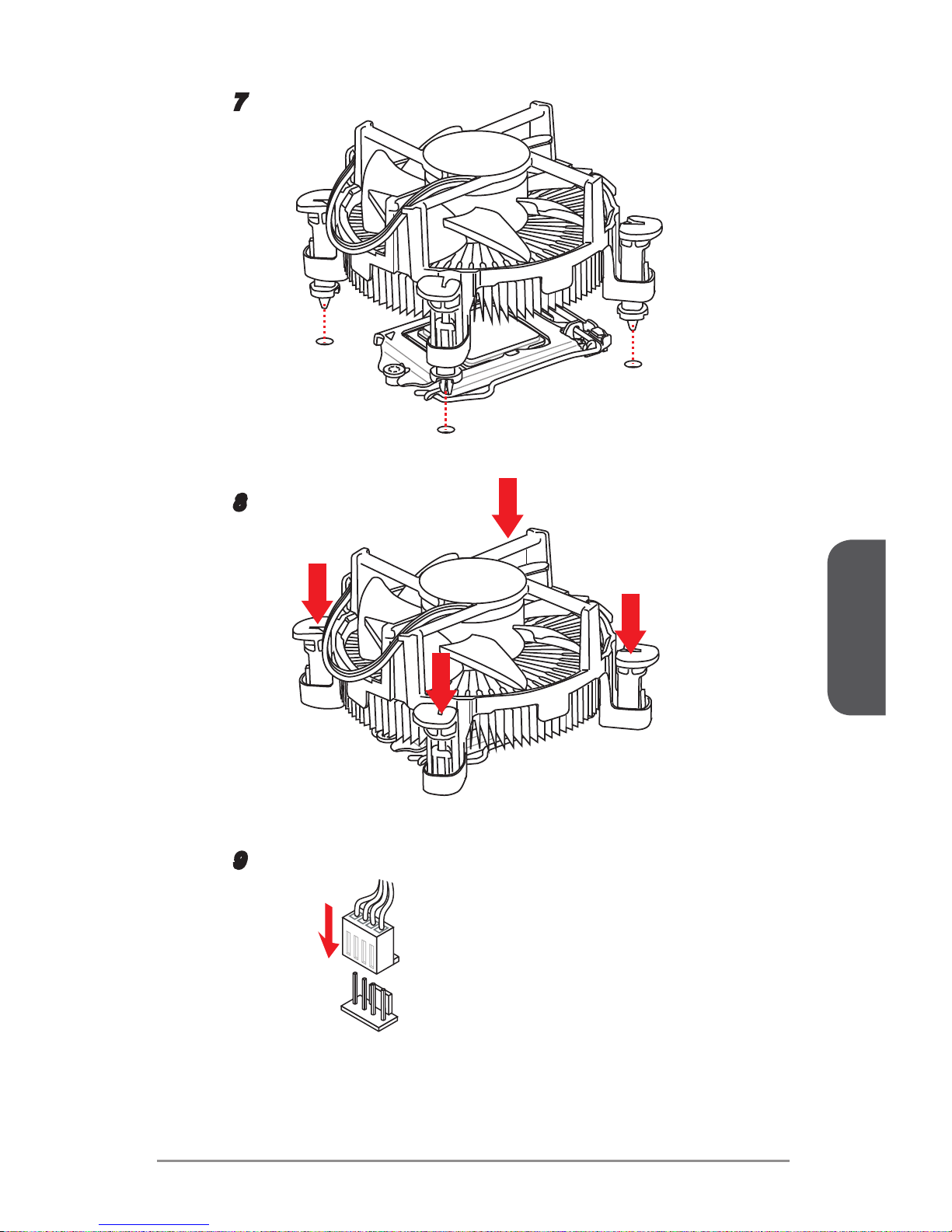

CPU & Heatsink Installation .........................................................................1-11
Memory ..............................................................................................................1-14
Dual-Channel mode Population Rule ..........................................................1-14
Mounting Screw Holes .......................................................................................1-15
Power Supply .....................................................................................................1-16
JPWR1~2: ATX Power Connectors .............................................................1-16

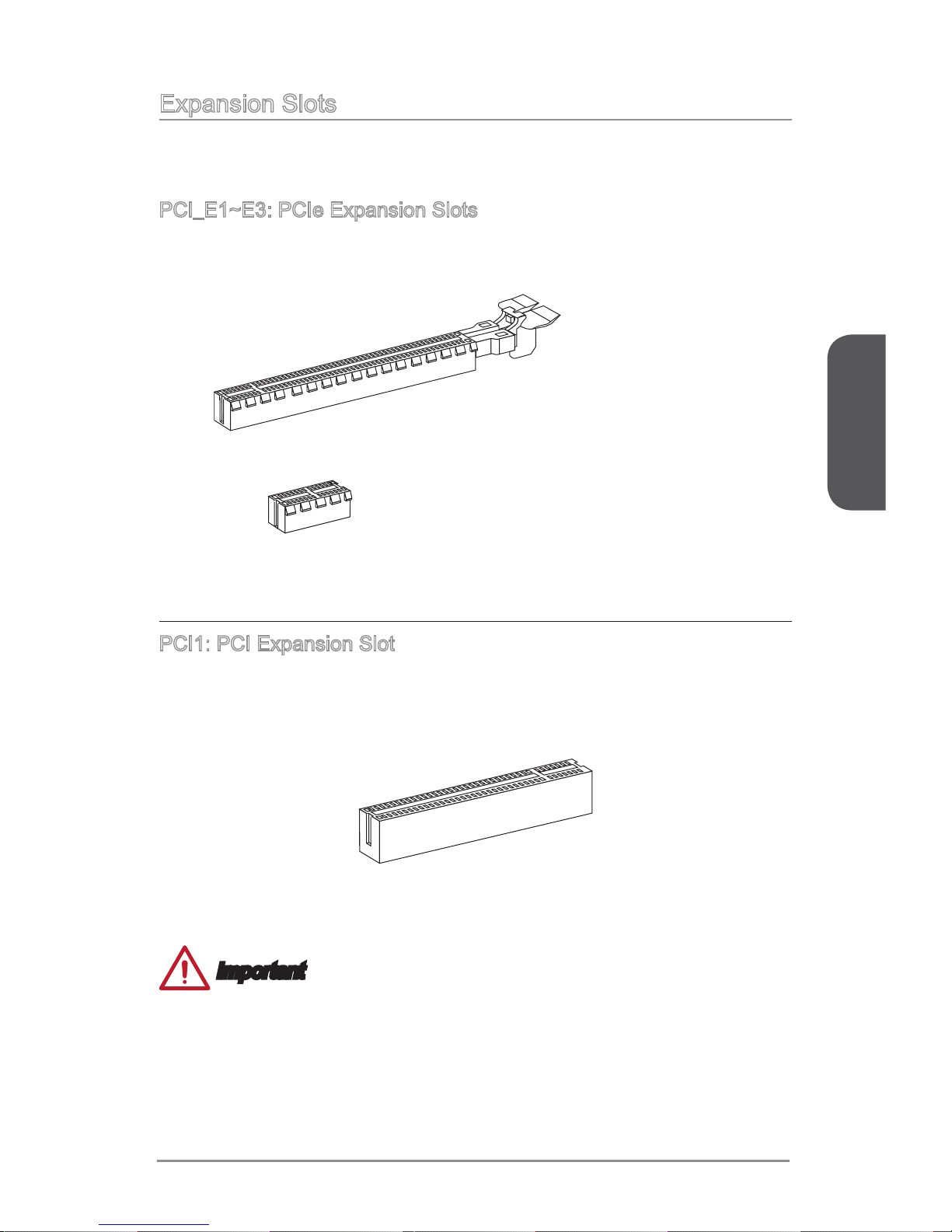

Expansion Slots .................................................................................................1-17
PCI_E1~E3: PCIe Expansion Slots ............................................................. 1-17
PCI1: PCI Expansion Slot ............................................................................ 1-17

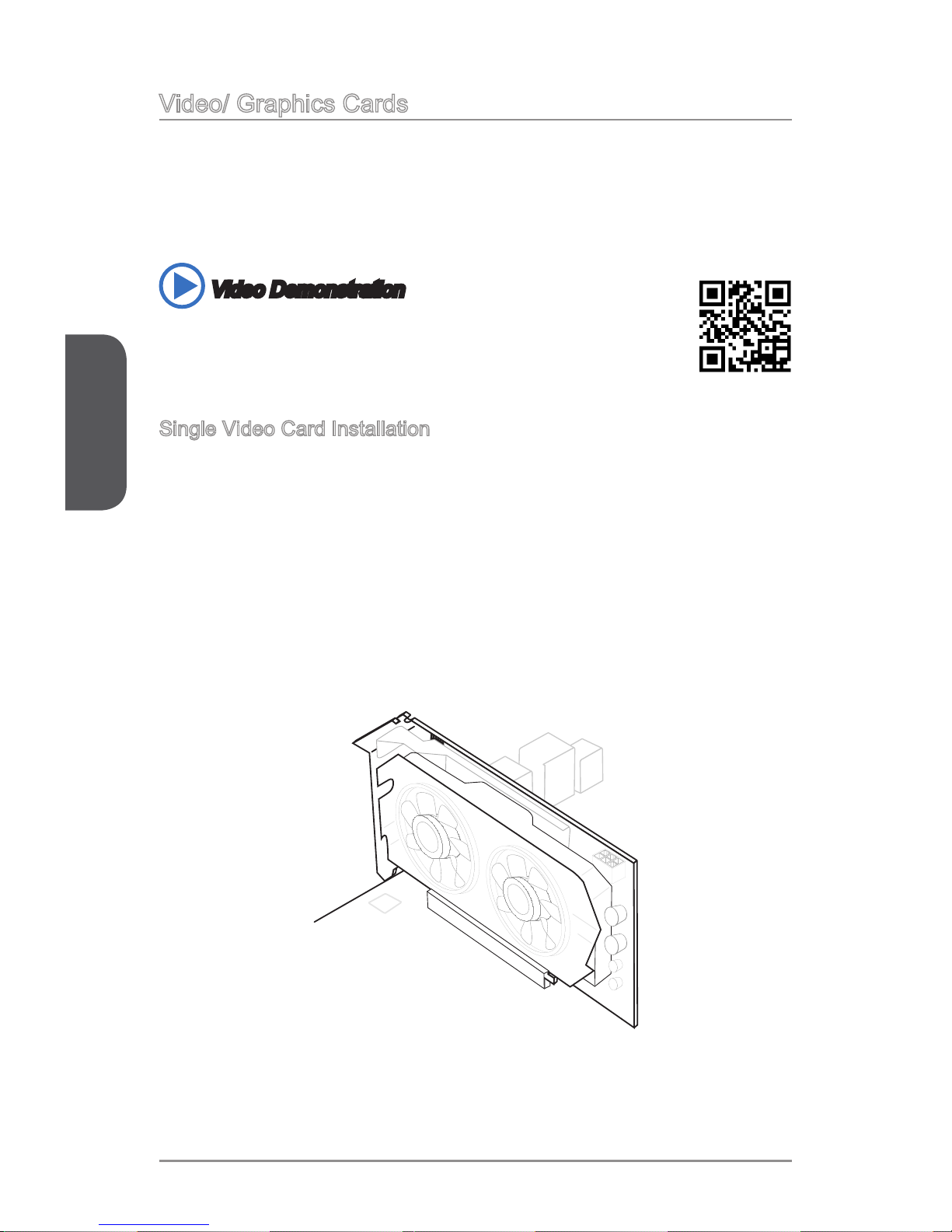

Video/ Graphics Cards ...................................................................................... 1-18
Single Video Card Installation ......................................................................1-18
▍
xiiPreface
Preface
Internal Connectors ............................................................................................ 1-19

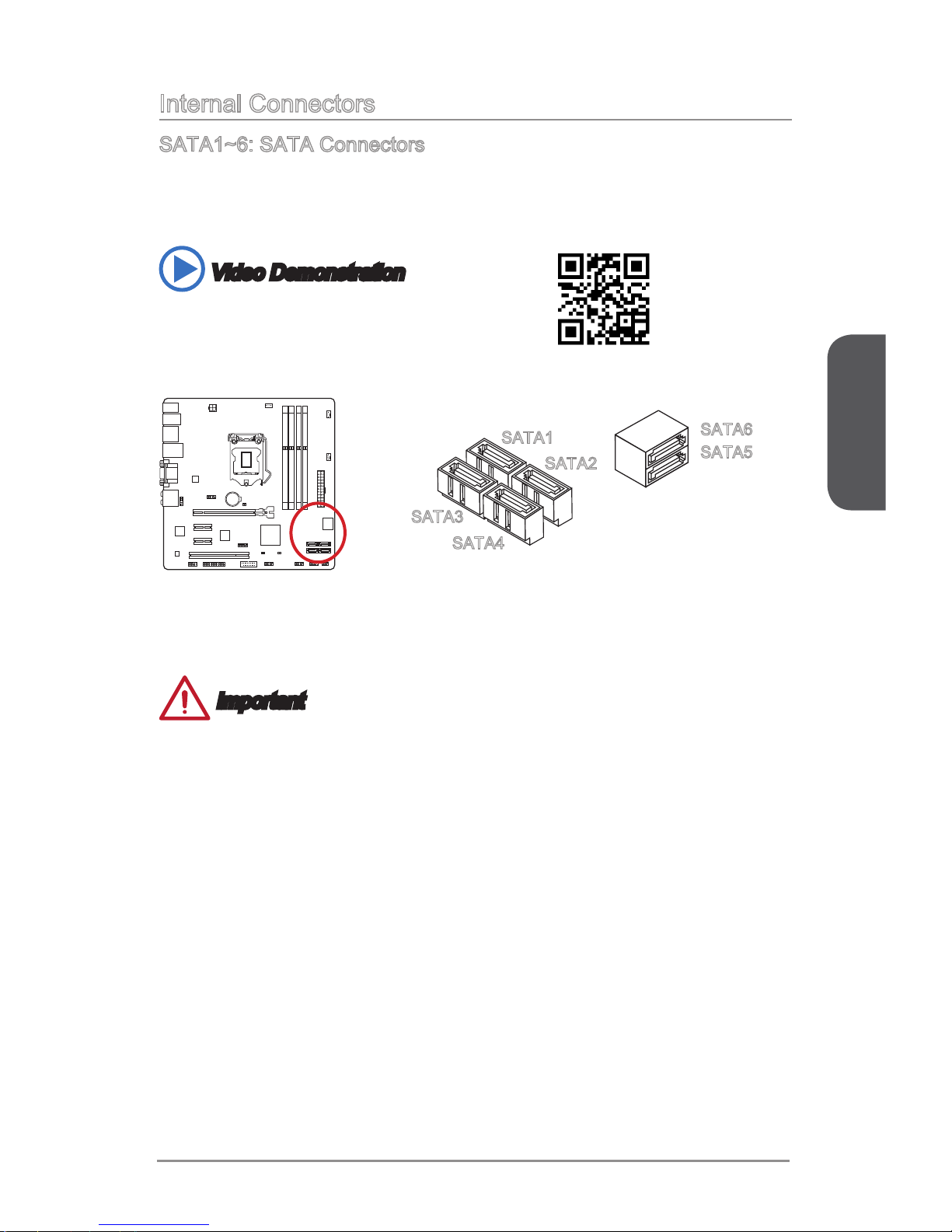

SATA1~6: SATA Connectors ......................................................................1-19

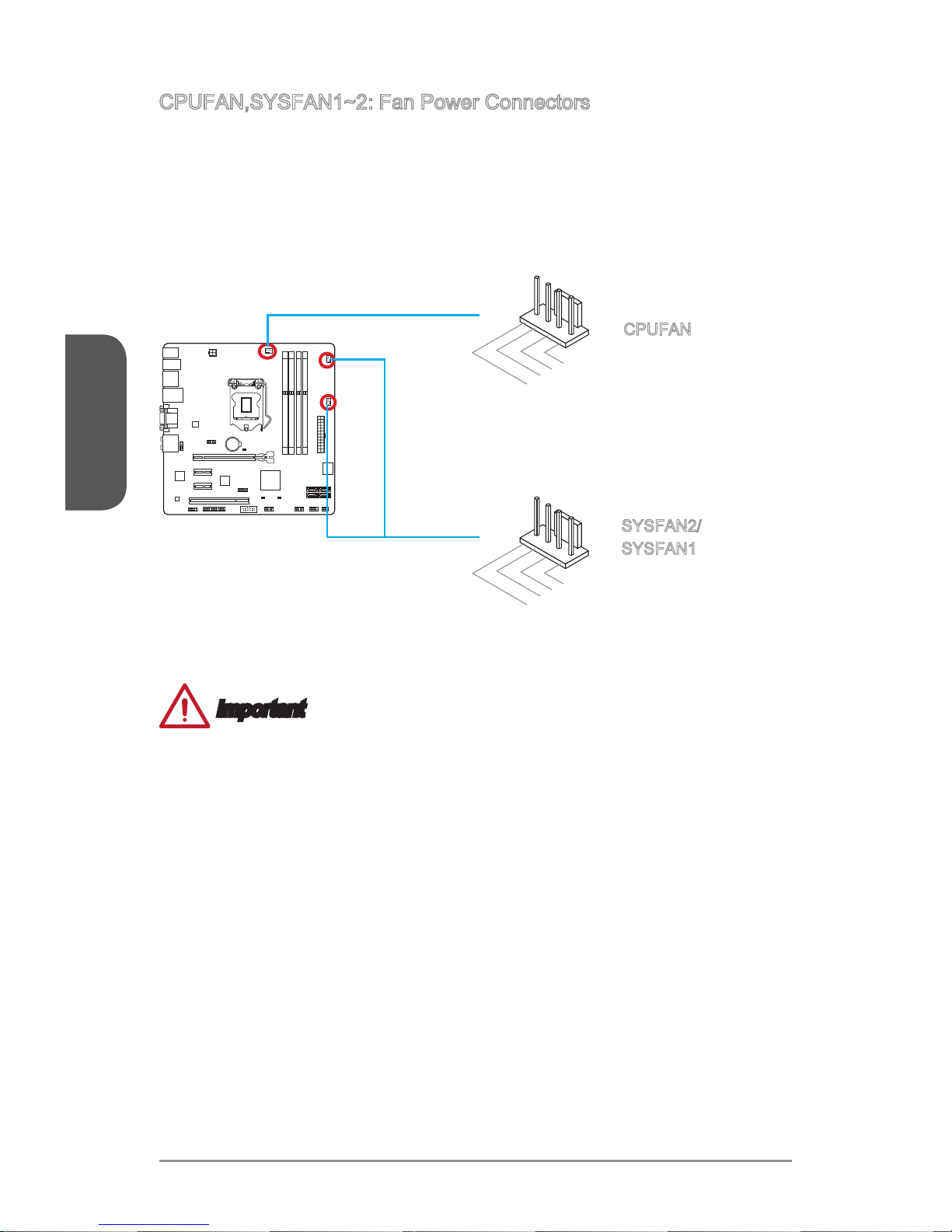

CPUFAN,SYSFAN1~2: Fan Power Connectors .......................................... 1-20

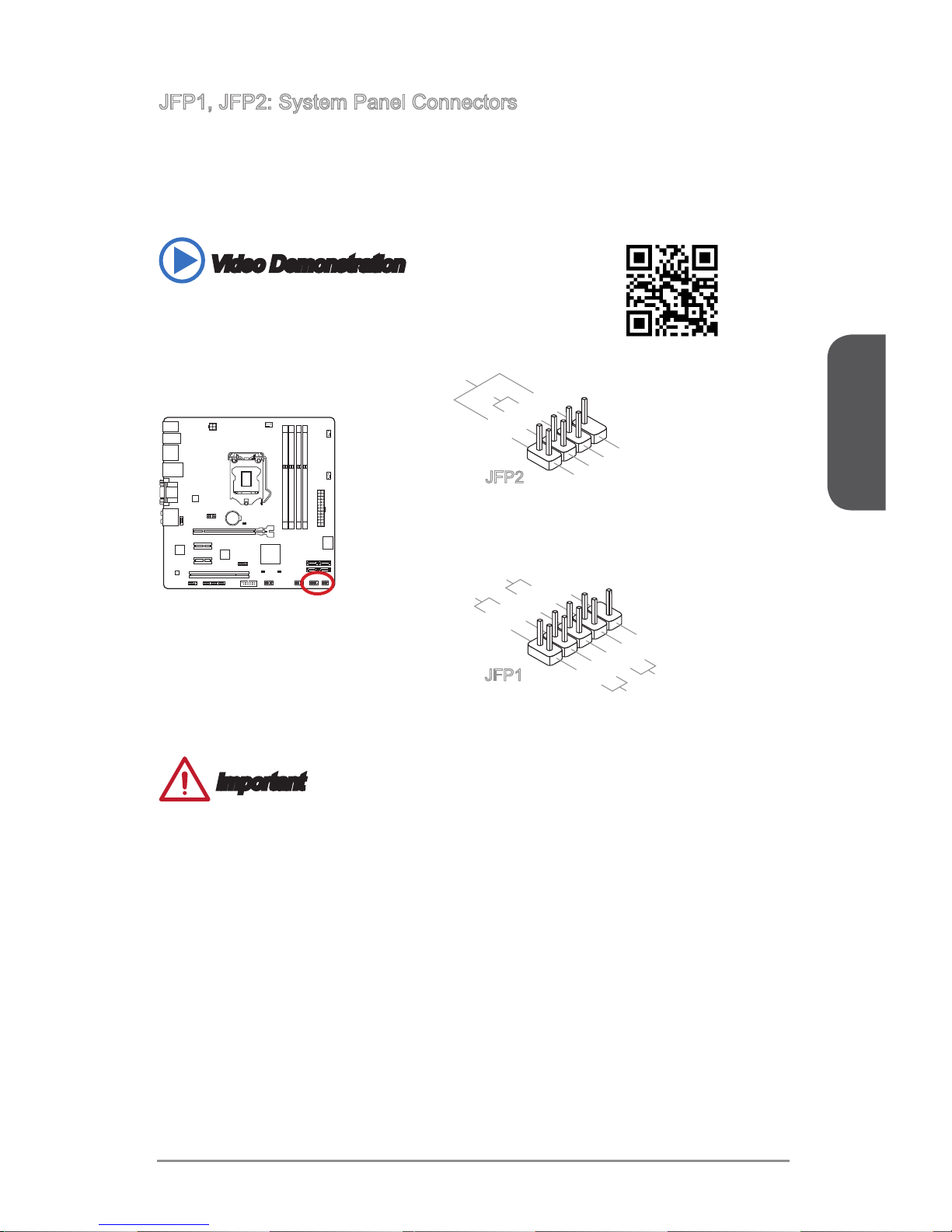

JFP1, JFP2: System Panel Connectors ......................................................1-21

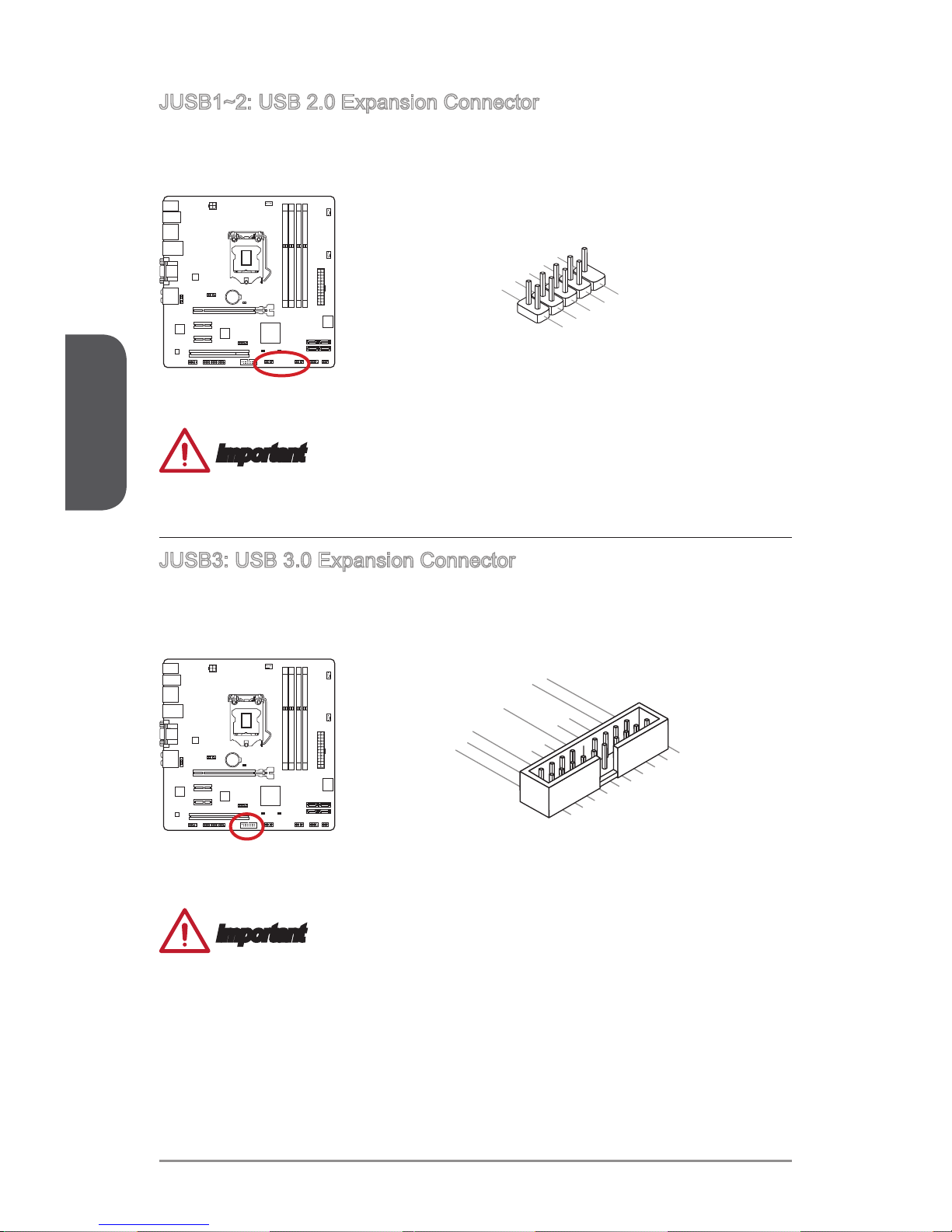

JUSB1~2: USB 2.0 Expansion Connector ................................................... 1-22
JUSB3: USB 3.0 Expansion Connector ....................................................... 1-22

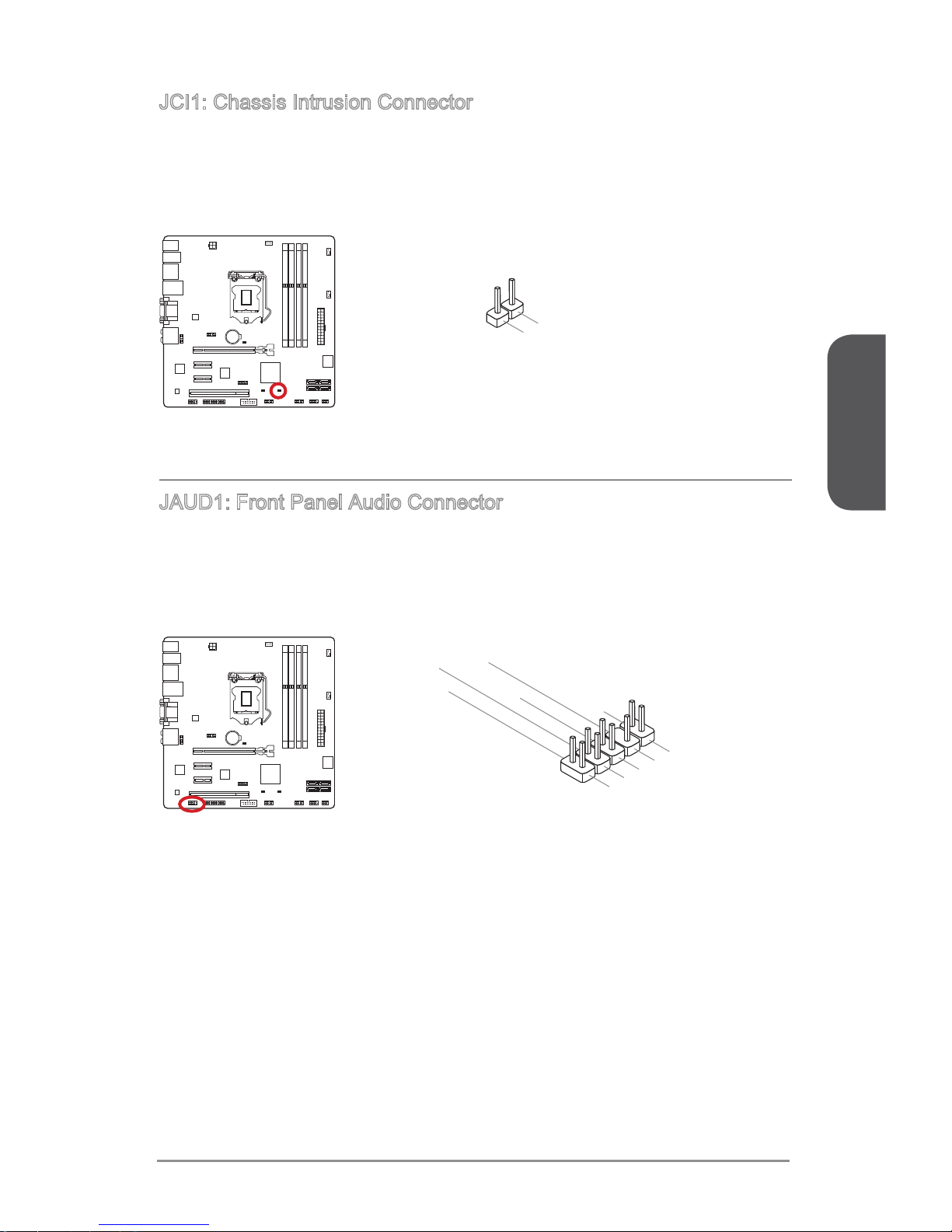

JCI1: Chassis Intrusion Connector ..............................................................1-23
JAUD1: Front Panel Audio Connector ......................................................... 1-23

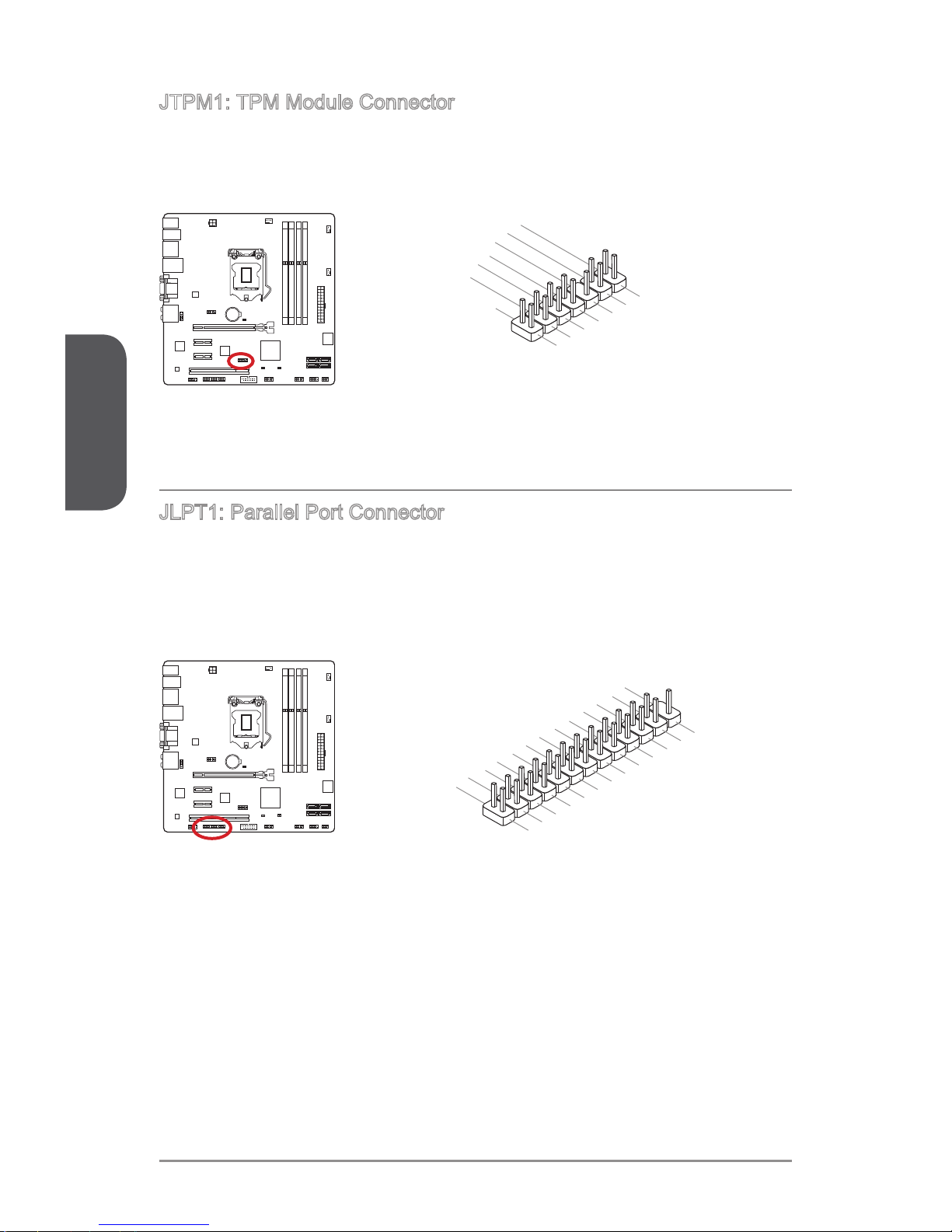

JTPM1: TPM Module Connector .................................................................1-24
JLPT1: Parallel Port Connector ...................................................................1-24

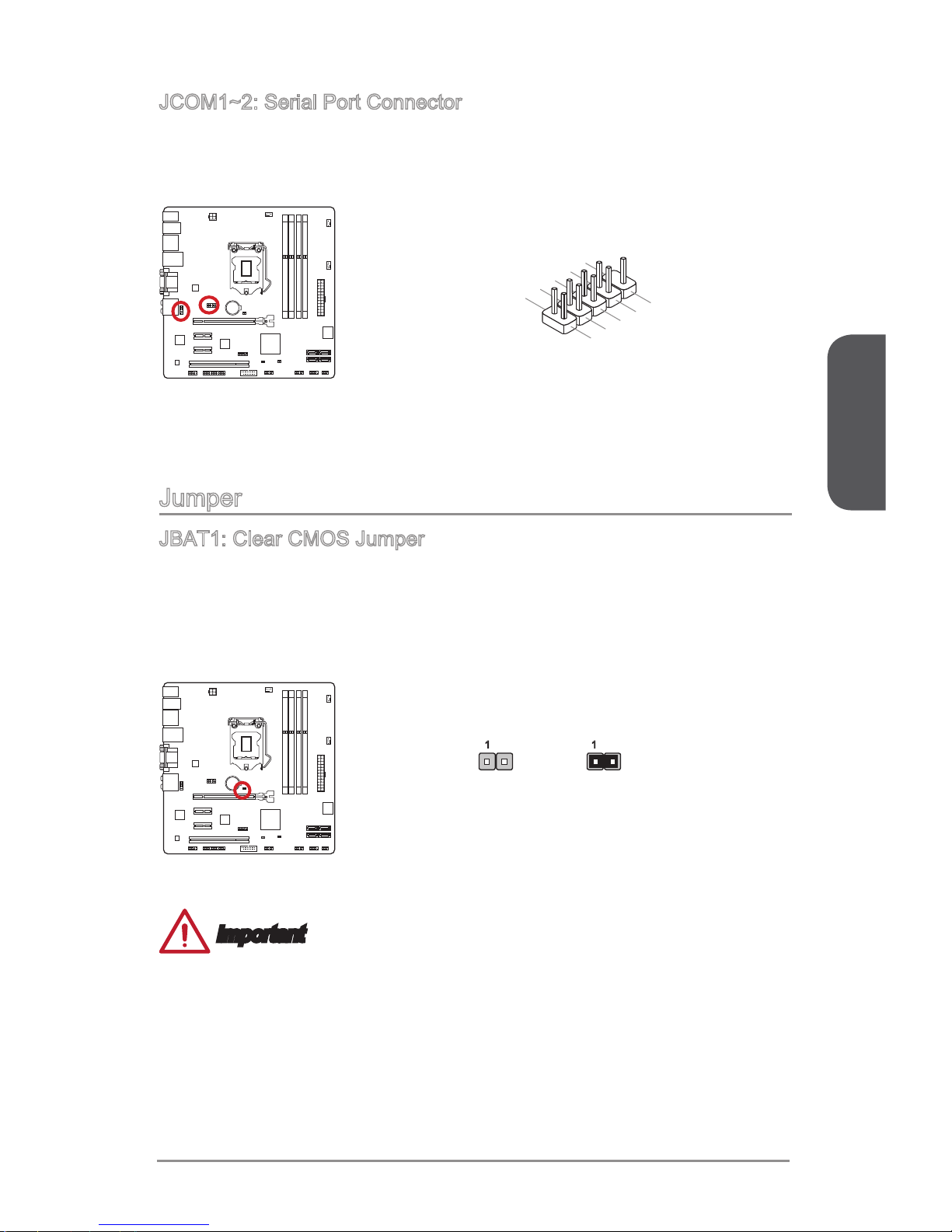

JCOM1~2: Serial Port Connector ................................................................ 1-25
Jumper ...............................................................................................................1-25
JBAT1: Clear CMOS Jumper .......................................................................1-25

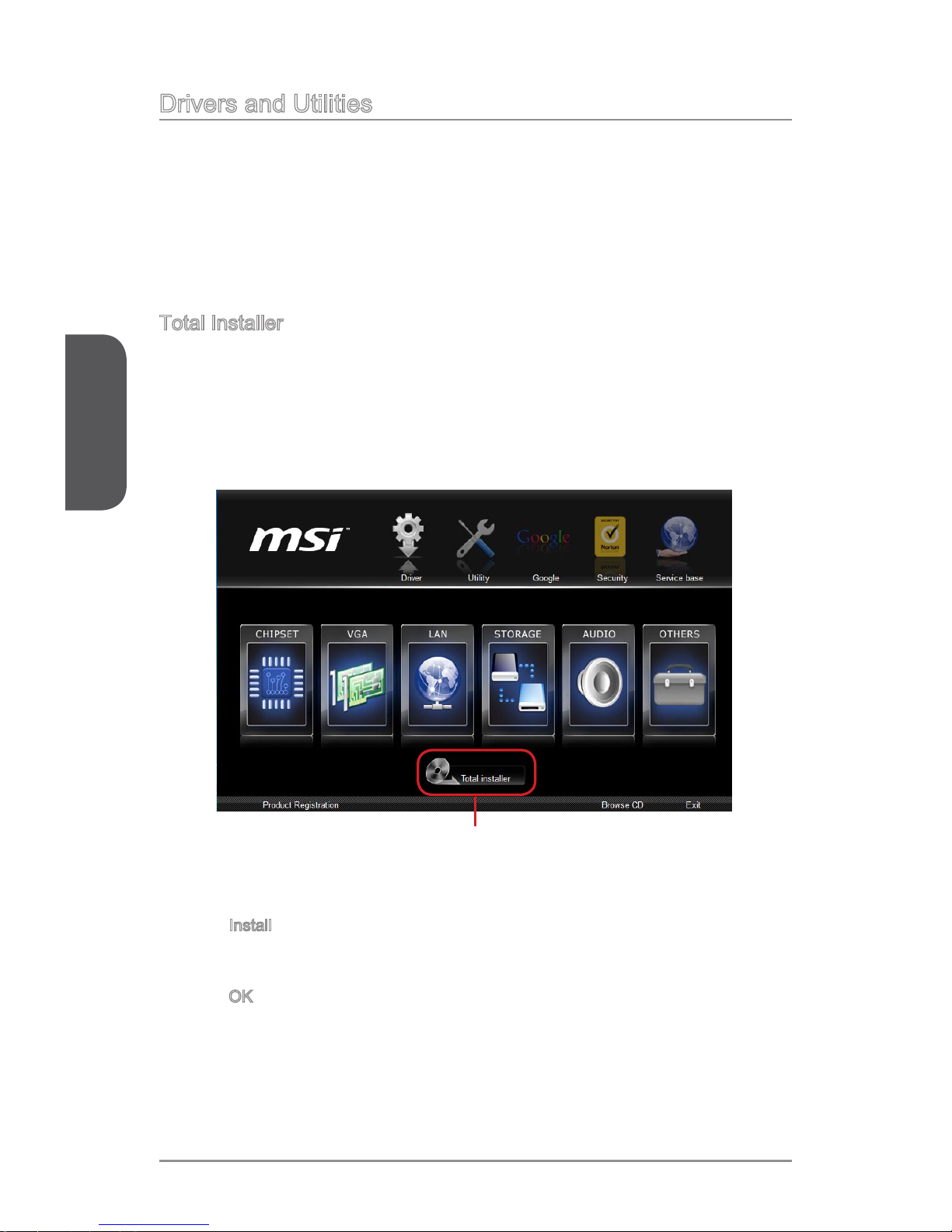

Drivers and Utilities ............................................................................................1-26
Total Installer ...............................................................................................1-26
Chapter 2 Quick Installation ........................................................................2-1

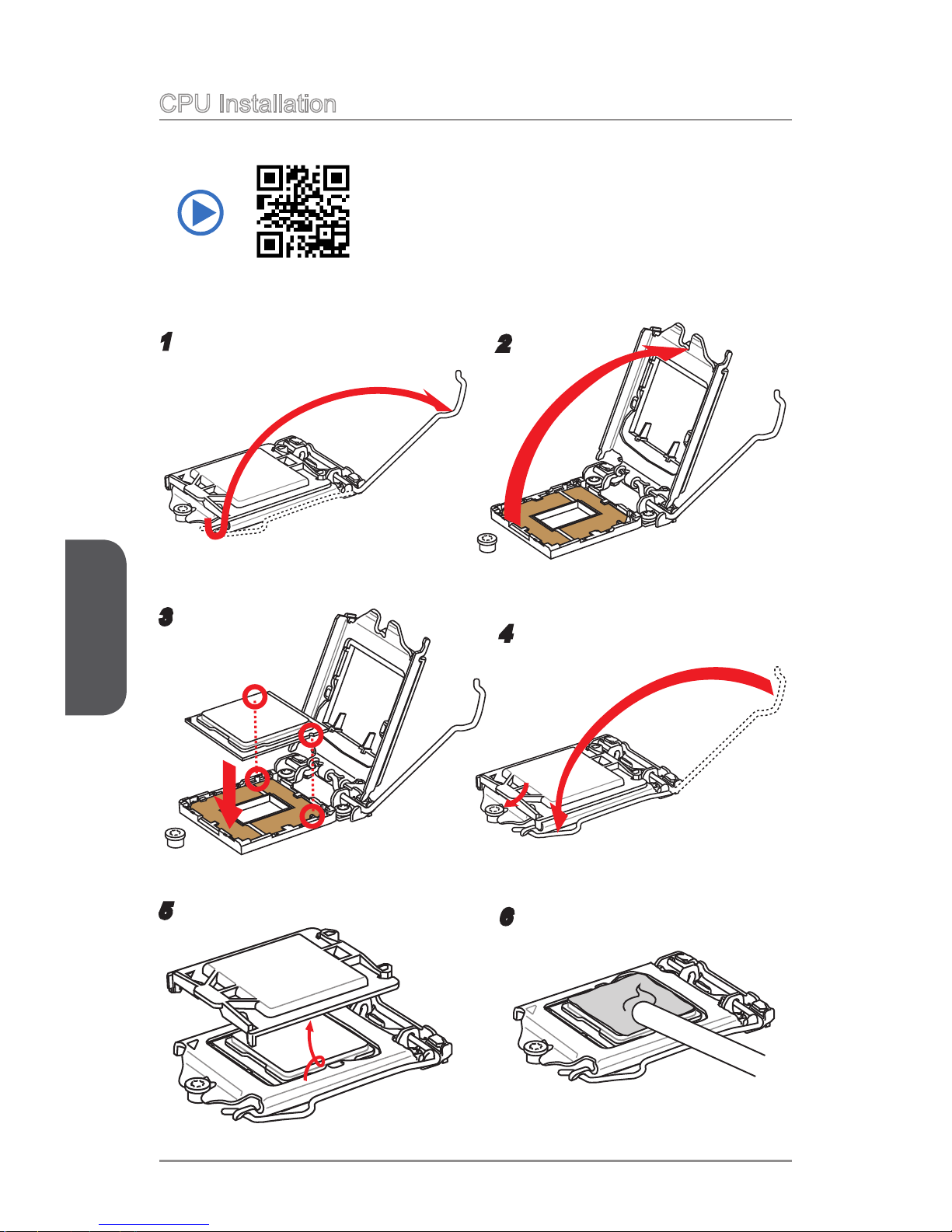

CPU Installation ...................................................................................................2-2

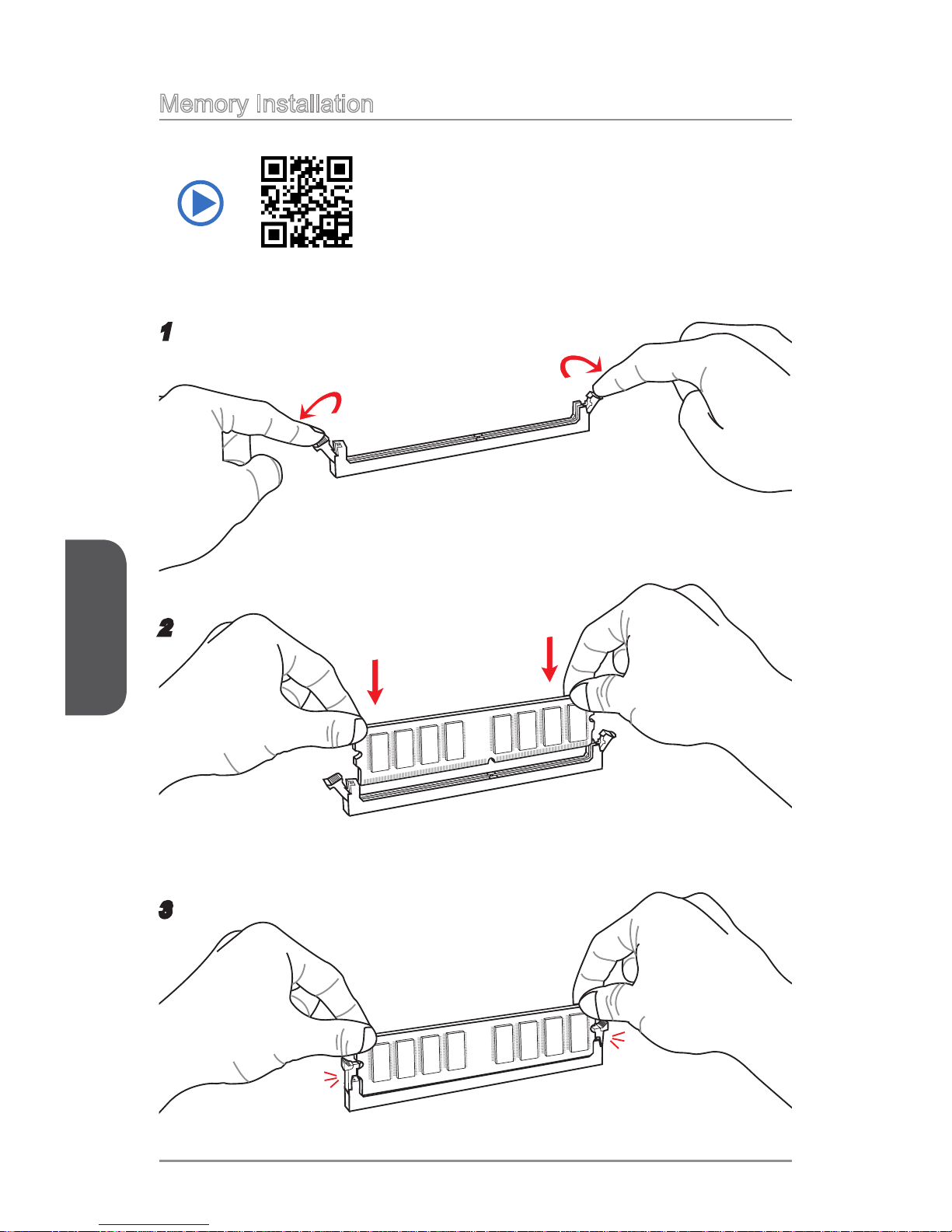

Memory Installation .............................................................................................. 2-4

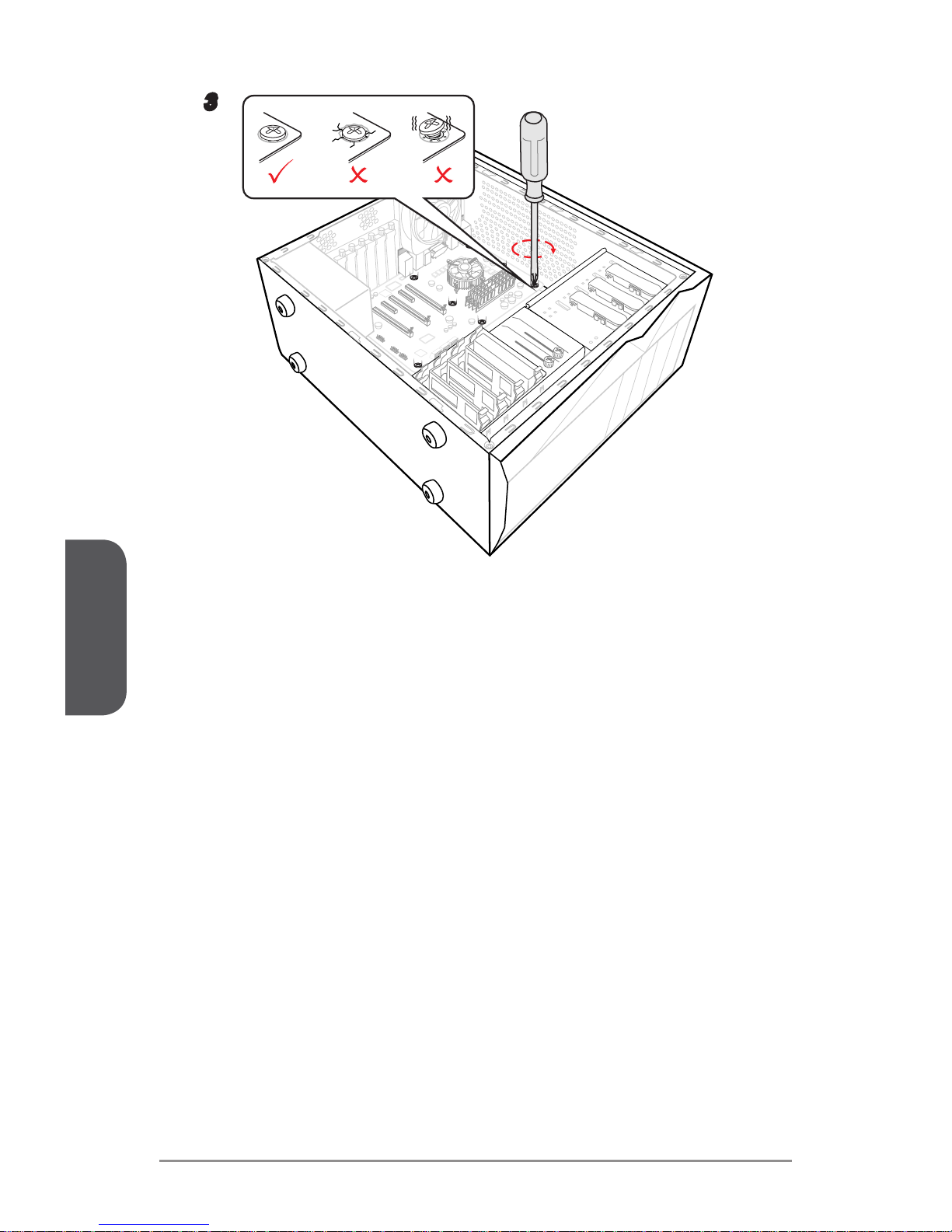

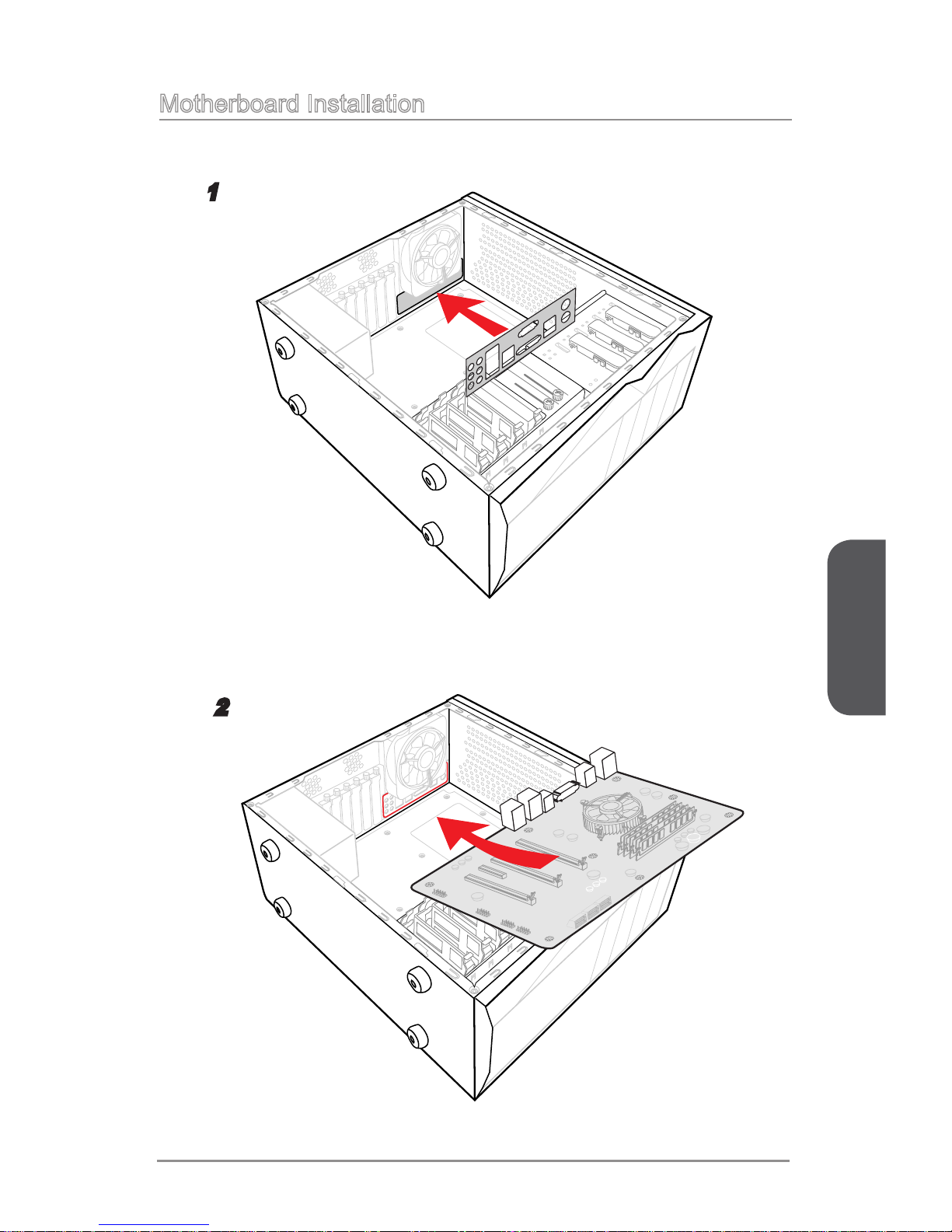

Motherboard Installation .......................................................................................2-5

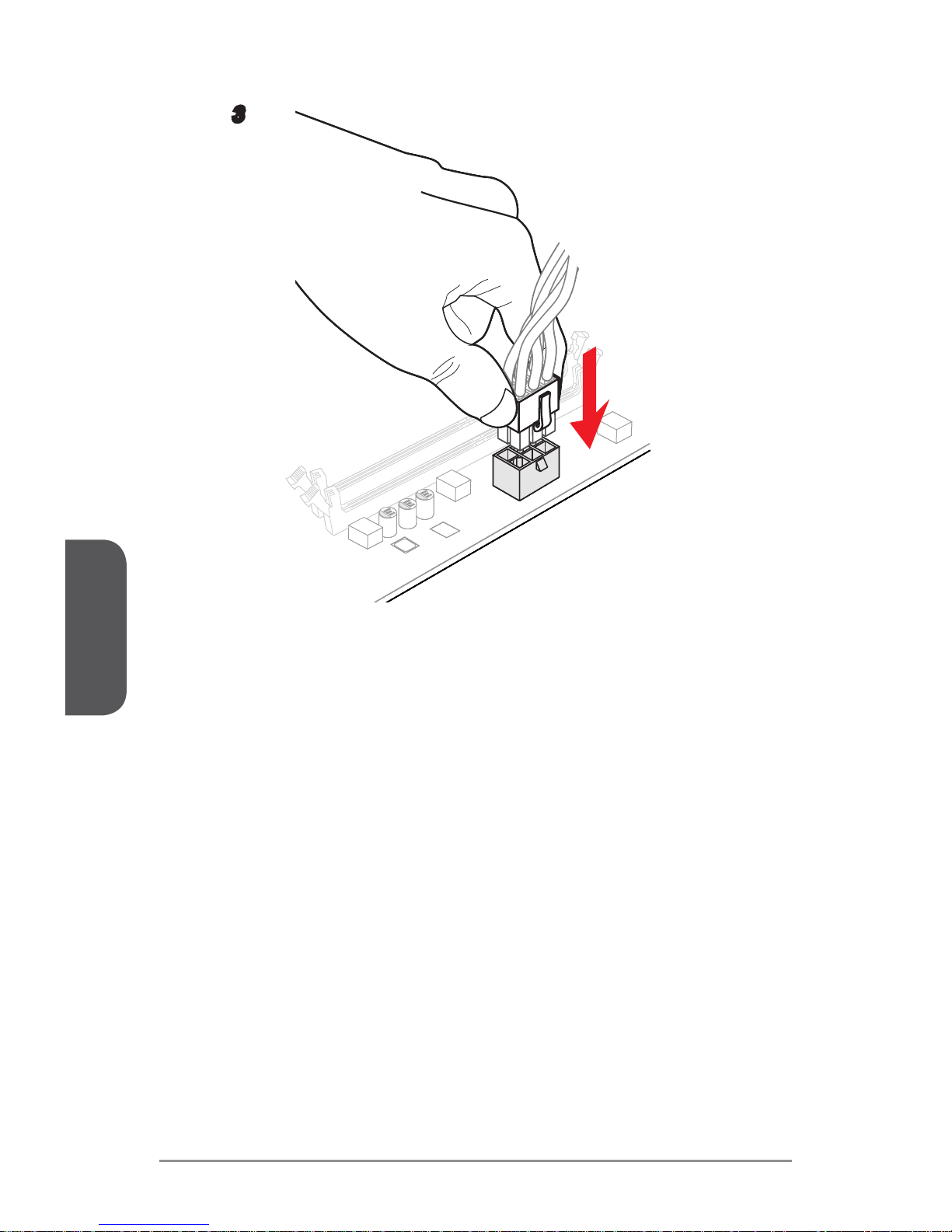

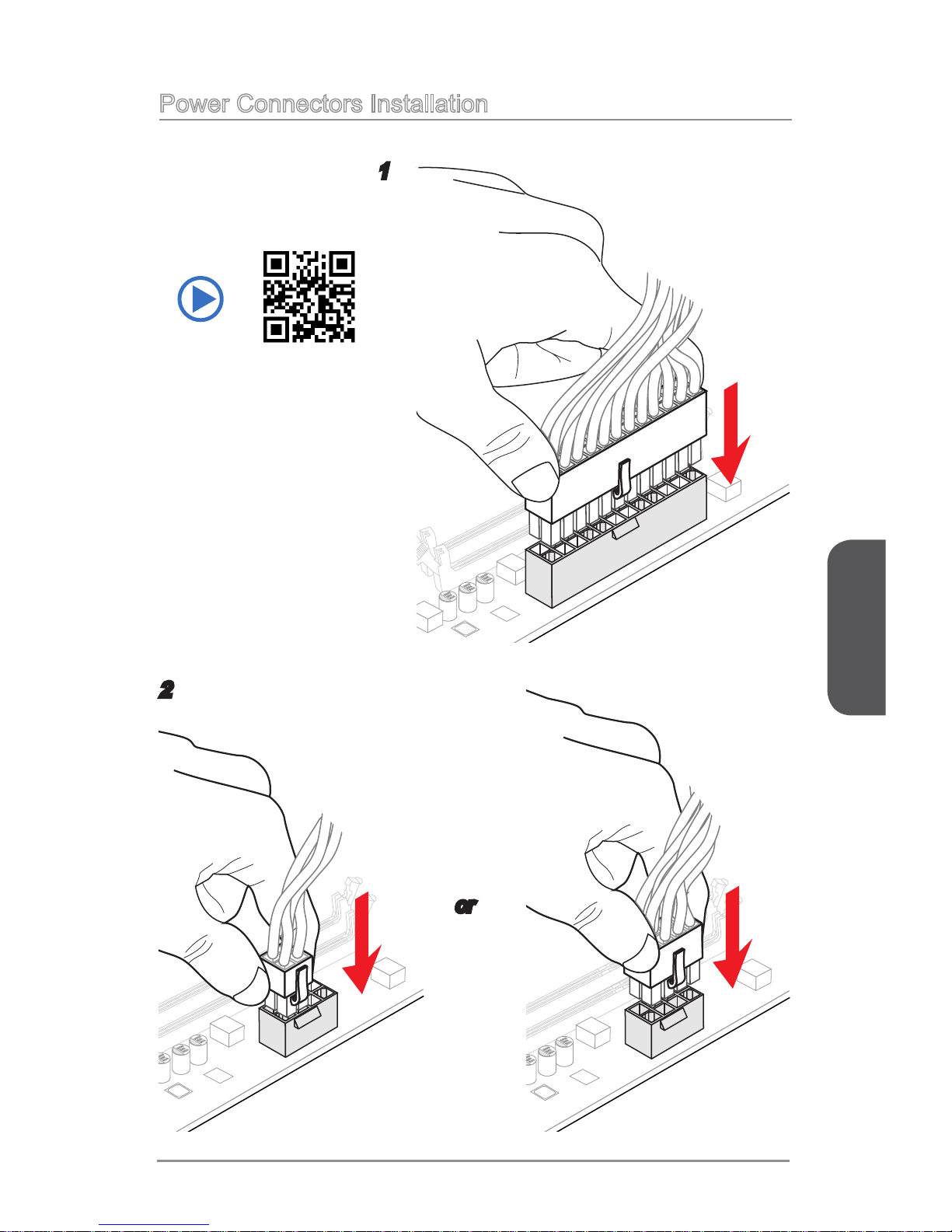

Power Connectors Installation .............................................................................2-7

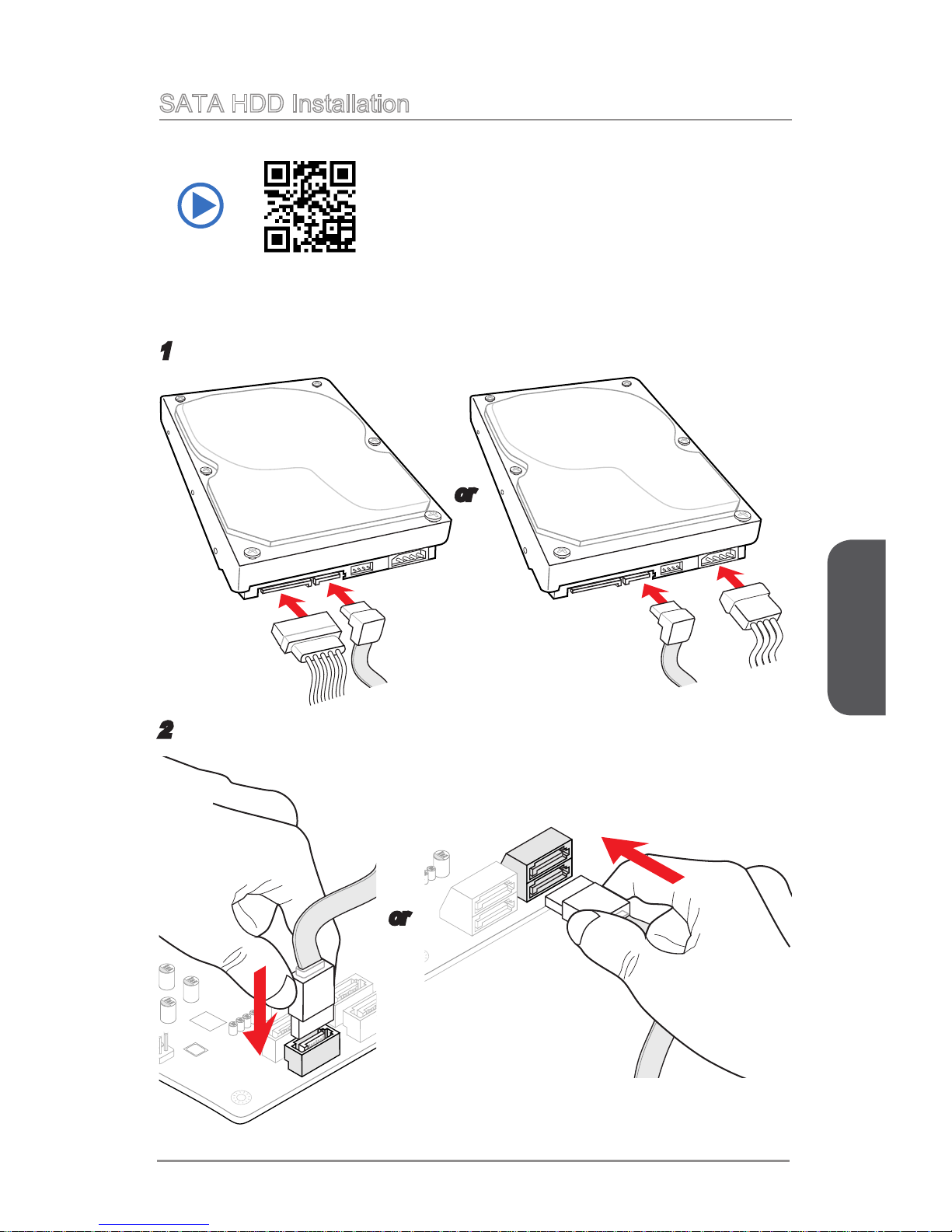

SATA HDD Installation ......................................................................................... 2-9

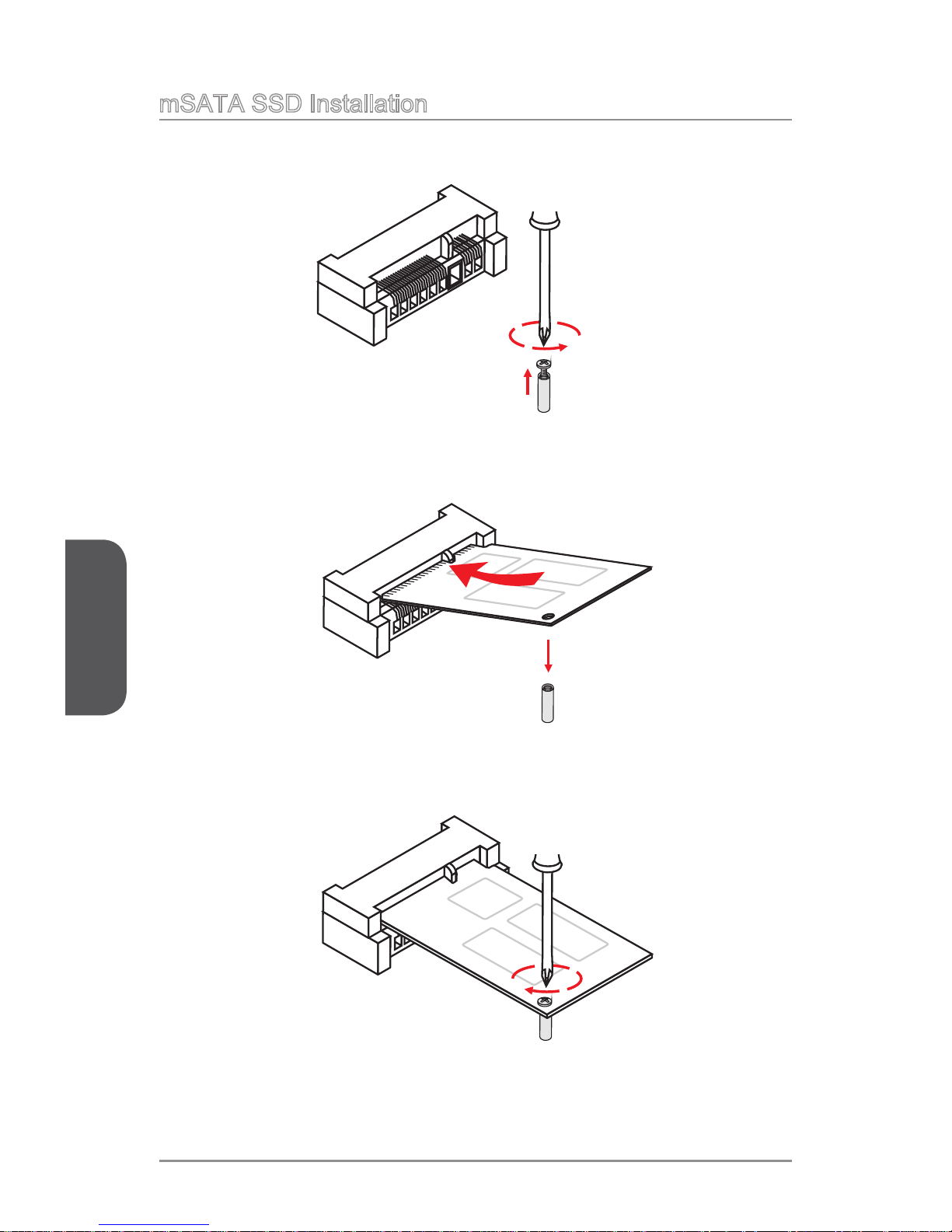

mSATA SSD Installation ....................................................................................2-10

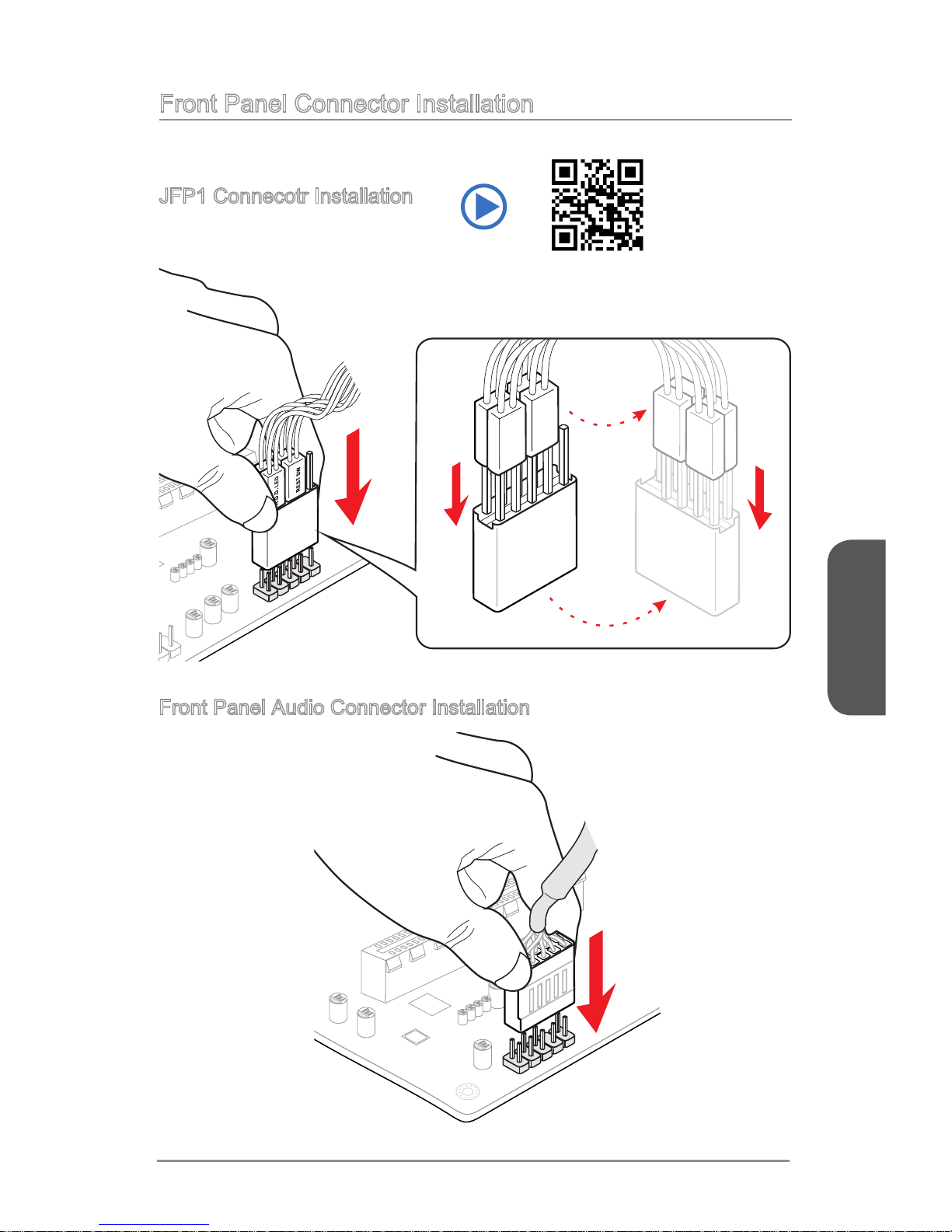

Front Panel Connector Installation ..................................................................... 2-11
JFP1 Connecotr Installation .........................................................................2-11
Front Panel Audio Connector Installation ....................................................2-11

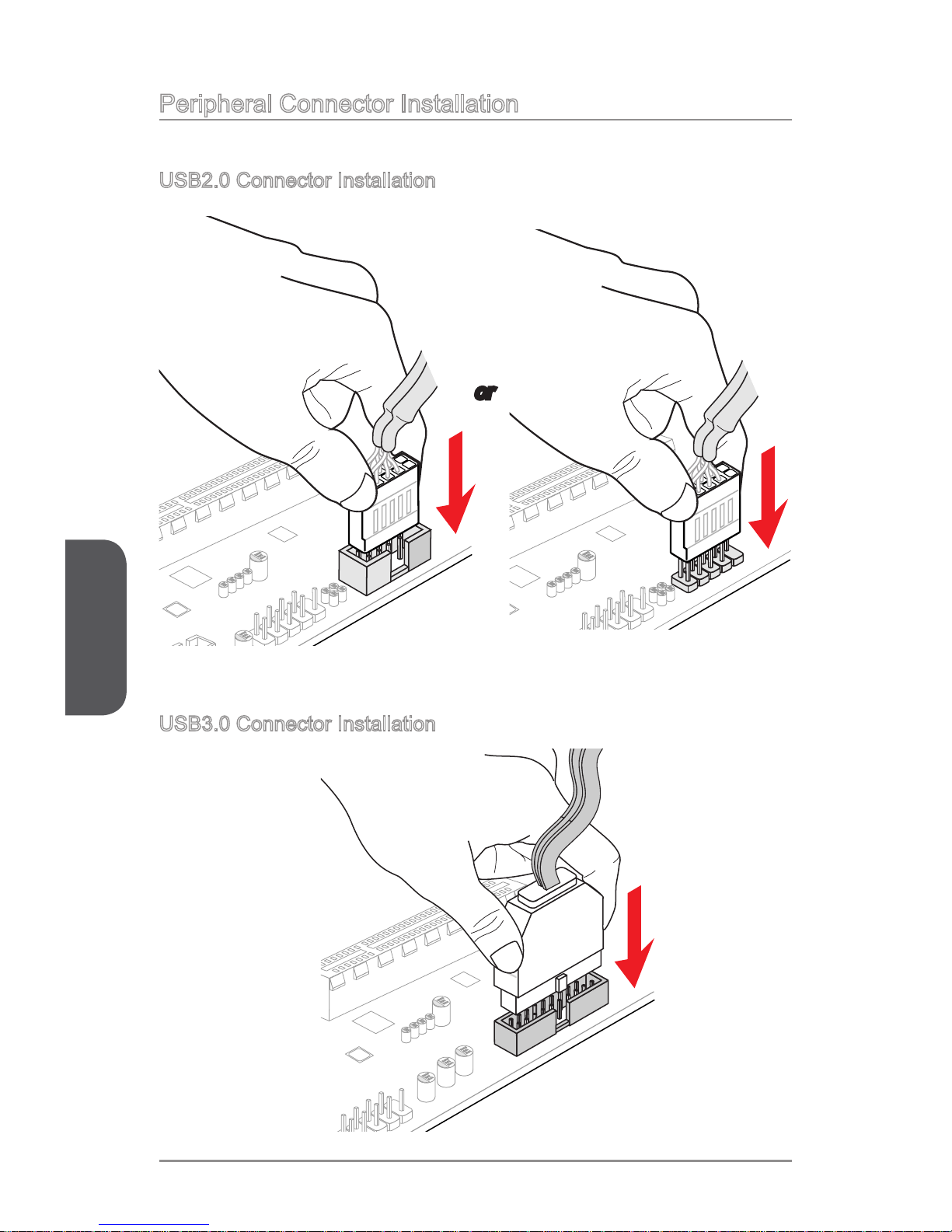

Peripheral Connector Installation ....................................................................... 2-12
USB2.0 Connector Installation .....................................................................2-12
USB3.0 Connector Installation .....................................................................2-12

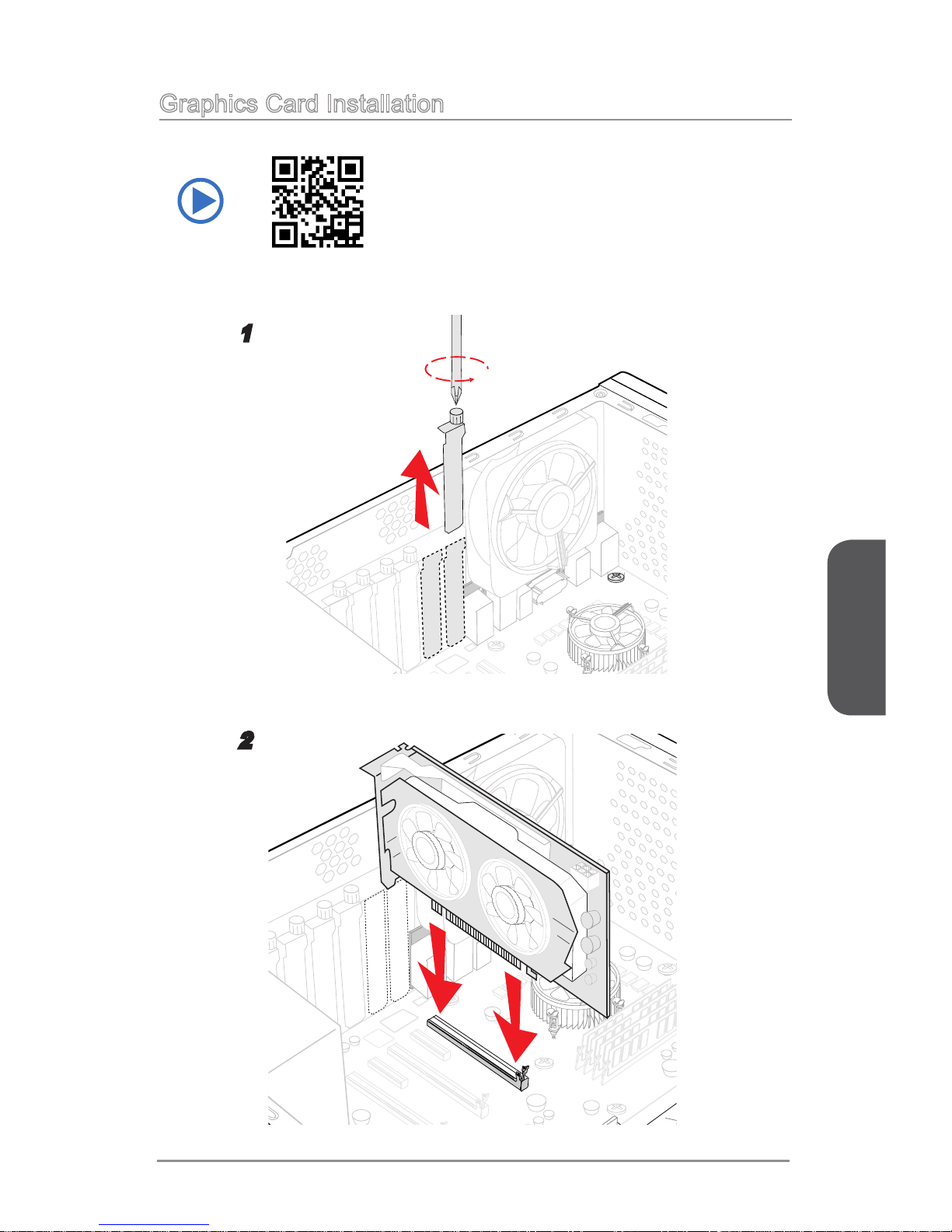

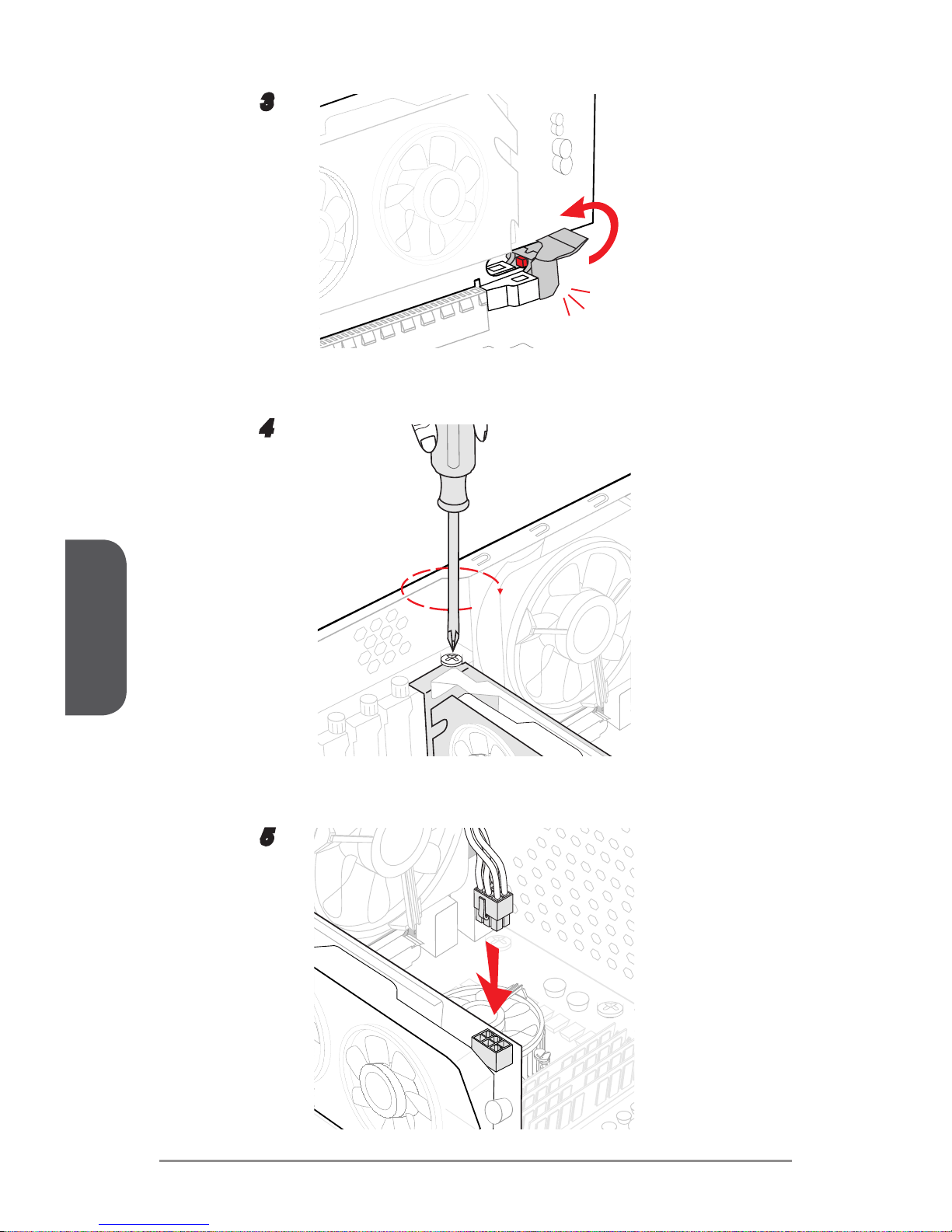

Graphics Card Installation .................................................................................. 2-13
Chapter 3 BIOS Setup .................................................................................3-1

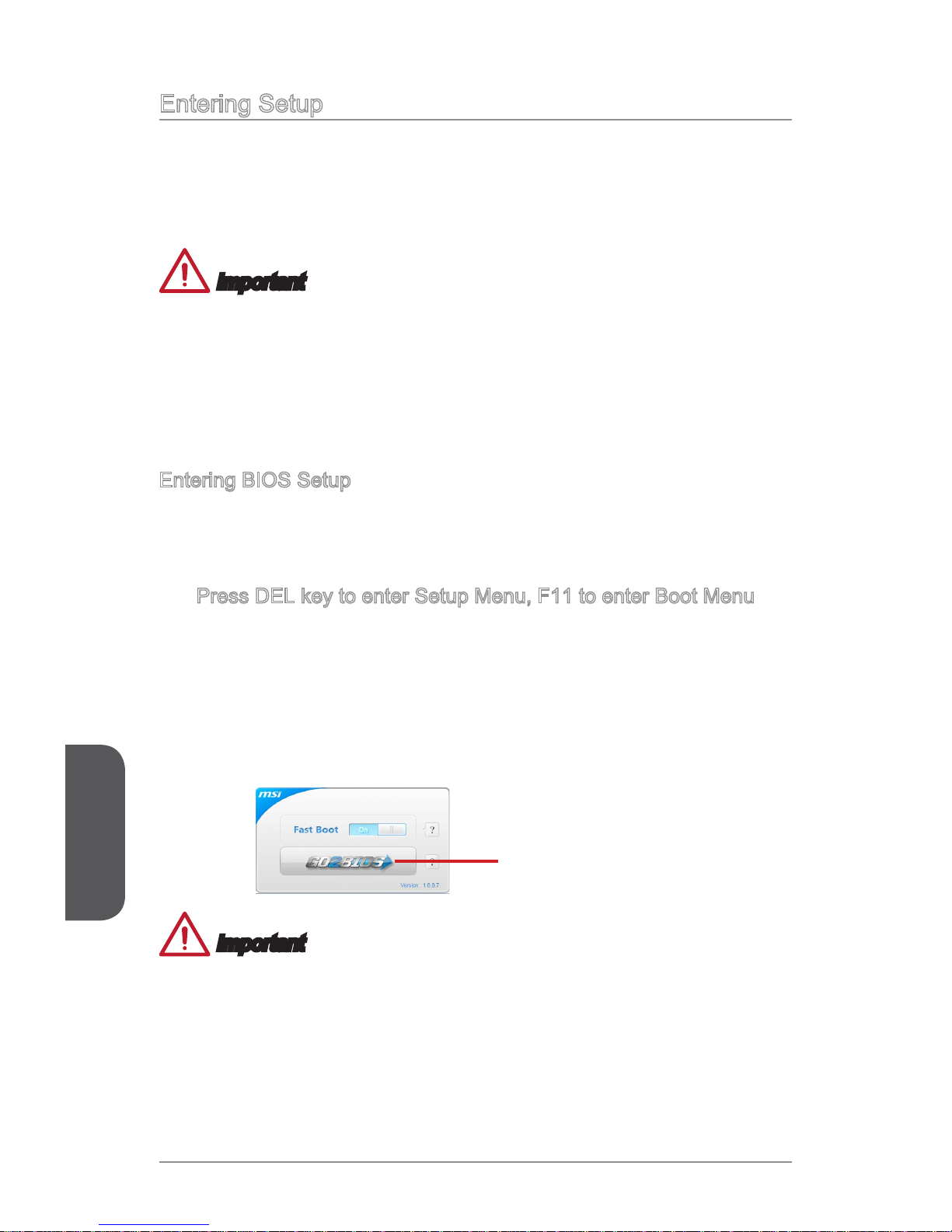

Entering Setup .....................................................................................................3-2
Entering BIOS Setup .....................................................................................3-2

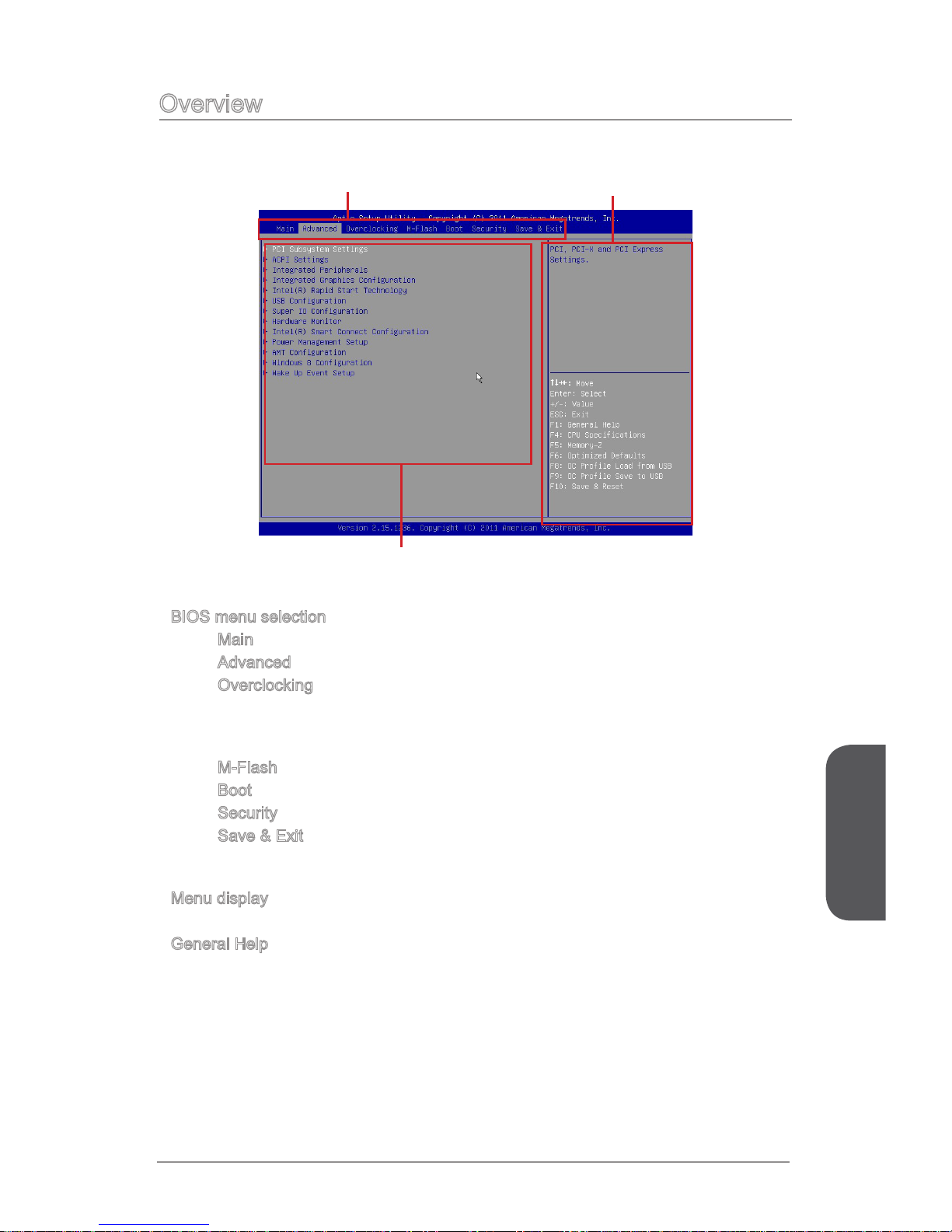

Overview ..............................................................................................................3-3

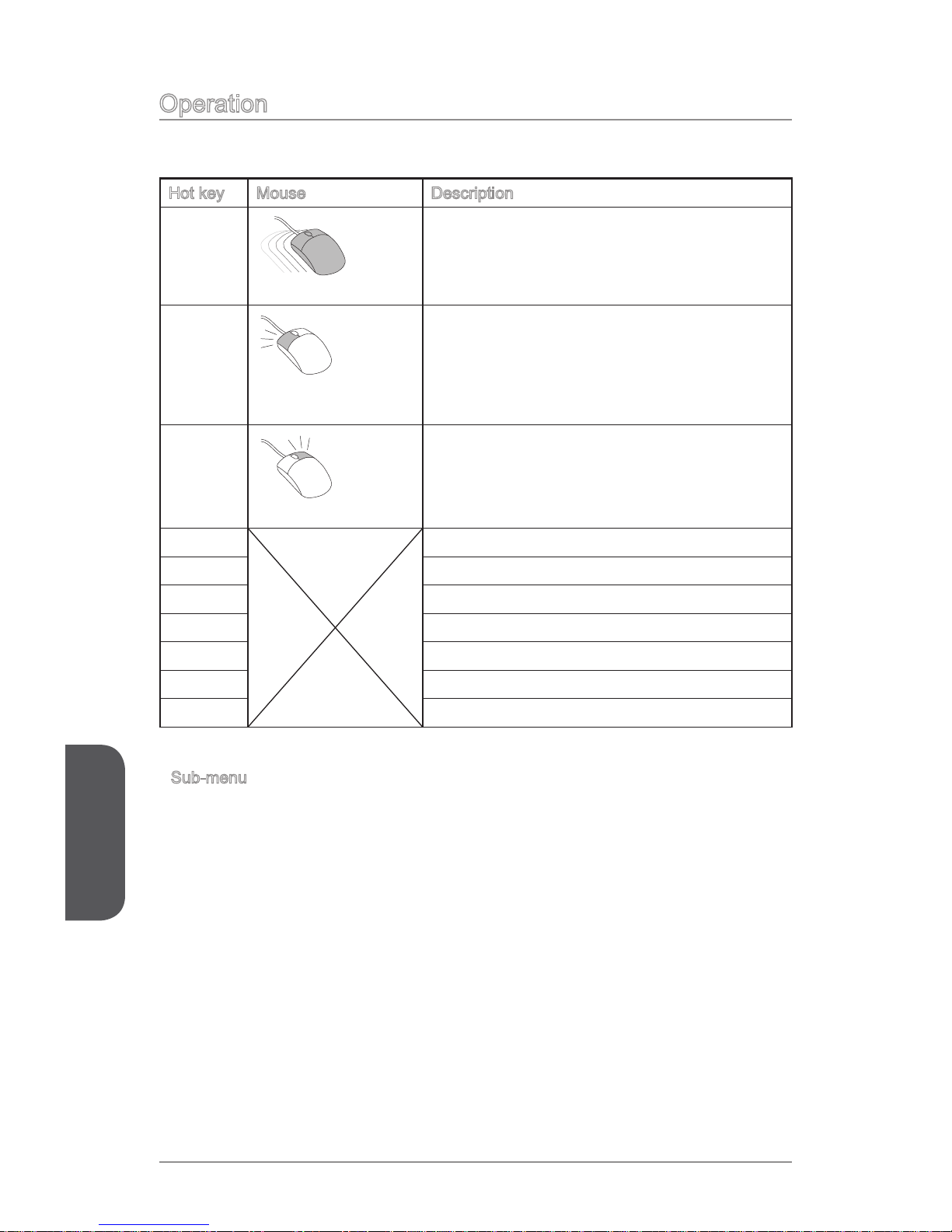

Operation .............................................................................................................3-4

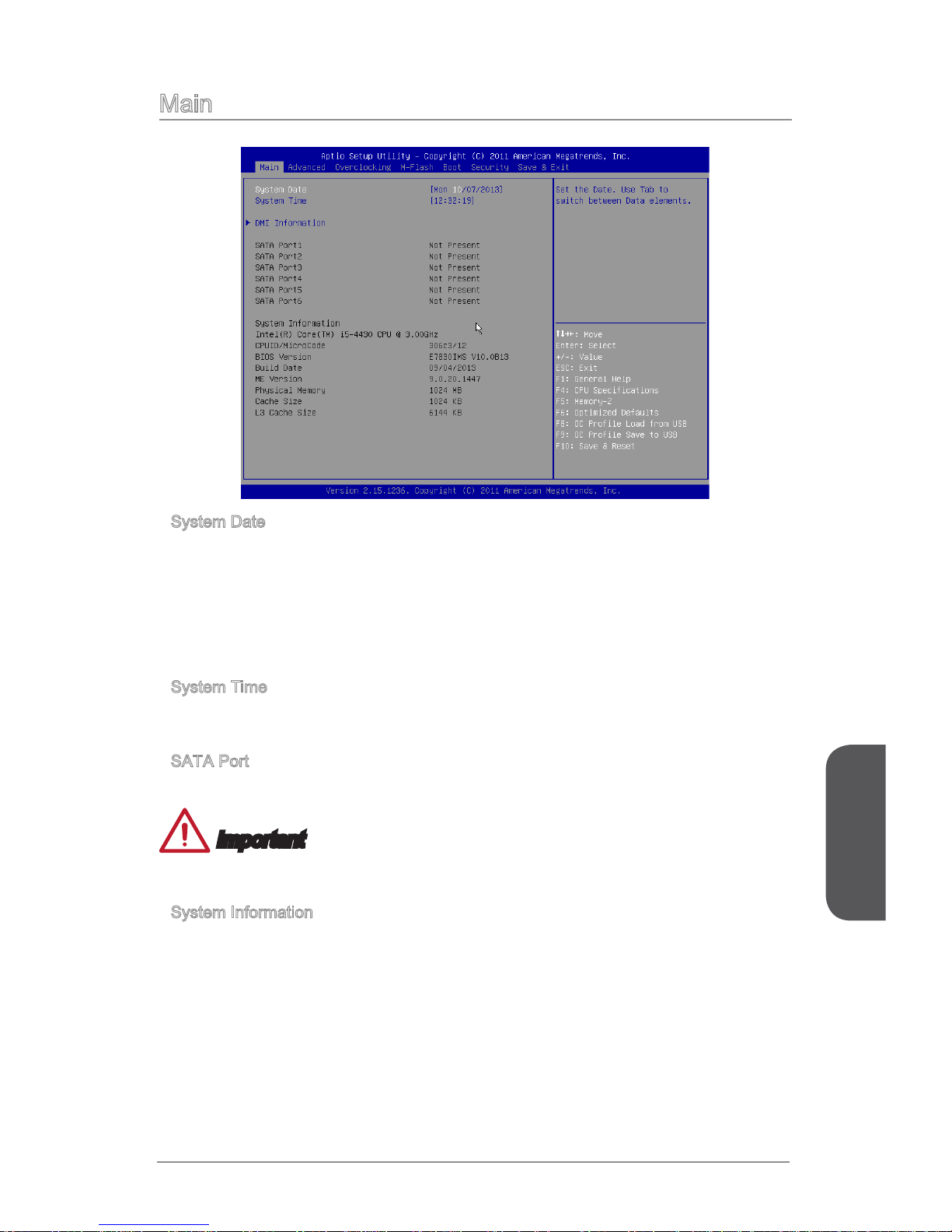

Main ..................................................................................................................... 3-5

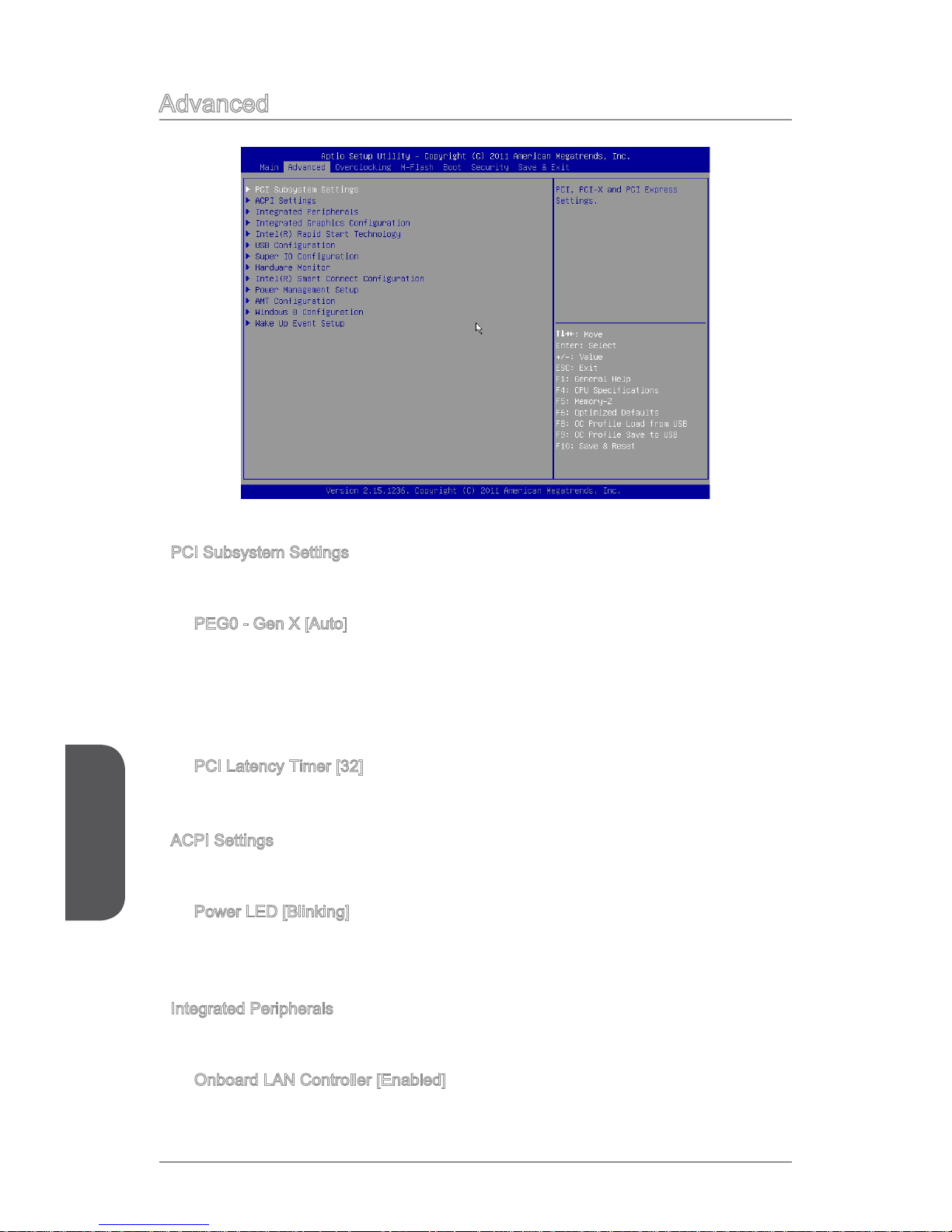

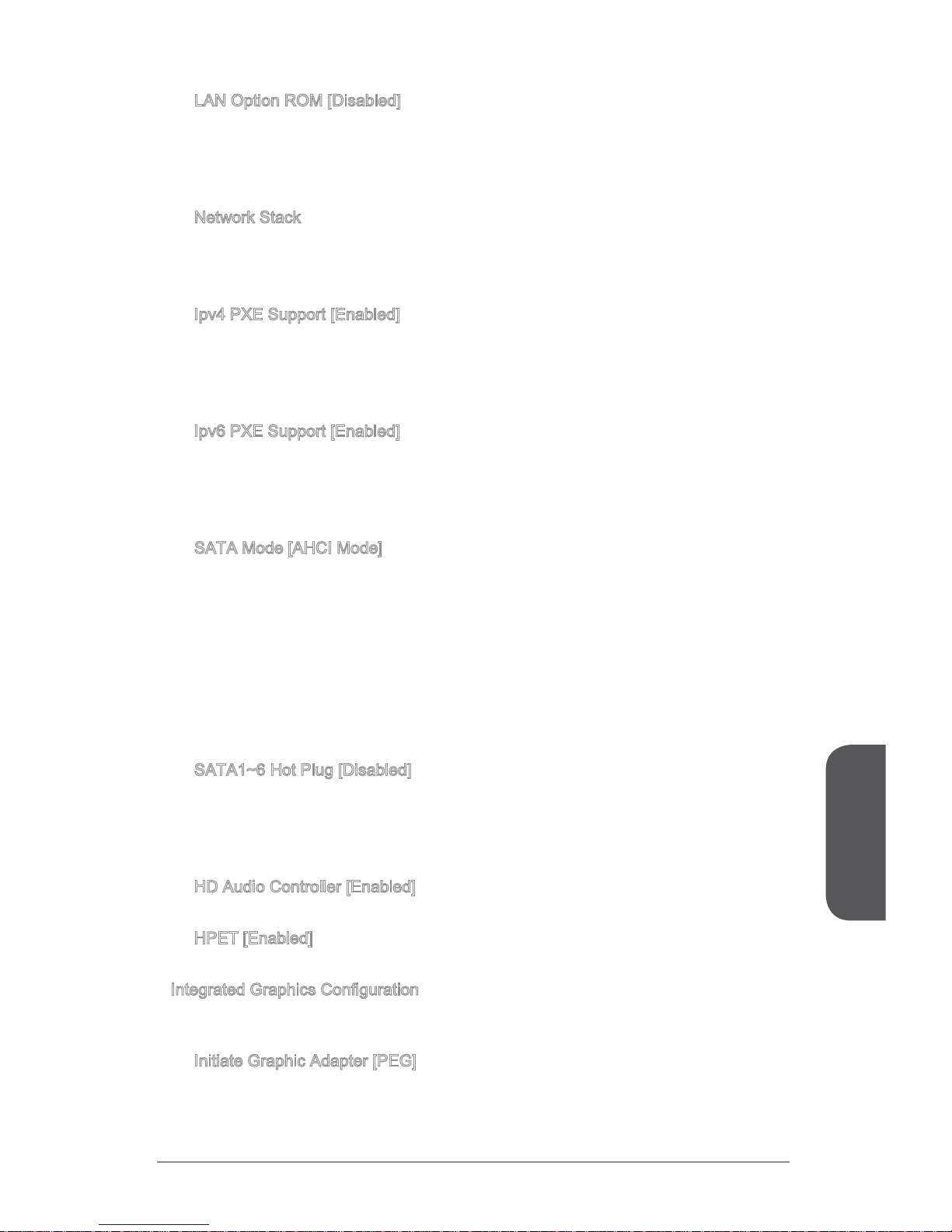

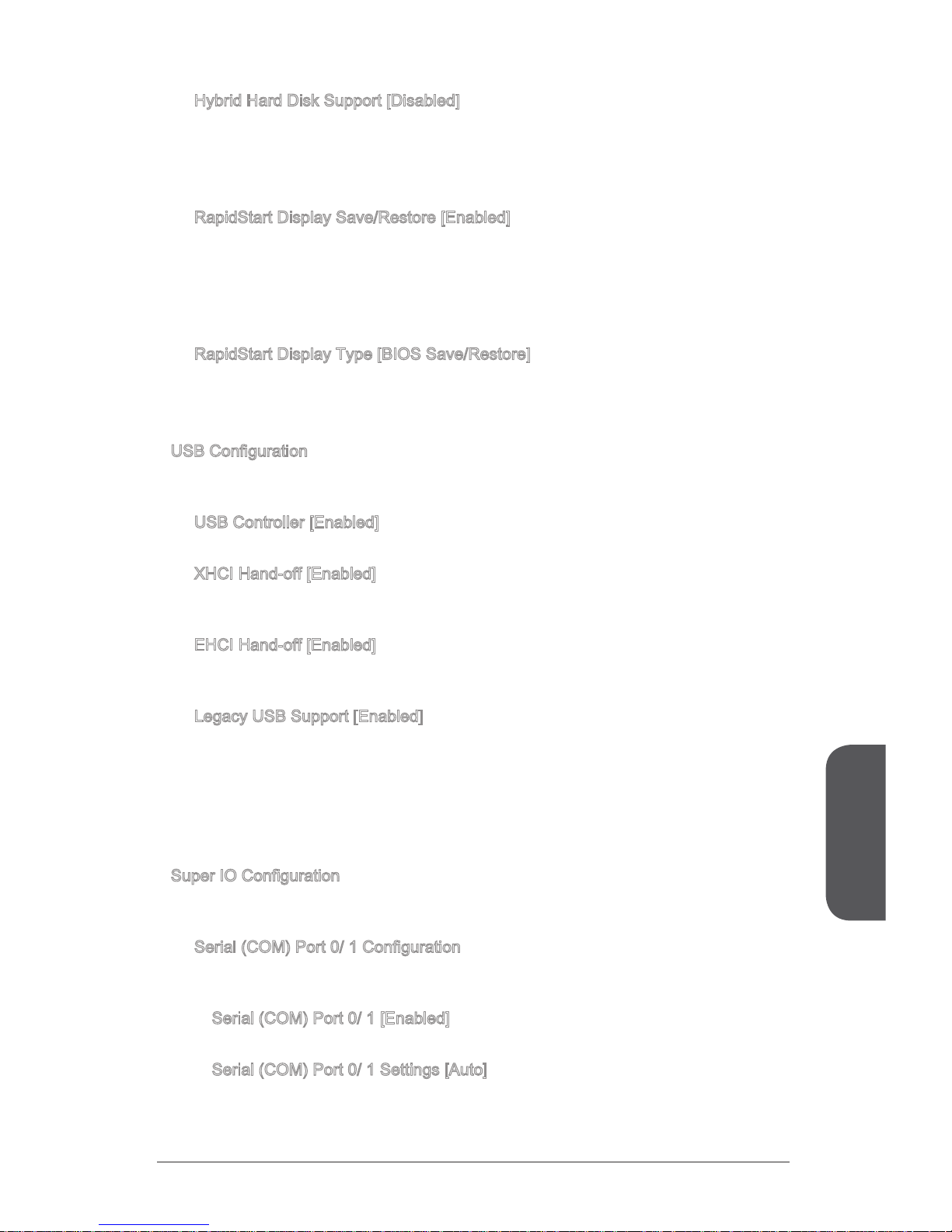

Advanced .............................................................................................................3-6

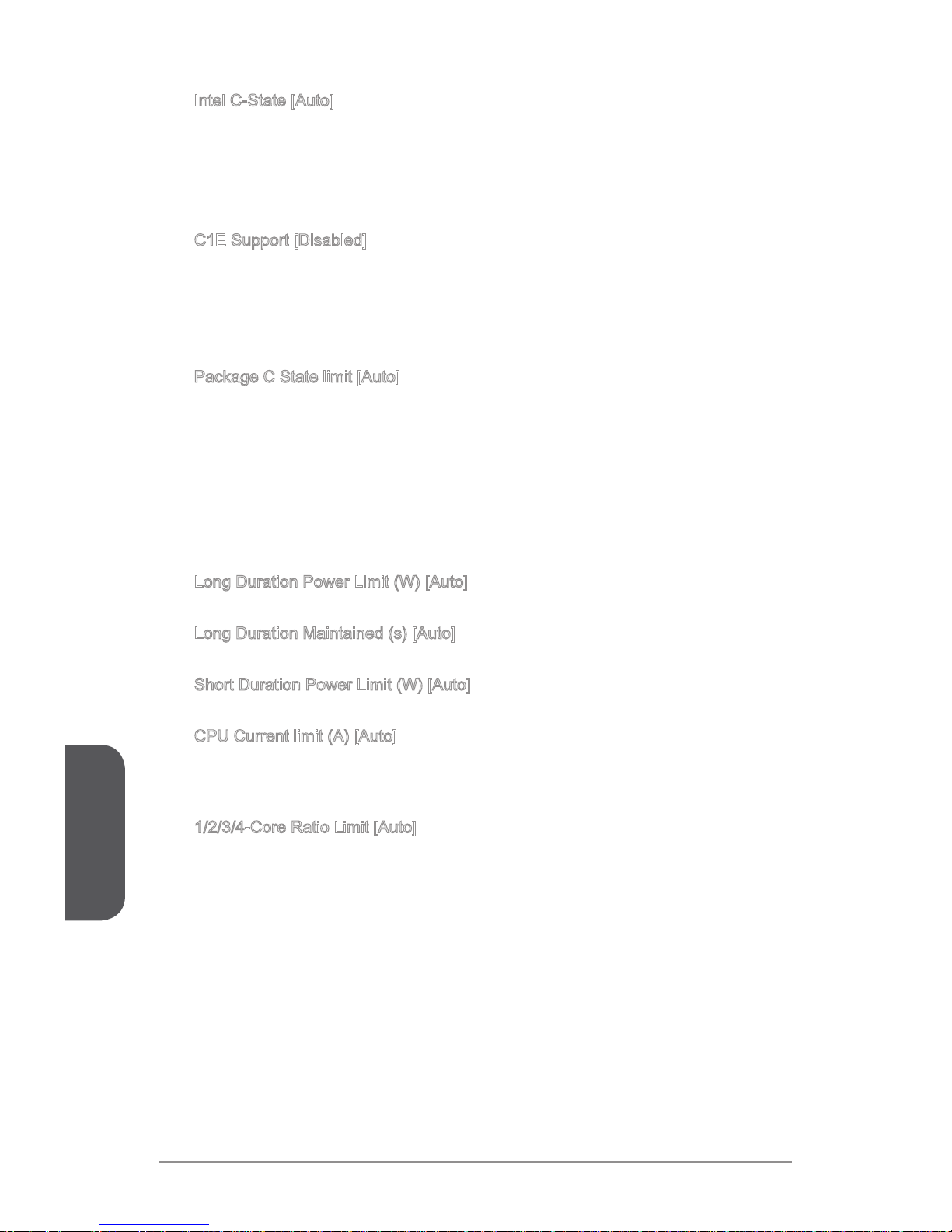

Overclocking ......................................................................................................3-15

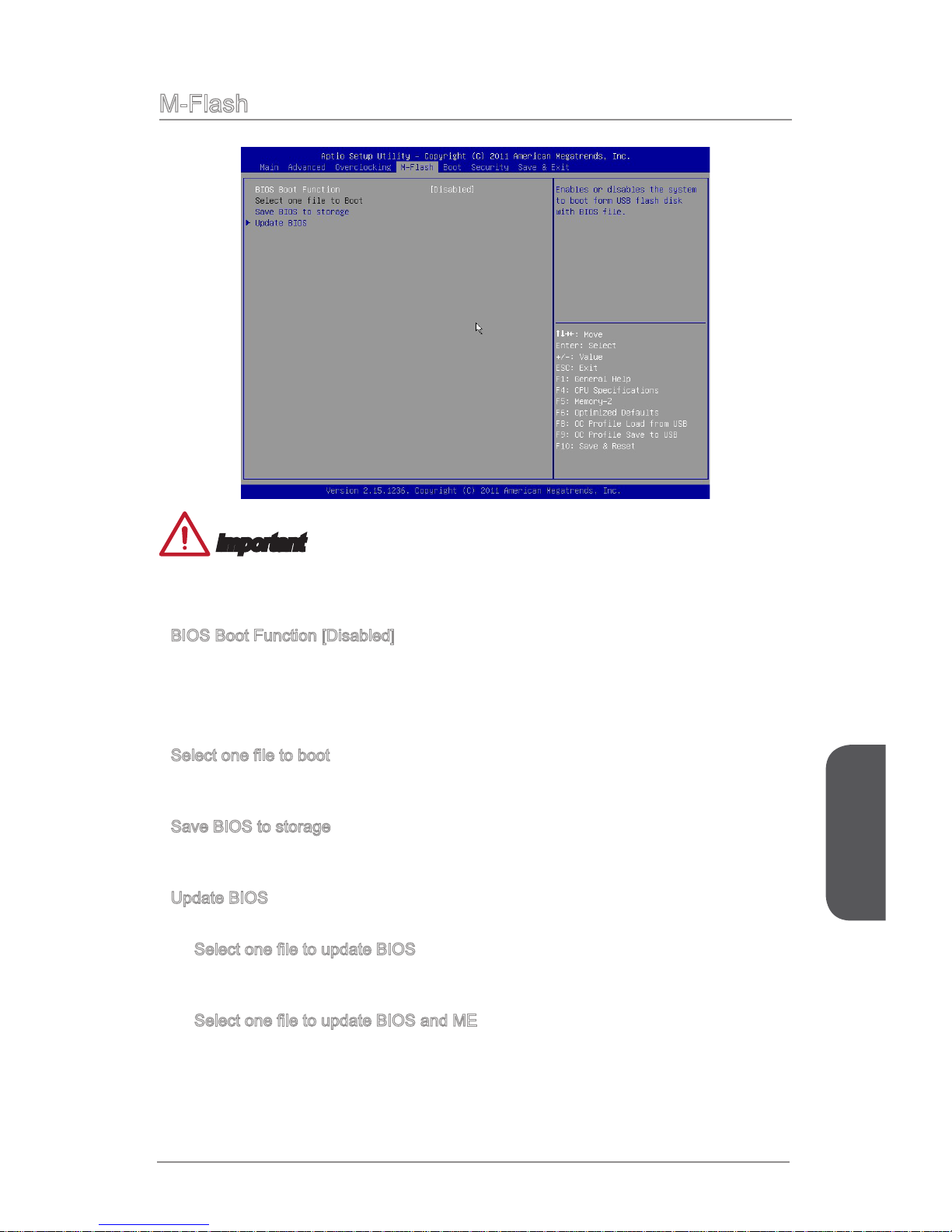

M-Flash ..............................................................................................................3-21
Preface
xiii Preface

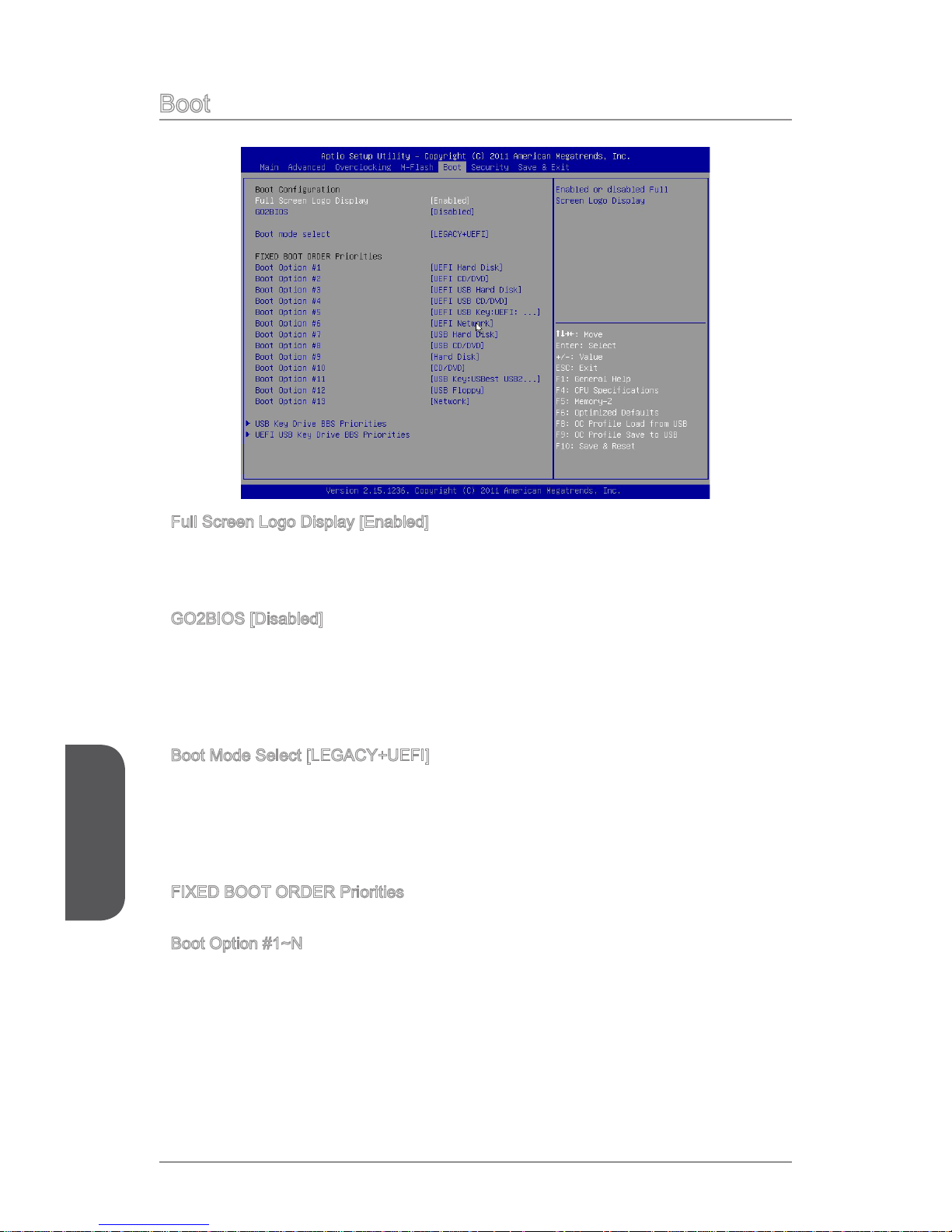

Boot .................................................................................................................... 3-22

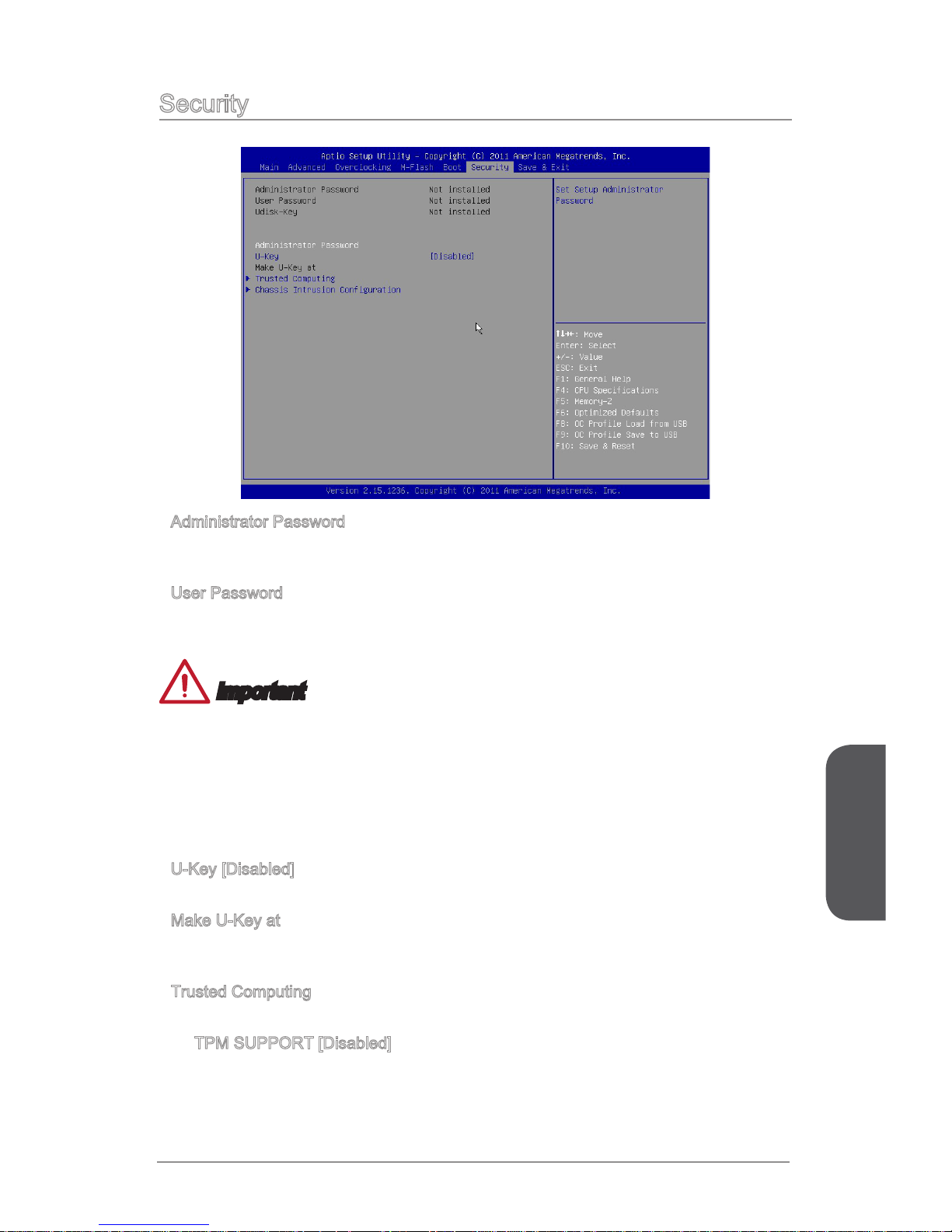

Security ..............................................................................................................3-23

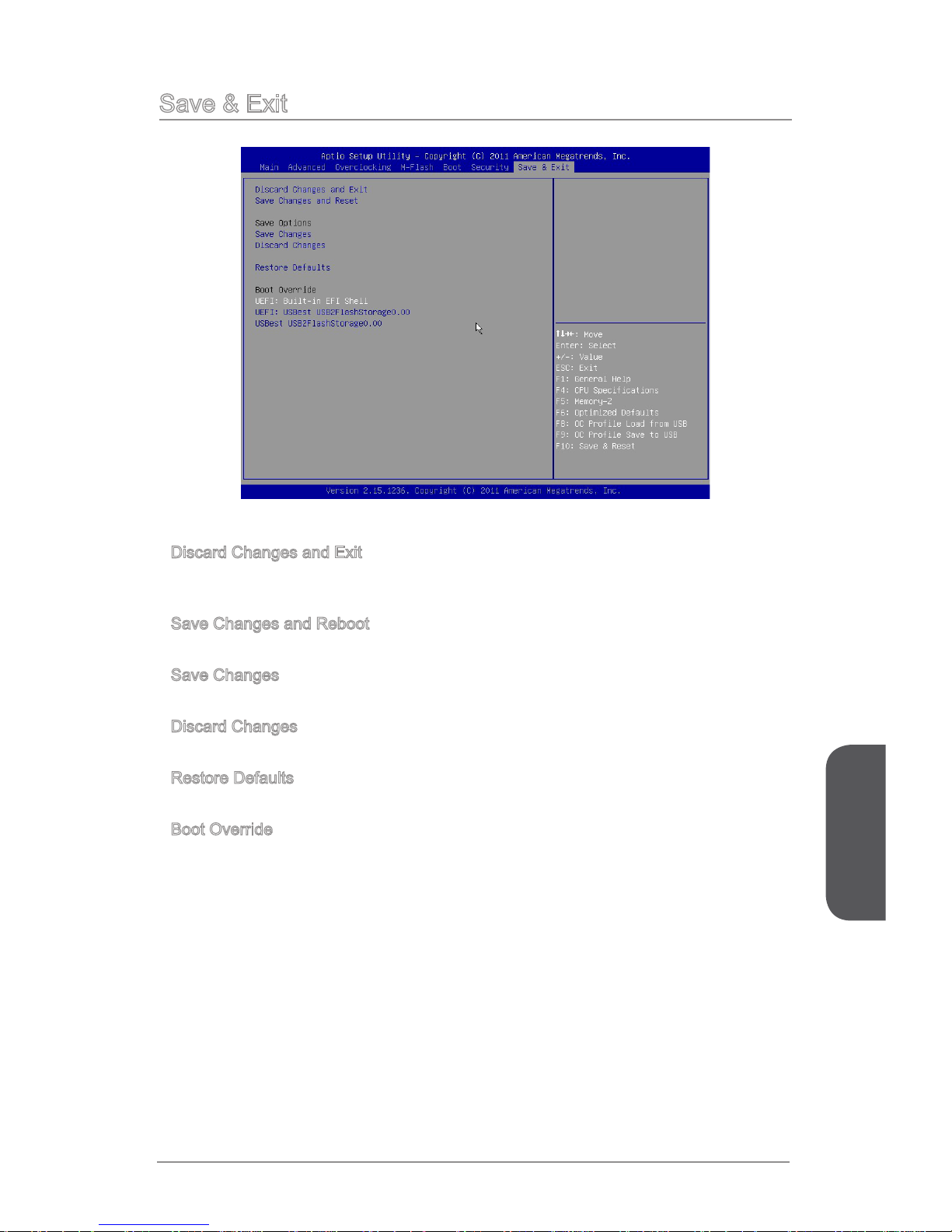

Save & Exit .........................................................................................................3-25

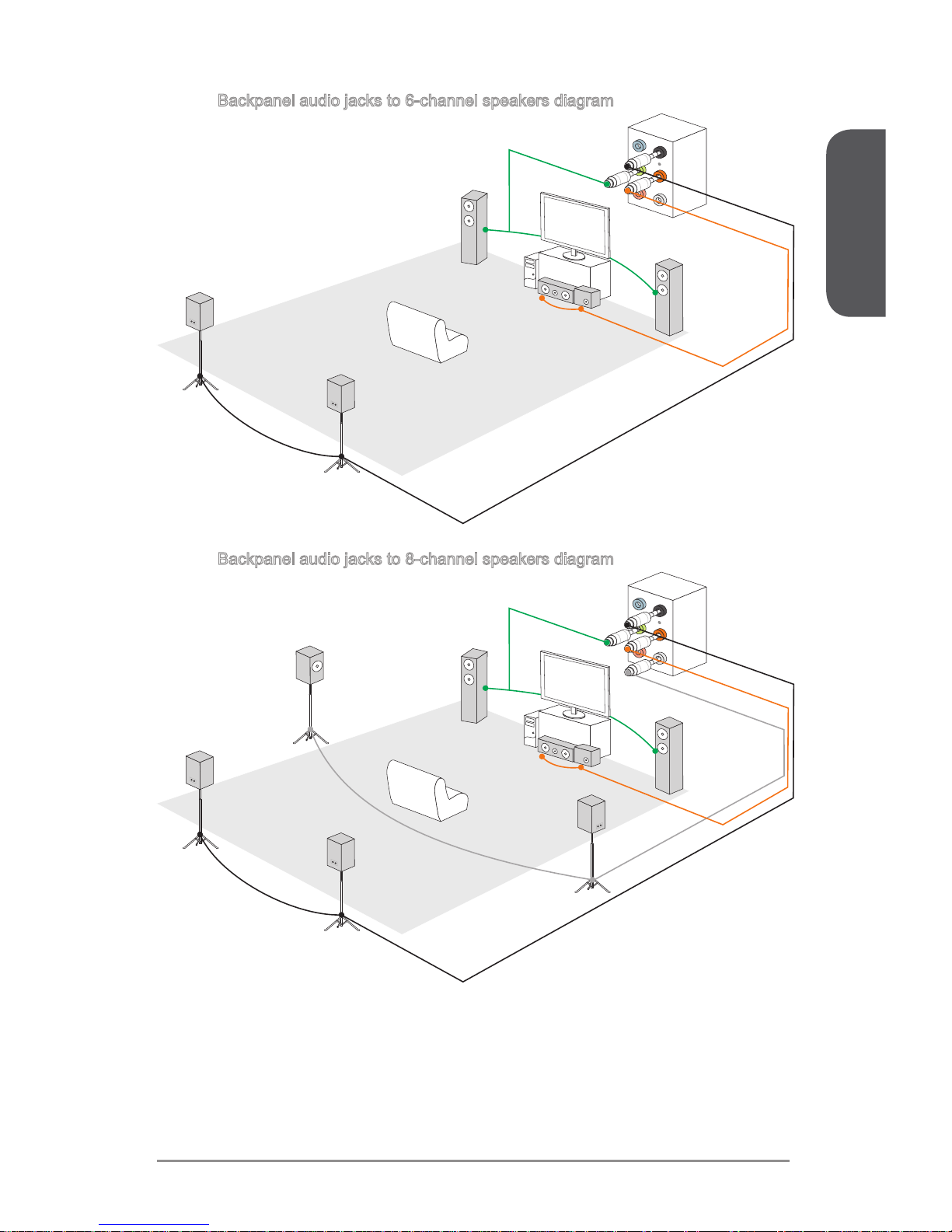

Appendix A Realtek Audio .......................................................................... A-1

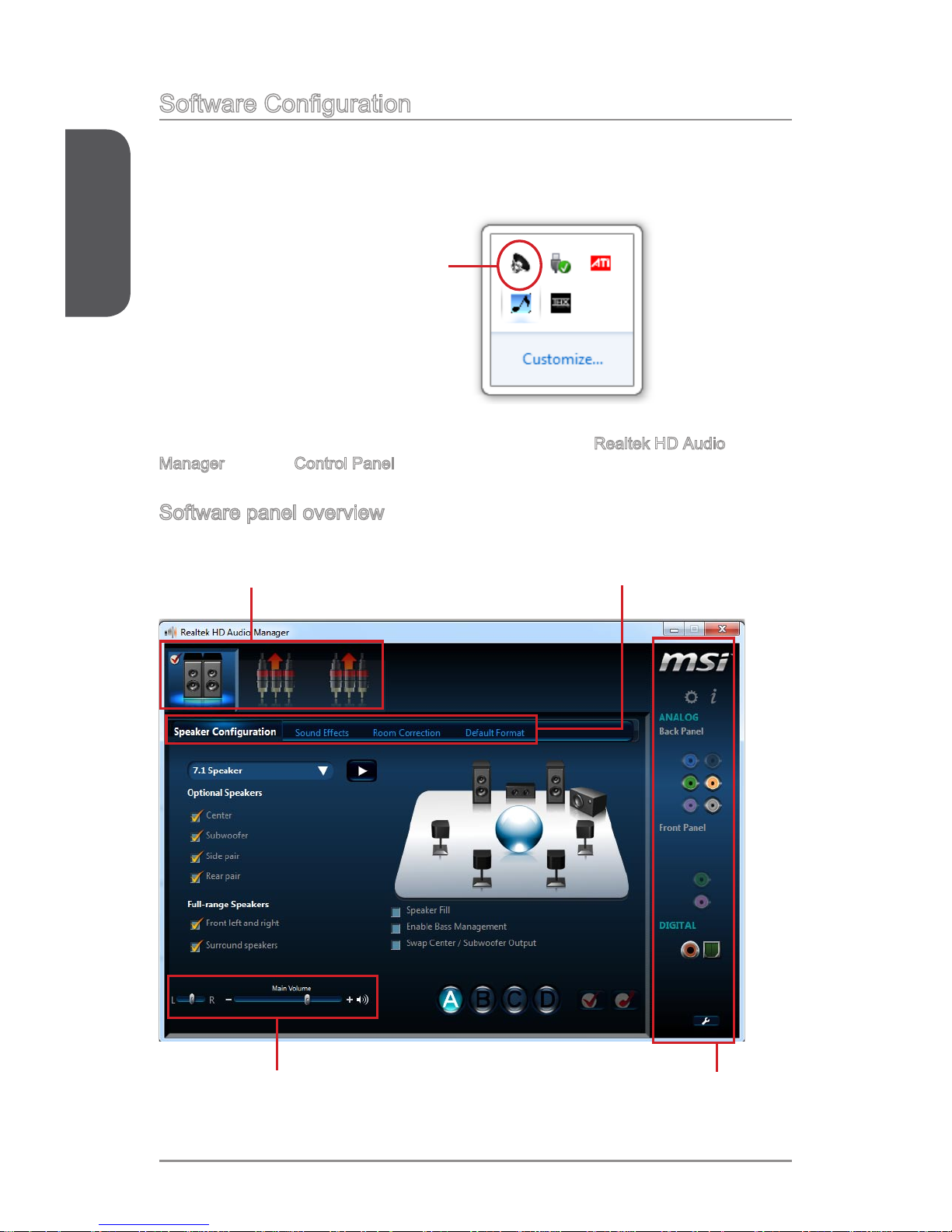

Software Conguration .........................................................................................A-2
Software panel overview ................................................................................A-2

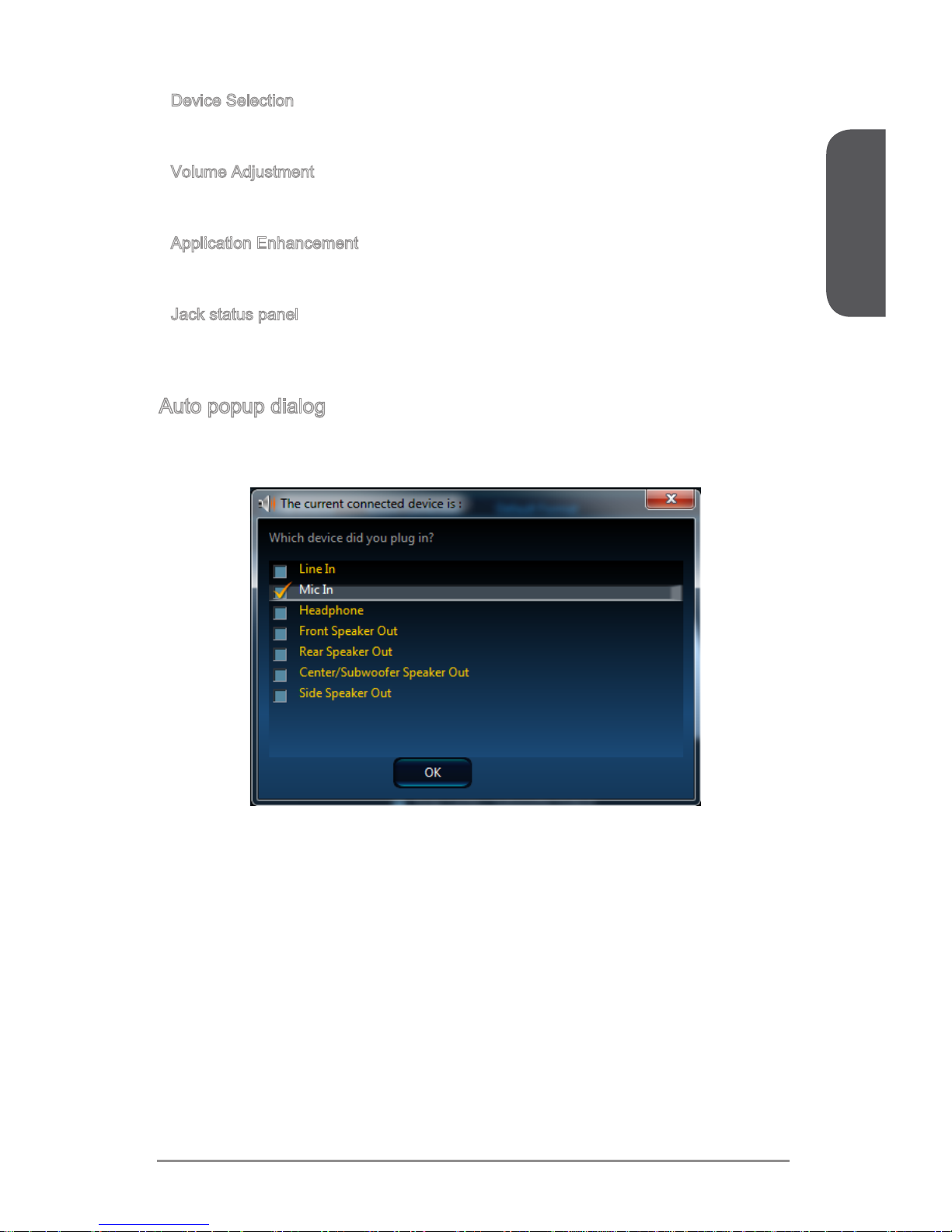

Auto popup dialog ..........................................................................................A-3

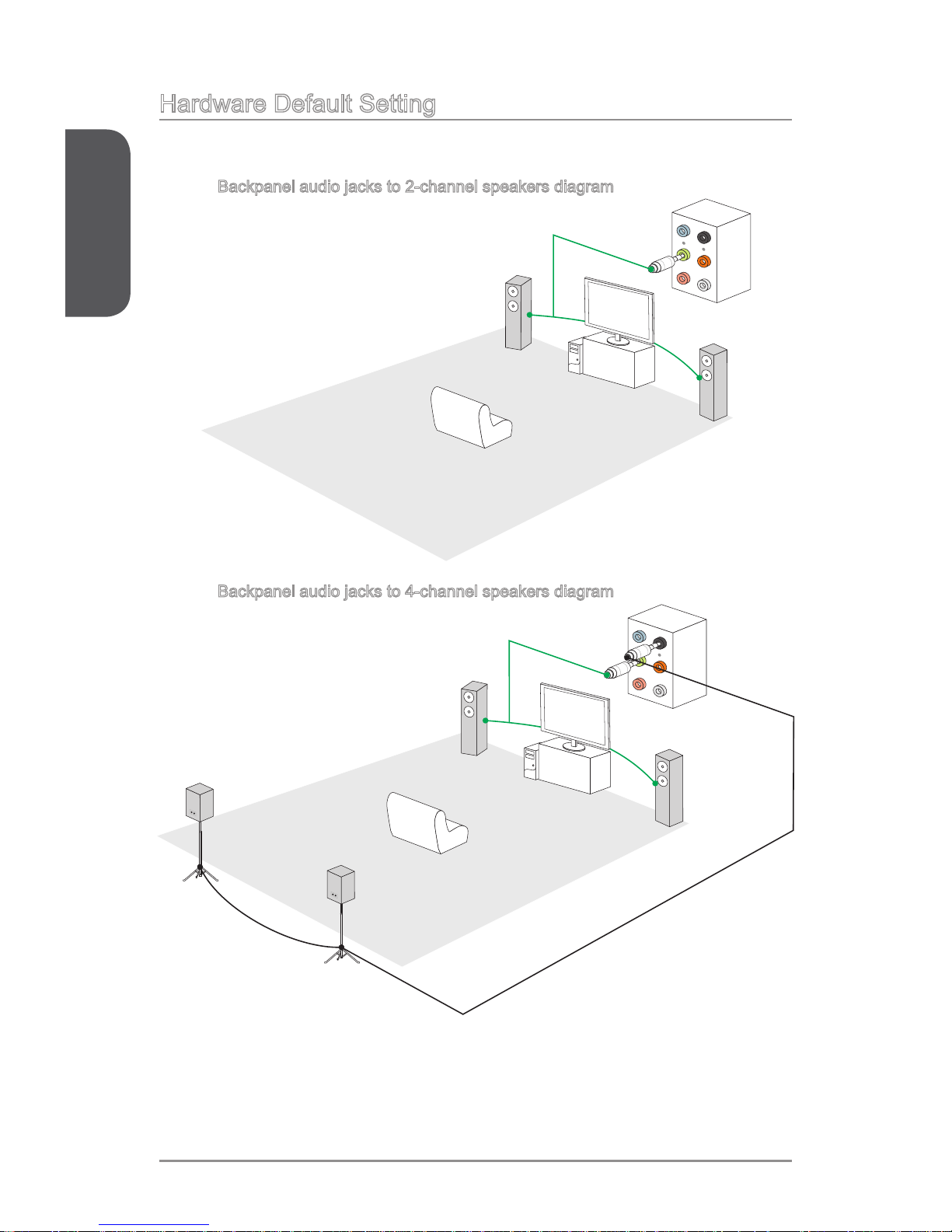

Hardware Default Setting .....................................................................................A-4
Appendix B Intel RAID ............................................................................... B-1
Introduction ..........................................................................................................B-2

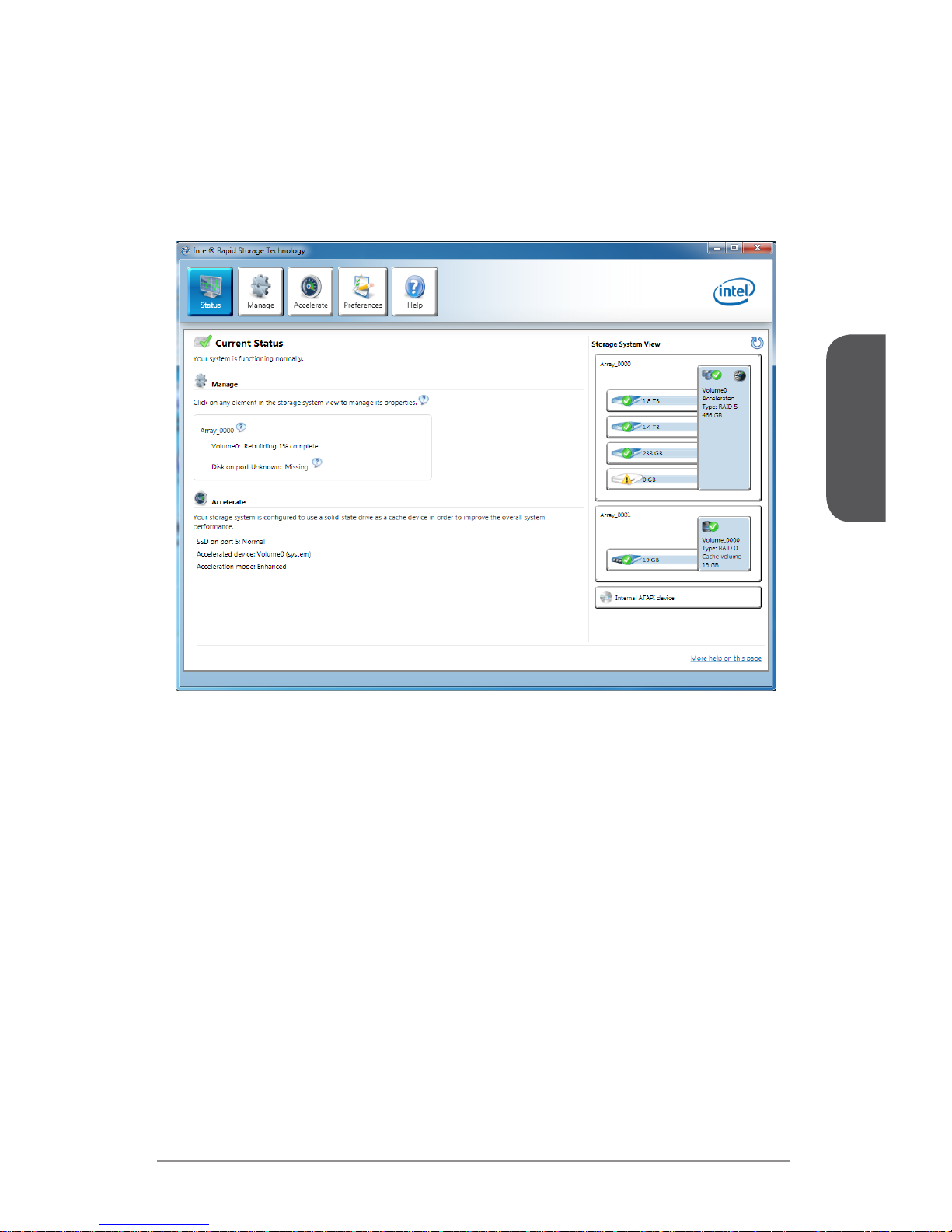

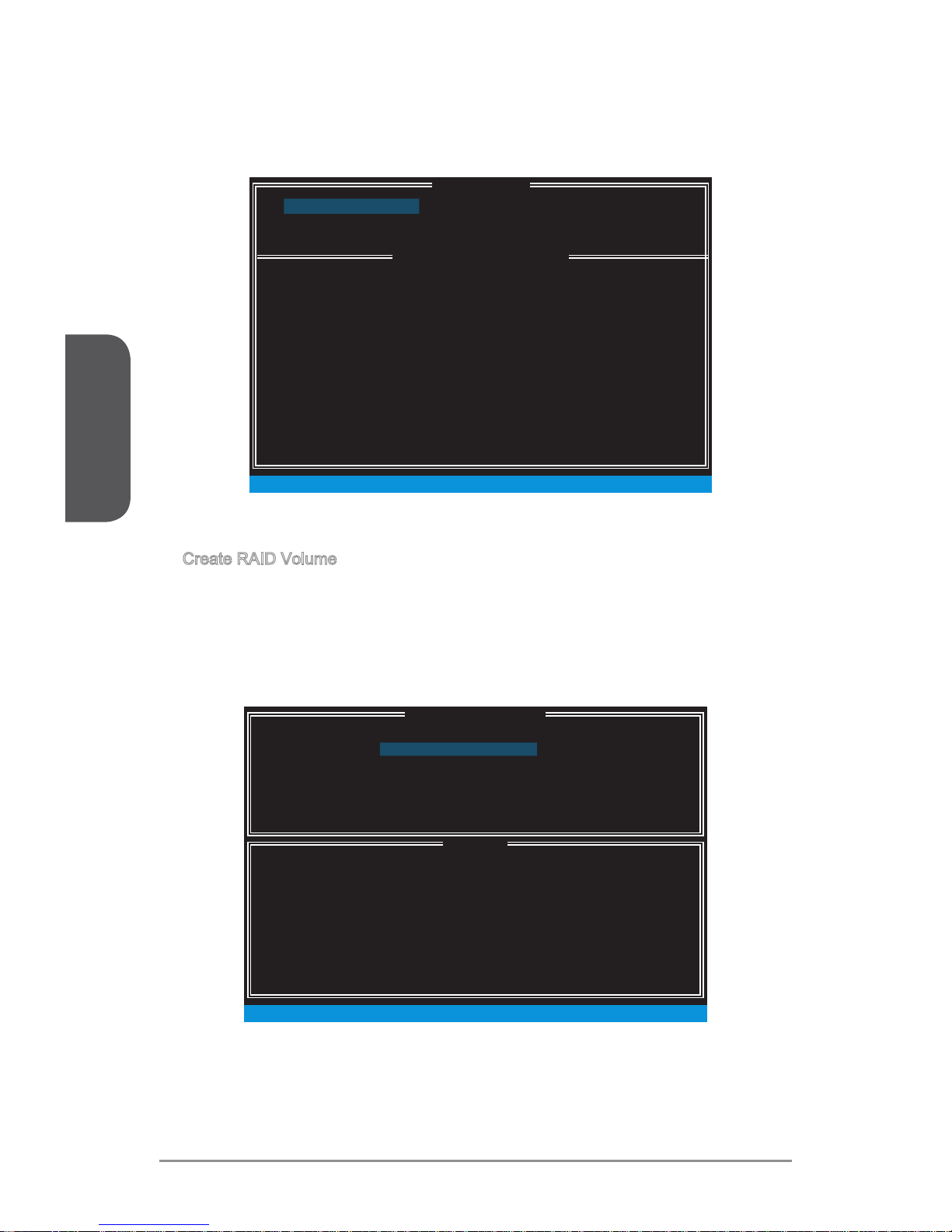

Using Intel Rapid Storage Technology Option ROM............................................B-3

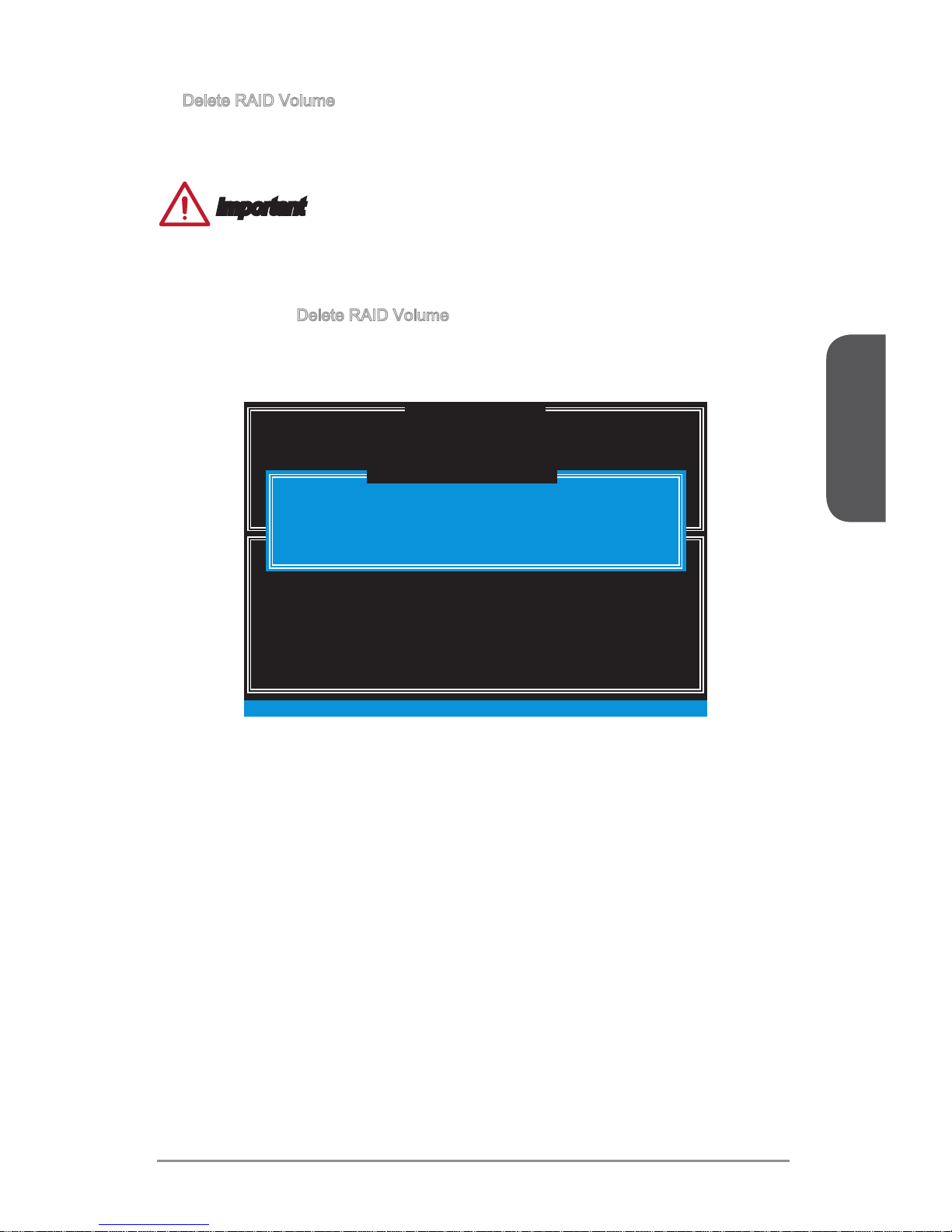

Degraded RAID Array ........................................................................................B-10

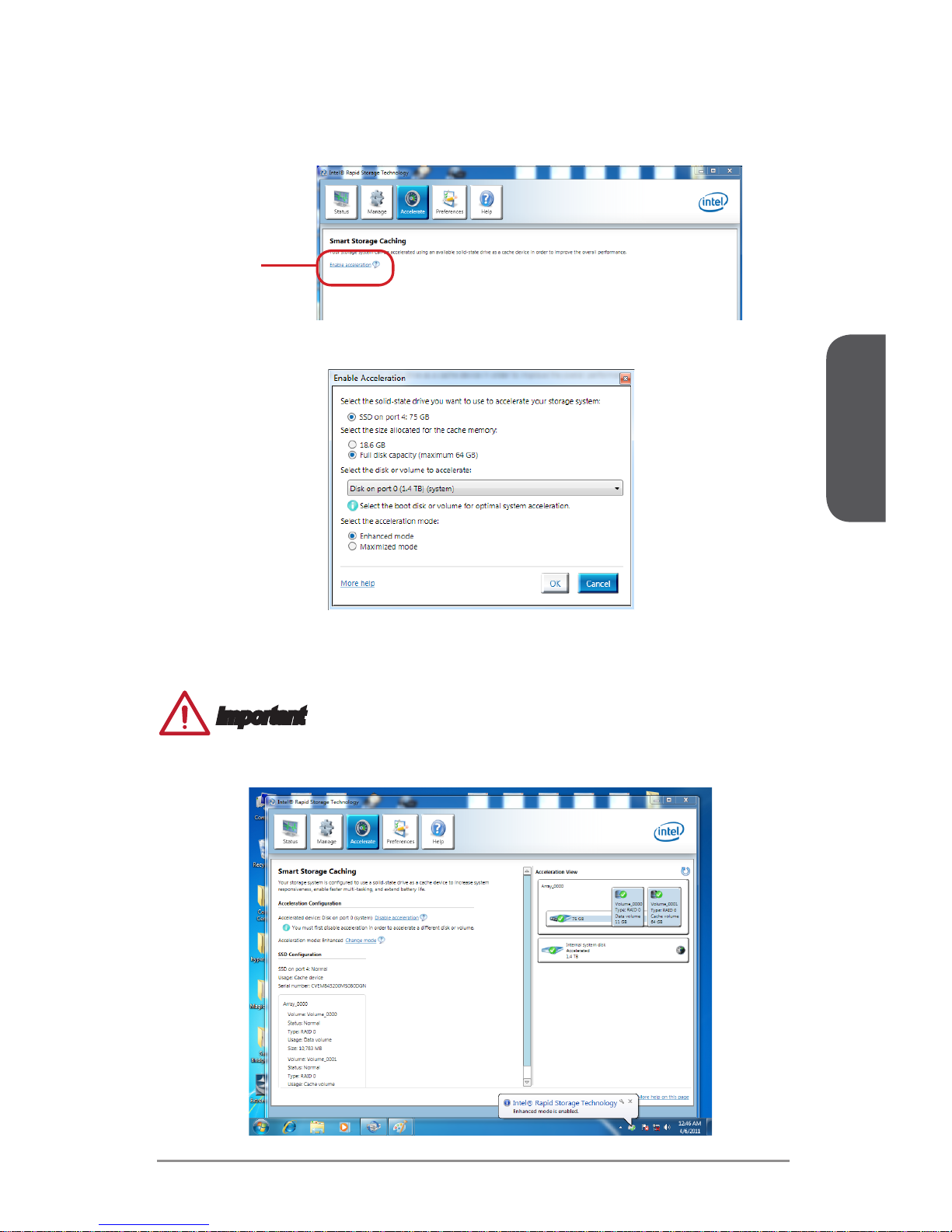

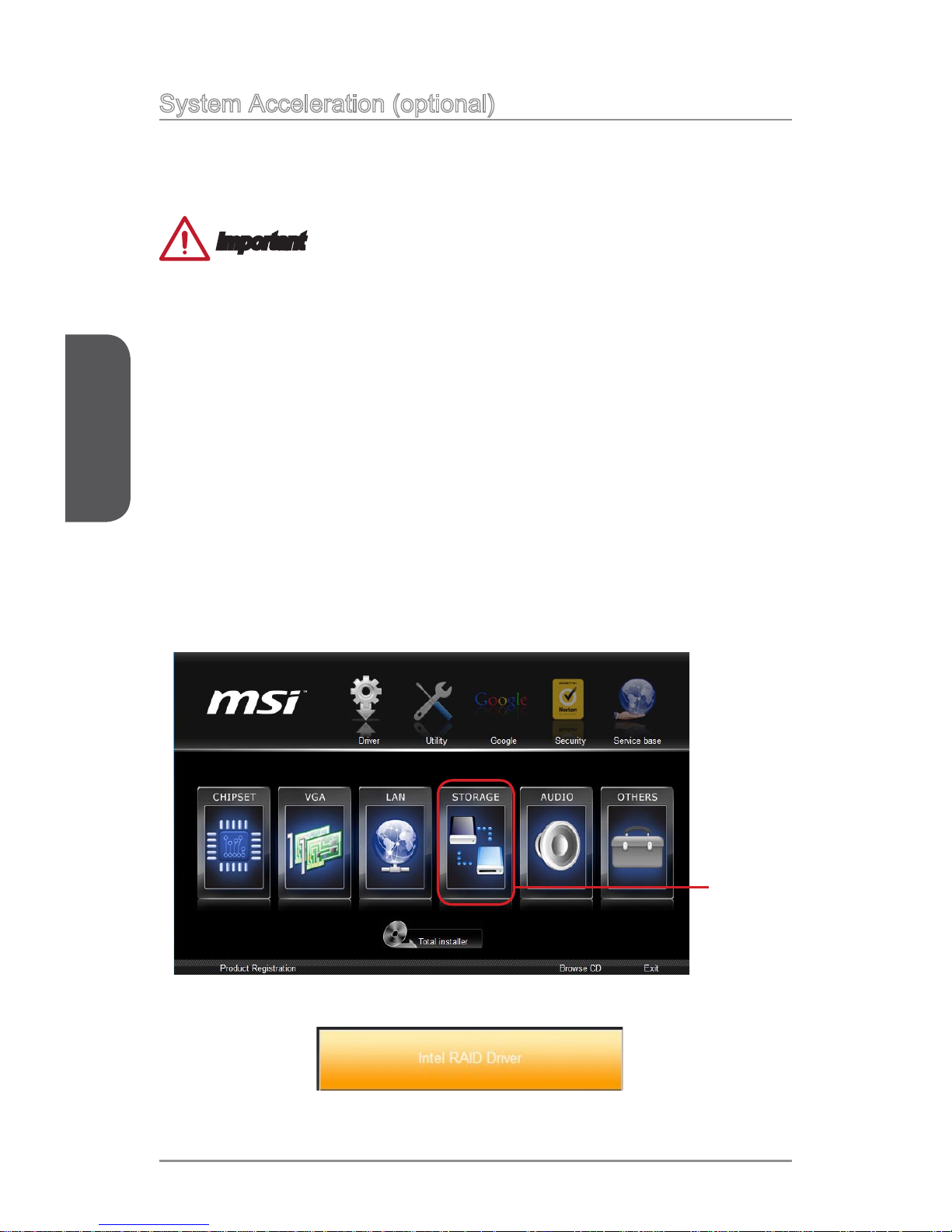

System Acceleration ..........................................................................................B-12
RST Synchronization .........................................................................................B-14
Appendix C Intel SBA ................................................................................. C-1
Prerequisites ....................................................................................................... C-2
Installing Intel SBA .............................................................................................. C-3
Software Conguration ........................................................................................ C-3
Software panel overview ............................................................................... C-3
Password settings ......................................................................................... C-4
Help Button ......................................................................................................... C-4
Chapter 1
Getting Started
Thank you for choosing the CSM-Q87M-E43 Series (MS-7830 v2.X)
Micro-ATX motherboard. The CSM-Q87M-E43 Series motherboards are
based on Intel® Q87 chipset for optimal system eciency. Designed to
t the advanced Intel® LGA1150 processor, the CSM-Q87M-E43 Series
motherboards deliver a high performance and professional desktop
platform solution.
Chapter 1
1-2Getting Started
Packing Contents
* These pictures are for reference only and may vary without notice.
* The packing contents may vary according to the model you purchased.
* If you need to purchase the optional accessories or request part numbers, please
visit the MSI website at http://www.msi.com/index.php or consult the dealer.
SATA Cable
Optional Accessories
M-Connector
Drivers & Utilities
Disc
Motherboard
User Guide
I/O Shield
Motherboard
Software & Application
User Guide
USB 3.0 Bracket
Chapter 1
1-3 Getting Started
Assembly Precautions
The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
Always turn o the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
Hold the motherboard by the edges to avoid touching sensitive components.
It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
Store the motherboard in an electrostatic shielding container or on an antistatic pad
whenever the motherboard is not installed.
Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
Do not use the computer in a high-temperature environment.
Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
If you need help during any installation step, please consult a certied computer
technician.
Important
A screwdriver (not included) may be required for computer assembly.
■
■
■
■
■
■
■
■
■
■
Chapter 1
1-4Getting Started
Motherboard Specications
CPU
Support
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® /
Celeron® processors for LGA 1150 socket
■
Chipset Intel® Q87 Express Chipset
Supports Intel® Small Business Adcantage
Supports Intel® vProTM Technology
■
-
-
Memory
Support
4x DDR3 memory slots supporting up to 32GB
Supports DDR3 1600/ 1333/ 1066 MHz
Dual channel memory architecture
Supports non-ECC, un-buered memory
Supports Intel® Extreme Memory Prole (XMP)
■
■
■
■
■
Expansion
Slots
1x PCIe 3.0 x16 slot
2x PCIe 2.0 x1 slots
1x PCI slot
■
■
■
Onboard
Graphics
1x HDMI port, supporting the maximum resolutions of
4096x2160@24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/
1920x1080@60Hz, 36bpp
1x DisplayPort, supporting the maximum resolutions of
4096x2160@24Hz, 24bpp/ 3840x2160@60Hz, 24bpp
1x VGA port, supporting a maximum resolution of 1920x1200 @
60Hz
1x DVI-D port, supporting a maximum resolution of 1920x1200 @
60Hz
■
■
■
■
Storage Intel® Q87 Express Chipset
6x SATA 6Gb/s ports
Supports RAID 0, RAID1, RAID 5 and RAID 10
Supports Intel® Smart Response Technology, Intel® Rapid Start
Technology and Intel® Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8.
■
-
-
-
USB Intel Q87 Express Chipset
4x USB 3.0 ports (2 ports on the back panel, 2 ports available
through the internal USB 3.0 connector)
8x USB 2.0 ports (4 ports on the back panel, 4 ports available
through the internal USB connectors)
■
-
-
Audio Realtek® ALC887 Codec
7.1-Channel High Denition Audio
■
LAN Intel® i217LM Gigabit LAN controller■
Back Panel
Connectors
1x PS/2 keyboard port
1x PS/2 mouse combo port
4x USB 2.0 ports
1x Optical S/PDIF-Out connector
1x HDMI port
1x DisplayPort
1x LAN (RJ45) port
2x USB 3.0 ports
1x VGA port
1x DVI-D port
6x audio jacks
■
■
■
■
■
■
■
■
■
■
■
Chapter 1
1-5 Getting Started
Internal
Connectors
1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Clear CMOS jumper
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
2x Serial port connectors
1x Parallel port connector
1x Chassis Intrusion connector
■
■
■
■
■
■
■
■
■
■
■
■
■
■
I/O
Controller
NUVOTON NCT6779 Controller Chip■
Hardware
Monitor
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
■
■
■
BIOS
Features
1x 128 Mb ash
UEFI AMI BIOS
ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0
■
■
■
Special
Features
Military Class 4
OC Genie 4
CLICK BIOS 4
SBA(Small Business Advantage)
All Solid CAPs
PCI Express Gen 3
USB 3.0
SATA 6Gb/s
HDMI
DisplayPort
Super RAID
Command Center
Live Update
M-Flash
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Software Drivers
MSI
Command Center
Super Charger
Super RAID
Live Update 5
Fast Boot
7-ZIP
Intel Turbo Boost Monitor
Intel Extreme Tuning Utility
Intel Small Business Advantage
Norton Internet Security Solution
Trend Micro SafeSync
■
■
-
-
-
-
-
■
■
■
■
■
■
Form
Factor
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
■
■
Chapter 1
1-6Getting Started
Connectors Quick Guide
CPUFAN
JFP1
JAUD1
JCI1
PCI_E1
PCI_E2
PCI_E3
JFP2
PCI1
JPWR1
JTPM1
SATA1
SATA4
SATA5_6
JPWR2
CPU Socket
Back
Panel
JLPT1
JUSB1
JUSB2
DIMM4
DIMM3
DIMM2
DIMM1
JUSB3
SYSFAN2
JBAT1
JCOM1
JCOM2
SATA2
SATA3
SYSFAN1
Chapter 1
1-7 Getting Started
For the latest information about CPU, please visit
http://www.msi.com/service/cpu-support/
For more information on compatible components, please visit
http://www.msi.com/service/test-report/
Connectors Reference Guide
Port Name Port Type Page
Back Panel 1-8
CPU Socket LGA1150 CPU Socket 1-1
1
CPUFAN,SYSFAN1~2 Fan Power Connectors 1-2
0
DIMM1~4 DDR3 Memory Slots 1-1
4
JAUD1 Front Panel Audio Connector 1-2
3
JBAT1
Clear CMOS Jumper 1-25
JCI1 Chassis Intrusion Connector 1-2
3
JCOM1~2 Serial Port Connectors 1-2
5
JFP1, JFP2 System Panel Connectors 1-2
1
JLPT1 Parallel Port Connector 1-2
4
JPWR1~2 ATX Power Connectors 1-1
6
JTPM1 TPM Module Connector 1-2
4
JUSB1~2 USB 2.0 Expansion Connector 1-2
2
JUSB3 USB 3.0 Expansion Connector 1-2
2
PCI_E1 PCIe x16 Expansion Slot 1-1
7
PCI_E2, PCI_E3 PCIe x1 Expansion Slots 1-1
7
PCI1 PCI Expansion Slot 1-1
7
SATA1~6 SATA Connectors 1-1
9
Chapter 1
1-8Getting Started
Back Panel Quick Guide
PS/2 Keyboard/Mouse Port
The PS/2® mouse/keyboard DIN connectors for a PS/2® mouse/keyboard.
USB 2.0 Port
The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other
USB 2.0-compatible devices.
Optical S/PDIF-Out
This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical ber cable.
HDMI Port
®
The High-Denition Multimedia Interface (HDMI) is an all-digital audio-video interface
that is capable of transmitting uncompressed streams. HDMI supports all types of TV
formats, including standard, enhanced, or high-denition video, plus multi-channel
digital audio on a single cable.
DisplayPort
DisplayPort is a digital display interface standard. This connector is used to connect a
monitor with DisplayPort inputs.
LAN Port
The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN).
LINK/ACT
LED
SPEED
LED
LED LED Status Description
Link/ Activity LED
O No link
Yellow Linked
Blinking Data activity
Speed LED
O 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
▶
▶
▶
▶
▶
▶
Line-In
Line-Out
Mic
RS-Out
CS-Out
SS-Out
USB 3.0 Port
LAN Port
PS/2 Mouse
Port
USB 2.0 Port
DVI-D Port
HDMI
PS/2 Keyboard
Port
VGA Port
Optical
S/PDIF-Out
DisplayPort
Chapter 1
1-9 Getting Started
USB 3.0 Port
USB 3.0 port is backward-compatible with USB 2.0 devices. It supports data transfer
rate up to 5 Gbit/s (SuperSpeed).
Important
In order to use USB 3.0 devices, you must connect to a USB 3.0 port. If a USB cable
is used, it must be USB 3.0 compliant.
VGA Port
The DB15-pin female connector is provided for monitor.
DVI-D Port
The DVI-D (Digital Visual Interface- Digital) connector can be connected to a LCD
monitor, or a CRT monitor with an adapter. To connect a monitor, please refer to the
monitor’s manual for more information.
Important
This platform supports dual-display and triple-display function.
Extend mode
(Extend the desktop to the second
and third monitor)
Clone mode
(Monitors have the same screen)
HDMI + DisplayPort ◯ ◯
HDMI + VGA ◯ ◯
HDMI + DVI-D ◯ ◯
DisplayPort + VGA ◯ ◯
DisplayPort + DVI-D ◯ ◯
VGA + DVI-D ◯ ◯
HDMI+ DisplayPort + VGA ◯ ◯
HDMI+ DisplayPort + DVI-D ◯ ◯
HDMI + VGA + DVI-D ◯ ◯
DisplayPort + VGA + DVI-D ◯ ◯
Audio Ports
These connectors are used for audio devices. The color of the jack refers to the
function of the connector.
Blue-Line in: Used for connecting external audio outputting devices.
Green- Line out: Used as a connector for front speakers sound line out in 2/ 4/
5.1/ 7.1 channel mode or for headphone.
Pink- Mic: Used as a connector for a microphone.
Black- RS-Out: Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.
Orange- CS-Out: Center/ subwoofer line out in 5.1/ 7.1 channel mode.
Gray- SS-Out: Side surround sound line out in 7.1 channel mode.
▶
▶
▶
▶
■
■
■
■
■
■
Chapter 1
1-10Getting Started
CPU (Central Processing Unit)
Important
Overheating
Overheating can seriously damage the CPU and motherboard. Always make sure the
cooling fans work properly to protect the CPU from overheating. Be sure to apply an
even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.
Replacing the CPU
When replacing the CPU, always turn o the system’s power supply and unplug the
power supply’s power cord to ensure the safety of the CPU.
Overclocking
This motherboard is designed to support overclocking. Before attempting to overclock,
please make sure that all other system components can tolerate overclocking. Any
attempt to operate beyond product specications is not recommend. MSI does not
guarantee the damages or risks caused by inadequate operation beyond product
specications.
Introduction to the LGA 1150 CPU
The surface of the LGA 1150 CPU has two notches and a golden triangle to
assist in correctly lining up the CPU for motherboard placement. The golden
triangle is the Pin 1 indicator.
Notch
Golden triangle is the Pin 1 indicator
Notch
Chapter 1
1-11 Getting Started
CPU & Heatsink Installation
When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability. Follow the steps
below to ensure correct CPU and heatsink installation. Wrong installation can damage
both the CPU and the motherboard.
1. Push the load lever down to unclip it and lift to the fully open position.
2. The load plate will automatically lift up as the load lever is pushed to the fully open
position.
Retention tab
Load lever
Load plate
Important
Do not touch the socket contacts or the bottom of the CPU.
Video Demonstration
Watch the video to learn how to install CPU & heatsink at the address
below.
http://youtu.be/bf5La099urI
Chapter 1
1-12Getting Started
3. Align the notches with the socket alignment keys. Lower the CPU straight down,
without tilting or sliding the CPU in the socket. Inspect the CPU to check if it is
properly seated in the socket.
4. Close and slide the load plate under the retention knob. Close and engage the
load lever.
Alignment Key
CPU notches
Retention knob
5. When you press down the load lever the PnP cap will automatically pop up from
the CPU socket. Do not discard the PnP cap. Always replace the PnP cap if the
CPU is removed from the socket.
6. Evenly spread a thin layer of thermal paste (or thermal tape) on the top of the
CPU. This will help in heat dissipation and prevent CPU overheating.
PnP cap
Thermal paste
Chapter 1
1-13 Getting Started
Important
Conrm that the CPU heatsink has formed a tight seal with the CPU before booting
your system.
Whenever the CPU is not installed, always protect the CPU socket pins by covering
the socket with the plastic cap.
If you purchased a separate CPU and heatsink/ cooler, Please refer to the
documentation in the heatsink/ cooler package for more details about installation.
•
•
•
7. Locate the CPU fan connector on the motherboard.
8. Place the heatsink on the motherboard with the fan’s cable facing towards the fan
connector and the fasteners matching the holes on the motherboard.
CPU fan connector
9. Push down the heatsink until the four fasteners get wedged into the holes on
the motherboard. Press the four fasteners down to fasten the heatsink. As each
fastener locks into position a click should be heard.
10. Inspect the motherboard to ensure that the fastener-ends have been properly
locked in place.
11. Finally, attach the CPU fan cable to the CPU fan connector on the motherboard.
Motherboard
Fastener-end
Chapter 1
1-14Getting Started
Memory
These DIMM slots are used for installing memory modules. For more information on
compatible components, please visit http://www.msi.com/service/test-report/
DIMM1
DIMM2
DIMM3
DIMM4
Video Demonstration
Watch the video to learn how to install memories at the address below.
http://youtu.be/76yLtJaKlCQ
Dual-Channel mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus channels simultaneously. Enabling Dual-Channel mode can enhance system
performance. The following illustrations explain the population rules for Dual-Channel
mode.
DIMM2
DIMM4
DIMM1
DIMM2
DIMM3
DIMM4
Important
DDR3 memory modules are not interchangeable with DDR2, and the DDR3
standard is not backward compatible. Always install DDR3 memory modules in
DDR3 DIMM slots.
To ensure system stability, memory modules must be of the same type and density
in Dual-Channel mode.
Due to chipset resource usage, the system will only detect up to 31+ GB of memory
(not full 32 GB) when all DIMM slots have 8GB memory modules installed.
•
•
•
Chapter 1
1-15 Getting Started
Mounting Screw Holes
When installing the motherboard, rst install the necessary mounting stands required
for an motherboard on the mounting plate in your computer case. If there is an
I/O back plate that came with the computer case, please replace it with the I/O
backplate that came with the motherboard package. The I/O backplate should snap
easily into the computer case without the need for any screws. Align the mounting
plate’s mounting stands with the screw holes on the motherboard and secure the
motherboard with the screws provided with your computer case. The locations of the
screw holes on the motherboard are shown below. For more information, please refer
to the manual that came with the computer case.
Important
Install the motherboard on a at surface free from unnecessary debris.
To prevent damage to the motherboard, any contact between the motherboard
circuitry and the computer case, except for the mounting stands, is prohibited.
Please make sure there are no loose metal components on the motherboard or
within the computer case that may cause a short circuit of the motherboard.
•
•
•
The I/O ports should be facing
toward the rear of the computer
case. They should line up with the
holes on the I/O backplate.
Chapter 1
1-16Getting Started
Power Supply
Video Demonstration
Watch the video to learn how to install power supply connectors.
http://youtu.be/gkDYyR_83I4
JPWR1~2: ATX Power Connectors
These connectors allow you to connect an ATX power supply. To connect the ATX
power supply, align the power supply cable with the connector and rmly press the
cable into the connector. If done correctly, the clip on the power cable should be
hooked on the motherboard’s power connector.
4. +1 2V
2. Gr ound
3. +1 2V
1
.G ro un d
13 .+ 3.3V
1. +3 .3
V
14 .- 12V
2. +3 .3
V
15 .G round
3
.G ro und
16 .P S-ON
#
4. +5
V
17 .G round
5
.G ro und
18 .G round
6. +5
V
19 .G round
7
.G ro und
22 .+ 5
V
10 .+ 12V
20 .R es
8. PW
R O
K
23 .+ 5
V
11
.+ 12 V
21 .+ 5
V
9. 5V SB
24 .G round
12 .+ 3.3
V
JPWR2
JPWR1
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
