Microsonic mic+25/D/TC, mic+600/D/TC, mic+35/D/TC, mic+340/D/TC, mic+25/E/TC Operating Manual

Set sensor parameters alternatively numerically using LED-display...

Product description

 The mic+sensor with one switched output

measures the distance to an object within
the detection zone contactless. Depen-
ding on the adjusted detect distance the
switched output is set.

 All settings are done with two push-but-

tons and a three-digit LED-display
(TouchControl).

 Light emitting diodes (three-colour LEDs)

indicate the switching status.

 The output functions are changeable

from NOC to NCC.

 The sensors are adjustable manually using

the numerical LED-display or may be trai-
ned using Teach-in processes.

 Useful additional functions are set in the

Add-on-menu.

 Using the LinkControl adapter (optional

accessory) all TouchControl and additio-
nal sensor parameter settings may be
made by a Windows-Software.

Important instructions for assembly and
application

All employee and plant safety-relevant
measures must be taken prior to assembly,
start-up, or maintenance work (see operation
manual for the entire plant and the operator
instruction of the plant).

The sensors are not considered as safety
equipment and may not be used to ensure
human or machine safety!

The mic+ sensors indicate a blind zone, in
which the distance cannot be measured. The
operating range indicates the distance of the
sensor that can be applied with normal re-
flectors with sufficient function reserve.
When using good reflectors, such as a calm
water surface, the sensor can also be used up
to its maximum range. Objects that strongly
absorb (e.g. plastic foam) or diffusely reflect
sound (e.g. pebble stones) can also reduce
the defined operating range.

Synchronisation

If the assembly distances shown in Fig.1 for
two or more sensors are exceeded the inte-
grated synchronisation should be used. Con-
nect Sync/Com-channels (pin 5 at the units re-
ceptable) of all sensors (10 maximum).

Fig. 1: Assembly distances, indicating syn-

chronisation/multiplex

Multiplex mode

The Add-on-menu allows to assign an indivi-
dual address »01« to »10« to each sensor
connected via the Sync/Com-channel (Pin5).
The sensors perform the ultrasonic measure-
ment sequentially from low to high address.
Therefore any influence between the sensors
is rejected.
The address »00« is reserved to synchronisa-
tion mode and deactivates the multiplex
mode. (To use synchronised mode all sensors
must be set to address »00«.)

≥0.35 m

≥0.40 m

≥2.50 m

≥2.50 m

≥1.10 m

≥2.00 m

≥8.00 m

≥18.00 m

≥4.00 m

≥30.00 m

Assembly instructions

 Assemble the sensor at the installation lo-

cation.

 Plug in the connector cable to the M 12

connector.

Fig. 2: Pin assignment with view onto sensor

plug and colour coding of the
microsonic connection cable

Start-up

mic+ sensors are delivered factory made with
the following settings:

 Switched output on NOC
 Detecting distance at operating range

and half operating range

 Measurement range set to maximum ran-

ge

1
3

colour

+U

B

-U

B

brown

blue
4
2
5

D

-

black

white

Sync/Com. grey

1

5

2

34

Set the parameters of the sensor manually or

use the Teach-in procedure to adjust the
detect points.

Fig. 3: TouchControl

Operation

mic+sensors work maintenance free. Small
amounts of dirt on the surface do not influ-
ence function. Thick layers of dirt and caked-
on dirt affect sensor function and therefore
must be removed.

Note

 mic+sensors have internal temperature

compensation. Because the sensors heat
up on their own, the temperature com-
pensation reaches its optimum working
point after approx. 30 minutes of operati-
on.

 During normal mode operation, a yellow

LED D2 signals that the switched output
has connected.

 During normal mode operation, the mea-

sured distance value is displayed on the
LED-indicator in mm (up to 999 mm) or
cm (from 100 cm). Scale switches auto-
matically and is indicated by a point on
top of the digits.

 During Teach-in mode, the hysteresis

loops are set back to factory settings.

 If no objects are placed within the detec-

tion zone the LED-indicator shows »- - -«.

 If no push-buttons are pressed for 20 se-

conds during parameter setting mode the
made changes are stored and the sensor
returns to normal mode operation.

 You can lock the key pad to provide in-

puts, see »Key lock and factory setting«.

 You can reset the factory settings at any

time, see »Key lock and factory setting«.

Show parameters

Tapping push-button T1 shortly during nor-
mal mode operation shows »PAr« on the
LED-display. Each time you tap push-button
T1 the actual settings of the switched output
are shown.

Operating manual

mic+ Ultrasonic Sensors with
one switched output

c

m m m %

T 1 D 1 D 2 T

2

measuring range

LED D1 and D2

3-digit
LED-display

Push-buttons T1 and T2

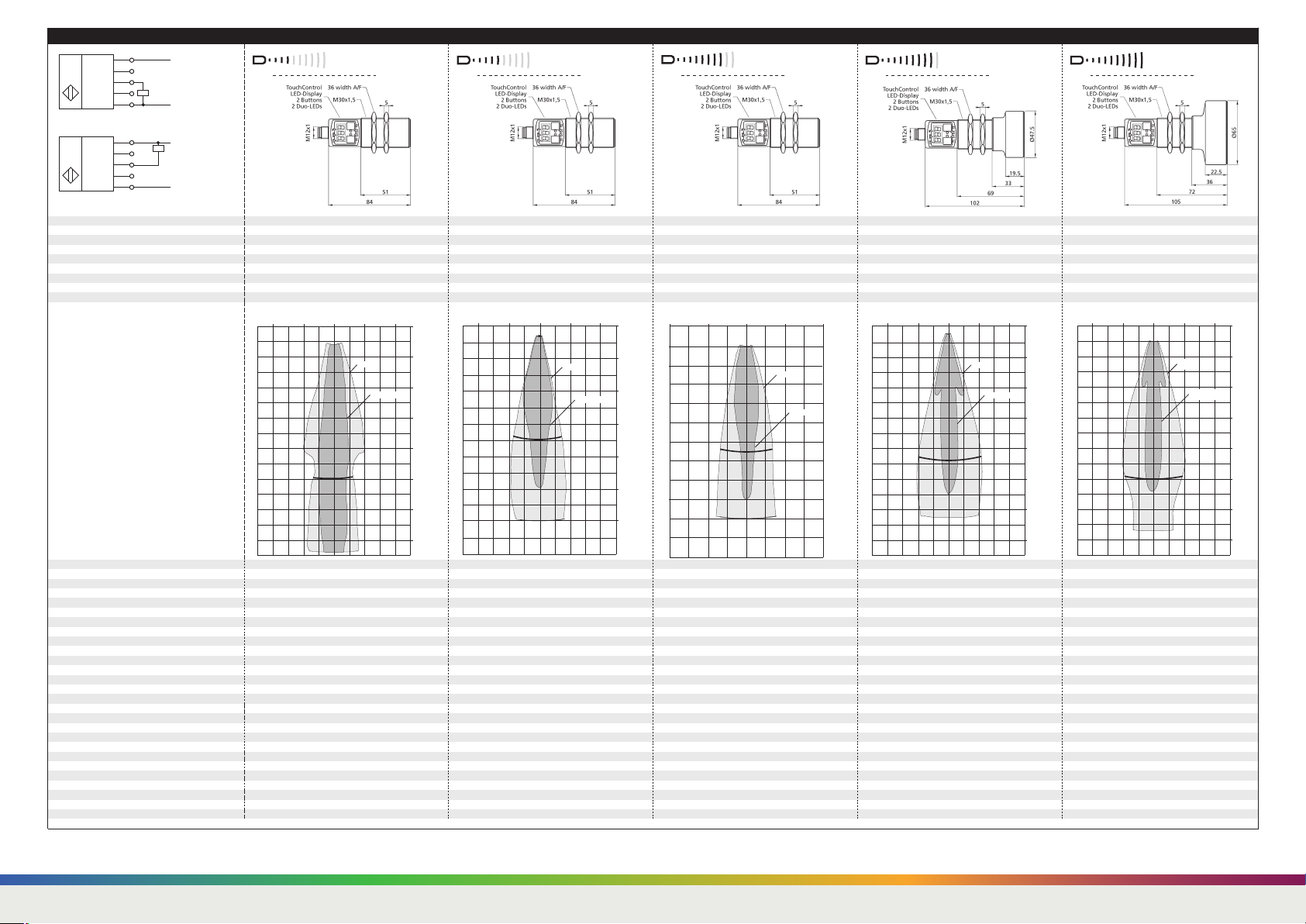

mic+25/D/TC mic+25/E/TC
mic+35/D/TC mic+35/E/TC
mic+130/D/TC mic+130/E/TC
mic+340/D/TC mic+340E/TC
mic+600/D/TC mic+600/E/TC

2014/30/EU

Enclosure Type 1

For use only in industrial

machinery NFPA 79 applications.

The proximity switches shall be used with a Lis-
ted (CYJV/7) cable/connector assembly rated mi-
nimum 32 Vdc, minimum 290 mA, in the final in-
stallation.

Product description

 The mic+sensor with one switched output

measures the distance to an object within
the detection zone contactless. Depen-
ding on the adjusted detect distance the
switched output is set.

 All settings are done with two push-but-

tons and a three-digit LED-display
(TouchControl).

 Light emitting diodes (three-colour LEDs)

indicate the switching status.

 The output functions are changeable

from NOC to NCC.

 The sensors are adjustable manually using

the numerical LED-display or may be trai-
ned using Teach-in processes.

 Useful additional functions are set in the

Add-on-menu.

 Using the LinkControl adapter (optional

accessory) all TouchControl and additio-
nal sensor parameter settings may be
made by a Windows-Software.

Important instructions for assembly and
application

All employee and plant safety-relevant
measures must be taken prior to assembly,
start-up, or maintenance work (see operation
manual for the entire plant and the operator
instruction of the plant).

The sensors are not considered as safety
equipment and may not be used to ensure
human or machine safety!

The mic+ sensors indicate a blind zone, in
which the distance cannot be measured. The
operating range indicates the distance of the
sensor that can be applied with normal re-
flectors with sufficient function reserve.
When using good reflectors, such as a calm
water surface, the sensor can also be used up
to its maximum range. Objects that strongly
absorb (e.g. plastic foam) or diffusely reflect
sound (e.g. pebble stones) can also reduce
the defined operating range.

Synchronisation

If the assembly distances shown in Fig.1 for
two or more sensors are exceeded the inte-
grated synchronisation should be used. Con-
nect Sync/Com-channels (pin 5 at the units re-
ceptable) of all sensors (10 maximum).

Fig. 1: Assembly distances, indicating syn-

chronisation/multiplex

Multiplex mode

The Add-on-menu allows to assign an indivi-
dual address »01« to »10« to each sensor
connected via the Sync/Com-channel (Pin5).
The sensors perform the ultrasonic measure-
ment sequentially from low to high address.
Therefore any influence between the sensors
is rejected.
The address »00« is reserved to synchronisa-
tion mode and deactivates the multiplex
mode. (To use synchronised mode all sensors
must be set to address »00«.)

≥0.35 m

≥0.40 m

≥2.50 m

≥2.50 m

≥1.10 m

≥2.00 m

≥8.00 m

≥18.00 m

≥4.00 m

≥30.00 m

Assembly instructions

 Assemble the sensor at the installation lo-

cation.

 Plug in the connector cable to the M 12

connector.

Fig. 2: Pin assignment with view onto sensor

plug and colour coding of the
microsonic connection cable

Start-up

mic+ sensors are delivered factory made with
the following settings:

 Switched output on NOC
 Detecting distance at operating range

and half operating range

 Measurement range set to maximum ran-

ge

1
3

colour

+U

B

-U

B

brown

blue
4
2
5

D

-

black

white

Sync/Com. grey

1

5

2

34

Set the parameters of the sensor manually or

use the Teach-in procedure to adjust the
detect points.

Fig. 3: TouchControl

Operation

mic+sensors work maintenance free. Small
amounts of dirt on the surface do not influ-
ence function. Thick layers of dirt and caked-
on dirt affect sensor function and therefore
must be removed.

Note

 mic+sensors have internal temperature

compensation. Because the sensors heat
up on their own, the temperature com-
pensation reaches its optimum working
point after approx. 30 minutes of operati-
on.

 During normal mode operation, a yellow

c

m m m %

T 1 D 1 D 2 T

2

measuring range

LED D1 and D2

3-digit
LED-display

Push-buttons T1 and T2

mic+340/D/TC mic+340E/TC

Product description

Important instructions for assembly and

≥

≥0.40 m

≥

≥2.50 m

≥1.10 m

≥2.00 m

≥8.00 m

≥18.00 m

≥

≥

Assembly instructions

colour

+U

B

B

34

Set the parameters of the sensor manually or

Set the parameters of the sensor manually or

use the Teach-in procedure to adjust the
detect points.

Fig. 3: TouchControl

Operation

mic+sensors work maintenance free. Small
amounts of dirt on the surface do not influ-
ence function. Thick layers of dirt and caked-
on dirt affect sensor function and therefore
must be removed.

Note

 mic+sensors have internal temperature

compensation. Because the sensors heat
up on their own, the temperature com-
pensation reaches its optimum working
point after approx. 30 minutes of operati-

c

m m m %

T 1 D 1 D 2 T

2

measuring range

LED D1 and D2

3-digit
LED-display

Push-buttons T1 and T2

Set the parameters of the sensor manually or

use the Teach-in procedure to adjust the
detect points.

Fig. 3: TouchControl

Operation

mic+sensors work maintenance free. Small
amounts of dirt on the surface do not influ-
ence function. Thick layers of dirt and caked-
on dirt affect sensor function and therefore
must be removed.

Note

 mic+sensors have internal temperature

compensation. Because the sensors heat
up on their own, the temperature com-
pensation reaches its optimum working
point after approx. 30 minutes of operati-
on.

 During normal mode operation, a yellow

LED D2 signals that the switched output
has connected.

 During normal mode operation, the mea-

sured distance value is displayed on the
LED-indicator in mm (up to 999 mm) or
cm (from 100 cm). Scale switches auto-
matically and is indicated by a point on
top of the digits.

 During Teach-in mode, the hysteresis

loops are set back to factory settings.

 If no objects are placed within the detec-

tion zone the LED-indicator shows »- - -«.

 If no push-buttons are pressed for 20 se-

conds during parameter setting mode the
made changes are stored and the sensor
returns to normal mode operation.

 You can lock the key pad to provide in-

puts, see »Key lock and factory setting«.

 You can reset the factory settings at any

time, see »Key lock and factory setting«.

Show parameters

Tapping push-button T1 shortly during nor-
mal mode operation shows »PAr« on the
LED-display. Each time you tap push-button
T1 the actual settings of the switched output
are shown.

c

m m m %

T 1 D 1 D 2 T

2

measuring range

LED D1 and D2

3-digit
LED-display

Push-buttons T1 and T2

2014/30/EU

 The mic+sensor with one switched output

measures the distance to an object within
the detection zone contactless. Depen­ding on the adjusted detect distance the
switched output is set.

 All settings are done with two push-but-

tons and a three-digit LED-display
(TouchControl).

Operating manual

mic+ Ultrasonic Sensors with
one switched output

mic+25/D/TC mic+25/E/TC
mic+35/D/TC mic+35/E/TC
mic+130/D/TC mic+130/E/TC

mic+600/D/TC mic+600/E/TC

Contact

Sensor Partners BV

James Wattlaan 15
5151 DP Drunen
The Netherlands

+31 (0)416 - 37 82 39
[e-mail]
sensorpartners.com

Sensor Partners BVBA

Z.1 Researchpark 310
B-1731, Zellik
Belgium

+32 (0)2 - 464 96 90
[e-mail]
sensorpartners.com

 Light emitting diodes (three-colour LEDs)

indicate the switching status.

 The output functions are changeable

from NOC to NCC.

 The sensors are adjustable manually using

the numerical LED-display or may be trai­ned using Teach-in processes.

 Useful additional functions are set in the

Add-on-menu.

 Using the LinkControl adapter (optional

accessory) all TouchControl and additio­nal sensor parameter settings may be
made by a Windows-Software.

application

All employee and plant safety-relevant
measures must be taken prior to assembly,
start-up, or maintenance work (see operation
manual for the entire plant and the operator
instruction of the plant).

The sensors are not considered as safety
equipment and may not be used to ensure
human or machine safety!

The mic+ sensors indicate a blind zone, in
which the distance cannot be measured. The
operating range indicates the distance of the
sensor that can be applied with normal re­flectors with sufficient function reserve.
When using good reflectors, such as a calm
water surface, the sensor can also be used up
to its maximum range. Objects that strongly
absorb (e.g. plastic foam) or diffusely reflect
sound (e.g. pebble stones) can also reduce
the defined operating range.

Synchronisation

If the assembly distances shown in Fig.1 for
two or more sensors are exceeded the inte­grated synchronisation should be used. Con­nect Sync/Com-channels (pin 5 at the units re­ceptable) of all sensors (10 maximum).

Set switched output





T2

T2



SENSORPARTNERS.COM

0.35 m

Fig. 1: Assembly distances, indicating syn-

Multiplex mode

The Add-on-menu allows to assign an indivi­dual address »01« to »10« to each sensor
connected via the Sync/Com-channel (Pin5).
The sensors perform the ultrasonic measure­ment sequentially from low to high address.
Therefore any influence between the sensors
is rejected.
The address »00« is reserved to synchronisa­tion mode and deactivates the multiplex
mode. (To use synchronised mode all sensors
must be set to address »00«.)

Start here

T1

T1



For single detect
point press T2
until »- - -« is
displayed

T1



Ready

T1 + T2



T1 + T2





T1 + T2



T1 + T2





T1 + T2



T1 + T2



4.00 m

chronisation/multiplex

Press T1 and T2 simultaneously for about
3 s until welcome message has passed

T2



Set detect distance in

T2

mm or cm

T1



Choose » « for NCC or

T2

» « for NOC

T1



2.50 m

30.00 m

For window mode



operation set far

T2

detect point in
mm or cm

 Assemble the sensor at the installation lo-

cation.

 Plug in the connector cable to the M 12

connector.

1

2

5

1
3

4
2
5

Fig. 2: Pin assignment with view onto sensor

plug and colour coding of the
microsonic connection cable

Start-up

mic+ sensors are delivered factory made with
the following settings:

 Switched output on NOC
 Detecting distance at operating range

and half operating range

 Measurement range set to maximum ran-

ge

-U
D

Sync/Com. grey

brown
blue

black

-

white

use the Teach-in procedure to adjust the
detect points.

c

m m m %

measuring range

3-digit
LED-display

LED D1 and D2

T 1 D 1 D 2 T

Push-buttons T1 and T2

2

Fig. 3: TouchControl

Operation

mic+sensors work maintenance free. Small
amounts of dirt on the surface do not influ­ence function. Thick layers of dirt and caked­on dirt affect sensor function and therefore
must be removed.

Note

 mic+sensors have internal temperature

compensation. Because the sensors heat
up on their own, the temperature com­pensation reaches its optimum working
point after approx. 30 minutes of operati­on.

on.

 During normal mode operation, a yellow

LED D2 signals that the switched output
has connected.

 During normal mode operation, the mea-

sured distance value is displayed on the
LED-indicator in mm (up to 999 mm) or
cm (from 100 cm). Scale switches auto­matically and is indicated by a point on
top of the digits.

 During Teach-in mode, the hysteresis

loops are set back to factory settings.

 If no objects are placed within the detec-

tion zone the LED-indicator shows »- - -«.

 If no push-buttons are pressed for 20 se-

conds during parameter setting mode the
made changes are stored and the sensor
returns to normal mode operation.

 You can lock the key pad to provide in-

puts, see »Key lock and factory setting«.

 You can reset the factory settings at any

time, see »Key lock and factory setting«.

Show parameters

Tapping push-button T1 shortly during nor­mal mode operation shows »PAr« on the
LED-display. Each time you tap push-button
T1 the actual settings of the switched output
are shown.

The proximity switches shall be used with a Lis­ted (CYJV/7) cable/connector assembly rated mi­nimum 32 Vdc, minimum 290 mA, in the final in­stallation.

machinery NFPA 79 applications.

Enclosure Type 1

For use only in industrial

...or with the Teach-in procedure

Current measu­ring value

Current measu­ring value

Current measu­ring value

Current measu­ring value

Press T2 until countdown

displayed

Press T2 until countdown

and »End« is displayed

Press T1 and T2 simultane-

played

Symbol
NOC or NCC

Symbol
NOC or NCC

T1 + T2

T1 + T2

T1 + T2

T1 + T2

T1 + T2

T1 + T2

T1 + T2

T1 + T2

T1 + T2

T1 + T2

T1 + T2

Turn supply voltage

OFF

Turn supply voltage

OFF

Turn supply voltage

through the display

To activate or

deactivate press T1

»on« or
»off«

To activate or

deactivate press T1

»on« or
»off«

Normal mode operation

Key lock and factory setting

Adjust detect point

Place object at position 

Press T2 until »d« is shown

Press T2 until »End« is

shown

Teach-in swítched output

Usefull additional functions in Add-on menu (for experienced users only, settings not required for standard applications)

Adjust window mode

Place object at position 

Press T2 until »d« is shown

Place object at position 

Press T2 until »End« is

shown

Normal mode operation

Adjust two-way reflectiv

barrier

Place reflector at position 

Press T2 until »d« is shown

passed from »- 8 -« to »- 0 -«

Set NOC/NCC

passed from »- 8 -« to »- 0 -«
and NOC or NCC symbol is

To change output function

press T2

ously until »End« is dis

Start here

T1 + T2



Press T1 and T2 simultaneously for about 13 s
until »Add« is shown in the LED-display

Activate/deactivate

TouchControl

While pressing T1

turn supply voltage

ON until »on« or

»off« is displayed

Reset to factory set-

ting

ON while pressing T1

and keep it pressed

for ca. 15 s until

»rESEt« has passed



Note

Changes in the Add-on
menu may impair the
sensor function.
A6, A7, A8 , A10 , A11,
A12 have influence on
the response time of
the sensor.

T2

T1 + T2

Ready







T1



T1

T1 + T2



T1







»C01«: Display
bright

»C02«: Display dim­med

»C03«: Display off

Low power mode

T1

T2





T1

T2



Minimum value:
»001«

Maximum value: dif­ference between
maximum range and
detect point - 1

During window
mode operation hys­teresis influences
both detect points.

T1 + T2





Hysteresis

switched output

T1

T2





T1 + T2



T2



T1





»F00«: no filter

»F01«: standard fil­ter

»F02«: averaging fil­ter

»F03«: foreground
filter

»F04«: background
filter

Measurement filter Filter strength Foreground



T2





T2

T1

T1



T1 + T2



T2





Defines the strength
of the chosen filter.

»P00«: weak filter
up to

»P09«: strong filter

T1





T1

T2



Delay in seconds
between the detec­tion of an object
and the output of
the measured dis­tance in case of ob­ject approach (beha­ves as on-delay).

"00": 0 s (no delay)
up to

"20": 20 s response
time

Response time

T1 + T2





T2



T1





T1

T2



Minimum value:
blind zone

Maximum value: ne­arwindow limit - 1

T1 + T2





suppression



T2





T2

T1

T1 + T2



T1





»00«: synchronisati­on

»01« to »10«: sensor
address for multi­plex mode

»oFF«: synchronisati­on deactivated

Multiplex mode

device addressing

SENSORPARTNERS.COM



T2



T2

T1



T1 + T2



T1





To optimize multi­plex speed the hig­hest sensor address
may be set.

Setting range »01«
to »10«

Multiplex mode
highest address

T1



T2





T1

T2



T1 + T2





T2



T2



Minimum value: sen­sor-distant window
margin

Maximum value: 999
mm for mic+
25/...,mic+35/...,
999 cm for mic+
130/...,mic+340/...,
mic+600/...

Measurement range Calibration

T1



T1 + T2



T1





Put plane reflector
vertically disposed in
front of sensor: in
an exact distance of
250 mm for mic+

25... and mic+35...
and 900 mm for all
other typs.
Adjust display to
250 mm or 900 mm.
Confirm calibration
with T1 + T2.

display



T2



T2

T1



T1 + T2



T1





Affects the size of
the detection zone.

»E01«: high

»E02«: standard

»E03«: slight

Detection zone

sensitivity



T2



T2
