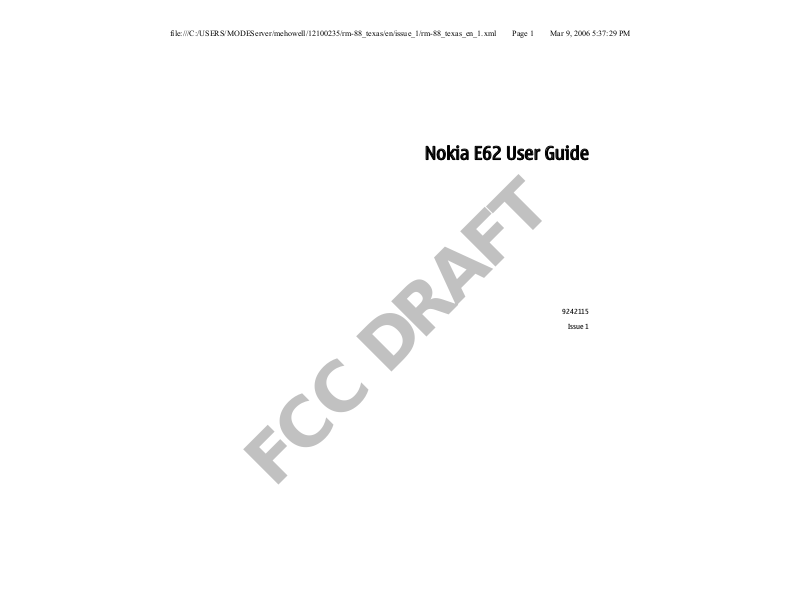

Nokia E62 User Guide

9242115

Issue 1

FCC DRAFT

DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product RM-88 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from www.nokia.com/phones/declaration_of_conformity/.

0434

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trade marks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia tune is a sound mark of Nokia Corporation.

The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of-life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste.

Includes RSA BSAFE cryptographic or security protocol software from RSA Security.

Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.

This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice

FCC DRAFT

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

EXPORT CONTROLS This device may contain commodities, technology, or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.

9242115/Issue 1

FCC DRAFT

Contents

For your safety..................................................................7

About your device........................................................................8

NETWORK SERVICES.......................................................................8

Enhancements, batteries, and chargers................................8

Get started..........................................................................9

Insert the SIM card and battery...............................................9

Insert and remove a memory card.......................................10

Switch on your device..............................................................11

Charge the battery.....................................................................11

Enter first settings.....................................................................12

Enter basic settings...................................................................12

CD-ROM..........................................................................................12

Nokia support and contact information.............................12

Your device......................................................................13

Keys and parts.............................................................................13

Keyguard (Keypad lock)...........................................................15

Common actions in several applications............................16

Write text.....................................................................................16

Help and tutorial........................................................................17

Volume control...........................................................................17

Connectors...................................................................................18

Type label.....................................................................................18

Antennas.......................................................................................18

Electronic components.............................................................19

About the display.......................................................................19

Standby modes...........................................................................19

Display indicators.......................................................................22

Memory.........................................................................................23

Transfer content between devices.......................................25

Settings.........................................................................................26

Menu..............................................................................................26

Scroll and make selections......................................................27

Nokia PC Suite.............................................................................27

Total product offering..................................................28

In-box............................................................................................28

Additional on-device applications........................................28

Technical information..............................................................28

Make calls.........................................................................30

1-touch dial..................................................................................30

Vanity dial....................................................................................31

Answer a call...............................................................................31

Options during a call.................................................................31

Forward calls...............................................................................32

Call restriction.............................................................................32

Log..................................................................................................33

Voice commands........................................................................33

Clock...................................................................................35

Add and delete cities................................................................35

Contacts............................................................................37

Manage contact groups...........................................................37

Manage default information..................................................38

Copy contacts between SIM and device memory............38

Select ringing tones for contacts..........................................38

Business cards.............................................................................39

FCC DRAFT

Tools..................................................................................40

Application manager................................................................40

Positioning...................................................................................40

Landmarks....................................................................................40

Nokia Catalogs............................................................................42

Sett. wizard..................................................................................42

Voice aid.......................................................................................43

Organizer..........................................................................44

Calendar........................................................................................44

Notes..............................................................................................46

Calculator......................................................................................46

Converter......................................................................................47

Voice mailbox..............................................................................47

Messages..........................................................................49

Organize messages...................................................................49

Search for messages.................................................................50

Messaging settings....................................................................50

Text messages............................................................................50

Multimedia messages...............................................................53

E-mail messages.........................................................................57

Instant messaging.....................................................................62

Special messages.......................................................................67

Web....................................................................................68

Access points...............................................................................68

Browse the Web.........................................................................68

Bookmarks...................................................................................69

Download items.........................................................................69

End a connection........................................................................69

News feeds and blogs..............................................................70

Web settings...............................................................................70

Services.........................................................................................71

Office applications.........................................................72

File manager................................................................................72

Documents...................................................................................72

Sheet..............................................................................................75

Presentation................................................................................78

Adobe Reader..............................................................................80

Screen export..............................................................................81

Zip Manager.................................................................................81

Print................................................................................................82

ProTour Golf ................................................................................82

Connectivity.....................................................................83

Bluetooth......................................................................................83

Infrared.........................................................................................87

Cable connection........................................................................87

Connection manager................................................................88

Modem..........................................................................................88

Device management.................................................................88

Internet access points..............................................................91

IP passthrough............................................................................94

Data connections.......................................................................95

Mobile VPN ..................................................................................95

Media applications........................................................97

Gallery............................................................................................97

RealPlayer ....................................................................................98

Music player...............................................................................101

Recorder.....................................................................................102

Flash player...............................................................................103

Personalization............................................................104

Profiles........................................................................................104

Themes.......................................................................................105

Contents

FCC DRAFT

Settings..........................................................................106

Phone settings.........................................................................106

Call settings...............................................................................107

Contents

Connection settings................................................................107

Date and time settings..........................................................111

Security settings......................................................................111

Enhancement settings...........................................................111

Security...........................................................................112

Device security ........................................................................112

Certificate manager................................................................114

VPN...............................................................................................114

Shortcuts........................................................................115

Nokia original enhancements.................................117

Enhancements..........................................................................117

Battery information...................................................118

1500 mAh Li-Polymer battery (BP-5L)

information...............................................................................118

Nokia battery authentication guidelines.........................118

Care and maintenance..............................................120

Additional safety information................................121

Operating environment.........................................................121

Medical devices........................................................................121

Vehicles.......................................................................................122

Potentially explosive environments..................................122

Emergency calls........................................................................122

CERTIFICATION INFORMATION(SAR).....................................123

Index...............................................................................124

FCC DRAFT

For your safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

SWITCH ON SAFELY

Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect performance.

SWITCH OFF IN HOSPITALS

Follow any restrictions. Switch the device off near medical equipment.

SWITCH OFF IN AIRCRAFT

Follow any restrictions. Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELLING

Do not use the device at a refueling point. Do not use near fuel or chemicals.

SWITCH OFF NEAR BLASTING

Follow any restrictions. Do not use the device where blasting is in progress.

USE SENSIBLY

Use only in the normal position as explained in the product documentation. Do not touch the antennas unnecessarily.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

ENHANCEMENTS AND BATTERIES

Use only approved enhancements and batteries. Do not connect incompatible products.

WATER-RESISTANCE

Your device is not water-resistant. Keep it dry.

BACK-UP COPIES

Remember to make back-up copies or keep a written record of all important information.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products.

For your safety

FCC DRAFT

EMERGENCY CALLS

Ensure the phone function of the device is switched on and in service. Press the end key as many times as needed to clear the display and return to the standby mode. Enter the

For your safety

emergency number, then press the call key. Give your location. Do not end the call until given permission to do so.

About your device

The wireless device described in this guide is approved for use on the EGSM 850/900/1800/1900 networks. Contact your service provider for more information about networks.

When using the features in this device, obey all laws, and respect privacy and legitimate rights of others.

Warning: To use any features in this device, other than the alarm clock, the device must be switched on. Do not switch the device on when wireless device use may cause interference or danger.

NETWORK SERVICES

To use the phone you must have service from a wireless service provider. Many of the features in this device depend on features in the wireless network to function. These network services may not be available on all networks or you may have to make specific arrangements with your service provider before you can utilize network services. Your service provider may need to give you additional instructions for their use and explain what

charges will apply. Some networks may have limitations that affect how you can use network services. For instance, some networks may not support all languagedependent characters and services.

Your service provider may have requested that certain features be disabled or not activated in your device. If so, they will not appear on your device menu. Your device may also have been specially configured. This configuration may include changes in menu names, menu order and icons. Contact your service provider for more information.

Enhancements, batteries, and chargers

Check the model number of any charger before use with this device. This device is intended for use when supplied with power from the AC-4 and DC-4 chargers or ACP-12U charger with CA-44 adapter.

Warning: Use only batteries, chargers, and enhancements approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous.

For availability of approved enhancements, please check with your dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

Your device and its enhancements may contain small parts. Keep them out of reach of small children.

FCC DRAFT

Get started

Model number: Nokia E62-1 Hereinafter referred to as Nokia device.

Insert the SIM card and battery

1. Always switch the device off, and disconnect the

2. If the battery is installed, use the finger grip to lift the

charger before removing the battery. With the back of the device facing you, press the cover

release button (1), and slide the back cover in the direction of the arrows (2).

battery from the battery compartment in the direction of the arrow to remove it .

Get started

3. Insert the SIM card into the SIM card slot (1). Ensure that the chamfered corner of the SIM card is

pointing to the lower right corner of the device and the contact area on the card is facing the device. Slide the SIM card until it is securely positioned (2).

FCC DRAFT

corners of the cover, and slide the cover in the direction of the arrow (2).

Get started

4. To insert the battery, align the contacts of the battery with the corresponding connectors on the battery compartment, insert in the direction of the arrow, and gently click the battery into place.

5. Insert the locking catches of the back cover into the corresponding slots (1). Press down on the bottom

Insert and remove a memory card

If you have a memory card, follow the instructions to insert it.

See "Memory," p. 23.

1. If necessary, remove the battery cover.

2. Slide the memory card (1) into the memory card slot (2). Ensure that the chamfered corner of the memory card is pointing towards the top of the device and the contact area is facing down.

FCC DRAFT

3. Replace the battery cover.

4. To remove the memory card, remove the battery cover and push the memory card into the device to activate the release mechanism. Then, gently pull the card out of your device.

Important: Do not remove the MultiMediaCard (MMC) in the middle of an operation when the card is being accessed. Removing the card in the middle of an operation may damage the memory card as well as the device, and data stored on the card may be corrupted.

Switch on your device

1. To switch the device on, press the power key.

2. If the device asks for a PIN code, lock code, or security code, enter the code, and select OK.

3. To switch the device off, press the power key.

Tip: When you switch the device on, it may recognize the SIM card provider and configure the correct text message, multimedia message, and GPRS settings automatically. If not, contact your service provider for the correct settings, or use the Sett. wizard application.

The device can be used without the network-dependent phone functions when a SIM card is not inserted or when the Offline profile is selected.

The picture shows the location of the power key.

Charge the battery

1. Connect the charger to a wall outlet.

2. Connect the charger to the bottom o f the device. If you have a battery charger adapter, connect the charger to the adapter, and the adapter to the bottom of the device.

3. Connect the power cord to the battery charger adapter. The battery indicator bar starts scrolling on the display. If the battery is completely discharged, it may take a few minutes before the charging indicator is shown. The device can be used while charging.

Get started

FCC DRAFT

4. When the battery is fully charged, the bar stops scrolling. Disconnect the charger from the device, then from the outlet.

When the battery charge level is too low for operation,

Get started

the device switches itself off.

calendar entries can change if the new city is located in a different time zone.

2. Set the time, and select OK.

3. Set the date, and select OK.

Enter first settings

When you power on the device for the first time, or when you switch on the device after the battery has been removed for a longer period, your device asks for a city, time, and date. You can change these settings later in

Clock.

1. Select the city in which you are located from the list and OK. To browse for a city, start to type the name of the city, or scroll to a city. It is important to select the correct city, because scheduled calendar entries that you create can change if the new city is located on a different time zone.

2. Set the time, and select OK.

3. Set the date, and select OK.

Enter basic settings

When you power on the device for the first time, and when you power on the device after the battery has been empty or removed for a longer period of time, your device asks for the city in which you are located, time, and date. You can change the settings later.

1. Select your location from the list and press OK. To browse for a city, type or scroll to the city name. It is important to select the correct city, because your

FCC DRAFT

CD-ROM

The sales package CD-ROM is compatible with Windows 98SE, Windows ME, Windows 2000, and Windows XP.

You can install Nokia PC Suite from the CD-ROM. Nokia PC Suite can be used only with Windows 2000 and Windows XP.

Nokia support and contact information

Check www.nokia.com/support or your local Nokia Web site for the latest version of this guide, additional information, downloads, and services related to your Nokia product.

On the Web site, you can get information on the use of Nokia products and services. If you need to contact customer service, check the list of local Nokia contact centers at www.nokia.com/customerservice.

For maintenance services, check your nearest Nokia service center at www.nokia.com/repair.

Your device

Keys and parts

Front view

1 — Power key

2 — Display 3 — Joystick 4 — Right selection key 5 — End key 6 — E-mail key 7 — Backspace key 8 — Enter key 9 — Chr key 10 — Shift keys 11 — Ctrl key 12 — Own key 13 — Spacebar 14 — Function key 15 — Phone keypad 16 — Menu key 17 — Call key 18 — Left selection key 19 — Voice key 20 — Volume keys 21 — Loudspeaker 22 — E-mail indicator light and auto light sensor

Your device

FCC DRAFT

Side view

Your device

1 — Integrated loudspeaker 2 — Volume keys 3 — Voice key

Key functions

Selection keys

Press either selection key to use the shortcuts (perform the task or access the application) that are shown on the display above the selection keys. See "Active standby mode," p. 19. To change the shortcuts in the standby mode, select Menu > Tools > Settings > Phone > Standby

mode, and the applications in Left selection key and Right selection key.

Joystick Press the joystick to edit or enter a selection, or to access

the most commonly used functions in the different applications. Use the joystick to scroll left, right, up, down, or to move around on the display. In the standby mode, scroll with or press the joystick for different shortcuts.See "Active standby mode," p. 19.

To change the shortcuts, select Menu > Tools > Settings >

Phone > Standby mode > Active standby > Off and

shortcuts in the following options:Navigation key right,

Navigation key left, Navigat. key down, Navigation key up, and Selection key.

Call and end keys To answer a call, press the call key. In the standby mode,

press the call key to access the Log. To reject a call, end active and held calls, and close

applications, press the end key. Press and hold the end key to end data connections (GPRS, data call).

E-mail key To access your default e-mail inbox, press the e-mail key.

If you have not set up an e-mail account, the mailbox guide opens to help you. If you press and hold the e-mail key, your default e-mail editor opens. The functionality depends also on your mailbox service provider. You can configure the e-mail key yourself. See "Configure the email key," p. 58.

Own key If the own key list is configured, simultaneously press the

function key and the own key to open the list. Scroll and press the joystick to open an item from the graphical display.

FCC DRAFT

Chr key

To insert characters that you cannot insert with the keypad, press the chr key.

To scroll through a list of accented characters, press and hold the chr key; then press the key you want as many times as you need to get the accented character you want.

Shift keys

To enter an uppercase letter, press the shift key then the key you want.

To enter only uppercase letters, press the shift key twice, so that accessed until the first character of a word is entered. To enter a lowercase letter in the middle of uppercase letters, press the shift key once. To enter only lowercase letters again, press the shift key twice, so that

To select text, press the shift key, and scroll left or right. Function key

To enter a character or function marked with color, press the function key, and then the key you want, or simultaneously press the keys.

To enter only characters marked with color, press the function key twice, and the characters you want.

To activate Bluetooth, press the function key and ctrl key simultaneously. To deactivate Bluetooth, press the function key and ctrl key again.

To activate infrared, press the function key and chr key simultaneously.

is displayed. Uppercase mode cannot be

is displayed.

Menu key

To access the applications in your device, press the menu key in the standby mode. To return to Menu from an application, leaving the application open in the background, press the menu key. Press and hold the menu key to see a list of the active applications and switch between them. In this user guide, "select Menu" refers to pressing this key.

Voice key

Press the voice key to open Recorder and start recording a memo. Press and hold the voice key to use voice commands. See "Voice commands," p. 33.

Keyguard (Keypad lock)

When keyguard (keypad lock) is on, calls may be possible to the official emergency number programmed into your device.

Use keyguard (keypad lock) to prevent the keys on the device from being accidentally pressed.

To activate keyguard in the standby mode, press the left selection key (1) and the function key (2). To unlock, press the left selection key and the function key again.

OR You can also press the left

selection key and *.

Your device

FCC DRAFT

Tip: To activate keyguard in the Menu or in an open application, press the power key briefly, and select Lock keypad. To unlock, press the left selection key and the function key.

Your device

Common actions in several applications

You can find the following actions in several applications:

To switch between open applications, press and hold the menu key to see a list of open applications. Select an application.

To change the profile or switch off or lock the device, press the power key briefly.

To save a file, select Options > Save. There are different save options depending on the application you use.

To send a file, select Options > Send. You can send a file in an e-mail or multimedia message, or by transferring the file using infrared or Bluetooth.

To print to a compatible printer, select Options > Print. You can preview items that you want to print, or edit the way printed pages look. Before you can print, you must define a compatible printer to your device. See "Print," p. 82.

To delete a file, press the backspace key, or select

Options > Delete.

Write text

Your device has a full keyboard. Most common punctuation marks either have a key of their own or they can be entered by pressing a combination of keys.

, and indicate the selected case.

To insert a character, punctuation mark, or symbol that is marked with color on the key, press the function key and the key you want.

To insert a number, press the function key and a key with a number on the color background. To lock the function key and insert only numbers, press the function key twice.

To erase a character, press the backspace key. Press and hold the backspace key to clear more than one character.

To open a list of special characters, press the chr key. Use the joystick to scroll through the list and select a character.

To add characters by using other keys, including "A" or "O", press and hold the chr key and simultaneously press the other key as many times as is needed before the character you want is shown.

To switch between the different character cases, press the shift key.

Copy and paste text

1. To select letters and words, press and hold the shift key. At the same time, scroll in the direction necessary to highlight the word, phrase, or line of text you want to copy. As the selection moves, the text is highlighted.

FCC DRAFT

2. To copy the text to the clipboard, press Ctrl+C. To insert the text into a document, press Ctrl+V.

Cut and paste text

1. To select letters and words, press and hold the shift

2. To cut the text and store it to the clipboard, press Ctrl

key. At the same time, scroll in the direction necessary to highlight the word, phrase, or line of text you want to copy. As the selection moves, the text is highlighted.

+X. To insert the text into a document, press Ctrl+V.

Change the writing language

When you write text, you can change the writing language. When you are writing and press chr+a key several times to use a specific character, changing the writing language gives you access to different characters.

If you are writing a message using a non-Latin alphabet and want to add a person's name using Latin alphabets, select Options > Writing language and a writing language that uses Latin characters.

Device help

You can access the device help from an open application or from the Menu. When you have an application open, select Options > Help to read instructions for the current view.

To open help from Menu, select Help > Help. In Help, you can select categories for which you want to see instructions. Scroll to a category, such as Messaging, and press the joystick to see what instructions (help topics) are available. While you are reading the topic, scroll left or right to see the other topics in that category.

When you are reading the instructions, press and hold the menu key to switch between help and the application that is open in the background.

Tutorial

The tutorial provides you information about your device and shows you how to use it.

To access the tutorial in the menu, select Menu > Help, open Tutorial and the section you want to view.

Your device

Help and tutorial

You can find answers to your questions while using the device even with no user guide present, because your device includes both a task-specific help and a tutorial.

Tip: Task-specific means you can access instructions from Options lists.

FCC DRAFT

Volume control

Warning: Do not hold the device near your ear when the loudspeaker is in use, because the volume may be extremely loud.

To adjust the volume during a call, press the volume keys.

To adjust the volume when using the loudspeaker, press the volume keys.

Connectors

Warning: When you use the headset, your ability

to hear outside sounds may be affected. Do not use the

Your device

headset where it can endanger your safety.

Battery charger connector

Headset connector

USB connector

Type label

The diagram shows the location of the type label.

Antennas

Your device has two internal antennas.

FCC DRAFT

Note: As with any other radio transmitting device, do not touch either of the antennas unnecessarily when the device is switched on. Contact with the antenna affects call quality and may cause the device to operate at a higher power level than otherwise needed. Not touching the antenna area during a phone call optimises the antenna performance and the talktime of your device.

Your device

The picture shows the normal use of the device at the ear for voice calls.

Electronic components

Do not touch electronic components and pads that are exposed when the battery is not inserted.

FCC DRAFT

About the display

A small number of missing, discolored, or bright dots may appear on the screen. This condition is a characteristic of this type of display. Some displays may contain pixels or dots that remain on or off. This is normal, not a fault.

Standby modes

Active standby mode

Depending on your network operator, your device may have two different standby modes: active standby mode and standby mode. Your network operator determines which mode appears on your device, as a default.

After you have switched on your device and it is ready to use, but you have not entered any characters or made other selections, the device may be in the active standby mode. In the active standby mode, you can view your service provider and network, different indicators, and

Your device

applications you want to access quickly.

To select applications that you want to access from active standby, select Menu > Tools > Settings > Phone > Standby

mode > Standby apps. Select from the different shortcut

settings and the desired application.

To activate the standby mode, select Menu > Tools >

Settings > Phone > Standby mode > Active standby > Off.

Tip: You can also see the messages in the inbox or mailbox in the active standby mode. Select

Menu > Messag. > Options > Settings > Other and

the folders in Active standby mode.

1 — Battery indicator 2 — Right selection text 3 — Left selection text 4 — Message display 5 — Active standby applications 6 — Signal indicator The picture shows elements of the application menu.

FCC DRAFT

1 — Menu title 2 — Folder 3 — Scroll bar 4 — Application The picture shows more elements of the user interface.

Your device

1 — Scroll to other pages 2 — Inactive page 3 — Active page 4 — Current setting for the active item 5 — Active item

Standby mode

After you have switched on your device and it is ready to use, but you have not entered any characters or made other selections, the phone may be in the standby mode. The graphic shows a sample standby screen. Screen appearance may vary, depending on your service provider.

FCC DRAFT

Your device

1 — Battery indicator 2 — Right selection text 3 — Left selection text 4 — Display indicators (these will vary) 5 — Clock 6 — Signal indicator

Shortcuts in the standby mode

In the standby mode, you can use the following shortcuts. These shortcuts are usually not available in the active standby mode, where the joystick is used for normal scrolling.

To view the most recently dialed numbers, press the call key. Scroll to a number or name, and press the call key again to call the number.

To call your voice mailbox (network service), press and hold 1.

To view calendar information, scroll right.

To write and send text messages, scroll left.

To open the contacts list, press the joystick.

To change the profile, press the power key briefly, and select the profile you want to activate.

To open Services and connect to the Web, press 0.

To change these shortcuts, select Menu > Tools >

Settings > Phone > Standby mode.

Display indicators

The signal strength of the cellular network at your

current location. The higher the bar, the stronger the signal.

The battery charge level. The higher the bar, the

stronger the charge in the battery.

You have one or more unread messages in the

Inbox folder in Messag..

You have received new e-mail in the remote mailbox.

The device keypad is locked.

The device is locked.

You have one or more missed phone calls.

FCC DRAFT

An alarm is active.

You have selected the silent profile, and the device

does not ring for an incoming call or message.

Bluetooth is activated.

An infrared connection is active. If the indicator

blinks, your device is trying to connect to the other device, or the connection has been lost.

A GPRS or EGPRS packet data connection is available.

A GPRS or EGPRS packet data connection is active.

A GPRS or EGPRS packet data connection is on hold.

Your device is connected to a PC with a USB data

cable.

A data call is active.

IP passthrough is active.

and The number indicates the phone line that you

have selected, if you have subscribed to two phone lines (network service).

All calls are forwarded to another number.

A headset is connected to the device.

The connection to a headset with Bluetooth

connectivity has been lost.

A hands-free car kit is connected to the device.

A loopset is connected to the device.

Your device is synchronizing.

, , Indicators for the selected character

mode.

You have pressed the function key once to insert a

number or a character marked with color on the keypad.

You have pressed the function key twice to insert only

numbers or characters marked with color on the keypad.

You have pressed the shift key once to insert an

uppercase letter in the middle of lowercase letters, or a lowercase letter in the middle of uppercase letter.

Memory

There are two types of memory into which you can save data or install applications: device memory and removable memory.

Select Menu > Options > Memory details. You can see how much memory is currently in use, how

much free memory remains, and how much memory is consumed by each data type. For example, you can see how much memory your e-mail messages, text documents, or calendar appointments consume.

Tip: To ensure that you have adequate memory, you should regularly delete or transfer data to a memory card or PC.

Your device

FCC DRAFT

Memory card

Use only miniSD cards approved by Nokia for use with this device. Nokia utilizes the approved industry standards for memory cards but not all other brands may function

Your device

correctly or be fully compatible with this device. Your Nokia device supports the FAT32 file system for

memory cards. If you use a memory card from another device or if you want to ensure compatibility of the memory card with your Nokia device, you may need to format the memory card with your Nokia device. However, all data in the memory card is permanently deleted if you format the memory card.

Format a memory card

When a memory card is formatted, all data on the card is lost permanently. Consult your retailer to find out if you must format the memory card before you can use it. To format a memory card, select Options > Format mem.

card. When formatting is complete, enter a name for the

memory card. Back up and restore to the memory card

It is recommended to back up device memory regularly to the memory card. The information can be restored to your device later. Do not remove the MultiMediaCard (MMC) in the middle of an operation when the card is being accessed. Removing the card in the middle of an operation may damage the memory card as well as the device, and data stored on the card may be corrupted. To back up information from device memory to a memory card, select Menu > Tools > Memory card > Options >

Backup phone mem.. To restore information from the

memory card to the device memory, select Menu > Tools >

Memory card > Options > Restore from card.

If you cannot use a memory card in your device, you may have the wrong type of memory card, the card may not be formatted for your device, or the card has a corrupted file system.

Tip: You can install and remove a memory card without removing the battery or powering off the device.

MiniSD

This device uses a mini Secure Digital (SD) card.

Check the compatibility of a miniSD with its manufacturer or provider. Use only compatible miniSD cards with this device. Other memory cards, such as MultiMediaCards (MMC) or full-size SD cards, do not fit in the miniSD card slot and are not compatible with this device. Using an incompatible memory card may damage the memory card as well as the device, and data stored on the incompatible card may be corrupted. Keep all memory cards out of the reach of small children.

Memory card security

You can protect a memory card with a password to prevent unauthorized access. To set a password, select

Options > Set password. The password can be up to eight

characters long and is case-sensitive. The password is stored in your device and you do not need to enter it again while you use the memory card on the same device. If you use the memory card on another device, you are asked for the password. Not all memory cards support password protection.

FCC DRAFT

To remove the memory card password, select Options >

Remove password. When you remove the password, the

data on the memory card is not protected against unauthorized use.

Unlock a memory card

To open a locked memory card, select Options > Unlock

memory card. Enter the password.

Transfer content between devices

You can transfer content from a compatible device to your Nokia device using Bluetooth connectivity or infrared. The type of content that can be transferred depends on the device model. If the other device supports synchronization, you can also synchronize data between the other device and your Nokia device.

Transfer data with Bluetooth or infrared

To start transferring data from a compatible device, select

Menu > Tools > Transfer.

Bluetooth connectivity

1. In the information view, select Continue.

2. Select Via Bluetooth. Both devices must support the

selected connection type.

3. Activate Bluetooth in your other device, and select

Continue in your Nokia device to start searching for

devices with active Bluetooth connectivity.

4. Select Stop in your Nokia device after it has found your other device.

5. Select your other device from the list. You are asked to enter a passcode (1 to 16 digits) on your Nokia device. The passcode is used only once to confirm this connection.

6. Enter the code on your Nokia device, and select OK. Enter the passcode on your other device, and select

OK. The devices are now paired. See "Pair

devices," p. 85. For some phone models, the Transfer data application

is sent to your other device as a message. To install

Transfer data on your other device, open the message,

and follow the instructions on the display.

7. From your Nokia device, select the content you want to transfer from your other device, and OK.

Infrared connectivity

1. In the information view, select Continue.

2. Select Via infrared. Both devices must support the selected connection type.

3. Connect the two devices. See "Infrared," p. 87.

4. From your Nokia device, select the content you want to transfer from your other device, and OK.

Content is copied from the memory of the other device to the corresponding location in your device. Copying time depends on the amount of data to be t ransferred. You can also cancel and continue later.

The necessary steps for data transfer may vary depending on your device, and whether you have interrupted data transfer earlier. The items that you can transfer vary depending on the other device.

Your device

FCC DRAFT

Synchronize data with another device

If you have previously transferred data to your Nokia

Your device

device, and your other device supports synchronization, you can use Transfer to keep the data of the two devices up to date. Use caution when synchronizing, if you use a proprietary e-mail client. Data may conflict or may be overwritten.

1. Select Phones, and press the joystick.

2. Scroll to the device from which you transferred data, and press the joystick.

3. Select Synchronize, and press the joystick. The devices start synchronizing using the same connection type that you selected when you originally transferred data. Only the data that you originally selected for data transfer is synchronized.

To modify the data transfer and synchronization settings, select Synchronize, scroll to a device, press the joystick, and select Edit.

Settings

When you switch the device on, it may recognize the SIM card provider and configure the correct text message, multimedia message, and GPRS settings automatically. You may also receive the settings as a special text message from your service provider.

Scroll and make selections

Use the joystick to navigate and select menu items. With the joystick, you can scroll through the menu, applications, or lists in the Menu or in different applications or lists. You can also press the joystick to open applications or files or edit settings.

To select text, press and hold the shift key, and scroll to select the text.

To select different messages, files, or contacts, scroll to highlight the item you want. Select Options > Mark/

Unmark > Mark to select one item or Options > Mark/ Unmark > Mark all to select all items.

To select an object, scroll onto the object so that square markers appear on each side of the object.

Nokia PC Suite

You can install Nokia PC Suite from the CD-ROM or from the Web. Nokia PC Suite can be used only with Windows 2000 and Windows XP. With Nokia PC Suite, you can make backups, synchronize your device with a compatible

computer, move files between your device and a compatible computer, or use your device as a modem.

Your device

FCC DRAFT

Total product offering

In-box

What is in the box?

• RM-88 mobile transceiver

• Battery BP-5L

• Travel charger AC-4

Total product offering

• miniSD memory card 64MB

• Headset HS-40

• Connectivity cable DKE-2

• Printed user guide

• Quick start guide

• CD-ROM

Additional on-device applications

The following additional applications are installed on your device:

• Wayfinder Mobile Navigator

• WorldMate by Mobimate

• E-Book reader by Mobipocket

• Mobile IP by Birdstep

• Mobile Mouse by Psiloc

• Handy Expense by Epocware

• Golf Pro Contest by Synergenix

Technical information

Operating system

CPU 32-bit RISC ARM9

Supported platforms/ technologies

Frequency RM-88 Quadband EGSM 850,

Data transmission 3G, EGPRS, GPRS, HSCSD, CSD

Size Length: 116.5 mm

Volume 103.4 cc

Weight 144 g with battery

Memory User: 90 MB total in device

Symbian 9.1a, S60 Averell release 3.0

C++, Java MIDP 2.0

900, 1800, and 1900

Width: 69.9 mm Thickness: 13.9–16.2 mm

Memory card: miniSD (hot swap). Storage amount varies.

FCC DRAFT

Display Landscape active matrix

Input Joystick and QWERTY

Time Talk: up to 6 hours

Connectivity Bluetooth (version 1.2). Up

Messaging E-mail, instant messaging,

Browser HTML 4, WAP 2.0

Voice features Voice dialing, voice recorder,

Other features Speakerphone, stereo audio

color Area: 56.9 x 42.7 mm Colors: TFT 16 million (24-

bit) Resolution: QVGA 320 x 240

pixels

keyboard

Standby: up to 14 days

to six simultaneous connections.

Mini-USB (USB 2.0) Headset connector Infrared

SMS, MMS

enhanced voice commands

playback, video playback, offline/flight mode, local and remote data

synchronization, picture phonebook, personalization

Operating temperature 14°F to 104°F (- 10°C to + 40°

Total product offering

FCC DRAFT

Make calls

When the device is locked, calls still may be possible to the official emergency number programmed into your device.

In the offline profile, you may need to enter the lock code and change the device to a calling profile before making any call, including a call to an emergency number.

To make and receive calls, the device must be switched on and have a valid SIM card installed, and you must be located in a service area of the cellular network. The GPRS connection is put on hold during voice calls unless the network supports dual transfer mode.

Enter the phone number, including the area code, and press the call key. If you enter an incorrect character, press the backspace key.

Tip: For international calls, press + , and enter the country code, area code (omit the leading 0, if necessary), and phone number.

To end the call or cancel the call attempt, press the end key.

To make a call using the saved contacts, select Contacts in the standby mode. Enter the first letters of the name, scroll to the name, and press the call key. See "Contacts," p. 37.

Press the call key to view up to 20 numbers that you last called or attempted to call. Scroll to the desired number or name, and press the call key to dial the number.See "Log," p. 33.

To adjust the volume of an active call, press the volume keys.

To call your voice mailbox (network service) in standby mode, press and hold 1, or press 1 then the call key.

1-touch dial

1-touch dialing allows you to make a ca ll by pressin g and holding a number key.

Before using 1-touch dialing, select Menu > Tools >

Settings > Call > 1-touch dialing > On.

To assign a number key to a phone number, select Menu >

Tools > 1-touch dial. Scroll to the number key (2 - 9) on

the screen, and select Options > Assign. Select the desired number from the Contacts directory.

To delete the phone number assigned to a number key, scroll to the speed dialing key, and select Options > {No

display_text mapping for 'text_speed_dial_option_clear', locale='en-US'}.

To modify a phone number assigned to a number key, scroll to the 1-touch dialing key, and select Options >

Change.

FCC DRAFT

Vanity dial

Vanity dialing allows you to substitute letters with numbers. The letters are used in conjunction with numbers to place a call. An example is 1-800-XXXXXXX.

Alphabetic letters are available after the first number is entered.

1. Dial the numeric characters that begin the number.

2. Dial the alphabetic characters of the number.

When you dial a number in vanity dialing mode, both numbers and alphabetic characters will be displayed, as you dial them. In contacts and call log, numbers will appear numeric only, even they were created using the vanity dialing feature.

To enter data during an active call, press the number keys to enter numbers. To enter alphabetic characters, press and hold the chr key then the alphabetic key, for each letter.

To dial the emergency number in the vanity dialing mode, press the end key, and dial the emergency number.

To dial an alphabetic character, press and hold the chr key, then the alphabetic key.

Answer a call

Note: The actual invoice for calls and services from your service provider may vary, depending on network features, rounding off for billing, taxes, and so forth.

To answer a call, press the call key.

To decline the call, press the end key.

To mute a ringing tone instead of answering a call, select

Silence.

To answer a new call during a call when the Call waiting function is activated, press the call key. The first call is put on hold. To end the active call, press the end key.

Options during a call

Select Options for the following options during a call:

• Mute — Listen to the active conversation, but your voice cannot be heard by the other parties of the call.

• Unmute — Your voice can be heard again by the other parties of the call.

• Drop — Drop a party from the active call.

• End active call — End the currently active call.

• Menu — View the applications menu of your device.

• Hold — Place the active call on hold.

• Unhold — Remove the active call from hold.

• New call — Place a new call while on a call, if

conference calling (network service) is available.

• Answer — Answer an incoming call while on a call, if

Call waiting is activated.

• Decline — Reject an incoming call while on a call, if Call

waiting is activated.

• Lock keypad — Lock the device keypad while on a call.

• Conference — Merge an active and a held call into a

conference call (network service).

• Private — Converse privately with a selected participant during a conference call (network service).

• Swap — Alternate between an active and a held call (network service).

Make calls

FCC DRAFT

• Send touch tones — Send touch tone strings, including passwords. Enter the string or search for it in

Contacts, and select Touch tones.

• Transfer — Connect the held call to the active call and

Make calls

disconnect yourself from the call (network service).

The available options may vary.

Forward calls

Select Menu > Tools > Settings > Call forwarding. Forward incoming calls to your voice mailbox or to

another phone number. For details, contact your service provider.

1. Select a call type from the following:

• Voice calls — Incoming voice calls.

• Data and video calls — Incoming data and video

calls.

2. Select one of the following call forwarding options:

• All voice calls or All data and vid. calls. — Forward all incoming voice or data and video.

• If busy — Forward incoming calls when you have an active call.

• If not answered — Forward incoming calls after your device rings for a specified period of time. Define the time you let the device ring before forwarding the call in the Delay time: field.

• If out of reach — Forward calls when the device is switched off or out of network coverage.

• If not available — Activate the last three settings at the same time. This option forwards calls if your device is busy, not answered, or out of reach.

3. Select Activate.

To check the current forwarding status, scroll to the forwarding option, and select Options > Check status.

To stop forwarding voice calls, scroll to the forwarding option, and select Options > Cancel.

Call restriction and call forwarding c an not be a ct ive at t he same time.

Call restriction

When calls are restricted, calls still may be possible to the official emergency number programmed into your device.

Select Menu > Tools > Settings > Call restriction. You can restrict the calls that c an b e m ad e o r r e c ei v e d w i t h

the device (network service). To change the settings, you need the restriction password from your service provider. Call restriction affects all calls, including data calls. Call restriction and call forwarding cannot be active at the same time.

To restrict calls, select Cellular call restriction, and from the following options:

• Outgoing calls — Prevent making voice calls with your device.

• Incoming calls — Restrict incoming calls.

• International calls — Prevent calling to foreign

countries or regions.

• Incoming if roaming — Restrict incoming calls when outside your home country.

• Intern. except home — Prevent calls to foreign countries or regions, but to allow calls to your home country.

FCC DRAFT

To check the status of voice call restriction, scroll to the restriction option, and select Options > Check status.

To stop all voice call restrictions, scroll to a restriction option, and select Options > Cancel all restrict..

Log

Select Menu > Log. In the Log, you can view information about the

communication history of the device.

To view the logs for recent voice calls, their approximate duration, and packed data connections, select Recent

calls, Call timers, or Packet data; and press the joystick.

To sort the events by type or direction, scroll right to open the general log, and select Options > Filter. Scroll to a filter type, and press the joystick. Select the type or direction, and press the joystick.

To set the time how long all communication events are held in the log, select Options > Settings > Log duration, an option, and OK.

To clear missed and received calls and dialed numbers, select Recent calls > Options > Clear recent calls.

Voice commands

Before using voice tags, note that:

• Voice tags are not language-dependent. They are dependent on the speaker's voice.

• You must say the name exactly as you said it when you recorded it.

• Voice tags are sensitive to background noise. Record voice tags and use them in a quiet environment.

• Very short names are not accepted. Use long names, and avoid similar names for different numbers.

Note: Using voice tags may be difficult in a noisy environment or during an emergency, so you should not rely solely upon voice dialing in all circumstances.

Select Menu > Tools > Voice commands. Use voice commands to make phone calls and to launch

applications, profiles, or other functions on the device. The device creates a voice tag for the entries in the

contacts list and for the functions designated in the Voice

commands application. When a voice command is

spoken, the device compares the spoken words to the voice tag in the device.

Voice commands are not dependent on a speaker’s voice; however, the voice recognition in the device adapt s to the main user’s voice to better recognize voice commands.

Make a call

The voice tag for a contact is the name or nickname that is saved on the contact card in Contacts. To listen to the voice tag, open a contact card, and select Options >

Playback.

1. To make a call using a voice command, press and hold

the voice key.

2. When you hear the tone or see the visual display,

clearly speak the name saved on the contact card.

Make calls

FCC DRAFT

3. The device plays a synthesized voice tag for the recognized contact in the selected device language, and displays the name and number. After a timeout,

Make calls

the device dials the number. If the recognized contact was not correct, select Next to view a list of other matches or Quit to cancel dialing.

If several numbers are saved under the contact, the device selects the default number, if it has been set. Otherwise, the device selects the first available number of the following fields: Mobile, Mobile (home), Mobile (work),

Telephone, Tel. (home), and Tel. (work).

Launch an application

The device creates voice tags for the applications listed in the Voice commands application.

To launch an application using a voice command, press and hold the voice key, and clearly speak the voice command. If the recognized application was not correct, select Next to view a list of other matches or Quit to cancel.

To add more applications to the list, select Options > New

application.

To change the voice command of an application, scroll to the application, and select Options > Change command. Type the new voice command, and select OK.

Change profiles

The device creates a voice tag for each profile. To set on a profile using a voice command, press and hold the voice key, and say the name of the profile.

To change the voice command, scroll to the desired profile, and select Profiles > Options > Change

command.

Voice command settings

To switch off the synthesizer that plays recognized voice commands in the selected device language, select

Settings > Synthesizer > Off.

To reset voice recognition learning when the main user of the device has changed, select Reset voice adapts..

FCC DRAFT

Clock

Select Menu > Clock.

To change the clock type, select Options > Settings > Clock

type > Analog or Digital.

Date and time settings To change the date and time, their display formats, alarm

tone, and to define whether you want to use automatic time update, select Options > Settings and from the following:

• Time — Enter the time, and select OK.

• Time zone — Enter the time zone, and select OK.

• Date — Enter the date, and select OK.

• Date format — Change how the date is displayed. Scroll

• Date separator — Change the symbol that separates

• Time format — Select 24-hour or am/pm.

• Time separator — Select the symbol that separates

• Clock type — Select Analog or Digital.

• Clock alarm tone — Select the tone that you want to

• Network operator time — Update time, date, and time

Tip: To update date and time automatically (network service), select Options > Settings >

Network operator time > Auto-update.

to the desired format, and select OK.

days, months, and years. Scroll to the symbol yo u want, and select OK.

hours and minutes.

use for the alarm clock.

zone information automatically (network service).

Select Auto-update to activate. This service may not be available in all networks.

Alarm clock

If the alarm time is reached while the device is switched off, the device switches itself on and starts sounding the alarm tone. If you select Stop, the device asks whether you want to activate the device for calls. Select No to switch off the device or Yes to make and receive calls. Do not select Yes when wireless phone use may cause interference or danger.

To set an alarm, select Options > Set alarm. Enter the alarm time, and select OK.

To view and change alarms, select Options > Reset

alarm.

To remove an alarm, select Options > Remove alarm.

Add and delete cities

To add a city, scroll right, and select Options > Add city. Scroll to a city, and select Options > Select.

Tip: To search for a city in the Cities list, select

Options > Add city > Options > Find. Enter the city

name in the search field.

To delete a city, scroll right, scroll to the city, and select

Options > Remove.

FCC DRAFT

Changing the city in which you are located may change

Clock

the general system time of your device.

FCC DRAFT

Contacts

Select Menu > Contacts. Manage all of your contact numbers and addresses. Add

a personal ringing tone, voice tag, or a thumbnail image to a contact. Send contact information to compatible devices or receive contact information as business cards from compatible devices, and add them to your own list of contacts.

To add a contact, select Options > New contact. Enter the contact information, and select Done.

To edit information in a contact card, scroll to the contact, and select Options > Edit. Select from the following options:

• Add thumbnail — Add a thumbnail image that will

• Remove thumbnail — Remove the image from the

• Add detail — Add fields of information to a contact

• Delete detail — Delete any details that you added to a

• Edit label — Edit the field names of the contact card.

Manage contact groups

Create a contact group so that you can send text or e-mail messages to several recipients at the same time.

1. Scroll to the right, and select Options > New group.

display when a contact calls you. The image must be previously saved to your device or memory card.

contact card.

card, including Job title.

contact card.

Contacts

2. Enter a name for the group or use the default name, and select OK.

3. Open the group, and select Options > Add members.

4. Scroll to each contact you want to add to the group, and press the joystick to mark it.

5. Select OK to add all marked contacts to the group. The following options are available when you select

Options in the contact groups view:

• Open — Open the contact group and view the

group members.

• Create message — Send a message.

• New group — Create a new contact group.

• Delete — Delete a contact group.

• Rename — Rename the contact group.

• Ringing tone — Assign a ringing tone to a contact

group.

• Contacts info — View the information for a contact

group.

• Settings — Set the name display settings for

contact group members.

To remove a contact from a contact group, open the contact group. Scroll to the contact you want to remove, and select Options > Remove from group > Yes.

Tip: To check the group in which a contact belongs, select Menu > Contacts. Scroll to the contact, and select Options > Belongs to groups.

FCC DRAFT

To view or edit a contact within a contact group, open the contact group. Scroll to the contact you want to view or edit, and select Options. Select from the following

Contacts

options:

• Open — Opens the contact and displays contact information.

• Call — Call the contact.

• Create message — Create and send a text message or

multimedia message to the contact.

• Remove from group — Remove the contact from the contact group.

• Belongs to groups — View all contact groups that a contact belongs to.

Manage default information

Assign a default number or address to a contact so you can easily call or send a message to the default number or address, even if several numbers or addresses are saved to that contact.

To change default information for a contact, open the contact, and select Options > Defaults. Select the number or address you want to set as a default, and select OK.

The default number or address is underlined in the contact.

Copy contacts between SIM and device memory

For availability and information on using SIM card services, contact your SIM card vendor. This may be the service provider, network operator, or other vendor.

To copy contacts from a SIM card to device memory, select

Options > SIM contacts > SIM directory to open the SIM

directory. Mark the contacts you want to copy, or select

Mark all to copy all contacts. Select Options > Copy to Contacts.

To copy contacts from the device memory to a SIM card, select Options > Copy to SIM direct.. Mark the contacts you want to copy, or select Mark all to copy all contacts. Select

Options > Copy to SIM direct..

Select Options > SIM contacts > SIM directory to see the names and numbers stored on the SIM card. In SIM directory you can add, edit, or copy numbers to Contacts, and you can make calls.

Select ringing tones for contacts

Select a ringing tone for a contact or contact group. If the caller's phone number is sent with the call and your device recognizes the number, the ringing tone plays when the contact calls you.

To select a ringing tone for a contact or contacts group, open the contact or contact group, and select Options >

FCC DRAFT

Ringing tone. A list of ringing tones opens. Select the

ringing tone you want to use, and select OK.

To remove the ringing tone, select Default tone from the list of ringing tones.

Business cards

Select Menu > Contacts. You can send, receive, view, and save contact cards as

business cards in vCard or Nokia Compact Business Card format.

You can send business cards to compatible devices using SMS, MMS, or e-mail, or an infrared or Bluetooth connection.

To send a business card, select the contact card from the contacts list, and select Options > Send. Select Via text

message, Via multimedia, Via e-mail, Via Bluetooth, or Via infrared. Enter the phone number or address, or add a

recipient from the contacts list. Select Options > Send. If you select SMS as the sending method, contact cards are sent without images.

To view a received business card, select Open from the displayed notification, or open the message from the inbox folder in Messag..

To save a business card, select Options > Save business

card when the incoming message appears on the device.

To save a received business card, select Options > Save

business card.

To delete a received business card, select Options >

Delete.

Contacts

FCC DRAFT

Tools

Select Menu > Tools. The Tools folder contains applications used to configure

your device and to configure other applications.

App. mgr. Memory card—See "Memory card," p. 24. Transfer—See "Transfer content between

devices," p. 25. Profiles—See "Profiles," p. 104. Settings—See "Settings," p. 106.

Themes—See "Themes," p. 105. 1-touch dial—See "1-touch dial," p. 30. Positioning Navigator Landmarks Voice commands—See "Voice commands," p. 33.

Application manager

Select Menu > Tools > App. mgr.. When you open the application manager, you see all the

software packages that have been installed, with their name, version number, type, and size. You can view the details of installed applications, remove them from your device, and specify installation settings.

Positioning

With the positioning service you can receive information from service providers about local issues such as weather or traffic conditions, based on the location of your device (network service).

Select Menu > Tools > Positioning. To select a positioning method, scroll to the positioning

method, and select Options > Enable. To stop using it, select Options > Disable. The Bluetooth positioning method enables you to use Bluetooth GPS enhancements for positioning. The Network based positioning method is provided by your network operator or service provider. Both positioning methods can be used simultaneously.

Landmarks

Select Menu > Tools > Landmarks. Landmarks are coordinates to geographic locations that

you can save to your device for later use in different location-based services. You can create landmarks using a Bluetooth GPS enhancement or network (network service). {target element

GUID0C31556E370311DA86B3000BDB6BA40A in texas_location.xml is not applicable for the current conditions}

To create a landmark, select Options > New landmark. Select Current position to make a network request for the

FCC DRAFT

latitude and longitude coordinates of your current location or Enter manually to fill in the necessary location information. Location information may be a name, category, address, latitude, longitude, and altitude.

To view or edit a landmark, scroll to it, and press the joystick.

To delete a landmark, scroll to it, and press the backspace key.

For more information, see the extended user guide on the Web.

Landmark categories

You can view landmark categories in two views: one lists categories that already contain landmarks, and the other lists all categories that your device has.

To view the landmarks that a category contains, select the category, and press the joystick.

To move a landmark from one category to another, scroll left. Scroll to a landmark, and press Options > Add to

category. Scroll to the old category, and press the joystick

to remove the mark next to it. Scroll to the category or categories to which you want to add the landmark, and press the joystick. Select Accept.

With each landmark, select Options and select from the following options:

• Edit — Modify landmark information. Landmark

• New landmark — Create a landmark directly into the

information may be a name, category, address, latitude, longitude, and altitude.

category. Select Current position to make a network request for the latitude and longitude coordinates of

your current location or Enter manually to fill in the necessary location information. Location information may be a name, category, address, latitude, longitude, and altitude.

• Add to category — Organize the landmark to a group of similar landmarks. Scroll to the category, and press the joystick.

• Send — Send the landmark to compatible devices.

• Edit categories — Add, edit, or delete the your

landmark categories.

• Landmark icon — Change the icon of the landmark. Scroll to the desired icon, and press the joystick.

The available options may vary. Select Options > Edit categories. Select Options and select from the following options:

• New landmark — Create a landmark directly into the category. Select Current position to make a network request for the latitude and longitude coordinates of your current location or Enter manually to fill in the necessary location information. Location information may be a name, category, address, latitude, longitude, and altitude.

• Landmark icon — Change the icon of the landmark. Scroll to the desired icon, and press the joystick.

To delete a landmark category that you have created, scroll to it and press the backspace key. You cannot delete preset categories.

Edit landmarks

Select Options > Edit or New landmark > Enter manually. Enter location, name, category, address, latitude, longitude, or altitude.

Tools

FCC DRAFT

With each landmark, select Options and from the

Tools

following options:

• Select categories — Organize the landmark in a group of similar landmarks. Scroll to the category and press the joystick to modify landmark information. Landmark information may include a name, category, address, latitude, longitude and altitude.

• Current position — Request and automatically fill in the geographical latitude and longitude coordinates to make a landmark of your current location.

• Landmark icon — Change the icon of the landmark. Scroll to the desired icon, and press the joystick.

• Send — Send the landmark to compatible devices.

Available options may vary.

Receive landmarks

Select Menu > Messag.. Open a message that contains a landmark you have received from another device. Scroll to the landmark, and press the joystick.

To save the landmark in your device, select Options >

Save.

To forward the landmark to compatible devices, select

Options > Send.

such as games, ringing tones, wallpapers, services, and applications, for your device. The available content depends on your network operator and service provider.

Nokia Catalogs uses your network services to access the most updated catalog content. For information on additional items available through Nokia Catalogs, contact your network operator or service provider.

Nokia Catalogs receives ongoing updates, bringing you the latest content your network operator or service provider offers for your device. To update the catalogs manually, select Options > Refresh list.

Sett. wizard

Sett. wizard configures your device for operator (MMS,

GPRS, and Internet), e-mail, and video sharing (network service) settings based on your network operator information.

To use these services, you may have to contact your network operator or service provider to activate a data connection or other services.

To edit settings, select Menu > Tools > Sett. wizard and the item you want to configure.

Nokia Catalogs

Select Menu > Tools > Catalogs. Select OK if you accept the disclaimer.

Nokia Catalogs (network service) is a mobile content shop available on your device. With Nokia Catalogs you can discover, preview, buy, download, and upgrade content,

FCC DRAFT

E-mail

1. To edit e-mail settings, select Menu > Tools > Sett.

wizard > E-mail. Sett. wizard detects your available

network operators. If the device detects more than one network operators, select one and OK.

If the network operator is not recognized, you must select Country/Region and Operator.

2. Select your e-mail service provider from the list.

3. Select the outgoing mail server. Use the default server if you are not sure.

If Sett. wizard prompts you to enter the details of your E-

mail address (including the domain name), User name,

and Password, select each in turn and Options > Change. Enter the details, and select OK.

1. Select Options > OK when you are finished.

2. Select OK to confirm that you want to set up the

3. Select OK. To send or receive e-mail messages, you must have an

active packet data account. Contact your network operator or service provider for details.

mailbox for the specified operator.

Operator

To edit operator settings (access points, Web browser, MMS, and streaming), select Menu > Tools > Sett.

wizard > Operator. Sett. wizard detects your available

network operators. If the device detects more than one network operators, select one and OK. If the network operator is not recognized, you must select Country/

Region and Operator.

If you are not able to use Sett. wizard, visit the Nokia phone settings Web site at www.nokia.com.

Voice aid

Select Menu > Tools > Voice aid.

The voice aid application allows you to operate the basic functions of your device without watching the display.

Select from the following:

• Contacts — View the entries in your contacts list.

• Recent calls — View your missed and received calls,

dialed numbers, and frequent calls.

• Voice mailbox — Retrieve your voice messages.

• Dialer — Dial a telephone number.

• Clock — Hear the current time and date.

To hear more options, select Options.

Tools

FCC DRAFT

Organizer

Select Menu > Organizer.

Organizer includes tools that help you organize and

manage the details of different events in your personal and business life. If you use a proprietary e-mail client, functions of the e-mail client and Organizer may conflict.

Calendar

Select Menu > Organizer > Calendar. In Calendar, you can create and view scheduled events

and appointments. You can also set alarms for calendar entries.

You can synchronize your calendar data with a compatible computer using Nokia PC Suite. For information on synchronization, see the PC Suite guide.

Create calendar entries

You can create four types of calendar entries:

• Meeting entries have a specific date and time.

• Memo entries are related to the whole day but not to

a specific time of the day. Memo entries do not appear in the weekly time schedule view.

• Anniversary entries remind you of birthdays and special dates. They refer to a certain day but not a specific time of the day. Anniversary entries are repeated every year.

• To-do note entries remind you of a task that has a due date but not a specific time of the day.

To create a calendar entry, scroll to a date, and select

Options > New entry. Select an entry type. Available

settings for meeting, memo, anniversary, and to-do entries vary.

Select from the following:

• Subject or Occasion — Enter a description for the entry.

• Location — Enter any necessary location information.

• Start time — Enter the start time.

• End time — Enter the end time.

• Start date or Date — Enter the start date or date the

event occurs.

• End date — Enter the end date.

• Alarm — Set an alarm for meeting and anniversary

entries. The alarm is displayed in the Day view.

• Repeat — Specify whether you want the entry to be repeated and when. Define the repeat type, frequency, and possible ending date.

• Synchronization — If you select Private, the calendar entry can be seen only by you and is not shown to others with online access to view the calendar. If you select Public, the calendar entry is shown to others who have access to view your calendar online. If you select None, the calendar entry is not copied to your PC when you synchronize.

Tip: Make sure you have selected the correct city in the Clock application, because scheduled

FCC DRAFT

calendar entries may change when the current city is changed and is on another time zone.

To open and edit an existing entry, scroll to the entry, and

select Options > Open. Edit the details in the various fields.

To-do

You can create and maintain a task or list of tasks that must be done by a certain day. Each task can be assigned a due date, but not a specific time of the day.

To open the list of to-do notes, select Options > To-do

list.

To add a to-do note, select Options > New entry > To-do. Start to write the task in the Subject field. You can set a

due date for the task, and specify a priority. The priority icons are ( ! ) High and ( - ) Low. There is no icon for

Normal.

To mark a task as completed, scroll to the task in the todo list, and select Options > Mark as done.

To restore a task, scroll to it in the todo list, and select

Options > Mark as not done.

Tip: When you edit or delete a repeated entry, choose how you want the change to take effect. If you select All calendar entries deleted, all repeated entries are deleted. If you select Delete

entry, only the current entry is deleted.

Calendar settings

Select Options > Settings to modify the Calendar alarm

tone, Default view, Week starts on, and Week view title.

Calendar views

To switch between the different calendar views, select

Options in any calendar view. Select a type of view from

the list.

Tip: When viewing Calendar in any view, press the function key and * to quickly switch to another view.

To set the default calendar view, select Options >

Settings > Default view > Month view , Week view, Day view, or To-do view.

To view a specific date in the calendar view, select

Options > Go to date. Enter the date, and select OK.

Month view

In the Month view, you can view the entire month at one time. Each row shows one week of dates. The active month is displayed, and the active day is either today or the last day that was viewed. The active day is marked with a colored square. Days that have scheduled events are marked with a small triangle in the bottom right corner. Scroll to switch between the days of the month and day entries.

Organizer

FCC DRAFT

Tip: When viewing Calendar in any view, press the function key and * to quickly switch to another view.

Organizer

Week view

The Week view shows the events for the selected week in seven day boxes. Today's date is marked with a colored square. Memos and anniversaries are placed before 8:00 a.m.

To change the starting day of the week, select Options >

Settings > Week starts on.

Day view

The Day view view shows the events for the selected day. Entries are grouped into time slots according to their starting time. To view the previous or next day, scroll left or right.

To-do view

The To-do view view shows the to-do items for the selected day.

Send calendar entries

To send a calendar entry to a compatible device, scroll the entry, and select Options > Send > Via text message, Via

multimedia, Via e-mail, Via Bluetooth, or Via infrared.

Add a received calendar entry to your calendar

You can receive a calendar entry as an attachment to a multimedia or e-mail message.

To add a received calendar entry to your calendar, open the calendar entry attachment in the message, and select

Options > Save to Calendar. The entry is added to your

default calendar.

Notes

Select Menu > Organizer > Notes. You can create and send notes to other compatible

devices, and save plain text files (.txt format) that you receive to Notes.

To write a new note, select Options > New note, write the text and press Done.

Calculator

Note: This calculator has limited accuracy and is

designed for simple calculations. Select Menu > Organizer > Calculator.

To make a calculation, enter the first number of the calculation. Scroll to and select a function from the function map. Enter the second number o f the calculation, and select =.

FCC DRAFT

The calculator performs operations in the order they are entered. The result of the calculation remains in the editor field and can be used as the first number of a new calculation.

To save the results of a calculation, select Options >

Memory > Save. The saved result replaces the previously

stored number in memory.

To retrieve the results of a calculation from memory and use them in a calculation, select Options > Memory >

Recall.

To view the last saved result, select Options > Last

result.

Exiting the calculator application or turning off the device does not clear the memory. You can recall the last saved result the next time you open the calculator application.

Converter

Select Menu > Organizer > Converter. The converter has limited accuracy, and rounding errors

may occur.

Convert measurements

1. Scroll to the Type field, and select Options >

Conversion type to open a list of measures. Scroll to

the measure you want to use, and select OK.

2. Scroll to the first Unit field, and select Options > Select

unit. Select the unit from which you want to convert,

and select OK. Scroll to the next Unit field, and select the unit to which you want to convert.

3. Scroll to the firs t Amount field, and enter the value you want to convert. The other Amount field changes automatically to show the converted value.

Organizer

Set base currency and exchange rate

Note: When you change base currency, you must enter new exchange rates because all previously set exchange rates are cleared.

Before you can make currency conversions, you must choose a base currency and add exchange rates. The rate of the base currency is always 1. The base currency determines the conversion rates of the other currencies.

1. To set the rate of exchange for the unit of currency,

scroll to the Type field, and select Options > Currency

rates.

2. A list of currencies opens, and you can see the current

base currency at the top. Scroll to the currency type and enter the exchange rate you would like to set per single unit of currency.

3. To change the base currency, scroll to the currency,

and select Options > Set as base curr..

4. Select Done > Yes to save the changes. After you have inserted all the necessary exchange rates,

you can make currency conversions.

Voice mailbox

Select Menu > Organizer > Voic. mail.

FCC DRAFT

When you open the voice mailbox application for the first time, you are asked to enter the number of your voice mailbox. To change the number, select Options > Change

number. To call the number, select Options > Call voice

Organizer

mailbox.

FCC DRAFT

Messages

Select Menu > Messag.. Before sending or receiving messages, you may need to

do the following:

• Insert a valid SIM card in the device and be located in

• Verify that the network supports the messaging

• Define Internet access point (IAP) settings on the

• Define e-mail account settings on the device. See "E-

• Define SMS settings on the device. See "Text

• Define MMS settings on the device. See "Multimedia

The device may recognize the SIM card provider and automatically configure some of the message settings. If not, you may need to define the settings manually, or contact your service provider, network operator, or Internet service provider to configure the settings.

The Messag. application displays each type of messaging folder in a list format with the newest message displayed first in each folder.

Select one of the following:

a service area of the cellular network.

features you want to use and that they are activated on your SIM card.

device. See "Access points," p. 108.

mail account settings," p. 61.

messages," p. 50.

message settings," p. 56.

• New message — Create and send a new text,

Messages

multimedia, or e-mail message.

• Inbox — View received messages, except e-mails and

cell broadcast messages.

• My folders — Create your own folders to store

messages and templates.

• Mailbox — View and reply to received e-mail.

• Drafts — Store messages that have not been sent.

• Sent — Store messages that have been sent.

• Outbox — View messages waiting to be sent.

• Reports — View information about the delivery of sent

messages.

Organize messages

To create a new folder to organize your messages, select

My folders > Options > New folder. Enter the folder name,

and select OK.

To rename a folder, select the folder and Options >

Rename folder. Enter the new folder name, and select OK. You can only rename folders that you have created.

To move a message to another folder, open the message, and select Options > Move to folder, the folder, and OK.

To sort messages in a specific order, select Options > Sort

by. You can sort the messages by Date, Sender, Subject, or Message type.

FCC DRAFT

Search for messages

To search for a message, open the folder in which you

Messages

want to search, select Options > Find. Enter the search term, and select OK.

Messaging settings

Select Options > Settings.

To define or edit settings for different message types, select Text msg., {No display_text mapping for

'qtn_mce_title_settings_mms', locale='en-US'}, {No display_text mapping for 'qtn_mce_title_settings_email', locale='en-US'}, Service message, Cell broadcast, or {No display_text mapping for 'qtn_mce_title_settings_general', locale='en-US'}.

See "Text messages," p. 50. See "Multimedia message settings," p. 56. See "E-mail account settings," p. 61.

Other settings

Select Menu > Messag. > Options > Settings > {No

display_text mapping for 'qtn_mce_title_settings_general', locale='en-US'}.

Select from the following:

• Save sent messages — Select whether to store sent messages in the Sent folder.

• No. of saved msgs. — Enter the number of sent

messages that you want to save. When the limit is reached, the oldest message is deleted.

• Memory in use — Select where to save your received messages. You can save messages to memory card only if a memory card is inserted.

• New e-mail alerts — Select whether you want to be alerted when a new message arrives in your mailbox.

• Active standby mode — Select the messaging folder (for example, your inbox or an e-mail account) that you want to see in the active standby mode.

• Folder view — Define how you want the folders in the inbox to be shown.

The settings available for editing may vary.

Text messages

Your device supports the sending of text messages beyond the character limit for a single message. Longer messages are sent as a series of two or more messages. Your service provider may charge accordingly. Characters that use accents or other marks, and characters from some language options like Chinese, take up more space limiting the number of characters that can be sent in a single message.

Write and send text messages

Select Menu > Messag. > New message > Text message.

1. In the To field, press the joystick to select recipients

from Contacts, or enter the recipients' mobile phone numbers manually. If you enter more than one number, separate the numbers with a semicolon.

2. Enter the text of the message. To use a template, select

Options > Insert > Template.

FCC DRAFT

3. Select Options > Send to send the message.

Note: When sending messages, your device may display{No display_text mapping for '',

locale='en-US'} Me s sa ge Se n t. Th i s i s a n i n di ca ti o n t ha t

the message has been sent by your device to the message center number programmed into your device. This is not an indication that the message has been received at the intended destination. For more details about messaging services, check with your service provider.

Sending options for text messages

To set sending options for the text message, select

Options > Sending options.

Define the following:

• Msg. center in use — Select a message center to send the message.

• Character encoding — Select Reduced support to use automatic character conversion to another encoding system when available.

• Receive report — Select Yes if you want the network to send you delivery reports on your messages (network service).

• Message validity — Select how long the message center resends your message if the first attempt fails (network service). If the recipient cannot be reached within the validity period, the message is deleted from the message center.

• Message sent as — Convert the message to another format: Text, Paging or E-mail. Change this option only if you are sure that your message center is able to

convert text messages into these other formats. Contact your network operator.

• Reply via same ctr. — Select whether you want the reply message to be sent using the same text message center number (network service).

Reply to received text messages

To reply to a text message, open the message from the

Inbox. Select Options > Reply. Enter the text of the

message, and select Options > Send.

To call the sender of a text message, open the message from the Inbox, and select Options > Call.

Text messages on the SIM card

Text messages may be stored on your SIM card. Before you can view SIM messages, you must copy the messages to a folder in the device. After copying the messages to a folder, you can view them in the folder or delete them from the SIM card.

Select Options > SIM messages.

1. Select Options > Mark/Unmark > Mark or Mark all to

mark every message.

2. Select Options > Copy.

3. Select a folder and OK to begin copying.

To view SIM card messages, open the folder where you copied the messages, and open a message.

To delete a text message from the SIM card, select the message, and press the backspace key.

Messages

FCC DRAFT

Text message settings

Select Options > Settings > Text msg..

Messages

Define the following:

• Message centers — View the available message centers for your device.

• Msg. center in use — Select a message center to send the message.

• Character encoding — Select Reduced support to use automatic character conversion to another encoding system when available.

• Receive report — Select Yes if you want that the network sends you delivery reports on your messages (network service).

• Message sent as — Convert the message to another format: Text, Paging or E-mail. Change this option only if you are sure that your message center is able to convert text messages into these other formats. Contact your network operator.

• Preferred conn. — Select the preferred method of connection when sending text messages from your device.

• Reply via same ctr. — Select whether you want the reply message to be sent using the same text message center number (network service).

Picture messages

Note: Picture message function can be used only if it is supported by your network operator or service provider. Only devices that offer picture message features can receive and display picture messages.

Select Menu > Messag..

To view a picture message, open the message from the

Inbox folder.

Select Options and select from the following:

• Message details — View information about the

message.

• Move to folder — Save the message in a different

folder.

• Add to Contacts — Add the sender of the message to

your contacts.

• Find — Find phone numbers and addresses that the

message may contain.

Forward picture messages

Copyright protections may prevent some images, ringing tones, and other content from being copied, modified, transferred or forwarded.

1. In the Inbox, open a picture message.

2. In the To field, enter a recipient's number, or press the

joystick to add a recipient from Contacts. If you enter more than one number, separate the numbers with a semicolon.

FCC DRAFT

3. Enter the text of your message. The text can have 120 characters. To use a template, select Options > Insert >

Template.

4. To send the message, press the call key.

Multimedia messages

A multimedia message (MMS) can contain text and objects (images, sound clips, or video clips).

can receive and display multimedia messages. The appearance of a message may vary depending on the receiving device.

Before you can send or receive multimedia messages on your device, you must define the multimedia message settings. Your device may have recognized the SIM card provider and automatically configured the multimedia message settings. If not, contact your service provider. See "Multimedia message settings," p. 56.

Tip: To remove the picture from the message, select Options > Remove picture.

Note: Only devices that have compatible features

Create and send multimedia messages

The default setting of the multimedia message service is generally on.

Select New message > Multimedia message.

Copyright protections may prevent some images, ringing tones, and other content from being copied, modified, transferred or forwarded.

1. In the To field, press the joystick to select recipients from Contacts, or enter the recipients' mobile phone numbers or e-mail addresses manually.

2. In the Subject field, enter a subject for the message. To change the fields that are visible, select Options >

Address fields.

3. Enter the text of the message, and select Options >

Insert object to add media objects: Image, Sound clip, or Video clip.

The wireless network may limit the size of MMS messages. If the inserted picture exceeds this limit, the device may make it smaller so that it can be sent by MMS.

4. Each slide of your message can contain only one video or audio clip. To add more slides to your message, select Options > Insert new > Slide. To change the order of slides in your message, select Options >

Move.

5. To preview a multimedia message before sending it, select Options > Preview.

6. Press the joystick to send the multimedia message.

Tip: You can also create multimedia messages directly from several applications, including

Contacts and Gallery.

To delete an object from a multimedia message, select

Options > Remove.

Sending options for multimedia messages

Messages

FCC DRAFT

Select Options > Sending options and from the following options:

• Receive report — Select Yes if you want to receive a

Messages

notification when the message has been successfully delivered to the recipient. Receiving a delivery report of a multimedia message that has been sent to an email address may not be possible.

• Message validity — Select how long the messaging center tries to send the message. If the recipient of a message cannot be reached within the validity period, the message is removed from the multimedia messaging center. The network must support this feature. Maximum time is the maximum amount of time allowed by the network.

Create presentations

Select New message > Multimedia message.

1. In the To field, press the joystick to select recipients

from Contacts, or enter the recipients' mobile phone numbers or e-mail addresses manually.

2. Select Options > Create presentation and a

presentation template.

Tip: A template may define which media objects you can include in the presentation, where they appear, and which effects are displayed between images and slides.

3. Scroll to a text area and enter the text.

4. To insert images, sound, video, or notes in your

presentation, scroll to the corresponding object area, and select Options > Insert.

Tip: To move between object areas, scroll up and down.

5. To add slides, select Insert > New slide.

6. Select Options and from the following:

• Preview — See what your multimedia presentation looks like when it is opened. Multimedia presentations may only be viewed in compatible devices that support presentations. They may appear different in different devices.

• Backgrnd. settings — Select the background color for the presentation and background images for different slides.

• Effect settings — Select effects between images or slides.

Creating multimedia presentations is not possible if MMS

creation mode is Restricted. To change MMS creation mode, select Messag. > Options > Settings > Multimedia message.

The available options may vary. To send your multimedia presentation, press the joystick.

Tip: To save the message in Drafts without sending it, select Done.

Receive and reply to multimedia messages

Important: Multimedia message objects may contain viruses or otherwise be harmful to your device or PC. Do not open any attachment if you are not sure of the trustworthiness of the sender.

FCC DRAFT

If you receive multimedia messages containing objects unsupported by your device, you cannot open them.

1. To reply to a multimedia message, open the message

2. Select Options > To sender to reply to the sender with

3. Enter the text of the message, and press the joystick

from the Inbox, and select Options > Reply.

a multimedia message or Options > Via text

message to reply to the sender with a text message.

Tip: To add recipients to your reply, select

Options > Add recipient to select the

recipients of the message from the contacts list, or enter the recipients' phone numbers or e-mail addresses manually in the To field.

to send it.

View presentations

Open the Inbox, scroll to a multimedia message that contains a presentation, and press the joystick. Scroll to the presentation, and press the joystick.

To pause the presentation, press either selection key below the display.

After you pause the presentation or playing finishes, select Options and from the following:

• Open link — Open a Web link and browse the Web

page.

• Activate scrolling — Scroll text or images too large to fit on the display.

• Continue — Resume playing the presentation.

• Play — Replay the presentation from the start.

• Find — Find phone numbers and e-mail or Web

addresses the presentation may contain. You may use these numbers and addresses to make calls, send messages, or create bookmarks.

The available options may vary.

View media objects

Open the Inbox, scroll to a received multimedia message and press the joystick. Select Options > Objects.

To view or play a media object, scroll to it, and press the joystick.

Media objects and message attachments may contain viruses or other harmful software. Do not open any objects or attachments unless you are sure of the trustworthiness of the sender.

To save a media object in its corresponding application, scroll to the object, select Options > Save.

To send a media object to compatible devices, scroll to it, and select Options > Send.

Tip: If you receive multimedia messages that contain media objects your device cannot open, you may be able to send these objects to a computer or other device.

Messages

FCC DRAFT

View and save multimedia attachments

Messages

To view multimedia messages as complete presentations, open the message, and select Options > Play

presentation.

Tip: If you have selected a multimedia object in a multimedia message, to view or play them, select

View image, Play sound clip, or Play video clip.

To view the name and size of an attachment, open the message, and select Options > Objects.

To save a multimedia object, select Options > Objects, the object, and Options > Save.

Multimedia message settings

Select Options > Settings > Multimedia message. Define the following settings:

• Image size — Select Small or Large to scale images in multimedia messages. Select Original to maintain the original image size of multimedia messages.

• MMS creation mode — Select Restricted to have your device prevent you from including content in multimedia messages that may not be supported by the network or the receiving device. To receive warnings about including this type of content, select

Guided. To create a multimedia message with no

restrictions on attachment type, select Free. If you select Restricted, creating multimedia presentations is not possible.

• Access point in use — Select the default access point to connect to the multimedia message center. You may not be able to change the default access point if it is preset in your device by your service provider.

• Multimedia retrieval — Select Always automatic to always receive multimedia messages automatically,

Aut. in home network to receive notification of a new

multimedia message that you can retrieve from the message center (when traveling abroad, outside your home network), Manual to retrieve multimedia messages from the message center manually, or Off to prevent receipt of any multimedia messages.

• Allow anon. msgs. — Select whether you want to receive messages from unknown senders.

• Receive ads — Select whether you want to receive messages defined as advertisements.

• Receive report — Select Yes to have the status of the sent message to be shown in the log (network service). Receiving a delivery report of a multimedia message that has been sent to an e-mail address may not be possible.

• Deny report sending — Select Yes to not send delivery reports from your device for received multimedia messages.

• Message validity — Select how long the messaging center tries to send the message (network service). If the recipient of a message cannot be reached within the validity period, the message is removed from the multimedia messaging center. Maximum time is the maximum amount of time allowed by the network.

FCC DRAFT

E-mail messages

To receive and send mail, you must have a remote mailbox service. This service may be offered by an Internet service provider, a network service provider, or your company. Your device is compliant with Internet standards SMTP, IMAP4 (revision 1), and POP3, and with different push e-mail solutions. Other e-mail providers may offer services with different settings or features than those described in this user guide.

Before you can send, receive, retrieve, reply to, and forward mail on your device, you must also do the following:

• Configure an Internet access point (IAP). See "Access

• Set up an e-mail account, and define the e-mail

Follow the instructions from your remote mailbox and Internet service providers. Contact your network and Internet service providers or operator for the correct settings.

points," p. 108.

settings correctly. See "E-mail account settings," p. 61.

Set up your e-mail

Information in this section does not apply, if you are using a proprietary e-mail client.

If you select Mailbox and have not set up your e-mail account, you are prompted to do so. To start setting up the e-mail account with the mailbox guide, select Yes.

1. To start entering the e-mail settings, select Start.

2. In Mailbox type, select IMAP4 or POP3, and select

Next.

Tip: POP3 is a version of the post office protocol that is used to store and retrieve email or Internet mail messages. IMAP4 is a version of the Internet message access protocol that lets you access and manage email messages while the messages are still on the e-mail server. You can then choose which messages to download to your device.

3. Select My e-mail address, enter your e-mail address, and selectNext .

4. Select Incoming mail serv., enter the name of the remote server that receives your e-mail, and select

Next.

5. Select Outgoing mail serv., enter the name of the remote server that sends your e-mail, and select

Next. Depending on your mobile operator, you might

have to use your mobile operator's outgoing mail server instead of your e-mail provider's.

6. Select Access point, and the Internet access point your device should use when it retrieves the e-mails. If you select Always ask, each time the device starts to retrieve e-mail, it asks which Internet access point it should use, but if you select an access point, the device makes the connection automatically. Select Next.

Tip: If you select Select group, the device makes the connection automatically using the best available Internet access point from the access point group. Select the access point group, and Back to save the selection.

Messages

FCC DRAFT

7. Enter a name for your new mailbox, and select

Finish.

When you create a new mailbox, the name you give to the

Messages

mailbox replaces Mailbox in the Messag. main view. Select your default mailbox

If you have defined several mailboxes, you can select one of them as your default mailbox. To define the default mailbox, select Options > Settings > E-mail > Mailbox in

use and the mailbox.

If you have defined several mailboxes, you must select the mailbox that you want to use every time you start composing a new e-mail message.

Configure the e-mail key

Your device has an e-mail key. With the e-mail key, you can access your default e-mail inbox or open your default e-mail editor from the active standby. The functionality depends also on your mailbox service provider.

To configure the e-mail key, select Menu > Tools > E-mail

key. Select the e-mail account that you want to use with

the e-mail key.

Connect to mailbox

Information in this section does not apply, if you a re using a proprietary e-mail client.

E-mail addressed to you is not automatically received by your device, but by your remote mailbox. To read your email, you must first connect to the remote mailbox; then select the e-mails you wish to retrieve into your device. To receive and send e-mail, you need to register for an e-

mail service. To set up a mailbox in your device, select

Messag. > Options > Settings > E-mail > Options > New mailbox. Contact your service provider for the correct

settings.

To retrieve received e-mail messages to your device and view them offline, select your mailbox in the Messag. main view. When the device asks Connect to mailbox?, select Yes.

To view e-mail messages in a folder, scroll to the folder, and press the joystick. Scroll to a message, and press the joystick.

To retrieve e-mail messages to your device, select

Options > Retrieve e-mail > New to retrieve new

messages that you have neither read nor retrieved,

Selected to retrieve only messages you select from the

remote mailbox, or All to retrieve all messages not previously retrieved.

To disconnect from a remote mailbox, select Options >

Disconnect.

View e-mail offline

Working offline means that your device is not connected to a remote mailbox. Managing your e-mail offline enables you to save in connection costs and work in conditions that do not allow a data connection. Any changes you make in the remote mailbox folders while offline take effect in your remote mailbox the next time you go online and synchronize. If you delete an e-mail from your device when offline, the e-mail is deleted from the remote mailbox the next time you connect to the mailbox.

FCC DRAFT

1. Select Messag. > Options > Settings > E-mail. Select the e-mail account, and press the joystick. Select Retrieval

settings > E-mail to retrieve > {No display_text mapping for 'qtn_mce_settings_mail_fetch_bodyatt', locale='en-US'} to retrieve entire messages with their

attachments to your device.

2. Open your mailbox, and select Options > Retrieve e-

mail. Select New to retrieve new messages that you

have neither read nor retrieved, Selected to retrieve only messages you select from the remote mailbox, or

All to retrieve all messages not previously retrieved.

The device goes online and connects to the mailbox to retrieve the mails.

3. After retrieving the e-mails, select Options >

Disconnect to return to the offline mode.

4. To view an e-mail message, scroll to it, and press the joystick.

Some options require you to connect to your remote mailbox.

Tip: To subscribe to other folders in your remote mailbox, select E-mail settings > Retrieval

settings > Folder subscriptions. E-mail in all

subscribed folders is updated when you retrieve e-mail from your remote mailbox.

E-mail indicator light

You can set the indicator light on the cover of your device to blink when a new e-mail arrives to your device.

Select Menu > Messag. > Options > Settings > E-mail. Select

the e-mail account and User settings > Flash on new e-

mails. Select how long you want the indicator light to

blink, or whether you want it to blink at all.

Read and reply to e-mail

Important: E-mail messages may contain viruses or otherwise be harmful to your device or PC. Do not open any attachment if you are not sure of the trustworthiness of the sender.

To read a received e-mail, scroll to the e-mail, and press the joystick.

To search for an e-mail in your mailbox, select Options >

Find. Enter the search term, and select OK.

To open an attachment, select Options > Attachments. Scroll to the attachment, and press the joystick.

To reply only to the sender of an e-mail, open the e-mail, and select Options > Reply > To sender.

To reply to all recipients of an e-mail, open the e-mail, and select Options > Reply > To all.

Tip: If you reply to an e-mail that contains attached files, the attachments are not included in the reply. If you forward the received e-mail, attachments are included.

To delete an attachment from an e-mail that you are sending, select the attachment and Options >

Attachments > Remove.

To set the message priority, select Options > Priority and from the available options.

Messages

FCC DRAFT

To call the sender of the e-mail, open the e-mail, and select Options > Call.

To reply to the sender of the e-mail with a text message

Messages

or multimedia message, open the e-mail, and select

Options > Create message.

To forward an e-mail, open the e-mail, and select

Options > Forward.

Delete messages

To free up memory space on your device, regularly delete messages from the Inbox and Sent folders, and delete retrieved e-mail messages.

To delete a message, scroll to it, and press the backspace key.

You can select to delete local e-mail messages on the device and keep the original on the server, or you can delete both the local e-mail messages on the device and the original messages on the server.

To delete e-mails from the device only, select Options >

Delete > Phone only.

To delete e-mail both from the device and from the remote server, open an e-mail, and select Options >

Delete > Phone and server.

E-mail folders

If you create subfolders in your IMAP4 mailboxes on a remote server, you can view and manage these folders with your device. You can only subscribe to folders in your

IMAP4 mailboxes. Subscribing to folders in a remote mailbox allows you to view those folders on your device.

To view folders in your IMAP4 mailbox, establish a connection, and select Options > E-mail sett. > Retrieval

settings > Folder subscriptions.

To view a remote folder, select a folder and Options >

Subscribe. Every time you go online, the subscribed

folders are updated. This may take some time if the folders are large.

To update the list of folders, select a folder and Options >

Update folder list.

Write and send e-mail

To write an e-mail, select Options > Add recipient to select the recipients' e-mail addresses from the contacts list, or enter the e-mail addresses in the To field. Use a semicolon to separate entries. Scroll down, and use the Cc field to copy other recipients, or the Bcc field to blind copy recipients. In the Subject field, enter the subject of the email. Enter your e-mail message in the text area, and select Options > Send.

To attach a file to an e-mail, select Options > Insert and the attachment you want to add. You can insert images, sound clips, notes, and other files, including office files.

To set the sending time for an e-mail message, select

Options > Sending options > Send message. Select Immediately or During next conn. if you are working

offline. E-mail messages are stored in the Outbox before sending.

Unless the e-mail is sent immediately, you can open the

FCC DRAFT

Outbox and suspend and resume sending or view the e-

mail.

E-mail account settings

Select Menu > Messag. > Mailbox. The settings available for editing may vary. Some settings

may be preset by your service provider. If you try to edit mailbox settings but have not set up an

e-mail account, the mailbox guide opens and helps you set up your e-mail account.

Settings for the received e-mail Select Incoming e-mail and from the following settings:

• User name — Enter the user name for the e-mail

• Password — Enter the password for the e-mail service.

• Incoming mail serv. — Enter the IP address or host

• Access point in use — Select the Internet access point

• {No display_text mapping for

• Mailbox type — Select the mailbox protocol that your

service.

name of the server that receives your e-mail.

that the device uses for retrieving the e-mail messages that you receive.

'qtn_mce_settings_mail_rm_name', locale='enUS'} — Enter a name for the mailbox.

remote mailbox service provider recommends. The options are POP3 and IMAP4. This setting can be selected only once and cannot be changed if you have saved or exited from the mailbox settings. If you use the POP3 protocol, e-mail messages are not updated automatically when you are online. To see the latest e-

mail messages, you must disconnect and make a new connection to your mailbox.

• Security (ports) — Select the security option used to

increase the security of the connection.

• Port — Define a port for connection.

• APOP secure login (for POP3 only) — Use with the POP3

protocol to encrypt the sending of passwords to the

remote e-mail server while connecting to the mailbox. Settings for sent e-mail Select Outgoing e-mail and from the following settings:

• My e-mail address — Enter the e-mail address given to

you by your service provider. Replies to your messages

are sent to this address.

• User name — Enter the user name for the e-mail

service.

• Password — Enter the password for the e-mail service.

• Outgoing mail serv. — Enter the IP address or host

name of the mail server that sends your e-mail. You

may only be able to use the outgoing server of your

network operator. Contact your service provider for

more information.

• Access point in use — Select the Internet access point

that the device uses for sending the e-mail messages

that you send.

• Security (ports) — Select the security option used to

secure the connection to the remote mailbox.

• Port — Define a port for connection.

User settings

Select User settings and from the following settings:

• My name — Enter a name to appear before your e-mail

address when you send e-mail.

Messages

FCC DRAFT

• Reply-to — Select whether you want replies to be redirected to a different address. Select On, and enter the e-mail address to which you want to direct the replies. You can only enter one address.

Messages

• Delete e-mails from — Select whether you want to delete the e-mails only from the device or from both the device and the server. Select Always ask if you want to confirm from where the e-mail should be deleted every time you delete an e-mail.

• Send message — Select to send the e-mail as soon as possible, to send it the next time you retrieve e-mail, or to store the e-mail in the outbox, from where you can send it later.

• Send copy to self — Select whether you want to save a copy of the e-mail to your remote mailbox and to the address defined in My e-mail address in the settings for Outgoing e-mail.

• Include signature — Select whether y ou want to attach a signature to your e-mail messages.

• New e-mail alerts — Select whether you want to receive the new e-mail indications, a tone and a note, when new mail is received to the mailbox.

• Flash on new e-mails — Select how long you want the e-mail indicator light to blink when you receive a new e-mail, or whether you want the indicator light to blink at all.

Retrieval settings

Select Retrieval settings and from the following settings:

• E-mail to retrieve (for POP3 mailboxes only) — Select whether you want to retrieve only the e-mail header information (sender, subject, and date) or e-mail with attachments.

• Retrieval amount — Select the number of e-mails you want to retrieve from the remote server to your mailbox.

• IMAP4 folder path (for IMAP4 mailboxes only) — Define the folder path for folders to be subscribed.

• Folder subscriptions (for IMAP4 mailboxes only) — Subscribe to other folders in the remote mailbox and retrieve content from those folders.

Automatic retrieval settings

Select Automatic retrieval and from the following settings:

• E-mail notifications — Select whether you want to receive notifications when new e-mail is received in your remote mailbox. Select Always enabled to always automatically retrieve new e-mail messages from your remote mailbox, or Only in home net. to automatically retrieve new e-mail messages from your remote mailbox only when you are in your home network.

• Retrieval days — Select the days on which e-mails are retrieved to your device.

• Retrieval hou rs — Define the hours between which the e-mails are retrieved.

• Retrieval interval — Select the time interval between retrieving new e-mails.

Instant messaging

Select Menu > Connect. > IM. Instant messaging (IM) (network service) allows you to

converse with other people using instant messages and join discussion forums (IM groups) with specific topics. Various service providers maintain IM servers that you can

FCC DRAFT

If IM is not available from your wireless service provider, it may not appear in the menu of your device. Contact your service provider for more information about signing up for IM services and costs for services. For more information on the availability of IM settings, co ntact your network operator, service provider, or dealer.

You may receive the settings in a special text message from the network operator or service provider that offers the IM service. You must save the settings to access the service that you want to use. You can also enter the settings manually.

Connect to an IM server

To converse with an IM user or users, and to view and edit your IM contacts, you must log into the instant messaging server. Open IM, and select Options > Login. Enter your user ID and password, and press the joystick to log in. You can obtain the user name, password, and other settings to log in from your service provider when you register for the service.

Tip: To have instant messaging connect to the server automatically when you open the application, select Options > Settings > Server

settings > IM login type > On app. start-up.

Search IM users or IM groups

To search for IM users and user IDs, select IM contacts >

Options > New IM contact > Search. You can search by User's name, User ID, Phone number, and E-mail address.

To search for IM groups and group IDs, select IM groups >

Options > Search. You can search by Group name, Topic,

and Members (user ID).

Conversations with a single IM user

The Conversations view shows a list of the individual conversation participants with whom you have an ongoing conversation. Ongoing conversations are automatically closed when you exit IM.

To view a conversation, scroll to a participant, and press the joystick.

To continue the conversation, enter your message, and press the joystick.

To return to the conversations list without closing the conversation, select Back. To close the conversation, select Options > End conversation.

To start a new conversation, select Options > New

conversation. You can start a new conversation with a

different contact while you are inside another active conversation. However, you cannot have two active conversations with the same contact.

To insert an image to an instant message, select

Options > Send image, and select the image you want to

send.

Messages

FCC DRAFT

To save a conversation participant to your IM contacts, select Options > Add to IM contacts.

To save a conversation, while in the conversation view,

Messages

select Options > Record chat. The conversation is saved as a text file that can be opened and viewed in the Notes application.

To send automatic replies to incoming messages, select

Options > Set auto reply on. You can still receive messages.

IM groups

The IM groups view shows a list of the IM groups that you have saved or to which you are currently joined.

IM groups is available only if you logged into an IM server

when you opened the IM application, and the server supports IM groups.

To create an IM group, select Options > Create new

group.

To join an IM group or to continue a group conversation, scroll to the group, and press the joystick. Enter a message, and press the call key to send it.

To join an IM group that is not on the list, but for which you know the group ID, select Options > Join new group.

To leave the IM group, select Options > Leave IM group.

To remove an IM group, press the backspace key.

Group conversations

To join the conversation, select a group. Select Options and from the following:

• Insert smiley — Add a smiley in your message.

• Send private msg. — Send a private message to one or

several, but not all, members of the IM group.

• Reply — Send a message only to the sender of the open message.

• Forward — Forward the open message to another IM group or contact.

• Send invitation — Invite an IM user to join the group.

• Leave IM group — End instant messaging in the group.

• Group — Select Save to save the group to your IM

groups, View participants to view the current members of the group, or Settings to edit the group settings. You can only select this option if you have editing rights to the group.

• Record chat — Save a copy of the group conversation.

To send a message, enter the message, and press the call key.

IM group settings

Select IM groups > Options > Group > Settings. You can only edit IM group settings if you have editing

rights to that group. Select from the following settings:

• Group name: — Enter a name for the IM group.

• Group ID — The group ID is created automatically and

cannot be added or changed.

• Group topic — Enter a topic for the group conversation.

• Welcome note — Enter a note that greets IM users once

they join the group.

• Group size — Enter the maximum number of IM users that can join the group.

FCC DRAFT

• Allow search — Select whether you want to allow IM users to find the group when searching.

• Editing rights — To provide other members of the group with editing rights to the group, select

Selected > Options > Add editor. IM users with editing

rights can edit group settings and invite other users to join the group or ban them from it.

• Group members — To close the group and allow only selected IM users to join it, select Selected only >

Options > Add member.

• Banned list — To prevent some IM users from joining the group, select Options > Add to banned list.

• Allow private msgs. — To prevent group members from sending private messages between themselves, select No.

Group editing rights

To add editing rights to or remove them from IM group members, scroll to the IM group, and select Options >

Group > Settings > Editing rights > Selected.

Tip: IM users with editing rights can edit group settings and invite other users to join the group or ban them from the group.

To provide members with editing rights to the group, select Options > Add editor and from the following:

• From IM contacts — Add one or several of your IM contacts.

• Enter user ID — Enter the ID of the IM user.

To remove editing rights from a group member, select

Options > Remove.

Ban from groups

Scroll to the IM group, and select Options > Group >

Settings > Banned list.

To prevent IM users from joining the group, select

Options > Add to banned list and from the following:

• From IM contacts — Ban one or several of your IM contacts.

• Enter user ID — Enter the ID of the IM user.

To allow a banned user to join the group, select Options >

Remove.

IM contacts

When login to an IM service is complete, your contact list for the service provider is retrieved automatically. If your contact list is not available, wait a few minutes and try to retrieve your contacts list manually.

Tip: The online status of your IM contacts is shown by an indicator next to the contact name.

To create an IM contact card, select Options > New IM

contact. Enter the user ID and a nickname, and select Done. The user ID can be up to 50 characters, and the IM

service provider may require the user ID to be in the username@domain.com format. The nickname is optional.

To view a different list of your IM contacts, select

Options > Change contact list.

Scroll to an IM contact, select Options and from the following:

Messages

FCC DRAFT

• Open conversation — Start or continue instant messaging with the contact.

• Contact details — View the contact card.

• Editing options — Edit or delete the contact card, move

Messages

it to another contact list, or receive a note when the contact's online status changes.

• Belongs to groups — See the IM gro ups the contact has joined.

• New contact list — Create a contact list for a specific group of IM contacts.

• Reload users' availab. — Update the online status of your IM contacts.

• Blocking options — Prevent or allow the reception of messages from the contact.

• Login — Connect to an instant messaging server if you did not log in when you opened the application.

• Logout — Disconnect from the IM server.

• Settings — Edit instant messaging application or

server settings.

The available options may vary.

To delete an IM contact, press the backspace key.

Blocked contacts

Select IM contacts > Options > Blocking options > View

blocked list.

To find a blocked IM user, enter the first letters of the user's name. Matching names appear in a list.

To allow receiving messages from a blocked IM user, select Options > Unblock.

To prevent receiving messages from other IM users, select

Options > Block new contacts. Select the IM user from your

IM contacts, or enter the user ID.

View invitations

Select Conversations. Scroll to an invitation, and press the joystick.

Select Options and from the following:

• Join — Join the instant messaging group.

• Reject — Reject the invitation and send a message to

its sender.

• Delete — Delete the invitation.

• Blocking options — Prevent the reception of

invitations from this sender.

Recorded messaging

To view a recorded conversation, select Record. chats, scroll to a conversation, and press the joystick.

You can also scroll to a recorded conversation, and select

Options and select from the following:

• Send — Send the IM session to a compatible device.

• Login — Connect to an instant messaging server if you

did not log in when you opened the application. To disconnect, select Logout.

• Settings — Edit instant messaging application or server settings.

To delete an IM conversation, press the backspace key.

Settings

Select Options > Settings > IM settings. Select from the following settings:

FCC DRAFT

• Use screen name — To change the name that identifies you in IM groups, select Yes.

• Allow messages from — Select to receive instant messages from all other IM users, your IM contacts only, or not to receive messages at all.

• Allow invitations from — Select to receive invitations

• Msg. scrolling speed — To decrease or increase the

• Sort IM contacts — Select to list your IM contacts

• Availabil. reloading — To update the online status of

• Offline contacts — Select if IM contacts with an offline

The settings available for editing may vary. Contact your service provider for more information.

IM server settings

Select Options > Settings > Server settings. Scroll to the following options, and press the joystick to

configure your IM server:

• Servers — Add new, edit, or delete servers.

• Default server — Change the server to which your

• IM login type — To establish a connection between

to IM groups from all IM users, your IM contacts only, or not to receive invitations at all.

speed at which new messages are displayed, scroll left or right.

alphabetically or by their online status.

your IM contacts automatically, select Automatic.

status are shown in the IM contacts list.

device automatically logs into, scroll to the desired server, and press the joystick.

your device and the default server automatically, select

Automatic. Select Aut. in home net. to automate the

connection when in your home network. Select On app.

start-up to connect to the server when you open the

messaging application. Select Manual to connect to the server manually at any time.

Messages

Special messages

Your device can receive many kinds of messages that contain data:

• Operator logo — To save the logo, select Options >

Save.

• Ringing tone — To save a ring tone, select Options >

Save.

• Configuration message — You may receive settings from your network operator, service provider, or company information management department in a configuration message. To accept the settings, open the message, and select Options > Save all.

• E-mail notification — The note tells you how many new e-mails you have in your remote mailbox. An extended notification may list more detailed information.

Send service commands

Send a service request message to your service provider and request activation for certain network services.

To send a service request to your service provider, select

Options > Service command. Enter the service request as

a text message, and select Options > Send.

FCC DRAFT

Web

Select Menu > Web (network service).

Web is one of the two browsers in your device. With Web, you can browse regular Web sites. These pages use

the extensible hypertext markup language (XHTML) or hypertext markup language (HTML). If you want to browse WAP pages, use Menu > Media > Services. Both of the browsers use the same bookmarks. The links in your received messages open in the Services browser.

Check the availability of services, pricing, and fees with your network operator or service provider. Service providers will also give you instructions on how to use their services.

Access points

To browse the Web, you need to configure Internet access point settings. If you are using a data call or a GPRS connection, your wireless network must support data calls or GPRS, and the data service must be activated for your SIM card. Your device might have configured the Internet access point settings automatically, based on your SIM card. If not, contact your service provider for the correct settings.

Tip: You may receive the Internet access point settings from your service provider as a special text message or from the network operator's or service provider's Web pages.

You can also enter the Internet access point settings manually. See "Internet access points," p. 91.

Browse the Web

To browse the Web, select a bookmark, and press the joystick. You can also enter the Web address, and press the joystick. Use only services that you trust and that offer adequate security and protection against harmful software.

Tip: When you start to enter the address, addresses of pages you have previously visited that match your input are displayed. To open a page, scroll to the address, and press the joystick.

To open a Web link, scroll to it, and press the joystick. On a Web page, new links appear underlined in blue, and previously visited links appear in purple. Images that act as links have a blue border around them.

Addresses of the pages you visit are saved in the Auto.

bookmarks folder.

Keyboard shortcuts:

• Press 1 to open your Bookmarks.

• press 2 to find text.

• Press 3 to return to the previous page.

• Press 5 to switch between your open browser

windows.

FCC DRAFT

• Press 8 to open page overview.

• Press 9 to go to a different Web page.

Bookmarks

Your device may have some bookmarks loaded for sites not affiliated with Nokia. Nokia does not warrant or endorse these sites. If you choose to access them, you should take the same precautions, for security or content, as you would with any Internet site.

To view a bookmarked Web page, scroll to the bookmark, and press the joystick.

To browse another Web page, select Options > Navigation

options > Go to web address, enter the page address, and

select Go to.

To delete a bookmark, scroll to it, and press the backspace key.

To add a bookmark, select Menu > Web > Options >

Bookmark manager > Add bookmark. Scroll to Name to

enter a descriptive name for the bookmark, Address to enter the Web page address, Access point to change the access point to connect to the Web page, and User

name or Password to enter your user name and passwor d,

if required by the service provider. To save the bookmark, select Back.

Tip: You can also add bookmarks while browsing. Select Options > Save to bookmarks.

Download items

Important: Only install and use applications and other software from sources that offer adequate security and protection against harmful software.

You can download different items, including ringing tones, images, operator logos, themes, and video clips. To download an item, scroll to it, and press the joystick. These items can be provided free, or you may have to purchase them. Downloaded items are handled by the respective applications in your device.

When you start a download, a list of ongoing, paused, and completed downloads from the current browsing session is displayed. To view the list, you can also select Options >

Tools > Downloads. Scroll to an item in the list, and select Options. You can pause, resume, or cancel ongoing

downloads, or open, save, or delete completed downloads.

To purchase items:

1. To download the item, scroll to the link, and press the

joystick.

2. Select the appropriate option to purchase the item.

3. Carefully read all the information provided. To

continue the download, select Accept. To cancel the download, select Cancel.

End a connection

To end the connection and view the browser page offline, select Options > Advanced options > Disconnect. To end

Web

FCC DRAFT

the connection and close the browser, select Options >

Web

Exit.

Clear the cache

A cache is a memory location that is used to store data temporarily. If you have tried to access or have accessed confidential information requiring passwords, empty the cache after each use. The information or services you have accessed are stored in the cache.

To clear the cache, select Options > Advanced options >

Clear cache.

News feeds and blogs

Select Menu > Web > Web feeds. Feeds are XML files in various Web pages that usually

contain headlines and articles, often about recent news or other topics. You can subscribe to interesting feeds on Web pages. Select Options > Subscribe.

Tip: Blog is a shortened version of Weblog, which is a continuously updated Web diary.

To download a feed or blog, scroll to it, and press the joystick.

To add a feed or blog, select Options > Manage feed > New

feed, and enter the information.

To edit a feed or blog, scroll to a feed, select Options >

Manage feed > Edit, and modify the information.

Web settings

Select Menu > Web > Options > Settings. Define the following settings:

• Access point — Scroll to the access point to connect to Web pages, and press the joystick.

• Load imgs. & sounds — Select No to load pages faster when browsing by not loading the images on them. You can still choose to load images when browsing individual pages. Select Options > Show images.

• Default encoding — Select the correct character encoding for your language.

• Auto. bookmarks — Select On to save Web page addresses that you visit automatically in the Auto.

bookmarks folder. To hide the folder, select Hide folder.

• Screen size — Select Full screen to use the whole display area for viewing Web pages. You can press the left selection key to open Options and use the available options while browsing in full screen mode.

• Homepage — Select the page that you want to appear as your homepage. Select Default to use the access point homepage, User defined to enter the homepage address, or Use current page to use the currently open Web page.

• Mini map — Select whether you want to see an overview of the page as a miniature on top of the page you are viewing.

• History list — Select whether you want to see miniatures of the pages you have visited when you want to go back in your browsing history.

• Cookies — Select to allow or reject the sending and receiving of cookies. Cookies are information the network server collects about your visits to various

FCC DRAFT

Web pages. They are necessary if you shop on the Web (to retain the items you buy until you reach the cashier page). However, the information may be misused, including your receiving unwanted advertisements in your device.

• Java/ECMA script — Some Web pages may include

• Security warnings — Select Show or Hide to see or hide

• Block pop-ups — Select whether you want to allow

program commands that affect the appearance of the page or interaction between the page and its browsers. To deny the use of these scripts, select

Disabled (if you have trouble downloading).

the security warnings you may receive during browsing.

pop-ups. Some pop-ups may be necessary (smaller windows where you write e-mails in Web-based mail systems), but they may also contain unwanted advertising.

Services

Select Menu > Media > Services (network service).

Services is one of the two browsers in your device. With Services, you can browse WAP pages that have been

designed specially for mobile devices. For example, operators may have WAP pages for mobile devices. To browse regular Web pages, use the other browser in

Menu > Web.

Check the availability of services, pricing, and fees with your network operator or service provider. Service providers will also give you instructions on how to use their services.

Tip: To start a connection, press and hold 0 in the standby mode.

Web

FCC DRAFT

Office applications

Select Menu > Office. Some office applications are not available in all

languages. Opening a large file may not be possible or may take

Office applications

longer.

File manager

With File mgr., you can manage the contents and properties of files and folders. You can open, create, move, copy, rename, and search for files and folders. Copyright protection may prevent sending some files.

Manage files

To manage files, scroll to a folder or file, and select

Options.

Select the following:

• Open — Open a file. Scroll to the desired file, and select

OK.

• Send — Send selected files. Scroll to the desired files, and select OK.

• Delete — Delete selected files. Scroll to the desired files, and select Clear.

• Move to folder — To move the folder or file to another folder, scroll to the desired file or folder, and select

OK. Default folders, including sound clips in gallery

cannot be moved or deleted.

• Copy to folder — Save a copy of the folder or file in another folder. Scroll to the desired file or folder, and select OK.

• New folder — Create a folder.

• Mark/Unmark — Open a submenu.

• Rename — Rename a file or folder. Scroll to the desired

file or folder, enter the new name, and select OK.

• Find — Search for specific folders or files. Select the type of memory to search, and enter the text that you wish to find.

• Receive via infrared — Receive a file using an infrared connection.

• View details — View information about files.

• Memory details — Check the memory consumption in

device memory or a memory card.

Search for files

1. To search for files, select Options > Find.

2. Select the memory you want to search.

3. Enter the search text, and press the joystick. The

folders and files whose names contain the search text are displayed.

4. Select Find to conduct another search.

Documents

FCC DRAFT

This device supports common features of Microsoft Word, PowerPoint, and Excel (Microsoft Office 97, 2000, XP, and

2003). Not all file formats can be viewed or modified. Select Menu > Office > Docum..

To open an existing document, browse for the folder and document, and press the joystick. To read the document, select the middle view.

To create a new document, select Options > New file. Select Blank to create a new document without using a template or Use template to create a document based on an existing template.

To read a document, select the middle view and

Options. You can browse for different types of objects in

the document, zoom in or out, switch between full and normal screen views, or view objects, such as images. You can also search for text and edit application settings such as zooming, scrolling, and handling of invisible characters.

Tip: To open a recently used document, select

Options > Most recent files, select the document,

and press the joystick.

Tip: To switch between full and normal screen views in an open document, press *. To zoom in, press 5, and to zoom out, press 0.

View objects in a document

To view all objects, such as tables, comments, workbooks, and video clips in their place in the document, select the middle view and Options > Browse > Pages and objects.

To open a table or comment, scroll to the object or its icon, and press the joystick twice.

To open an image or go to a hyperlink or reference, scroll to the object, and press the joystick three times.

Edit documents

To be able to edit a document, you must activate the edit mode: select the middle view and Options > Edit

document. Select Options > Format, and the appropriate

formatting option. For example, you can add bold, italic, and underline formatting, change the font size and color, and add bullets. You can also modify the paragraph settings such as text alignment and line spacing.

Tip: To cancel an action in the editing mode, select Options > Undo.

To insert a new object to the document, select Options >

Insert object. Scroll to the desired object type, and select Options > Insert. If you want to insert a new document,

workbook, or presentation, select Insert new. To insert an existing document, workbook, presentation, select Insert

existing.

To format the style settings of a paragraph, select

Options > Format > Style. Select the style you want to

format and Options > Edit. Select New style to add a new style. In the style editing view, select Options > Format, and the style you want. You can modify the font, formatting, paragraph, bullet, and border styles.

Office applications

FCC DRAFT

View document structure

To view the document outline, select the left view. Select

Options > Expand or Collapse to show only main chapters

or all subchapters. If there are objects in the document, select Options > Display objects or Display headings to switch between object list and chapter heading views.

Office applications

Tip: To open a selected chapter in the normal view, scroll to the chapter, and press the joystick.

Preview the page layout

To preview the page layout, select the view on the right and Options.

Define the following options:

• Normal view — Show the current open page in normal view.

• Pan and zoom — Zoom the page layout view.

• View — Select Full screen or Normal screen to switch

between full screen and normal views.

To zoom the page layout, select the view on the right, scroll to the desired page, and select Options > Pan and

zoom. A black selection frame appears above the page

layout, showing the area to zoom. Select the area and

Options > Zoom.

Select from the following options:

• In or Out — Select In to zoom in one step in the selected area, or Out to zoom out one step in the selected area.

• Fit to screen — Adjust the zoom level to fit the page to the screen width.

• Ratio — Edit the zoom level, enter the zoom ratio between 10 and 999, and select OK.

Find text

To find a piece of text from the document, select

Options > Find, enter the text in the Find: field, and press

the joystick.

To change search options such as case sensitivity and search direction, select Options > Search options.

Table editor

You can view tables created in applications, like documents and MS Word.

To view a table in a file, scroll to the file so that a dotted line appears around it, and press the joystick.

To change the selected cell, scroll up, down, left or right. If the selected cell does not fit into visible area, pressing the joystick pans the whole content first before the cell changes.

To edit the text in a cell, select the cell, and press the joystick. To end editing, press the joystick again.

Select Options and from the following options:

• Zoom — Zoom the table view in, out and to edit a zoom ratio.

• Format — Modify the font style and formatting, paragraphs, bullets, and borders.

• Cell size — Change the size of the cells, rows and columns.

FCC DRAFT

• Cells — Select option to insert, delete, merge or separate cells.

• Copy table — Copy the text of the whole table to the clipboard.

Sheet

This device supports common features of Microsoft Word, PowerPoint, and Excel (Microsoft Office 97, 2000, XP, and

2003). Not all file formats can be viewed or modified.

Select Menu > Office > Sheet. You can store data in a file that is called a workbook. Each

workbook contains at least one worksheet. A workbook can also contain charts, which are based on data from a worksheet.

To open an existing workbook, browse for the folder where the file is saved, and press the joystick.

To create a new workbook, select Options > New file. Select Blank to create a new file without using any template or Use template to create a file based on an existing template. Select the worksheet in the outline view, and press the joystick to open the file.

Tip: To open a recently used workbook, select

Options > Most recent files.

Outline view

Outline view enables you to open and navigate worksheets, charts, and named cells.

In outline view, each worksheet has its own main level icon. Under the main level there are sub-items for charts and named cells.

To open the outline view, scroll to the folder and file, and press the joystick. The outline view opens. Recently used worksheet opens the latest view and settings.

To show and hide charts and ce lls, scroll to the worksheet, press the joystick, and select Options > Collapse or

Expand.

To delete or rename worksheets, charts, or named cells, scroll to the item, and select Options > Worksheet, Chart, or Named cell, and the appropriate option.

To create a new worksheet, chart, or named cell, scroll to the position you want to add the new item, and select

Options > Insert > Worksheet, Chart, or Named cell.

Work with worksheets

To insert data into cells, open the worksheet view. Use the joystick to move to the cell, and select Options > Show cell

field > Edit cell field. An upper part editing field opens.

Enter the data, and select Done to finish editing.

To select a range of cells, press and hold the shift key while you scroll right.

To select rows, move the cursor to the first cell on a row, and press and hold the shift key while you scroll left. To select columns, move the cursor to the first cell on a column, and press and hold the shift key while you scroll up.

Office applications

FCC DRAFT

To select the entire worksheet, move the cursor to cell A1, and press and hold the shift key while you scroll up and left.

To modify the worksheet view, select Options > View. Select from the following options:

• Pan worksheet — Define the size of the visible area of the whole worksheet.

• Full screen — Switch to the full screen view.

Office applications

• Hide headers — Hide header field and release more

space for the worksheet grid.

• Hide gridlines — Hide gridlines.

Tip: To switch between the full and normal screen views, press *. To zoom in, press 5; to zoom out, press 0.

To add a comment to the selected cell, select Options >

Advanced options > Insert comment. Write a comment,

and select OK. The cell is marked with a small triangle in the upper right corner of the cell.

To change the font and number formatting, borders, and alignments, select Options > Format and the appropriate option.

To keep rows visible when scrolling, select a cell below the area that you want to remain visible and Options >

Advanced options > Freeze panes. To keep columns

visible, select a cell to the right of the area that you want to remain visible and Options > Advanced options >

Freeze panes.

To change the size of rows and columns, select Options >

Cell size > Row height or Column width.

To sort rows from left to right, select the cells you want to sort and Options > Advanced options > Sort rows. You

can select the number of the row to use as a primary sorting criteria. You can change the direction of the sorting order and ignore or match the case sensitivity.

To sort columns from top to bottom, select the cells you want to sort and Options > Advanced options > Sort

columns. You can select the column to use as a primary

sorting criteria. You can change the direction of the sorting order and ignore or match the case sensitivity.

To format a font style, select the cells whose font style you want to modify and Options > Format > Font. You can change the font type, size, text color, and background color of the cell.

To change a font formatting, select the cells you want to format and Options > Format > Font formatting. You can bold, italicize, underline, strikethrough, or position the text in superscript or subscript format within a cell.

To align cell contents, select the cells whose alignment you want to modify and Options > Format > Alignment. You can change both the horizontal and vertical alignment and wrap text to adjust the row height of the selected cells to display the entire content of a cell.

To format cell borders, select the cells whose borders you want to modify and Options > Format > Borders. You can modify all or only vertical, horizontal, upper, lower, left or right borders. Select Options > Change to edit the style and color of the borders.

To change the number format, select the cells whose number format you want to modify and Options >

Format > Numbers. Select the number format from the

list. If the format you select in cludes decimal values, enter a number from 0 to 12 to indicate the decimal place.

FCC DRAFT

Example: If you want to compare and calculate different loan rates, you can set the number format to Percentage.

Tip: When you delete information on which a chart is based, the information is also removed from the chart.

Work with cells

To edit a cell, select a cell and Options > Show cell field >

Edit cell field. An upper part editing field opens. Start

entering the data, and select Done when you finish editing.

To insert cells, select the area where you want to insert new cells and Options > Cells > Insert. You can insert cells above (Shift cells down) or to the left (Shift cells right) of the selected range. If you select only one cell, only one new cell is inserted. If you select a range of cells, a corresponding range of blank cells is inserted. You can also insert a new row or column.

To clear contents or format from cells, select the cells and

Options > Cells > Clear. If you select Formats, the

formatting of the selected cells is removed, but the content remains. The default style is used. If you select

Content, the content of the selected cells is deleted, but

the formatting stays the same. You can also remove both formatting and contents of the selected cells.

To delete cells, rows, or columns, select the items you want to delete and Options > Cells > Delete. You can delete an entire row or column. If you select Shift cells left, the selected cells are deleted, and the cells right of the selected cells are shifted left. If you select Shift cells up, the cells below the deleted cells are shifted up.

Insert functions

Functions are used for automating calculations.

To insert a function into a cell, select a cell. Select

Options > Insert > Function and a function from the list. #MIN finds the lowest value in the numeric contents of a

selected range of cells, #AVERAGE calculates the average of the values, and #SUM adds the values together. Once you have selected a function, press the joystick. The function is inserted into the selected cell. On the worksheet, enter the cells you want to include in the function inside the brackets, and press the joystick.

Tip: Before inserting a function, verify that

Options > Show cell field > Edit grid is active and

that the selected cell is empty or starts with =.

Example: You want to add up the numbers in cells C2 to C6 and have the results appear in cell C7. Select cell C7 and Options > Insert > Function. Select #SUM, and press the joystick. Enter C2:C6 inside the brackets, and press the joystick. The sum appears in cell C7.

To get more information on a function, select a cell and

Options > Insert > Function. Select a function from the list

and Options > Description.

Office applications

FCC DRAFT

Web links

To open a Web link, select the cell with the Web link. Select

Options > Link > Go to.

To edit a Web link, select the cell with the Web link. Select

Options > Link > Edit. You can edit the Wed address and

the name of the link.

Office applications

Create and modify charts

When you change the information on a worksheet, the chart is updated simultaneously.

To open a chart, open the outline view, select the worksheet and chart, and press the joystick. If charts are not visible, select Options > Expand.

To create a new chart, select the worksheet cells that contain the information you want to include in the chart and Options > Insert > Chart. To change the general appearance of an existing chart, open a chart view. Select

Options > View > Chart. You can change the name of the

chart and define the cell area. You can change the type of the chart, and make the chart two or three-dimensional or change the color of the background and axis. Scroll right to add a title to the chart and axis.

To format a chart in more detail, open a chart view. Select

Options > View and the object you want to edit. You can

change the series, X-axis, and Y-axis settings.

Find text

To find text, open the worksheet view, and select

Options > Find. Enter the text in the Find: field, and press

the joystick. When the cell is found, press the joystick again to find the next match.

To change the search content and direction, select

Options > Search options.

To find and replace a cell that includes text, open the worksheet view, and select Options > Find. Enter the text to be replaced in the Find: field, enter the new text in the

Replace with: field, and press the joystick. When the cell

is found, select Replace to replace the text and move to the next match. Select Ignore to skip the current match and Next to move to the next match.

Tip: To skip the current match and to move to the previous and next match, scroll up and down.

Presentation

You can open, view, edit, and save presentations created with Microsoft PowerPoint 97 or later. You can also create new presentations. Note that not all features and formatting of the original files are supported.

This device supports common features of Microsoft Word, PowerPoint, and Excel (Microsoft Office 97, 2000, XP, and

2003). Not all file formats can be viewed or modified. Select Menu > Office > Presentat..

To open an existing presentation, browse for the folder and file, and press the joystick.

To create a new presentation, select Options > New file. Select Blank to create a new presentation without using a template or Use template to create a presentation based on an existing template.

FCC DRAFT

View slide shows

To start a slide show, select Options > Presentation. Select from the following options:

• Manual — Move from one slide to another manually.

• Slide show — Move from one slide to another

• Manual looped — The slide show continues from the

• Looped slide show — The slide show continues

To move between slides in a slide show, scroll up to display a previous slide and down to display the next slide.

To end the slide show, press the right selection key.

manually, or use the automatic slide switching. You must specify the duration for a slide.

beginning when the last slide of a presentation has been shown.

automatically from the beginning when the last slide of a presentation has been shown.

Work with different views

The presentation application consists of different views that help you when reading and creating presentations.

To switch between the different views, scroll right and left with the joystick.

Layout view

To open the layout view, select the view in the middle. To enable or disable the visibility of charts, comments, tables, images, and shapes, select Options > Settings, scroll to the settings item, and press the joystick.

Outline view

The outline view is used to navigate through long presentation documents. The view enables fast vertical scrolling, rearranging of slides, and editing of objects.

To open the outline view, scroll to the view on the left. In the outline view, each slide has its own main level entry. Under the main level there is a sublevel for each text field and object.

To view the slide content, select Options > Expand. To hide the content, select Options > Collapse. To collapse or expand all entries, select Options > View > Collapse all or

Expand all.

To change the order of slides, scroll to the slide you want to move, and select Options > Slide > Move. Scroll up and down to select a new location, and select OK.

Notes view

In the notes view, you can read notes that are attached to slides in the presentation. You can also add your own notes.

To open the notes view, scroll to the view on the right. Each slide has its own main level entry. Under the main level there is a sublevel for notes. If notes are not visible, select Options > View > Expand all. To edit a note, scroll to the note, and press the joystick.

Edit presentations

To edit a presentation, open the layout view, and select

Options > Edit slide. Scroll right or down with the joystick

Office applications

FCC DRAFT

to move forward and left or up to move backward. Select

Options.

Define the following options:

• Add title, Add subtitle, Add text, Insert table, Insert

image — Add a new text or object inside the selected

area.

• Edit text, Edit table, Edit document, Edit

workbook — Edit the selected object.

Office applications

• Edit object — Select Move to move the object, scroll to the item, and press the joystick. Select Resize to change the size of the object. Scroll right and left to change the horizontal size of the object and up and down to change the vertical size. To accept the changes, press the joystick. Select Rotate to rotate the object. Scroll right to rotate the object clockwise and left to rotate counterclockwise. To accept the changes, press the joystick. Select Properties to edit text, line, border, or background properties of the object.

• Object — Delete, copy, paste, or add a link to the selected object.

• Object position — Change the layered position of the

selected object in the presentation: up, down, front, or back.

• Insert — Add a new text box, image, shape, table, or comment to the presentation.

• Undo, Redo — Withdraw the latest modifications.

Find text in a presentation

To find a piece of text from in the presentation, select any of the views. Select Options > Find, enter the text in the

Find: field, and press the joystick.

To change the search option for case and whole words, select Options > Search options.

Adobe Reader

With Adobe Reader you can read PDF documents on the display of your device. Select the Adobe icon to get started. Your recent files are listed in the file view. To open a document, scroll to it, and select Open.

You can also select the following:

• Open saved PDF — Browse for PDF files in the device memory or on a memory card.

• Search for PDF — Enter the name of a document you wa nt t o find in d evice mem ory or o n the m emo ry c ard .

• Settings — Modify the default zoom level and viewing mode of PDF documents.

When a PDF file is open in the Layout view, select Options and choose one of the following:

• Zoom — Zoom in, out, or choose a percentage. You can also resize the document to the screen width, or fit the whole PDF page to the screen.

• Cursor tool — Use a cursor to copy content from the PDF document.

• Open file — Open new files or recently viewed files.

• Go to — Move to a selected page, next page, previous

page, first page, or last page.

• Save to folder — Save the file to the device memory or memory card.

• Send — Send the PDFdocument using Bluetooth, infrared, or e-mail.

• Find — Search the document for a text string.

FCC DRAFT

• View — View the document in full screen mode. You can also rotate the PDF document by 90 degrees in either direction.

• Settings — Modify settings and document information.

• Help — Read online help for the application.

The following additional options are available from the Pages view:

• Select — Select items to view.

• Collapse / Expand — Expand the pages index to see

• Open file — Open the highlighted section of the

To close the document and return to the file view, Select

Back. To close Adobe Reader Select Options > Exit

subsection titles.

document for viewing.

Screen export

You can show the screen of the device to an audience with a compatible data projector, or other compatible projection system. The screen content is transferred to the data projector using, for example, a Bluetooth connection.

Select Menu > Office > Screen export. To be able to show screen content with a compatible data

projector, you must install the drivers of the data projector. For more information, check with the data projector manufacturer or its representative.

Not all applications support this feature. You can start the external viewer in two ways: from the Office folder or inside an application that supports it.

Show screen content

To show screen content with a data projector, open the screen export application, and select Options > Select

device. In the list of available devices, scroll to the device

you want to use, and select OK. Select Options > Enable to show screen content.

To hide the screen content, select Options > Hide. The screen exporter application is moved to the background.

To stop showing screen content, select Options >

Disable.

Zip Manager

Yo u ca n co mpres s fi les on you r de vice t o e- mai l or ar chi ve using Zip Manager.

You can perform the following tasks with Zip Manager:

• Create new archive — Create a new archive file to store compressed ZIP formatted files.

• Update an archive — Add single or multiple compressed files or directories to an existing archive.

• Delete files — Delete files or directories from an existing archive.

• Archive password — Set, clear, or change the archive password for protected archives.

• Zip manager settings — Change Zip manager settings, such as: compression level, temporary file drive, file name encoding, default drive, auto-naming, and default startup view.

You can store archive files on the device or on the memory card. Zip Manager also has a wizard view that you can use

Office applications

FCC DRAFT

to perform basic file compression tasks, such as: extracting, adding, archiving, and listing files.

Print

Print a message or file from the device. Preview a print job, define page layout options, select a printer, or print to a file.

Office applications

Before you print, make sure that your device is properly connected to the printer.

To print a message or file, open the message or file, and select Options > {No display_text mapping for

'qtn_ps_menuitem_print_main', locale='en-US'}.

Define the following options:

• Printer — Select an available printer from the list.

• Print — Select All pages, Even pages, or Odd pages as

the print range.

• Print range — Select All pages in range, Current page, or Defined pages as the page range.

• Number of copies — Select the number of copies to print.

• Print to file — Select to print to a file and determine the location for the file.

You may not be able to print all messages, such as multimedia messages or other special message types.

To preview a file or message before you print, select

Options > Print > Preview.

To change the page layout before printing, select

Options > Print > Page setup and from the following tabs:

• Paper size — Change the paper size or orientation and customize the height and width.

• Margins — Change the size of the left, right, top, or bottom margins.

• Header — The maximum length of the header is 128 characters. You can set the distance from the header to the text and choose to include the header on the first page of the document.

• Footer — The maximum length of the footer is 128 characters. You can set the distance from the footer to the text.

To add or delete a printer, select Menu > Office >

Printers > Options > Add or Delete.

ProTour Golf

ProTour Golf is a full-featured 3-D golf simulation featuring two challenging golf courses and entertaining single and multiplayer game modes. ProTour Golf delivers all the elements of a golf game you would expect, including a set of golf clubs that you can customize, a range of match and stroke play competitions, male and female golfer graphics, and a range of golfer abilities.

See instructions within the game.

FCC DRAFT

Connectivity

Copyright protections may prevent some images, music (including ringing tones), and other content from being copied, modified, transferred or forwarded.

Your device offers several options to connect to the Internet, a corporate intranet, or to another device or PC.

Dev. mgr.—See "Remote configuration network

service," p. 89.

IM—See "Instant messaging," p. 62. Sync—See "Data synchronization," p. 89.

Bluetooth

There may be restrictions on using Bluetooth technology in some locations. Check with your local authorities or service provider.

Features using Bluetooth technology, or allowing such features to run in the background while using other features, increase the demand on battery power and reduces the battery life.

This device is compliant with Bluetooth Specification 1.2 supporting the following profiles: Generic Access Profile, Serial Port Profile, Dial-up Networking Profile, Headset Profile, Handsfree Profile, Generic Object Exchange Profile, Object Push Profile, File Transfer Profile, SIM Access Profile, and Basic Imaging Profile. To ensure interoperability between other devices supporting Bluetooth technology, use Nokia approved enhancements for this model. Check

with the manufacturers of other devices to determine their compatibility with this device.

Bluetooth technology enables wireless connections between electronic devices within a range of 10 meters (33 feet). A Bluetooth connection can be used to send images, videos, texts, business cards, calendar notes, or to connect wirelessly to computers and other devices using Bluetooth technology.

Since devices using Bluetooth technology communicate using radio waves, your device and the other devices do not need to be in direct line-of-sight. The two devices only need to be within a maximum of 10 meters of each other, although the connection can be subject to interference from obstructions, including walls or from other electronic devices.

Start using Bluetooth

Select Menu > Connect. > Bluetooth. To activate Bluetooth, simultaneously press the function

key and the ctrl key. To deactivate, press the function key and the ctrl key again. If you use this shortcut to activate Bluetooth, you will not be asked to name your device.

1. When you activate Bluetooth for the first time, you ar e asked to give a name to your device. Give your device a unique name to make it easy to recognize if there are several Bluetooth devices in the vicinity.

2. Select Bluetooth > On.

Connectivity

FCC DRAFT

3. Select My phone's visibility > Shown to all. Your device and the name you entered can now be seen

by other users with devices using Bluetooth technology.

Connectivity

Settings

Define the following settings:

• Bluetooth — Select On to be able to conn ect to another compatible device using Bluetooth connectivity.

• My phone's visibility — Select Shown to all to allow other devices using Bluetooth technology to find your device when you have set Bluetooth > On. To prevent other devices from finding your device, select Hidden. Even if you select Hidden, paired devices can still detect your device.

• My phone's name — Enter a name for your device. The name is visible to other devices that search for devices using Bluetooth technology. The maximum length of the name is 30 characters.

• Remote SIM mode — Select On to enable another device to use the SIM card in your device to connect to the network. See "SIM access profile," p. 86.

If Bluetooth was turned off as a result of entering

Offline profile, you must re-enable Bluetooth manually.

Send data

Several Bluetooth connections can be active at a time.If you are connected to a headset or other Bluetooth device, you can transfer files to another compatible device at the same time.

1. Open the application where the item you want to send is stored.

2. Select the item, and select Options > Send > Via

Bluetooth. The device searches for other devices using

Bluetooth technology within range and lists them.

Tip: If you have sent data using Bluetooth before, a list of the previous search results is displayed. To search for more Bluetooth devices, select More devices.

3. Select the device with which you want to connect, and press the joystick to set up the connection. If the other device requires pairing before data can be transmitted, you are asked to enter a passcode.

4. When the connection has been established, Sending

data is shown.

The Sent folder in Messag. does not store messages sent using Bluetooth connectivity.

Security tips

When you are not using Bluetooth connectivity, select

Bluetooth > Off or My phone's visibility > Hidden.

Do not pair with an unknown device.

FCC DRAFT

Bluetooth connectivity indicators

Bluetooth is active.

When the icon is blinking, your device is trying to

connect to the other device. When the icon is shown continuously, the Bluetooth connection is active.

Pair devices

Select Menu > Connect. > Bluetooth, and scroll right to open the Paired devic. page.

Before pairing, create your own passcode (1-16 digits), and agree with the user of the other device to use the same code. Devices that do not have a user interface have a fixed passcode. You need the passcode only when you connect the devices for the first time. After pairing, it is possible to authorize the connection. See "Authorize a device," p. 85. Pairing and authorizing the connection makes connecting quicker and easier, as you do not have to accept a connection between paired devices every time you establish the connection.

The passcode for remote SIM access must have 16 digits.

1. Select Options > New paired device. The device starts

2. Select the device with which you want to pair, and

3. Select Yes to make the connection between your

To give a nickname to a paired device that is only displayed in your device, scroll to the device with which

to search for Bluetooth devices within range.

Tip: If you have sent data using Bluetooth before, a list of the previous search results is displayed. To search for more Bluetooth devices, select More devices.

enter the passcode. The same passcode must be entered to the other device as well.

device and the other device automatic or No to confirm the connection manually every time a connection attempt is made. After pairing, the device is saved to the paired devices page.

you have paired, and select Options > Assign short

name.

To delete a pairing, select the device whose pairing you want to delete and Options > Delete. To delete all pa irings, select Options > Delete all.

Tip: If you are currently connected to a device and cancel the pairing with that device, pairing is removed immediately, and the connection is switched off.

Authorize a device

If you trust a paired device, you can allow it to connect automatically to your device. You can select from the following options:

• Set as authorized — Connections between your device and the other device can be made without your knowledge. No separate acceptance or authorization is needed. Use this status for your own devices, including your compatible headset or PC, or devices that belong to someone you trust.

• Set as unauthorized — Connection requests from the other device must be accepted separately every time.

Receive data

If you want to receive data using Bluetooth, select

Bluetooth > On and My phone's visibility > Shown to all.

When you receive data through Bluetooth connectivity, a tone sounds, and you are asked if you want to accept the message. If you accept, the message is placed in the

Inbox folder in Messag.

Connectivity

FCC DRAFT

Tip: You can access the files in the device or on the memory card using a laptop or compatible accessory that supports the File Transfer Profile Client service.

Connectivity

End a Bluetooth connection

A Bluetooth connection is disconnected automatically after sending or receiving data. Only Nokia PC Suite and some enhancements may maintain a connection even if not actively used.

SIM access profile

With the SIM access profile, you can access the SIM card of your device from a compatible car kit device. This way, you do not need a separate SIM card to access SIM card data and connect to the GSM network.

To use the SIM access profile, you need the following:

• Compatible car kit device that supports Bluetooth wireless technology

• Valid SIM card in your device

For more information about car kit devices and compatibility with your device, see www.nokia.com and your car kit user guide.

Manage the SIM access profile

1. Select Menu > Connect. > Bluetooth to activate

Bluetooth connectivity in your device.

2. To enable remote SIM access, scroll to Remote SIM

mode, and press the joystick.

3. Activate Bluetooth in the car kit device.

4. Use your car kit device to start a search for compatible devices. For instructions, see the user guide of your car kit device.

5. Select your device from the list of compatible devices.

6. To pair the devices, enter the Bluetooth passcode shown on the display of the car kit device to your device.

7. Authorize the car kit device. Select Menu > Connect. >

Bluetooth, and scroll to the Paired devic. page. Scroll

to the car kit device, and enter the Bluetooth passcode. When the device asks to make the connection automatic, select Yes. Connections between your device and the car kit device can be made without separate acceptance or authorization. If you select

No, connection requests from this device must be

accepted separately every time.

Tip: If you have already accessed the SIM card from the car kit with the active user profile, the car kit searches automatically for a device with the SIM card. If it finds your device, and automatic authorization is activated, the car device automatically connects to the GSM network when you switch on the car ignition.

When you activate the remote SIM access profile, you can use applications on your device that do not need network or SIM services.

To end the remote SIM access connection from your device, select Menu > Connect. > Bluetooth > Remote SIM

mode > Off.

FCC DRAFT

Infrared

Do not point the IR (infrared) beam at anyone's eye or allow it to interfere with other IR devices. This device is a Class 1 laser product.

Use infrared to connect two devices and transfer data between them. With infrared, you can transfer data such as business cards, calendar notes, and media files with a compatible device.

Send and receive data

1. Ensure that the infrared ports of the devices face each

2. Select Menu > Connect. > Infrared, and press the

3. Wait a few seconds until an infrared connection is

4. To send, locate the desired file in an application or the

If data transfer is not started within 1 minute after the activation of the infrared port, the connection is cancelled and must be started again.

All items received through infrared are placed in the Inbox folder in Messag..

Positioning devices away from each other breaks a connection, but the infrared light beam remains active on your device until it is deactivated.

other. The positioning of the devices is more important than angle or distance.

joystick to turn on infrared on your device. Turn on infrared on the other device.

established.

file manager, and select Options > Send > Via

infrared.

Cable connection

Install the USB data cable driver to your PC before you use a cable connection. You can use the Data transfer without installing the USB data cable drivers.

Select Menu > Connect. > Data cbl.. Using a USB data cable, you can connect your device to a

compatible PC . Connect the USB data cable to the bottom of the device. To change the device type you normally connect to your device with the data cable, press the joystick.

Select from the following:

• Ask on connection — Select whether you want to be asked for the device type every time you connect the data cable to your device.

• PC Suite — Connect the PC Suite to your device with the data cable, and use your device as a modem.

• Data transfer — Access and transfer data such as music or image files from your computer using the data cable connection. To use the Data transfer mode, make sure that you have not selected USB as a connection type in the Manage connections settings in Nokia PC Suite. Insert a memory card to your device, connect the device to a compatible computer with the USB data cable, and select Data transfer when the device asks which mode is used. In this mode, your device acts as a mass storage device and you can see it as a removable hard drive in your computer. The device will switch into the Offline profile if this is selected. End the connection from the PC (for example, from an Unplug or Eject Hardware wizard in Windows) to avoid damaging the memory card. After you end the

Connectivity

FCC DRAFT

connection, the device returns to the profile in which it was before using the data transfer mode.

• IP passthrough — Select an access point through which to transfer data using the Internet protocol.

To save your selection, select Back.

Connectivity

Connection manager

Select Menu > Connect. > Conn mgr.

To view the status of data connections or end connections, select Act. data conn..

View and end active connections

Note: The actual time invoiced for calls by your service provider may vary, depending on network features, rounding off for billing, and so forth.

In the active connections view, you can see the open data connections: data calls and packet data connections.

To view detailed information about network connections, select the connection from the list and Options > Details. The type of information shown depends on the connection type.

To end a network connection, select the connection from the list and Options > Disconnect.

To end all active network connections simultaneously, select Options > Disconnect all.

To view the details of a network, press the joystick.

Modem

Select Menu > Connect. > Modem. Together with a compatible computer, you can use your

device as a modem to connect to the Web. Before you can use your device as a modem

• You must subscribe to the appropriate network services from your service provider or Internet service provider.

• You need a compatible computer with a USB data cable, Bluetooth, or infrared connectivity.

• You must have Nokia PC Suite installed on your computer.

• You must have the appropriate drivers installed on your computer. You may need to install or update drivers for your cable, Bluetooth, or infrared connection. After you have installed Nokia PC Suite, follow the instructions on the computer display to install the drivers and connect your device to the computer.

After you have installed Nokia PC Suite and the appropriate drivers, start Nokia PC Suite on your computer. Select Connect to the Internet, and follow the instructions on the computer display.

You may not be able to use some of the other communication features when the device is used as a modem.

Device management

Manage data and software on your device.

FCC DRAFT

Remote configuration network service

Select Menu > Connectivity > Dev. mgr.. You can connect to a server and receive configuration

settings for your device. You may receive server profiles and different configuration settings from your network operator, service providers, and company information management department. Configuration settings may include connection and other settings used by different applications in your device. Available options may vary.

The remote configuration connection is usually started by the server when the device settings need to be updated.

Remote configuration settings

In the Dev. mgr. main view, select Options and select from

the following:

• Start configuration — Connect to the server and

• New server profile — Create a new server profile.

• Edit profile — Change the profile settings.

• Delete — Remove the selected profile.

• Enable config. — Select to receive configuration

• Disable config. — Select to stop receiving

• View log — View the configuration log of the selected

receive configuration settings for your device.

settings from those servers for which you have a server profile and have allowed configuration.

configuration settings from all servers for which you have a server profile.

profile.

Data synchronization

Menu > Connectivity > Sync.

Use Sync to synchronize your contacts, calendar, or notes with corresponding applications on a compatible computer or remote Internet server. Your synchronization settings are saved in a synchronization profile. The application uses SyncML technology for remote synchronization. For information on SyncML compatibility, contact the supplier of the applications with which you want to synchronize your device.

The available applications you can synchronize may vary. Use caution when synchronizing data if you use a proprietary e-mail client. Data may conflict and could be overwritten. Contact your service provider for more information.

Tip: You may receive the synchronization settings as a message from your service provider.

Create a synchronization profile

To create a profile, select Options > New sync profile and select from the following options:

• Sync profile name — Enter a name for the profile.

• Applications — Select the applications to synchronize

with the profile.

• Connection settings — Specify the needed connection settings. Contact your service provider for information.

Synchronization profiles

In the Sync main view, select Options and select from the following options:

Connectivity

FCC DRAFT

• Synchronize — Synchronize the data included in the selected profile with a remote database.

• New sync profile — Create a synchronization profile. You may want to create multiple synchronization profiles for an application to vary the data bearer in

Connectivity

use or remote database with which you synchronize your device.

• View log — View the added, updated, and deleted entries in the latest synchronization with the profile.

• Delete — Remove the selected profile.

Synchronization connection settings

To create the connection settings of a new profile, select

New sync profile > Connection settings and select from

the following options:

• Server version — Select the SyncML version you can use with your server.

• Server ID — Enter the server ID of your server. This setting is only available if you select 1.2 as the SyncML version.

• Data bearer — Select the data bearer to connect to the remote database during synchronization.

• Access point — Select the access point to use for the synchronization connection, or create a new access point. You can also choose to be asked for the access point every time you start synchronizing.

• Host address — Enter the Web address of the server that contains the database with which you want to synchronize your device.

• Port — Enter the port number of the remote database server.

• User name — Enter your user name to identify your device to the server.

• Password — Enter your password to identify your device to the server.

• Allow sync requests — To allow synchronization to start from the remote database server, select Yes.

• Accept all sync reqs. — To have your device ask for your confirmation before accepting synchronization from the server, select No.

• Network authentic. — To authenticate your device to the network before synchronization, select Yes. Enter your network user name and network password.

Define synchronization settings for Contacts

To define the synchronization settings for the Contacts application, scroll to the desired profile, and select

Options > Edit sync profile > Applications > Contacts > Edit and select from the following options:

• Include in sync — Select whether to synchronize your contacts directory with this synchronization profile.

• Remote database — Enter the path to the database with which you synchronize your contacts directory.

• Local database — If you have more than one contacts directory in your device, select the one you want to synchronize with this synchronization profile.

• Synchronization type — Select the direction of synchronization. Scroll to Normal to synchronize data from the device to remote database and back, To

phone only to synchronize data from the remote

database to your device, or To server only to synchronize data from your device to the remote database.

FCC DRAFT

Define synchronization settings for Calendar

To define the synchronization settings for the Calendar application, scroll to the desired profile, and select

Options > Edit sync profile > Applications > Calendar > Edit and select from the following options:

• Include in sync — Select whether to synchronize your

• Remote database — Enter the path to the database

• Local database — If you have more than one calendar

• Synchronization type — Select the direction of

Define synchronization settings for Notes

To define the synchronization settings for the Notes application, scroll to the desired profile, and select

Options > Edit sync profile > Applications > Notes > Edit

and select from the following options:

• Include in sync — Select whether to synchronize your

• Remote database — Enter the path to the database

• Local database — If you have more than one Notes

calendar with this synchronization profile.

with which you synchronize your calendar.

in your device, select the one you want to synchronize with this synchronization profile.

synchronization. Scroll to Normal to synchronize data from the device to remote database and back, To

phone only to synchronize data from the remote

database to your device, or To server only to synchronize data from your device to the remote database.

notes with this synchronization profile.

with which you synchronize your notes.

application in your device, select the one you want to synchronize with this synchronization profile.

• Synchronization type — Select the direction of synchronization. Scroll to Normal to synchronize data from the device to remote database and back, To

phone only to synchronize data from the remote

database to your device, or To server only to synchronize data from your device to the remote database.

Internet access points

An access point is where your device connects to a network. To use e-mail and multimedia services or to connect to the Internet and browse web pages, you must first define Internet access points for these services. You may need to set up several Internet access points, depending on the sites you want to access. Browsing the Web may require one access point, and accessing your company intranet may require another. To connect to the Internet over GPRS, your device may have predefined, default Internet access point settings.

When you switch on your device for the first time, the access points may be configured automatically based on the service provider information in your SIM card. You can also receive the access points settings in a message from your service provider. This might reduce the number of settings you need to enter yourself.

The available options may vary. Some or all access points may be preset for your device by your service provider. You may not be able to add, edit, or delete access points.

Contact your service provider and e-mail service provider for more information on access points and their settings.

See "Connection settings," p. 107.

Connectivity

FCC DRAFT

Set up an Internet access point for data calls

1. Select Menu > Tools > Settings > Connection > Access

Connectivity

points.

2. Select Options > New access point. To use an existing access point as a basis for the new one, select Use

existing settings. To start with an empty access point,

select Use default settings.

3. Define the following settings:

• Connection name — Enter a descriptive name for

the connection.

• Data bearer — Select Data call or High speed data

(GSM only).

• Dial-up number — Enter the modem telephone

number of the access point. Press + before international numbers.

• User name — Enter your user name if required by

the service provider. User names are often casesensitive and provided by your service provider.

• Prompt password — Select Yes to enter your

password each time you log into a server or No to save the password in your device memory and automate the login.

• Password — Enter your pas sword if required by the

service provider. The password is often casesensitive provided by the service provider.

• Authentication — Select Secure to always send

your password encrypted or Normal to send your password encrypted when possible.

• Homepage — Enter the Web address of the page

you want to display as a home page when you use this access point.

• Data call type — Select Analog or ISDN.

• Max. data speed — Select the limit to apply to the

transfer speed. If you select Automatic, the data transfer rate is determined by the network and may be affected by network traffic. Some service providers may charge more for higher data rates.

4. After defining the basic settings, select Options >

Advanced settings to define the advanced settings or Back to save the settings and exit.

For information on the advanced settings, see the extended user guide on the Web.

Advanced Internet access point settings for data calls

After setting up a basic Internet access point for Data

call or High speed data (GSM only), select Options > Advanced settings, and define the following advanced

settings.

• IPv4 settings — Enter the device IP and name server

addresses for IPv4 Internet protocol.

• IPv6 settings — Enter the device IP and name server

addresses for IPv6 Internet protocol.

• Proxy serv. address — Enter the proxy server address.

• Proxy port number — Enter the proxy server port

number. Proxy servers are intermediate servers between a browsing service and its users, which are used by some service providers. These servers may provide additional security and speed up access to the service.

• Use callback — Select Yes if you have a service that dials

back to your device when you establish an Internet connection.

FCC DRAFT

• Callback type — Select Use server no. or Use other

no., according to instructions from your service

provider.

• Callback number — Enter your data call phone number of your device, which the callback server uses.

• Use PPP compress. — Select Yes to speed up the data

• Use login script — Select Yes, if your Internet service

• Login script — Enter the login script. This setting is

• Modem initialization — Enter a command string for

transfer, if it is supported by the remote PPP server.

provider requires a login script, or if you want to automate your login. A login script is a sequence of instructions that the system follows during the login process.

available only if you have selected Use login script >

Yes.

the connection setup, if required by your service provider.

Set up an Internet access point for packet data (GPRS)

1. Select Menu > Tools > Settings > Connection > Access

points.

2. Select Options > New access point. To use an existing

access point as a basis for the new one, select Use

existing settings. To start with an empty access point,

select Use default settings.

3. Define the following settings.

• Connection name — Enter a descriptive name for the connection.

• Data bearer — Select Packet data.

• Access point name — Enter the name for the access

po int . The n ame is u sua lly pr ovi ded by you r se rvice provider or network operator.

• User name — Enter your user name if required by the service provider. User names are often casesensitive and provided by your service provider.

• Prompt password — Select Yes to enter your password each time you log into a server or No to save the password in your device memory and automate the login.

• Password — Enter your password if required by the service provider. The password is often casesensitive provided by the service provider.

• Authentication — Select Secure to always send your password encrypted or Normal to send your password encrypted when possible.

• Homepage — Enter the Web address of the page you want to display as a home page when you use this access point.

4. After defining the settings, select Options > Advanced

settings to define the advanced settings or Back to

save the settings and exit.

For information on the advanced settings, see the extended user guide on the Web.

Advanced Internet access point settings for packet data (GPRS)

After setting up a basic Internet access point for packet data (GPRS), select Options > Advanced settings, and define the following advanced settings:

Connectivity

FCC DRAFT

• Network type — Select IPv4 or IPv6 as the Internet protocol type. The Internet protocol defines how data is transferred to and from your device.

• Phone IP address — E nt e r t h e I P ad d re s s o f y o u r d ev i ce . Select Automatic to have the network provide the

Connectivity

device IP address. This setting is shown only if you select Network type > IPv4.

• DNS address — Enter the IP addresses of the Primary

DNS address and Secondary DNS addr. if required by

your service provider or network operator. Otherwise, the name server addresses are provided automatically.

• Proxy serv. address — Enter the address of the proxy

server. Proxy servers are intermediate servers between a browsing service and its users, which are used by some service providers. These servers may provide additional security and speed up access to the service.

time as Nokia PC Suite. You cannot activate the modem if you select IP passthrough in cable connection settings.

To prepare for an IP passthrough session, connect a data cable to your device, and select IP passthrough as the connection method. Connect the other end of the data cable to a compatible PC, and wait for the PC to recognize your device.

Access point for IP passthrough

Menu > Tools > Settings > Connection > Access points.

To configure IP passthrough basic settings, select

Options > New access point > Use default settings. Enter

a name for your IP passthrough connection in the

Connection name field, and select IP passthrough in the Data bearer field.

IP passthrough

Select Menu > Connect. > Data cable > Options > IP

passthrough.

The IP passthrough application allows you to obtain a network connection on your device from a compatible PC through a data cable.

Set up a data cable to use IP passthrough

Use IP passthrough as you use any Internet access point to browse or synchronize remotely. If a wireless network connection is unavailable, use IP passthrough to access the Internet. You cannot use IP passthrough at the same

FCC DRAFT

Advanced IP passthrough access point settings

Menu > Tools > Settings > Connection > Access points.

To use advanced settings, open an IP passthrough access point, and select Options > Advanced settings and select from the following:

• IPv4 settings — Enter the Phone IP address and DNS

address for the IPv4 Internet protocol.

• IPv6 settings — Enter the DNS address for the IPv6 Internet protocol.

• Proxy serv. address — Enter the proxy server address.

• Proxy port number — Enter the proxy server port

number.

Data connections

This device supports packet data (GPRS), high-speed data calls (HSCSD), and GSM data calls.

Packet data

GPRS (general packet radio service) enables wireless access for mobile phones to data networks (network service). GPRS uses packet data technology where information is sent in short bu rsts of data over the mobile network. The benefit of sending data in packets is that the network is occupied only when sending or receiving data. As GPRS uses the network efficiently, it allows for quick data connection setup and fast data transmission speeds.

You must subscribe to the GPRS service. For availability and subscription to GPRS, contact your network operator or service provider.

Enhanced GPRS (EGPRS) is similar to GPRS, but it enables faster connection. For more information on the availability of EGPRS and data transfer speed, contact your network operator or service provider. Note that when you h av e se l ec t ed G PR S as a da t a bearer, the device uses EGPRS instead of GPRS if this is available in the network.

During a voice call, you cannot establish a GPRS connection, and any existing GPRS connection is put on hold unless the network supports dual transfer mode.

Mobile VPN

Select Menu > Tools > Settings > Connection > VPN.

The Nokia mobile virtual private network (VPN) client creates a secure connection to compatible corporate Intranet and services, including e-mail. Your device connects from a mobile network, through the Internet, to a corporate VPN gateway that acts as a front door to the compatible corporate network. The VPN client uses IP Security (IPSec) technology. IPSec is a framework of open standards for supporting secure exchange of data over IP networks.

VPN policies define the method used by VPN client and a VPN gateway to authenticate each other, and the encryption algorithms that they use to help protect the confidentiality of data. Contact your corporation for a VPN policy.

To use VPN with an application, the application must be associated with a VPN access point. A VPN access point is made up of an Internet access point and a VPN policy.

VPN management

You can manage your VPN policies, policy servers, VPN logs, and key store password in VPN management. VPN policies define how data is encrypted for transfer over unsecured networks. The key store password helps protect private keys.

An access point is where your device connects to the network by way of a data call or packet data connection. To use e-mail and multimedia services or to browse Web pages, you must first define Internet access points for these services. VPN access points pair VPN policies with Internet access points to create encrypted connections.

To manage VPN, select VPN management > Options >

Open and from the following options:

Connectivity

FCC DRAFT

• VPN policy — Install, view, and update VPN policies.

• VPN policy servers — Edit the connection settings of

VPN policy servers from which you can install and update VPN policies.

• VPN log — View the log for your VPN policy

Connectivity

installations, updates and synchronizations, and other VPN connections.

Manage VPN policies

To manage VPN policies, select VPN management > VPN

policy > Options and from the following options:

• Install policy — Install a policy. Enter your user name and password for the VPN policy server. Contact your system administrator for your user name and passwords.

• Define VPN ac. point — Create a VPN access point that pairs a VPN policy with an Internet access point.

• Update policy — Update the selected VPN policy.

• Delete policy — Delete the selected VPN policy. If you

delete a VPN policy, it is reinstalled when you synchronize your device with the VPN policy server the next time unless it has also been deleted from the server. Similarly, if a VPN policy has been deleted from the server, it is also deleted from your device upon synchronization.

To manage VPN policy servers, select VPN policy servers >

Options > Open and from the following options:

• New server — Add a VPN policy server.

• Synchronize server — Install new or update the

selected VPN policy.

• Delete server — Delete the selected VPN policy server.

To manage VPN policy server settings, select Options >

Open > New server or Edit server and from the following

options:

• Policy server name — Enter a new name for the server (up to 30 characters).

• Policy server addr. — Enter the server address. The policy server address cannot be edited after you connect to the server to install or update VPN policies.

• Internet access pt. — Select the Internet access point to connect to the VPN policy server.

• Key store password — Change the password of the private key store. The password is created automatically when it is needed for the first time.

View the VPN log

Select VPN management > VPN log > Open. A VPN log records your visits to VPN servers to install,

update, and synchronize VPN policies and your VPN connections. Error, warning, and information entries are indicated by an icon on the left-hand side of the entry. To view a log entry in detail, select it. Report the reason codes, visible in the detailed view, to your system administrators. The codes point to possible causes of problems you may have with VPN. When the log size reaches 20 KB, the oldest log entries are deleted to make space for new entries.

Select Options and from the following options:

• Refresh log — Update the log.

• Clear log — Delete the log entries.

FCC DRAFT

Media applications

Copyright protections may prevent some images, music (including ringing tones), and other content from being copied, modified, transferred or forwarded.

Select Menu > Media.

Media contains different media applications that allow

you to save and view images, record sounds, and play sound clips.

Gallery

Select Menu > Media > Gallery. Use Gallery to access and use different types of media,

including images, videos, music, and sounds. All viewed images and videos and all received music and sounds are automatically saved to Gallery. You can browse, open, and create folders; and mark, copy, and move items to folders. Sound clips are opened in the Music Player, and video clips and streaming links in the RealPlayer application.

To open a file or a folder, press the joystick. Images are opened in the image viewer.

To create a new folder, select Options > Organize > New

folder.

To copy or move files, select a file and Options >

Organize > Move to folder, New folder, Move to memory card, Copy to memory card, Copy to phone mem., or Move to phone mem..

To download files into the Gallery in one of the main folders using the browser, select Graphic downl., Video

downl., Track downl., or Sound downl.. The browser

opens, and you can choose a bookmark or enter the address for the site to download from.

To search for a file, select Options > Find. Start to enter a search string. A string might include the name or date of the file you are searching for. Files that match the search are shown.

Images

Select Menu > Media > Gallery > Images.

Images consists of two views:

• In the image browser view you can send, organize, delete, and rename images stored in your device or memory card. You can set images as wallpaper for your display.

• In the image viewer, which opens when you select an image in the image browser view, you can view, and send individual images.

The following file formats are supported: JPEG, BMP, PNG, and GIF 87a/89a. The device does not necessarily support all variations of the file formats.

To open an image for viewing, select an image in the image browser view, and select Options > Open. The image opens in the image viewer.

Media applications

FCC DRAFT

To open the next or previous image for viewing, scroll right or left in the image viewer.

To enlarge the viewed image on the display, select

Options > Zoom in, or press 5 or 7. To reduce the viewed

image on the display, select Zoom out or press 0.

To view the image in full screen size, select Options > Full

screen or press 7 twice. To return to normal view, select Options > Normal screen.

Media applications

To rotate an image, select an image, and Options >

Rotate. Select Right to rotate the image clockwise by 90

degrees, or select Left to rotate the image counterclockwise by 90 degrees.

Manage image files

Copyright protections may prevent some images, ringing tones, and other content from being copied, modified, transferred or forwarded.

To view detailed information about an image, select an image and Options > View details. Size and format of the file, the time and date the file was last modified and the resolution of the image in pixels are displayed.

To send an image, select the image, Options > Send, and the method for sending.

To rename an image, select an image and Options >

Rename. Enter a new name, and select OK.

To set an image as wallpaper, select the image and

Options > Set as wallpaper.

To add an image to a contact card, select an image and

Options > Assign to contact. The contacts view opens, and

you can select the contact for the image.

RealPlayer

Copyright protections may prevent some images, ringing tones, and other content from being copied, modified, transferred or forwarded.

Select Menu > Media > RealPlayer.

RealPlayer can play video clips and audio files that are

stored in the device memory or on a memory card, transferred to your device from e-mail or compatible PC, or streamed to your device over the Web.

Formats supported by RealPlayer include MPEG-4, MP4 (not streaming), 3GP, RV, RA, AAC, AMR, and Midi.

RealPlayer does not necessarily support all variations of

a media file format.

Tip: Streaming audio and video files means playing them directly from the Web without downloading them first to your device.

Play video clips and stream links

To select audio and video files to play with RealPlayer, select Options > Open, and scroll to a media clip in your device or on a memory card.

To play streaming media, select a Web link that points to a media clip, and select Play; or connect to the Web, browse to a video clip or audio file, and select Play.

RealPlayer recognizes two kinds of links: an rtsp:// URL

and an http:// URL that points to a RAM file. Before the content begins streaming, your device must connect to a Web site and buffer the content. If a network connection

FCC DRAFT

problem causes a playback error, RealPlayer attempts automatically to reconnect to the Internet access point.

To play audio and video files stored in your device or on a memory card, select the file and Play.

To stop playback or streaming, select Stop. Buffering or connecting to a streaming site stops, playback of a clip stops, and the clip rewinds to the beginning.

To view the video clip in full-screen size, select Options >

Play in full screen. The size of the video area changes to

normal or full screen. Full screen increases the size of the video to cover the maximum video area possible while the aspect ratio is maintained.

To save a media clip, select Options > Save, scroll to a folder in device memory or on a memory card, and select

Save. To save a link to a media file on the Web, select Save link.

To fast-forward or rewind the clip during playback, scroll up or down.

To increase or decrease the volume during playback, press the volume keys.

Tip: To fast-forward during play, scroll up and hold. To rewind during play, scroll down and hold.

Send audio files and video clips

You can transfer a media clip to another device or attach a media clip to a multimedia message, document, or slide presentation.

To transfer a media clip through infrared or Bluetooth connection, select a clip and Options > Send. Select a method to use to send the clip to another device.

To send a media clip inside a message, create a multimedia message, select a clip to attach and Insert

object > Video clip or Sound clip.

To remove a media clip you inserted, select Options >

Remove > Yes.

Receive videos

Select Menu > Messaging. Open a message that contains a video clip. Scroll to the clip, and press the joystick.

Select Pause or Stop, select Options, and:

• Play — Play the clip from the start.

• Play in full screen — Play the clip in full screen mode.

Landscape style clips will be rotated by 90 degrees. To switch back to normal view, press any key.

• Continue — Resume playing the clip.

• Continue in full scr. — Continue playing the clip in full

screen mode.

• Mute — Mute the sound of the video clip. To turn sound back on, scroll right.

• Save link — Save the Web link to a clip.

• Clip details — View clip duration and size.

• Settings — Change video or connection settings.

The available options may vary.

View information about a media clip

Media applications

FCC DRAFT

To view the properties of a video clip, audio file, or Web link, select the clip, and select Options > Clip details. Information may include the bit rate or the Internet link of a streaming file.

To turn on file protection, select a media clip, and

Options > Clip details > Status > Options > Change. File

protection prevents others from changing a file.

Media applications

Settings

Select Menu > Media > RealPlayer > Options > Settings.

Video settings

Select Loop > On, if you want to replay video clips automatically after they finish playing.

Connection settings

Select Connection, scroll to the following settings, and press the joystick to edit:

• Proxy — Select whether to use a proxy server and to key in the proxy server's IP address and port number.

• Network — Change the access point to connect to the Internet and to set the port range used when connecting.

Proxy settings

Proxy servers are intermediate servers between media servers and their users. Some service providers use them for additional security or to speed up access to Web pages that contain media files.

Contact your service provider for the correct settings.

Select Connection > Proxy, scroll to the following settings, and press the joystick to edit:

• Use proxy — Select Enable to use a proxy server.

• Proxy serv. address — Enter the I P address of the proxy

server. This setting is only available if you select to use a proxy server.

• Proxy port number — Enter the port number of the proxy server. This setting is only available if you select to use a proxy server.

Network settings

Contact your service provider for the correct settings. Select Connection > Network, scroll to the following

settings, and press the joystick to edit:

• Default access point — Scroll to the access point to connect to the Internet, and press the joystick.

• Online time — Set the time when RealPlayer disconnects from the network when you pause a media clip that plays using a network link. Select User

defined, and press the joystick. Enter the time, and

select OK.

• Lowest UDP port — Enter the lowest port number of the server port range. The minimum value is 1024.

• Highest UDP port — Enter the highest port number of the server port range. The maximum value is 65535.

Advanced network settings

To edit the bandwidth values for different networks, select Connection > Network > Options > Advanced

settings.

100

FCC DRAFT

Microsoft RM-88A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

For your safety

About your device

NETWORK SERVICES

Enhancements, batteries, and chargers

Get started

Insert the SIM card and battery

Insert and remove a memory card

Switch on your device

Charge the battery

Enter first settings

Enter basic settings

CD-ROM

Nokia support and contact information

Your device

Keys and parts

Front view

Side view

Key functions

Keyguard (Keypad lock)

Common actions in several applications

Write text

Copy and paste text

Cut and paste text

Change the writing language

Device help

Tutorial

Help and tutorial

Volume control

Connectors

Type label

Antennas

Electronic components

About the display

Standby modes

Active standby mode

Standby mode

Shortcuts in the standby mode

Display indicators

Memory

Memory card

MiniSD

Memory card security

Unlock a memory card

Transfer content between devices

Transfer data with Bluetooth or infrared

Synchronize data with another device

Settings

Menu

Scroll and make selections

Nokia PC Suite

Total product offering

In-box

Additional on-device applications

Technical information

Make calls

1-touch dial

Vanity dial

Answer a call

Options during a call

Forward calls

Call restriction

Voice commands

Make a call

Launch an application

Change profiles

Voice command settings

Clock

Add and delete cities

Contacts

Manage contact groups

Manage default information

Copy contacts between SIM and device memory

Select ringing tones for contacts

Business cards

Tools
