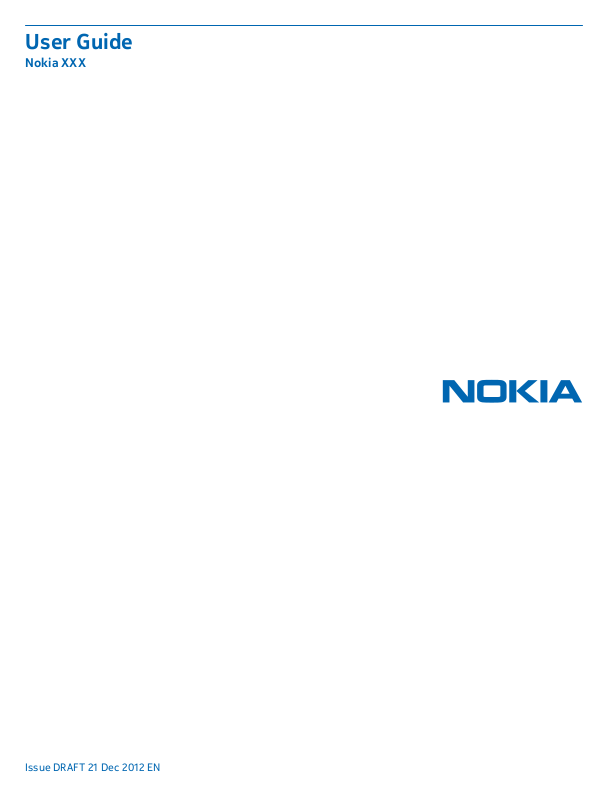

User Guide
Nokia XXX
Issue DRAFT 21 Dec 2012 EN
Psst...
This guide isn't all there is...
For the online user guide, even more info, and troubleshooting help, go to www.nokia.com/
support.
Check out the videos at www.youtube.com/NokiaSupportVideos.
© 2013 Nokia. All rights reserved.
2
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. For further info, read
the complete user guide.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may cause interference
or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Nokia for use with thi s device.
Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to
your device micro USB connector, may be compatible. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is dropped on a hard
surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of
the device or attempt to remove the broken glass from the device. Stop using the device until the
glass is replaced by qualified service personnel.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Exercise caution when holding your device near your ear while the loudspeaker is in use.
© 2013 Nokia. All rights reserved.
3
Get started
Get to grips with the basics, and have your phone up and running in no time.
Keys and parts
Explore the keys and parts of your new phone.
1MIcro-USB connector
2 Headset connector (3.5 mm)
3 Scroll key
4End/Power key
5 Call key
6Selection keys
7Earpiece
8 Camera lens. Before using the camera,
remove the protective tape from the lens.
9 Memory card slot
10 Loudspeaker
11 Antenna area
Insert a SIM card and battery
Learn how to insert a SIM card and the battery.
The SIM1 holder under the battery can be used for both 3G and 2G SIMs.
1. Switch the phone off, and remove the back cover.
2. If the battery is in the phone, lift it out.
© 2013 Nokia. All rights reserved.
4
3. Lift the cover of the SIM1 holder, and put the SIM in, contact area face down.
4. Line up the battery contacts, and push the battery in.
5. Press the back cover down until it locks into place.
6. To switch on, press and hold the power key until the phone vibrates.
Insert a memory card
Read on to learn how to insert a memory card into your phone.
1. Open the memory card cover.
© 2013 Nokia. All rights reserved.
5
2. Push the card in, contact area face down.
3. Push the card in until it locks into place. Close the cover.
Charge the battery
You battery has been partially charged at the factory, but you may need to recharge it before you
can use your phone.
1. Plug the charger into a wall outlet.
2. Connect the charger to the phone.#unique_10/unique_10_Connect_42_S-BATTERY-
DISCHARGED on page 17
© 2013 Nokia. All rights reserved.
6
3. Battery full? Unplug the charger first from the phone, then from the wall outlet.
Tip:
You can use USB charging when a wall outlet is not available. Data can be transferred while
charging the device. The efficiency of USB charging power varies significantly, and it may take
a long time for charging to start and the device to start functioning.

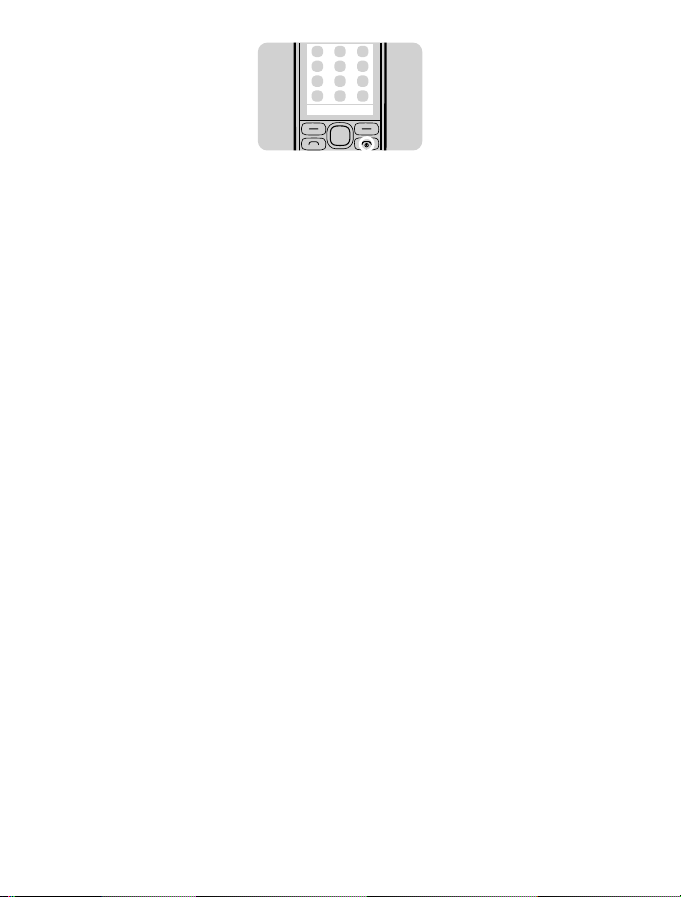

Lock the keys
Lock the keys when not using your phone.
1. Select Menu, and press *.
Menu
2. To unlock, select Unlock, and press *.
© 2013 Nokia. All rights reserved.
