Microsoft RM-725 User Manual

Nokia C2–05.1 User Guide
Cyan
Magenta
Yellow
Black
5555555
Issue 1
Cyan
Magenta
Black
2 www.nokia.com/support
Cyan
Magenta
Yellow
Black
Contents
Safety 5
Get started 7
Keys and parts 7 Insert a SIM card and battery 9 Insert a memory card 11 Charge the battery 13 Switch the device on or off 14 GSM antenna 16 Attach a strap 17
Basic use 17
Access codes 17 Lock the keys 18 Indicators 19 Copy contacts or pictures from your old device 20 Change the volume of a call, song, or video 21 Use your device offline 22
Calls 22
Make a call 22 Call the last dialled number 23 View your missed calls 23
Contacts 24
Save a name and phone number 24 Use speed dial 24
Write text 25
Switch between text input modes 25 Write using traditional text input 26 Use predictive text input 27
Messaging 28
Send a message 28 Listen to voice messages 30 Send an audio message 30
Personalise your device 31
Cyan
Magenta
Black
www.nokia.com/support 3
Cyan
Magenta
Yellow
Black
About the home screen 31 Personalise the home screen 32 Personalise your device tones 33
Connectivity 33
Bluetooth 33 USB data cable 35
Music and audio 36
Media player 36 FM radio 40
Mail and Chat 42
About Mail 42 Send a mail 43 Read and reply to mail 43 About Chat 43 Chat with your friends 44
Web 44
About the web browser 44 Browse the web 45 Clear browsing history 45
Nokia's Ovi services 46
Ovi by Nokia 46 Availability and costs of Nokia's Ovi services 47 Access Nokia's Ovi services 47
Camera and video 47
Take a picture 47 Record a video 48 Send a picture or video 49
Find help 50
Support 50 Subscribe to the Tips and Offers service 51 Keep your device up to date 51
Protect the environment 55
Save energy 55 Recycle 56
Product and safety information 56
Cyan
Magenta
Black
4 www.nokia.com/support
Cyan
Magenta
Yellow
Black
Index 69
Cyan
Magenta
Black
Safety
Cyan
Magenta
Yellow
Black
Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
5
Cyan
Magenta
Black
6
Cyan
Magenta
Yellow
Black
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
PROTECT YOUR HEARING
Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use.
Cyan
Magenta
Black
Get started
Cyan
Magenta
Yellow
Black
Keys and parts
7
Cyan
Magenta
Black
8
Cyan
Magenta
Yellow
Black
1 Earpiece 2 Display 3 Selection keys 4 Call key 5 Keypad 6 Navi™ key (scroll key) 7 End/Power key 8 Wrist strap hole 9 Loudspeaker 10 Camera lens
Cyan
Magenta
Black
11 Microphone
Cyan
Magenta
Yellow
Black
12 Charger connector 13 Micro-USB connector 14 Nokia AV connector (3.5 mm)
Insert a SIM card and battery
Note: Switch the device off and disconnect the charger
and any other device before removing any covers. Avoid touching electronic components while changing any covers. Always store and use the device with any covers attached.
Important: To prevent damage to the SIM card, always
remove the battery before you insert or remove the card.
This device is intended for use with a BL-4C battery. Always use original Nokia batteries.
The SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting, or removing the card.
1 Place your finger in the recess at the top of the device,
and carefully lift and remove the back cover (1).
2 If the battery is inserted, lift the battery out (2).
9
Cyan
Magenta
Black
10
Cyan
Magenta
Yellow
Black
3 Insert or remove the SIM card (3 or 4). Make sure the
contact area of the card is facing down.
Cyan
Magenta
Black
11
Cyan
Magenta
Yellow
Black
4 Line up the contacts of the battery and the battery
compartment, and insert the battery (5). To replace the back cover, direct the bottom locking catches toward their slots (6), and press down until the cover locks into place (7).
Insert a memory card
Use only compatible memory cards approved by Nokia for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card.
Your device supports memory cards with a capacity of up to 32 GB.
Cyan
Magenta
Black
12
Cyan
Magenta
Yellow
Black
1 Remove the back cover. 2 Insert the memory card. Make sure the contact area of
the card is facing down. Push the card in, until it locks into place.
3 Replace the back cover.
Remove the memory card
Important: Do not remove the memory card when an
application is using it. Doing so may damage the memory card and the device, and corrupt data stored on the card.
You can remove or replace the memory card without switching the device off.
Cyan
Magenta
Black
13
Cyan
Magenta
Yellow
Black
1 Remove the back cover. 2 Push the card in, until it is released, and pull the card
out.
3 Replace the back cover.
Charge the battery
Your battery has been partially charged at the factory, but you may need to recharge it before you can switch on your device for the first time.
If the device indicates a low charge, do the following:
1 Connect the charger to a wall outlet. 2 Connect the charger to the device. 3 When the device indicates a full charge, disconnect the
charger from the device, then from the wall outlet.
Cyan
Magenta
Black
14
Cyan
Magenta
Yellow
Black
You do not need to charge the battery for a specific length of time, and you can use the device while it is charging. During charging, the device may feel warm.
If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be made.
If the battery has not been used for a long time, to begin charging, you may need to connect the charger, then disconnect and reconnect it.
Charging the device while listening to the radio may affect the quality of reception.
Switch the device on or off
Press and hold the power key
.
Cyan
Magenta
Black
You may be prompted to get the configuration settings
Cyan
Magenta
Yellow
Black
from your service provider (network service). For more information, contact your service provider.
15
Cyan
Magenta
Black
16
Cyan
Magenta
Yellow
Black
GSM antenna
The figure shows the GSM antenna area marked in grey.
Avoid touching the antenna area unnecessarily while the antenna is transmitting or receiving. Contact with antennas affects the communication quality and may cause a higher power level during operation and may reduce the battery life.
Cyan
Magenta
Black
17
Cyan
Magenta
Yellow
Black
Attach a strap
Straps may be available separately.
Basic use
Access codes
The security code helps to protect your device against unauthorised use. You can create and change the code, and set the device to request the code. Keep the code secret and in a safe place separate from your device. If you forget the code and your device is locked, your device will require service. Additional charges may apply, and all the personal data in your device may be deleted. For more information, contact a Nokia Care point or your device dealer.
The PIN code supplied with the SIM card protects the card against unauthorised use. The PIN2 code supplied with
Cyan
Magenta
Black
18
Cyan
Magenta
Yellow
Black
some SIM cards is required to access certain services. If you enter the PIN or PIN2 code incorrectly three times in succession, you are asked for the PUK or PUK2 code. If you do not have them, contact your service provider.
The module PIN is required to access the information in the security module of your SIM card. The signing PIN may be required for the digital signature. The barring password is required when using the call barring service.
To set how your device uses the access codes and security settings, select Menu > Settings > Security.
The personal unblocking key (PUK) code and the universal personal unblocking key (UPUK) code (8 digits) are required to change a blocked PIN code and UPIN code, respectively. The PUK2 code (8 digits) is required to change a blocked PIN2 code. These codes are not supplied with the SIM card. Contact your local service provider for the codes.
Lock the keys
To avoid accidentally making a call when your device is in your pocket or bag, lock the keys.
Close the slide, and select Lock.
Unlock the keys and screen Select Unlock, and press *.
Cyan
Magenta
Black
Set the keys to lock automatically
Cyan
Magenta
Yellow
Black
1 Select Menu > Settings and Device > Automatic
keyguard > Automatic keyguard on.
2 Define the length of time after which the keys are
locked automatically.
Indicators
You have unread messages. You have unsent, cancelled, or failed messages. The keypad is locked.
The device does not ring for incoming calls or text messages. An alarm is set.
or The device is registered to the GPRS or EGPRS
network.
or A GPRS or EGPRS connection is open.
or The GPRS or EGPRS connection is suspended
(on hold). Bluetooth is activated. All incoming calls are diverted to another number. Calls are limited to a closed user group. The currently active profile is timed. A headset is connected to the device.
19
Cyan
Magenta
Black
20
Cyan
Magenta
Yellow
Black
The device is connected to another device, using a USB data cable.
Copy contacts or pictures from your old device
Want to copy your content from your previous compatible Nokia device and start using your new device quickly? You can copy, for example, contacts, calendar entries, and pictures to your new device, free of charge.
1 Activate Bluetooth in both devices.
Cyan
Magenta
Black
21
Cyan
Magenta
Yellow
Black
Select Menu > Settings > Connectivity >
Bluetooth.
2 Connect the devices. 3 Select Menu > Settings > Sync and backup. 4 Select Phone switch > Copy to this. 5 Select the content to copy and Done. 6 Select your previous device from the list. 7 If the other device requires a passcode, enter the
passcode. The passcode, which you can define yourself, must be entered in both devices. The passcode in some devices is fixed. For details, see the user guide of the device.
The passcode is valid only for the current connection.
8 If prompted, allow connection and copying requests.
Change the volume of a call, song, or video
Scroll up or down.
The built-in loudspeaker allows you to speak and listen from a short distance without having to hold the device to your ear.
Activate the loudspeaker during a call
Select Loudspeak..
Cyan
Magenta
Black
22
Cyan
Magenta
Yellow
Black
Use your device offline
In places where you are not allowed to make or receive calls, you can activate the flight profile and play games or listen to music.
Select Menu > Settings > Profiles and Flight >
Activate.
indicates that the flight profile is active.
Warning:
When the flight profile is activated, you cannot make or receive any calls, including emergency calls, or use other features that require network coverage. To make a call, activate another profile.
Calls
Make a call
1 Enter the phone number, including the country and
area code if necessary.
2 Press the call key.
Answer an incoming call
Press the call key, or open the slide.
Cyan
Magenta
Black
23
Cyan
Magenta
Yellow
Black
End a call
Press the end key, or close the slide.
Reject a call
Press the end key.
Call the last dialled number
Trying to call someone, but they are not answering? It is easy to call them again.
In the home screen, press the call key, select the number from the list, and press the call key again.
View your missed calls
Want to see who made the call you missed?
On the home screen, select View. The caller's name is displayed, if stored in the contacts list.
Missed and received calls are logged only if supported by the network, and the device is switched on and within the network service area.
Call back the contact or number
Go to the contact or number, and press the call key.
Cyan
Magenta
Black
24
Cyan
Magenta
Yellow
Black
View the missed calls later
Select Menu > Contacts > Log and Missed calls.
Contacts
Save a name and phone number
Select Menu > Contacts.
Select Add new.
If prompted, select where to save the contact.
Add or edit the details of a contact
1 Select Names and a contact. 2 Select Options > Add detail.
Tip: To add a ringtone or picture for a contact, select the contact and Options > Add detail > Multimedia.
Use speed dial
You can quickly call your friends and family when you assign your most-used phone numbers to the number keys of your device.
Select Menu > Contacts > More > Speed dials.
Cyan
Magenta
Black
Assign a phone number to a number key
Cyan
Magenta
Yellow
Black
1 Go to a number key, and select Assign. 1 is reserved
for the voice mailbox.
2 Enter a number or search for a contact.
Remove or change a phone number assigned to a number key
Go to a number key, and select Options > Delete or
Change.
Make a call
On the home screen, press and hold a number key.
Deactivate speed dialling
Select Menu > Settings and Call > Speed dialling.
Write text
Switch between text input modes
When writing text, you can use traditional predictive
, , and indicate the character cases.
indicates that number mode is activated.
text input.
or
25
Cyan
Magenta
Black
26
Cyan
Magenta
Yellow
Black
Activate or deactivate predictive text input mode
Select Options > Prediction > Prediction on or
Prediction off. Not all languages are supported by
predictive text input.
Switch between character cases Press #.
Activate number mode
Press and hold #, and select Number mode. To return to letter mode, press and hold #.
Tip: To quickly enter an individual number, press and hold the number key.
Set the writing language
Select Options > Writing language.
Tip: To activate number mode, activate or deactivate predictive text input mode, or set the writing language, you can also press and hold #, and select the appropriate option.
Write using traditional text input
1 Press a number key (2-9) repeatedly, until the desired
character is displayed.
Cyan
Magenta
Black
2 Insert the next character. If it is located on the same
Cyan
Magenta
Yellow
Black
key, wait until the cursor is displayed, or move the cursor forward.
The available characters depend on the selected writing language.
Move the cursor
Scroll left or right.
Insert a common punctuation mark Press 1 repeatedly.
Insert a special character Press *, and select the desired character.
Insert a space Press 0.
Use predictive text input Write using predictive text input
The built-in dictionary suggests words as you press the number keys.
1 Press each number key (2–9) once for each character. 2Press * repeatedly, and select the desired word from
the list.
27
Cyan
Magenta
Black
28
Cyan
Magenta
Yellow
Black
3 To confirm the word, move the cursor forward.
Add a missing word to the dictionary
If ? is displayed when you enter a word using predictive text input, the word is not in the dictionary. You can add it to the built-in dictionary.
1 Select Spell. 2 Write the word using traditional text input. 3 Select Save.
Write a compound word
1 Write the first part of the word. To confirm the word,
move the cursor forward.
2 Write the next part of the word, and confirm again.
Messaging
Send a message
Keep in touch with your family and friends with text and multimedia messages. You can attach your pictures, videos, and business cards to your message.
Select Menu > Messaging.
1 Select Create message. 2 Write your message.
Cyan
Magenta
Black
29
Cyan
Magenta
Yellow
Black
3 To add an attachment , select Options > Insert
object.
4 Select Send to. 5 To enter a phone number or mail address manually,
select Number or mail. Enter a phone number, or select Mail, and enter a mail address. To select a recipient or a contact group, select Contacts or
Contact groups.
6 Select Send.
Tip: To insert a special character or smiley, select
Options > Insert symbol.
Sending a message with an attachment may be more expensive than sending a normal text message. For more information, contact your service provider.
You can send text messages that are longer than the character limit for a single message. Longer messages are sent as two or more messages. Your service provider may charge accordingly.
Characters with accents, other marks, or some language options, take more space, and limit the number of characters that can be sent in a single message.
Cyan
Magenta
Black
30
Cyan
Magenta
Yellow
Black
If the item you inserted in a multimedia message is too large for the network, the device may automatically reduce the size.
Only compatible devices can receive and display multimedia messages. Messages may look different in different devices.
Listen to voice messages
When you can't answer, you can divert calls to your voice mailbox and listen to your messages later.
You may need a voice mailbox subscription. For more information on this network service, contact your service provider.
1 Select Menu > Messaging > More > Voice
messages and Voice mailbox number.
2 Enter your voice mailbox number, and select OK. 3 To call your voice mailbox, on the home screen, press
and hold 1.
Send an audio message
Don't have time to write a text message? Record and send an audio message instead!
Select Menu > Messaging.
Cyan
Magenta
Black
31
Cyan
Magenta
Yellow
Black
1 Select More > Other messages > Audio message. 2 To record your message, select
3 To stop recording, select 4 Select Send to and a contact.
The size of a message must be less than 300 kilobytes.
Check the size of a message
After writing a multimedia or audio message, select
Options > Preview > Options > Show contents. Details
of the individual parts of the message are displayed.
Personalise your device
About the home screen
In the home screen, you can:
See notifications of missed calls and received messages
Open your favourite applications
Add shortcuts for different features, such as writing a
message
.
.
Cyan
Magenta
Black
32
Cyan
Magenta
Yellow
Black
Personalise the home screen
Want to see your favourite landscape or pictures of your family in the background of the home screen? You can change this wallpaper, and rearrange items on the home screen, to personalise it to your liking.
Select Menu > Settings and Display.
Change the wallpaper
Select Wallpaper, a folder, and a picture. You can also take a picture with your device camera, and use that picture.
Tip: Download more wallpapers from Nokia's Ovi Store. To learn more about Ovi Store, go to www.ovi.com.
Add or change an application or shortcut bar
1 On the home screen, scroll to a bar, and select
Options > Personalise view.
2 Select a bar. 3 Select an item from the list and Done.
Remove an application or shortcut bar
1 On the home screen, scroll to a bar, and select
Options > Personalise view.
2 Scroll to the bar to remove, and select Options >
(empty) > Done.
Cyan
Magenta
Black
33
Cyan
Magenta
Yellow
Black
Tip: To increase the font size in the Messaging and Contacts applications, when browsing the web, or in the main menu, select Font size.
Personalise your device tones
You can personalise the ringtones and key and warning tones for each profile.
Select Menu > Settings and Tones.
Change the ringtone
Select Ringing tone: and a ringtone.
Tip: Download more ringtones from Nokia's Ovi Store. To learn more about Ovi Store, go to www.ovi.com.
Change the volume of the keypad tones
Select Keypad tones:.
Connectivity
Bluetooth About Bluetooth connectivity
Select Menu > Settings > Connectivity > Bluetooth.
Cyan
Magenta
Black
34
Cyan
Magenta
Yellow
Black
Use Bluetooth to connect wirelessly to compatible devices, such as other mobile devices, computers, headsets, and car kits.
You can also send items from your device, copy files from your compatible PC, and print using a compatible printer.

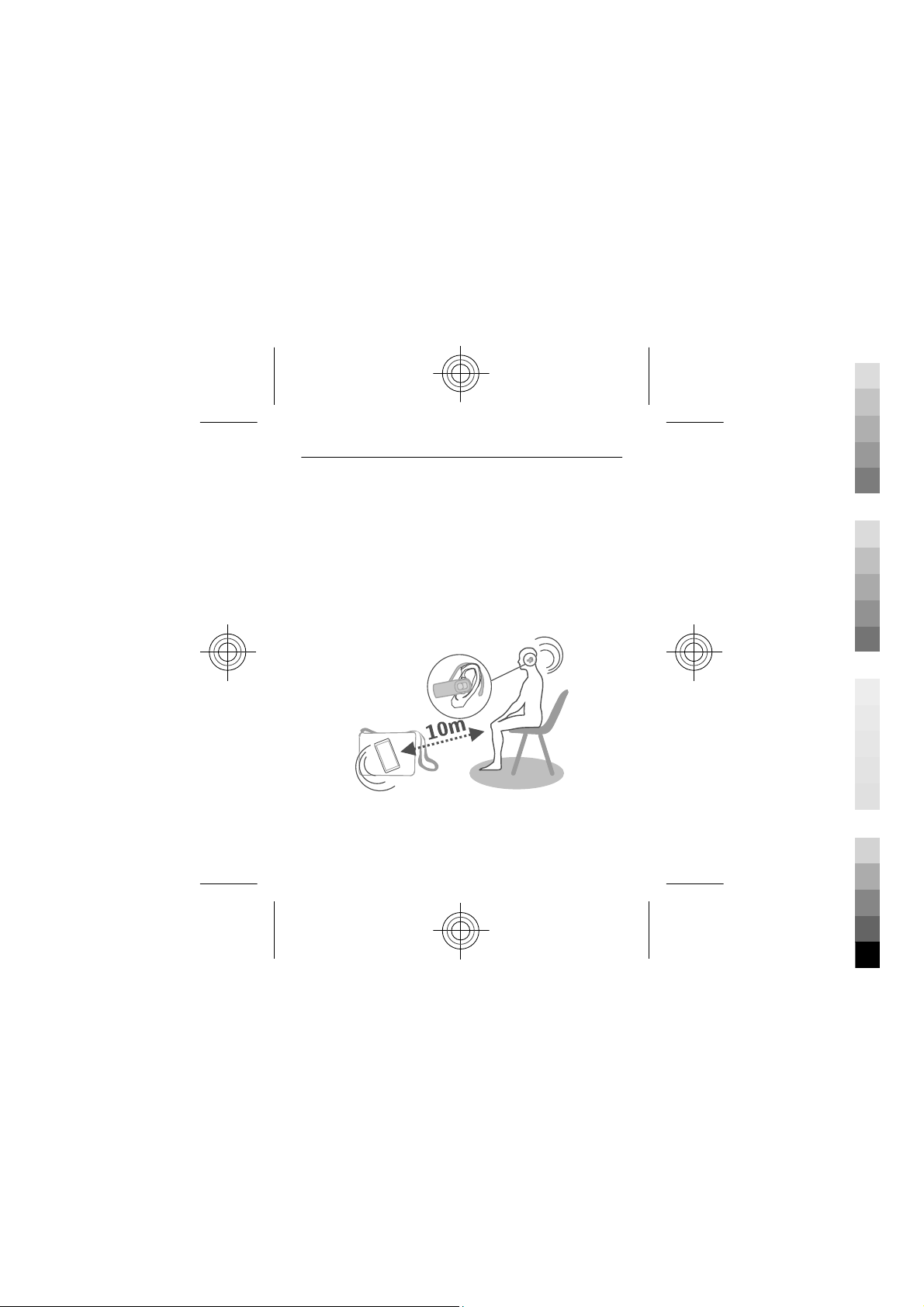

Bluetooth uses radio waves to connect, and devices must be within 10 metres (33 feet) of each other. Obstructions, such as walls or other electronic devices, can cause interference.
Cyan
Magenta
Black
35
Cyan
Magenta
Yellow
Black
Send a picture or other content to another device using Bluetooth
Use Bluetooth to send pictures, videos, business cards, and other content created by you to your computer or a friend's compatible device.
1 Select the item to send. 2 Select Options > Send > Via Bluetooth. 3 Select the device to connect to. If the desired device is
not displayed, select New search, to search for it. Bluetooth devices within range are displayed.
4 If the other device requires a passcode, enter the
passcode. The passcode, which you can define yourself, must be entered in both devices. The passcode in some devices is fixed. For details, see the user guide of the device.
The passcode is valid only for the current connection.
The available options may vary.
USB data cable Copy content between your device and a computer
You can use a USB data cable to copy your pictures and other content between your device and a compatible computer.
Cyan
Magenta
Black
36
Cyan
Magenta
Yellow
Black
1 Use a compatible USB cable to connect your device to
a computer.
2 Select from the following modes:
Nokia Ovi Suite — Nokia Ovi Suite is installed on your computer.
Media transfer — Nokia Ovi Suite is not installed on your computer. If you want to connect your device to a home entertainment system or printer, use this mode.
Mass storage — Nokia Ovi Suite is not installed on your computer. The device is displayed as a portable device on your computer. If you want to connect your device to other devices, such as a home or car stereo, use this mode.
3 To copy the content, use the file manager of the
computer. To copy your contacts, music files, videos, or pictures,
use Nokia Ovi Suite.
Music and audio
Media player Play a song
Play music stored in the device memory or on the memory card.
Cyan
Magenta
Black
Select Menu > Music > My music and All songs.
Cyan
Magenta
Yellow
Black
1 Select a song. 2 Select Play. 3 To pause or resume playing, press the scroll key.
Skip to the beginning of the current song
Scroll left.
Skip to the previous song
Scroll left twice.
Skip to the next song
Scroll right.
Fast-forward or rewind
Press and hold the scroll key to the right or left.
Change the volume
Scroll up or down.
Mute or unmute the music player Press #.
Close the music player
Press the end key.
37
Cyan
Magenta
Black
38
Cyan
Magenta
Yellow
Black
Set the music player to play in the background
Select Options > Play in background.
Close the music player when it is playing in the background
Press and hold the end key.
Play a video
Play videos stored in the device memory or on the memory card.
Select Menu > Music > My music and Videos.
1 Select a video. 2 Select Play. 3 To pause or resume playing, press the scroll key.
Fast-forward or rewind
Press and hold the scroll key to the right or left.
Close the media player
Press the end key.
Cyan
Magenta
Black
39
Cyan
Magenta
Yellow
Black
Connect loudspeakers to your device
Listen to music on your device through compatible loudspeakers (available separately).
Make your music library portable and listen to your favourite songs without cables. With Bluetooth wireless technology, you can stream music from the device where it is stored to the device where it plays.
Do not connect products that create an output signal as this may cause damage to the device. Do not connect any voltage source to the Nokia AV connector. If you connect an external device or headset, other than those approved by Nokia for use with this device, to the Nokia AV connector, pay special attention to volume levels.
Connect wired loudspeakers
Connect the loudspeakers to the 3.5 mm AV connector in your device.
Connect Bluetooth loudspeakers
1 Select Menu > Settings > Connectivity > Bluetooth
and On.
2 Switch the loudspeakers on. 3 To pair your device and the loudspeakers, select Conn.
to audio access..
Cyan
Magenta
Black
40
Cyan
Magenta
Yellow
Black
4 Select the loudspeakers. 5 You may need to enter a passcode. For details, see the
user guide of the loudspeakers.
FM radio About the FM radio
Select Menu > Music > Radio.
You can listen to FM radio stations using your device - just plug in a headset, and select a station!
To listen to the radio, you need to attach a compatible headset to the device. The headset acts as an antenna.
It is not possible to listen to the radio through a Bluetooth headset.
Cyan
Magenta
Black
41
Cyan
Magenta
Yellow
Black
Listen to the radio
Select Menu > Music > Radio.
Change the volume
Scroll up or down.
Close the radio
Press and hold the end key.
Set the radio to play in the background
Select Options > Play in background.
Close the radio when it is playing in the background
Press and hold the end key.
Find and save radio stations
Search for your favourite radio stations, and save them, so you can easily listen to them later.
Select Menu > Music > Radio.
Search for the next available station
Press and hold the scroll key left or right.
Save a station
Select Options > Save station.
Cyan
Magenta
Black
42
Cyan
Magenta
Yellow
Black
Automatically search for radio stations
Select Options > Search all stations. For best results, search when outdoors or near a window.
Switch to a saved station
Scroll left or right.
Rename a station
1 Select Options > Stations. 2 Select the station and Options > Rename.
Tip: To access a station directly from the saved station list, press the number key that corresponds to the number of the station.
Mail and Chat
About Mail
Select Menu > Mail.
You can use your mobile device to read and send mail from your mail accounts from different mail service providers.
If you do not already have a mail account, you can create a Nokia account, which includes Nokia's Ovi Mail service. For more information, go to www.ovi.com. With your Nokia account, you can access all of Nokia's Ovi services.
Cyan
Magenta
Black
43
Cyan
Magenta
Yellow
Black
Send a mail
Select Menu > Mail and a mail account.
1 Select Options > Compose New. 2 Enter the recipient’s mail address and the subject, and
write your message.
3 To attach a file, for example, a picture, select
Options > Attach > Attach file.
4 To take a picture to attach to the mail, select
Options > Attach > Attach new image.
5 Select Send.
Read and reply to mail
Select Menu > Mail and a mail account.
1 Select a mail. 2 To reply to or forward a mail, select Options.
About Chat
Select Menu > Messaging > Chat.
With Chat (network service), you can exchange instant messages with your friends. If you do not have a chat account, you can create a Nokia account, and use Nokia's Ovi Chat.
Cyan
Magenta
Black
44
Cyan
Magenta
Yellow
Black
You can leave the Chat application running in the background while you use other features of your device, and still be notified of new instant messages.
Using the service or downloading content may cause transfer of large amounts of data, which may result in data traffic costs.
Chat with your friends
Select Menu > Messaging > Chat.
You can have ongoing conversations with several contacts at the same time.
1 If several chat services are available, select the desired
service.
2 Sign in to the service. 3 In your contacts list, select the contact you want to chat
with.
4 Write your message in the text box at the bottom of
the display.
5 Select Send.
Web
About the web browser
Select Menu > Internet.
Cyan
Magenta
Black
45
Cyan
Magenta
Yellow
Black
You can view web pages on the internet with your device web browser.
To br o ws e t he we b, yo u m us t h av e a n i nt er ne t a cc es s p oi nt configured in your device and be connected to a network.
For the availability of these services, pricing, and instructions, contact your service provider.
You may receive the configuration settings required for browsing as a configuration message from your service provider.
Browse the web
Select Menu > Internet.
Go to a website
Select Go to address, and enter the address.
Clear browsing history
Select Menu > Internet.
A cache is a memory location that is used to store data temporarily. If you have, or have tried to, access confidential information or a secure service, requiring passwords, clear the cache after each use.
Cyan
Magenta
Black
46
Cyan
Magenta
Yellow
Black
Clear the cache or cookies
While browsing a website, select Options > Tools > Clear
the cache or Clear cookies.
Prevent cookies from being stored
Select Options > Settings > Security > Cookies.

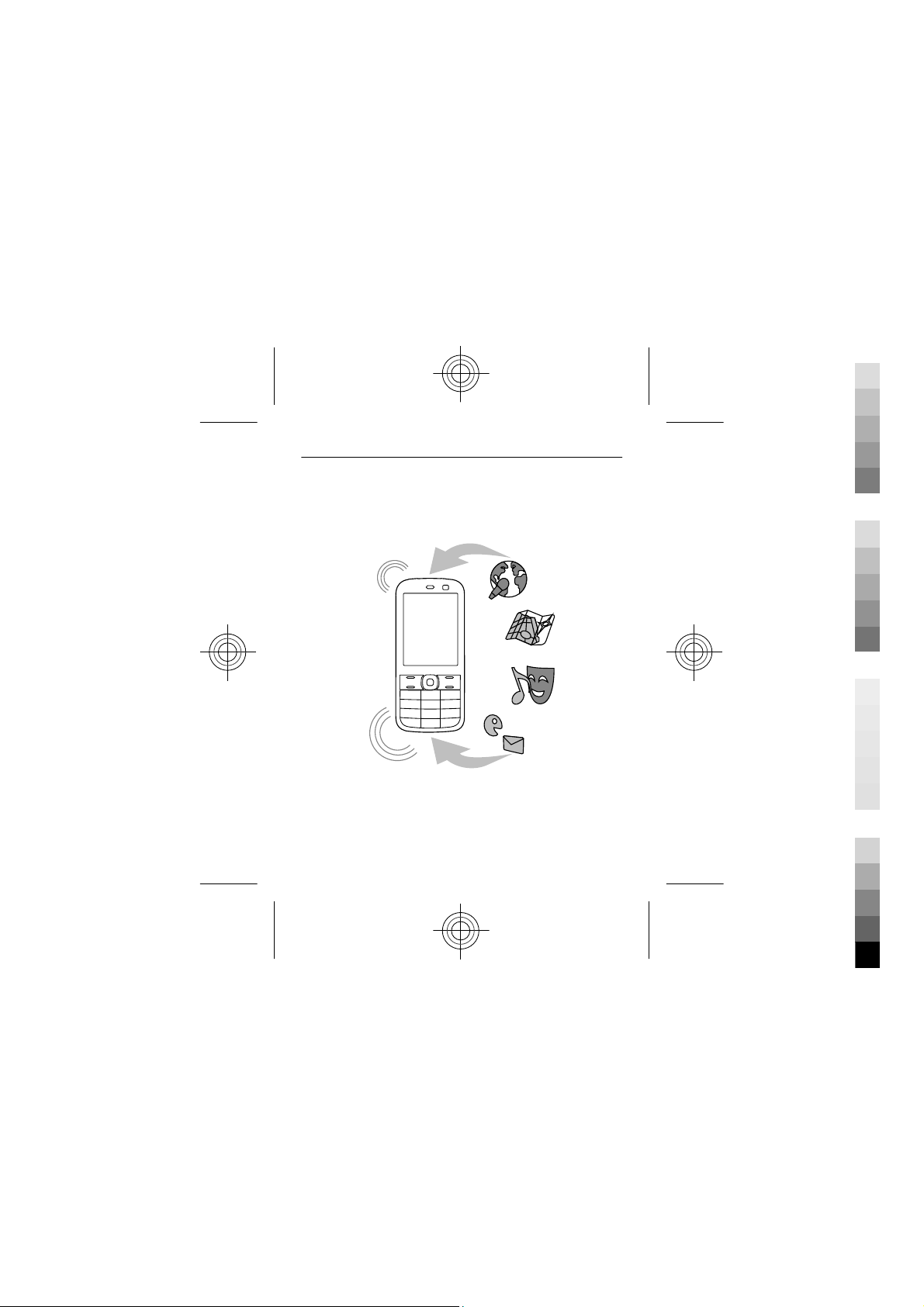

Nokia's Ovi services
Ovi by Nokia
With Ovi by Nokia, you can find new places and services, and stay in touch with your friends. You can do, for example, the following:
Download games, applications, videos, and ringtones
to your device
Get a free Ovi Mail account
Get music
Some items are free of charge, others you may need to pay for.
The available services may also vary by country or region, and not all languages are supported.
To access Nokia's Ovi services, go to www.ovi.com, and register your own Nokia account.
Cyan
Magenta
Black
47
Cyan
Magenta
Yellow
Black
For more information, go to the support section at www.ovi.com.
Availability and costs of Nokia's Ovi services
The availability of Nokia's Ovi services may vary by region. Using the services or downloading content may cause transfer of large amounts of data, which may result in data traffic costs. For information about data transmission charges, contact your network service provider.
To learn more about Ovi, go to www.ovi.com.
Access Nokia's Ovi services
Select Menu > Apps > My apps and the desired Ovi service.
Using some of the services or downloading content may cause transfer of large amounts of data, which may result in data traffic costs.
Camera and video
Take a picture
1 Select Menu > Photos > Camera. 2 To zoom in or out, scroll up or down. 3 Select Capture.
Cyan
Magenta
Black
48
Cyan
Magenta
Yellow
Black
The pictures are saved in Menu > Photos > My
photos.
Close the camera
Press the end key.
Record a video
Besides taking pictures with your device, you can also capture your special moments as videos.
Select Menu > Photos > Video camera.
1 To switch from image mode to video mode, if
necessary, select Options > Video camera.
2 To start recording, select Record.
To zoom in or out, scroll up or down.
3 To stop the recording, select Stop.
Videos are saved in Menu > Photos > My videos.
Close the camera
Press the end key.
Cyan
Magenta
Black
49
Cyan
Magenta
Yellow
Black
Send a picture or video
Want to share your pictures and videos with friends and family? Send a multimedia message or send a picture using Bluetooth.
Select Menu > Photos.
Send a picture
1 Select the folder containing the picture. 2 Select the picture to send.
To send more than one picture, select Options >
Mark, and mark the desired pictures.
3 Select Options > Send or Send marked and the
desired sending method.
Send a video
1 Select the folder containing the video. 2 Select Options > Mark, and mark the video. You can
mark several videos to send.
3 Select Options > Send marked and the desired
sending method.
Cyan
Magenta
Black
50
Cyan
Magenta
Yellow
Black
Find help
Support
When you want to learn more about how to use your product or you are unsure how your device should function, go to www.nokia.com/support, or using your mobile device, nokia.mobi/support.
If this does not resolve your issue, do one of the following:
Reboot your device. Switch off the device, and remove
the battery. After about a minute, replace the battery, and switch on the device.
Restore the original factory settings
Update your device software
If your issue remains unsolved, contact Nokia for repair options. Go to www.nokia.com/repair, or in Latin America, www.nokia-latinoamerica.com/centrosdeservicio. Before sending your device for repair, always back up your device data.
For additional product support information, see the warranty and reference leaflet included with your Nokia device.
Cyan
Magenta
Black
51
Cyan
Magenta
Yellow
Black
Subscribe to the Tips and Offers service
Tips and Offers is a convenient service to help you get the most out of your device, providing you with tips and support messages, as well as updates for your games and applications.
Select Menu > Apps > My apps > Tips and offers.
Text message charges may apply when you subscribe or unsubscribe. For terms and conditions, see your device user guide, or go to www.nokia.com/mynokia.
Keep your device up to date Update device software using your device
Want to improve the performance of your device and get application updates and great new features? Update the software regularly to get the most out of your device. You can also set your device to automatically check for updates.
Warning:
If you install a software update, you cannot use the device, even to make emergency calls, until the installation is completed and the device is restarted.
Using the service or downloading content may cause transfer of large amounts of data, which may result in data traffic costs.
Cyan
Magenta
Black
52
Cyan
Magenta
Yellow
Black
Make sure that the device battery has enough power, or connect the charger before starting the update.
Select Menu > Settings.
1 Select Device > Device updates. 2 To display the current software version, select Current
sw details.
Cyan
Magenta
Black
53
Cyan
Magenta
Yellow
Black
3 To download and install a software update, select
Downl. device software. Follow the displayed
instructions.
4 If the installation was cancelled after the download,
select Install software update.
The software update may take several minutes. If there are problems with the installation, contact your service provider.
Check for software updates automatically
Select Automatic SW update, and define how often to check for new software updates.
Your service provider may send device software updates over the air directly to your device. For more information on this network service, contact your service provider.
Restore original settings
If your device is not working properly, you can reset some settings to their original values.
1 End all calls and connections. 2 Select Menu > Settings and Restore factory sett. >
Settings only.
3 Enter the security code.
Cyan
Magenta
Black
54
Cyan
Magenta
Yellow
Black
This does not affect documents or files stored on your device.
After restoring the original settings, your device switches off and then on again. This may take longer than usual.
Organise files
You can move, copy, delete, or create new files and folders in your device memory or on the memory card. If you organise your files into their own folders, it might help you find the files in future.
Select Menu > Apps > Gallery.
Create a new folder
In the folder where you want to create a sub-folder, select
Options > Add folder.
Copy or move a file to a folder
Scroll to the file, and select Options > Move.
Tip: You can also play music or videos, or view pictures in Gallery.
Cyan
Magenta
Black
55
Cyan
Magenta
Yellow
Black
Back up your pictures and other content to a memory card
Want to make sure you will not lose any important files? You can back up your device memory to a compatible memory card.
Select Menu > Settings > Sync and backup.
Select Create backup.
Restore a backup
Select Restore backup.
Protect the environment
Save energy
You do not need to charge your battery so often if you do the following:
Close applications and data connections, such as your
Bluetooth connection, when not in use.
Deactivate unnecessary sounds, such as key tones.
Cyan
Magenta
Black
56
Cyan
Magenta
Yellow
Black
Recycle
When this device has reached the end of its working life, all of its materials can be recovered as materials and energy. To guarantee the correct disposal and reuse, Nokia co-operates with its partners through a program called We:recycle.For information on how to recycle your old Nokia products and where to find collection sites, go to www.nokia.com/werecycle, or using a mobile device, nokia.mobi/werecycle, or call the Nokia Contact Center.
Recycle packaging and user guides at your local recycling scheme.
For more information on the environmental attributes of your device, go to www.nokia.com/ecodeclaration.
Product and safety information
Network services and costs
Your device is approved for use on the (E)GSM 850, 1900 MHz networks. To use the device, you need a subscription with a service provider.
Cyan
Magenta
Black
57
Cyan
Magenta
Yellow
Black
Using network services and downloading content to your device requires a network connection and may result in data traffic costs. Some product features require support from the network, and you may need to subscribe to them.
Take care of your device
Handle your device, battery, charger and accessories with care. The following suggestions help you protect your warranty coverage.
Keep the device dry. Precipitatio n, humidity, and all types of liquids or moisture
can contain minerals that corrode electronic circuits. If your device gets wet, remove the battery, and allow the device to dry.
Do not use or store the device in dusty or dirty areas. Moving parts and electronic
components can be damaged.
Do not store the device in high temperatures. High temperatures can shorten
the life of the device, damage the battery, and warp or melt plastics.
Do not store the device in col d temperatures. When the dev ice warms to its
normal temperature, moisture can form inside the device and damage electronic circuits.
Do not attempt to open the device other than as instructed in the user guide.
Unauthorised modifications may damage the device and violate regulations
governing radio devices.
Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and mechanics.
Only use a soft, clean, dry cloth to clean the surface of the device.
Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
Switch off the device and remove the battery from time to time for optimum
performance.
Keep your device away from magnets or magnetic fields.
Cyan
Magenta
Black
58
Cyan
Magenta
Yellow
Black
To keep your important data safe, store it in at least two separate places, such
as your device, memory card, or computer, or write down important information.
Recycle
Always return your us ed electronic produ cts, batteries, an d packaging materi als to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials. Check product environmental information and how to recycle your Nokia products at www.nokia.com/werecycle, or with a mobile device, http://nokia.mobi/werecycle.
About Digital Rights Management
When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights. Copyright protec tion may prevent you from copying, modifying, or transferring images, music, and other content.
Content owners may use different types of digital rights management (DRM) technologies to protect their intellectual property, including copyrights. This device uses various types of DRM software to access DRM-protected content. With this device you can access content protected with WM DRM 10 and OMA DRM 1.0. If certain DRM software fails to protect the content, content owners may ask that such DRM software's ability to access new DRM-protected content be revoked. Revocation may also prevent renewal of such DRM-protected content already in your device. Revocation of such DRM software does not affect the use of content protected with other types of DRM or the use of non-DRM-protected content.
Digital rights management (DRM) protected content comes with an associated licence that defines your rights to use the content.
If your device has OMA DRM-protected content, to back up both the licences and the content, use the backup feature of Nokia Ovi Suite.
Other transfer methods may not transfer the licences which need to be restored with the content for you to be able to continue the use of OMA DRM-protected content after
Cyan
Magenta
Black
59
Cyan
Magenta
Yellow
Black
the device memory is formatted. You may also need to restore the licences in case the files on your device get corrupted.
If your device has WMDRM-protected content, both the licences and the content will be lost if the device memory is formatted. You may also lose the licences and the content if the files on your device get corrupted. Losing the licences or the content may limit your ability to use the same content on your device again. For more information, contact your service provider.
Some licences may be connected to a specific SIM ca rd, and the protected content can be accessed only if the SIM card is inserted in the device.
Batteries and chargers Battery and charger information
Your device is intended for use with a BL-4C rechargeable battery. Nokia may make additional battery mode ls available for this dev ice. Always use original Nok ia batteries.
This device is intended for use when supplied with power from the following chargers: AC-3. The exact Nokia charger model number may vary depending on the plug type, identified by E, X, AR, U, A, C, K, or B.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby times are noticeably shorter than normal, replace the battery.
Battery safety
Always switch the device off and disconnect the charger before removing the battery. When you unplug a charger or an accessory, hold and pull the plug, not the cord.
When your charger is not in use, unplug it from the electrical plug and the device. Do not leave a fully charged battery connected to a charger, as overcharging may shorten the battery’s lifetime. If left unused, a fully charged battery will lose its charge over time.
Cyan
Magenta
Black
60
Cyan
Magenta
Yellow
Black
Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme temperatures reduce t he capacity and lifeti me of the battery. A devi ce with a hot or cold battery may not work temporarily.
Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery, for example, if you carry a spare battery in your pocket. Short-circuiting may damage the battery or the connecting object.
Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations. Recycle when possible. Do not dispose as household waste.
Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a battery leaks, do not let battery liquid touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help.
Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.
Use the battery and charger for their intended purposes only. Improper use, or use of unapproved batteries or incompatible chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the battery or charger is damag ed, take it to a service centre for inspection befor e continuing to use it. Never use a damaged battery or charger. Only use the charger indoors.
Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To help ensure that you are getting an original Nokia battery, purchase it from a Nokia authorised service centre or dealer, and check the hologram label.
Cyan
Magenta
Black
61
Cyan
Magenta
Yellow
Black

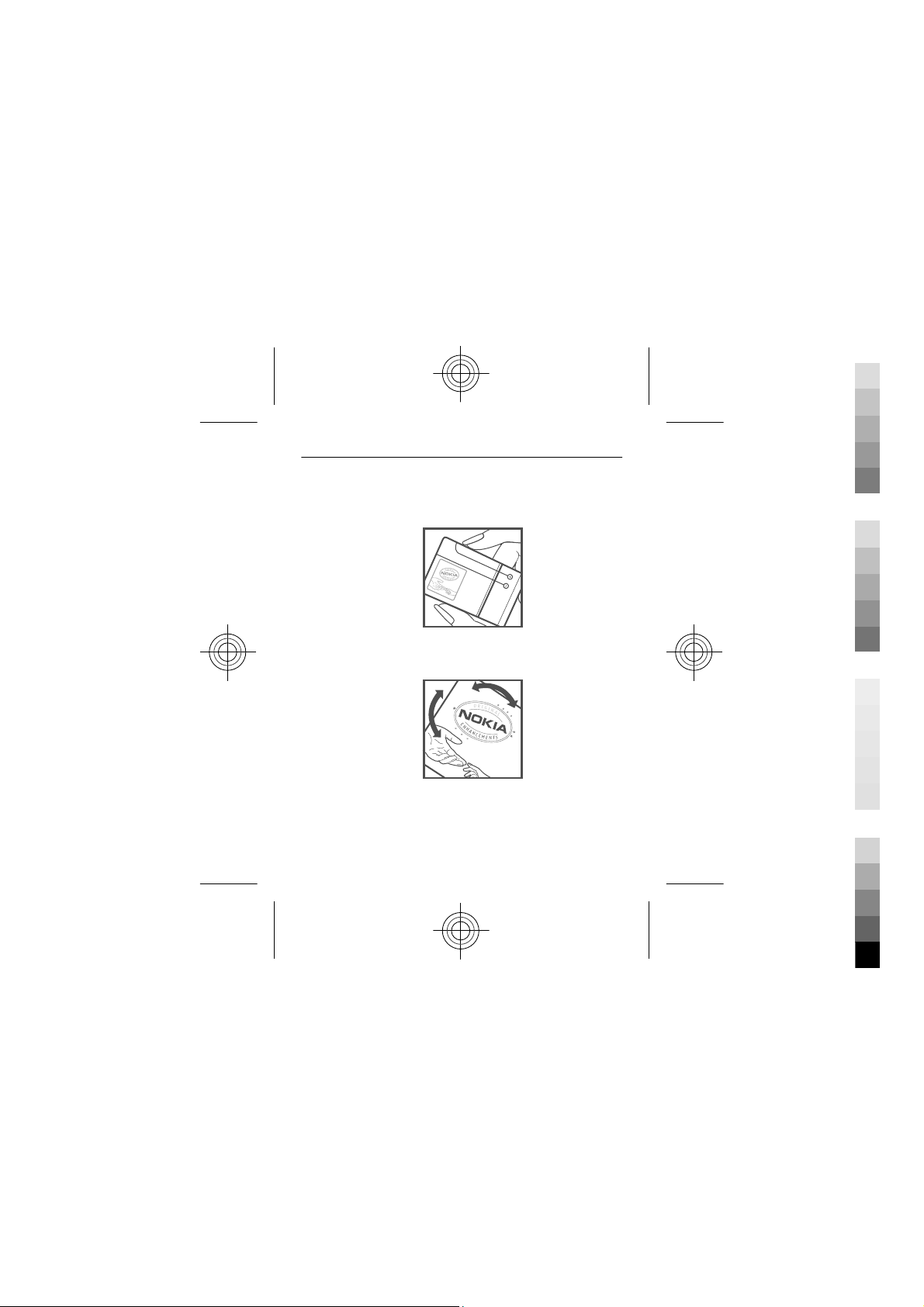

Authenticate hologram
1 Look at the hologram. You should see the Nokia connecting hands symbol from
one angle and the Nokia Original Accessories logo from the other angle.
2 Angle the hologram left, right, down, and up. You should see 1, 2, 3 and 4 dots
on each side respectively.
However, this is not a total assurance of the authenticity of the battery. If you cannot confirm authenticity or if you have any reason to believe that your Nokia battery with the hologram on the label is not an authentic Nokia battery, stop using the battery and take it to the nearest Nokia authorised service centre or dealer.
Cyan
Magenta
Black
62
Cyan
Magenta
Yellow
Black
For additional information, refer to the warranty and reference leaflet included with your Nokia device.
Additional safety information Make an emergency call
1 Make sure the device is switched on.
2 Check for adequate signal strength. You may also need to do the following:
Insert a SIM card.
Deactivate call restrictions you have activated for your device, such as call
barring, fixed dialling, or closed user group.
Make sure the offline or flight profile is not activated.
3 Press the end key repeatedly, until the home screen is displayed.
4 Enter the official emergency number for your present location. Emergency call
numbers vary by location .
5 Press the call key.
6 Give the necessary information as accurately as possible. Do not end the call
until given permission to do so.
Important: Activate both cellular and internet calls, if your device supports
internet calls. The device may attempt to make emergency calls both through cellular networks and through your internet call service provider. Connections in all conditions cannot be guaranteed. Never rely solely on any wireless device for essential communications like medical emergencies.
Small children
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small childr en.
Medical devices
Operation of radio transmitting equipment, including wireless phones, may interfere with the function of inadequately protected medical devices. Consult a physician or
Cyan
Magenta
Black
63
Cyan
Magenta
Yellow
Black
the manufacturer of the medical device to determine whether they are adequately shielded from external RF energy. Switch off your device when regulations posted instruct you to do so, for example, in hospitals.
Implanted medical devices
Manufacturers of medical devices recommend a minimum separation of 15.3 centimetres (6 inches) betwe en a wireless device and an im planted medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid potential interference with the medical device. Persons who have such devices should:
Always keep the wireless device more than 15.3 centimetres (6 inches) from
the medical device.
Not carry the wireless device in a breast pocket.
Hold the wireless device to the ear opposite the medical device.
Turn the wireless device off if there is any reason to suspect that interference
is taking place.
Follow the manufacturer directions for the implanted medical device.
If you have any questions about using your wir el e ss de vi ce wi th an im pl an te d m ed ic al device, consult your health care provider.
Accessibility solutions
Nokia is committed to making mobile phones easy to use for all individuals, including those with disabilities. For more information, visit the Nokia website at www.nokiaaccessibility.com.
Hearing
Warning:
When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can endanger your safety.
Cyan
Magenta
Black
64
Cyan
Magenta
Yellow
Black
Some wireless devices may interfere with some hearing aids.
Protect your device from harmful content
Your device may be exposed to viruses and other harmful content. Take the following precautions:
Be cautious when opening messages. They may contain malicious software or
otherwise be harmful to your device or computer.
Be cautious when accepting connectivity requests, browsing the internet, or
downloading content. Do not accept Bluetooth connections from sources you do not trust.
Only install and use services and software from sources that you trust and that
offer adequate security and protection.
Install antivirus and other security software on yo ur device and any connected
computer. Only use one antivirus application at a time. Using more may affect performance and operation of the device and/or comput er.
If you access preinstalled bookmarks and links to third party internet sites, take
the appropriate precautions. Nokia does not endorse or assume liability for such sites.
Operating environment
This device meets RF exposure guidelines in the normal use position at the ear or at least 1.5 centimetres (5/8 inch) away from the body. Any carry case, belt clip, or holder for body-worn operation should not contain metal and should position the device the above-stated distance from your body.
To send data files or messages requires a quality connection to the network. Data files or messages may be delayed until such a connection is available. Follow the separation distance instructions until the transmission is completed.
Vehicles
Radio signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection, electronic antilock braking,
Cyan
Magenta
Black
65
Cyan
Magenta
Yellow
Black
electronic speed control, and air bag systems. For more information, check with the manufacturer of your vehicle or its equipment.
Only qualified personnel should install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate your warranty. Check regu larly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories. Remember that air bags inflate with great force. Do not place your device or accessories in the air bag deployment area.
Switch off your device before boarding an aircraft. The use of wireless devices in an aircraft may be dangerous to the operation of the aircraft and may be illegal.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere. Obey all posted instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or death. Switch off the device at refuelling points such as near gas pumps at service sta tions. Observe res trictions in fuel depots, storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include areas where you would be advised to turn off your vehicle engine, below deck on boats, chemical transfer or storage facilities and where the air contains chemicals or particles such as grain, dust, or metal powders. You should check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) to determine if this device can be safely used in their vicinity.
Certification information (SAR) This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exce ed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
Cyan
Magenta
Black
66
Cyan
Magenta
Yellow
Black
The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is
2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The actual SAR level of an operating device can be below th e maximum value because the de vice is designed to use only the power required to reach the network. That amount changes depending on a number of factors such as how close you are to a network base station.
The highest SAR value under the ICNIRP guidelines for use of the device at the ear is
0.57 W/kg.
Use of device accessori es may result in different SAR value s. SAR values may vary depending on national reporting and testing requirements and the network band. Additional SAR information may be provided under product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves established by the F ederal Communications Commission (USA) and Ind ustry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use at the ear is 0.80 W/kg and when properly worn on the body is
0.58 W/kg.
Copyright and other notices
© 2011 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Ovi, and WE: logo are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.
Cyan
Magenta
Black
67
Cyan
Magenta
Yellow
Black
Reproduction, transfer, distribution, or storage of part or all of the content s in this document in any form without the prior written per mission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.
Includes RSA BSAFE cryptographic or security protocol sof tware from RSA Security.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Nokia is under license.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotiona l, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http:// www.mpegla.com.
To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.
The availability of some features may vary by region. Please contact your operator for more details.
Cyan
Magenta
Black
68
Cyan
Magenta
Yellow
Black
The availability of products, features, applications and services may vary by region. For more information, contact your Nokia dealer or your service provider. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. The availability of Ovi services may vary by region.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the followin g two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.
5555555/Issue 1 EN
Cyan
Magenta
Black
69
Cyan
Magenta
Yellow
Black
Index
A
access codes 17 antennas 16
B
backing up data 55 battery 9, 59 charging 13 Bluetooth 33, 35 browser 44, 45
See web browser
business cards 35
C
cable connection 35 cache 45 calendar 35 calls
emergency 62log 23making 22, 23
camera
recording videos 48
sending pictures and
videos 49 taking pictures 47 charging the battery 13, 59 chat services (IM) 43, 44 connectivity 33 contacts
adding 24copying 20saving 24
copying content 20, 35
D
data connections Bluetooth 33 device switching on/off 14 dictionary 28
E
e-mail 42 emergency calls 62 environmental tips 55
F
factory settings, restoring53
Cyan
Magenta
Black
70
Cyan
Magenta
Yellow
Black
file management 54 flight profile 22 FM radio 40, 41
H
home screen 31, 32
I
IM (instant messaging) 43, 44 indicators 19 internet 44, 45
K
keyguard 18 keys and parts 7
L
locking keys 18 loudspeaker 21, 39
M
mail 42
creating 43
reading and replying
to 43 sending 43 mailbox voice 30 memory card 11 messages
audio 30sending 28
MMS (multimedia message service) 28 multimedia messages 28 music 36
N
Nokia Messaging chat services (IM) 43 Nokia support information50 Nokia's Ovi services 47
O
offline profile 22 Ovi by Nokia 46, 47
P
passwords 17
Cyan
Magenta
Black
71
Cyan
Magenta
Yellow
Black
personalising your device 32, 33 Phone switch 20 pictures
copying 20, 35sending 35, 49taking 47
PIN code 17 powering device on/off 14 predictive text input 25, 27, 28 profiles
changing 22offline 22personalising 33
R
radio 40, 41 recording videos 48 recycling 55 restoring data 55 restoring settings 53 ringtones 33
S
searching radio stations 41 security code 17 settings restoring 53 SIM card 9 SMS (short message service) 28 software updates 51 speed dialling 24 strap 17 support 50 switching device on/off 14
T
taking pictures
See camera text input 25, 26, 27, 28 text messages 28 themes 32 Tips and offers service 51 tones personalising 33 transferring content 20, 35 turning device on/off 14
Cyan
Magenta
Black
72
Cyan
Magenta
Yellow
Black
U
updates device software 51 USB connection 35
V
videos
copying 20, 35playing 38recording 48sending 35, 49
voice messages 30 volume 21
W
web 44, 45 web browser 44
browsing pages 45cache 45cookies 45
Cyan
Magenta
Black
Loading...
