Microsoft RM-718 User Manual

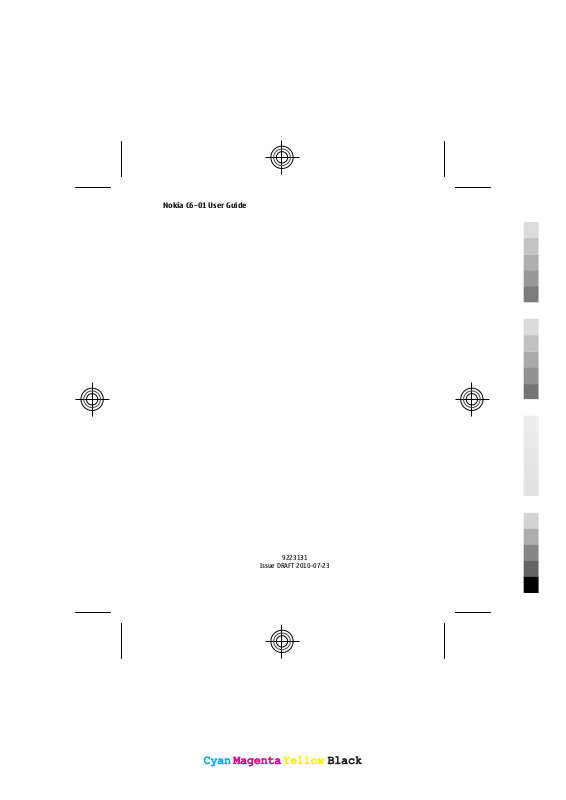

Nokia C6–01 User Guide
Cyan
Magenta
Yellow
Black
Cyan
Issue DRAFT 2010-07-23
Magenta
9223131
Yellow
Black
Contents
Cyan
Magenta
Yellow
Black
Personalise the home screen 14
Add items to the home screen 14
Safety 3
About this user guide 4
Use the in-device user guide 4
Get started 4
Keys and parts 4
Lock or unlock the keys and
screen 5
Insert the SIM card 5
Insert or remove the memory
card 6
Charging 7
Attach the wrist strap 8
Switch the device on 9
Nokia account and Nokia's Ovi
services 9
Copy contacts or pictures from your
old device 9
Device set-up 10
Touch screen actions 10
Interactive home screen
elements 11
Call a phone number 12
View your missed calls 12
Save phone numbers and mail
addresses 12
Social networks 14
About Social 14
Take a picture 15
Upload a picture to a service 15
Connect a USB mass storage
device 16
Back up files 16
Install Nokia Ovi Suite on your
PC 16
Copy music from your PC 17
Find more help 18
Support 18
Keep your device software and
applications up to date 18
Access codes 19
Green tips 20
Save energy 20
Recycle 20
Product and safety
information 20
Send a message 13
Personalisation 13
Personalise your tones 13
Change your theme 13
Switch between home screens 13
2 www.nokia.com/support
Cyan
Magenta
Yellow
Black
Safety
Cyan
Magenta
Yellow
Black
Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide
for further information.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when
mobile phone use is not
allowed or when it may
cause interference or
danger, for example, in
aircraft, near medical
equipment, fuel, chemicals,
or blasting areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always
keep your hands free to
operate the vehicle while
driving. Your first
consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be
susceptible to interference,
which could affect
performance.
QUALIFIED SERVICE
Only qualified personnel
may install or repair this
product.
GLASS PARTS
The front cover of the device
is made of glass. This glass
can break if the device is
dropped on a hard surface
or receives a substantial
impact. If the glass breaks,
do not touch the glass parts
of the device or attempt to
remove the broken glass
from the device. Stop using
the device until the glass is
replaced by qualif ied service
personnel.
PROTECT YOUR HEARING
Listen to a headset at a
moderate level, and do not
hold the device near your
ear when the loudspeaker is
in use.
KEEP YOUR DEVICE DRY
Your device is not waterresistant. Keep it dry.
www.nokia.com/support 3
Cyan
Magenta
Yellow
Black
About this user guide
Cyan
Magenta
Yellow
Black
Get started
This short user guide helps you get
started with your device. With a short
printed user guide, Nokia helps save
energy and paper.
Your device contains a complete indevice user guide, which you can refer
to for additional information about
your device. To read the in-device user
guide, select Menu > Applications >
User guide.
For even more support information, go
to www.nokia.com/support, or using a
mobile device, nokia.mobi/support.
Use the in-device user guide
Select Menu > Applications > User
guide.
Open the user guide from an
application
Select Options > User guide. This is
not available for every application.
Search the user guide
When the user guide is open, select
Options > Search, and enter a letter
or a word in the search field.
Switch between the user guide and
an application
Press and hold the menu key, swipe
left or right, and select the desired
application.
Links to related topics may be at the
end of instructions.
to a related topic, and
link to a web page.
indicates a link
indicates a
Keys and parts
Front
1 Earpiece
2 Light sensor
3 Proximity sensor. Automatically
disables the touch screen during
calls.
4 Menu key
5 Call key
6 Secondary camera
7 End/Power key
Do not cover the area above the touch
screen with, for example, protective
film or tape.
4 www.nokia.com/support
Cyan
Magenta
Yellow
Black
Sides, back, and bottom
Cyan
Magenta
Yellow
Black
8 Camera flash / Flashlight
9 Volume/Zoom key
10 Lock switch / Flashlight switch
11 Camera key
12 Camera
13 Loudspeaker
14 Charger connector
15 Wrist strap peg
16 Charging indicator
17 Nokia AV connector (3.5 mm)
18 Micro USB connector
19 Microphone
Touch screen
To control your device, lightly touch
the screen with your fingertips. The
screen does not respond when you use
your fingernails.
If your fingertips are cold, the screen
may not respond to your touch.
To avoid scratching the touch screen,
never use a pen, pencil, or other sharp
object to write on the touch screen.
Flashlight
The camera flash can be used as a
flashlight. To switch the flashlight on
or off, slide and hold the lock switch for
two seconds. The flashlight can only be
used when all applications are closed.
Do not shine the flashlight in anyone's
eyes.
Lock or unlock the keys and screen
To avoid accidentally making a call
when your device is in your pocket or
bag, lock the keys and screen of your
device.
Slide the lock switch.
Set the keys and screen to lock
automatically
1 Select Menu > Settings and
Phone > Display > Screen/
keylock time-out.
2 Define the length of time after
which the keys and screen are
locked automatically.
Insert the SIM card
Do not attach any stickers to your SIM
card.
1 To remove the back cover of the
device, press the back cover with
www.nokia.com/support 5
Cyan
Magenta
Yellow
Black
your fingers, slide the cover open,
Cyan
Magenta
Yellow
Black
and lift the cover off.
2 Remove the battery.
3 Open the cover of the SIM card slot.
5 Close the SIM card holder, and slide
the cover of the holder to lock it.
6 Replace the battery and back
cover.
Insert or remove the memory card
Use only compatible memory cards
approved by Nokia for use with this
device. Incompatible cards may
damage the card and the device and
corrupt data stored on the card.
Do not attach any stickers to your
memory card.
4 Insert the SIM card into the card
holder. Make sure the contact area
of the card is facing down.
6 www.nokia.com/support
Cyan
Magenta
Insert the memory card
If a memory card is not already
inserted:
1 Remove the back cover.
2 Make sure the contact area of the
memory card is facing down.
Yellow
Black
Push the card in, until you hear a
Cyan
Magenta
Yellow
Black
click.
3 Replace the back cover.
Remove the memory card
1 Push the card in, until you hear a
click.
2 Pull the card out.
Charging
About the battery
Your device has a removable,
rechargeable battery. Use only Nokia
approved chargers designated for this
device. You can also use a compatible
USB data cable to charge your device.
When the battery charge is low, power
save mode is activated. To deactivate
power save mode, press
Deactivate power saving. When
power save mode is activated, you may
not be able to modify the settings of
certain applications.
Insert the battery
1 Remove the back cover.
, and select
2 Line up the battery contacts, and
insert the battery.
3 Replace the back cover.
Charge the battery
Your battery has been partially
charged at the factory, but you may
need to recharge it before you can
switch on your device for the first time.
If the device indicates a low charge, do
the following:
1
www.nokia.com/support 7
Cyan
Magenta
Yellow
Black
2
Cyan
Magenta
Yellow
Black
You do not need to charge the battery
for a specific length of time, and you
can use the device while it is charging.
If the battery is completely discharged,
it may take several minutes before the
charging indicator appears on the
display or before any calls can be
made.
If the battery has not been used for a
long time, to begin charging, you may
need to connect the charger, then
disconnect and reconnect it.
Tip: You can also use a compatible USB
charger to charge your battery.
To avoid breaking the charger
connector, be careful when connecting
or disconnecting the charger cable.
If connected to a computer, you can
synchronise your device while
charging.
Charging over USB can take longer to
start, and may not work if you connect
through a non-powered USB hub. Your
device charges more quickly when
connected to a wall outlet.
When the battery is charging, the
charging indicator light next to the USB
connector is lit. When the battery
charge is low, the charging indicator
light flashes. It may take a while for
charging to start.
Attach the wrist strap
Thread the wrist strap as shown, and
Charge the battery over USB
Battery low, but you don't have a
charger with you? You can use a
compatible USB cable to connect to a
compatible device, such as a computer.
8 www.nokia.com/support
Cyan
Magenta
replace the back cover.
Yellow
Black
