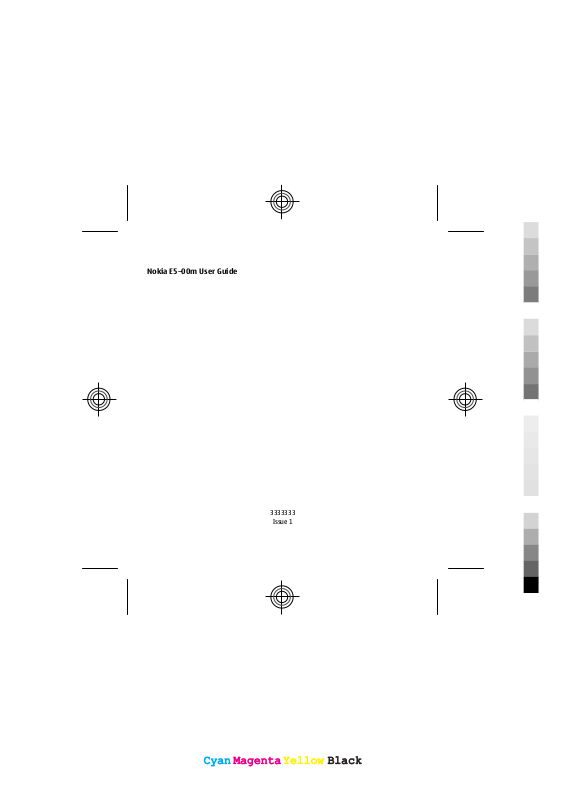

Nokia E5–00m User Guide

Cyan

Magenta

Yellow

Black

3333333

Issue 1

Cyan

Magenta

Yellow

Black

2Contents

Cyan

Magenta

Yellow

Black

Contents

Safety 4

Nokia E5–00m customised for China
Mobile 4
About your device 5
Network services 6
About Digital Rights Management 6
Battery removing 7

Get started 8

Keys and parts 8
Insert the SIM card and battery 9
Insert the memory card 10
Remove the memory card 11
Charge the battery 11
Lock or unlock the keyboard 12
Switch the device on and off 12
Antenna locations 13
Copy content from your old
device 13

Access codes 14

Basic use 15

Home screen 15
One-touch keys 16
Write text 17
Stroke input method 18

Contacts 19
Phonebook manager 21
Calendar 21
Multitasking 24
Flashlight 25

Make calls 25

Calls 25

Messaging 25

E-mail 26
Write and send messages 27

Connectivity 29

Wireless LAN 30

Monternet 31

China Mobile services 31

Internet 32

Browse the web 32

Personalisation 33

Profiles 33

Find help 34

Support 34
Update device software 35
In-device help 36

2 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Prolong battery life 36

Cyan

Magenta

Yellow

Black

Green tips 37

Save energy 37
Recycle 38

Product and safety
information 38

Index 61

Contents 3

www.nokia.com/support 3

Cyan

Magenta

Yellow

Black

4Safety

Cyan

Magenta

Yellow

Black

Safety

Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide for
further information.

SWITCH ON SAFELY

Do not switch the device on
when wireless phone use is
prohibited or when it may
cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always
keep your hands free to
operate the vehicle while
driving. Your first
consideration while driving
should be road safety.

INTERFERENCE

All wireless devices may be
susceptible to interference,
which could affect
performance.

SWITCH OFF IN RESTRICTED AREAS

Follow any restrictions.
Switch the device off in
aircraft, near medical
equipment, fuel, chemicals,
or blasting areas.

QUALIFIED SERVICE

Only qualified personnel may
install or repair this product.

ACCESSORIES AND BATTERIES

Use only approved
accessories and batteries. Do
not connect incompatible
products.

WATER-RESISTANCE

Your device is not water­resistant. Keep it dry.

Nokia E5–00m customised for China
Mobile

The instructions in this user guide only
apply to Nokia E5–00m customised for
China Mobile.

4 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Safety 5

Cyan

Magenta

Yellow

Black

The post-sales service point and service
content are similar for both customised
and other non-customised devices.
With regards to the menus and features
provided with the device customised for
China Mobile, see Monternet or contact
China Mobile customer service hotline
for more information, post-sales
service, and technical support.

Nokia does not provide any warranty on
technical support for the services
rendered by any network service
provider, content provider, or service
provider.

For information on the content and
pricing of the services provided by China
Mobile, contact China Mobile customer
service hotline.

About your device

The wireless device described in this
guide is approved for use on the (E)GSM
850, 900, 1800, and 1900 networks.
Contact your service provider for more
information about networks.

Your device supports several
connectivity methods and like
computers may be exposed to viruses
and other harmful content. Exercise

caution with messages, connectivity
requests, browsing, and downloads.
Only install and use services and
software from trustworthy sources that
offer adequate security and protection,
such as applications that are Symbian
Signed or have passed the Java
Verified™ testing. Consider installing
antivirus and other security software on
your device and any connected
computer.

Your device may have preinstalled
bookmarks and links for third-party
internet sites and may allow you to
access third-party sites. These are not
affiliated with Nokia, and Nokia does
not endorse or assume liability for
them. If you access such sites, take
precautions for security or content.

Warning:

To use any features in this device, other
than the alarm clock, the device must be
switched on. Do not switch the device
on when wireless device use may cause
interference or danger.

When using this device, obey all laws
and respect local customs, privacy and
legitimate rights of others, including

www.nokia.com/support 5

Cyan

Magenta

Yellow

Black

6Safety

Cyan

Magenta

Yellow

Black

copyrights. Copyright protection may
prevent some images, music, and other
content from being copied, modified, or
transferred.

Make back-up copies or keep a written
record of all important information
stored in your device.

When connecting to any other device,
read its user guide for detailed safety
instructions. Do not connect
incompatible products.

The images in this guide may differ from
your device display.

Refer to the user guide for other
important information about your
device.

Network services

To use the device you must have service
from a wireless service provider. Some
features are not available on all
networks; other features may require
that you make specific arrangements
with your service provider to use them.
Network services involve transmission
of data. Check with your service provider
for details about fees in your home
network and when roaming on other

networks. Your service provider can
explain what charges will apply. Some
networks may have limitations that
affect how you can use some features of
this device requiring network support
such as support for specific technologies
like WAP 2.0 protocols (HTTP and SSL)
that run on TCP/IP protocols and
language-dependent characters.

Your service provider may have
requested that certain features be
disabled or not activated in your device.
If so, these features will not appear on
your device menu. Your device may also
have customized items such as menu
names, menu order, and icons.

About Digital Rights Management

When using this device, obey all laws
and respect local customs, privacy and
legitimate rights of others, including
copyrights. Copyright protection may
prevent you from copying, modifying, or
transferring images, music, and other
content.

Content owners may use different types
of digital rights management (DRM)
technologies to protect their
intellectual property, including
copyrights. This device uses various

6 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Safety 7

Cyan

Magenta

Yellow

Black

types of DRM software to access DRM­protected content. With this device you
can access content protected with
WMDRM 10 and OMA DRM 2.0. If certain
DRM software fails to protect the
content, content owners may ask that
such DRM software's ability to access
new DRM-protected content be revoked.
Revocation may also prevent renewal of
such DRM-protected content already in
your device. Revocation of such DRM
software does not affect the use of
content protected with other types of
DRM or the use of non-DRM-protected
content.

Digital rights management (DRM)
protected content comes with an
associated licence that defines your
rights to use the content.

If your device has OMA DRM-protected
content, to back up both the licence and
the content, use the backup feature of
Nokia Ovi Suite.

Other transfer methods may not
transfer the licences which need to be
restored with the content for you to be
able to continue the use of OMA DRM­protected content after the device
memory is formatted. You may also

need to restore the licence in case the
files on your device get corrupted.

If your device has WMDRM-protected
content, both the licence and the
content will be lost if the device memory
is formatted. You may also lose the
licence and the content if the files on
your device get corrupted. Losing the
licence or the content may limit your
ability to use the same content on your
device again. For more information,
contact your service provider.

Some licences may be connected to a
specific SIM card, and the protected
content can be accessed only if the SIM
card is inserted in the device.

During extended operation such as a
high speed data connection, the device
may feel warm. In most cases, this
condition is normal. If you suspect the
device is not working properly, take it to
the nearest authorised service facility.

Battery removing

Switch the device off and disconnect the
charger before removing the battery.

www.nokia.com/support 7

Cyan

Magenta

Yellow

Black

8Get started

Cyan

Magenta

Yellow

Black

Get started

Learn how to start using your device.

Keys and parts

1 Ear piece
2 Display
3 Left and right selection keys
4 Home key
5 Call key
6 Navi™ key (scroll key). Also used to

zoom and capture images when
using the camera.

7 Microphone
8 Light sensor

9 Messaging key
10 End/Power key
11 Keyboard
12 Flashlight key

13 Micro USB connector
14 Camera flash/Flashlight
15 Volume key
16 Camera lens
17 Release buttons for back cover
18 Charger connector
19 Headset connector
20 Loudspeaker
21 Wrist strap hole

8 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Get started 9

Cyan

Magenta

Yellow

Black

1 Function key
2 Shift key
3 Sym key
4 Backspace key
5 Enter key
6 Ctrl/Mute key

During extended operation such as a
high speed data connection, the device
may feel warm. In most cases, this
condition is normal. If you suspect the
device is not working properly, take it to
the nearest authorised service facility.

Insert the SIM card and battery

Safe removal. Always switch the device
off and disconnect the charger before
removing the battery.

1 Remove the back cover.

www.nokia.com/support 9

2 Remove the battery, if inserted.

3 Slide the SIM card holder to unlock

it, and swing it open. Insert the SIM
card, with the contact area facing
down, and swing the holder back.
Slide the card holder to lock it.

Cyan

Magenta

Yellow

Black

10 Get started

Cyan

Magenta

Yellow

Black

4 Line up the battery contacts, and

insert the battery.

5 Replace the back cover.

Insert the memory card

A memory card may already be inserted
in the device. If not, do the following:

1 Remove the back cover and battery,

if inserted.

2 Slide the card holder to unlock it,

and swing it open.

3 Insert the memory card, with the

contact area facing down.

10 www.nokia.com/support

Cyan

Magenta

Yellow

Black

4 Swing the card holder back. Slide

Cyan

Magenta

Yellow

Black

the card holder to lock it.

5 Replace the battery and back cover.

Use only compatible microSD cards
approved by Nokia for use with this
device. Nokia uses approved industry
standards for memory cards, but some
brands may not be fully compatible with
this device. Incompatible cards may
damage the card and the device and
corrupt data stored on the card.

Remove the memory card

1 Switch the device off.
2 Remove the back cover and the

battery.

3 Open the memory card holder, and

remove the memory card. Close the
memory card holder.

4 Replace the battery and back cover.

Charge the battery

Your battery has been partially charged
at the factory. If the device indicates a
low charge, do the following:

1 Connect the charger to a wall outlet.
2 Connect the charger plug to the

device.

Get started 11

If you are using a USB charger,
connect the charger plug to the USB
connector.

3 When the device indicates a full

charge, disconnect the charger from
the device, then from the wall
outlet.

You do not need to charge the battery
for a specific length of time, and you can
use the device while it is charging. If the
battery is completely discharged, it may
take several minutes before the
charging indicator appears on the
display or before any calls can be made.

Charging with the USB data cable

Charging with the USB data cable is
slower than charging with the charger.
Charging with the USB data cable may
not work if you use a USB hub. USB hubs
may be incompatible for charging a USB
device.

www.nokia.com/support 11

Cyan

Magenta

Yellow

Black

12 Get started

Cyan

Magenta

Yellow

Black

When the USB data cable is connected,
you can transfer data at the same time
as charging.

1 Connect a compatible USB device to

your device using a compatible USB
data cable.

Depending on the type of the device
that is used for charging, it may take
a while for charging to start.

2 If the device is switched on, select

from the available USB modes.

Lock or unlock the keyboard

Lock the keyboard

In the home screen, select Menu, and
quickly press the right selection key.

Set the keyboard to lock
automatically after a defined length
of time

Select Menu > Ctrl. panel > Settings
and General > Security > Phone and

SIM card > Keypad autolock
period > User defined, and select the

desired length of time.

Unlock the keyboard

Select Unlock > OK.

Switch the device on and off

To switch on the device:

1 Press and hold the power key.

2 If the device asks for a PIN code or

lock code, enter it, and select OK.
The preset lock code is 12345. If you
forget the code and your device is
locked, your device will require
service and additional charges may
apply. For more information,
contact a Nokia Care point or your
device dealer.

To switch off the device, press the
power key briefly, and select Switch

off!.

12 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Antenna locations

Cyan

Magenta

Yellow

Black

Your device may have internal and
external antennas. Avoid touching the
antenna area unnecessarily while the
antenna is transmitting or receiving.
Contact with antennas affects the
communication quality and may cause
a higher power level during operation
and may reduce the battery life.

Copy content from your old device

You can use the Switch application to
copy content such as phone numbers,
addresses, calendar items, and images
from your previous compatible Nokia
device to your new device.

Get started 13

Copy content for the first time

1 To retrieve data from the other

device for the first time, on your
device, select Menu > Ctrl.

panel > Switch.

2 Pair the two devices. To have your

device search for devices with
Bluetooth connectivity, select

Continue. Select the device from

which you want to transfer content.
You are asked to enter a code on
your device. Enter a code (1-16
digits), and select OK. Enter the

www.nokia.com/support 13

Cyan

Magenta

Yellow

Black

14 Access codes

Cyan

Magenta

Yellow

Black

same code on the other device, and
select OK. The devices are now
paired.

If your old Nokia device does not
have the Switch application, your
new device sends it in a message.
Open the message in the old device,
and follow the instructions on the
display.

3 On your device, select the content

you want to transfer from the other
device.

When the transfer has started, you
can cancel it and continue later.

Content is transferred from the memory
of the other device to the corresponding
location in your device. The transfer
time depends on the amount of data to
be transferred.

The type of content that can be
transferred depends on the model of the
device from which you want to transfer
content. If that device supports
synchronisation, you can also
synchronise data between the devices.
Your device notifies you if the other
device is not compatible.

Access codes

If you forget any of the access codes,
contact your service provider.

Personal identification number (PIN)
co de — T his c od e pr ote ct s yo ur S IM car d
against unauthorised use. The PIN code
(4 - 8 digits) is usually supplied with the
SIM card. After three consecutive
incorrect PIN code entries, the code is
blocked, and you need the PUK code to
unblock it.

PIN2 code — This code (4 - 8 digits) is
supplied with some SIM cards, and is
required to access some functions in
your device.

Lock code (also known as security
code) — The lock code helps you to
protect your device against
unauthorised use. The preset code is

12345. You can create and change the
code, and set the device to request the
code. Keep the new code secret and in a
safe place separate from your device. If
you forget the code and your device is
locked, your device will require service.
Additional charges may apply, and all
the personal data in your device may be
deleted. For more information, contact

14 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Basic use 15

Cyan

Magenta

Yellow

Black

a Nokia Care Centre or your device
dealer.

Personal Unblocking Key (PUK) code and
PUK2 code — These codes (8 digits) are
required to change a blocked PIN code
or PIN2 code, respectively. If the codes
are not supplied with the SIM card,
contact the network service provider
whose SIM card is in your device.

International Mobile Equipment
Identity (IMEI) number — This number
(15 or 17 digits) is used to identify valid
devices on the GSM network. Devices
that are, for example, stolen, can be
blocked from accessing the network.
The IMEI number for your device can be
found under the battery.

Basic use

Learn how to use the basic features of
your device.

Home screen

Learn how to use and personalise your
home screen, and organise the content
to your liking.

Home screen

The home screen is your starting point
where you can collect all your important
contacts and application shortcuts.

When you have switched on the device,
and it is registered to a network, the
device is in the home screen view.

Use the scroll key to navigate in the
home screen.

The home screen consists of the
following:

1 Contacts bar
2 Application plug-ins
3 Application shortcuts

To customise application plug-ins and
shortcuts, or to change the home screen

www.nokia.com/support 15

Cyan

Magenta

Yellow

Black

16 Basic use

Cyan

Magenta

Yellow

Black

theme, select Menu > Ctrl. panel >

Settings and General >
Personalisation > Standby mode and

the appropriate option. You might not
be able to change all shortcuts.

Contacts bar

To add a contact to your home screen,
select the Add icon and a contact from
the list.

To create a new contact, select

Options > New contact, enter the

details, and select Done. You can also
add an image to the contact
information.

To remove a contact from the home
screen, in the contact information view,
select the Open icon and Remove.

One-touch keys

With the One-touch keys, you can access
applications and tasks quickly. Your
service provider may have assigned
applications to the keys, in which case
you cannot change them.

1 Home key
2 Messaging key

Home key

To access the home screen, press the
home key briefly. Press the home key
briefly again to access the menu.

To view the list of active applications,
press the home key for a few seconds.
When the list is open, press the home
key briefly to scroll the list. To open the
selected application, press the home
key for a few seconds, or press the scroll
key. To close the selected application,
press the backspace key.

Leaving applications running in the
background increases the demand on
battery power and reduces the battery
life.

Messaging key

To open the Messaging application,
press the messaging key.

16 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Basic use 17

Cyan

Magenta

Yellow

Black

To start writing a new message, press
and hold the messaging key.

When you press the messaging key for
the first time, you are asked to define
the messaging key settings. Follow the
instructions on the display. You can
modify the settings later.

Write text

The input methods provided in the
device may vary according to different
sales markets.

Keyboard

Your device has a full keyboard. You can
find the most common punctuation
marks from the keyboard. Alternatively,
you can enter the punctuation marks by
using some key combinations.

To insert characters printed at the top of
keys, press the function key and the
corresponding key.

To insert numbers, press the function
key and the number key. To lock the
function key and insert only numbers,
press the function key twice.

To erase characters, press

To insert special characters, press
and select

To switch between character cases,
press
indicate the selected case.

Copy and paste text

1 To select letters and words, press

and hold
in the direction necessary to
highlight the word, phrase, or line
of text you want to copy. As the
selection moves, the text is
highlighted.

2 To copy the text to the clipboard,

press

Tip: You can copy and paste also by
pressing and holding the shift key,
and selecting Copy from the left
selection key, and paste from the
right selection key.

and a character.

. , , and

. At the same time, scroll

+ C. To paste the text, press

+ V.

.

,

www.nokia.com/support 17

Cyan

Magenta

Yellow

Black

18 Basic use

Cyan

Magenta

Yellow

Black

Change the writing language

When you write text, you can change
the writing language. Select Options >

Input options > Writing language,

and the writing language that you
want. When you are writing text, press
the function key and press and hold the

key and another key as many times
as needed to input a special character.
Changing the writing language allows
you to access different characters.

For example, if you are writing text in
Chinese and want to use Latin
characters to add a name, select

Options > Input options > Writing
language, and the writing language

that allows you to use Latin characters.

Switch input methods

To switch input methods, press and hold

+ the function key, and press the
key repeatedly at the same time, until
the symbol for the desired input method
is shown on the display, or press

to select a different input method.

Stroke input method

The strokes constituting Chinese
characters can be divided into the

and

following five categories: horizontal,
vertical, left-falling, dot, and turning.
These strokes categories correspond to
the R, T, Y, F, and G keys respectively. The
strokes are classified into the five
categories according to the following
table.

1 Stroke input: Enter the strokes of a

Chinese character according to its
standard stroke order. To enter a
stroke, press once the key

18 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Basic use 19

Cyan

Magenta

Yellow

Black

corresponding to that stroke.
Candidate Chinese characters
matched to the inputted strokes are
shown on the display.

To delete the stroke to the left of the
cursor, press the backspace key. To
delete all the strokes to the left of
the cursor, press and hold the
backspace key.

2 Enter Chinese characters: Move the

scroll key to scroll through the
candidate characters. Highlight the
character you need, and then press
the scroll key to input it.

3 Deal with the predicted characters:

The device then predicts and lists
the candidate characters which can
form a phrase with the previous
character inputted.

You can move the scroll key to scroll
through the candidate characters,
and input the highlighted character
by pressing the scroll key. The
device continuously predicts the
next character based on the one you
have chosen.

If you do not need the predicted
candidates, you can clear them by
pressing the backspace key, or just

input the strokes for a new
character right away.

If no stroke is inputted, pressing the
backspace key deletes the character
to the left of the cursor, pressing
and holding the backspace key
deletes all the characters to the left
of the cursor more quickly.

Contacts

Copy contacts

Select Menu > Phonebook >

Contacts.

When you open the contacts list for the
first time, the device asks if you want to
copy names and numbers from the SIM
card to your device.

Start copying

Select OK.

Cancel copying

Select Cancel.
The device asks if you want to view the

SIM card contacts in the contacts list. To
view the contacts, select OK. The
contacts list opens, and the names

www.nokia.com/support 19

Cyan

Magenta

Yellow

Black
