Microsoft RM-677 User Manual
Nokia C5-01 User Guide
Cyan
Magenta
Yellow
Black
1111111
Issue 1
Cyan
Magenta
Yellow
Black
2Contents
Cyan
Magenta
Yellow
Black
Contents
Safety 5
Nokia C5-01 customised for China
Mobile 6
About your device 6
Magnets and magnetic fields 8
Synchronisation settings and data
deletion 8
Network services 8
Get started 9
Insert SIM card and battery 9
Keys and parts 12
Keys and parts (back and sides) 14
Switch the device on 14
Charge the battery 16
Memory card 17
Headset 20
Strap 21
Shortcuts 21
Display indicators 22
Network settings 23
Support 24
Find help 26
Instructions inside - In-device
help 26
Nokia support and contact
information 26
Additional applications 27
Settings 27
Access codes 27
Prolong battery life 28
Free memory 29
Your device 31
Transfer content 31
Lock the keypad 32
Find items 32
Mobile Search 33
Offline profile 33
Personalise your device 34
Set tones for profiles 34
Modify the standby mode 35
Modify the main menu 35
Music folder 37
Music player 37
Radio applications 39
Camera 43
About the camera 43
Activate the camera 43
Image capture 43
Video recording 47
Camera settings 48
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Contents 3
Cyan
Magenta
Yellow
Black
Positioning (GPS) 52
About GPS 52
Licenses 53
Use licences 53
Web browser 55
Browse the web 55
Web feeds and blogs 56
Empty the cache 57
End the connection 57
Connection security 58
My favorites 59
Monternet 60
China Mobile services 61
Service shortcut 62
Connections 63
Bluetooth connectivity 63
Remote configuration 68
Write text 70
Input method indicators 70
Default input method 70
Switch input methods 70
Pinyin input method 71

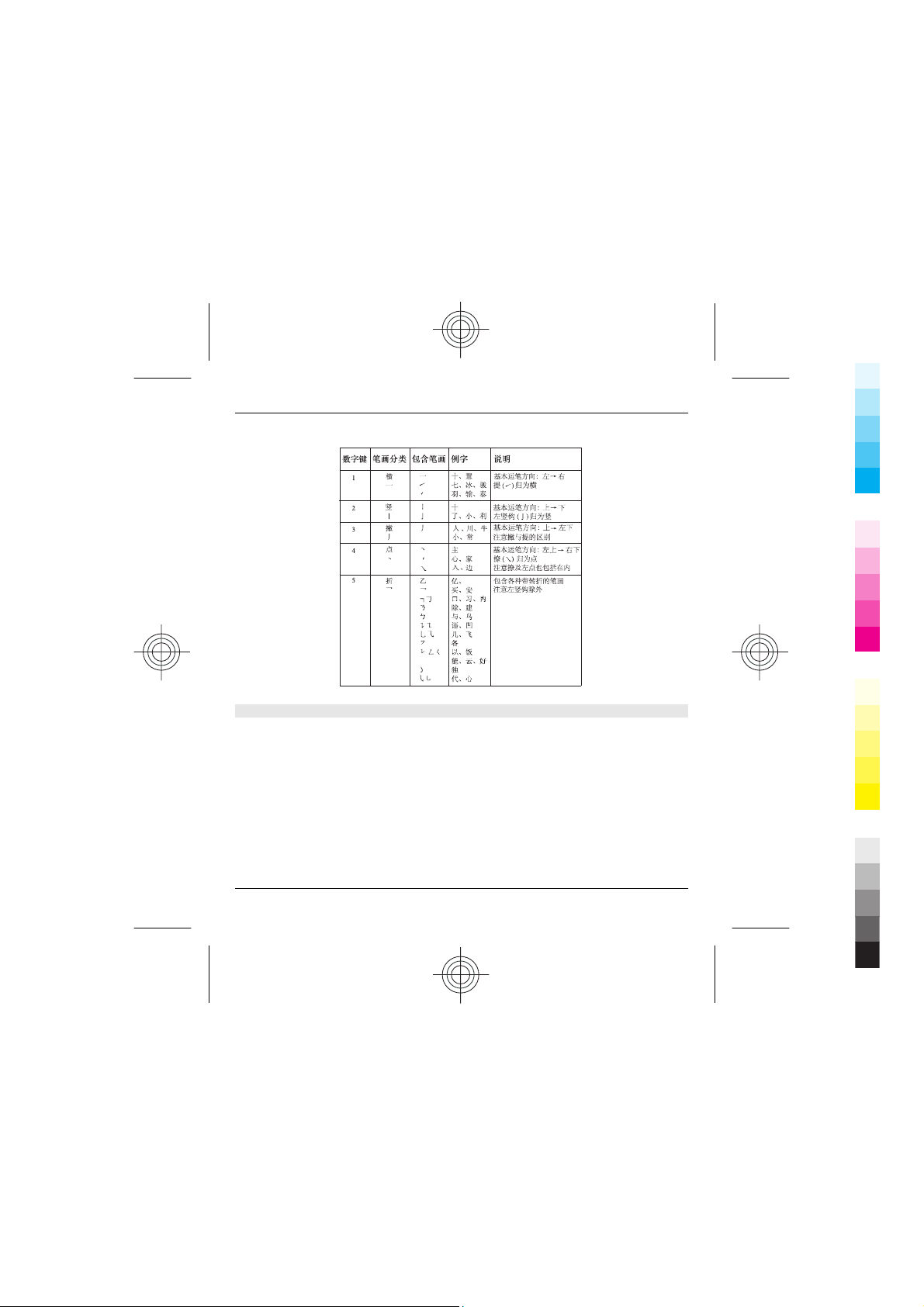

Stroke input method 73
Insert special characters and
punctuation marks in Chinese input
mode 76
Traditional text input 76
Predictive text input 77
Tips on text input 77
Messaging 79
Messaging main view 79
Write and send messages 80
E-mail 81
Make calls 83
Voice calls 83
Make a video call 83
Video call in the standby mode 84
Phonebook manager 85
Green tips 86
Save energy 86
Recycle 86
Save paper 87
Learn more 87
e100 88
www.nokia.com/support
Cyan
Magenta
Yellow
Black
4Contents
Cyan
Magenta
Yellow
Black
Product and safety
information 88
Index 116
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Safety 5
Cyan
Magenta
Yellow
Black
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle
while driving. Your first consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
6Safety
Cyan
Magenta
Yellow
Black
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
Nokia C5-01 customised for China Mobile
The instructions in this user guide only apply to Nokia C5-01 customised for China
Mobile.
The post-sales service point and service content are similar for both customised and
other non-customised devices. With regards to the menus and features provided
with the device customised for China Mobile, see Monternet or contact China Mobile
customer service hotline for more information, post-sales service, and technical
support.
Nokia does not provide any warranty on technical support for the services rendered
by any network service provider, content provider, or service provider.
For information on the content and pricing of the services provided by China Mobile,
contact China Mobile customer service hotline.
About your device
The wireless device described in this guide is approved for use on the GSM 900, 1800,
1900 networks (hereafter referred to as 2G networks), and TD-SCDMA /TD-HSDPA
networks (hereafter referred to as 3G networks). Contact your service provider for
more information about networks.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Safety 7
Cyan
Magenta
Yellow
Black
Your device supports several connectivity methods and like computers may be
exposed to viruses and other harmful content. Exercise caution with messages,
connectivity requests, browsing, and downloads. Only install and use services and
software from trustworthy sources that offer adequate security and protection,
such as applications that are Symbian Signed or have passed the Java Verified™
testing. Consider installing antivirus and other security soft war e o n yo ur d evic e and
any connected computer.
Your device may have preinstalled bookmarks and links for third-party internet sites
and may allow you to access third-party sites. These are not affiliated with Nokia,
and Nokia does not endorse or assume liability for them. If you access such sites,
take precautions for security or content.
Warning:
To use any features in this device, other than the alarm clock, the device must be
switched on. Do not switch the device on when wireless device use may cause
interference or danger.
When using this device, obey all laws and respect local customs, privacy and
legitimate rights of others, including copyrights. Copyright protection may prevent
some images, music, and other content from being copied, modified, or transferred.
Make back-up copies or keep a written record of all important information stored
in your device.
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
The images in this guide may differ from your device display.
Refer to the user guide for other important information about your device.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
8Safety
Cyan
Magenta
Yellow
Black
Magnets and magnetic fields
Keep your device away from magnets or magnetic fields.
Synchronisation settings and data deletion
Pay attention to synchronisation settings. Data deletion as part of normal
synchronisation process is determined by the settings selected.
Network services
To use the device you must have service from a wireless service provider. Some
features are not available on all networks; other features may require that you make
specific arrangements with your service provider to use them. Network services
involve transmission of data. Check with your service provider for details about fees
in your home network and when roaming on other networks. Your service provider
can explain what charges will apply. Some networks may have limitations that affect
how you can use some features of this device requiring network support such as
support for specific technologies like WAP 2.0 protocols (HTTP and SSL) that run on
TCP/IP protocols and language-dependent characters.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, these features will not appear on your device menu.
Your device may also have customized items such as menu names, menu order, and
icons.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Get started 9
Cyan
Magenta
Yellow
Black
Get started
Insert SIM card and battery
Always switch the device off and disconnect the charger before removing the
battery.
1 Press and slide the back cover towards the bottom of the device, and remove
it.
2 Insert the SIM card into the card slot. Make sure the contact area on the card is
facing down.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
10 Get started
Cyan
Magenta
Yellow
Black
3 Insert the battery.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Get started 11
Cyan
Magenta
Yellow
Black
4 Replace the back cover.
Important: To prevent damage to the SIM card, always remove the battery before
you insert or remove the card.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
12 Get started
Cyan
Magenta
Yellow
Black
Keys and parts
Cyan
Magenta
Yellow
www.nokia.com/support
Black
1 Nokia AV Connector (3.5 mm)
Cyan
Magenta
Yellow
Black
2 Micro USB connector
3 Charger connector
4 Selection keys
5 Menu key
6 Call key
7 Navi™ key (scroll key)
8 Keypad
9 End/Power key
10 Clear key C
11 Earpiece
12 Secondary camera
13 Microphone
Get started 13
www.nokia.com/support
Cyan
Magenta
Yellow
Black
14 Get started
Cyan
Magenta
Yellow
Black
Keys and parts (back and sides)
1 Main camera
2 Volume keys
3 Capture key
4 Wrist strap hole
5 Loudspeaker

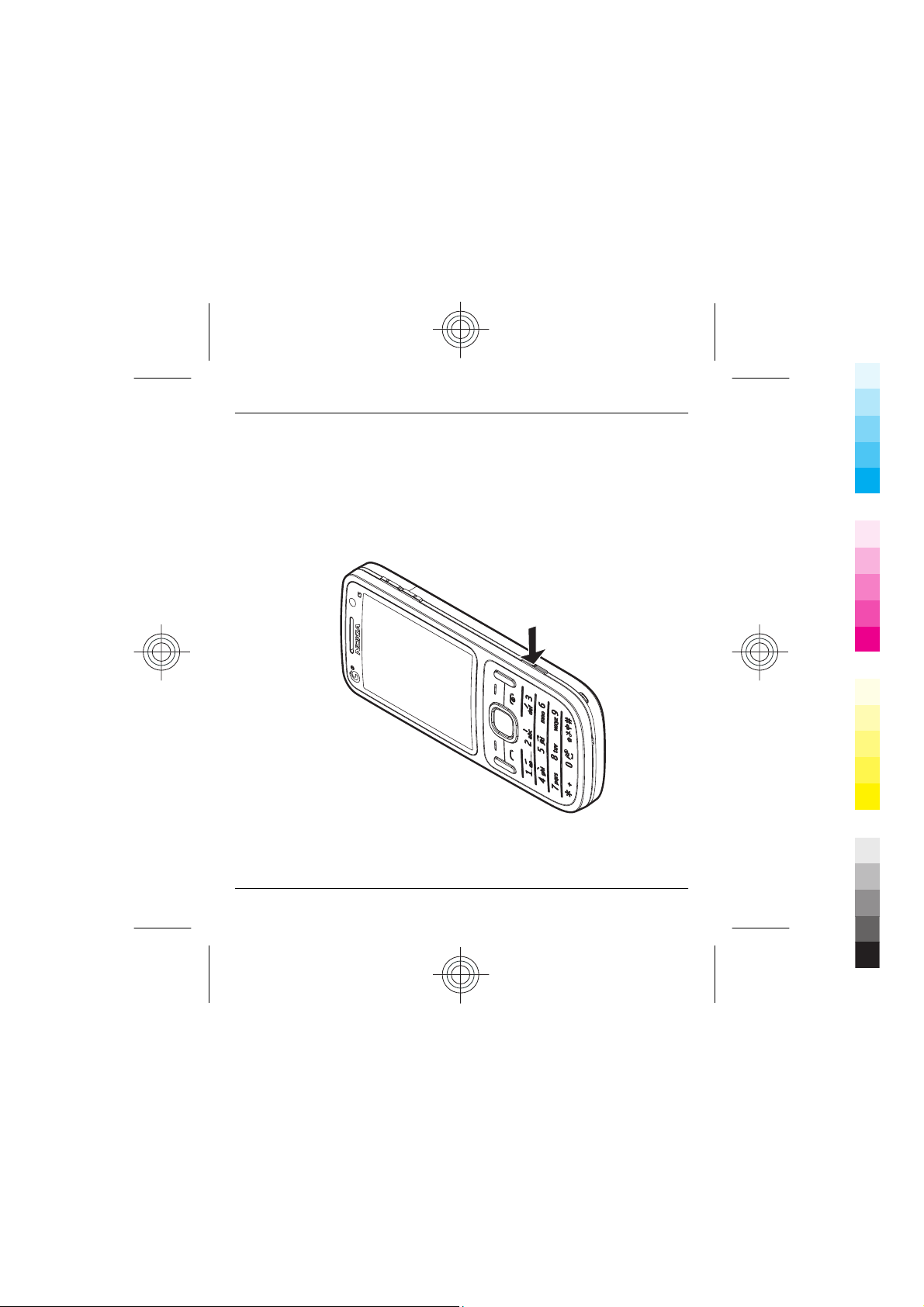

Switch the device on
1 Press and hold the power key.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Get started 15
Cyan
Magenta
Yellow
Black
2 If prompted, enter the PIN code or lock code. The factory setting for the lock
code is 12345.
Your device may have internal and external antennas. Avoid touching the antenna
area unnecessarily while the antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may cause a higher power level
during operation and may reduce the battery life.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
16 Get started
Cyan
Magenta
Yellow
Black
1 Cellular antenna
2 Antenna for Bluetooth technology
Charge the battery
Note: Use the adapter cable with the USB connector only for charging. It is not a
data cable.
Your battery has been partially charged at the factory. If the device indicates a low
charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the lead from the adapter cable to the USB connector of the charger.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Get started 17
Cyan
Magenta
Yellow
Black
3 Connect the lead from the adapter cable to the charger connector of your device.
4 When the device indicates a full charge, disconnect the charger from the device,
then from the wall outlet.
You do not need to charge the battery for a specific length of time, and you can use
the device while it is charging. If the battery is completely discharged, it may take
several minutes before the charging indicator appears on the display or before any
calls can be made.
Memory card
Use only compatible microSD cards approved by Nokia for use with this device. Nokia
uses approved industry standards for memory cards, but some brands may not be
fully compatible with this device. Incompatible cards may damage the card and the
device and corrupt data stored on the card.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
18 Get started
Cyan
Magenta
Yellow
Black
Insert a memory card
The memory card may be supplied with the device, and may already be inserted.
1Open the cover.
2 Place the card in the slot with the contact area facing down.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Get started 19
Cyan
Magenta
Yellow
Black
3 Push the card gently to lock it into place. Close the cover.
Remove a memory card
Important: Do not remove the memory card during an operation when the card
is being accessed. Doing so may damage the memory card and the device, and
corrupt data stored on the card.
1 Press the power key briefly, and select Remove memory card > Yes.
2 Open the back cover.
3 Press the memory card gently to release it.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
20 Get started
Cyan
Magenta
Yellow
Black
4 Pull the card out, and select OK.
5 Replace the back cover.
Headset
You can connect a compatible headset or compatible headphones to your device.
You may need to select the cable mode.
Warning:
When you use the headset, your ability to hear outside sounds may be affected. Do
not use the headset where it can endanger your safety.
To make handsfree phone calls, use a headset with a compatible remote control
unit, or use the microphone on the device.
Do not connect products that create an output signal as this may cause damage to
the device. Do not connect any voltage source to the Nokia AV Connector.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Get started 21
Cyan
Magenta
Yellow
Black
When connecting any external device or any headset, other than those approved
by Nokia for use with this device, to the Nokia AV Connector, pay special attention
to volume levels.

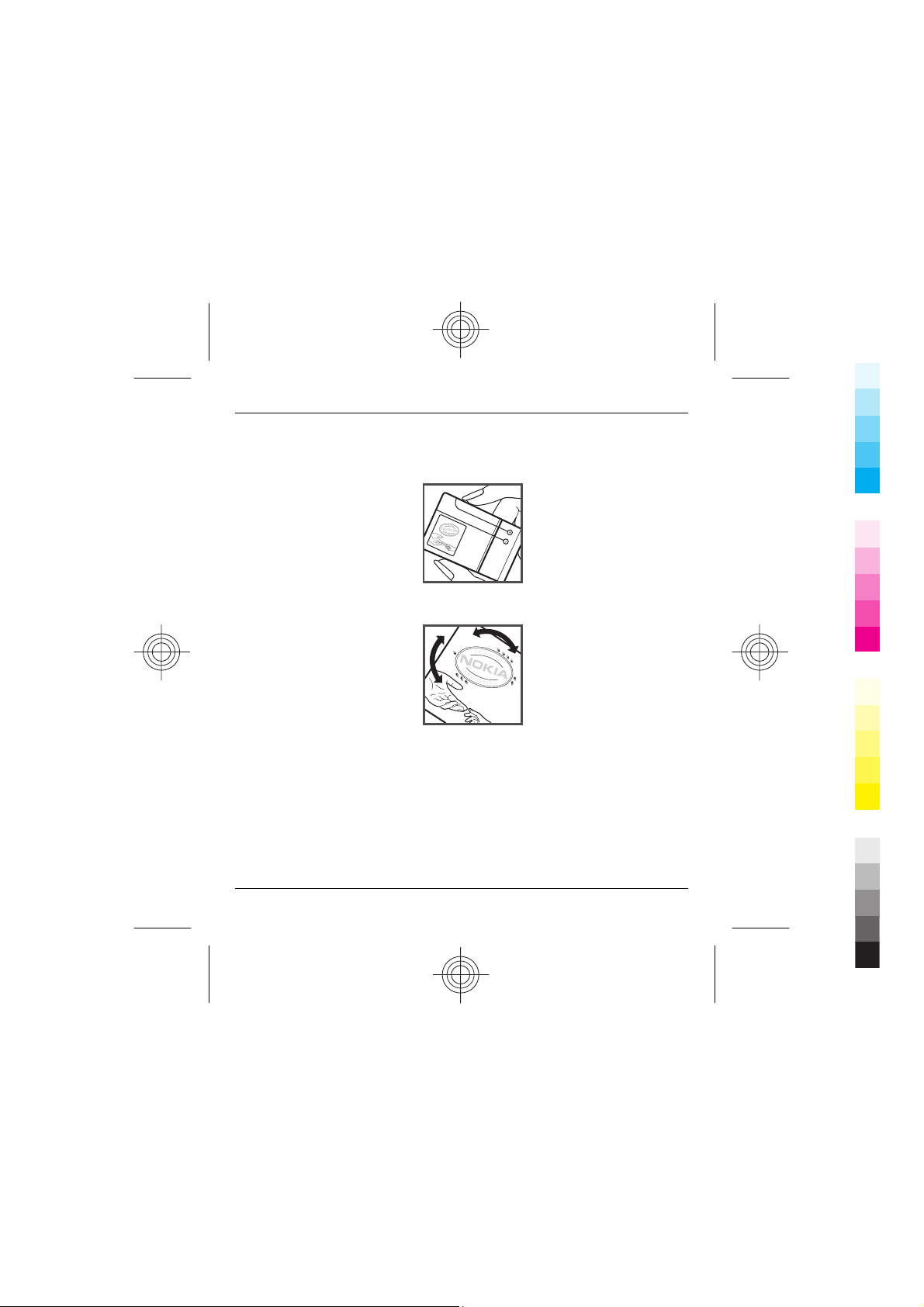

Strap
1 Open the back cover.
2 Hook a strap behind the clamp, and close the back cover.
Shortcuts
To switch between open applications, press and hold
Leaving applications running in the background increases the demand on battery
power and reduces the battery life.
www.nokia.com/support
Cyan
Magenta
Yellow
.
Black
22 Get started
Cyan
Magenta
Yellow
Black
To start a web connection (network service), in the standby mode, press and hold
0.
In many applications, to view the most common option items (
key.
To change the profile, press the power key, and select a profile.
To switch between the General and Silent profiles, in the standby mode, press and
hold #.
To call your voice mailbox (network service), in the standby mode, press and hold
1.
To open the last dialled numbers list, in the standby mode, press the call key.
Display indicators
The device is being used in a GSM network (network service).
The device is being used in a 3G network (network service).
You have one or more unread messages in the Inbox folder in Messaging.
You have received new e-mail in the remote mailbox.
There are messages waiting to be sent in the Outbox folder.
You have missed calls.
The ringing type is set to silent.
A timed profile is active.
The device keypad is locked.
), press the scroll
www.nokia.com/support
Cyan
Magenta
Yellow
Black
Get started 23
Cyan
Magenta
Yellow
Black
A clock alarm is active.
All calls to the device are diverted to another number (network service).
A compatible headset is connected to the device.
A GPRS packet data connection is active (network service). indicates the
connection is on hold and
A packet data connection is active in a part of the network that supports
EGPRS (network service).
a connection is available. The icons indicate that EGPRS is available in the
network, but your device is not necessarily using EGPRS in the data transfer.
A 3G packet data connection is active (network service). indicates the
connection is on hold and
High-speed downlink packet access (HSDPA) is supported and active
(network service).
connection is available.
The device is in the coverage of an HSDPA network (network service).
Bluetooth connectivity is activated.
Data is being transmitted using Bluetooth connectivity. When the indicator
is blinking, your device is trying to connect with another device.
A USB connection is active.
Synchronisation is in progress.
Network settings
Your device can automatically switch between GSM and 3G networks. The GSM
network is indicated with
.
with
Select
> Settings and Phone > Network and from the following:
that a connection is available.
indicates the connection is on hold and that
that a connection is available.
indicates the connection is on hold and that a
in the standby mode. The 3G network is indicated
www.nokia.com/support
Cyan
Magenta
Yellow
Black
24 Get started
Cyan
Magenta
Yellow
Black
Network mode — Select which network to use. If you select Dual mode, the device
uses the GSM or 3G network automatically, according to the network parameters
and the roaming agreements between the wireless service providers. For details
and roaming costs, contact your network s ervice provider. This option is shown only
if supported by the wireless service provider.
A roaming agreement is an agreement between two or more service providers to
enable the users of one service provider to use the services of other service
providers.
Operator selection — Select Automatic to set the device to search for and select
one of the available networks, or Manual to manually select the network from a
list. The selected network must have a roaming agreement with your home cellular
network.
Cell info display — Set the device to indicate when it is used in a cellular network
based on microcellular network (MCN) technology, and to activate cell info
reception.
Support
When you want to learn more about how to use your product or you are unsure
how your device should function, see the support pages at www.nokia.com/
support or your local Nokia website, www.nokia.mobi/support (with a mobile
device), the Help application in the device, or the user guide.
If this does not resolve your issue, do one of the following:
• Restart the device: switch off the device, and remove the battery. After about a
minute, replace the battery, and switch on the device.
• Restore the original factory settings as explained in the user guide. Your
documents and files will be deleted in the reset, so back up your data first.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Get started 25
Cyan
Magenta
Yellow
Black
If your issue remains unsolved, contact Nokia for repair options. See
www.nokia.com.cn/repair. Before sending your device for repair, always back up
the data in your device.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
26 Find help
Cyan
Magenta
Yellow
Black
Find help
Instructions inside - In-device help
Your device contains instructions to help you use it.
When an application is open, to access the help text for the current view, select
Options > Help.
To open help from the main menu, select Tools > Utilities > Help, and the relevant
application.
You can find links to related topics at the end of the help text.
To make the instructions easier to read, you can change the size of the text.
If you click on an underlined word, a short explanation is displayed.
Help uses the following indicators:
shows a link to a related help topic.
shows a link to the application being discussed.
When you are reading the instructions, to switch between help and the application
that is open in the background, press and hold
).
(
Nokia support and contact information
For the latest guides, additional information, downloads, and services related to
your Nokia product, see www.nokia.com.cn/support or your local Nokia website.
You may also download free configuration settings such as MMS, GPRS, e-mail, and
other services for your device model at www.nokia.com.cn/settings.
, or select the application link
www.nokia.com/support
Cyan
Magenta
Yellow
Black
Find help 27
Cyan
Magenta
Yellow
Black
If you need to contact customer service, check the list of local Nokia Care contact
centres at www.nokia.com.cn/contactus.
For maintenance services, check your nearest Nokia Care point at
www.nokia.com.cn/repair.
Additional applications
There are various applications provided by Nokia and different third-party software
developers that help you do more with your device. These applications are
explained in the guides that are available on the product support pages of the Nokia
website.
Settings
Your device normally has MMS, GPRS, streaming, and mobile internet settings
automatically configured in the device, based upon your network service provider
information. You may have settings from your service providers already installed in
your device, or you may receive or request the settings from the network service
providers as a special message.
You can change the general settings in your device, such as language, standby
mode, display, and keypad lock settings.
Access codes
If you forget any of the access codes, contact your service provider.
Personal identification number (PIN) code — This code protects your SIM card
against unauthorised use. The PIN code (4 - 8 digits) is usually supplied with the
SIM card. After three consecutive incorrect PIN code entries, the code is blocked, and
you need the PUK code to unblock it.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
28 Find help
Cyan
Magenta
Yellow
Black
UPIN code — This code may be supplied with the USIM card. The USIM card is an
enhanced version of the SIM card and is supported by 3G mobile phones.
PIN2 code — This code (4 - 8 digits) is supplied with some SIM cards, and is required
to access some functions in your device.
Lock code (also known as security code) — The lock code helps you to protect your
device against unauthorised use. The preset code is 12345. You can create and
change the code, and set the device to request the code. Keep the new code secret
and in a safe place separate from your device. If you forget the code and your device
is locked, your device will require service. Additional charges may apply, and all the
personal data in your device may be deleted. For more information, contact a Nokia
Care point or your device dealer.
Personal Unblocking Key (PUK) code and PUK2 code — These codes (8 digits) are
required to change a blocked PIN code or PIN2 code, respectively. If the codes are
not supplied with the SIM card, contact the network service provider whose SIM card
is in your device.
UPUK code — This code (8 digits) is required to change a blocked UPIN code. If the
code is not supplied with the USIM card, contact the network service provider whose
USIM card is in your device.
Prolong battery life
Many features in your device increase the demand on battery power and reduce the
battery life time. To save battery power, note the following:
• Features that use Bluetooth technology, or allowing such features to run in the
background while using other features, increase the demand on battery power.
Turn Bluetooth technology off when you do not need it.
• If you have set Packet data connection to When available in connection
settings, and there is no packet data coverage (GPRS), the device periodically
tries to establish a packet data connection. To prolong the operating time of
your device, select Packet data connection > When needed.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Find help 29
Cyan
Magenta
Yellow
Black
• If the signal strength of the cellular network varies much in your area, your
device must scan for the available network repeatedly. This increases the
demand on battery power.
If the network mode is set to dual mode in the network settings, the device
searches for the 3G network. To only use the GSM network, select
Settings and Phone > Network > Network mode > GSM.
• The backlight of the display increases the demand on battery power. In the
display settings, you can change the time-out after which the backlight is
switched off, and adjust the brightness of the display.
• Leaving applications running in the background increases the demand on
battery power. To close the applications that you are not using, press and hold
, scroll to an application in the list, and press C.
• To activate or deactivate power save mode, press the power key, and select
Activate power saving or Deactivate power saving. You may not be able to
modify the settings of certain applications when power save mode is activated.
Free memory
>
To view how much space is available for different data types, select
File mgr..
Many features of the device use memory to store data. The device notifies you if the
memory in different memory locations is low.
To free memory, transfer data to a compatible memory card (if available) or to a
compatible computer.
To remove data you no longer need, use File manager or open the respective
application. You can remove the following:
www.nokia.com/support
> Tools >
Cyan
Magenta
Yellow
Black
30 Find help
Cyan
Magenta
Yellow
Black
• Messages in the folders in Messaging and retrieved e-mail messages in the
mailbox
• Saved web pages
• Contact information
• Calendar notes
• Applications shown in Application manager that you do not need
• Installation files (.sis or .sisx) of applications you have installed. Transfer the
installation files to a compatible computer.
• Images and video clips in Gallery. Back up the files to a compatible computer.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Loading...
