For your safety...........................................6

Your Nokia N71.........................................9

Essential indicators...............................................................9

Attach the wrist strap........................................................10

Configure settings...............................................................10

Nokia support on the Web................................................10

Help .........................................................................................10

Clock........................................................................................11

Volume and loudspeaker control ....................................12

File manager .........................................................................12

Useful shortcuts...................................................................14

Personalise your device .......................... 15

Profiles—Set tones...............................................................16

Transfer content from another device...........................17

Change the look of your device.......................................17

Active standby mode..........................................................18

Make calls ............................................... 20

Voice calls..............................................................................20

Video calls..............................................................................22

Video sharing .......................................................................23

Answer or reject a call.......................................................26

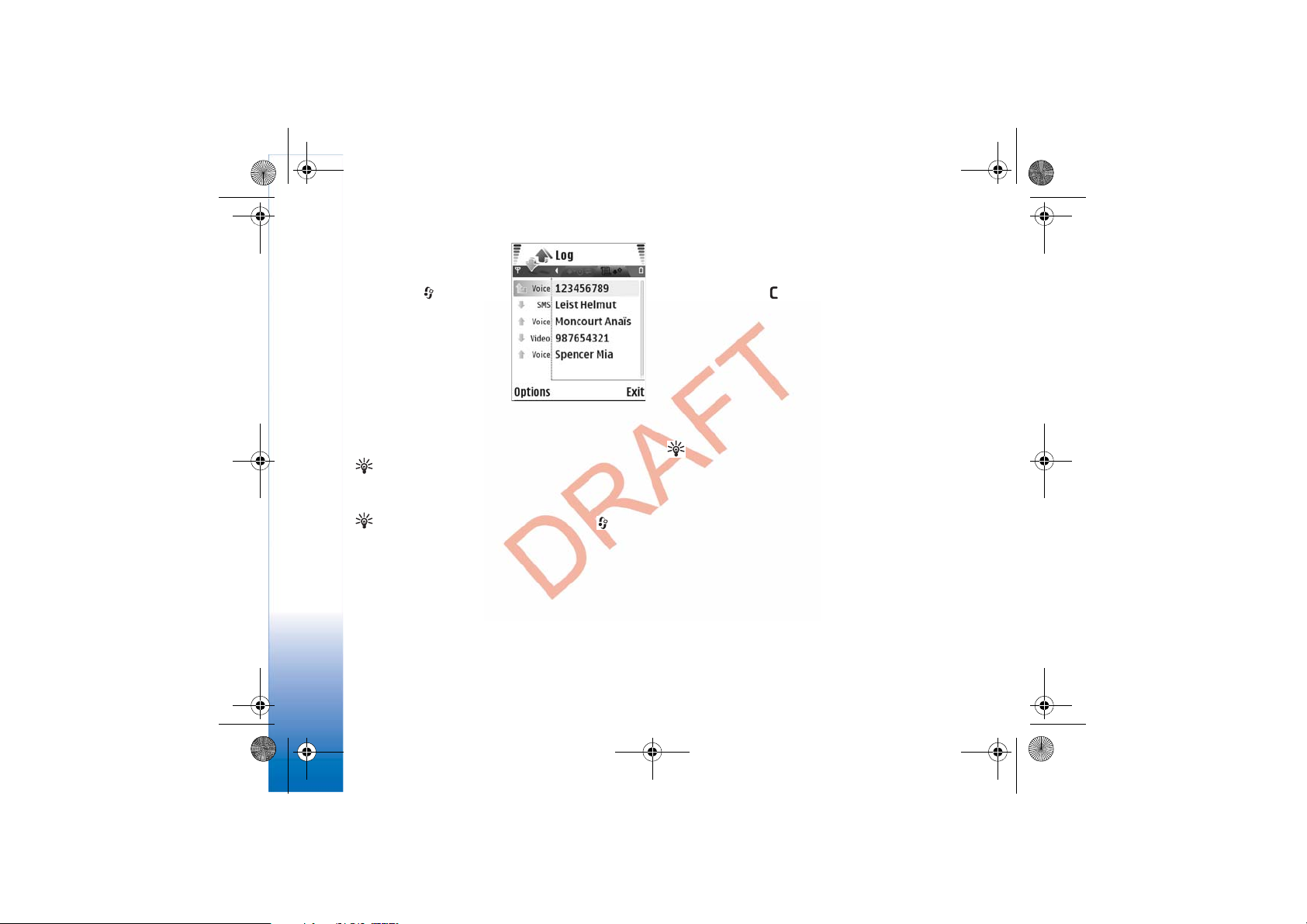

Log ...........................................................................................28

Contacts (Phonebook).............................31

Save names and numbers.................................................31

Copy contacts.......................................................................32

Add ringing tones for contacts .......................................33

Create contact groups .......................................................33

Camera......................................................36

Take pictures.........................................................................36

Edit images ...........................................................................41

Tips on taking good photographs...................................42

Record videos .......................................................................43

Edit video clips.....................................................................45

Gallery.......................................................50

View images and video clips............................................50

View presentations .............................................................51

Albums ...................................................................................51

Imaging.....................................................64

Image print ...........................................................................64

RealPlayer™...........................................................................65

Movie Director .....................................................................67

Messaging.................................................69

Write text..............................................................................70

Write and send messages .................................................72

R1114_en.book Page 4 Friday, September 16, 2005 9:36 AM

Inbox—receive messages...................................................75

My folders ............................................................................ 76

Mailbox.................................................................................. 76

Outbox—messages waiting to be sent.......................... 79

View messages on a SIM card......................................... 79

Messaging settings.............................................................79

Calendar....................................................85

Create calendar entries.....................................................85

Calendar views..................................................................... 86

Remove calendar entries...................................................86

Calendar settings ................................................................87

Web...........................................................88

Access the Web ...................................................................88

Bookmarks view................................................................... 89

Make a connection.............................................................89

Browse....................................................................................90

Download and purchase items........................................92

End a connection ................................................................92

Web settings.........................................................................92

Office........................................................94

Calculator..............................................................................94

Converter...............................................................................94

To-do ......................................................................................95

Notes ...................................................................................... 95

Recorder.................................................................................96

My own.....................................................97

Go to—add shortcuts.......................................................... 97

IM—Instant messaging (chat) ........................................ 97

Visual Radio .......................................... 104

Listen to the radio.............................................................105

View visual content..........................................................105

Saved stations....................................................................105

Settings................................................................................106

Connectivity .......................................... 107

Bluetooth connection......................................................107

PC connections ..................................................................110

Connection manager........................................................111

Remote synchronisation..................................................112

Device manager.................................................................113

Tools....................................................... 115

Settings................................................................................115

Cover display settings......................................................124

Voice commands ...............................................................124

Memory card tool..............................................................125

Application manager........................................................126

Activation keys—handle copyright-protected files .128

R1114_en.book Page 5 Friday, September 16, 2005 9:36 AM

Troubleshooting .................................... 129

Q&A......................................................................................129

Battery information.............................. 132

Charging and discharging.............................................. 132

Nokia battery authentication guidelines................... 132

Care and maintenance ......................... 134

Additional safety information............. 135

R1114_en.book Page 6 Friday, September 16, 2005 9:36 AM

For your safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

SWITCH ON SAFELY Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE All wireless phones may be susceptible to interference, which could affect performance.

SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELLING Do not use

the phone at a refuelling point. Do not use near fuel or chemicals.

SWITCH OFF NEAR BLASTING Follow any

restrictions. Do not use the phone where blasting is in progress.

USE SENSIBLY Use only in the normal position as explained in the product documentation. Do not touch the antenna unnecessarily.

QUALIFIED SERVICE Only qualified personnel may install or repair this product.

ENHANCEMENTS AND BATTERIES Use only approved enhancements and batteries. Do not connect incompatible products.

WATER-RESISTANCE Your phone is not water-resistant. Keep it dry.

BACK-UP COPIES Remember to make back-up copies or keep a written record of all important information stored in your phone.

R1114_en.book Page 7 Friday, September 16, 2005 9:36 AM

CONNECTING TO OTHER DEVICES When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products.

EMERGENCY CALLS Ensure the phone is switched on and in service. The keypad is active only in the Fold open mode. Press as many times as needed to clear the display and return to the start screen. Enter the emergency number, then press . Give your location. Do not end the call until given permission to do so.

About your device

The wireless device described in this guide is approved for use on the EGSM 900/1800/1900 and UMTS 2100 networks. Contact your service provider for more information about networks.

When using the features in this device, obey all laws and respect privacy and legitimate rights of others.

When taking and using images or video clips, obey all laws and respect local customs as well as privacy and legitimate rights of others.

Warning: To use any features in this device, other

than the alarm clock, the device must be switched on.

Do not switch the device on when wireless device use may cause interference or danger.

Network Services

To use the phone you must have service from a wireless service provider. Many of the features in this device depend on features in the wireless network to function. These network services may not be available on all networks or you may have to make specific arrangements with your service provider before you can utilize network services. Your service provider may need to give you additional instructions for their use and explain what charges will apply. Some networks may have limitations that affect how you can use network services. For instance, some networks may not support all language-dependent characters and services. Network features are designated in this guide by (network services).

Your service provider may have requested that certain features be disabled or not activated in your device. If so, they will not appear on your device menu. Your device may also have been specially configured. This configuration may include changes in menu names, menu order and icons. Contact your service provider for more information.

This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols. Some features of this device, such as MMS, browsing, e-mail and content downloading via

R1114_en.book Page 8 Friday, September 16, 2005 9:36 AM

browser or over MMS, require network support for these technologies.

For availability and information on using SIM card services, contact your SIM card vendor. This may be the service provider, network operator, or other vendor.

Enhancements, batteries, and chargers

Always switch the device off and disconnect the charger before removing the battery.

Check the model number of any charger before use with this device. This device is intended for use when supplied with power from a DC-4, AC-3 and AC-4 charger, and from an AC-1, ACP-7, ACP-8, ACP-9, ACP-12, LCH-8, LCH-9, or LCH-12 charger when used with the charger adapter CA-44 delivered with your phone.

The battery intended for use with this device is BL-5B.

Warning: Use only batteries, chargers, and

enhancements approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous.

For availability of approved enhancements, please check with your dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

R1114_en.book Page 9 Friday, September 16, 2005 9:36 AM

Your Nokia NXX

Settings

Your Nokia NXX normally has MMS, GPRS, streaming, and Internet settings automatically configured in the device, based upon your service provider or network operator information. You may have settings from your service providers already installed in your device, or you may receive the settings from the service providers as a special text message.

Transfer content from another device

You can copy content such as contacts and calendar entries from a compatible Nokia phone to your Nokia NXX using Bluetooth connectivity or infrared. The type of content that can be copied depends on the phone model.

Copyright protections may prevent some images, music (including ringing tones), and other content from being copied, modified, transferred or forwarded.

You can insert your SIM card in the other device. When Nokia N80 is switched on without a SIM card, the offline profile is automatically activated.

To avoid duplicate entries, you can transfer the same type of information (for example, contacts) from the other device to your Nokia XXX only once.

Transfer content

1 Press , and select Tools > Transfer > Copy data on

your Nokia XXX.

2 In the information view, select Continue. 3 Select whether you want to use Bluetooth connectivity

or infrared to transfer the data. Both devices must support the selected connection type.

4 If you select Bluetooth connectivity:

To have Nokia XX search for devices with Bluetooth connectivity, select Continue. Select your other device from the list. You are asked to enter a code on your Nokia XXX. Enter a code (1-16 digits), and select OK. Enter the same code on the other device, and select

OK. The devices are now paired. See ‘Pair devices’,

p. 78. For some phone models, the Transfer application is sent to the other device as a message. To install

Transfer on the other device, open the message, and

follow the instructions on the display. If you select infrared, connect the two devices. See ‘Infrared connection’, p. 79.

Your Nokia NXX

R1114_en.book Page 10 Friday, September 16, 2005 9:36 AM

5 From your Nokia XXX, select the content you want to

copy from the other device.

Content is copied from the memory and memory card (if inserted) of the other device to the corresponding location in your Nokia XXX and memory card (if inserted). Copying time depends on the amount of data to be transferred. You can cancel copying and continue later.

Your Nokia NXX

Essential indicators

The device is being used in a GSM network.

The device is being used in a UMTS network (network

service).

You have one or more unread messages in the Inbox

folder in Messaging.

You have received new e-mail in the remote mailbox.

There are messages waiting to be sent in the Outbox

folder.

You have missed calls.

Shown if Ringing type is set to Silent and Message

alert tone, IM alert tone, and E-mail alert tone are set

to Off.

The device keypad is locked.

A clock alarm is active.

The second phone line is being used (network service).

All calls to the device are diverted to another number. If you have two phone lines (network service), the indicator for the first line is and for the second

A headset is connected to the device.

The connection to a headset with Bluetooth

connectivity has been lost.

A loopset is connected to the device.

A TTY is connected to the device.

A data call is active.

A GPRS or EDGE packet data connection is available.

A GPRS or EDGE packet data connection is active.

A GPRS or EDGE packet data connection is on hold.

A UMTS packet data connection is available.

A UMTS packet data connection is active.

A UMTS packet data connection is on hold.

Bluetooth connectivity is on.

Data is being transmitted using Bluetooth

connectivity.

A USB connection is active.

R1114_en.book Page 11 Friday, September 16, 2005 9:36 AM

An infrared connection is active. If the indicator is blinking, the device is trying to connect to the other device or the connection has been lost.

Keypad lock (keyguard)

To lock the keys, close the sliding keypad, and select Yes when Lock keypad? is displayed. To lock the keys when the slide is closed, press the power key, and select Lock

keypad.

To unlock, open the sliding keypad, or press (Unlock), and select OK when Unlock keypad? is displayed.

When the keypad lock is on, calls may be possible to the official emergency number programmed into your device.

Volume and loudspeaker control

To increase or decrease the volume level when you have an active call or are listening to a sound, press or .

The built-in loudspeaker allows you to speak and listen from a short distance without having to hold the device to your ear.

Warning: Do not hold the device near your ear

when the loudspeaker is in use, because the volume may be extremely loud.

To use the loudspeaker during a call, select Options >

Activate loudsp..

To turn off the loudspeaker, select Options > Activate

handset.

Clock

Press , and select Clock. To set a new alarm, select

Options > Set alarm. When an alarm is active, is

shown.

To turn off the alarm, select Stop, or to stop the alarm for 5 minutes, select Snooze.

If the alarm time is reached while the device is switched off, the device switches itself on and starts sounding the alarm tone. If you select Stop, the device asks whether you want to activate the device for calls. Select No to switch off the device or Yes to make and receive calls. Do not select Yes when wireless phone use may cause interference or danger.

To cancel an alarm, select Clock > Options > Remove

alarm.

Your Nokia NXX

R1114_en.book Page 12 Friday, September 16, 2005 9:36 AM

Clock settings

To change the clock settings, select Clock > Options >

Settings.

To change the time or date, select Time or Date.

To change the clock shown in the standby mode, select

Clock type > Analog or Digital.

Your Nokia NXX

To allow the mobile phone network to update the time, date, and time zone information to your device (network service), select Auto time update > On.

To change the alarm tone, select Clock alarm tone.

World clock

To open the world clock view, open Clock, and press . In the world clock view, you can view the time in different cities.

To add cities to the list, select Options > Add city. You can add a maximum of 15 cities to the list.

To set your current city, scroll to a city, and select

Options > My current city. The city is displayed in the

clock main view, and the time in your device is changed according to the city selected. Check that the time is correct and matches your time zone.

Headset

Connect a compatible headset to the Pop-Port connector of your device.

Warning: When you

use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can endanger your safety.

Wrist strap

Thread the strap as shown, and tighten it.

Memory card

You can purchase a compatible miniSD memory card and use it as extra storage space to save the memory on your device. You can also back up information from your device to the memory card.

R1114_en.book Page 13 Friday, September 16, 2005 9:36 AM

Use only compatible miniSD memory cards with this device. Other memory cards, such as Reduced Size MultiMediaCards, do not fit in the memory card slot and are not compatible with this device. Using an incompatible memory card may damage the memory card as well as the device, and data stored on the incompatible card may be corrupted.

Keep all memory cards out of the reach of small children.

Insert the memory card

1 To insert the memory

card, place your finger in the recess on top of the door of the memory card slot, and open the door.

2 Insert the memory card in

the slot. Make sure that the contact area on the card is facing up and towards the slot with the bevelled corner facing the base of the device.

3 Push the card in. You can hear a

click when the card locks into place.

4 Close the door. You cannot use

the memory card if the door is open.

Eject the memory card

1 Before you eject the card, press

the power key, and select Remove mem. card. All applications are closed.

2 When Remove memory card and press 'OK' is

displayed, open the door of the memory card slot.

3 Press the memory card to release it from the slot. 4 Remove the memory card. If the device is switched on,

select OK.

Important: Do not remove the memory card in the

middle of an operation when the card is being accessed. Removing the card in the middle of an operation may damage the memory card as well as the device, and data stored on the card may be corrupted.

Memory card tool

Press , and select Tools > Memory. You can use a miniSD memory card as extra storage space and for backing up the information in the device memory.

Your Nokia NXX

R1114_en.book Page 14 Friday, September 16, 2005 9:36 AM

To back up information from the device memory to a memory card, select Options > Backup phone mem.

To restore information from the memory card to the device memory, select Options > Restore from card.

Format a memory card

When a memory card is reformatted, all data on the card is permanently lost.

Your Nokia NXX

Some memory cards are supplied preformatted and others require formatting. Consult your retailer to find out if you must format the memory card before you can use it.

To format a memory card, select Options > Format mem.

card. Select Yes to confirm.

File manager

Many features of the device, such as contacts, messages, images, videos, ringing tones, calendar notes, documents, and downloaded applications, use memory to store data. The free memory available depends on how much data is already saved in the device memory.

You can use a memory card as extra storage space. Memory cards are rewritable, so you can delete old information and save new data on a memory card.

To browse files and folders in the device memory or on a memory card (if inserted), press , and select Tools > File

mgr.. The device memory view ( ) opens. Press to

open the memory card view ( ) (if available).

To move or copy files to a folder, press and at the same time to mark a file, and select Options > Move to

folder or Copy to folder.

To find a file, select Options > Find and the memory from which to search, and enter a search text that matches the file name.

View memory consumption

To view what types of data you have in the device and how much memory the different data types consume, select

Options > Memory details. The amount of available free

memory is shown in Free memory.

Memory low—free memory

The device notifies you if the device or the memory card memory is low.

To free device memory, transfer data to a memory card, if you have one. Mark files to be moved, and select Move to

folder > Memory card, and a folder.

R1114_en.book Page 15 Friday, September 16, 2005 9:36 AM

You can also transfer media files to a compatible PC, for example, using the transfer option in Gallery. See ‘Gallery’, p. 29.

Tip! You can use Nokia Phone Browser available in

Nokia PC Suite to view the different memories in your device and transfer data.

To remove data to free memory, use File mgr., or go to the respective application. For example, you can remove the following:

• Messages from Inbox, Drafts, and Sent folders in

Messaging

• Retrieved e-mail messages from the device memory

• Saved Web pages

• Saved images, videos, or sound files

• Contact information

•Calendar notes

• Downloaded applications. See also ‘Application

manager’, p. 98.

• Any other data that you no longer need

Useful shortcuts

Use shortcuts to quickly get the most from your device. Refer to the relevant sections in this user guide for further details of the functions.

Standby mode

• To switch between applications that are open, press and hold , and select an application. If memory is low, the device may close some applications. The device saves any unsaved data before closing an application. Leaving applications running in the background increases the demand on battery power and reduces the battery life.

• To start the camera, press and hold the capture key for more than 1 second.

• To call your voice mailbox (network service), press and hold .

• To open multimedia applications, press or press and hold . See ‘ICON- Media key’, p. 88.

• To change the profile, press , and select a profile.

• To switch between Normal and Silent profiles, press and hold . If you have two phone lines, this action switches between the two lines.

• To open the last dialed numbers list, press .

• To use voice commands, press and hold .

• To start a connection to Web, press and hold . See ‘Web’, p. 64.

For further shortcuts available in the standby mode, see ‘Active standby mode’, p. 87.

Your Nokia NXX

R1114_en.book Page 16 Friday, September 16, 2005 9:36 AM

Edit text and lists

• To mark an item in a list, scroll to it, and press and at the same time.

• To mark multiple items in a list, press and hold

while you press or . To end the selection, release

, then release .

• To copy and paste text: To select letters and words,

Your Nokia NXX

press and hold . At the same time, press or to highlight text. To copy the text to clipboard, while still holding , select Copy. To insert the text into a document, press and hold , and select Paste.

Help

Your device has context-sensitive help. When an application is open, select Options > Help to access help for the current view.

When you are reading the instructions, to switch between help and the application that is open in the background, press and hold .

To open help from the main menu, select Tools > Help. Select the desired application to view its help topics.

Tutorial

The tutorial gives you information about some of the features of your device. To access the tutorial in the menu, press , and select My own > Tutorial and the section you want to view.

R1114_en.book Page 17 Friday, September 16, 2005 9:36 AM

Camera

Your Nokia Nxx has two cameras, a high resolution camera on the back of the device, and a lower resolution camera above the main display, which is visible when the cover is opened. Both cameras can be used to take still pictures and video.

To activate the camera, open the cover, and select Camera. In the viewfinder, you can see the view to be captured. To switch between cameras, select Options > Use front

camera or back camera.

The images and video clips are automatically saved in the Gallery. The cameras produce .jpeg images. Video clips are recorded in the .3gpp file format with the .3gp file extension (Normal and Sharing video quality modes) or in the .mp4 file format (High video quality mode). See ‘Video settings’, p.17.

You can send images in a multimedia message as an e-mail attachment, or by using a Bluetooth connection.

Tip! You can insert an image into a contact card. See

‘Save names and numbers’, p.61

Your Nokia Nxx supports an image capture resolution of up to 1600 x 1200 pixels using the back camera. The image resolution in these materials may appear different.

Take pictures

If the camera is in video mode, open the image mode by selecting Options > Image mode.

To select the front camera to, for example, include yourself in the picture, select Options > Use front

camera. To use the main camera again, select Options > Use back camera.

To take a picture, press . Do not move the phone before the image is saved. The image is saved automatically in the Images&Video folder of Gallery. See ‘Gallery’, p. 29.

To view the Last image, to select Image scenes, or to adjust Flash or White balance settings before taking a picture:

• If the viewfinder is active, press or to activate the camera setup settings.

Camera

R1114_en.book Page 18 Friday, September 16, 2005 9:36 AM

•Press or to choose the item to be viewed or adjusted, and

Camera

press . The settings available depend on which camera is selected??.

• To re-activate the viewfinder, press Cancel or .

See ‘Setup settings—Adjust colour and lighting’, p. 12, and ‘Scenes’, p. 12.

Imaging mode camera indicators show the following:

• The phone memory ( ) and memory card ( ) indicators (1) show where images are saved.

• The images indicator (2) estimates how many images, depending on the selected image quality, can fit in the remaining memory of your phone or the memory card.

• The scene indicator (3) shows the active scene. See ‘Scenes’,p. 12.

Graphic: Screenshot to indicate the setup (lower) part of the screen being active.

• The flash indicator (4) shows if the flash is set to

Automatic (AF), , On (),

or Off ().

• The night mode indicator (5) shows that night mode is active.

• The self-timer indicator (6) shows that the self-timer is activated. See ‘You in the picture—selftimer’, p. 11.

• The sequence mode indicator (7) shows that the sequence mode is active. See ‘Take pictures in a sequence’, p. 11.

Press or to zoom in and zoom out. The zoom indicator, which appears on the side of the viewfinder, shows the zoom level.

Saving the captured image may take longer if you change the zoom, lighting, or colour settings.

When taking a picture, note the following:

• Keep the camera still by using both hands.

• To take images in different environments, use the proper scene for each environment. See ‘Scenes’, p. 12.

• The quality of a zoomed picture is lower than that of a non-zoomed picture.

Graphic: Screenshot to show position of the indicators (to be numbered).

R1114_en.book Page 19 Friday, September 16, 2005 9:36 AM

• The camera goes into battery saving mode if you do not make any key presses for a while. To continue taking pictures, press .

After the image is taken:

• If you do not want to keep the image, select Options >

Delete.

• To send the image Via multimedia, Via e-mail, or Via

Bluetooth, select Options > Send. For more

information, see ‘Messaging’, p. 38 and ‘Bluetooth connectivity’, p. 76. This option is not available during an active call.

• To send an image to the other party during an active call, select Options > Send to caller.

• To edit the picture, select Options > Edit. See ‘Edit images’, p. 14.

• To print the picture, select Options > Print. See ‘Image print’, p. 33.

Take pictures in a sequence

Select Options > Time lapse to set the camera to take six pictures in a sequence. You can set the time lapse to be

Fast, Med or Slow.

The pictures are automatically saved in Gallery.

You can also use the sequence mode with the

Self-timer. See ‘You in the

picture—self-timer’, p. 11.

After taking the pictures, they are shown in a grid on the main display. To view a picture, press to open it.

To return to the sequence mode viewfinder, press ????.

Graphic: Screenshot to show a grid of pictures in Gallery.

You in the picture—self-timer

Use the self-timer to delay the taking of a picture so that you can include yourself in the picture. To set the self-timer delay, select Options > Self-timer > 10

seconds, 20 seconds or 30 seconds. To activate the self-

timer, select Activate. The self-timer indicator ( ) blinks and the phone beeps when the timer is running. The camera takes the picture after the selected delay has elapsed. You can also use the Self-timer in the sequence mode. See ‘Take pictures in a sequence’, p. 11.

The flash

Keep a safe distance when using the flash. Do not use the flash on people or animals at close range. Do not cover the flash while taking a picture.

Camera

R1114_en.book Page 20 Friday, September 16, 2005 9:36 AM

The camera has an LED flashlight for low light conditions. The following flashlight modes are available: Automatic,

On, and Off.

Camera

To use the flash, press or to highlight Flash and select On.

If the flash is set to Off or Automatic during bright conditions, the flash still emits a low light when an image is captured. This allows the subject of the picture to see when the picture is taken. There is no flash effect on the resultant picture.

Setup settings—Adjust colour and lighting

To enable the camera to reproduce colours and lighting more accurately, or to add effects to your pictures or videos, select Options > Open setup and select from the following:

Video scenes/Image scenes—Select a scene which is

appropriate for the environment in which you are taking pictures. See ‘Scenes’, p. 12.

Flash (images only)—Set the flash according to the

lighting conditions. See ‘The flash’, p. 11.

White balance—Select the appropriate setting which

matches the lighting conditions. This allows the camera to reproduce colours more accurately.

Colour tone—Select the colour effect you want.

The display changes to match any settings made.

The settings return to the default settings when you close the camera. If you select a new scene, the settings are replaced by the settings of the selected scene. See ‘Scenes’, p. 12. If you need to change the setup settings, however, you can change them after selecting a scene.

The settings available will vary depending on whether you have the front or main camera selected.

Scenes

A scene helps you to obtain the correct colour and lighting settings for the current environment. Select the appropriate scene for taking pictures or recording video clips from the scenes list. The settings of each scene have been set to match a certain style or environment. Select

Options > Open setup > Video scenes/Image scenes:

Video scenes

Normal (default)—Use this scene in any conditions.

Night—Use this scene in low light conditions. The night

mode is indicated with .

Image scenes

Automatic (default)—Use this scene in any conditions.

R1114_en.book Page 21 Friday, September 16, 2005 9:36 AM

User defined—Use this scene to create a personalised

scene with your own settings.

Portrait—Use this scene to take portrait pictures, such as

head shots and sitting poses.

Landscape—Use this scene

when you take pictures of objects that are further away.

Night—Use this scene in low

light conditions. The night mode is indicated with .

Sports—Use this scene to

take pictures of fast moving objects. Note that when you use this scene, the resolution of the images is reduced from 1600x1200 to 800x600. See ‘Picture quality’, p.14.

When taking pictures, the default scene is Automatic. If you select the User defined scene however, it is set as the default scene.

To make your own scene suitable for a certain environment, select User defined scene. In the user scene you can adjust Based on mode, Flash, White balance, and

Colour tone, and Reset user scene options. To copy the

settings of another scene, select Based on mode and the desired scene.

Graphic: Screenshot to show landscape scene?? See Gromit.

Adjust still image camera settings

There are two kinds of settings for the still image camera:

Image setup settings and main settings. To adjust Image setup settings, see ‘Setup settings—Adjust colour and

lighting’, p. 12. The setup settings return to the default settings after you close the camera, but the main settings remain the same until you change them again. To change the main settings, select Options > Settings and from the following:

Image quality—High 2M - Print (resolution 1600x1200), Med 0.8M - Email (resolution 800x600) or Low 0.3M Multimedia (resolution 640x480). The better the image

quality, the more memory the image consumes. Use High

2M - Print for large prints up to 10x8in /25x20cm, Med

0.8M - Email for e-mail and prints up to 6x4in/15x10cm,

or Low 0.3M - Multimedia for use in a multimedia message. The quality of a zoomed picture is lower than that of a nonzoomed picture.

Add to album—Select whether you want to save the

image to a certain album in the gallery. If you select Yes, a list of available albums opens.

Extended zoom—Select On if you want to achieve

maximum zoom but are prepared to accept lower image resolution (this may then be lower than you have selected with the Image quality setting. If you want to limit the

Camera

R1114_en.book Page 22 Friday, September 16, 2005 9:36 AM

zoom to where the selected image resolution/quality is maintained, select On. IS THIS CORRECT??

Show captured image—Select On if you want to see the

Camera

captured image after it is taken, or Off if you want to continue taking pictures immediately.

Capture tone—Select Click or Beep as the tone you hear

when you take a picture..

Memory in use—Select where to store your images.

Edit images

To edit the pictures after taking them, or the ones already saved in Gallery, select Images & Videos > Options >

Edit, and scroll to an image.

Select Options > Apply effect to, for example, crop and rotate the image; adjust the brightness, colour, contrast, compression, and resolution; also, to add effects, text, clip art, or a frame to the picture.

To crop an image, select Options > Apply effect > Crop. A cross appears on the upper right corner of the image. Select the area to be cropped by moving the scroll key, and select Set. Another cross appears on the lower left corner. Again select the area to be cropped. The selected areas form a rectangle, which forms the cropped image.

To reduce redness of the eyes in an image, select Options >

Apply effect > Red eye reduction. Move the cross onto

the eye, and press the scroll key. A loop appears on the display. To resize the loop to fit the size of the eye, move the scroll key. Press the scroll key to reduce the redness.

To add clip art to an image, select Options > Apply

effect > Clip art. Select the item you want to add from the

list, and press the scroll key. To move, rotate, and change the size of the item, select Options > Move, Resize, or

Rotate.

To add text to an image, select Options > Apply effect >

Text. Enter the text, and select OK. To edit the text, select Options > Move, Resize, Rotate, or Colour.

Shortcuts in the image editor:

• To view an image in full screen, press . To return to the normal view, press again.

• To rotate an image clockwise or counterclockwise, press. and .

• To zoom in or zoom out, press and .

Tips on taking good photographs

Picture quality

Use the appropriate picture quality. The camera has four

picture quality settings: Fine (1600x1200), Standard

R1114_en.book Page 23 Friday, September 16, 2005 9:36 AM

(800x600), Basic (640x480) and MMS (xx??.). Use the Fine setting to make sure that the camera produces the best picture quality available. Note however, that better picture quality requires more storage space. For MMS and e-mail attachments it may be necessary one of the other settings???. To define the quality in the image mode in the camera, select Options > Settings

Background

Use a simple background. For portraits and other pictures

with people, avoid having your subject in front of a cluttered, complex background that may distract attention from the subject. Move the camera, or the subject, when these conditions cannot be met. Move the camera closer to the object to take clearer portraits.

Depth

When taking pictures of landscapes, add depth to your pictures by placing objects in the foreground. Note however, that if the foreground object is too close to the camera, it may be blurred.

Lighting conditions

Changing the source, amount, and direction of light can change photographs dramatically. Here are some typical lighting conditions:

• Light source behind the subject. Avoid placing your

subject in front of a strong light source. If the light source is behind the subject or visible in the display, the resulting picture may have weak contrast, may be too dark, and may contain unwanted lighting effects. You can use the flash to add more lighting to shadows. See ‘The flash’, p. 11.

• Sidelit subject. Strong side light gives a dramatic

effect but may be too harsh, resulting in too much contrast.

• Light source in front of the subject. Harsh sunlight

may cause the subjects to squint their eyes. The contrast may also be too high.

• Optimal lighting is found in situations where there is

plenty of diffused, soft light available; for example, on a bright, partially cloudy day or on a sunny day in the shadow of trees.

Record videos

If the camera is in image mode, select video mode by selecting Options > Video mode.

To select the front camera to, for example, include yourself in the video, select Options > Use front camera. To use the main camera again, select Options > Use back

camera.

Camera

R1114_en.book Page 24 Friday, September 16, 2005 9:36 AM

1 Press the scroll key to start recording. The record icon

is shown. The LED flash is lit, and a tone sounds,

indicating to the subject that video is being recorded.

Camera

There is no flash effect on the resultant video.

2 To pause recording at any time, select Pause. The

pause icon blinks on the display. Video recording automatically stops if recording is set to pause and there are no key presses within a minute.

3 Select Continue to resume recording. 4 Select Stop to stop recording. The video clip is

automatically saved to the Images&Video folder of

Gallery. See ‘Gallery’, p. 9.

To view the Last video clip, to select Video scenes, or to adjust White balance or Colour tone before recording a video:

• If the viewfinder is active, press or to activate the camera setup settings.

•Press or to choose the item to be viewed or adjusted, and press . The settings available depend on which camera is selected.

Graphic: Screenshot to indicate the setup (lower) part of the screen being active.

• To re-activate the viewfinder, press Cancel or .

See ‘Setup settings—Adjust colour and lighting’, p. 12, and ‘Scenes’, p. 12.

Video recorder indicators show the following - ED: WHAT ARE THE ACTUAL ISETTA ICONS?.

• The phone memory ( ) and memory card ( ) indicators (1) show where the video is saved.

• The current video length indicator (2) shows elapsed time and time remaining.

• The mode indicator (3) shows the active mode. See ‘Scenes’, p. 12.

• The microphone indicator (4) shows that the microphone is muted.

• The file format indicator (5) indicates the format of the video clip.

The zoom indicator, which appears on the side pane, shows the zoom level. Scroll up or down to zoom in or zoom out

After a video clip is recorded:

• To immediately play the video clip you just recorded, select Options > Play.

R1114_en.book Page 25 Friday, September 16, 2005 9:36 AM

• If you do not want to keep the video, select Options >

Delete.

• To return to the viewfinder to record a new video, press the scroll key.

• To send the video Via multimedia, Via e-mail, or Via

Bluetooth, select Options > Send. For more

information, see ‘Messaging’, p. 38 and ‘Bluetooth connectivity’, p. 76. This option is not available during an active call.

• To send a video clip to the other party during an active call, select Options > Send to caller.

• To edit the video, select Options > Edit. See also ‘Edit video clips’ on p.18.

Video settings

There are two kinds of settings for the video recorder: video setup settings and main settings. To adjust video setup settings, see ‘Setup settings—Adjust colour and lighting’, p.

12. The setup settings return to the default settings after

you close the camera, but the main settings remain the same until you change them again. To change the main settings, select Options > Settings and from the following:

Audio recording—Select On if you want to record both

image and sound.

Video quality—Set the quality of the video clip to High, Normal, or Sharing. The quality is indicated with one of

the following icons: (High), (Normal), or (Sharing). If you select High or Normal, the length of the video recording is restricted by the available space on your memory card, and up to 1 hour per clip. If you want to view the video on a TV or PC, select High video quality, which has CIF resolution (352x288) and file format .mp4. You cannot send video clips saved in the .mp4 format in a multimedia message. If you want to view the clip in mobile phones, select Normal, which has QCIF resolution (176x144) and file format .3gp. To send the video clip through MMS, or send it through video sharing, select

Sharing (QCIF resolution, file format .3gp). See ‘Video

sharing (network service)’, p. 54. The video clip is limited to 300 kB (approximately 20 seconds in duration) so that it can be conveniently sent as a multimedia message to a compatible device. Some networks, however, may only support sending of multimedia messages with a maximum size of 100 kB. Contact your service provider for more information.

Add to album—Select Yes to save the recorded video clip

to a particular album in Gallery.

Show captured video—Select Off to record a video clip

immediately after another. Your videos are not played after being recorded, and the video recorder is ready for use again.

Camera

R1114_en.book Page 26 Friday, September 16, 2005 9:36 AM

Default video name—Select Date or Text as the default

name for videos you record.

Capture tone—Select Click or Beep as the default name

Camera

for videos you record.

Memory in use—Choose the default memory store: phone

memory or memory card.

Edit video clips

You can edit video clips in Gallery. See ‘Gallery’, p.9.

To edit video clips and create custom video clips, scroll to a video clip, and select Options > Edit. You can create custom video clips by combining and trimming video clips, and adding images, sound clips, transitions, and effects. Transitions are visual effects that you can add to the beginning and end of the video or between the video clips.

In the video editor you can see two timelines: video clip timeline and sound clip timeline. If you add images, text, or transitions to a video clip, they are shown on the video clip timeline. To move on the timelines, press or . To switch between the timelines, press or .

Edit video, sound, image, text, and transitions

To create custom video clips, mark and select one or more video clips, and select Options > Edit.

In the Edit video view, you can insert video clips to make a custom video clip, and edit the clips by trimming and adding effects. You can add images and sound clips and change their duration, and also add text and images to the clip.

To modify the video, select from the following options:

Edit video clip:

Cut—Trims the video clip in the Cut video clip view.

Add colour effect—Inserts a colour effect in the video clip.

Use slow motion—Slows the speed of the video clip.

Mute audio/Unmute audio—Mutes or unmutes the

original video clip sound.

Move—Moves the video clip to the selected location on the

timeline.

Remove—Removes the video clip from the video.

Duplicate—Makes a copy of the selected video clip.

Edit text (shown only if you have added text)—To move,

remove or duplicate text; change the colour and style of

R1114_en.book Page 27 Friday, September 16, 2005 9:36 AM

the text; define how long it stays on the screen; and add effects to the text.

Edit image (shown only if you have added an image)—To

move, remove or duplicate an image; define how long it stays on the screen; and set a background or a colour effect to the image.

Edit audio clip:

Cut—Trims the sound clip in the Cut sound clip view.

Move—Moves the sound clip to the selected location on

the timeline.

Remove—Removes the sound clip from the video.

Duplicate—Makes a copy of

the selected sound clip.

Change duration—Changes

the length of the sound clip.

Edit transition—There are

three types of transitions: at the start of a video, at the end of a video, and transitions between video clips. A start transition can be selected when the first transition of the video is active.

Insert:

Video clip—Inserts the selected video clip. A thumbnail of

the video clip is shown in the main view. A thumbnail consists of the first non-black frame of the video clip. The name and length of the selected video clip is also shown.

Image—Inserts the selected image. A thumbnail of the

image is shown in the main view.

Text—Inserts text to the video clip. You can insert a title,

subtitle, or credits.

Audio clip—Inserts the selected sound clip. The name and

length of the selected sound clip is shown in the main view.

New audio clip—Records a new sound clip to the selected

location.

Movie—To preview the movie in full screen or as a

thumbnail, save or send the movie, or cut the movie to a suitable size for sending it in a multimedia message.

Tip! To take a snapshot of a video clip, select

Options > Take snapshot in the thumbnail Preview

view or in the Cut video view.

To save your video, select Options > Movie > Save. To define the Memory in use, select Options > Settings. The default is the phone memory.

Tip! In the Settings view, you can define Default

video name, Default snapshot name, Save quality,

and Memory in use.

Camera

R1114_en.book Page 28 Friday, September 16, 2005 9:36 AM

Select Send > Via multimedia, Via e-mail, or Via

Bluetooth if you want to send the video. Contact your

service provider for details of the maximum multimedia message size that you can send. If your video is too large

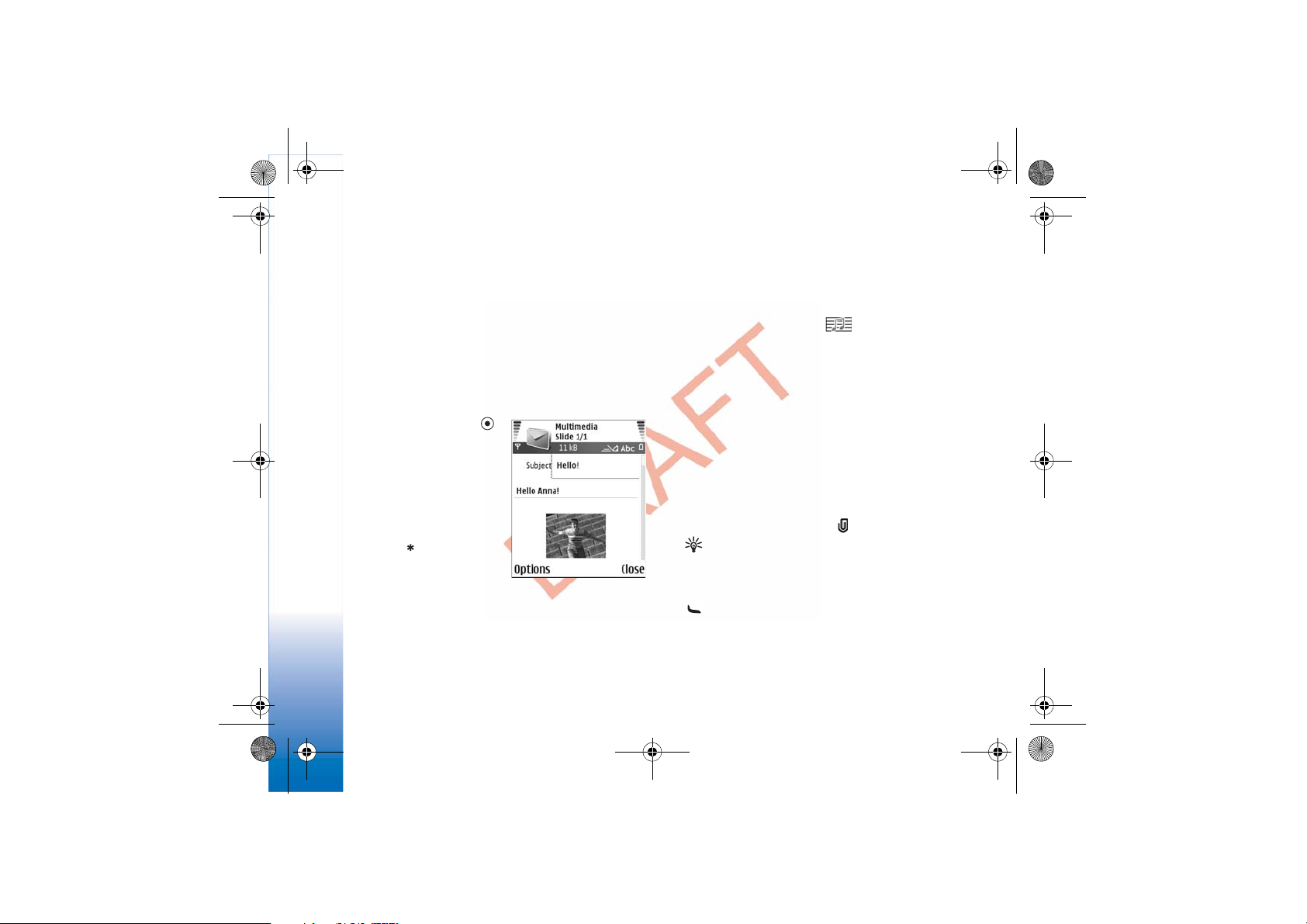

Camera

to be sent in a multimedia message, the symbol appears.

Tip! If you want to send a video clip that is over the

maximum multimedia message size allowed by your service provider, you can send the clip using Bluetooth. See ‘Send data using Bluetooth connectivity’, p. 78. You can also transfer your videos using Bluetooth into your Bluetooth-enabled personal computer, or by using a memory card reader (enhancement).

R1114_en.book Page 29 Friday, September 16, 2005 9:36 AM

Gallery

To store and organise your images, video clips, sound clips, playlists, and streaming links, press , and select Gallery. > Images&Video. To open the gallery from the Camera application, select Options > Go to Gallery. In Camera, only the Images & video folder is available.

Tip! To switch from Gallery to the camera, select

Camera from the Images & video folder.

.Select Images&Video ,

Tracks , Sound clips

, Links ,

Presentations , or All files , and press to

open it..

You can browse and open folders, mark, copy, and move items to folders and albums. Sound clips, video clips, .ram files, and streaming links are opened and played in the RealPlayer application. See ‘RealPlayer™’, p. 34. You can also create albums; and mark, copy, and add items to albums. See ‘Albums’, p. 11.

Tip! You can transfer images from your device to a

compatible PC with Nokia Phone Browser available in Nokia PC Suite. See the CD-ROM supplied with your phone.

Press to open a file. Videos, music, and sound clips open in RealPlayer. See ‘View images and video clips’, p.

10.

To copy or move files to the memory card or to phone memory, select a file and Options > Organise > Copy to

memory card/Move to memory card or Copy to phone mem./Move to phone mem..

Files stored on the memory card are indicated with .

To reduce the size of files that you have already copied to other locations (such as a PC) and so increase free memory space, in the Images&vidos folder select a file and

Options > Free memory.

To download files into Gallery in one of the main folders using the browser, select Graphic downls. or Video

downlds., Track downlds., or Sound downlds.

browser opens, and you can select a bookmark from which the site can download.

. The

Gallery

R1114_en.book Page 30 Friday, September 16, 2005 9:36 AM

View images and video clips

Pictures taken and video clips recorded with the camera

Gallery

are stored in the Images&Video folder in Gallery. The quality of a video clip is indicated with one of the following icons: (High), (Normal), and (Low) and

(Sharing). Images and video clips can also be sent to you in a multimedia message, as an e-mail attachment, or through a Bluetooth connection. To be able to view a received image or video clip in the gallery or in the media player, you must save it in the phone memory or on a memory card.

Open the Images&Video folder in Gallery. The images and video clip files are in a loop, and ordered by date. To browse individual files, press or . To browse files in groups, press or .

To edit a photo or a video clip, select Options > Edit. An image editor or a video editor opens.

To add an image or a video clip to an album in the gallery, select Options > Albums. > Add to album. See ‘Albums’, p. 11.

To create custom video clips, select a video clip, or several clips, in the gallery, and select Options > Edit.. See ‘Edit video clips’, p. 26.

To print your images on a printer connected to your phone, or to store them on your MMC for printing, select

Options > Print. See ‘Image print’, p. 33.

To zoom an image, select Options > Zoom in or Zoom out. The zooming ratio is at the top of the display. The zooming ratio is not stored permanently.

Slide show

Use Slide show to view images and video clips in the full screen mode. Select from the following:

• Start—to start the slide show.

• Play—to open the RealPlayer application.

• Pause—to pause the slide show

• Continue—to resume the slide show

• End—to close the slide show.

Press (faster) or (slower) to adjust the Tempo. Press (previous) or (next) to browse the thumbnails.

To add sound to the slide show, in the Images&Video folder, select Options > Slide show > Music settings and from the following:

• Music—Select On, or Off.

• Track—Select a music file from the list.

• Volume—Press to decrease the volume, or to

increase the volume.
