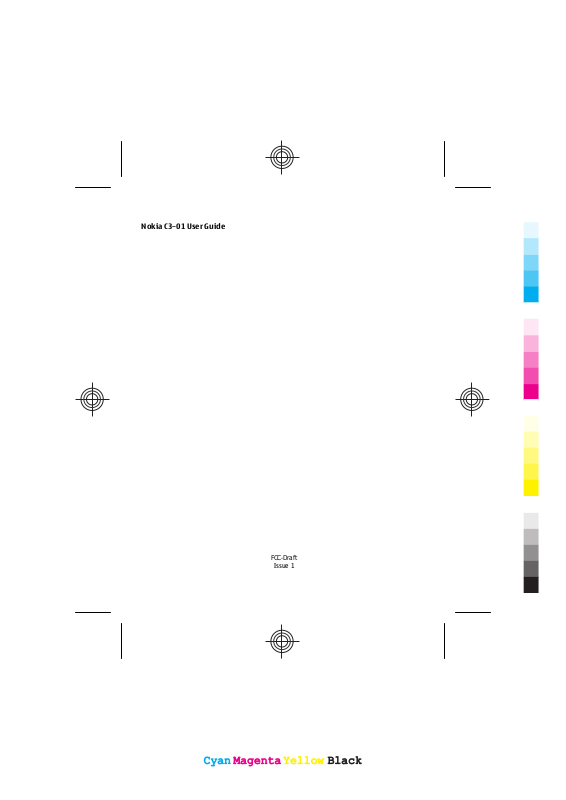

Nokia C3–01 User Guide
FCC-Draft
Issue 1
2 |
Contents |
|
|
|
|
|
|
|
|
Back up your pictures and other content |
|
Contents |
|
||||
|
|
|
|
to a memory card |
13 |
|
|
|
|
|
|
Safety |
4 |
|
Telephone |
14 |
|
|
|
|
|
Make a call |
14 |
Get started |
5 |
|
View your missed calls |
14 |
|
Keys and parts |
5 |
|
Call the last dialled number |
14 |
|
Insert the SIM card and battery |
5 |
|
Divert calls to your voice mailbox or |
|
|
Insert or remove a memory card |
6 |
|
another phone number |
15 |
|
Charge the battery |
6 |
|
Save a number from a received call or |
|
|
Charge the battery over USB |
7 |
|
message |
15 |
|
GSM antenna |
7 |
|
About internet calls |
15 |
|
Attach a strap |
7 |
|
Make an internet call |
15 |
|
|
|
|
|
Make a conference call |
16 |
Switch it on |
8 |
|
Allow calls only to certain numbers |
16 |
|
Network services and costs |
8 |
|
Prevent making or receiving calls |
16 |
|
Access codes |
8 |
|
|
|
|
Switch the device on or off |
8 |
|
Contacts |
17 |
|
Lock the keys and screen |
8 |
|
Save a name and phone number |
17 |
|
Touch screen actions |
9 |
|
Use speed dial |
17 |
|
Touch screen settings |
9 |
|
Send your contact information |
18 |
|
Interactive home screen elements |
10 |
|
Create a contact group |
18 |
|
Change the volume of a call, song, or |
10 |
|
Move or copy contacts to your SIM |
18 |
|
video |
|
|
card |
||
Indicators |
10 |
|
|
|
|
Copy contacts or pictures from your old |
|
Write text |
19 |
||
device |
10 |
|
Switch between text input modes |
19 |
|
|
|
|
|
Traditional text input |
19 |
Functions without a SIM card |
11 |
||||
|
|
|
|
Predictive text input |
19 |
Use your device offline |
11 |
||||
|
|
|
|
|
|
Flashlight |
11 |
|
|
|
|
|
|
|
|
Messaging |
20 |
|
|
|
|
Send a message |
20 |
Device management |
12 |
||||
Support |
12 |
|
Send a message to a group of |
|
|
My Nokia |
12 |
|
people |
20 |
|
|
Save an attachment |
20 |
|||
Update device software using your |
|
|
|||
device |
12 |
|
View a conversation |
21 |
|
|
|
|
|
Listen to voice messages |
21 |
Update device software using your |
|
||||
PC |
|
13 |
|
Send an audio message |
21 |
Restore original settings |
13 |
|
|
|
|
Organise files |
13 |
|
Nokia Messaging mail and IM |
22 |
www.nokia.com/support
|
|
|
Contents |
3 |
|
About Nokia Messaging mail |
22 |
|
|
|
|
|
Pictures and videos |
34 |
|
||
Sign in to a mail account |
22 |
|
Take a picture |
34 |
|
Send a mail |
22 |
|
Record a video |
34 |
|
Read and reply to mail |
22 |
|
Send a picture or video |
34 |
|
About Chat |
22 |
|
Photos |
34 |
|
Sign in to a chat service |
23 |
|
Print a picture |
35 |
|
Chat with your friends |
23 |
|
|
|
|
Hide the Chat application |
23 |
|
Music and audio |
35 |
|
|
|
|
Media player |
35 |
|
Personalisation |
24 |
|
FM radio |
37 |
|
About the home screen |
24 |
|
Use voice recorder |
38 |
|
Add a shortcut to the home screen |
24 |
|
|
|
|
Add your important contacts to the |
|
|
Web |
38 |
|
home screen |
24 |
|
About the web browser |
38 |
|
|
|
|
Browse the web |
38 |
|
Personalise the Go to menu |
24 |
||||
|
|
|
Clear browsing history |
38 |
|
Personalise the home screen |
25 |
||||
|
|
|
|
|
|
Change the look of your device |
25 |
|
|
|
|
Create your own profile |
25 |
|
Games and applications |
39 |
|
|
About games and applications |
39 |
|
||
Personalise your tones |
25 |
|
|
||
|
Improve your gaming experience |
39 |
|
||
|
|
|
|
||
Connectivity |
26 |
|
Download a game or application |
39 |
|
Bluetooth |
26 |
|
About Communities |
40 |
|
|
|
|
Use the calculator |
40 |
|
USB data cable |
28 |
||||
|
|
|
Convert currency and |
|
|
Connect to a WLAN |
28 |
|
|
||
|
|
|
measurements |
40 |
|
Nokia's Ovi services |
30 |
|
|
|
|
Ovi by Nokia |
30 |
|
Protect your device |
41 |
|
Access Nokia's Ovi services |
30 |
|
Lock your device |
41 |
|
|
Password protect your memory |
|
|
||
About Nokia Ovi Suite |
31 |
|
|
|
|
Install Nokia Ovi Suite on your PC |
31 |
|
card |
41 |
|
|
Format a memory card |
42 |
|
||
Ovi Player |
31 |
|
|
||
|
Prepare your device for recycling |
42 |
|
||
|
|
|
|
||
Time management |
32 |
|
|
|
|
Change the time and date |
32 |
|
Green tips |
43 |
|
|
Save energy |
43 |
|
||
Set an alarm |
32 |
|
|
||
|
Recycle |
43 |
|
||
Snooze an alarm |
32 |
|
|
||
|
|
|
|
||
Time your workout |
32 |
|
|
|
|
Set the countdown timer |
32 |
|
Product and safety information |
43 |
|
|
|
|
|
||
Calendar |
33 |
|
|
|
|
|
Index |
49 |
|
||
Make a shopping list |
33 |
|
|
||
|
|
|
|
www.nokia.com/support
4 Safety
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
KEEP YOUR DEVICE DRY
Your device is not waterresistant. Keep it dry.
PROTECT YOUR HEARING
Listen to a headset at a
moderate level, and do not hold
the device near your ear when the loudspeaker is in use.
BATTERIES AND OTHER ACCESSORIES
Use only batteries, chargers and other accessories approved by Nokia for use with this device. Do not connect incompatible products.
www.nokia.com/support
Get started |
5 |
Get started
Keys and parts
1Earpiece
2Display
3Call key
4Microphone
5End key
6Keypad
7Nokia AV connector (3.5 mm)
8Micro USB connector
9Volume up key
10Volume down key
11Keylock button
12Camera key
13Loudspeaker
14Camera flash
15Camera lens
16Charger connector
Insert the SIM card and battery
Note: Switch the device off and disconnect the charger and any other device before removing any covers. Avoid touching electronic components while changing any covers. Always store and use the device with any covers attached.
This device is intended for use with a BL-5CT battery. Always use original Nokia batteries.
The SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting, or removing the card.
1Slide the cover, and remove it. If the battery is inserted, lift the battery out.
2Insert a SIM card. Make sure the contact area of the card is facing down.
www.nokia.com/support
6 Get started
3Line up the contacts of the battery and the battery compartment, and insert the battery. To replace the back cover, direct the top locking catches toward their slots, and slide the cover, until it locks into place.
Insert or remove a memory card
Use only compatible memory cards approved by Nokia for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card.
Your device supports memory cards with a capacity of up to 16 GB.
Insert a memory card
1 Remove the back cover.
2Make sure the contact area of the card is facing down. Push the card in, until you hear a click.
3Replace the back cover.
Remove the memory card Important: Do not remove the memory
card when an application is using it. Doing so may damage the memory card and the device, and corrupt data stored on the card.
You can remove or replace the memory card without switching the device off.
1Remove the back cover.
2Push the card in, until you hear a click, and pull the card out.
3Replace the back cover.
Charge the battery
Your battery has been partially charged at the factory, but you may need to recharge it before you can switch on your device for the first time.
If the device indicates a low charge, do the following:
1Connect the charger to a wall outlet.
2Connect the charger to the device.
3When the device indicates a full charge, disconnect the charger from the device, then from the wall outlet.
www.nokia.com/support
Get started |
7 |
You do not need to charge the battery for a specific length of time, and you can use the device while it is charging.
If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be made.
If the battery has not been used for a long time, to begin charging, you may need to connect the charger, then disconnect and reconnect it.
Charging the device while listening to the radio may affect the quality of reception.
Charge the battery over USB
Battery low, but you don't have a charger with you? You can use a compatible USB cable to connect to a compatible device, such as a computer.
To avoid breaking the charger connector, be careful when connecting or disconnecting the charger cable.
Charging over USB can take longer to start, and may not work if you connect through a non-powered USB hub. Your device charges more quickly when connected to a wall outlet.
If connected to a computer, you can synchronise your device while charging.
GSM antenna
The figure shows the GSM antenna area marked in grey.
Avoid touching the antenna area unnecessarily while the antenna is transmitting or receiving. Contact with antennas affects the communication quality and may cause a higher power level during operation and may reduce the battery life.
Attach a strap
www.nokia.com/support
8 Switch it on
Switch it on
Network services and costs
Your device is approved for use on the GSM 850/900/1800/1900 MHz networks and WCDMA 850/900/1900/2100 MHz networks. To use the device, you need a subscription with a service provider.
Using network services and downloading content to your device may result in data traffic costs. Some product features require support from the network, and you may need to subscribe to them.
Access codes
PIN code — This code protects your SIM card against unauthorised use. The PIN code (4 - 8 digits) is usually supplied with the SIM card.
PIN2 code — This code (4 - 8 digits) is supplied with some SIM cards, and is required to access some functions in your device.
If you forget an access code, contact the network service provider whose SIM card is in your device. After three consecutive incorrect PIN or PIN2 code entries, the code is blocked, and you need the PUK code to unblock it.
PUK code and PUK2 code — These codes (8 digits) are required to change a blocked PIN code or PIN2 code, respectively. If the codes are not supplied with the SIM card, contact the network service provider whose SIM card is in your device.
IMEI number — This number (15 or 17 digits) is used to identify valid devices in the GSM network. Devices that are, for example, stolen, can be blocked from
accessing the network. The IMEI number for your device can be found under the battery.
Lock code (also known as security
code) — The lock code helps you to protect your device against unauthorised use. You can create and change the code, and set the device to request the code. Keep the new code secret and in a safe place separate from your device. If you forget the code and your device is locked, your device will require service. Additional charges may apply, and all the personal data in your device may be deleted. For more information, contact a Nokia Care Point or your device dealer.
Switch the device on or off
Press and hold the power key .
You may be prompted to get the configuration settings from your service provider (network service). For more information, contact your service provider.
Lock the keys and screen
To avoid accidentally making a call when your device is in your pocket or bag, lock the keys and screen of your device.
Press the keylock button .
www.nokia.com/support
Switch it on |
9 |
Unlock the keys and screen
Press the keylock button , and select
Unlock.
Touch screen actions
To interact with the touch screen user interface, tap or tap and hold the touch screen.
Open an application or other screen element
Tap the application or element.
Access item-specific options
Tap and hold the item. A pop-up menu with available options opens.
Scroll in a list or menu
Place your finger on the screen, slide it quickly up or down the screen, and then lift your finger. The content of the screen scrolls with the speed and direction it had at the moment of release. To select an item from a scrolling list and to stop the movement, tap the item.
Swipe
Place a finger on the screen, and steadily slide your finger in the desired direction.
For example, when you are viewing a picture, to view the next picture, swipe left. To quickly browse through your pictures, swipe the screen quickly, and then scroll left or right through the thumbnails.
Touch screen settings
Calibrate the touch screen and activate vibration feedback.
Select Menu >Settings >Phone > Touch settings.
Calibrate the touch screen
Select Scr. calibration, and follow the instructions.
www.nokia.com/support
10 Switch it on
Activate vibration feedback Select Vibration feedb. >On.
When you tap an icon, the device gives a short vibration feedback.
Interactive home screen elements
The home screen elements are interactive. For example, you can change the date and time, set alarms, or write calendar entries directly in the home screen.
Set an alarm
Select the clock (1).
View or edit your schedule
Select the date (2).
Change the volume of a call, song, or video
Use the volume keys.
The built-in loudspeaker allows you to speak and listen from a short distance without having to hold the device to your ear.
Activate the loudspeaker during a call
Select Loudsp..
|
|
Indicators |
|
|
You have unread messages. |
|
You have unsent, cancelled, |
|
or failed messages. |
|
The keypad is locked. |
|
The device does not ring for |
|
incoming calls or text |
|
messages. |
/ |
An alarm is set. |
The device is registered to the |
|
/ |
GPRS or EGPRS network. |
A GPRS or EGPRS connection is |
|
/ |
open. |
The GPRS or EGPRS connection |
|
|
is suspended (on hold). |
|
The device is registered to a |
|
3G (UMTS) network. |
|
The device is registered to a |
|
3.5G (HSDPA) network. |
|
Bluetooth is activated. |
|
WLAN is activated. |
|
If you have two phone lines, |
|
the second line is in use. |
|
All incoming calls are diverted |
|
to another number. |
|
Calls are limited to a closed |
|
user group. |
|
The currently active profile is |
|
timed. |
|
A headset is connected to the |
|
device. |
|
The device is connected to |
|
another device, using a USB |
|
data cable. |
Copy contacts or pictures from your old device
Want to copy important information from your previous compatible Nokia device and start using your new device quickly? Use the Phone switch application to copy,
www.nokia.com/support
Switch it on 11
for example, contacts, calendar entries, and pictures to your new device, free of charge.
Select Menu >Settings >Sync & backup.
Both devices must have Bluetooth activated.
1Select Phone switch >Copy to this.
2Select the content to copy and Done.
3Select your previous device from the list. If the device is not listed, make sure Bluetooth is activated in the device.
4If the other device requires a passcode, enter the passcode. The passcode, which you can define yourself, must be entered in both devices. The passcode in some devices is fixed. For details, see the user guide of the device.
The passcode is valid only for the current connection.
5If prompted, allow connection and copying requests.
Functions without a SIM card
Some functions of your device may be used without inserting a SIM card, such as Organiser functions and games. Some functions appear dimmed in the menus and cannot be used.
Use your device offline
In places where you are not allowed to make or receive calls, you can activate the flight profile and play games or listen to music.
Select Menu >Settings >Profiles. Select Flight >Activate.
indicates that the flight profile is active.
Tip: You can add a profiles shortcut to the shortcut widget in the home screen.
Warning:
When the flight profile is activated, you cannot make or receive any calls, including emergency calls, or use other features that require network coverage. To make a call, activate another profile.
Flashlight
The camera flash can be used as a flashlight. To switch the flashlight on or off, in the home screen, press and hold .
Do not shine the flashlight in anyone's eyes.
www.nokia.com/support
|
|
to use the service. Text message charges |
Device management |
||
|
|
apply when you send messages to sign up |
Support |
|
or unsubscribe. For terms and conditions, |
When you want to learn more about how |
|
see the documentation supplied with |
to use your product or you are unsure how |
|
your device, or go to www.nokia.com/ |
your device should function, go to |
|
mynokia. |
www.nokia.com/support, or using a |
|
|
|
Update device software using your |
|
mobile device, nokia.mobi/support. |
|
|
If this does not resolve your issue, do one |
|
device |
|
Want to improve the performance of your |
|
of the following: |
|
device and get application updates and |
|
|
great new features? Update the software |
|
|
regularly to get the most out of your |
|
|
device. You can also set your device to |
|
|
automatically check for updates. |
My Nokia
Select Menu >Applications >Extras > Collection >My Nokia.
My Nokia is a free service that regularly sends you text messages containing tips, tricks, and support for your Nokia device. It also allows you to browse the My Nokia site where you can find details about Nokia devices and download tones, graphics, games, and applications.
To use the My Nokia service, it must be available in your country and supported by your service provider. You must sign up
Select Menu >Settings.
1Select Phone >Phone updates.
2To display the current software version and check whether an update is available, select Curr. sw details.
www.nokia.com/support
Device management 13
3To download and install a software update, select Downl. ph. sw. Follow the instructions.
4If the installation was cancelled after the download, select Install sw update.
The software update may take several minutes. If there are problems with the installation, contact your service provider.
Check for software updates automatically
Select Auto sw update, and define how often to check for new software updates.
Your service provider may send device software updates over the air directly to your device (network service).
Update device software using your PC
You can use the Nokia Software Updater PC application to update your device software. To update your device software, you need a compatible PC, a high-speed internet connection, and a compatible USB data cable to connect your device to the PC.
To get more information and to download the Nokia Software Updater application, go to www.nokia.com/softwareupdate, or in Latin America, www.nokialatinoamerica.com/nsu.
Restore original settings
If your device is not working properly, you can reset some settings to their original values.
1 End all calls and connections.
2Select Menu >Settings and Rest. fact. sett. >Settings only.
3Enter the security code.
This does not affect documents or files stored on your device.
After restoring the original settings, your device switches off and then on again. This may take longer than usual.
Organise files
You can move, copy, delete, or create new files and folders in your device memory or on the memory card. If you organise your files into their own folders, it might help you find the files in future.
Select Menu >Applications >Gallery.
Create a new folder
In the folder where you want to create a sub-folder, select Options >Add folder.
Copy or move a file to a folder
Select and hold the file, and from the popup menu, select the appropriate option.
Tip: You can also play music or videos, or view pictures in Gallery.
Back up your pictures and other content to a memory card
Want to make sure you will not lose any important files? You can back up your device memory to a compatible memory card.
Select Menu >Settings >Sync & backup.
Select Create backup.
www.nokia.com/support
14 Telephone
Restore a backup Select Restore backup.
Telephone
Make a call
1Enter the phone number, including the country and area code if necessary.
2Press the call key.
Answer an incoming call
Press the call key.
End a call
Press the end key.
Reject a call
Press the end key.
View your missed calls
In the home screen, you can see when you have missed calls. To view the phone number, select View. The caller's name is displayed if stored in the contacts list.
Missed and received calls are logged only if supported by the network, and the device is switched on and within the network service area.
Call back the contact or number
Select the contact or number, and press the call key.
View the missed calls later
Select Menu >Contacts >Log and Missed calls.
Call the last dialled number
Trying to call someone, but they are not answering? It is easy to call them again.
www.nokia.com/support
Telephone 15
In the home screen, press the call key, select the number from the list, and press the call key again.
Divert calls to your voice mailbox or another phone number
When you cannot answer, you can divert your calls to your voice mailbox or to another number (network service).
1Select Menu >Settings and Call > Call divert.
2Select If busy or If not answered.
3Select Activate and To voice mailbox or To other number.
Save a number from a received call or message
Have you received a call or message from a person whose phone number is not yet saved in the contacts list? You can easily save the number to your contacts.
Save a number from a received call
1Select Menu >Contacts >Log and Received calls.
2Select the number and Options >
Save.
3Enter a name for the contact, and select Save.
Save a number from a received message
1Select Menu >Messaging.
2Select Conversations or Inbox and a message.
3Press the call key.
4Select the number and Save.
5Enter a name for the contact, and select Save.
Tip: To add a new number to an existing contact, select the number and Add to contact.
About internet calls
You can make and receive calls over the internet (network service). Internet call services may support calls between computers, between mobile devices, and between a VoIP device and a traditional telephone.
Some internet call service providers allow free internet calls. For availability and connectivity costs, contact your internet call service provider.
To make or receive an internet call, you must be in the service area of a WLAN or have a packet data (GPRS) connection in a 3G network, and be signed in to an internet call service.
Make an internet call
When you are signed into an internet call service, you can make internet calls.
For availability and costs of internet calls, contact your internet call service provider.
The Net phone wizard helps you set up your account. Have your account information from your internet call service provider available before you start the wizard.
Set up your internet telephone account
1Make sure a valid SIM card is inserted, and that your device is connected to a WLAN.
www.nokia.com/support
16 |
Telephone |
2Select Menu >Settings and Connectivity >Internet phone > Accounts.
3Select Add new.
4Select an account and Connect, and follow the instructions.
When the wizard has finished, your account is displayed in the accounts list.
If the internet telephone settings do not work, contact your service provider.
Call a contact
1Select Menu >Contacts and a contact.
2Select Internet call.
Call a phone number
Enter the phone number, and select
Options >Internet call.
For emergency calls, only the cellular network is used.
Make a conference call
For availability, contact your service provider.
1While in a call, select Options >
More >New call.
2Enter a phone number, or search for a contact.
3Press the call key.
4When both calls are active, select
Options >Conference.
5To end the conference call, select
Options >End all calls.
Allow calls only to certain numbers
With the fixed dialling service (network service), you can restrict calls, and only allow calls to certain phone numbers. For example, you can only allow calls to family members.
Select Menu >Settings and Security.
1Select Fixed dialling >On.
2Enter your PIN2 code.
3Add the desired numbers to the list of allowed numbers.
Tip: If you want to send a text message while the fixed dialling service is active, you need to add the message centre number to the list of allowed numbers.
Prevent making or receiving calls
Keep your phone bill under control by preventing certain types of calls (network service). You can prevent, for example, incoming calls while you're abroad.
Select Menu >Settings and Security. To prevent calls, you need a barring password from your service provider.
www.nokia.com/support
