Microsoft RM-635 User Manual

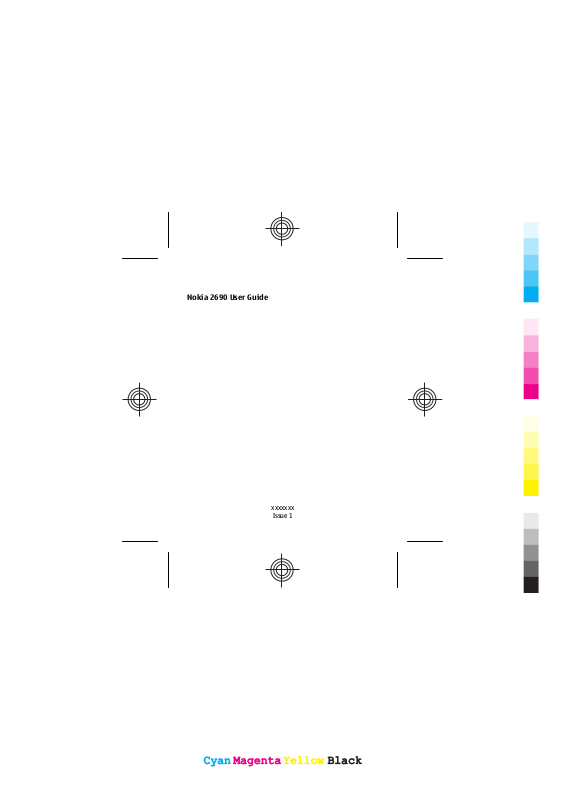

Nokia 2690 User Guide
Cyan
Magenta
Yellow
Black
xxxxxxx
Issue 1
Cyan
Magenta
Yellow
Black
2Contents
Cyan
Magenta
Yellow
Black
Contents
Safety 5
Get started 7
Insert SIM card and
battery 7
Remove the SIM card 8
Insert a microSD card 8
Remove the microSD
card 9
Charge the battery 10
Antenna 11
Headset 11
Magnets and magnetic
fields 12
Keys and parts 12
Switch on and off 13
Standby mode 13
Keypad lock 14
Functions without a SIM
card 15
Applications running in
background 15
General
information 16
About your device 16
Network services 17
Shared memory 18
Access codes 19
Nokia support 20
Calls 21
Make and answer a
call 21
Loudspeaker 21
Dialling shortcuts 21
Write text 22
Text modes 22
Traditional text input 23
Predictive text input 23
Navigate the
menus 24
Messaging 24
Text and multimedia
messages 24
E-mail 27
Cyan
Magenta
Yellow
Black
Contents 3
Cyan
Magenta
Yellow
Black
Flash messages 28
Nokia Xpress audio
messages 29
Instant messaging 29
Voice messages 30
Message settings 30
Contacts 31
Call log 32
Settings 33
Profiles 33
Tones 33
Display 34
Date and time 34
Shortcuts 34
Synchronisation and
backup 35
Connectivity 35
Calls and phone 38
Voice commands and
voice dialling 39
Enhancements 40
Configuration 40
Restore factory
settings 41
Operator menu 42
Gallery 42
Media 43
Camera and video 43
FM radio 45
Voice recorder 46
Music player 46
Applications 47
Organiser 48
Alarm clock 48
Calendar and to-do
list 49
Web or Internet 49
Connect to a web
service 50
SIM services 51
Green tips 51
Cyan
Magenta
Yellow
Black
4Contents
Cyan
Magenta
Yellow
Black
Save energy 51
Recycle 52
Learn more 52
Accessories 53
Battery 53
Battery and charger
information 53
Nokia battery
authentication
guidelines 54
Care and
maintenance 56
Recycle 57
Additional safety
information 57
Small children 57
Operating
environment 57
Medical devices 58
Vehicles 58
Potentially explosive
environments 59
Emergency calls 60
Certification information
(SAR) 60
Index 62
Cyan
Magenta
Yellow
Black
Safety 5
Cyan
Magenta
Yellow
Black
Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel,
chemicals, or blasting areas.
Cyan
Magenta
Yellow
Black
6Safety
Cyan
Magenta
Yellow
Black
QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
Cyan
Magenta
Yellow
Black
Get started 7
Cyan
Magenta
Yellow
Black
Get started
Insert SIM card and battery
Safe removal. Always switch the device off and disconnect
the charger before removing the battery.
The SIM card and its contacts can be easily damaged by
scratches or bending, so be careful when handling,
inserting, or removing the card.
1 Press and slide the back cover towards the bottom of
the phone, and remove it (1).
2 Remove the battery (2).
3 Insert the SIM card into the holder with the contact
surface facing down (3).
4 Insert the battery (4), and replace the back cover (5).
Cyan
Magenta
Yellow
Black
8Get started
Cyan
Magenta
Yellow
Black
Remove the SIM card
Insert a microSD card
Use only compatible microSD cards approved by Nokia for
use with this device. Nokia uses approved industry
standards for memory cards, but some brands may not be
fully compatible with this device. Incompatible cards may
damage the card and the device and corrupt data stored
on the card.
Your phone supports microSD cards with a capacity of up
to 8 GB.
A compatible memory card may be supplied with the
device, and may already be inserted in the device. If not,
do the following:
Cyan
Magenta
Yellow
Black
Get started 9
Cyan
Magenta
Yellow
Black
1 Open the cover of the memory card slot.
2 Insert the card into the memory card slot with the
contact surface facing up, and press until it locks into
place.
3 Close the cover of the memory card slot.
Remove the microSD card
Important: Do not remove the memory card during an
operation when the card is being accessed. Doing so may
damage the memory card and the device, and corrupt data
stored on the card.
Cyan
Magenta
Yellow
Black
10 Get started
Cyan
Magenta
Yellow
Black
You can remove or replace the memory card during phone
operation without switching the device off, but you need
to ensure that no application is currently accessing the
memory card.
Charge the battery
Your battery has been partially charged at the factory. If
the device indicates a low charge, do the following:
1 Connect the charger to a wall outlet.
2
Connect the charger to the device.
3 When the device indicates a full charge, disconnect the
charger from the device, then from the wall outlet.
You do not need to charge the battery for a specific length
of time, and you can use the device while it is charging. If
the battery is completely discharged, it may take several
Cyan
Magenta
Yellow
Black
Get started 11
Cyan
Magenta
Yellow
Black
minutes before the charging indicator appears on the
display or before any calls can be made.
Antenna
Your device may have internal and external antennas.
Avoid touching the antenna area unnecessarily while the
antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may
cause a higher power level during operation and may
reduce the battery life.
The figure shows the antenna area marked in grey.
Headset
Warning:
When you use the headset, your ability to hear outside
sounds may be affected. Do not use the headset where it
can endanger your safety.
When connecting any external device or any headset, other
than those approved by Nokia for use with this device, to
Cyan
Magenta
Yellow
Black
12 Get started
Cyan
Magenta
Yellow
Black
the Nokia AV Connector, pay special attention to volume
levels.
Do not connect products that create an output signal as
this may cause damage to the device. Do not connect any
voltage source to the Nokia AV Connector.
Magnets and magnetic fields
Keep your device away from magnets or magnetic fields.
Keys and parts
Earpiece
1
2 Display
3 Selection keys
4 Navi™ key; hereafter
referred to as scroll key
5 Call key
6 Keypad
7
End/Power key
Cyan
Magenta
Yellow
Black
Get started 13
Cyan
Magenta
Yellow
Black
8 Charger connector
9 Headset connector (3.5
mm)
10 Camera lens
11 Microphone
12 Loudspeaker
13 Memory card slot
14 Wrist strap eyelet
15 Micro USB connector
Switch on and off
Press and hold the power key.
Standby mode
When the phone is ready for use, and you have not entered
any characters, the phone is in the standby mode.
Cyan
Magenta
Yellow
Black
14 Get started
Cyan
Magenta
Yellow
Black
1 Network signal strength
2 Battery charge level
3 Network name or operator logo
4 Functions of selection keys
The left selection key, Go to, allows you to access the
functions in your personal shortcut list. When viewing the
list, select Options > Select options to view the available
functions, or select Options > Organise to arrange the
functions in your shortcut list.
Keypad lock
To prevent accidental keypresses, select Menu, and press
* within 3.5 seconds to lock the keypad.
Cyan
Magenta
Yellow
Black
Get started 15
Cyan
Magenta
Yellow
Black
To unlock the keypad, select Unlock, and press * within 1.5
seconds. If the security keyguard is on, enter the security
code when requested.
To set the keypad to lock automatically after a preset time
when the phone is in the standby mode, select Menu >
Settings > Phone > Automatic keyguard > On.
To answer a call when the keypad is locked, press the call
key. When you end or reject the call, the keypad locks
automatically.
When the device or keypad is locked, calls may be possible
to the official emergency number programmed into your
device.
Functions without a SIM card
Some functions of your phone may be used without
inserting a SIM card, such as Organiser functions and
games. Some functions appear dimmed in the menus and
cannot be used.
Applications running in background
Leaving applications running in the background increases
the demand on battery power and reduces the battery life.
Cyan
Magenta
Yellow
Black
16 General information
Cyan
Magenta
Yellow
Black
General information
About your device
The wireless device described in this guide is approved for
use on the (E)GSM 850, 900, 1800, and 1900 MHz
networks. Contact your service provider for more
information about networks.
When using the features in this device, obey all laws and
respect local customs, privacy and legitimate rights of
others, including copyrights.
Copyright protection may prevent some images, music,
and other content from being copied, modified, or
transferred.
Your device may have preinstalled bookmarks and links for
third-party internet sites. You may also access other thirdparty sites through your device. Third-party sites are not
affiliated with Nokia, and Nokia does not endorse or
assume liability for them. If you choose to access such sites,
you should take precautions for security or content.
Cyan
Magenta
Yellow
Black
General information 17
Cyan
Magenta
Yellow
Black
Warning:
To use any features in this device, other than the alarm
clock, the device must be switched on. Do not switch the
device on when wireless device use may cause interference
or danger.
Remember to make back-up copies or keep a written
record of all important information stored in your device.
When connecting to any other device, read its user guide
for detailed safety instructions. Do not connect
incompatible products.
The images in this guide may differ from your device
display.
Network services
To use the device you must have service from a wireless
service provider. Many of the features require special
network features. These features are not available on all
networks; other networks may require that you make
specific arrangements with your service provider before
you can use the network services. Using network services
involves transmission of data. Check with your service
provider for details about fees in your home network and
when roaming on other networks. Your service provider
can give you instructions and explain what charges will
Cyan
Magenta
Yellow
Black
18 General information
Cyan
Magenta
Yellow
Black
apply. Some networks may have limitations that affect
how you can use network services. For instance, some
networks may not support all language-dependent
characters and services.
Your service provider may have requested that certain
features be disabled or not activated in your device. If so,
these features will not appear on your device menu. Your
device may also have a special configuration such as
changes in menu names, menu order, and icons. Contact
your service provider for more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that
run on TCP/IP protocols. Some features of this device, such
as multimedia messaging (MMS), browsing, and e-mail
application, require network support for these
technologies.
Shared memory
The following features in this device may share memory:
multimedia messaging (MMS), e-mail application, instant
messaging. Use of one or more of these features may
reduce the memory available for the remaining features
sharing memory. Your device may display a message that
the memory is full when you try to use a shared memory
feature. In this case, delete some of the information or
entries stored in the shared memory features before
continuing.
Cyan
Magenta
Yellow
Black
General information 19
Cyan
Magenta
Yellow
Black
Access codes
The security code helps to protect your device against
unauthorised use. The preset code is 12345. You can create
and change the code, and set the device to request the
code. Keep the code secret and in a safe place separate
from your device. If you forget the code and your device is
locked, your device will require service. Additional charges
may apply, and all the personal data in your device may be
deleted. For more information, contact a Nokia Care point
or your device dealer.
The PIN code supplied with the SIM card protects the card
against unauthorised use. The PIN2 code supplied with
some SIM cards is required to access certain services. If you
enter the PIN or PIN2 code incorrectly three times in
succession, you are asked for the PUK or PUK2 code. If you
do not have them, contact your service provider.
The module PIN is required to access the information in the
security module of your SIM card. The signing PIN may be
required for the digital signature. The barring password is
required when using the call barring service.
To set how your device uses the access codes and security
settings, select Menu > Settings > Security.
Cyan
Magenta
Yellow
Black
20 General information
Cyan
Magenta
Yellow
Black
Nokia support
Check www.nokia.com/support or your local Nokia
website for the latest version of this guide, additional
information, downloads, and services related to your
Nokia product.
Configuration settings service
Download free configuration settings such as MMS, GPRS,
e-mail, and other services for your phone model at
www.nokia.com/support.
Nokia PC Suite
You may find PC Suite and related information on the Nokia
website at www.nokia.com/support.
Nokia Care services
If you need to contact Nokia Care services, check the list of
local Nokia Care contact centres at www.nokia.com/
customerservice.
Maintenance
For maintenance services, check your nearest Nokia Care
point at www.nokia.com/repair.
Cyan
Magenta
Yellow
Black
Loading...
