Microsoft RM-627 User Manual

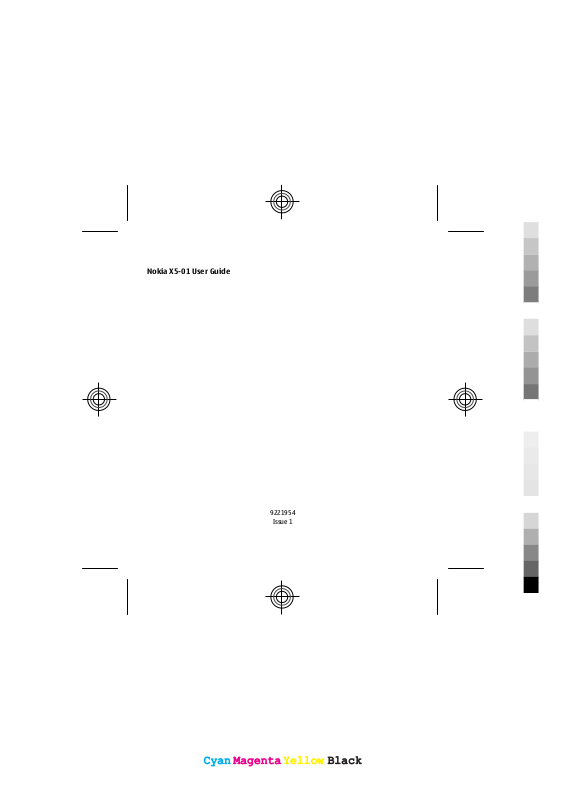

Nokia X5-01 User Guide
Cyan
Magenta
Yellow
Black
9221954
Issue 1
Cyan
Magenta
Yellow
Black
2Contents
Cyan
Magenta
Yellow
Black
Contents
Safety 4
About your device 4
Network services 6
Shared memory 6
About Digital Rights Management 6
1. Get started 8
Keys and parts 8
Insert SIM card and battery 9
Memory card 10
Antenna locations 11
Switch the device on and off 11
Charge the battery 12
Keypad lock (keyguard) 13
Volume control 14
Copy content from your old
device 14
Visit Ovi by Nokia 15
2. Your device 16
Home screen 16
Write text 16
3. Personalise your device 18
Profiles 18
Select ringing tones 19
Change the display theme 20
4. Make calls 20
Make a call 20
Answer or reject a call 21
Voice mail 21
5. Contacts 22
Stay connected with your online
friends 22
Save and edit names and
numbers 22
6. Messaging 22
Write and send messages 22
Check the number of unread
messages 24
Set up your e-mail 25
About Chat 25
Ovi Contacts 25
7. Music and audio 27
Music key 27
Music player 27
Ovi Music 29
8. Images and videos 30
Camera 30
Share online 30
9. Connectivity 31
Wireless LAN 31
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Bluetooth 34
Cyan
Magenta
Yellow
Black
10. Find help 37
Support 37
Keep your device software up to
date 38
In-device help 40
Extended user guide 40
Access codes 40
11. Green tips 41
Save energy 41
Recycle 42
Product and safety
information 42
Index 50
Contents 3
www.nokia.com/support
Cyan
Magenta
Yellow
Black
4Safety
Cyan
Magenta
Yellow
Black
Safety
Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on
when wireless phone use is
prohibited or when it may
cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always
keep your hands free to
operate the vehicle while
driving. Your first
consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be
susceptible to interference,
which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions.
Switch the device off in
aircraft, near medical
equipment, fuel, chemicals,
or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may
install or repair this product.
ACCESSORIES AND BATTERIES
Use only approved
accessories and batteries. Do
not connect incompatible
products.
WATER-RESISTANCE
Your device is not waterresistant. Keep it dry.
About your device
The wireless device described in this
guide is approved for use on the (E)GSM
850, 900, 1800, and 1900 networks, and
UMTS 900, 1900, and 2100 HSDPA and
HSUPA networks. Contact your service
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Safety 5
Cyan
Magenta
Yellow
Black
provider for more information about
networks.
Your device supports several
connectivity methods and like
computers may be exposed to viruses
and other harmful content. Exercise
caution with messages, connectivity
requests, browsing, and downloads.
Only install and use services and
software from trustworthy sources that
offer adequate security and protection,
such as applications that are Symbian
Signed or have passed the Java
Verified™ testing. Consider installing
antivirus and other security software on
your device and any connected
computer.
Your device may have preinstalled
bookmarks and links for third-party
internet sites and may allow you to
access third-party sites. These are not
affiliated with Nokia, and Nokia does
not endorse or assume liability for
them. If you access such sites, take
precautions for security or content.
Warning:
To use any features in this device, other
than the alarm clock, the device must be
switched on. Do not switch the device
on when wireless device use may cause
interference or danger.
When using this device, obey all laws
and respect local customs, privacy and
legitimate rights of others, including
copyrights. Copyright protection may
prevent some images, music, and other
content from being copied, modified, or
transferred.
Make back-up copies or keep a written
record of all important information
stored in your device.
When connecting to any other device,
read its user guide for detailed safety
instructions. Do not connect
incompatible products.
The images in this guide may differ from
your device display.
Refer to the user guide for other
important information about your
device.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
6Safety
Cyan
Magenta
Yellow
Black
Network services
To use the device you must have service
from a wireless service provider. Some
features are not available on all
networks; other features may require
that you make specific arrangements
with your service provider to use them.
Network services involve transmission
of data. Check with your service provider
for details about fees in your home
network and when roaming on other
networks. Your service provider can
explain what charges will apply. Some
networks may have limitations that
affect how you can use some features of
this device requiring network support
such as support for specific technologies
like WAP 2.0 protocols (HTTP and SSL)
that run on TCP/IP protocols and
language-dependent characters.
Your service provider may have
requested that certain features be
disabled or not activated in your device.
If so, these features will not appear on
your device menu. Your device may also
have customized items such as menu
names, menu order, and icons.
Shared memory
The following features in this device
may share memory: multimedia
messaging (MMS), e-mail application,
instant messaging, for example. Use of
one or more of these features may
reduce the memory available for the
remaining features. If your device
displays a message that the memory is
full, delete some of the information
stored in the shared memory.
About Digital Rights Management
When using this device, obey all laws
and respect local customs, privacy and
legitimate rights of others, including
copyrights. Copyright protection may
prevent you from copying, modifying, or
transferring images, music, and other
content.
Content owners may use different types
of digital rights management (DRM)
technologies to protect their
intellectual property, including
copyrights. This device uses various
types of DRM software to access DRMprotected content. With this device you
can access content protected with
WMDRM 10 and OMA DRM 2.0. If certain
DRM software fails to protect the
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Safety 7
Cyan
Magenta
Yellow
Black
content, content owners may ask that
such DRM software's ability to access
new DRM-protected content be revoked.
Revocation may also prevent renewal of
such DRM-protected content already in
your device. Revocation of such DRM
software does not affect the use of
content protected with other types of
DRM or the use of non-DRM-protected
content.
Digital rights management (DRM)
protected content comes with an
associated licence that defines your
rights to use the content.
If your device has OMA DRM-protected
content, to back up both the licence and
the content, use the backup feature of
Nokia Ovi Suite.
Other transfer methods may not
transfer the licences which need to be
restored with the content for you to be
able to continue the use of OMA DRMprotected content after the device
memory is formatted. You may also
need to restore the licence in case the
files on your device get corrupted.
If your device has WMDRM-protected
content, both the licence and the
content will be lost if the device memory
is formatted. You may also lose the
licence and the content if the files on
your device get corrupted. Losing the
licence or the content may limit your
ability to use the same content on your
device again. For more information,
contact your service provider.
Some licences may be connected to a
specific SIM card, and the protected
content can be accessed only if the SIM
card is inserted in the device.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
8Get started
Cyan
Magenta
Yellow
Black
1. Get started
Keys and parts
1 Ambient light sensor
2 Display
3 Navi™ key (scroll key)
4 Left selection key
5 Home key
6 Call key
7 Microphone
8 Earpiece
9 Volume/Zoom keys
10 Right selection key
11 Music key
12 End/Power key
13 Keyboard
14 Nokia AV connector (3.5 mm)
15 Camera flash
16 Micro USB / Charger connector
17 Wrist strap hole
18 Camera lens
Note: The surface of this device does
not contain nickel in the platings. The
surface of this device contains stainless
steel.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
During extended operation such as high
Cyan
Magenta
Yellow
Black
speed data connection and extensive
WLAN usage, the device may feel warm.
In most cases, this condition is normal.
If you suspect the device is not working
properly, take it to the nearest
authorised service facility.
Insert SIM card and battery
Safe removal. Always switch the device
off and disconnect the charger before
removing the battery.
1 To release the back cover, pull and
hold the release button.
2 While holding the release button,
lift the back cover.
Get started 9
3 Remove the battery, if inserted.
4 To unlock the SIM card holder, push
it to the right.
5 Lift the SIM card holder up.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
10 Get started
Cyan
Magenta
Yellow
Black
6 Slide the SIM card into the SIM card
holder. Make sure the contact area
of the card is facing down.
7 Push the holder down, and to lock
it, push it to the left.
8 Line up the battery contacts with
the battery compartment
connectors, and insert the battery.
9 Replace the back cover.
Memory card
Use only compatible microSD cards
approved by Nokia for use with this
device. Nokia uses approved industry
standards for memory cards, but some
brands may not be fully compatible with
this device. Incompatible cards may
damage the card and the device and
corrupt data stored on the card.
Insert a memory card
A memory card may already be inserted
in the device. If not, do the following:
Cyan
Magenta
Yellow
www.nokia.com/support
Black
1 To release the memory card holder,
Cyan
Magenta
Yellow
Black
push the holder to the direction
indicated by the arrow on the
holder.
2 Lift the memory card holder up.
3 Slide a compatible memory card
into the memory card holder. Make
sure the contact area of the card is
facing down.
4 Push the memory card holder down.
5 To lock the memory card holder,
push the holder to its original
position.
Remove the memory card
1 Switch the device off.
2 Remove the back cover and the
battery.
3 Remove the memory card from the
memory card holder.
Antenna locations
Your device may have internal and
external antennas. Avoid touching the
antenna area unnecessarily while the
antenna is transmitting or receiving.
Contact with antennas affects the
communication quality and may cause
a higher power level during operation
and may reduce the battery life.
Get started 11
Switch the device on and off
Press and hold the power key to switch
the device on and off. Briefly pressing
this key ends an active call or closes an
application.
If the device asks for a PIN code, enter
the PIN code, and select OK.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
12 Get started
Cyan
Magenta
Yellow
Black
If the device asks for the lock code, enter
the lock code, and select OK. The factory
setting for the lock code is 12345.
To set the correct time zone, time, and
date, select the country you are
presently in, then enter the local time
and date.
Charge the battery
Your battery has been partially charged
at the factory, but you may need to
recharge it before you can switch on
your device for the first time.
If the device indicates a low charge, do
the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full
charge, disconnect the charger from
the device, then from the wall
outlet.
To avoid breaking the charger
connector, be careful when connecting
or disconnecting the charger cable.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
You do not need to charge the battery
Cyan
Magenta
Yellow
Black
for a specific length of time, and you can
use the device while it is charging. If the
battery is completely discharged, it may
take several minutes before the
charging indicator appears on the
display or before any calls can be made.
Charge over USB
1 Use a compatible USB cable to
connect to a compatible device,
such as a computer.
2 If your device is switched on, when
prompted, select a USB mode.
Get started 13
If connected to a computer, you can
synchronise your device while charging.
Charging over USB can take longer to
start, and may not work if you connect
through a non-powered USB hub. Your
device charges more quickly when
connected to a wall outlet.
Keypad lock (keyguard)
To unlock the keypad, open the slide, or
select Unlock, then quickly select OK.
Select Menu > Ctrl. panel > Settings
and General.
To set the device to lock the keypad
when you close the slide, select Slide
handling > Keyguard activation.
To set the device to automatically lock
the keypad after a certain length of
time, select Security > Phone and SIM
card > Keypad autolock period >
User defined, and select the desired
time.
When the device or keypad is locked,
calls may be possible to the official
emergency number programmed into
your device.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
14 Get started
Cyan
Magenta
Yellow
Black
Volume control
To adjust the earpiece or loudspeaker
volume during a call or when listening
to an audio file, use the volume keys.
To activate or deactivate the
loudspeaker during a call, select
Loudsp. or Handset.
Warning:
Continuous exposure to high volume
may damage your hearing. Listen to
music at a moderate level, and do not
hold the device near your ear when the
loudspeaker is in use.
Copy content from your old device
You can use the Switch application to
copy content such as phone numbers,
addresses, calendar items, and images
from your previous compatible Nokia
device to your new device.
Copy content for the first time
1 To retrieve data from the other
device for the first time, on your
device, select Menu > Ctrl.
panel > Switch.
2 Pair the two devices. To have your
device search for devices with
Bluetooth connectivity, select
Continue. Select the device from
which you want to transfer content.
You are asked to enter a code on
your device. Enter a code (1-16
digits), and select OK. Enter the
www.nokia.com/support
Cyan
Magenta
Yellow
Black
Get started 15
Cyan
Magenta
Yellow
Black
same code on the other device, and
select OK. The devices are now
paired.
If your old Nokia device does not
have the Switch application, your
new device sends it in a message.
Open the message in the old device,
and follow the instructions on the
display.
3 On your device, select the content
you want to transfer from the other
device.
When the transfer has started, you
can cancel it and continue later.
Content is transferred from the memory
of the other device to the corresponding
location in your device. The transfer
time depends on the amount of data to
be transferred.
The type of content that can be
transferred depends on the model of the
device from which you want to transfer
content. If that device supports
synchronisation, you can also
synchronise data between the devices.
Your device notifies you if the other
device is not compatible.
Visit Ovi by Nokia
With Ovi by Nokia, you can find
new places and services, and stay in
touch with your friends. You can do, for
example, the following:
• Create a mail account
• Plan trips and view locations on a
map
• Download games, applications,
videos, and ringing tones to your
device
• Purchase music
The available services may vary by
country or region, and not all languages
are supported.
To access Nokia's Ovi services, go to
www.ovi.com, and register your own
Nokia account.
For more information, go to
www.ovi.com/support.
www.nokia.com/support
Cyan
Magenta
Yellow
Black
16 Your device
Cyan
Magenta
Yellow
Black
2. Your device
Home screen
About home screen
The home screen is your starting point
where you can collect all your important
contacts and application shortcuts.
When you have switched on the device,
and it is registered to a network, the
device is in the home screen view.
Use the scroll key to navigate in the
home screen.
Depending on your home screen theme,
your home screen may include the
following:
• Contacts bar
• Application plug-ins
• Application shortcuts
• Notification area
To customise application plug-ins and
shortcuts, or to change the home screen
theme, select Menu > Ctrl. panel >
Settings and General >
Personalisation > Standby mode and
the appropriate option. You may not be
able to change all shortcuts.
Write text
The available input methods may vary.
Use the keyboard
1 Function key
2 Shift key
3 Sym key
4 Backspace key
5 Enter key
6 Ctrl key
Switch between the different
character cases
To change between the upper and lower
case modes, press the shift key twice. To
enter a single upper case letter in lower
case mode, or vice versa, press the shift
key once, and then the desired alphabet
key.
Cyan
Magenta
Yellow
www.nokia.com/support
Black
Loading...
