Microsoft RM-551, RM-559 User Manual

2009-07-10 19:9:15 P3987 user guide publication 1

Nokia xxx User Guide

Issue draft 10 July 2009

2009-07-10 19:9:15 P3987 user guide publication 1

DECLARATION OF CONFORMITY

www.nokia.com/phones/declaration_of_conformity/.

Hereby, NOKIA CORPORATION declares that this RM-559 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://

Nokia, Nokia Connecting People, Nokia Care, and XpressMusic are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Symbian OS are trademarks of Symbian Ltd.

Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.

This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http:// www.mpegla.com.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

THE CONTEN TS OF T HIS DOC UMENT ARE PRO VIDED " AS IS" . EXCEP T AS REQ UIRED BY APPL ICABL E LAW, N O WARR ANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

Reverse engineering of any software in the Nokia device is prohibited to the extent permitted by applicable law. Insofar as this user guide contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall likewise limit any representations, warranties, damages and liabilities of Nokia's licensors. The third-party applications provided with your device may have been created and may be owned by persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility for end-user support, functionality of the applications, or the information in the applications or these materials. Nokia does not provide any warranty for the third-party applications. BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED

2009-07-10 19:9:15 P3987 user guide publication 1

AS IS WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS. The availability of particular products and applications and services for these products may vary by region. Please check with your Nokia dealer for details and availability of language options. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. Th is device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.

Model number: xxx

/Issue draft 10 July 2009 EN

2009-07-10 19:9:15 P3987 user guide publication 1

Safety...........................................7

About your device......................................7

Network services.......................................8

1. Get started...............................9

Keys and parts............................................9

Insert the SIM card and battery.............10

Charge the battery..................................11

Switch the device on...............................12

Lock the keys and touch screen.............12

Home screen............................................13

Media key.................................................14

Access the menu......................................14

Touch screen actions...............................14

Change the ringing tone.........................15

Support.....................................................15

Open Ovi with your device......................16

2. Find help................................16

In-device help..........................................16

Use your PC to update device

software...................................................16

Settings.....................................................17

Access codes.............................................17

Prolong battery life.................................17

Free memory............................................18

3. Your device............................19

Welcome...................................................19

Transfer content......................................19

Display indicators....................................20

Volume and loudspeaker control...........21

Shortcuts..................................................21

Antenna locations...................................22

Contacts bar.............................................22

Offline profile...........................................23

Sensor settings and display rotation.. . .23

Headset.....................................................23

Remove the SIM card...............................24

Attach a wrist strap.................................24

Remote lock.............................................25

4. Make calls..............................25

Proximity sensor......................................25

Voice calls ................................................25

During a call.............................................25

Voice mailbox .........................................26

Answer or reject a call.............................26

Make a conference call............................27

Speed dial a phone number...................27

Call waiting..............................................27

Voice dialling...........................................28

Make a video call.....................................28

During a video call...................................29

Answer or reject a video call..................29

Video sharing...........................................30

Log ...........................................................32

5. Write text..............................33

Automatic input modes..........................34

Virtual keyboard......................................34

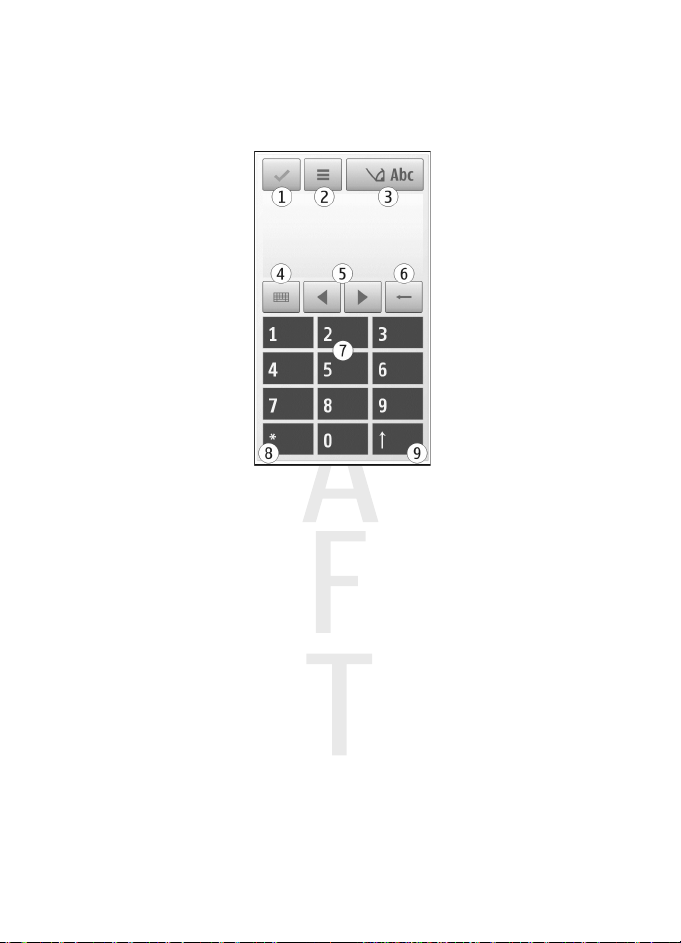

Alphanumeric keypad.............................35

Touch input settings...............................36

6. Contacts.................................37

Save and edit names and numbers.......37

Contacts toolbar......................................37

Manage names and numbers.................37

Default numbers and addresses............37

Ringing tones, images, and call text for

contacts....................................................38

Copy contacts...........................................38

SIM services..............................................38

7. Messaging..............................39

Messaging main view.............................39

Write and send messages.......................40

Messaging inbox......................................41

Set up e-mail............................................42

Mailbox.....................................................42

Mail for Exchange....................................43

View messages on a SIM card................44

Cell broadcast messages.........................44

Service commands..................................45

Messaging settings..................................45

Instant messaging...................................46

2009-07-10 19:9:15 P3987 user guide publication 1

8. Personalise your device........47

Change the look of your device..............47

Profiles......................................................47

9. Music folder...........................48

Music player.............................................48

Nokia Music Store....................................50

Nokia Podcasting.....................................50

Radio.........................................................52

10. Gallery.................................52

View and organise files...........................53

View images and videos.........................53

Organise images and videos..................54

TV-out mode............................................54

11. Camera.................................55

Activate the camera................................55

Image capture.........................................55

Video recording.......................................59

12. Positioning (GPS).................61

About GPS.................................................61

Assisted GPS (A-GPS)................................61

Hold your device correctly......................62

Tips on creating a GPS connection........62

Position requests.....................................63

Landmarks................................................63

GPS data...................................................63

Positioning settings................................63

13. Maps....................................64

About Maps..............................................64

Network positioning...............................65

Move on a map........................................65

Display indicators....................................65

Find locations...........................................65

Plan a route..............................................66

Save and send locations.........................66

View your saved items............................66

Synchronise your favourite locations

with Ovi Maps..........................................67

Your search history..................................67

Walk to your destination........................67

Drive to your destination........................68

Contents

Traffic and safety.....................................68

Maps settings...........................................69

Internet settings......................................69

Navigation settings.................................69

Route settings..........................................70

Map settings.............................................70

Synchronisation settings........................71

Update maps............................................71

14. Connectivity.........................71

Data connections and access points......71

Network settings.....................................72

Wireless LAN ...........................................72

Access points............................................74

Active data connections..........................78

Synchronisation.......................................79

Bluetooth connectivity............................79

USB............................................................82

PC connections.........................................83

Administrative settings..........................83

15. Share online........................84

About Share online..................................84

Subscribe to services...............................84

Manage your accounts............................85

Create a post............................................85

Post files from Gallery ............................85

16. Nokia Video Centre..............85

View and download video clips.............86

Video feeds...............................................86

My videos..................................................87

Transfer videos from your PC.................87

Video centre settings..............................87

17. Web browser.......................88

Browse the web.......................................88

Browser toolbar.......................................89

Navigate pages........................................90

Web feeds and blogs...............................90

Widgets....................................................90

Content search.........................................90

Download and purchase items..............91

Bookmarks...............................................91

Empty the cache......................................92

2009-07-10 19:9:15 P3987 user guide publication 1

Contents

Connection security.................................92

18. Search..................................92

About Search............................................92

Start a search...........................................92

19. Download!...........................93

About Download!.....................................93

Purchase and download items..............93

20. Other applications...............94

Clock..........................................................94

Calendar....................................................94

File manager............................................95

Application manager...............................96

Software updates over the air...............98

RealPlayer ................................................99

Recorder.................................................100

Write notes............................................100

Calculator...............................................100

Converter................................................101

Dictionary...............................................101

21. Settings.............................101

Phone settings.......................................101

Call settings............................................107

22. Troubleshooting................108

Accessories..............................112

Potentially explosive environments....116

Emergency calls.....................................117

Certification information (SAR)............117

Index.......................................119

Battery.....................................112

Battery and charger information.........112

Nokia battery authentication

guidelines..............................................113

Care and maintenance............113

Recycle....................................................114

Additional safety

information.............................115

Small children........................................115

Operating environment........................115

Medical devices......................................115

Vehicles..................................................116

2009-07-10 19:9:15 P3987 user guide publication 1

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

SWITCH ON SAFELY

Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect performance.

SWITCH OFF IN RESTRICTED AREAS

Follow any restrictions. Switch the device off in aircraft, near medical equipment, fuel, chemicals, or blasting areas.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

WATER-RESISTANCE

Your device is not water-resistant. Keep it dry.

GLASS PARTS

The front cover of the device is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel.

About your device

The wireless device described in this guide is approved for use on the UMTS 900, 1900, 2100 networks and GSM 850, 900, 1800, 1900 networks. Contact your service provider for more information about networks.

Your device supports several connectivity methods and like computers may be exposed to viruses and other harmful content. Exercise caution with messages, connectivity requests, browsing, and downloads. Only install and use services and software from trustworthy sources that offer adequate security and protection, such as applications

2009-07-10 19:9:15 P3987 user guide publication 1

Safety

that are Symbian Signed or have passed the Java Verified™ testing. Consider installing antivirus and other security software on your device and any connected computer.

Your device may have preinstalled bookmarks and links for third-party internet sites and may allow you to access third-party sites. These are not affiliated with Nokia, and Nokia does not endorse or assume liability for them. If you access such sites, take precautions for security or content.

Warning: To use any features in this device, other than the alarm clock, the

device must be switched on. Do not switch the device on when wireless device use may cause interference or danger.

When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights. Copyright protection may prevent some images, music, and other content from being copied, modified, or transferred.

Make back-up copies or keep a written record of all important information stored in your device.

When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products.

The images in this guide may differ from your device display. Refer to the user guide for other important information about your device.

Network services

To use the device you must have service from a wireless service provider. Some features are not available on all networks; other features may require that you make specific arrangements with your service provider to use them. Network services involve transmission of data. Check with your service provider for details about fees in your home network and when roaming on other networks. Your service provider can explain what charges will apply. Some networks may have limitations that affect how you can use some features of this device requiring network support such as support for specific technologies like WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols and language-dependent characters.

Your service provider may have requested that certain features be disabled or not activated in your device. If so, these features will not appear on your device menu. Your device may also have customized items such as menu names, menu order, and icons.

2009-07-10 19:9:15 P3987 user guide publication 1

1. Get started

Keys and parts

1 – Earpiece

2 – Touch screen

3 – Menu key

4 – Call key

5 – Light sensor

6 – Secondary camera

7 – Media key

8 – Proximity sensor

9 – End key

10 – Power key

11 – Charger connector

12 – Nokia AV Connector (3.5 mm)

13 – Micro USB connector

14 – Volume/Zoom key

15 – Camera lens

16 – Lock switch

17 – Capture key

18 – Microphone

19 – Camera flash

20 – Loudspeakers

21 – SIM card slot cover

During extended operation such as an active video call and high speed data connection, the device may feel warm. In most cases, this condition is normal. If you suspect the device is not working properly, take it to the nearest authorised service facility.

2009-07-10 19:9:15 P3987 user guide publication 1

Get started

Do not cover the area above the touch screen, for example, with protective film or tape.

Insert the SIM card and battery

Insert the SIM card

Important: To prevent damage to the SIM card, always remove the battery before

you insert or remove the card.

1. Remove the back cover.

2. If the battery is inserted, remove the battery.

Always switch the device off and disconnect the charger before removing the battery.

3. Open the cover of the SIM card slot.

4. Insert a SIM card in the slot. Ensure that the contact

area on the card is facing up and the bevelled corner is facing toward the device. Push the card in.

2009-07-10 19:9:15 P3987 user guide publication 1

Get started

5. Close the cover of the SIM card slot. Ensure that the cover is

properly closed.

If the SIM card is not properly in place, the device can only be used in the offline profile.

Insert the battery

1. Insert the battery.

2. To replace the cover, direct the top locking catches toward

their slots, and press down until the cover locks into place.

See "Remove the SIM card", p. 24.

Charge the battery

Your battery has been partially charged at the factory. If the device indicates a low charge, do the following:

1. Connect the charger to a wall outlet.

2. Connect the charger to the device.

2009-07-10 19:9:15 P3987 user guide publication 1

Get started

3. When the device indicates a full charge, disconnect the charger from the device, then from the wall outlet.

You do not need to charge the battery for a specific length of time, and you can use the device while it is charging. If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be made.

Tip: Disconnect the charger from the wall outlet when the charger is not in use. A charger that is connected to the outlet consumes power even when it is not connected to the device.

Switch the device on

1. Press and hold the power key.

2. If the device asks for a PIN code or lock code, enter it, and select OK. To delete a number, select setting for the lock code is 12345.

3. Select your location. If you accidentally select the wrong location, select Back.

4. Enter the date and time. When using the 12-hour time format, to switch between a.m. and p.m., select any number.

. The factory

Lock the keys and touch screen

To lock or unlock the touch screen and the keys, slide the lock switch on the side of the device.

2009-07-10 19:9:15 P3987 user guide publication 1

Get started

When the touch screen and keys are locked, the touch screen is switched off and the keys are inactive.

The screen and keys may be locked automatically after a period of inactivity. To change settings for automatic screen and key locking, select Menu > Settings and Phone >

Phone mgmt. > Auto. keyguard > Keypad autolock period.

Home screen

The home screen is your starting point where you can collect all your important contacts or application shortcuts.

Interactive display elements

To open the clock application, select the clock (1).

To open the calendar, or to change the profile, select the date or the profile name (2).

To vi ew or mod if y c onn ec ti vity se tt ing s ( wireless LANs (WLAN) if WLAN scanning is enabled, or to view missed events, select the top right corner (3).

To make a phone call, select Telephone or

To open the contacts list, select Contacts or

To open the main menu, press the menu key (6).

), to view the available

(4).

(5).

Start using the contacts bar

To start using the contacts bar, and to add your contacts to the home screen, select the instructions.

> Options > New contact, and follow

Change the home screen theme

To change the home screen theme or the shortcuts, select Menu > Settings and Personal > Home screen.

Swipe to unlock

To unlock the device display, press the power key briefly, and swipe the display. You can also swipe a locked display to answer a call, stop a calendar alarm, or stop or snooze a clock alarm. Follow the visual cues.

Music keys

When music or the radio is playing in the background, music keys (play/pause, skip backward, and skip forward) are displayed in the home screen.

2009-07-10 19:9:15 P3987 user guide publication 1

Get started

Media key

To access applications such as the music player or browser, select the media key ( application.

Tip: Hold your finger on the icon to see the name of the application. To open the application, raise your finger. Otherwise, slide your finger away from the icon.

) to open the media bar, and select the

Access the menu

To access the menu, press the menu key. To open an application or folder in the menu, tap it.

Touch screen actions

Tap and double-tap

To open an application or other element on the touch screen, you normally tap it with your finger. However, to open the following items, you must tap them twice.

● List items in an application, such as the Drafts folder in the folder list in Messaging

Tip: When you open a list view, the first item is already highlighted. To open the highlighted item, tap it once.

● Applications and folders in the menu when using the list view type

● Files in a file list, for example, an image in the images and videos view in Gallery.

If you tap a file or similar item once, it is not opened, it becomes highlighted. To view the options available for the item, select Options or, if available, select an icon from a toolbar.

Select

In this user documentation, opening applications or items by tapping them once or twice is called "selecting". If you need to select several items in a sequence, the display texts to select are separated by arrows.

Example: To select Options > Help, tap Options, and then tap Help.

Drag

To drag, place your finger on the screen, and slide it across the screen.

2009-07-10 19:9:15 P3987 user guide publication 1

Get started

Example: To scroll up or down on a web page, drag the page with your finger.

Swipe

To swipe, slide your finger quickly left or right on the screen.

Example: When viewing an image, to view the next or previous image, swipe the image left or right, respectively.

Scroll

To scroll up or down in lists that have a scroll bar, drag the slider of the scroll bar.

To scroll longer lists, flick the list. The faster you flick, the faster the list moves. If you flick up, the list continues the movement and moves down. To select an item from a spinning list and to stop the movement, tap the item.

Tip: To view a brief description of an icon, place your finger on the icon. Descriptions are not available for all icons.

Touch screen light

The touch screen light is turned off after a period of inactivity. To turn the screen light on, tap it.

If the touch screen and keys are locked, tapping the screen does not turn the screen light on. To unlock the screen and keys, slide the lock switch.

Change the ringing tone

Select Menu > Settings and Personal > Profiles.

You can use profiles to set and customise the ringing tones, message alert tones, and other tones for different events, environments, or caller groups. To personalise a profile, scroll to the profile, and select Options > Personalise.

Support

When you want to learn more about how to use your product or you are unsure how your device should function, see the support pages at www.nokia.com/support or your local Nokia website, www.nokia.mobi/support (with a mobile device), the Help application in the device, or the user guide.

If this does not resolve your issue, do the following:

● Restart the device: switch off the device, and remove the battery. After about a minute, replace the battery, and switch on the device.

● With the Nokia Software Updater application, update your device software regularly for optimum performance and possible new features. See www.nokia.com/ softwareupdate or your local Nokia website. Remember to back up your device data before updating the device software.

2009-07-10 19:9:15 P3987 user guide publication 1

Find help

● Restore the original factory settings as explained in the user guide. Your documents and files are not deleted in the reset.

If the issue remains unsolved, contact Nokia for repair options. See www.nokia.com/ repair. Before sending your device for repair, always back up the data in your device.

Open Ovi with your device

Ovi is your door to different Nokia services. For a tour and more information, see www.ovi.com.

2. Find help

In-device help

Your device contains instructions to help to use the applications in your device. To open help texts from the main menu, select Menu > Help and the application for

which you want to read instructions.

When an application is open, to access the help text for the current view, select Options > Help.

When you are reading the instructions, to change the size of the help text, select Options > Decrease font size or Increase font size.

You may find links to related topics at the end of the help text. If you select an underlined word, a short explanation is displayed. Help texts use the following indicators: to a related help topic.

When you are reading the instructions, to switch between help texts and the application that is open in the background, select Options > Show open apps. and the desired application.

Link to the application being discussed.

Link

Use your PC to update device software

Your Nokia device has software that can be updated. Nokia releases software updates frequently. To get notifications of new software updates for your device, register to My Nokia and subscribe to notifications as text or e-mail messages.

Software updates may include new features and enhanced functions that were not available when your device was purchased. Updating the software may also improve the device performance. You can use your device or PC to check the available updates.

Nokia Software Updater is a PC application that enables you to update your device software. To update your device software, you need a compatible PC, broadband internet access, and a compatible USB data cable to connect your device to the PC.

To get more information, to check the release notes for the latest software versions, and to download the Nokia Software Updater application, see www.nokia.com/ softwareupdate or your local Nokia website.

2009-07-10 19:9:15 P3987 user guide publication 1

Find help

To update the device software, do the following:

1. Download and install the Nokia Software Updater application to your PC.

2. Connect your device to the PC using a USB data cable, and select PC Suite mode.

3. Open the Nokia Software Updater application. The Nokia Software Updater application guides you to back up your files, update the software, and restore your files.

Settings

Your device normally has MMS, GPRS, streaming, and mobile internet settings automatically configured in the device, based on your network service provider information. You may have settings from your service providers already installed in your device, or you may receive or request the settings from the network service providers as a special message.

Access codes

If you forget any of the access codes, contact your service provider.

● Personal identification number (PIN) code — This code protects your SIM card against

unauthorised use. The PIN code (4 to 8 digits) is usually supplied with the SIM card. After three consecutive incorrect PIN code entries, the code is blocked, and you need the PUK code to unblock it.

● UPIN code — This code may be supplied with the USIM card. The USIM card is an

enhanced version of the SIM card and is supported by UMTS mobile phones.

● PIN2 code — Thi s c ode (4 t o 8 dig its ) i s su ppli ed wi th so me SI M c ard s, a nd is r equ ired

to access some functions in your device.

● Lock code (also known as security code) — The lock code helps you to protect your

device against unauthorised use. The preset code is 12345. You can create and change the code, and set the device to request the code. Keep the new code secret and in a safe place separate from your device. If you forget the code and your device is locked, your device will require service and additional charges may apply. For more information, contact a Nokia Care point or your device dealer.

● Personal Unblocking Key (PUK) code and PUK2 code — These codes (8 digits) are

required to change a blocked PIN code or PIN2 code, respectively. If the codes are not supplied with the SIM card, contact the operator whose SIM card is in your device.

● UPUK code — This code (8 digits) is required to change a blocked UPIN code. If the

code is not supplied with the USIM card, contact the operator whose USIM card is in your device.

Prolong battery life

Many features in your device increase the demand on battery power and reduce the battery lifetime. To save battery power, note the following:

2009-07-10 19:9:15 P3987 user guide publication 1

Find help

● Features that use Bluetooth technology, or allowing such features to run in the background while using other features, increase the demand on battery power. Turn Bluetooth technology off when you do not need it.

● Features that use wireless LAN (WLAN), or allowing such features to run in the background while using other features, increase the demand on battery power. WLAN on your Nokia device switches off when you are not trying to connect, not connected to an access point, or not scanning for available networks. To further reduce battery consumption, you can specify that you r devi ce d oes not scan, or s can s less often, for available networks in the background.

● If you have set Packet data connection to When available in connection settings, and there is no packet data coverage (GPRS), the device periodically tries to establish a packet data connection. To prolong the operating time of your device, select Packet data connection > When needed.

● The Maps application downloads new map information when you move to new areas on the map, which increases the demand on battery power. You can prevent the automatic download of new maps.

● If the signal strength of the cellular network varies much in your area, your device must scan for the available network repeatedly. This increases the demand on battery power.

If the network mode is set to dual mode in the network settings, the device searches for the UMTS network. You can set the device to use only the GSM network. To only use the GSM network, select Menu > Settings and Connectivity > Network > Network mode > GSM.

● The backlight of the display increases the demand on battery power. In the display settings, you can change the time-out after which the backlight is switched off, and adjust the light sensor that observes lighting conditions and adjusts the display brightness. Select Menu > Settings and Phone > Display > Light time-out or Light sensor.

● Leaving applications running in the background increases the demand on battery power. To close the applications you do not use, press and hold the menu key, select Options > Show open apps., and navigate to the application with the menu key. Press and hold the menu key, and select Exit.

Free memory

To view how much space is available for different data types, select Menu > Applications > Office > File mgr..

Many features of the device use memory to store data. The device notifies you if the memory in different memory locations is low.

To free device memory, transfer data to the mass memory or to a compatible computer. To remove data you no longer need, use File manager or open the respective application.

You can remove the following:

2009-07-10 19:9:15 P3987 user guide publication 1

Your device

● Messages in the folders in Messaging and retrieved e-mail messages in the mailbox

● Saved web pages

● Contact information

● Calendar notes

● Applications shown in Application manager that you do not need

● Installation files (.sis or .sisx) of applications you have installed. Transfer the

installation files to a compatible computer.

● Images and video clips in Gallery. Back up the files to a compatible computer.

3. Your device

Welcome

When you switch on your device for the first time, the Welcome application is displayed. To access the Welcome application later, select Menu > Applications > Welcome. Select from the following:

● Settings wizard — Configure various settings of your device.

● Phone switch — Transfer content, such as contacts and calendar entries, from a

compatible Nokia device.

● E-mail setup — Configure e-mail settings.

Transfer content

You can use the Switch application to copy content such as phone numbers, addresses, calendar items, and images from your previous Nokia device to your device.

The type of content that can be transferred depends on the model of the device from which you want to transfer content. If that device supports synchronisation, you can also synchronise data between the devices. Your device notifies you if the other device is not compatible.

If the other device cannot be switched on without a SIM card, you can insert your SIM card in it. When your device is switched on without a SIM card, the Offline profile is automatically activated, and transfer can be done.

Transfer content for the first time

1. To retrieve data from the other device for the first time, on your device, select

Switch in the Welcome application, or select Menu > Settings > Switch.

2. Select the connection type you want to use to transfer the data. Both devices must support the selected connection type.

3. If you select Bluetooth connectivity as the connection type, connect the two devices. To have your device search for devices with Bluetooth connectivity, select

Continue. Select the device from which you want to transfer content. You are asked

2009-07-10 19:9:15 P3987 user guide publication 1

Your device

to enter a code on your device. Enter a code (1-16 digits), and select OK. Enter the same code on the other device, and select OK. The devices are now paired.

Some earlier Nokia devices may not have the Switch application. In this case, the Switch application is sent to the other device as a message. To install the Switch application on the other device, open the message, and follow the instructions on the display.

4. On your device, select the content you want to transfer from the other device. When the transfer has started, you can cancel it and continue later.

Content is transferred from the memory of the other device to the corresponding location in your device. The transfer time depends on the amount of data to be transferred.

Display indicators

The device is being used in a GSM network (network service).

The device is being used in a UMTS network (network service).

You have one or more unread messages in the Inbox folder in Messaging.

You have received new e-mail in the remote mailbox.

There are messages waiting to be sent in the Outbox folder.

You have missed calls.

The ringing type is set to Silent, and the message and e-mail alert tones are turned

off.

A timed profile is active.

The touch screen and keys are locked.

A clock alarm is active.

The second phone line is being used (network service).

All calls to the device are diverted to another number (network service). If you

have two phone lines, a number indicates the active line.

A compatible headset is connected to the device.

A compatible TV out cable is connected to the device.

A compatible text phone is connected to the device.

A data call is active (network service).

A GPRS packet data connection is active (network service). indicates that the

connection is on hold and

that a connection is available.

2009-07-10 19:9:15 P3987 user guide publication 1

Your device

A packet data connection is active in a part of the network that supports EGPRS

(network service). is available. The icons indicate that EGPRS is available in the network, but your device is not necessarily using an EGPRS connection to transfer data.

A UMTS packet data connection is active (network service). indicates that the

connection is suspended and

High-speed downlink packet access (HSDPA) is supported and active (network

service). established.

You have set the device to scan for wireless LANs, and a wireless LAN is available

(network service).

Bluetooth connectivity is activated.

blinking, your device is trying to connect with another device.

indicates that the connection is suspended and that a connection is being

A wireless LAN connection is active in a network that uses encryption.

A wireless LAN connection is active in a network that does not use encryption.

Data is being transmitted using Bluetooth connectivity. When the indicator is

A USB connection is active.

Synchronisation is in progress.

GPS is active.

indicates that the connection is on hold and that a connection

that a connection is being established.

Volume and loudspeaker control

Adjust the volume of a phone call or sound clip — Use the volume keys.

The built-in loudspeaker allows you to speak and listen from a short distance without having to hold the device to your ear.

Use the loudspeaker during a call — Select Activate loudsp..

Turn off the loudspeaker — Select Activate handset.

Warning: Continuous exposure to high volume may damage your hearing.

Listen to music at a moderate level, and do not hold the device near your ear when the loudspeaker is in use.

Shortcuts

To switch between open applications, press and hold the menu key. Leaving applications running in the background increases the demand on battery power and reduces the battery life.

To start a web connection (network service), in the dialler, tap and hold 0.

2009-07-10 19:9:15 P3987 user guide publication 1

Your device

To access applications available in the media bar, such as the music player and web browser, in any view, press the media key.

To change the profile, press the power key, and select a profile.

To call your voice mailbox (network service), in the dialler, tap and hold 1.

To open a list of last dialled numbers, in the home screen, press the call key.

To use voice commands, in the home screen, press and hold the call key.

Antenna locations

Your device may have internal and external antennas. Avoid touching the antenna area unnecessarily while the antenna is transmitting or receiving. Contact with antennas affects the communication quality and may cause the device to operate at a higher power level during the operation and may reduce battery life.

Cellular antenna

Bluetooth and WLAN

antenna

GPS antenna

Contacts bar

To start using the contacts bar and add your contacts to the home screen, select > Options > New contact, and follow the instructions.

To communicate with your contact, select the contact and from the following:

— Make a phone call.

●

— Send a message.

●

— Add a feed.

●

— Refresh feeds.

●

— Modify settings.

●

To view past communication events with a contact, select a contact. To view event details, select a communication event.

To close the view, select

2009-07-10 19:9:15 P3987 user guide publication 1

Your device

Offline profile

The offline profile lets you use the device without connecting to the wireless cellular network. When the offline profile is active, you can use your device without a SIM card.

Activate the offline profile — Press the power key briefly, and select Offline. When you activate the offline profile, the connection to the cellular network is closed.

All radio frequency signals to and from the device to the cellular network are prevented. If you try to send messages using the cellular network, they are placed in the Outbox folder to be sent later.

Important: In the Offline profile you cannot make or receive any calls, or use

other features that require cellular network coverage. Calls may still be possible to the official emergency number programmed into your device. To make calls, you must first activate the phone function by changing profiles. If the device has been locked, enter the lock code.

When you have activated the offline profile, you can still use a wireless LAN, for example, to read your e-mail or browse on the internet. You can also use Bluetooth connectivity while in the offline profile. Remember to comply with any applicable safety requirements when establishing and using wireless LAN or Bluetooth connections.

Sensor settings and display rotation

When you activate the sensors in your device, you can control certain functions by turning the device.

Select Menu > Settings and Phone > Sensor settings. Select from the following:

● Sensors — Activate the sensors.

● Turning control — Select Silencing calls and Snoozing alarms to mute calls and

snooze alarms by turning your device so that the display faces down. SelectAutorotate display to rotate the display content automatically when you turn the device

on its left side or back to a vertical position. Some applications and features may not support rotating the display content.

Headset

You can connect a compatible headset or compatible headphones to your device. You may need to select the cable mode.

2009-07-10 19:9:15 P3987 user guide publication 1

Your device

Warning: When you use the headset, your ability to hear

outside sounds may be affected. Do not use the headset where it can endanger your safety.

Do no t conn ect prod ucts tha t crea te an output s ignal as this m ay cause damage to the device. Do not connect any voltage source to the Nokia AV Connector.

When connecting any external device or any headset, other than those approved by Nokia for use with this device, to the Nokia AV Connector, pay special attention to volume levels.

Remove the SIM card

1. Remove the back cover by lifting it from the bottom end of the device.

2. Remove the battery.

3. Open the cover of the SIM card slot. In the

opening under the battery, push the lip sideways to slide the SIM card out of the slot. Pull the SIM card out.

4. Replace the battery and back cover.

Attach a wrist strap

2009-07-10 19:9:15 P3987 user guide publication 1

Make calls

Remote lock

To prevent unauthorised use of your device, you can lock your device remotely using a text message. You must define the text message, and to lock your device, send the text message to your device. To unlock your device, you need the lock code.

To enable remote locking, and to define the text message, select Menu > Settings and

Phone > Phone mgmt. > Security > Phone and SIM card > Remote phone locking > Enabled. Tap the text input field to enter the text message content (5-20

characters), select

, and verify the message. Enter the lock code.

4. Make calls

Proximity sensor

Your device has a proximity sensor. To prevent accidental selections, the touch screen is disabled automatically during calls when you place the device next to your ear.

Do not cover the proximity sensor, for example, with protective film or tape.

Voice calls

1. In the home screen, select Telephone to open the dialler, and enter the phone number, including the area code. To remove a number, select C.

For international calls, select * twice for the + character (which replaces the international access code), and enter the country code, area code (omit the leading zero if necessary), and phone number.

2. To make the call, press the call key.

3. To end the call (or to cancel the call attempt), press the end key. Pressing the end key always ends a call, even if another application is active.

To make a call from the contacts list, select Menu > Contacts. Go to the desired name. Or, select the search field, enter the first letters or characters of the name, and go to the name. To call the contact, press the call key. If you have saved several numbers for a contact, select the desired number from the list, and press the call key.

During a call

To mute or unmute the microphone, select or .

To put a call on hold or activate the held call, select

To switch back to the handset, select

To end the call, select

or .

2009-07-10 19:9:15 P3987 user guide publication 1

Make calls

To switch between the active and held calls, select Options > Swap.

Tip: When you have only one active voice call, to put the call on hold, press the

call key. To activate the held call, press the call key again.

To send DTMF tone strings (for example, a password), select Options > Send DTMF. Enter the DTMF string or search for it in the contacts list. To enter a wait character (w) or a pause character (p), press * repeatedly. To send the tone, select OK. You can add DTMF tones to the phone number or DTMF field in contact details.

To end an active call and replace it by answering the waiting call, select Options > Replace.

To end all your calls, select Options > End all calls. Many of the options that you can use during a voice call are network services.

Voice mailbox

To call your voice mailbox (network service), in the home screen, select Telephone, and select and hold 1.

1. To change the phone number of your voice mailbox, select Menu > Settings and Calling > Call mailbox, a mailbox, and Options > Change number.

2. Enter the number (obtained from your network service provider), and select OK.

Answer or reject a call

To answer a call, press the call key.

To mute the ringing tone of an incoming call, select

To answer the call when the touch screen is locked, swipe {No display_text mapping for 'qtn_incal_slider_slide_to_answer.incalloperations', locale='en'} from left to right.

You can send a text message without rejecting the call, informing the caller that you cannot answer the call. To send the reply message, select Send msg., edit the message text, and press the call key.

If you do not want to answer a call, press the end key. If you activate the Call divert > Voice calls > If busy function in phone settings to divert calls, rejecting an incoming call also diverts the call.

To unlock the touch screen, swipe {No display_text mapping for 'qtn_incal_slider_slide_to_unlock.incalloperations', locale='en'} from right to left, and answer or reject the call.

To activate the text message option and write a standard reply message, select Menu > Settings and Calling > Call > Reject call with message, and Message text.

2009-07-10 19:9:15 P3987 user guide publication 1

Make calls

Make a conference call

Your device supports conference calls between a maximum of six participants, including yourself.

1. Make a call to the first participant.

2. To make a call to another participant, select Options > New call. The first call is

put on hold.

3. When the new call is answered, to join the first participant in the conference call, select

To add a new person to the call, make a call to another participant, and add the new call to the conference call.

To have a private conversation with one of the participants, select Go to the participant, and select

The other participants can still continue the conference call. To return to the conference call, select

To drop a participant, select

4. To end the active conference call, press the end key.

. The conference call is put on hold on your device.

, go to the participant, and select .

Speed dial a phone number

To activate speed dialling, select Menu > Settings and Calling > Call > Speed dialling.

1. To assign a phone number to one of the number keys, select Menu > Settings and Calling > Speed dialling.

2. Go to the key to which you want to assign the phone number, and select Options > Assign.

1 is reserved for the voice mailbox.

To call in the home screen, select Telephone and the assigned key, and press the call key.

To call in the home screen when speed dialling is active, select Telephone, and select and hold the assigned key.

Call waiting

You can answer a call when you have another call in progress. To activate call waiting (network service), select Menu > Settings and Calling >

Call > Call waiting.

1. To answer the waiting call, press the call key. The first call is put on hold.

2. To switch between the two calls, select Options > Swap.

2009-07-10 19:9:15 P3987 user guide publication 1

Make calls

3. To connect an incoming call or a call on hold with an active call, and to disconnect

yourself from the calls, select Options > Transfer.

4. To end the active call, press the end key.

5. To end both calls, select Options > End all calls.

Voice dialling

Your device automatically creates a voice tag for the contacts. To listen to the synthesised voice tag, select a contact and Options > Voice tag details. Scroll to a contact detail, and select Options > Play voice tag.

Make a call with a voice tag

Note: Using voice tags may be difficult in a noisy environment or during an

emergency, so you should not rely solely upon voice dialling in all circumstances. When you use voice dialling, the loudspeaker is in use. Hold the device at a short distance

away when you say the voice tag.

1. To start voice dialling, in the home screen, press and hold the call key. If a compatible headset with the headset key is attached, press and hold the headset key to start voice dialling.

2. A short tone sounds, and Speak now is displayed. Say clearly the name that is saved for the contact.

3. The device plays a synthesised voice tag for the recognised contact in the selected device language, and displays the name and number. To cancel the voice dialling, select Quit.

If several numbers are saved for a name, you can say also the name and the number type, such as mobile or telephone.

Make a video call

When you make a video call (network service), you can see a real-time, two-way video between you and the recipient of the call. The live video image, or video image captured by the camera in your device is shown to the video call recipient.

To be able to make a video call, you must have a USIM card and be in the coverage of a UMTS network. For availability, pricing and subscription to video call services, contact your network service provider.

A video call can only be made between two parties. The video call can be made to a compatible mobile device or an ISDN client. Video calls cannot be made while another voice, video, or data call is active.

Icons

You are not receiving video (the recipient is not sending video or the network is not

transmitting it).

2009-07-10 19:9:15 P3987 user guide publication 1

Make calls

You have denied video sending from your device. To send a still image instead,

select Menu > Settings and Calling > Call > Image in video call. Even if you denied video sending during a video call, the call is still charged as a video

call. Check the pricing with your service provider.

1. In the home screen, select number.

2. Select Options > Call > Video call. By default, the secondary camera on the front is used for video calls. Starting a video

call may take a while. If the call is not successful (for example, video calls are not supported by the network, or the receiving device is not compatible), you are asked if you want to try a normal call or send a message instead.

The video call is active when you see two video images, and hear the sound through the loudspeaker. The call recipient may deny video sending (indicated with you only hear the voice of the caller and may see a still image or a grey screen.

3. To end the video call, press the end key.

or Telephone to open the dialler, and enter the phone

), and

During a video call

To change between showing video or hearing the voice of the caller only, select or

To mute or unmute the microphone, select

To activate the loudspeaker, select Bluetooth connectivity, to route the sound to the headset, select Options > Activate BT handsfree.

To switch back to the handset, select

To use the camera in the back of your device to send video, select Options > Use

secondary camera. To switch back to the camera in the front of your device, select Options > Use main camera.

To take a snapshot of the video you are sending, select Options > Send snapshot. Video sending is paused and the snapshot is shown to the recipient. The snapshot is not saved.

To zoom your image in or out, select Options > Zoom. To change the video quality, select Options > Adjust > Video preference > Normal

quality, Clearer detail or Smoother motion.

or .

. If you have attached a compatible headset with

Answer or reject a video call

When a video call arrives, is displayed.

1. To answer the video call, press the call key.

2009-07-10 19:9:15 P3987 user guide publication 1

Make calls

2. To start sending live video image, select Yes.

If you do not activate the video call, you only hear the voice of the caller. A grey screen replaces the video image. To replace the grey screen with a still image captured by the camera in your device, select Menu > Settings and Calling > Call > Image in video

call.

Video sharing

Use video sharing (network service) to send live video or a video clip from your mobile device to another compatible mobile device during a voice call.

The loudspeaker is active when you activate video sharing. If you do not want to use the loudspeaker for the voice call while you share video, you can also use a compatible headset.

Warning: Co nt in uo u s e xp os u re to hi g h v ol um e ma y d am a ge yo ur h ea ri ng . L i st en

to music at a moderate level, and do not hold the device near your ear when the loudspeaker is in use.

Video sharing requirements

Video sharing requires a UMTS connection. Your ability to use video sharing depends on the availability of the UMTS network. For more information on the service, UMTS network availability, and fees associated with using this service, contact your service provider.

To use video sharing, ensure the following:

● Your device is set up for person-to-person connections.

● You have an active UMTS connection and are within UMTS network coverage. If you

move outside the UMTS network during a video sharing session, the sharing stops while your voice call continues.

● Both the sender and recipient are registered to the UMTS network. If you invite someone to a sharing session and the recipient’s device is not within UMTS network coverage or does not have video sharing installed or person-to-person connections set up, the recipient does not receive invitations. You receive an error message that indicates that the recipient cannot accept the invitation.

Settings

To set up video sharing, you need person-to-person and UMTS connection settings.

Person-to-person connection settings

A person-to-person connection is also known as a Session Initiation Protocol (SIP) connection. The SIP profile settings must be configured in your device before you can use video sharing. Ask your service provider for the SIP profile settings, and save them to your device. Your service provider may send you the settings or give you a list of the needed parameters.

To add a SIP address to a contact:

+ 93 hidden pages
