Microsoft RM-504X User Manual

Nokia 5530 XpressMusic User Guide

Issue 4

DECLARATION OF CONFORMITY

www.nokia.com/phones/declaration_of_conformity/.

Hereby, NOKIA CORPORATION declares that this RM-504 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://

Nokia, Nokia Connecting People, Nokia Care, Ovi, and XpressMusic are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Symbian OS are trademarks of Symbian Ltd.

Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.

This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http:// www.mpegla.com

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

THE CONTEN TS OF T HIS DOC UMENT ARE PRO VIDED " AS IS" . EXCEP T AS REQ UIRED BY APPL ICABL E LAW, N O WARR ANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

Reverse engineering of any software in the Nokia device is prohibited to the extent permitted by applicable law. Insofar as this user guide contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall likewise limit any representations, warranties, damages and liabilities of Nokia's licensors. The third-party applications provided with your device may have been created and may be owned by persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility for end-user support, functionality of the applications, or the information in the applications or these materials. Nokia does not provide any warranty for the third-party applications. BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND, EXPR ESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.

The availability of particular products and applications and services for these products may vary by region. Please check with your Nokia dealer for details, and availability of language options.

Export controls This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. Th is device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.

Model number: 5530

/Issue 4 EN

Safety...........................................8

About your device......................................8

Network services.......................................9

ActiveSync...................................................9

Magnets and magnetic fields.................10

1. Find help................................11

In-device help..........................................11

Support.....................................................11

Software updates using your PC............12

Software updates over the air...............12

Settings.....................................................13

Access codes.............................................13

Prolong battery life.................................14

Free memory............................................14

2. Get started.............................16

Insert the SIM card..................................16

Insert the battery....................................16

Insert the memory card..........................17

Charge the battery..................................18

Keys and parts.........................................19

Stylus........................................................20

Switch the device on...............................21

Lock the keys and touch screen.............21

Home screen............................................21

Access the menu......................................22

Touch screen actions...............................22

Media key.................................................24

Change the ringing tone.........................24

Nokia support..........................................24

3. Your device............................25

Welcome...................................................25

Transfer content......................................25

Display indicators....................................26

Contacts bar.............................................27

Antenna locations...................................27

Offline profile...........................................28

Shortcuts..................................................28

Volume and loudspeaker control...........29

Sensor settings and display rotation....29

Remote lock.............................................29

Headset.....................................................30

Remove the SIM card...............................30

Remove the memory card......................31

4. Make calls..............................32

Proximity sensor......................................32

Calls ..........................................................32

During a call.............................................32

Voice mailbox .........................................33

Answer or reject a call.............................33

Make a conference call............................33

Speed dial a phone number...................34

Call waiting..............................................34

Voice dialling...........................................35

Log ...........................................................35

Recent calls............................................35

Packet data............................................36

Call duration..........................................36

Monitor all communication events.....36

5. Contacts.................................38

Save and edit names and numbers.......38

Contacts toolbar......................................38

Manage names and numbers.................38

Default numbers and addresses............38

Ringing tones, images, and call text for

contacts....................................................39

Copy contacts...........................................39

SIM services..............................................39

SIM contacts..........................................40

Fixed dialling.........................................40

6. Write text..............................41

On-screen keyboard................................41

Handwriting.............................................42

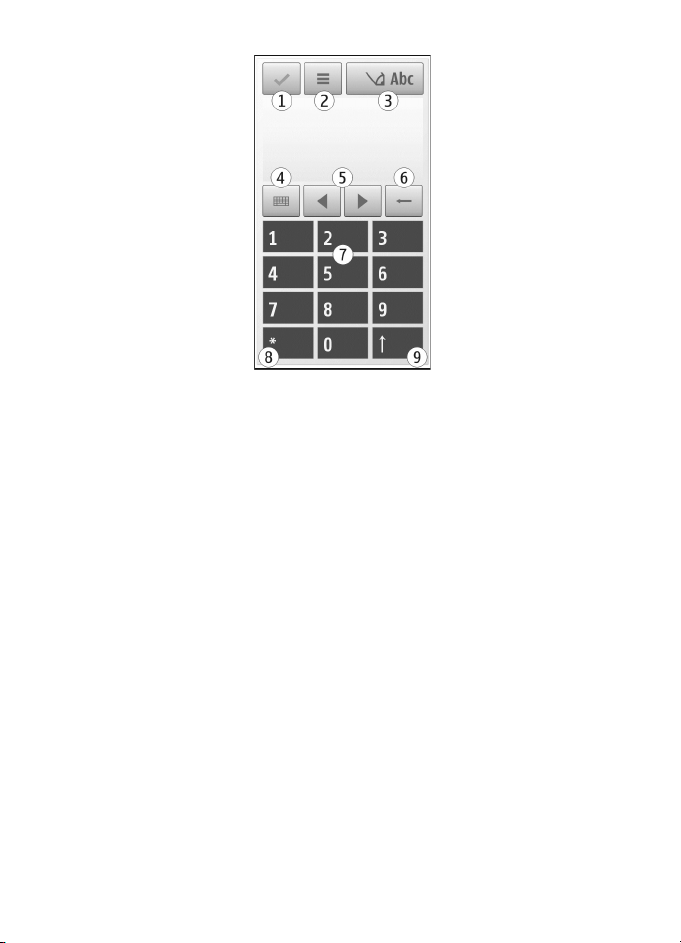

Alphanumeric keypad.............................42

Icons and functions..............................42

Traditional text input...........................43

Predictive text input.............................44

Switch between text modes................44

Touch input settings...............................44

7. Messaging..............................46

Messaging main view.............................46

Write and send messages.......................46

Messaging inbox......................................47

Receive messages.................................47

Multimedia messages..........................48

Data, settings, and web service

messages...............................................48

Set up e-mail............................................48

Mailbox.....................................................48

Define e-mail settings..........................48

Open the mailbox.................................49

Retrieve e-mail messages....................49

Delete e-mail messages.......................50

Disconnect from the mailbox..............50

Mail for Exchange....................................50

View messages on a SIM card................51

Cell broadcast messages.........................51

Service commands..................................51

Messaging settings..................................52

Text message settings.........................52

Multimedia message settings.............52

E-mail settings......................................53

Manage mailboxes.............................53

Contents

Manage radio stations.........................60

10. Nokia Video Centre..............61

View and download video clips.............61

Video feeds...............................................62

My videos..................................................62

Transfer videos from your PC.................63

Video centre settings..............................63

11. Camera.................................64

Activate the camera................................64

Image capture.........................................64

On-screen controls and indicators for

still image capture................................64

Capture and recording settings...........65

Capture images.....................................66

After capturing an image.....................66

Flash and video light............................66

Scenes....................................................67

Location information...........................67

You in the image — self-timer............68

Capture images in a sequence............68

Video recording.......................................68

Record videos........................................68

Video recording on-screen controls

and indicators.......................................69

After recording a video clip.................69

8. Personalise your device........54

Change the look of your device..............54

Profiles......................................................54

9. Music folder...........................55

Music player.............................................55

Play a song or a podcast......................55

Playlists..................................................56

Podcasts.................................................57

Transfer music from a computer........57

Nokia Music...........................................57

Nokia Music Store....................................58

Nokia Podcasting.....................................58

Podcasting settings..............................58

Downloads.............................................59

Radio.........................................................59

Listen to the radio................................59

12. Gallery.................................71

View and organise files...........................71

View images and videos.........................71

Organise images and videos..................72

13. Share online........................73

About Share online..................................73

Subscribe to services...............................73

Manage your accounts............................73

Create a post............................................74

Post files from Gallery ............................74

14. Web browser.......................75

Browse the web.......................................75

Browser toolbar.......................................76

Navigate pages........................................76

Web feeds and blogs...............................77

Contents

Widgets....................................................77

Content search.........................................77

Download and purchase items..............78

Bookmarks...............................................78

Empty the cache......................................79

Connection security.................................79

15. Positioning..........................80

Positioning with your device.................80

Network positioning...............................80

About GPS.................................................80

Check the satellite signal status.............81

Position requests.....................................81

Landmarks................................................82

GPS data...................................................82

Positioning settings................................82

16. Connectivity.........................84

Data connections and access points......84

Network settings.....................................84

Wireless LAN ...........................................84

About WLAN..........................................85

WLAN connections................................86

WLAN wizard.........................................86

WLAN internet access points...............86

Operating modes..................................87

Wireless LAN settings...........................87

Access points............................................87

Create a new access point...................87

Create access point groups..................88

Packet data access points....................88

WLAN internet access points...............89

Active data connections..........................91

Synchronisation.......................................91

Bluetooth connectivity............................92

About Bluetooth connectivity.............92

Settings..................................................92

Security tips...........................................93

Send data using Bluetooth

connectivity...........................................93

Pair devices...........................................93

Receive data using Bluetooth

connectivity...........................................94

Block devices.........................................94

Remote SIM mode.................................95

USB............................................................95

PC connections.........................................96

Administrative settings..........................96

Packet data settings.............................96

SIP settings............................................96

Access point name control...................97

17. Search..................................98

About Search............................................98

Start a search...........................................98

18. Download!...........................99

About Download!.....................................99

Purchase and download items..............99

19. Other applications.............100

Clock........................................................100

Set time and date...............................100

Alarm clock..........................................100

World clock..........................................100

Calendar.................................................101

Calendar views....................................101

Calendar toolbar.................................101

File manager..........................................101

About File manager............................101

Find and organise files.......................101

Edit memory card...............................102

Back up files on a memory card........102

Application manager............................102

About Application manager..............102

Install applications.............................102

Remove applications..........................104

Application manager settings...........104

RealPlayer .............................................104

RealPlayer toolbar..............................105

Play video clips...................................105

Stream content over the air..............105

Recorder.................................................106

Write notes............................................106

Calculator...............................................106

Converter................................................106

Dictionary...............................................107

20. Settings.............................108

Phone settings.......................................108

Date and time settings......................108

Language settings..............................108

Display settings..................................108

Voice commands................................109

Accessory settings..............................109

Application settings...........................109

Device updates....................................110

Security settings.................................110

Phone and SIM.................................110

Certificate management.................111

Security module...............................112

Restore original settings...................112

Protected content...............................113

Notification lights...............................113

Call settings............................................114

Call settings.........................................114

Call divert............................................114

Call barring..........................................115

21. Troubleshooting................116

22. Green tips..........................119

Save energy............................................119

Recycle....................................................119

Save paper.............................................119

Learn more.............................................119

Accessories..............................120

Battery.....................................121

Battery and charger information.........121

Nokia battery authentication

guidelines..............................................122

Authenticate hologram......................122

Contents

Hearing aids........................................126

Vehicles..................................................126

Potentially explosive environments....126

Emergency calls.....................................127

Certification information (SAR)............127

Index.......................................129

Care and maintenance............123

Recycle....................................................123

Additional safety

information.............................125

Small children........................................125

Operating environment........................125

Medical devices......................................125

Implanted medical devices...............125

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

SWITCH ON SAFELY

Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect performance.

SWITCH OFF IN RESTRICTED AREAS

Follow any restrictions. Switch the device off in aircraft, near medical equipment, fuel, chemicals, or blasting areas.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

WATER-RESISTANCE

Your device is not water-resistant. Keep it dry.

About your device

The wireless device described in this guide is approved for use on the GSM 850, 900, 1800, and 1900 MHz networks. Contact your service provider for more information about networks.

Your device supports several connectivity methods and like computers may be exposed to viruses and other harmful content. Exercise caution with messages, connectivity requests, browsing, and downloads. Only install and use services and software from trustworthy sources that offer adequate security and protection, such as applications that are Symbian Signed or have passed the Java Verified™ testing. Consider installing antivirus and other security software on your device and any connected computer.

Safety

Your device may have preinstalled bookmarks and links for third-party internet sites and may allow you to access third-party sites. These are not affiliated with Nokia, and Nokia does not endorse or assume liability for them. If you access such sites, take precautions for security or content.

Warning: To use any features in this device, other than the alarm clock, the

device must be switched on. Do not switc h the device on when wireless device use may cause interference or danger.

When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights. Copyright protection may prevent some images, music, and other content from being copied, modified, or transferred.

Make back-up copies or keep a written record of all important information stored in your device.

When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products.

The images in this guide may differ from your device display. Refer to the user guide for other important information about your device.

Note: The surface of this device does not contain nickel in the platings. The

surface of this device contains stainless steel.

Network services

To use the device you must have service from a wireless service provider. Some features are not available on all networks; other features may require that you make specific arrangements with your service provider to use them. Network services involve transmission of data. Check with your service provider for details about fees in your home network and when roaming on other networks. Your service provider can explain what charges will apply. Some networks may have limitations that affect how you can use some features of this device requiring network support such as support for specific technologies like WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols and language-dependent characters.

Your service provider may have requested that certain features be disabled or not activated in your device. If so, these features will not appear on your device menu. Your device may also have customized items such as menu names, menu order, and icons.

ActiveSync

Use of the Mail for Exchange application is limited to over-the-air synchronisation of PIM information between the Nokia device and the authorised Microsoft Exchange server.

Safety

Magnets and magnetic fields

Keep your device away from magnets or magnetic fields.

1. Find help

In-device help

Your device contains instructions to help to use the applications in your device. To open help texts from the main menu, select Menu > Help and the application for

which you want to read instructions.

When an application is open, to access the help text for the current view, select

Options > Help.

When you are reading the instructions, to change the size of the help text, select

Options > Decrease font size or Increase font size.

You may find links to related topics at the end of the help text. If you select an underlined word, a short explanation is displayed. Help texts use the following indicators: to a related help topic.

When you are reading the instructions, to switch between help texts and the application that is open in the background, select Options > Show open apps. and the desired application.

Link to the application being discussed.

Support

When you want to learn more about how to use your product or you are unsure how your device should function, see the support pages at www.nokia.com/support or your local Nokia website, www.nokia.mobi/support (with a mobile device), the Help application in the device, or the user guide.

If this does not resolve your issue, do the following:

• Restart the device: switch off the device, and remove the battery. After about a minute, replace the battery, and switch on the device.

• With the Nokia Software Updater application, update your device software regularly for optimum performance and possible new features. See www.nokia.com/ softwareupdate or your local Nokia website. Remember to back up your device data before updating the device software.

• Restore the original factory settings as explained in the user guide. Your documents and files are not deleted in the reset.

If the issue remains unsolved, contact Nokia for repair options. See www.nokia.com/ repair. Before sending your device for repair, always back up the data in your device.

Link

Find help

Software updates using your PC

Software updates may include new features and enhanced functions that were not available at the time of purchase of your device. Updating the software may also improve the device performance.

Nokia Software Updater is a PC application that enables you to update your device software. To update your device software, you need a compatible PC, broadband internet access, and a compatible USB data cable to connect your device to the PC.

To get more information, to check the release notes for the latest software versions, and to download the Nokia Software Updater application, see www.nokia.com/ softwareupdate or your local Nokia website.

To update the device software, do the following:

1. Download and install the Nokia Software Updater application to your PC.

2. Connect your device to the PC using a USB data cable, and open the Nokia Software Updater application. The Nokia Software Updater application guides you to back up your files, update the software, and restore your files.

Software updates over the air

Select Menu > Applications > App. update. With Software update (network service), you can check if there are updates available

for your device software or applications, and download them to your device. Downloading software updates may involve the transmission of large amounts of data

through your service provider's network. Contact your service provider for information about data transmission charges.

Make sure that the device battery has enough power, or connect the charger before starting the update.

Warning: If you install a software update, you cannot use the device, even to

make emergency calls, until the installation is completed and the device is restarted. Be sure to back up data before accepting installation of an update.

After updating your device software or applications using Software update, the instructions related to the updated applications in the user guide or the helps may no longer be up to date.

To download the available updates, select not want to download, select the updates from the list.

To view information on an update, select the update and

To view the status of previous updates, select

Select Options and from the following:

. To unmark specific updates that you do

Find help

• {No display_text mapping for

'qtn_swupdate_option_update_with_pc.iaupdate', locale='en'} — Update your

device using a PC. This option replaces the Start update option when updates are only available using the Nokia Software Updater PC application.

• {No display_text mapping for

'qtn_swupdate_option_update_history.iaupdate', locale='en'} — View the

status of previous updates.

• Settings — Change the settings, such as the default access point used for

downloading updates.

• {No display_text mapping for 'qtn_swupdate_option_disclaimer.iaupdate',

locale='en'} — View the Nokia licence agreement.

Settings

Your device normally has MMS, GPRS, streaming, and mobile internet settings automatically configured in the device, based on your network service provider information. You may have settings from your service providers already installed in your device, or you may receive or request the settings from the network service providers as a special message.

Access codes

If you forget any of the access codes, contact your service provider.

• Personal identification number (PIN) code — This code protects your SIM card against unauthorised use. The PIN code (4 to 8 digits) is usually supplied with the SIM card. After three consecutive incorrect PIN code entries, the code is blocked, and you need the PUK code to unblock it.

• PI N2 co de — T hi s co de ( 4 t o 8 d igi ts ) is sup pl ied wit h s ome SIM ca rds , an d i s re qui red to access some functions in your device.

• Lock code (also known as security code) — The lock code helps you to protect your device against unauthorised use. The preset code is 12345. You can create and change the code, and set the device to request the code. Keep the new code secret and in a safe place separate from your device. If you forget the code and your device is locked, your device will require service and additional charges may apply. For more information, contact a Nokia Care point or your device dealer.

• Personal Unblocking Key (PUK) code and PUK2 code — These codes (8 digits) are required to change a blocked PIN code or PIN2 code, respectively. If the codes are not supplied with the SIM card, contact the operator whose SIM card is in your device.

Find help

Prolong battery life

Many features in your device increase the demand on battery power and reduce the battery lifetime. To save battery power, note the following:

• Features that use Bluetooth coonectivity, or allowing such features to run in the background while using other features, increase the demand on battery power. Deactivate Bluetooth connectivity when you do not need it.

• Features that use a wireless LAN (WLAN), or allowing such features to run in the background while using other features, increase the demand on battery power. The WLAN on your Nokia device switches off when you are not trying to connect, not connected to an access point, or not scanning for available networks. To further reduce battery consumption, you can specify that you r devi ce d oes not scan, or s can s less often, for available networks in the background.

• If you have selected Packet data connection > When available in the connection settings, and there is no packet data coverage (GPRS), the device periodically tries to establish a packet data connection. To prolong the operating time of your device, select Packet data connection > When needed.

• If the signal strength of the cellular network varies much in your area, your device must scan for the available network repeatedly. This increases the demand on battery power.

• The backlight of the display increases the demand on battery power. In the display settings, you can adjust the display brightness and change the time-out period after which the backlight is switched off. Select Menu > Settings and Phone >

Display > Brightness or Light time-out.

• Leaving applications running in the background increases the demand on battery power. To close the applications you do not use, press and hold the menu key, select

Options > Show open apps., and navigate to the application with the menu key.

Press and hold the menu key, and select Exit.

Free memory

To view how much space is available for different data types, select Menu >

Applications > File mgr..

Many features of the device use memory to store data. The device notifies you if the memory in different memory locations is low.

To free memory, transfer data to a compatible memory card (if available) or to a compatible computer.

To remove data you no longer need, use File manager or open the respective application. You can remove the following:

• Messages in the folders in Messaging and retrieved e-mail messages in the mailbox

• Saved web pages

Find help

• Contact information

• Calendar notes

• Applications shown in Application manager that you do not need

• Installation files (.sis or .sisx) of applications you have installed. Transfer the

installation files to a compatible computer.

• Images and video clips in Gallery. Back up the files to a compatible computer.

2. Get started

Insert the SIM card

Important: To prevent damage to the SIM card, always remove the battery before

you insert or remove the card. A SIM card may be already inserted in the device. If not, do the following:

1. Open the cover of the SIM card slot.

2. Insert a SIM card in the SIM card slot. Ensure that

the contact area on the card is facing down and the bevelled corner is facing toward the device. Push the card in.

3. Close the cover of the SIM card slot. Ensure that

the cover is properly closed.

If the SIM card is not properly in place, the device can only be used in the Offline profile.

Insert the battery

Always switch the device off and disconnect the charger before removing the battery.

Get started

1. Remove the back cover by lifting it from the top end of the device.

2. Insert the battery.

3. To replace the cover, direct the bottom locking catches toward their slots, and press down until the cover locks into place.

Insert the memory card

Use only compatible microSD and microSDHC cards approved by Nokia for use with this device. Nokia uses approved industry standards for memory cards, but some brands may not be fully compatible with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card.

A memory card may be already inserted in the device. If not, do the following:

1. Open the cover of the memory card slot.

Get started

2. Insert a compatible memory card in the memory card slot. Ensure that the contact area on the card is facing down. Push the card in. You can hear a click when the card locks into place.

3. Close the cover of the memory card slot. Ensure that the cover is properly closed.

Charge the battery

Your battery has been partially charged at the factory. If the device indicates a low charge, do the following:

1. Connect the charger to a wall outlet.

2. Connect the charger to the device.

3. When the device indicates a full charge, disconnect the charger from the device, then from the wall outlet.

You do not need to charge the battery for a specific length of time, and you can use the device while it is charging. If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be made.

Tip: Disconnect the charger from the wall outlet when the charger is not in use.

A charger that is connected to the outlet consumes power even when it is not connected to the device.

Keys and parts

Note: The surface of this device does not contain nickel in the platings. The

surface of this device contains stainless steel.

1 — Power key 2 — Loudspeaker 3 — Proximity sensor 4 — Volume/Zoom key 5 — Media key 6 — Lock switch 7 — Capture key 8 — Microphone 9 — End key 10 — Menu key 11 — Call key 12 — Touch screen 13 — Earpiece

Get started

14 — Camera flash 15 — Camera lens 16 — Micro USB connector 17 — Loudspeakers 18 — Nokia AV Connector (3.5 mm) 19 — Charger connector 20 — Stylus 21 — SIM and memory card slot

Do not cover the area above the touch screen, for example, with protective film or tape.

Stylus

Some functions, such as handwriting recognition, are designed to be used with a stylus. The pen stylus is located in the back cover of the device.

Important: Use only a stylus approved by Nokia for use

with this device. Using any other stylus may invalidate any warranty applying to the device and may damage the touch screen. Avoid scratching the touch screen. Never use an actual pen or pencil or other sharp objects to write on the touch screen.

Get started

Switch the device on

1. Press and hold the power key.

2. If the device asks for a PIN code or lock code, enter it, and

select OK. To delete a number, select setting for the lock code is 12345.

3. Select your location. If you accidentally select the wrong

location, select Back.

4. Enter the date and time. When using the 12-hour time format, to switch between a.m. and p.m., select any number.

. The factory

Lock the keys and touch screen

To lock or unlock the touch screen and the touch keys, slide the lock switch on the side of the device. You can also unlock the screen by pressing briefly the power key and swiping the screen. Follow the visual cues.

When the touch screen and touch keys are locked, the touch screen is switched off and the keys are inactive.

The screen and keys may be locked automatically after a period of inactivity. To change the settings for automatic screen and key locking, select Menu > Settings

and Phone > Phone mgmt. > Auto. keyguard > Keypad autolock period.

Home screen

The home screen is your starting point where you can collect all your important contacts or application shortcuts.

Get started

Interactive display elements

To open the clock application, select the clock (1).

To open the calendar, or to change the profile, select the date or the profile name (2).

To view or change connectivity settings ( available wireless LANs (WLAN) if WLAN scanning is enabled, or to view missed events, select the top right corner (3).

To make a phone call, select Dialler (4).

To open Contacts, select Contacts (5).

To open the main menu, press the menu key (6).

), to see the

Start using the contacts bar

To start using the contacts bar, and to add your contacts to the home screen, select the instructions.

> Options > New contact, and follow

Change the home screen theme

To change the home screen theme or the shortcuts, select

Menu > Settings and Personal > Home screen.

Swipe to unlock

To unlock the device display, press the power key briefly and swipe the display. You can also swipe a locked display to answer a call, stop a calendar alarm, or to stop or snooze a clock alarm. Follow the visual cues.

Music keys

When music or the radio is playing in the background, music keys (play/pause, skip backward, and skip forward) are displayed in the home screen.

Access the menu

To access the menu, press the menu key. To open an application or folder in the menu, double-tap it.

Touch screen actions

Tap and double-tap

To open an application or other element on the touch screen, you normally tap it with your finger or the stylus. However, to open the following items, you must tap them twice.

Get started

• List items in an application, such as the Drafts folder in the folder list in Messaging

Tip: When you open a list view, the first item is already highlighted. To open the highlighted item, tap it once.

• Applications and folders in the menu when using the list view type

• Files in a file list, for example, an image in the images and videos view in Gallery.

If you tap a file or similar item once, it is not opened, it becomes highlighted. To see the options available for the item, select Options or, if available, select an icon from a toolbar.

Select

In this user documentation, opening applications or items by tapping them once or twice is called "selecting". If you need to select several items in a sequence, the menu items to select are separated by arrows.

Example: To select Options > Help, tap Options, and then tap Help.

Drag

To drag, place your finger or the stylus on the screen, and slide it across the screen.

Example: To scroll up or down on a web page, drag the page with your finger or stylus.

Swipe

To swipe, slide your finger quickly left or right on the screen.

Example: When viewing an image, to view the next or previous image, swipe the image left or right, respectively.

Tip: When the touch screen is locked, to answer a call, or to stop a clock or calendar alarm, swipe the screen. Follow the visual cues.

Scroll

To scroll up or down in lists that have a scroll bar, drag the slider of the scroll bar.

In some list views, you can scroll by placing your finger or stylus on a list item and dragging up or down.

Example: To scroll through contacts, place your finger or stylus on a contact, and drag up or down.

Tip: To view a brief description of icons and buttons, place your finger or stylus on the icon or button. Descriptions are not available for all icons and buttons.

Touch screen backlight

The touch screen backlight is turned off after a period of inactivity. To turn the screen backlight on, tap the screen.

Get started

If the touch screen and keys are locked, tapping the screen does not turn the screen backlight on. To unlock the screen and keys, slide the lock switch, or press briefly the power key and swipe the screen. Follow the visual cues.

Media key

To open applications such as the music player or browser, select the media key ( application.

Tip: Hold your finger or the stylus on the icon to see the name of the application. To open the application, raise your finger or the stylus. Otherwise, slide your finger or the stylus away from the icon.

) to open the media bar, and select the

Change the ringing tone

Select Menu > Settings and Personal > Profiles.

You can use profiles to set and customise the ringing tones, message alert tones, and other tones for different events, environments, or caller groups. To personalise a profile, scroll to the profile, and select Options > Personalise.

Nokia support

To find the latest version of this guide, additional information, downloads, and services related to your Nokia product, see ww w.nokia.com/support or your local Nokia website.

Configuration settings service

To download configuration settings such as MMS, GPRS, e-mail, and other services for your phone model, see www.nokia.com/support.

Nokia Care services

If you need to contact Nokia Care services, check the list of local Nokia Care contact centres at www.nokia.com/customerservice.

Maintenance

For maintenance services, find your nearest Nokia Care point at www.nokia.com/ repair.

3. Your device

Welcome

When you switch on your device for the first time, the Welcome application is displayed. To access the Welcome application later, select Menu > Applications > Welcome.

Select from the following:

• Sett. wizard — Configure various settings of your device.

• Switch — Transfer content, such as contacts and calendar entries, from a compatible

Nokia device.

• E-mail setup — Configure e-mail settings.

Transfer content

You can use the Switch application to copy content such as phone numbers, addresses, calendar items, and images from your previous Nokia device to your device.

The type of content that can be transferred depends on the model of the device from which you want to transfer content. If that device supports synchronisation, you can also synchronise data between the devices. Your device notifies you if the other device is not compatible.

If the other device cannot be switched on without a SIM card, you can insert your SIM card in it. When your device is switched on without a SIM card, the Offline profile is automatically activated, and transfer can be done.

Transfer content for the first time

1. To retrieve data from the other device for the first time, on your device, select

Switch in the Welcome application, or select Menu > Applications > Switch.

2. Select the connection type you want to use to transfer the data. Both devices must support the selected connection type.

3. If you select Bluetooth connectivity as the connection type, connect the two devices. To have your device search for devices with Bluetooth connectivity, select

Continue. Select the device from which you want to transfer content. You are asked

to enter a code on your device. Enter a code (1-16 digits), and select OK. Enter the same code on the other device, and select OK. The devices are now paired.

Some earlier Nokia devices may not have the Switch application. In this case, the Switch application is sent to the other device as a message. To install the Switch application on the other device, open the message, and follow the instructions on the display.

4. On your device, select the content you want to transfer from the other device.

Your device

When the transfer has started, you can cancel it and continue later.

Content is transferred from the memory of the other device to the corresponding location in your device. The transfer time depends on the amount of data to be transferred.

Display indicators

The device is being used in a GSM network (network service).

You have one or more unread messages in the Inbox folder in Messaging.

You have received new e-mail in the remote mailbox.

There are messages waiting to be sent in the Outbox folder.

You have missed calls.

The ringing type is set to Silent, and the message and e-mail alert tones are turned

off.

A timed profile is active.

The touch screen and keys are locked.

A clock alarm is active.

The second phone line is being used (network service).

All calls to the device are diverted to another number (network service). If you

have two phone lines, a number indicates the active line.

A compatible headset is connected to the device.

A compatible text phone is connected to the device.

A data call is active (network service).

A GPRS packet data connection is active (network service). indicates that the

connection is on hold and

A packet data connection is active in a part of the network that supports EGPRS

(network service). is available. The icons indicate that EGPRS is available in the network, but your device is not necessarily using an EGPRS connection to transfer data.

You have set the device to scan for wireless LANs, and a wireless LAN is available

(network service).

A wireless LAN connection is active in a network that uses encryption.

A wireless LAN connection is active in a network that does not use encryption.

that a connection is available.

indicates that the connection is on hold and that a connection

Your device

Bluetooth connectivity is on.

Data is being transmitted using Bluetooth connectivity. When the indicator is

blinking, your device is trying to connect with another device.

A USB connection is active.

Synchronisation is in progress.

Contacts bar

Start using the contacts bar

To start using the contacts bar and add your contacts to the home screen, select >

Options > New contact, and follow the instructions.

To communicate with your contact, select the contact and from the following:

•

— Make a phone call.

— Send a message.

•

— Modify contact information.

•

— Refresh the contact's web feeds.

•

To view past communication events with a contact, select a contact. Select a communication event to view event details.

To close the view, select

Antenna locations

Your device may have internal and external antennas. As with any radio transmitting device, avoid touching the antenna area unnecessarily while the antenna is transmitting or receiving. Contact with such an antenna affects the communication quality and may cause the device to operate at a higher power level than otherwise needed and may reduce the battery life.

Your device

Cellular, Bluetooth, and WLAN antennas

Offline profile

To activate the Offline profile, press the power key briefly, and select Offline. The Offline profile lets you use the device without connecting to the wireless network.

When you activate the Offline profile, the connection to the wireless network is turned off, as indicated by and from the device are prevented. If you try to send messages, they are placed in the

Outbox folder to be sent later. When the Offline profile is active, you can use your device without a SIM card. If the SIM card is not properly in place, the device starts in the Offline profile.

Important: In the offline profile you cannot make or receive any calls, or use

other features that require cellular network coverage. Calls may still be possible to the official emergency number programmed into your device. To make calls, you must first activate the phone function by changing profiles. If the device has been locked, enter the lock code.

When you have activated the offline profile, you can still use the wireless LAN, for example, to read your e-mail or browse on the internet. Remember to comply with any applicable safety requirements when establishing and using a wireless LAN connection. You can also use Bluetooth connectivity while in the offline profile.

To switch to another profile, press the power key briefly, and select another profile. The device re-enables wireless transmissions (providing there is sufficient signal strength).

in the signal strength indicator area. All wireless RF signals to

Shortcuts

To switch between open applications, press and hold the menu key. Leaving applications running in the background increases the demand on battery power and reduces the battery life.

To start a web connection (network service), in the dialler, tap and hold 0.

Your device

To access applications available in the media bar, such as the music player and web browser, in any view, press the media key.

To change the profile, press the power key, and select a profile.

To call your voice mailbox (network service), in the dialler, tap and hold 1.

To open a list of last dialled numbers, in the home screen, press the call key.

To use voice commands, in the home screen, press and hold the call key.

Volume and loudspeaker control

Warning: Listen to music at a moderate level. Continuous exposure to high

volume may damage your hearing. Do not hold the device near your ear when the loudspeaker is in use, because the volume may be extremely loud.

To adjust the volume level when you have an active call or are listening to a sound clip, use the volume key.

The built-in loudspeaker allows you to speak and listen from a short distance without having to hold the device to your ear.

To use the loudspeaker during a call, select Activate loudsp..

To turn off the loudspeaker, select Activate handset.

Sensor settings and display rotation

When you activate the sensors in your device, you can control certain functions by turning the device.

Select Menu > Settings and Phone > Sensor settings. Select from the following:

• Sensors — Activate the sensors.

• Turning control — Select Silencing calls and Snoozing alarms to mute calls and

snooze alarms by turning your device so that the display faces down. SelectAuto-

rotate display to rotate the display content automatically when you turn the device

on its left side or back to a vertical position. Some applications and features may not support rotating the display content.

Remote lock

To prevent unauthorised use of your device, you can lock your device and memory card remotely using a text message. You must define the message text, and to lock your

Your device

device, send that text message to your device. To unlock your device, you need the lock code.

To enable remote locking and to define the text message content to be used, select

Menu > Settingsand Phone > Phone mgmt. > Security > Phone and SIM card > Remote phone locking > Enabled. Tap the text input field to enter the text message

content (5 to 20 characters), select

, and verify the message. Enter the lock code.

Headset

You can connect a compatible headset or compatible headphones to your device. You may need to select the cable mode.

Some headsets come in two parts, a remote control unit and headphones. A remote control unit has a microphone and keys to answer or end a phone call, adjust the volume, and play music or video files. To use the headphones with a remote control unit, connect the unit to the Nokia AV Connector in the device, then connect the headphones to the unit.

Warning: When you use the headset, your ability to hear

outside sounds may be affected. Do not use the headset where it can endanger your safety.

Do not connect products that create an output signal as this may cause damage to the device. Do not connect any voltage source to the Nokia AV Connector.

When connecting any external device or any headset, other than those approved by Nokia for use with this device, to the Nokia AV Connector, pay special attention to volume levels.

Remove the SIM card

1. Remove the back cover by lifting it from the top end of the device.

2. Remove the battery.

+ 103 hidden pages
