RD-1/RD-2

Handling Guidelines for

PC OEMs

LEGAL NOTICE

The contents of this document are proprietary and confidential property of Nokia. This document is provided subject to confidentiality obligations of the applicable agreement(s).

This document is intended for use of Nokia’s customers and collaborators only for the purpose for which this document is submitted by Nokia. No part of this document may be reproduced or made available to the public or to any third party in any form or means without the prior written permission of Nokia. This document is to be used by properly trained professional personnel. Any use of the contents in this document is limited strictly to the use(s) specifically authorized in the applicable agreement(s) under which the document is submitted.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products and/or services described in this document or withdraw this document at any time without prior notice.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. NOKIA SHALL NOT BE RESPONSIBLE IN ANY EVENT FOR ERRORS IN THIS DOCUMENT OR FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR DIRECT DAMAGES HOWSOEVER CAUSED, that might arise from the use of this document or any contents of this document.

This document and the product(s) it describes are protected by copyright according to the applicable laws.

Nokia is a registered trademark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or trade names of their respective owners.

Wireless Platforms CM/BU 2 (10)

TABLE OF CONTENTS

TABLE OF CONTENTS............................................................................................................................. 2

1 Introduction ........................................................................................................................................ 3

2 FCC part 15 notice............................................................................................................................. 3

3 ESD/Static Sensitive Device .............................................................................................................. 3

4 Unpacking .......................................................................................................................................... 4

4.1 Individual Module Clamshell...................................................................................................... 4

4.2 100 Module Trays ...................................................................................................................... 4

5 Handling............................................................................................................................................. 5

5.1 General Handling....................................................................................................................... 5

6 Installation.......................................................................................................................................... 6

6.1 Insertion into PCI Express Mini Card Connector ....................................................................... 6

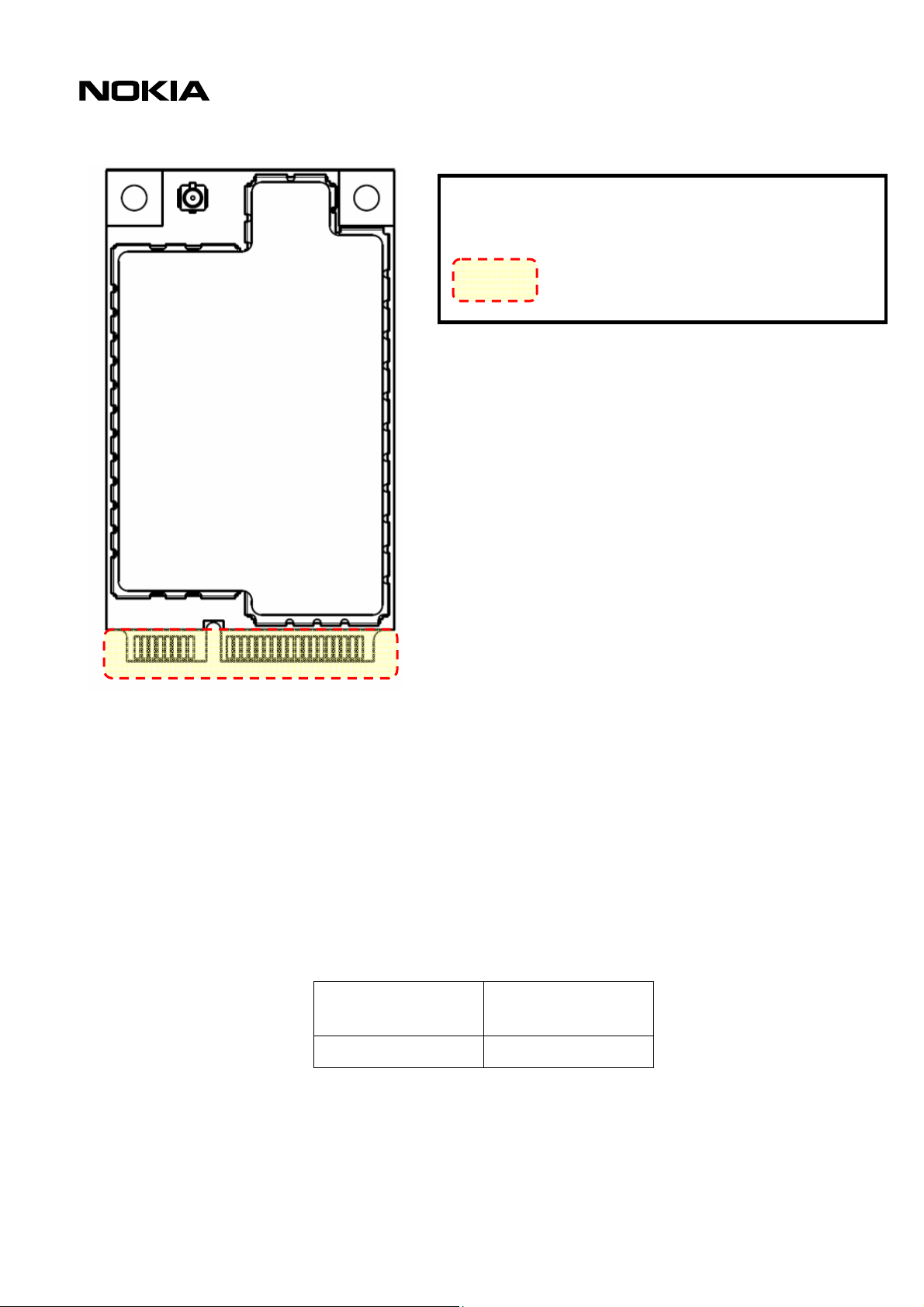

6.1.1 Maximum Safe Load (Module Insertion)............................................................................. 7

6.2 Antenna Connection .................................................................................................................. 8

6.2.1 Maximum Safe Load (Antenna Connection)....................................................................... 8

6.3 Antenna Disconnection.............................................................................................................. 9

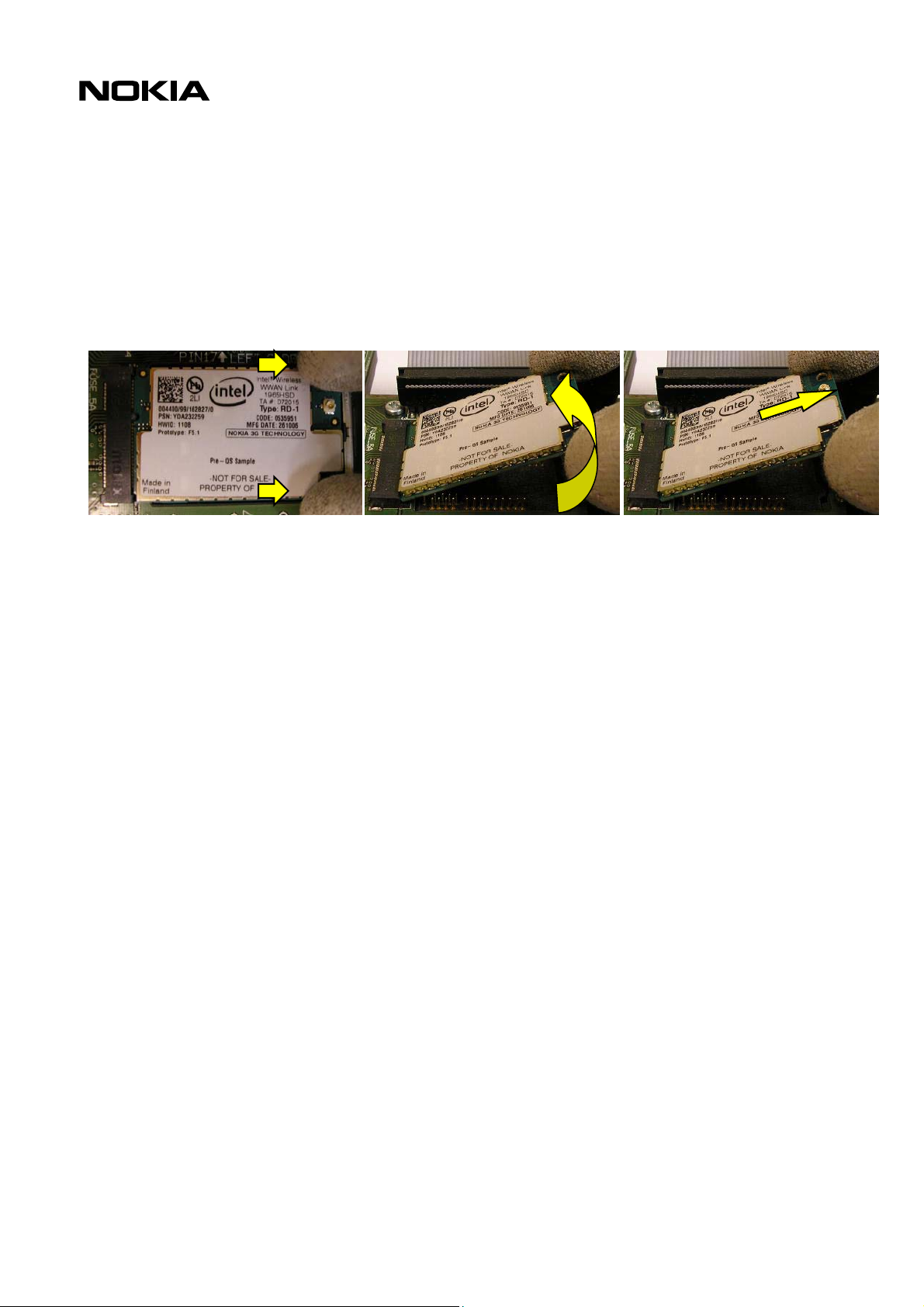

6.4 Removal from PCI Express Mini Card Connector ................................................................... 10

Wireless Platforms CM/BU 3 (10)

1 Introduction

The purpose of this guideline is to enable mechanical and electrical installation of the RD-1/RD-2 WWAN module into a host laptop with the minimum of risk of damage to the module. Possible misuse cases are identified and mitigation defined. Failure to observe these guidelines at all times during the unpacking, handling and assembly processes may result in avoidable damage to the module. This document provides the minimum handling requirements for satisfactory handling.

2 FCC part 15 notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Antenna to be used with this equipment should be dipole type with 3 dBi maximum gain. NOTE: Modifications not expressly approved by Nokia could void the user's authority to operate the equipment. NOTE: Required Minimum distance between antenna and the user is 20cm.

The FCC requires that a label must be placed on the outside of the final product stating: “Contains FCC ID: LJPRD-1” or “Contains FCC ID: LJPRD-2” depending of the module to be integrated.

3 ESD/Static Sensitive Device

The RD-1/RD-2 WWAN module is a static sensitive device. Charges and discharges in excess of ± 1000V may result in irreparable damage to the module. Ambient relative humidity (RH) should be considered, lower humidity may result in the possibility for higher electrostatic potentials to accumulate resulting in higher discharges to or from the module. Consequently operators should take all necessary electrostatic precautions before and during handling of the module. These include, but are not limited to

• The use of grounded wrist straps when handling the module or the packaging

• Temporary storage (if required) in ESD approved trays

• The use of protective hand and/or finger covering where during the complete unpacking and assembly

process

• The use of static protective mats

• After removal from protective packaging modules should remain physically isolated from each other.
