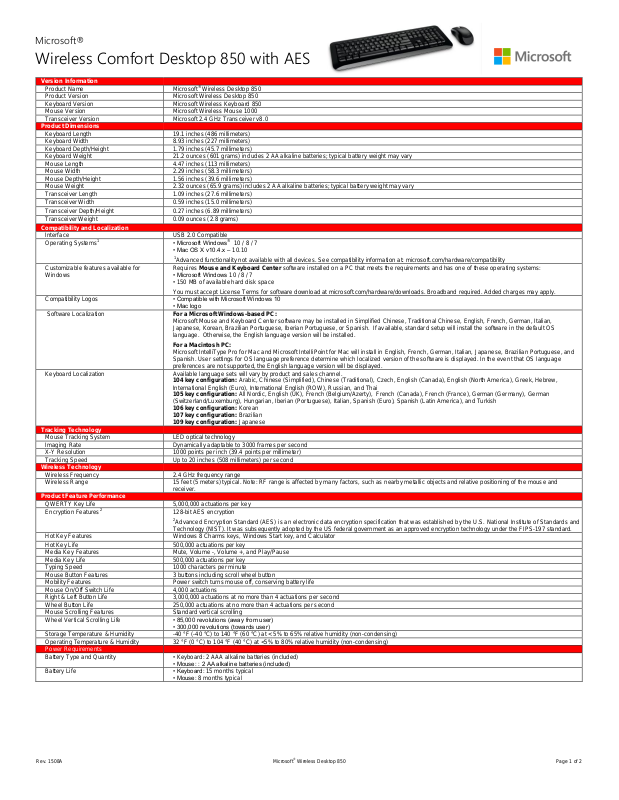

Microsoft PN9-00005 Product Data Sheet

Microsoft®

Wireless Comfort Desktop 850 with AES

Version Information

Product Name

Microsoft® Wireless Desktop 850

Product Version

Microsoft Wireless Desktop 850

Keyboard Version

Microsoft Wireless Keyboard 850

Mouse Version

Microsoft Wireless Mouse 1000

Transceiver Version

Microsoft 2.4 GHz Transceiver v8.0

Product Dimensions

Keyboard Length

19.1 inches (486 millimeters)

Keyboard Width

8.93 inches (227 millimeters)

Keyboard Depth/Height

1.79 inches (45.7 millimeters)

Keyboard Weight

21.2 ounces (601 grams) includes 2 AA alkaline batteries; typical battery weight may vary

Mouse Length

4.47 inches (113 millimeters)

Mouse Width

2.29 inches (58.3 millimeters)

Mouse Depth/Height

1.56 inches (39.6 millimeters)

Mouse Weight

2.32 ounces (65.9 grams) includes 2 AA alkaline batteries; typical battery weight may vary

Transceiver Length

1.09 inches (27.6 millimeters)

Transceiver Width

0.59 inches (15.0 millimeters)

Transceiver Depth/Height

0.27 inches (6.89 millimeters)

Transceiver Weight

0.09 ounces (2.8 grams)

Compatibility and Localization

Interface

USB 2.0 Compatible

Operating Systems1

• Microsoft Windows® 10 / 8 / 7

• Mac OS X v10.4.x – 10.10

Advanced functionality not available with all devices. See compatibility information at: microsoft.com/hardware/compatibility

Customizable features available for Windows

Requires Mouse and Keyboard Center software installed on a PC that meets the requirements and has one of these operating systems:

• Microsoft Windows 10 / 8 / 7

• 150 MB of available hard disk space

You must accept License Terms for software download at microsoft.com/hardware/downloads. Broadband required. Added charges may apply.

Compatibility Logos

• Compatible with Microsoft Windows 10

• Mac logo

Software Localization

For a Microsoft Windows-based PC: Microsoft Mouse and Keyboard Center software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

For a Macintosh PC: Microsoft IntelliType Pro for Mac and Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language version will be displayed.

Keyboard Localization

Available language sets will vary by product and sales channel. 104 key configuration: Arabic, Chinese (Simplified), Chinese (Traditional), Czech, English (Canada), English (North America), Greek, Hebrew, International English (Euro), International English (ROW), Russian, and Thai 105 key configuration: All Nordic, English (UK), French (Belgium/Azerty), French (Canada), French (France), German (Germany), German (Switzerland/Luxemburg), Hungarian, Iberian (Portuguese), Italian, Spanish (Euro), Spanish (Latin America), and Turkish

106 key configuration: Korean 107 key configuration: Brazilian 109 key configuration: Japanese

Tracking Technology

Mouse Tracking System

LED optical technology

Imaging Rate

Dynamically adaptable to 3000 frames per second

X-Y Resolution

1000 points per inch (39.4 points per millimeter)

Tracking Speed

Up to 20 inches (508 millimeters) per second

Wireless Technology

Wireless Frequency

2.4 GHz frequency range

Wireless Range

15 feet (5 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the mouse and receiver.

Product Feature Performance

QWERTY Key Life

5,000,000 actuations per key

Encryption Features2

128-bit AES encryption

Advanced Encryption Standard (AES) is an electronic data encryption specification that was established by the U.S. National Institute of Standards and

Technology (NIST). It was subsequently adopted by the US federal government as an approved encryption technology under the FIPS-197 standard.

Hot Key Features

Windows 8 Charms keys, Windows Start key, and Calculator

Hot Key Life

500,000 actuations per key

Media Key Features

Mute, Volume -, Volume +, and Play/Pause

Media Key Life

500,000 actuations per key

Typing Speed

1000 characters per minute

Mouse Button Features

3 buttons including scroll wheel button

Mobility Features

Power switch turns mouse off, conserving battery life

Mouse On/Off Switch Life

4,000 actuations

Right & Left Button Life

3,000,000 actuations at no more than 4 actuations per second

Wheel Button Life

250,000 actuations at no more than 4 actuations per second

Mouse Scrolling Features

Standard vertical scrolling

Wheel Vertical Scrolling Life

• 85,000 revolutions (away from user)

• 300,000 revolutions (towards user)

Storage Temperature & Humidity

-40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing)

Operating Temperature & Humidity

32 °F (0 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)

Power Requirements

Battery Type and Quantity

• Keyboard: 2 AAA alkaline batteries (included)

• Mouse: : 2 AA alkaline batteries (included)

Battery Life

• Keyboard: 15 months typical

• Mouse: 8 months typical

Rev. 1508A Microsoft® Wireless Desktop 850 Page 1 of 2

Certification Information

Country of Manufacture

People's Republic of China (PRC)

ISO 9001 Qualified Manufacturer

Yes

ISO 14001 Qualified Manufacturer

Yes

Restriction on Hazardous Substances

This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals (REACH) regulation regarding Substances of Very High Concern.

FCC/IC ID

This Class B digital apparatus complies with Part 15 of the U.S. Federal Communications Commission (FCC) rules, Canadian ICES-003, and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC (U.S. Federal Communications Commission) Standards. For home or office use. The term "IC:" before the certification/registration number only signifies that the Industry Canada technical specifications were met. Model numbers: 1455, Wireless Keyboard 850; 1454, Wireless Mobile Mouse 1000 and 1461, Microsoft 2.4GHz Transceiver v8.0, FCC IDs: C3K1455, C3K1454, and C3K1461.

Regulacion para México

La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.

Agency and Regulatory Marks

• CNC Certificate (Argentina)

• ACA/MED Declaration of Conformity (Australia and New Zealand)

• TRA Certificate (Bahrain)

• ANATEL Certificate (Brazil)

• IC ID, Certificate of Acceptance (Canada)

• SUBTEL Certificate (Chile)

• CMIIT Certificate (China)

• EIP Pollution Control Mark, EPUP (China)

• Indotel Certificate (Dominican Republic)

• R&TTE Declaration of Conformity, Safety and EMC (European Union)

• WEEE (European Union)

• NTRA Certificate (Egypt)

• ETA Certificate (India)

• POSTEL Certificate (Indonesia)

• MIC Certificate (Israel)

• VCCI and Telec Certificates (Japan)

• TRC Certificate (Jordan)

• KCC Certificate (Korea)

• MPT Certificate (Kuwait)

• MOT Certificate (Lebanon)

• SIRIM Certificate (Malaysia)

• ICTA Certificate (Mauritius)

• COFETEL Certificate (Mexico)

• ANRT Certificate (Morocco)

• TRA Certificate (Oman)

• MTC Certificate (Peru)

• ICT Certificate (Qatar)

• FAC and EAC Certificates (Russia)

• CITC Letter (Kingdom of Saudi Arabia)

• RATEL Certificate (Serbia)

• IDA Registration (Singapore)

• ICASA Certificate (South Africa)

• BSMI and NCC Certificates (Taiwan)

• SDoC Certificate (Thailand)

• CERT Certificate (Tunisia)

• TRA Certificate (United Arab Emirates)

• UkrSEPRO Certificate (Ukraine)

• URSEC Certificate (Uruguay)

• FCC ID, Grant of Equipment Authorization (USA)

• CONATEL Certificate (Venezuela)

• CB Scheme Certificate (International)

Warranty

3 years

Windows Certification Kit (WCK)

Desktop ID: 1731365 (32-bit) and (64-bit) Microsoft Windows 10

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
