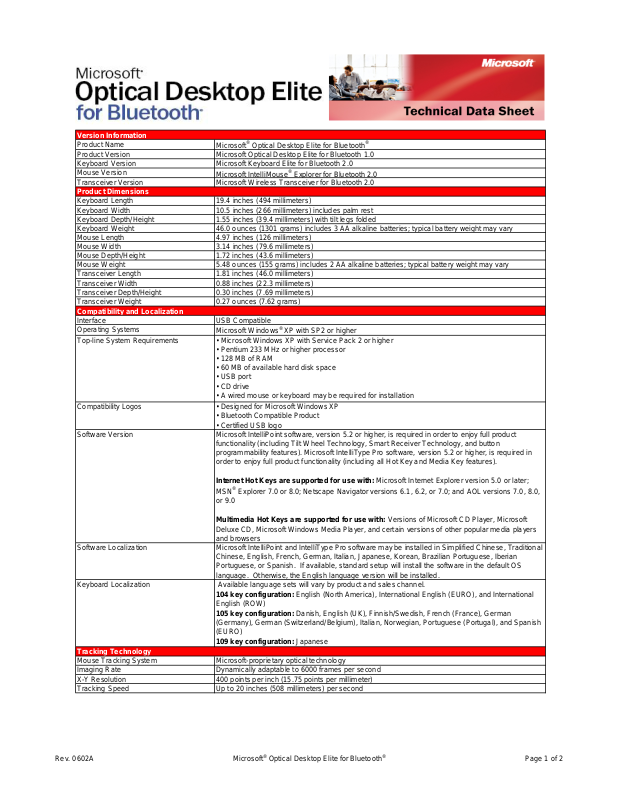

Microsoft OPTICAL DESKTOP ELITE FOR BLUETOOTH DATASHEET

ersion Information

Product Name

Microsoft

Optical Desktop Elite for Bluetooth

Product Version Microsoft Optical Desktop Elite for Bluetooth 1.0 Keyboard Version Microsoft Keyboard Elite for Bluetooth 2.0 Mouse Version

Microsoft IntelliMouse

Explorer for Bluetooth 2.0

Transceiver Version Microsoft Wireless Transceiver for Bluetooth 2.0

Product Dimensions

Keyboard Length 19.4 inches (494 millimeters) Keyboard Width 10.5 inches (266 millimeters) includes palm rest Keyboard Depth/Height 1.55 inches (39.4 millimeters) with tilt legs folded

board Weight 46.0 ounces (1301 grams) includes 3 AA alkaline batteries; typical battery weight may var

Ke Mouse Length 4.97 inches (126 millimeters) Mouse Width 3.14 inches (79.6 millimeters) Mouse Depth/Height 1.72 inches (43.6 millimeters) Mouse Weight 5.48 ounces (155 grams) includes 2 AA alkaline batteries; typical battery weight may vary Transceiver Length 1.81 inches (46.0 millimeters) Transceiver Width 0.88 inches (22.3 millimeters) Transceiver Depth/Height 0.30 inches (7.69 millimeters) Transceiver Weight 0.27 ounces (7.62 grams)

Compatibility and Localization

Interface USB Compatible Operating Systems

Microsoft Windows

XP with SP2 or higher

Top-line System Requirements • Microsoft Windows XP with Service Pack 2 or higher

• Pentium 233 MHz or higher processor

• 128 MB of RAM

• 60 MB of available hard disk space

• USB port

• CD drive

• A wired mouse or keyboard may be required for installation

Compatibility Logos • Designed for Microsoft Windows XP

• Bluetooth Compatible Product

• Certified USB logo

Software Version Microsoft IntelliPoint software, version 5.2 or higher, is required in order to enjoy full product

functionality (including Tilt Wheel Technology, Smart Receiver Technology, and button programmability features). Microsoft IntelliType Pro software, version 5.2 or higher, is required in order to enjoy full product functionality (including all Hot Key and Media Key features).

Internet Hot Keys are supported for use with: Microsoft Internet Explorer version 5.0 or later;

MSN

Explorer 7.0 or 8.0; Netscape Navigator versions 6.1, 6.2, or 7.0; and AOL versions 7.0, 8.0,

or 9.0

Multimedia Hot Keys are supported for use with: Versions of Microsoft CD Player, Microsoft Deluxe CD, Microsoft Windows Media Player, and certain versions of other popular media players and browsers

Software Localization Microsoft IntelliPoint and IntelliType Pro software may be installed in Simplified Chinese, Traditional

Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

Keyboard Localization

Available language sets will vary by product and sales channel. 104 key configuration: English (North America), International English (EURO), and International English (ROW) 105 key configuration: Danish, English (UK), Finnish/Swedish, French (France), German (Germany), German (Switzerland/Belgium), Italian, Norwegian, Portuguese (Portugal), and Spanish (EURO)

109 key configuration: Japanese

Trackin

Technolo

Mouse Tracking System Microsoft-proprietary optical technology Imaging Rate Dynamically adaptable to 6000 frames per second X-Y Resolution 400 points per inch (15.75 points per millimeter) Tracking Speed Up to 20 inches (508 millimeters) per second

Rev. 0602A

Microsoft

Optical Desktop Elite for Bluetooth

Page 1 of 2

Power Requirements

Battery Type and Quantity • Keyboard: 3 AA alkaline batteries (included)

• Mouse: 2 AA alkaline batteries (included)

Battery Life • Keyboard: 6 months typical

• Mouse: 3 months typical

Wireless Technolo

Wireless Platform Bluetooth 1.2 Wireless Frequency 2.4 GHz frequency range Wireless Range 32.8 feet (10 meters) typical Bluetooth Profile Support • Serial Port (SPP)

• Object Push (OPP)

• Personal Area Networking (PANU)

• Human Interface Device (HID)

• Hard Copy Cable Replacement (HCRP)

• Dial-Up Networkng (DUN)

Product Feature Performanc e

QWERTY Key Life 1,000,000 actuations per key Hot Key Features Mail, Web/Home, Messenger, My Documents, My Pictures, My Music, Show My Favorites, My

Favorites 1, My Favorites 2, My Favorites 3, My Favorites 4, My Favorites 5, Calculator, Log Off, Slee

Back, and Forward Hot Key Life 500,000 actuations per key Media Key Features Mute, Volume -, Volume +, Play/Pause, Stop (Media), Previous Track, and Next Track Media Key Life 500,000 actuations per key Enhanced Function Key Features Help, Undo, Redo, New, Open, Close, Reply, Forward, Send, Spell, Save, and Print Typing Speed 1000 characters per minute Keyboard Wheel Scrolling Features Tilt wheel enables vertical and horizontal scrolling Keyboard Wheel Vertical Scrolling Life • 50,000 revolutions (away from user) at no more than 60 rotations per minute

• 100,000 revolutions (toward user) at no more than 60 rotations per minute

board Wheel Horizontal Scrolling Life 250,000 actuations per side at no more than 4 actuations per second Mouse Button Features 5 buttons including scroll wheel button Mouse Right & Left Button Life 1,000,000 actuations at no more than 4 actuations per second Back/Forward Button Life 500,000 actuations at no more than 4 actuations per second Mouse Wheel Button Life 150,000 actuations at no more than 4 actuations per second Mouse Scrolling Features Tilt wheel enables vertical and horizontal scrolling Mouse Wheel Vertical Scrolling Life • 85,000 revolutions (away from user) at no more than 60 rotations per minute

• 100,000 revolutions (toward user) at no more than 60 rotations per minute

Mouse Wheel Horizontal Scrollin

Life 250,000 actuations per side at no more than 4 actuations per second Transceiver Features Supports up to seven devices equipped with Bluetooth technology Storage Temperature & Humidity -40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing) Operating Temperature & Humidity 14 °F (-10 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)

Certification Information

Country of Manufacture People's Republic of China (PRC) ISO 9002 Qualified Manufacturer Yes FCC ID This device complies with part 15 of the FCC Rules and Industry Canada RSS-210. Operation is

subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model numbers: 1002, Keyboard Elite for Bluetooth 2.0; 1001, IntelliMouse Explorer for Bluetooth 2.0; and 1003, Wireless Transceiver for Bluetooth 2.0. FCC IDs C3K1002, C3K1001, and C3K1003.

Agency and Regulatory Approvals • FCC Declaration of Conformity (USA)

• UL and cUL Notice of Approval (USA and Canada)

• RSS-210 and ICES-003 data on file (Canada)

• R&TTE Declaration of Conformity, Safety and EMC (European Union)

• TUV GS Certificate (Germany)

• VCCI and Telec Certificates (Japan)

• ACA/MED Declaration of Conformity (Australia and New Zealand)

• CITC Certificate (Saudi Arabia)

• NTRA Certificate (Egypt)

• CE Declaration (Hungary)

• NOM Certificates (Mexico)

• CB Scheme Certificate (International)

• WHQL (International) IDs: 850313 (Keyboard 104/105), 850318 (Keyboard 109), 851258 (Mouse), 848441 (Transceiver)

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This doc ument is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.

©2006 Microsoft Corporation. All rights reserved. M icrosoft, the IntelliEye logo, IntelliMouse , MSN, the Laser Technology logo, the Optical Technology logo, Natural, Windows, and Windows NT are either registered trademarks or trademarks of M icrosoft Corporation in the U.S. and/or other c ountries. Mac and the Mac logo are trademarks of Apple Computer, Inc., registered in the U.S. and/or other countries. The names of act ual co mpanies and products mentioned herein may be trademarks of their respective owners.

Rev. 0602A

Microsoft

Optical Desktop Elite for Bluetooth

Page 2 of 2
