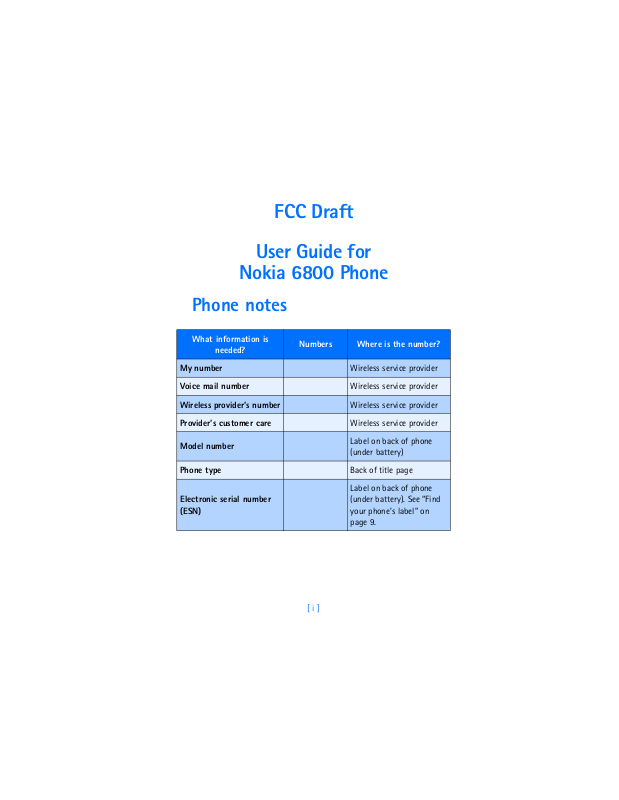

FCC Draft

User Guide for

Nokia 6800 Phone

Phone notes

What information is

needed?

My number Wireless service provider

Voice mail number Wireless service provider

Wireless provider’s number Wireless service provider

Provider’s customer care Wireless service provider

Model number

Phone type Back of title page

Electronic serial number (ESN)

Numbers Where is the number?

Label on back of phone (under battery)

Label on back of phone (under battery). See “Find your phone’s label” on page 9.

[ i ]

The wireless phone described in this guide is approved for use in GSM 850 and GSM 1900 networks.

LEGAL INFORMATION

Part No. 9357899, Issue No. 1. Copyright ©2002 Nokia. All rights reserved. Nokia, Nokia Connecting People, Nokia 6800, and the Nokia Original Accessories logos are trademarks or registered trademarks of Nokia Corporation. names mentioned herein may be trademarks or tradenames of their respective owners. Printed in Canada 03/2003

Includes RSA BSAFE cryptographic or security protocol software from RSA Security.

Java is a trademark of Sun Microsystems, Inc.

The information in this user guide was written for the Nokia 6800 policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

All other product and company

phone. Nokia operates a

EXPORT CONTROLS

This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.

The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met.

[ ii ]

1. For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2. An overview of functions . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Messaging concept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Multimedia messaging service (MMS) . . . . . . . . . . . . . . . . . . . . . . . .4

Polyphonic sound (MIDI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

General Packet Radio Service (GPRS) . . . . . . . . . . . . . . . . . . . . . . . . .4

Speakerphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

MIDP JavaTM applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

FM stereo radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3. Welcome and quick guide . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Get the most out of this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Understand wireless network services . . . . . . . . . . . . . . . . . . . . . . . . 8

E-Newsletters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Understand your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Switch your phone on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Check the start screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Get started with the Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . .21

Menu shortcuts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Use the selection and Joystick keys . . . . . . . . . . . . . . . . . . . . . . . . .26

Browse phone menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

4. Basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Set the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Make and answer calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Call and setup your voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Options during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Set up your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

5. Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Writing with the messaging keyboard . . . . . . . . . . . . . . . . . . . . . . .39

[ iii ]

Writing with the flip closed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

6. Manage phone security. . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Security levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Fixed dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

7. The Phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

View the Phone book menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Save names and numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Copy Phone book entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

1-touch dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

View Info, Service, and Own numbers. . . . . . . . . . . . . . . . . . . . . . . .58

8. Menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Write and send a text message . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Picture messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

E-mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Multimedia messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Voice messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Automate voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Message options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Organize messages with folders . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Erase messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Call log options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

View missed calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

View received calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

View dialed numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Erase call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

View call duration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Select a profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Customize a profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Set a timed profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Call settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Phone settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Display settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Tone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Set an alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Turn off an alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

[ iv ]

Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

The Monthly view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Go to a date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Send a Calendar note to another device. . . . . . . . . . . . . . . . . . . . .112

Make a to-do list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Turn the radio on and off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Use the radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Save a radio channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

9. Gallery (Menu 8). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Open the Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

View folders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

10. Games (Menu 9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Launch a game . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Game services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Launch an application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Application options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Download applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Use the calculator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Use the currency converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Use the countdown timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Use the stopwatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128

Nokia PC Suite™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

Download PC Suite software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

GPRS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Infrared . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

Notes on wireless Internet access . . . . . . . . . . . . . . . . . . . . . . . . . .135

Set up for browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Sign on to the wireless Internet . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Use browser options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Navigate the wireless Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Use bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

GPRS icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

11. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

12. Reference information. . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Battery statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

[ v ]

Use proper CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . 147

Understand IMPORTANT SAFETY INFORMATION . . . . . . . . . . . . . 148

Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

13. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

14. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 156

15. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

16. Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

17. Nokia One-Year Limited Warranty . . . . . . . . . . . . . . . . . 162

Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Appendix B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

[ vi ]

For your safety

1 For your safety

Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual.

Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Don't use a hand-held phone while driving.

INTERFERENCE

All wireless phones may get interference, which could affect performance.

SWITCH OFF IN HOSPITALS

Follow any regulations or rules. Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT

Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELLING

Don't use the phone at a refuelling point. Don't use near fuel or chemicals.

SWITCH OFF NEAR BLASTING

Don't use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.

USE SENSIBLY

Use only in the normal position. Don't touch the antenna unnecessarily.

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

[FCC Draft 1 FCC Draft ]

OBSERVE INFRARED PRECAUTIONS

Do not point the IR beam at anyone’s eyes or allow it to interfere with other IR devices.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

WATER-RESISTANCE

Your phone is not water-resistant. Keep it dry.

BACKUP COPIES

Remember to make backup copies of all important data.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user's guide for detailed safety instructions. Do not connect incompatible products.

FUSE REPLACEMENT

Replace a blown fuse with a fuse of the same type and size. Never use a fuse with a higher rating!

CALLING

Ensure the phone is switched on and in service. Enter the phone number, including the area code, then press d. To end a call, press e. To answer a call, press d.

EMERGENCY CALLS

Ensure the phone is switched on and in service. Press e as many times as needed (e.g. to exit a call, to exit a menu, etc.) to clear the display. Enter the emergency number, then press e . Give your location. Do not end the call until told to do so.

[FCC Draft 2 FCC Draft ]

For your safety

• ABOUT ACCESSORIES

Check the model number of any charger before use with this device. This device is intended for use when supplied with power from ACP-12 and LCH-12.

Warning: Use only batteries, chargers and accessories approved by the phone manufacturer for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

For availability of approved accessories, please check with your dealer.

When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord.

[FCC Draft 3 FCC Draft ]

2 An overview of functions

• MESSAGING CONCEPT

Your phone combines the functions of a normal mobile phone and a messaging device. With the flip closed, you can use all the functions of the phone like in any other mobile. By opening the flip of the phone, you’ll find an additional mesaging keyboard that’s especially desinged for easy text writing. See __________

• MULTIMEDIA MESSAGING SERVICE (MMS)

Your phone is able to send and receive multimedia messages made up of text and pictures. You may also be able to receive polyphonic ringing tones. You can also save pictures and ringing tones to personalize your phone. See “Multimedia messages” on page 70 for more information.

• POLYPHONIC SOUND (MIDI)

Polyphonic sounds are used in ringing tones and message alert tones. They consist of several sound components played at the same time, like an actual melody through a speaker. Your phone has sound components from over 40 instruments that can be used for polyphonic sounds but the phone can play four instruments simultaneously. The phone supports Scalable Polyphonic MIDI (SP-MIDI) format.

You can receive polyphonic ringing tones via multimedia service, (see “Read and reply to a multimedia message” on page 74), or download them via the gallery menu, see “Gallery (Menu 8)” on page 118 for more information.

• GENERAL PACKET RADIO SERVICE (GPRS)

[FCC Draft 4 FCC Draft ]

An overview of functions

GPRS technology allows mobile phones to send and receive data over a mobile network. Applications such as WAP, MMS and SMS messaging, and Java

Your phone supports up to three simultaneous GPRS connections. For

more information on GPRS, see “GPRS” on page 132. Also, consult the PC Connectivity Guide. The PC Connectivity guide, Nokia PC Suite, and all related software can be downloaded from the U.S. Mobile Phone products section of www.nokia.com.

may use GPRS.

Before you can use GPRS technology

Contact your network operator or service provider for availability and subscription to the GPRS service. Also, save the GPRS settings for each of the applications used over GPRS.

PRICING FOR GPRS AND APPLICATIONS

Your wireless provider may charge for GPRS services. For more information on pricing, contact your wireless provider.

• SPEAKERPHONE

You can use your phone as a speakerphone during a call. To activate the speakerphone, press Loudsp. To deactivate the speakerphone during a call, press Handset. The speakerphone deactivates when you end the call, or when you connect a headset.

• MIDP JAVATM APPLICATIONS

Your phone supports JavaTM and includes some Java applications and games that have been specially designed for mobile phones. You may be able to download new applications and games to your phone from a PC with a Java installer software or from some Mobile Internet services. See “Applications (Menu 10)” on page 122 for more information.

[FCC Draft 5 FCC Draft ]

• FM STEREO RADIO

Your phone has an integrated FM stereo radio. You can listen to the radio through a headset or the handsfree speaker (with the headset attached) . See “Radio (Menu 7)” on page 115 for more information.

[FCC Draft 6 FCC Draft ]

Welcome and quick guide

3 Welcome and quick guide

Congratulations on your purchase of the Nokia 6800’ mobile phone. Your phone provides many functions which are practical for daily use, such as a Calendar, Radio, Alarm clock, Calculator, Notepad and more. Your phone can also connect to a PC, laptop, or other device using the built-in IR port. For more information on connectivity, refer to the PC Connectivity Guide. The PC Connectivity guide, Nokia PC Suite, and all related software can be downloaded from the U.S. Mobile Phone products section of www.nokia.com/us.

• GET THE MOST OUT OF THIS GUIDE

The tips that follow can help you get the most from this guide as you learn to use your phone.

Learn text conventions

This user guide provides text clues to help make instructions clear and easy to follow. These clues are called conventions.

Convention What it means

bold The word or phrase appears on the phone’s display

bold and blue The text refers to an address on the world wide web

italics Indicates emphasis. Pay close attention to any

information in italics

Follow graphic clues

This guide uses certain icons to alert you to important information.

Tip: Indicates a shortcut or alternate method of doing something.

[FCC Draft 7 FCC Draft ]

Note: Explains a feature or points out an important concept.

Note:Indicates critical information on using a feature.

Note: Warns when you may lose information.

Note:Helps you avoid personal injury, damage to the

phone, or property damage.

Access alternate formats

This user guide is available in alternate formats, such as Braille, Large print, Audiocassette, and E-text (documents on disk, in Microsoft Word or

WordPerfect format).

Look for updates

From time to time, Nokia updates this guide to reflect changes. The latest version may be available at www.nokia.com/us.

Also, an interactive tutorial may be available at www.nokiahowto.com.

• UNDERSTAND WIRELESS NETWORK SERVICES

The wireless phone described in this guide is approved for use on the GSM 850 and GSM 1900 networks.

A number of features in this guide are called Network Services. These are special services that you arrange through your wireless service provider. Before you can take advantage of any of these Network Services, you must subscribe to them through your wireless provider and obtain instructions for their use from your service provider.

• REGISTER YOUR PHONE

Make sure to register your phone at www.warranty.nokiausa.com or 1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs better if you should need to call the center or have your phone repaired.

[FCC Draft 8 FCC Draft ]

Welcome and quick guide

• E-NEWSLETTERS

When you register your phone, you can sign up for Nokia's e-newsletter Nokia Connections if you would like. You will receive tips and tricks on using your phone, accessory information, and special offers.

•GET HELP

Find your phone’s label

If you ever need to call Nokia Customer Care or your service provider, you will need to provide specific information about your phone. This information is provided on the phone’s label. We also recommend that you write down the following information on the inside cover of this guide (see “Phone notes” inside the front cover) and have it available if you call.

The label is on the back of the phone (under the battery). It shows the following:

• Model number

• Phone type (a technical designation)

• International Mobile Equipment Identification (IMEI)

Do not remove or deface the label.

Information label

Contact Nokia

When you need help, Nokia Customer Care can provide information about Nokia products. Before calling, however, please read “Frequently Asked Questions” on page 156.

HAVE THE RIGHT INFORMATION AVAILABLE

Have the following information available before you contact Nokia Customer Care:

• The phone’s model number

[FCC Draft 9 FCC Draft ]

• Phone type (a technical designation)

• The IMEI (serial number)

• Your ZIP code

CONTACT YOUR SERVICE PROVIDER

Some service providers program a one-key customer support number into the phone. This number can be useful if you’re having trouble dialing a number, especially when you’re traveling outside your home area.

This one-key feature may not be available on all systems. Contact your service provider for availability.

When you need to get in touch with your wireless service provider:

Your phone will automatically dial the provider’s customer support number if your provider offers this feature.

If your service provider determines that the problem is Nokia-related, their representative will direct you to the Nokia Customer Care Center (USA) or Nokia Customer Service (Canada).

[FCC Draft 10 FCC Draft ]

Welcome and quick guide

• UNDERSTAND YOUR PHONE

With flip closed

1 Power key

Switches the phone on and off. Also when the keypad is locked, to turn on the phone’s display lights for approximately 15 seconds.

2 Volume key

Adjusts the volume of the earpiece, the headset and the loudspeaker.

3 Selection keys

c and b The function of the keys depends on the text shown on the display above the keys; for example Menu and Names in Standby mode.

4 4-way joystick a

Enables scrolling through names, phone numbers, menus or settings. The 4-way joystick also moves the cursor up and down, and right and left in text writing, calendar, and in some game applications.

5 e dials a phone number, and answers a call. In Standby mode it

shows the most recently called number.

6 d ends an active call, or exits from any function.

7 Use the keypad to enter numbers and characters.

[FCC Draft 11 FCC Draft ]

Opening the flip

1 Hold the phone with

both hands and open the flip as shown in picture (1)

2 Turn the flip until you

hear it click into place (2)

[FCC Draft 12 FCC Draft ]

Welcome and quick guide

3 Turn the phone to horizontal position and hold it as shown in picture

(3).

[FCC Draft 13 FCC Draft ]

With flip open

1 Keyboard light key k switches the keyboard light on or off to provide

additional lighting while using the keyboard. See also Switching the

keyborad lights on or off on page

2 Profile key opens a list of profiles. Press and hold down the key to

switch the phone off.

3 Backspace h deletes characters 4 Enter key i forces line feed in text editing. The enter key also opens

a highlighted link on a WAP page, see Using the phone keys while

browsing on

5 Shift keys g and ? enter a space. 6 Space bar keys j and ? enter upper case letters and symbols. You

can either press the shift key first and then the desired key or press both keys at the same time.

7 Power key/ Left selection key f switches the power on, when the

phone’s messaging keyboard is open and the phone is switched off.

8 Character key l opens a set of characters and symbols.

[FCC Draft 14 FCC Draft ]

Welcome and quick guide

Use the antenna

Your phone has a built-in antenna. As with any other radio transmitting device, avoid touching the antenna while the phone is powered up.

Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than necessary. Hold the phone as you would any other telephone with the antenna area pointed up and over your shoulder.

Add graphic showing phone in filp mode.

Use the battery

CHARGE THE BATTERY

1 Plug the charger transformer in to a standard AC outlet.

2 Insert the charger output jack into

the round connector at the bottom end of the phone.

After a few seconds, the battery indicator in the display starts to scroll from bottom to top. If the battery is completely discharged, it may take a few minutes before the charging indicator appears on the display or any calls can be made.

Tip: You can use the phone while the charger is connected.

IMPORTANT BATTERY INFORMATION

Important: Your phone is powered by a rechargeable

battery.

Use only batteries approved by Nokia and recharge your battery only with the chargers approved by Nokia. Never use any charger or battery which is damaged.

[FCC Draft 15 FCC Draft ]

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

The BLC-2 battery doesn't need a full discharge before recharging.

PROLONG THE BATTERY

Use the following guidelines to obtain the best performance from your battery:

• With your phone turned off, charge your new battery for three hours before its first use. Use the battery until it is fully discharged. Repeat this procedure twice for a total of three charging cycles.

• Note that a new battery's full performance is achieved only after two or three complete charge and discharge cycles. Battery operation time may be less than the estimated times during the first charges. This condition is normal.

• You can use your phone while the battery is charging. However, if the battery is completely empty, it may need to recharge a few minutes before you can make or receive calls or the battery indicator appears.

• After the first charge, you can make and receive calls during the charging cycle, but the calls interrupt the charge. When the phone call ends, the charge will resume.

• The bars on the screen stop scrolling and remain constant when the phone is fully charged. If you switch the phone on when charging is complete, the message Battery full momentarily appears in the display.

Charging time depends on the charger and the battery used. For example, charging a BLC-2 battery with the ACP-12 charger takes about two hours in standby mode.

Important: When the phone’s battery is fully charged, be sure to disconnect the phone from the charger.

[FCC Draft 16 FCC Draft ]

Welcome and quick guide

REMOVE THE BACK COVER

With the back of the phone facing you, push the back cover release button.

REMOVE THE BATTERY

After you’ve removed the back cover, insert your finger into the finger grip and lift the battery from its compartment.

Install the SIM card

Warning: Keep all SIM

cards out of reach of small children.

• The SIM card and its contacts can easily be damaged by scratches or bending, so be careful when handling, inserting or removing the card.

• Before installing the SIM card, always make sure that the phone is switched off and that you’ve removed the cover and battery.

1 Slide the SIM card holder toward the left..

2 Swing the SIM card holder open.

3 Insert the SIM card into the holder, (beveled

corner last) and the gold contacts facing toward the top end of the phone.

[FCC Draft 17 FCC Draft ]

4 Close the SIM

card holder and slide it back into place.

REPLACE THE BATTERY

Note: The SIM card must be installed

before installing the battery.

Position the battery so the gold contacts match up with those on the phone. The battery label should be facing away from the phone.

REPLACE THE BACK COVER

1 Place the top of the back cover on the

locking catches on the front in the top of the phone.

2 Slide the back cover until it locks into

place.

[FCC Draft 18 FCC Draft ]

Welcome and quick guide

• SWITCH YOUR PHONE ON OR OFF

Warning:Do not switch the phone on when wireless

phone use is prohibited or when it may cause interference or danger.

1 To turn your phone on or off, press and hold the power key on for at

least 3 seconds.

Flip closed

Note: In the flip open mode, the “right soft key” also is

used as the power key.

If the phone displays Insert SIM card even though the SIM card is properly inserted, or SIM card not supported, contact your wireless provider.

2 Enter the PIN code or security code if necessary and press OK.

Flip open

• CHECK THE START SCREEN

The Start screen is “home base” and indicates your phone is in idle mode.

1 Indicates in which cellular network the

phone is currently being used, when no wallpaper is displayed.

2 Shows the signal strength of the cellular

network at your current location. The higher the bar, the stronger the signal.

[FCC Draft 19 FCC Draft ]

3 Shows the battery charge level. The higher the bar, the more power in

the battery

4 The left selection key is Menu.

5 The right selection key is Names.

[FCC Draft 20 FCC Draft ]

Welcome and quick guide

• GET STARTED WITH THE QUICK GUIDE

Make a call Enter phone number, press e Answer a call Press Answer a call with a

call waiting End a call Press Ignore a call Press Silence when your phone rings Redial last number Press twice Adjust call volume Press up or down on the side volume key Use the in-call menu While in a call, press Use 1-touch dialing Press and hold any key 2 through 9 Save a name and number Enter a number, press Options

Recall a name/number Press Names Check voice mail Press and hold Write and send a

text message

Write and send an E-mail message

Read a new message Press Show, Reply to a message Press Options, select Reply, write the reply, press Options,

Reply to an E-mail message

Send a business card Recall a name from the phone book. Press Details, then

Answer or e

Press e or Options and select Answer call

Options

and select Save, then enter

a name and press OK

, select Find. Enter name and press Find or List

1 OR dial your voice mailbox number

Press Menu 01-1-1. After a pause, write the message. Press Options, scroll to Send, press Select, enter the recipient’s number, press OK

Press Menu 01-1-2. After a pause, enter the recipient’s e-mail address. Press Write your e-mail message, press Options, scroll to Send

e-mail and press Select. Enter the e-mail server number if necessary and press

then press Select

select Send, and press OK Press Options, scroll to Reply, and press Select. Compose

your message and press Options. Scroll to Sending options and press Select. Scroll to Sending profile and press Select. Highlight your email profile and press Select. Press Options, Accept, enter the e-mail address, press

press Options, scroll to Send bus. card, scroll to Via text message and press or press Find to retrieve a number from the Phone book. Press OK. The business card is sent.

OK, enter a subject, and press OK.

OK. Your e-mail is sent.

OK.

Select. Enter the recipient’s number

[FCC Draft 21 FCC Draft ]

• MENU SHORTCUTS

1 MESSAGES

1 Text messages01-1-1 2 Multimedia messages01-

2 3 Chat01-3 4Voice messages01-4 5 Info messages01-5 6 Message settings01-7 7 Service commands01-7

2 CALL LOG

1 Missed calls2-1 2 Received calls2-2 3 Dialed numbers2-3 4 Delete recent call lists2-4 5Call timers2-5 6Call costs2-6 7 GPRS Data counter2-7 8 GPRS Connection timer2-

3PROFILES

1Normal3-1 2 Silent3-2 3 Meeting3-3 4 Outdoor3-4 5Pager3-5

4 SETTINGS

1 Time and date settings4-1 2 Call settings4-2 3 Phone settings4-3 4 Display settings4-4 5 Tone settings4-5 6 Security settings4-8 7 Restore factory settings4-

5 ALARM CLOCK

6RADIO

7 GALLERY

1View folders7-1 2 Delete folder7-2 3 Rename folder7-3 4 Add folder7-4 5 Gallery services7-5

8ORGANIZER

1Calendar8-1 2 To-do list8-2

9 GAMES

1 Select game9-1 2 Game services9-2 3Memory9-3 4 Settings9-4

10 APPLICATIONS

1 Select application10-1 2 App. services10-2 3Memory10-3

11 EX TR AS

4Calculator11-1 5 Countdown timer11-2 6 Stopwatch11-3

12 CONNECTIVITY

7 Infrared12-3 8 GPRS12-2

13 SERVICES

9Home13-1 10 Bookmarks13-2 11 Service inbox13-3 12 Settings13- 4 13 Go to address13-5 14 Clear the cache13-6

[FCC Draft 22 FCC Draft ]

•GET HELP

Welcome and quick guide

Find your phone’s label

If you need help, Nokia Customer Care is available for assistance. Before calling, however, please read “Frequently Asked Questions” on page 156.

We also recommend that you write down the following information and have it available if you call. The information can be found on back of the phone, beneath the battery.

• The International Mobile Equipment Identifier (IMEI)

• We also ask that you write down your zip code.

Information label

Contact Nokia

Please have your phone or accessory with you when contacting either of the numbers below.

Nokia Customer Care Center, USA

Nokia, Inc. 7725 Woodland Center Boulevard Suite #150 Tampa, Florida 33614

Tel: 1-888-NOKIA2U (1-888-665-4228)

Fax: 1-813-249-9619 TTY: 1-800-24NOKIA (hearing impaired only) (1-800-246-6542)

Customer Interaction Center, Canada

Nokia Products Ltd. 601 Westney Road South Ajax, Ontario L1S 4N7

Tel: 1-888-22NOKIA (1-888-226-6542)

Fax: 1-905-427-1070

[FCC Draft 23 FCC Draft ]

Contact your service provider

To use the network services available in your phone, you’ll need to sign up with a wireless provider. In many cases, the wireless provider will make available descriptions of their services and instructions for using features such as:

• Voice mail and voice privacy

• Call waiting, call forwarding, and caller ID

• Messaging

• News and information services

• Selected Internet services

Wireless providers may differ in their support of features. Before you sign up, make sure a wireless provider supports the features that you need.

Receive accessibility information

Note:Nokia is committed to making mobile phones easy to

use for all individuals, including those with disabilities. For more information, visit www.nokiaaccessibility.com. If the language that appears in your display is not correct, see “Set the display language” on page 99 for information on changing your phone’s display language.

[FCC Draft 24 FCC Draft ]

Understand indicators and icons

Icon Indicates...

You have one or more text or picture messages. See “Reply to a message or e-mail” on page 69.

You have one or more multimedia messages. See “Read and reply to a multimedia message” on page 74

You have one or more voice messages. See “Voice messages” on page 76

Your phone’s keypad is locked, see “Lock the keypad (Keyguard)” on page 44.

Your phone is set to the Silent profile. “Profiles (Menu

3)” on page 91

The alarm clock is set to On. See “Organizer(Menu 5)” on page 107

The countdown timer is running. See “Use the countdown timer” on page 126

The stopwatch timing is running in the background, see “Use the stopwatch” on page 128

A GPRS dial-up connection is established, see “GPRS dial-up connections” on page 132

You have an incoming or outgoing call during a GPRS dial-up connection. GPRS is suspended

IR connection indicator, see “Infrared” on page 133

Welcome and quick guide

Forward all voice calls. All calls are forwarded to another number. If you have two phone lines, the indicator for line 1 is and for line 2

If you have two phone lines, indicates the selected phone line. See “Phone settings” on page 99

[FCC Draft 25 FCC Draft ]

Icon Indicates...

Integrated handsfree is active, see “Speakerphone” on page 5

Calls are limited to a closed user group; see “Closed user groups” on page 50

The timed profile is selected, see “Profiles (Menu 3)” on page 91

, or

A headset, handsfree or loopset accessory is connected to the phone.

• USE THE SELECTION AND JOYSTICK KEYS

Below each corner of the display are the selection keys. Press c when Menu appears above it to show the first of numerous menus. Page through the rest of the menus using the joystick key a. Press b when Names appears above it to enter the Phone book.

Tip: Press a up or down from the Start screen to view any entries in your Phone book. Press a left to begin writing a text message, or press a right to view the calendar.

Left select

Right select

Use four-way scrolling

In features such as the calendar monthly view, text messages, and special characters, you can move the cursor up and down as well as left and right with the joystick key.

[FCC Draft 26 FCC Draft ]

Welcome and quick guide

• BROWSE PHONE MENUS

Your phone's features are grouped according to function and are accessed through your phone's main menus. Each main menu contains submenus and lists from which you can select or view items, and customize your phone's features. You can access these menus and submenus by using the scroll method or by using a shortcut.

Note: Some features may not be available, depending on your network. For more information, contact your wireless provider.

Use the scroll method

1 At the Start screen, press Menu, then press a to scroll through the

main menus.

As you scroll through the menus, the menu number appears in the upper right corner of the display. Below the menu number is a scroll bar with a tab. The tab moves up or down as you scroll through the menus, providing a visual representation of your current position in the menu structure

2 When you arrive at a menu, press Select (c) to enter that

menu’s submenus.

• Press Back (b) to return to the previous menu

• Press d to return to the Start screen from any menu or submenu

Use a shortcut

You can go directly to almost any menu or submenu, as well as activate most features by using a shortcut.

• Press Menu, then within 3 seconds, press the key or keys associated with the menu function you’d like to view or activate.

[FCC Draft 27 FCC Draft ]

For example, to select the Meeting profile, press Menu 3-3-1 from the Start screen (Menu pause, the Meeting profile is activated.

A complete list of shortcuts begins on the following page.

Profiles - 3Meeting - 1Select). After a brief

Check in-phone help

Many features have brief descriptions (help text) which can be viewed on the display. To view these descriptions, scroll to a feature and wait for about 10 seconds. Press More to view all of the description (if necessary), or press Back to exit.

ACTIVATE OR DEACTIVATE HELP TEXT

1 At the Start screen, press Menu 4-3-7 (Settings > Phone settings >

Help text activation).

2 After a brief pause, On and Off appear in the display.

3 Scroll to On or Off and press Select. A confirmation message appears

in the display indicating your selection.

[FCC Draft 28 FCC Draft ]

Menu shortcuts

1 MESSAGES

1 TEXT MESSAGES01-1

1 Create message01-1-1 2 Create e-mail01-1-2 3 Inbox01-1-3 4 Sent items01-1-4 5Archive01-1-5 6 Templates01-1-6 7My folders01-1-7 8 Delete messages01-1-

2 MULTIMEDIA MSGS01-2

1 Create message01-2-1 2 Inbox01-2-2 3 Outbox01-2-3 4 Sent items01-2-4 5 Saved items01-2-5 6 Delete messages01-2-

3 DISTRIBUTION LISTS01-3 4 VOICE MESSAGES01-4

7 Listen to

voice messages01-4-1

8 Voice mailbox number

01-4-2

5 INFO MESSAGES01-5

1 Info service01-5-1 2 Topics01-5-2 3Language01-5-3 4 Info topics

saved on SIM card015-4

5 Read (if received only)

Welcome and quick guide

01-5-5

6 SERVICE COMMAND

EDITOR

01-6

7 MESSAGE SETTINGS01-7

1 Text messages01-7-1 2 Multimedia msgs.01-

7-2

3Other settings01-7-3

2CALL LOG

1MISSED CALLS2-1 2 RECEIVED CALLS2-2 3 DIALED NUMBERS2-3 4 DELETE RECENT

CALL LISTS2-4

1 All2-4-1 2Missed2-4-2 3 Received2-4-3 4 Dialed2-4-4

5 CALL DURATION2-5

1 Last call duration2-5-

2 Received calls’

duration2-5-2

3 Dialed calls’ duration

2-5-3

4 All calls’ duration2-5-

5Clear timers2-5-5

6 GPRS DATA COUNTER2-6

1 Data sent in last

session2-6-1

[FCC Draft 29 FCC Draft ]

2Data received

in last session2-6-2 3 All sent data2-6-3 4 All received data2-6-4 5 Clear counters2-6-5

7 GPRS CONNECTION TIMER

2-7

1 Duration of last

session2-7-1

2 Duration of all sessions

2-7-2 3Clear timers2-7-3

3PROFILES

GENERAL3-1

1Activate3-1-1 2 Customize3-1-2

1 Incoming call alert

3-1-2-1

2 Ringing tone3-1-2-

3 Ringing volume3-1-

2-3

4 Vibrating alert3-1-

2-4

5 Message alert tone

3-1-2-5

6 Keypad tones3-1-2-

7 Warning tones3-1-

2-7

8 Alert for3-1-2-8 3Timed3-1-3

2SILENT3-2

1Activate3-2-1 2 Customize3-2-2

1 Incoming call alert

3-2-2-1

2 Ringing tone3-2-2-

3 Ringing volume3-2-

2-3

4 Vibrating alert3-2-

2-4

5 Message alert tone

3-2-2-5

6 Keypad tones3-2-2-

7 Warning tones3-2-

2-7 8 Alert for3-2-2-8 9 Profile name3-2-2-

1 Submenus for

Outdoor, and Pager are the

same as

Silent

3MEETING3-3 4OUTDOOR 3-4 5 PAGER3-5

4SETTINGS

TIME AND DATE SETTINGS4-1

1 Clock4-1-1 2Date4-1-2 3

Auto-update of date & time4-1-3

1 CALL SETTINGS4-2

1 Call forwarding4-2-1 2 Anykey answer4-2-2 3 Automatic redial4-2-4 4 1-touch dialling4-2-4

Meeting,

[FCC Draft 30 FCC Draft ]

Welcome and quick guide

5 Call waiting4-2-5 6 Summary after call4-

2-6

7 Send my caller identity

4-2-7

8Line for outgoing

calls

4-2-8

1PHONE SETTINGS4-3

1Language4-3-1 2 Automatic keyguard4-

3-2 3 Cell info display4-3-3 4 Welcome note4-3-3 5 System selection4-3-5 6 Confirm SIM

service actions4-3-6 7 Help text activation4-

3-7 8 Start-up tone4-3-8

1 DISPLAY SETTINGS4-4

1 Wallpaper4-4-1 2 Color schemes4-4-2 3 Operator logo4-4-4 4 Screen saver timeout

4-4-3 5 Display brightness4-4-

1 TONE SETTINGS4-5

1 Incoming call alert4-

5-1 2 Ringing tone4-5-2 3 Ringing volume4-5-3 4 Vibrating alert4-5-4 5 Message alert tone4-

1 For availability, contact your wireless provider.

5-5 6 Keypad tones4-5-6 7 Warning tones4-5-7 8 Alert for4-5-8

1 SOFTKEY FUNCTION4-6

9 Choose function4-6-1 10 Organize funciton4-6-

1 ACCESSORY SETTINGS4-7

11 Headset4-7-1 12 Handsfree4-7-2 13 Loopset4-7-3 14 TTY4-7-4

1 SECURITY SETTINGS4-8

15 PIN code request4-8-1 16 Call restrictions4-8-2 17 Fixed dialing4-8-3 18 Closed user group4-8-

4 19 Security level4-8-5 20 Access codes4-8-6

1RESTORE

FACTORY SETTINGS4-9

5ORGANIZER

1 ALARM CLOCK5-1

1 CALENDAR5-2 2TO-DO LIST5-3

6NOTES 7RADIO

8 GALLERY

[FCC Draft 31 FCC Draft ]

1 VIEW FOLDERS8-1 2 DELETE FOLDER8-2 3 RENAME FOLDER8-3 4 ADD FOLDER8-4 5 GALLERY SERVICES8-5

9 GAMES

1 SELECT GAME9-1 2 GAME SERVICES9-2 3MEMORY9-3 4 SETTINGS9-4

1 Game sounds9-4-1 2 Game lights9-4-2 3 Shakes9-4-3

Club Nokia ID9-4-4

10 APPLICATIONS

1 SELECT APPLICATION10-1 2 APP. SERVICES10-2 3MEMORY10-3

11 E XT R AS

1 CALCULATOR11-1 2 VOICE RECORDER11-2 3 VOICE COMMANDS11-3

1 Wallett11-4

12 CONNECTIVITY

1 HOME13-1 2 BOOKMARKS13-2 3 SERVICE INBOX13-3 4 SETTINGS13-4

1 Active service settings

13-4-1

2 Edit active

service settings13-4-2

3 Appearance settings

13-4-3 4 Cookie settings13-4-4 5 Authority certificates

13-4-5 6 Security module

settings13-4-6 7 Service inbox settings

13-4-6

5 GO TO ADDRESS13-5 6 CLEAR THE CACHE13-6

1 GPRS12-3 2 SYNCHRONIZE12-2 3 INFRARED12-3

13 SERVICES

[FCC Draft 32 FCC Draft ]

Basic operations

4 Basic operations

• SET THE CLOCK

Before many functions such as call timers and other features will operate properly, you need to set the clock.

1 At the Start screen, press Menu 4-1-1 (Settings - Time and date

settings - Clock).

After a brief pause, Show clock (or Hide clock) Set the time, and Time format appear in the display with Show clock (or Hide clock) highlighted.

2 Scroll to Set the time and press Select.

3 Enter the time (in hh:mm format) and press OK.

4 Scroll to am or pm and press Select. The time is set.

• MAKE AND ANSWER CALLS

Use the keypad

1 Enter the phone number (including the area code), and press e.

• To delete a character to the left of the cursor, press Clear.

• With the flip open in standby mode, pressing any number key starts a call procedure.

2 Press d to end the call or to cancel the call attempt.

Use the phone book

1 At the Start screen, move the joystick up or down and scroll to the

entry you wish to view.

2 Press e to make the call or press Details to view details of the entry.

[FCC Draft 33 FCC Draft ]

Tip: To quickly search the list of entries in your Phone book, press any key in which the letters match the first letter of the name for which you’re searching.

Answer or reject an incoming call

• Press e to answer the call

• Press d to reject the call; the caller receives a busy signal

If you press Silence, only the ringing tone is muted. You can then either answer or reject the incoming call.

Tip: If the HDB-4 or HDS-3 headset is connected, you can answer or end a call by pressing the key on the headset.

Answer a call with the keypad locked

To answer a call with keyguard on, simply press e. During the call, all features function as normal. When you end or reject the call, the keypad automatically re-locks.

Note: When Keyguard is on, calls may be possible to dial emergency numbers (for example, 911 or other official emergency numbers). Key in the emergency number and press e. The number is displayed only after you have

keyed in its last digit.

Redial the last number

1 At the Start screen, press e to display the last 20 numbers you

have dialed.

2 Press e to redial the last number.

OR Scroll to the number (or name) you wish to redial and press e .

[FCC Draft 34 FCC Draft ]

Basic operations

Adjust the earpiece volume

• (verify)To increase the volume of a call, press the volume up key on the left side of the phone.

• To decrease the volume of a call, press the volume down key on the left side of the phone.

When adjusting the volume, a bar chart appears in the display indicating the volume level.

Volume key

Loudspeaker

You can use your phone as a loudspeaker during a call. Do not hold the phone to your ear during loudspeaker operation.

TO ACTIVATE THE LOUDSPEAKER:

• Open the flip or:

• With the flip closed, press Options and select Loudspeaker or

press Loudsp., if available.

TO DEACTIVATE THE LOUDSPEAKER DURING A CALL:

• Close the flip or:

• With the flip closed, press Options and select Handset, if available.

If you have connected the handsfree unit CARK126 or the headset to the phone, Handset in the options list is replaced with Handsfree or Headset and the selection key Handset with Handsfr. or Headset respectively.

The loudspeaker is automatically deactivated when you end the call, connect the handsfree unit or headset to the phone or close the flip.

• CALL AND SETUP YOUR VOICEMAIL

1 Once you’ve saved the voice mailbox number, press and hold 1.

2 When you connect and the pre-recorded greeting begins, follow the

[FCC Draft 35 FCC Draft ]

automated instructions to setup your voicemail.

Listen to your voice messages

Once you’ve setup voicemail, you can dial the number one of 3 ways:

• Dial the number using the keypad

• Press and hold c.

• Press Listen if there’s a notification message in the display

When you connect and the pre-recorded greeting begins, follow the automated instructions to listen to your voice messages.

Make a conference call

Conference calling is a network service that allows up to six persons to take part in a conference call.

1 Make a call to the first participant.

2 To call a new participant, press Options, scroll to New call, and

press Select.

3 Enter the phone number of the new participant (or press Find to

retrieve a number from your Phone book) and press Call. The first call is put on hold.

4 When the new call picks up, press Options, scroll to Conference, and

press Select to connect the calls.

5 To add a new participant to the call, repeat steps 2 through 4.

HAVE A PRIVATE CONVERSATION WITH ONE OF THE PARTICIPANTS:

6 Press Options, select Private and select the desired participant. Rejoin

the conference call as described in step 4.

7 To end the conference call, press d.

[FCC Draft 36 FCC Draft ]

Basic operations

• OPTIONS DURING A CALL

Many of the options that you can use during a call, are network services. Press Options during a call to display those listed in the following table.

• Scroll to an option and press Select to view the option or its submenu

Option Function

Hold Place the current call on hold

Unhold Remove the current call from hold status

Lock keypad? Activate keyguard

Record

End call End the call

New call Place a new call; the first call is put on hold

End all calls End all calls within a conference call

Conference Call another party and invite them into the call

Touch tones Send touch tones generated by your phones keypad

Phone book Open the Phone book menu

Menu Display the main menus

Unmute Return to normal from mute status

Mute Mute your voice; you can hear the other party but

they can’t hear you

Loudspeaker Enable the handsfree feature in your phone

Private Have a private conversation with one participant in a

conference call

Answer Answer another incoming call

Reject Reject a call; the calling party receives a busy signal

Handset Disable handsfree and return to normal use (earpiece)

Swap Switch between the active call and the call on hold

[FCC Draft 37 FCC Draft ]

• SET UP YOUR PHONE

Use the Optional headset

The HDB-4 may be purchased with your phone or separately as an accessory.

Connect the headset

1 Plug the headset jack into the

Pop-Port of your phone.

2 Position the headset on your ear

as it appears in the illustration to the right.

With the headset connected, you can make, answer, and end calls as usual.

• Use the keypad to enter numbers

• Press e to place a call

• Press d to end a call

connector at the bottom end

Adjust display brightness

1 Press Menu 4-4-5 (Settings - Display settings - Display brightness).

After a brief pause, a bar chart appears in the display indicating the current brightness level.

2 Move the joystick left or right to adjust the brightness to your

preference.

[FCC Draft 38 FCC Draft ]

5 Text entry

Your phone is especially designed for easy and comfortable text writing. The easiest way is to write with your thumbs using the messaging keyboard. You can, for example, start writing a message with the keyboard, close the flip and continue writing the same text using either traditional or predictive text input.

• WRITING WITH THE MESSAGING KEYBOARD

For writing and sending text messages, see Writing and sending messages on page ??.

You can use the following keys for writing text:

• To write a text message, press any of the letter keys in standby mode.

• To insert a number, press any of the number keys. Pressing the number key in standby mode starts a normal call initiating procedure.

• (In French UG: To insert a number, press shift and the corresponding number key.

• To switch between the lower and upper case, indicated by , or or to key in symbols, press one of the shift keys j or . You can either press the shift key and the desired character consecutively or press and hold both the shift and the desired letter key at the same time. To write in upper case only, press j or twice.

• To delete characters from the display, press h or Clear. Pressing backspace briefly clears one character at a time, while longer keypress deletes characters more quickly.

• To add a space, press one of the space keys g or ) at the bottom of the keyboard.

• To force line feed, press i.

Text entry

[FCC Draft 39 FCC Draft ]

Typing accented characters

To type any of the accented characters or symbols not printed on the keyboard, do one of the following:

• To open a set of punctuation marks, accented characters and symbols,

press the character key l. Scroll through the set by moving the joystick and press Use to select a character.

• To type an accented character not found in the list of special characters

under l, such as á, press and hold l and, at the same time, press ’a’ repeatedly until the desired accented variant of ’a’ appears on the display.

Typing language-specific accented characters

Your language may have accented characters that are not on the keyboard nor may not be included in the set of characters under l. To key in the accent mark on the key, press the key and space bar in succession. To key in a specific character, press the key with the corresponding symbol (~) and then .

• WRITING WITH THE FLIP CLOSED

You can write using predictive or traditional text input when the phone’s flip is closed .When you are writing text, the predictive text input is indicated by and the traditional text input by on the top left of the display. You can change the character case, indicated by , or by pressing . The number mode is indicated by , and you can switch between the letter and number modes by pressing and holding .

Setting predictive text input on or off

1 When writing text, press Options and select Dictionary.

2 To set the predictive text input on, select a language in the dictionary

options list. Predictive text input is only available for the languages on the list.

3 To revert to traditional text input, select Dictionary off.

[FCC Draft 40 FCC Draft ]

Text entry

Tip: To quickly set the predictive text input on or off when writing text, press p twice, or press and hold Options.

Using predictive text input

You can key in any letter with a single keypress. The predictive text input is based on a built-in dictionary to which you can also add new words.

1 Start writing a word using the keys 2 to 9. Press each key only

once for one letter. The word changes after each keystroke.

Example: To write Nokia when the English dictionary is selected, press 6 once for N, 6 once for o, 5 once for k, 4 once for i and 2 once for a.

To insert a number while in letter mode, press and hold the desired number key.

2 When you have finished writing the word and it is correct, confirm it

by adding a space with 0 or by moving the joystick to the right.

If the word is not correct, press s repeatedly or press Options and select Matches. When the word you want appears, confirm it.

3 If the ? character is displayed after the word, the word you intended

to write is not in the dictionary. To add the word to the dictionary, press Spell, key in the word (traditional text input is used) and press Save. When the dictionary becomes full, the new word replaces the oldest one that was added.

4 Start writing the next word.

Writing compound words

Key in the first part of the word and confirm it by moving a to the right. Write the last part of the word and confirm it by moving a to the right.

Using traditional text input

Press a number key, 1 to 9, repeatedly until the desired character appears. Not all characters available under a number key are printed on the key. The characters available depend on the language selected in the Language menu, see Language on page ??

[FCC Draft 41 FCC Draft ]

To insert a number while in letter mode, press and hold the desired number key.

• If the next letter you want is located on the same key as the present one, wait until the cursor appears or move the joystick to the right, and then key in the letter.

• The most common punctuation marks and special characters are available under the number key 1.

Tips for writing text

The following functions may also be available for writing text in predictive or traditional input:

• To insert a space, press 0.

• To move the cursor to the right, left, up or down, move the joystick respectively.

• To delete a character to the left of the cursor, press Clear. Press and hold Clear to delete the characters more quickly.

• To delete all the characters at once when writing a message, press Options and select Clear text.

• To insert a word when using predictive text input, press Options and select Insert word. Write the word using the traditional text input and press Save. The word is also added to the dictionary.

• To insert a special character when using the traditional text input, press s or when using the predictive text input, press and hold s, or press Options and select Insert symbol.

Move the joystick to a character and press Use to select the character. You can also scroll to a character by pressing 2, 4, 6 or 8, and select

the character by pressing 5 .

The following options are available when writing text messages:

• To insert a number while in the letter mode, press Options and select Insert number. Key in the number or search for it in the phone book and press OK.

[FCC Draft 42 FCC Draft ]

Text entry

To insert a name from the phone book, press Options and select Insert name. To insert a phone number or a text item attached to the name, press Options and select

View details.

You can use two methods for entering text and numbers.

• The standard mode is the only way to enter names into such things as the Phone book, calendar notes, and renaming caller groups

• Predictive text input is a quick and easy method for writing messages

CLEAR THE SCREEN

• Press Clear to backspace the cursor and erase a character

• Press and hold Clear to backspace continuously, and erase

[FCC Draft 43 FCC Draft ]

6 Manage phone security

Lock the keypad (Keyguard)

Remember to lock your phone’s keypad to prevent accidental calls. If the keypad is locked, it unlocks when you receive a call. After the call, the lock automatically reactivates.

Important: When Keyguard is on, calls may be possible to dial emergency numbers (for example, 911 or other official emergency numbers). Key in the emergency number and press e. The number appears in the display after you’ve keyed in the last digit.

• To lock the keypad, press Menu s.

Unlock the keypad

• At the Start screen, press Unlock s.

• SECURITY LEVELS

The security level determines your access to features when a “non-owner” SIM card is used. A “non-owner” SIM card is one (other than the original) that is inserted after you power off the phone. There are 3 security levels:

Security levels

Off Owner and Non-owner cards are treated the same

Non-owner cards can access SIM memory. Any changes to

Memory

Phone The security code is required upon power-up

the memory setting requires the security code.

The owner card has access to all features, but the security code is required to change a memory setting

[FCC Draft 44 FCC Draft ]

Manage phone security

Set your security level

1 At the Start screen, press Menu 4-8-5 (Settings - Security settings -

Security level).

2 After a brief pause, you’re prompted to enter the security code.

The default code is 12345. Enter the security code and press OK.

3 Scroll to Off, Memory, or Phone and press Select. A message appears

in the display confirming your selection

• FIXED DIALING

Once you setup and activate a fixed dialing list, your phone can make calls only to those numbers that you’ve defined in the fixed dialing list. Fixed dialing is a network feature and must be supported by your wireless provider.

Note: When fixed dialing is set on, calls may be possible to certain emergency numbers in some networks (such as 911 or other official emergency numbers).

Set up and activate a fixed dialing list

1 At the Start screen, press Menu 4-8-3 (Settings - Security Settings -

Fixed dialing). After a brief pause, the options in the following table appear in the display.

Fixed dialing options

On Activate fixed dialing (see note above)

Off Deactivate fixed dialing

Number list View the numbers in your fixed dialing list

Note: If you activate fixed dialing and the number list is empty, all outgoing calls, except for emergency numbers such as 911, require entry of the PIN2 code.

[FCC Draft 45 FCC Draft ]

2 Scroll to Number list and press Select. Fixed dialing not active and

then Fixed dialing list empty appear in the display.

3 You’re prompted to enter the PIN2 code. Enter the PIN2 code and

press OK.

4 Enter the fixed dialing number, or press Find to retrieve a number

from your Phone book, and press OK.

5 Enter a name for the number and press OK. A confirmation note

appears in the display and you’re returned to the fixed dialing number list.

6 Press Back, scroll to On and press Select to activate fixed dialing.

View or edit the fixed dialing list

1 At the Start screen, press Menu 4-8-3 (Settings - Security Settings -

Fixed dialing).

2 Scroll to Number list and press Select.

3 You’re prompted to enter the PIN2 code. Enter the PIN2 code and

press OK.

4 Any numbers which you’ve assigned to fixed dialing appear in

the display.

5 Scroll to a number and press Options.

6 The options in the following table appear in the display.

Fixed dialing number options

View number View the number for an entry

Add Add a number to your fixed dialing list

Edit Edit the highlighted entry

Erase Erase the highlighted entry

Erase all Erase all entries in your fixed dialing list

[FCC Draft 46 FCC Draft ]

Manage phone security

• Use the joystick to highlight an option

• Press Select to activate or enter an option’s submenu

Notes about fixed dialing

• If a SIM card with fixed dialing that is activated is inserted into a phone that doesn’t support fixed dialing, the SIM card is rejected

• If you try to add a name (without a number) to the fixed dialing list, you’ll receive an error message

• If you try to browse the fixed dialing list, but haven’t stored any numbers, Fixed dialing list empty appears in the display

• You cannot access SIM memory manually (view or copy numbers on the SIM card) while fixed dialing is active

• ACCESS CODES

Use access codes to change your security code, PIN code, and PIN2 code.

Note: Avoid using codes similar to emergency numbers such as 911 to prevent accidental dialing of the emergency number.

The security code

The security code controls access to features such as the security level and is supplied with the phone. The preset code is 12345.

Note: If you enter the wrong security code five times in succession, you won’t be able to enter a code for five minutes, even if you power off the phone between

incorrect entries.

CHANGE YOUR SECURITY CODE

Once you change the security code from its preset of 12345, keep the new code secret, and in a safe place separate from your phone.

1 Press Menu 4-8-6-1 (Settings - Security settings - Access codes -

Change security code).

[FCC Draft 47 FCC Draft ]

After a brief pause, you’re prompted to enter the current security code (default is 12345).

2 Enter the current security code and press OK. You’re prompted to

enter the new security code.

3 Enter the new security code (up to 10 characters) and press OK.

You’re asked to re-enter the new security code for verification.

4 Enter the new security code again and press OK. A message appears

in the display confirming your security code has been changed.

The PIN code

The PIN code protects the SIM card from unauthorized access. The PIN code can be 4- 8 digits in length. After three successive incorrect entries the PIN code is blocked and you’ll be asked to enter the personal unblocking key (PUK) code.

Note: The PIN code must be obtained from your wireless provider. The PIN code is typically provided with your SIM card.

PIN CODE REQUEST

Enable your phone to request the PIN code upon power-up. This provides extra security in case your phone is lost or stolen.

1 Press Menu 4-8-1 (Settings - Security settings - PIN code request).

2 After a brief pause, you’re prompted to enter the current PIN code.

Enter the PIN code and press OK.

3 Scroll to On and press OK. A message appears in the display

confirming your selection.

CHANGE YOUR PIN CODE

Before you can change your PIN code, you’ll need to enable PIN code request. See “PIN code request” immediately preceding this section.

1 Press Menu 4-8-6-2 (Settings - Security settings - Access codes -

Change PIN code).

[FCC Draft 48 FCC Draft ]

Manage phone security

2 After a brief pause, you’re prompted to enter the current PIN code.

Enter the PIN code and press OK.

3 You’re prompted to enter the new PIN code. Enter the new PIN code

and press OK.

4 You’re prompted to re-enter the new PIN code for verification.

Enter the new PIN code again and press OK.

A message appears in the display confirming your PIN code has been changed.

The PIN2 Code

The PIN2 code is required for features such as Fixed dialing. If you enter an incorrect PIN2 code three times in succession, the PIN2 code is blocked and you’ll have to enter the PUK2 code.

Note: The original PIN2 code must be obtained from your wireless provider.

CHANGE YOUR PIN2 CODE

1 Press Menu 4-8-6-3 (Settings - Security settings - Access codes -

Change PIN2 code). You’re prompted to enter the current PIN2 code.

2 Enter the current PIN2 code and press OK. You’re prompted to enter

the new PIN2 code.

3 Enter the new PIN2 code and press OK. You’re asked to verify the new

PIN2 code by entering it again.

4 Enter the new PIN2 code again and press OK. A message appears in

the display confirming you’ve changed the PIN2 code.

Personal unblocking key (PUK) codes

PUK and PUK2 codes are used to restore blocked PIN and PIN2 codes. Both PUK and PUK2 codes are eight characters in length and cannot be changed. PUK and PUK2 codes must be obtained from your wireless provider.

[FCC Draft 49 FCC Draft ]

Important: If you enter an incorrect PUK or PUK2 code 10 times in succession, the message SIM rejected appears in the display and the SIM card can no longer be used. You must contact your wireless

provider for a new SIM card.

Closed user groups

A closed user group is a network service that specifies the group of people whom you can call and who can call you. For more information contact your network operator or service provider.

[FCC Draft 50 FCC Draft ]

The Phone book

7 The Phone book

Your Phone book can save up to 300 names, with multiple numbers and text notes for each name. The amount of numbers and text entries that you can save may vary, depending on their length and the total number of entries in the Phone book.

• VIEW THE PHONE BOOK MENU

1 At the Start screen, press the right selection key (b) under

Names. The menu items in the left column of the following table appear in the display.

2 Scroll to an item. Press Select to activate the feature or enter

its submenu.

Menu item Function

Search Find a name or select from a list

Add name Add a name to your Phone book

Edit name Edit an existing name

Erase Erase a name and its associated numbers

Copy Copy entries from Phone memory to SIM and vice versa

Add number Add a number to an existing name

Settings Set memory in use (Phone or SIM), change your Phone

book view, and check the memory status of your Phone and SIM card

1-touch dialing

Display the list of 1-touch dialing numbers saved to memory

[FCC Draft 51 FCC Draft ]

Menu item Function

Info numbers Contact your wireless provider to obtain information

Service numbers

My numbers View the numbers (line 1, line 2, data) in use by your

Caller groups View and edit the properties (such as the ring tone) for

Display a list of numbers related to your wireless provider

SIM card

any of the caller groups

• SAVE NAMES AND NUMBERS

You can save names and numbers to phone memory or to SIM memory.

Quickly save a name and number

1 At the Start screen, enter the phone number you wish to save.

2 Press Options, ensure Save is highlighted, and press Select.

3 Enter a name for the number and press OK. A confirmation message

appears in the display indicating your entry has been saved.

Quickly save (only) a number

You can save a phone number as a stand-alone entry in your phonebook.

1 At the Start screen, enter the number you wish to save.

2 Press and hold Options. A message appears in the display confirming

your number is saved.

Save an entry using the Phone book menu

1 At the Start screen, press Names, scroll to Add name and press Select.

2 Enter a name using the keypad and press OK.

3 Enter a number and press OK.

[FCC Draft 52 FCC Draft ]

The Phone book

4 Press Done to return to the Start screen.

Save addresses and notes

To save an email address, you’ll need to add it to an existing entry (name).

1 Find the entry (name) in your Phone book to which you’d like to add

an address or note.

2 With the entry highlighted, press Details.

3 Press Options, scroll to Add detail and press Select.

4 Scroll to the address or note of your choice and press Select.

5 Enter the text for the note or address and press OK.

Select your Phone book view and memory

1 Press Names, scroll to Settings, and press Select.

2 Scroll to any of the options in the following table. Press Select to

enter the option’s submenu.

Option Function

Memory in use

Phone book view

Memory status

Select the memory you wish to use. Options are Phone, SIM, or Phone and SIM combined. With Phone and SIM selected, names and numbers are saved to phone memory but entries saved to both memories appear in the display

Select the list view or name and number (takes up more display space)

View the amount of phone memory used as well as the amount of phone memory available

[FCC Draft 53 FCC Draft ]

Save multiple numbers and text items per name

You can save different types of phone numbers and short text items per name to the Phone book. The first number you save for any entry is automatically set as the default, or primary number.

1 At the Start screen, move the joystick up or down and scroll to the

entry to which you wish to add a number or text item.

2 Press Details, and then press Options.

3 Scroll to Add number or Add detail and press Select.

4 Scroll to one of the following types and press Select:

General Mobile Home Work Fax

E-mail add. Web address Postal add. Note

5 Enter the number or text for the type you’ve selected and press OK.

To change the type, select Change type in the options list.

CHANGE THE DEFAULT (PRIMARY) NUMBER

1 At the Start screen, move the joystick up or down to the entry you

wish to change and press Details.

2 Scroll to the number you wish to set as default and press Options.

3 Scroll to As primary no. and press Select.

Search for a name in the Phone book

1 At the Start screen, move the joystick up or down to display the

contents of your Phone book.

2 Press the key which corresponds to the first letter of the name for

which you are performing a search.

3 Move the joystick up or down to scroll through names in the list.

Move the joystick left or right to move the cursor left or right in the search window at the bottom of the display, if necessary.

4 Press Details to view the details of the selected name.

[FCC Draft 54 FCC Draft ]

The Phone book

Edit a name, number or text item

1 Search for the entry as described in the previous section and

press Details.

2 Scroll to the name, number or text item you wish to edit and

press Options.

3 Scroll to Edit name, Edit number, or Edit detail and press Select.

4 Edit the name, number, or detail to your preference and press OK.

Erase names and numbers

1 At the Start screen, press Names, scroll to Erase, and press Select.

2 To delete individual names and numbers, scroll to One by one and

press Select.

3 Scroll to the entry you wish to erase, press Erase, and press OK to

confirm the erasure.

4 To delete the entire contents of your Phone book, scroll to Erase all,

then scroll to the phone book you wish to erase (Phone or SIM card).

5 Press Erase, then press OK to confirm. You’re asked to enter the

security code.

6 Enter the security code and press OK.

• COPY PHONE BOOK ENTRIES

1 At the Start screen, press Names, scroll to Copy, and press Select.

2 Scroll to From phone to SIM card or From SIM card to phone and

press Select. The following options appear in the display:

One by one Select and copy entries one by one

All Copies all entries from the SIM card or Phone

*Primary nos. Copies only primary numbers. This appears only if you

select From phone to SIM.

[FCC Draft 55 FCC Draft ]

3 Scroll to the copy method of your choice and press Select.

a) If you selected One by one, go to step 4.

b) If you selected All or Primary nos., go to step 6.

4 Scroll to the entry you wish to copy and press Copy. 5 Scroll to Keep original or Move original and press Select. The entry

is copied and you’re returned to the list of Phone book entries.

6 If you selected All or Primary nos. in step 3, scroll to Keep original or

Move original and press Select.

7 Press OK to confirm your choice. All entries are copied to the selected

destination. Press Back to return to the list of Phone book entries, or

press d to exit and return to the Start screen.

Caution: Select Keep original if you’re unsure of which copy method to use. This ensures original entries are merely copied to the new location. Move original deletes files after copying.

Send and receive business cards

You can send and receive an entry in your Phone book via IR or SMS if supported by your wireless provider.

RECEIVE A BUSINESS CARD VIA IR

1 Press Menu 12-3 (Connectivity - Infrared) to ensure IR is activated.

When you receive the business card, your phone beeps and Show

appears in the display.

2 Press Options and select Save to save the business card in the phone’s

memory, or Discard to discard the business card.

SEND A BUSINESS CARD

You can send a business card via IR or as an SMS message to a compatible phone or other handheld device.

1 Highlight an entry from the Phone book that you wish to send and

press Details.

2 Press Options, scroll to Send bus. card and press Select.

[FCC Draft 56 FCC Draft ]

The Phone book

• To send the business card via IR, make sure the receiving device is set up to receive data via its IR port and select Via infrared.

• To send the business card as a message, select Via text message.

3 If you selected Via infrared (and the entry has multiple sub-entries)

scroll to Primary no. or All details and press Select. Your business card is sent.

4 If you selected Via text message (and the entry has multiple sub-

entries), scroll to Primary no. or All details and press Select.

5 Enter the number for your recipient or press Find to retrieve a number

from your Phone book.

6 Press OK and the business card is sent.

• 1-TOUCH DIALING

You can associate any entry in your Phone book with keys 2 through 9 and then dial those entries by pressing and holding the assigned key.

Assign a key to 1-touch dialing

1 At the Start screen, press Names, scroll to 1-touch dialing and

press Select.

2 Scroll to any empty slot and press Assign.

3 Enter the number (including the area code) and press OK, or press

Find to retrieve a number from your Phone book.

4 Enter a name for the number and press OK. The entry appears in the

slot you’ve assigned.

Make a call with 1-touch dialing

• Press and hold the key to which an entry has been assigned. Your phone dials the entry assigned to the key.

[FCC Draft 57 FCC Draft ]

CHANGE 1-TOUCH DIALING NUMBERS

1 At the Start screen, press Names, scroll to 1-touch dialing and

press Select.

2 Scroll to the 1-touch dialing entry you wish to change and

press Options.

3 Scroll to Change and press Select.

4 Enter the new number, or press Find to retrieve a number from your

Phone book, and press OK.

5 Enter a name for the entry and press OK.

ERASE 1-TOUCH DIALING NUMBERS

1 At the Start screen, press Names, scroll to 1-touch dialing and

press Select.

2 Scroll to the 1-touch dialing location you wish to erase and

press Options.

3 Scroll to Erase and press Select. You’re asked to confirm the erasure.

4 Press OK to erase the key assignment.

• VIEW INFO, SERVICE, AND OWN NUMBERS

Your wireless provider may have saved your phone’s operating number, as well as various information and service numbers to your SIM card.

Note: This feature may not be supported by your SIM card. If so, contact your wireless provider for more information.

1 Press Names at the Start screen, scroll to one of the number types in

the following table, and press Select.

2 To view details of any of the number types in the previous table, press

Details when the number type appears in the display.

Number type Used this number to...

Info numbers Contact your wireless provider to obtain information

[FCC Draft 58 FCC Draft ]

The Phone book

Number type Used this number to...

Service numbers Contact your wireless provider to obtain service

Own numbers Display the operating number, or numbers which have

been assigned to your phone by your wireless provider

Caller groups

You can add Phone book entries to any of 5 caller groups, and then assign a unique ringing tone or graphic to that group. This enables you to identify callers from the group by their unique ringing tone or graphic. A caller group can be as small as one person or as large as your entire Phone book. Caller groups can be renamed to suit your preference.

CALLER GROUP OPTIONS

1 At the Start screen, press Names, scroll to Caller groups, and press

Select. The following Caller groups are available.

Family VIP Friends Business Other

2 Use the joystick (a) to highlight a group. Press Select to display the

following caller group options:

Rename group Rename the group to your preference

Group ringing tone Set the ringing tone for the group

Group logo Turn the graphic for the caller group on or off

Group members Add or remove members from the caller group

Setup a caller group

1 At the Start screen, move the joystick up or down to display a list of

entries in your Phone book.

[FCC Draft 59 FCC Draft ]

Tip: Perform a “quick find” when Phone book entries are displayed by entering the first letter of a name. appears at the bottom of the display to indicate you’re performing a

search.

2 Scroll to a name you’d like to add to a caller group and press Details.

3 Press Options, scroll to Caller groups, and press Select.

4 Scroll to the caller group to which you’d like to add the name and

press Select. A confirmation message appears in the display.

[FCC Draft 60 FCC Draft ]

Menu functions

8 Menu functions Messages menu

If you’ve subscribed to a message service, you can send and receive messages to compatible phones that are also subscribed to a message service. can also send and receive picture messages, multimedia messages, and e-mail if supported by your network. Messages can contain up to 600 characters divided in up to 4 parts.

Before you can send and receive messages

You’ll need the following to send and receive messages:

• A messaging service through your wireless provider

• A message center number, which must be saved to your phone (if your wireless provider hasn’t done so already)

Message icons

Icons that precede the title of a message indicate the following:

The message has not been read

The message has been read

You

A message (which you’ve composed) has not been sent

The message has a picture attached

The message is a delivery report

The message is a MMS (multimedia message)

[FCC Draft 61 FCC Draft ]

Choose your message type

You can choose the type of message sent by your phone. Types include Text, E-mail, Page, and Fax.

Note:The default message type is Text. This feature must be supported by your wireless provider.

1 At the Start screen, press Menu 01-7 (Messages - Message settings).

2 After a brief pause, Text messages appears highlighted. Press Select.

3 Sending profile is highlighted. Press Select.

4 Default profile is highlighted. Press Select.

5 Scroll to Messages sent as and press Select.

6 Scroll to the message type of your choice and press Select. A message

appears in the display confirming your selection.

Save your message center number

Messages sent by your phone are routed through your wireless provider’s message center. Normally, this number is saved to your phone by your wireless provider. To save the number manually, do the following:

1 At the Start screen, press Menu 01-7 (Messages - Message settings).

2 Text messages is highlighted. Press Select.

3 Sending profile is highlighted. Press Select.

4 Default profile is highlighted. Press Select.

5 Message center number is highlighted. Press Select.

6 If the box in the display is empty, enter the number given by your

wireless provider and press OK.

7 If the box is in the display is full, edit the number only if you are

sure the number is incorrect, or you’d like to change the number, and press OK.

A message appears in the display confirming your number is saved.

[FCC Draft 62 FCC Draft ]

Menu functions

• WRITE AND SEND A TEXT MESSAGE

1 At the Start screen, press Menu 01-1-1 (Messages - Text messages

> Create message).

Tip: To go quickly to the Create message display, press c at the Start screen.

2 After a brief pause, the message entry screen appears in the display.

3 Compose a message using the keypad and press Options.

4 Scroll to Send and press Select.

5 Enter the recipient’s phone number, or press Find to retrieve a number

from your Phone book, and press OK. Your message is sent.

Read messages

When you receive a message, your phone beeps and Message received appears in the display as well as the unopened letter icon ( ).

1 Press Show to read the message, or Exit to move it to your inbox.

Note: When you have unopened messages in your inbox,

is shown in the upper left corner of the Start screen as

a reminder.

2 Use the joystick a to view the whole message if necessary.

Tip: Keep scrolling to view other information, such as the

sender number and time the message was sent.

3 Press Back to move the message to the Inbox, or press Options for

other choices, such as Reply or Forward.

Read linked messages

Your phone can receive one long message (up to 600 characters) in up to four parts. You can start reading the first part before the phone has received the entire message.

While viewing the message, you may see *some text missing* on the display. This is normal, and the message content will be updated as soon as the missing sequence arrives.

[FCC Draft 63 FCC Draft ]

If the memory is full, you may have to delete a message from your inbox or outbox before your phone can update the missing text.

Reply to a message

1 While viewing a message, press Options, scroll to Reply, and

press Select.

2 Compose your reply using the keypad, then press press Options, scroll

to Send, and press Select.

3 The number of the original sender appears in the display.. Press OK

and your reply is sent.

Forward a message

1 While viewing a message, press Options.

2 Scroll to Forward and press Select.

3 Enter the recipient’s phone number, or press Find to retrieve a number

from your Phone book.

4 Press OK. The message is forwarded.

• PICTURE MESSAGES

Your phone comes with 10 pre-loaded pictures. You can, however, overwrite any of the 10 pictures that come with your phone. Pictures can be attached to a message and sent via SMS to compatible phones. Picture messages behave the same as text messages, but pictures take up more space than text. Pictures are stored in the “Templates” folder under Messages - Templates.

Note: You cannot send a picture message via e-mail.

Download pictures

Your phone can download pictures, or receive them from compatible phones via SMS to use in messages. You can also create pictures and

send them to your phone or other compatible phones using Nokia PC Suite.

[FCC Draft 64 FCC Draft ]

Menu functions

Note: This function can be used only if it is supported by your wireless provider. Only phones that offer picture message features can receive and display picture messages. Contact your wireless provider for details.

When you receive a picture message

When you receive a picture message, your phone beeps and Message received appears in the display as well picture message icon ( ).

1 Press Show to view the picture message, or press Exit to move it to

your inbox.

2 If you have more than one picture message, scroll to the message of

your choice and press Select to view the message.

Note: When you have unopened picture messages in your inbox, is shown in the upper left corner of the Start screen

as a reminder.

3 Use the joystick to view the whole picture if necessary.

Tip: Keep scrolling to view other information, such as the

sender number and time the message was sent.

4 Once you’re finished, press Back to move the picture message to the

Inbox, or press Options for other choices, such as Reply or Forward.

TO SAVE THE PICTURE

If you’d like to save the picture to your Templates folder for later use:

1 Press Options, scroll to Save, and press OK.

Note: If your templates folder is full of pictures, just scroll

to the picture you’d like to replace and press Select.

[FCC Draft 65 FCC Draft ]

Compose and send a picture message

One picture message is equivalent in size (and cost) to 3 text messages. When you attach a picture to a message, you’ll have enough remaining space for about 121 characters in the message. If you try and attach a picture to a message that is almost full of text, a beep sounds and you’re prompted to erase some text before proceeding.

1 At the Start screen, press Menu 01-1-1 (Messages - Text messages

- Create message).

After a brief pause, the message edit screen appears in the display.

2 Write a message using the keypad (or enter nothing if you choose to

just send a picture), and press Options.

Tip: Attach pictures before adding text. You can then check remaining space for text in the upper right corner of the display.

3 Scroll to Attach picture and press Select. A list of pictures appear in

the display.

4 Scroll to a picture and press View.

5 Press Attach to insert the picture into your message, otherwise:

a) Press Back, scroll to another picture, and press View again.

b) Press Attach to insert the picture into your message.

6 To send the picture message, press Options, scroll to Send, and

press Select.

7 Enter the phone number for your recipient (or press Find to retrieve a

number from your Phone book) and press OK. The message is sent.

PREVIEW, CHANGE, OR ERASE A PICTURE MESSAGE

1 After a picture has been attached to your message, press Options at

the message edit screen.

2 Scroll to one of the following options and press Select.

a) Preview - Previews the attached message before sending.

[FCC Draft 66 FCC Draft ]

Menu functions

Press Back to return to the list of options.

b) Change picture - Takes you back to the picture list.

Scroll to highlight a new picture, press View and then press Attach to replace the previous picture in your message.

c) Erase picture - Press OK to erase the picture from your message,

or press Back to return to the list of options.

•E-MAIL

You can send e-mail up to 160 characters in length to anyone with an e-mail address. First, you’ll need to setup an e-mail profile and modify a few other settings. It takes just a few minutes, and you only need to do this once.

Tip: The e-mail address is included in the total character count for an e-mail message, which is 160 characters. Leave enough space for the e-mail address while composing your message or you’ll be taken back to the editor, where you’ll have to delete some text before sending.

Tip: You cannot send picture messages with e-mail.

Tip: Service providers may customize the SMS message

settings interface. For more details about SMS services, please contact your service provider.

Write down the e-mail server number

Write down your e-mail server number (also known as the “e-mail gateway” number) in the following table. You’ll need this number when setting up an e-mail profile in the next section. You can get this number from your wireless provider.

Number Where to find it

e-mail server number

Your wireless provider

[FCC Draft 67 FCC Draft ]

Write the number below

Setup an e-mail profile

1 At the Start screen, press Menu - Select and scroll until Message

Settings appears in the display.

2 Press Select, scroll to Text messages, if necessary, and press

Select again.

3 Scroll to Sending profile (if necesary) and press Select.

4 Scroll to an empty profile slot and press Select.

5 Scroll to Messages sent as and press Select.

6 Scroll to E-mail and press Select. A confirmation message appears in

the display and you’re returned to the previous menu.

7 Scroll to E-mail server and press Select.

8 Enter the e-mail server number (sometimes referred to as a “gateway”

number). You can obtain this number from your wireless provider.

9 Scroll to Accept and press Select. A message appears confirming the

e-mail server number has been saved. Select again.

Next, we recommend you rename this sending profile to “e-mail,” which will simplify things later when you’re ready to send e-mail.

10 Scroll until Rename sending profile appears in the display and

press Select.

11 Enter a name for the profile (such as e-mail) and press OK.

Write and send e-mail

Note: See “Tips for composing a message” on page 59 for

ways to write messages faster.

1 At the Start screen, press Menu 01-1-2 (Messages - Text messages

- Create e-mail).

After a brief pause, you’re prompted to enter the e-mail address.

2 Enter the e-mail address, or press Find to retrieve an e-mail address

from your Phone book, and press OK.

[FCC Draft 68 FCC Draft ]

Menu functions

3 Enter a subject for the e-mail and press OK.

4 Compose your e-mail using the keypad and press Options.

Tip: Be sure and leave enough space in the total character

count (160) for the e-mail address.

5 Scroll to Send e-mail (if necessary) and press Select. Your e-mail

is sent.

If you haven’t saved your e-mail server number, you’re prompted to enter the number. See “Setup an e-mail profile” in the previous section for more information on the e-mail server number.

Reply to a message or e-mail

When you have received a text message or e-mail, , the number of new messages and ___ Message(s) received appears in the display.

Note: The blinking indicates that the message memory is full. Before you can receive new messages, delete some of your old messages. See “Erase messages” on page 82 for more information.

• Press Show to view the message now, or Exit to view it later.

READING THE MESSAGE LATER:

1 Press Menu, and select Messages, Text messages and Inbox.

2 If more than one message is received, select the message you want to

read and press Select.

An unread text message is indicated by in front of the message, and an unviewed picture message by .

[FCC Draft 69 FCC Draft ]

• MULTIMEDIA MESSAGES

A multimedia message (MMS) can contain text, images, and sounds. Your phone has a multimedia message viewer for playing messages and a multimedia inbox for storing saved messages. Once you save the multimedia message, you can use the image as a screen saver or the sound as a ringing tone.

Note: This function can be used only if it is supported by your wireless provider. Only compatible devices can receive and display multimedia messages.

A multimedia message can contain text, images and sounds. Your phone supports multimedia messages of up to 30 kB. Once you save the multimedia message, you can use the image as a screen saver or the sound as a ringing tone.If the maximum size is exceeded, the phone may not be able to receive the message. Depending upon your network, you may receive a message that includes an Internet address where you can go to view the multimedia message.

Pictures included in multimedia messages are scaled down to fit the size of your display.

Note: The default setting of the multimedia message service is on, and your wireless provider may charge for messages received.

Multimedia messaging supports the following formats:

• Picture: JPEG, GIF, PNG, OTA-BMP and WBMP.

• Sound: MIDI

Note: If a received message contains unsupported elements, they may be replaced with the the text Object

format not supported

Define MMS settings

Before you can use the multimedia message feature, you need to first define the way you want to receive the messages.

[FCC Draft 70 FCC Draft ]

Menu functions

ALLOW MULTIMEDIA RECEPTION

You can choose to receive all messages or to receive messages only when you are in the service provider’s home network.

1 At the Start screen, press Menu 01-7-2-2 (Messages - Message

settings - Multimedia msgs. - Allow multimedia reception). After a brief pause, a list of options appear in the display.

• Yes to allow all incoming messages

• In home system to allow incoming messages only if you are in the service provider’s home system.

2 After selecting one of the reception options, scroll to Incoming

multimedia messages, then press Select.

3 Scroll to Retrieve, then press Select.

BLOCK MULTIMEDIA RECEPTION

1 At the Start screen, press Menu 01-2-2 (Messages - Message

settings - Multimedia msgs. - Allow multimedia reception). After a brief pause, a list of options appear in the display.

2 Scroll to No and press Select.

ALLOW OR NOT ALLOW ADVERTISEMENTS

1 At the Start screen, press Menu 01-7-2-5 (Messages - Message

settings - Multimedia msgs. - Allow advertisements). After a brief pause, Yes and No appear in the display.

2 Scroll to the setting of your choice and press Select.

Other MMS settings

Other multimedia settings include saving your messages to the Sent items folder and editing your connection settings.

1 At the Start screen, press Menu 01-1-2 (Messages - Message

settings - Multimedia msgs.). After a brief pause, a list of options appear in the display.

[FCC Draft 71 FCC Draft ]

2 Scroll to an option. Press Select to activate the option or to enter

its submenu.

Message Setting

Save sent messages

Allow multimedia reception Incoming multimedia messages Connection settings

Allow advertisements

Function

Saves sent multimedia messages to the Sent items folder

Chooses Yes, No, or In home network for your multimedia service. In home network can’t receive multimedia messages outside the home network. Select Retrieve to receive multimedia messages, or Reject if you don’t wish to receive multimedia messages. Define WAP settings for retrieving multimedia messages. Activate the set where you want to save the connection settings and then edit the settings. Allows you to enable or disable reception of automatic multimedia advertismenets

Edit multimedia connection settings

1 At the Start screen, press Menu 01-7-2-4 (Messages - Message

settings - Multimedia msgs. - Connection settings).

2 Scroll to Edit active multimedia settings and press Select.

3 The connection settings in the following table appear in the display.

Scroll to a setting. Press Select to enter the setting’s submenu.

Connection setting

Function

Settings’ name Rename the setting to your preference

Homepage Enter the homepage where your browser retrieves

multimedia messages

[FCC Draft 72 FCC Draft ]

Menu functions

Connection setting

Session mode Select session modes Temporary or Permanent

Data bearer Select the data bearer

GPRS access point

IP address Enter or change the IP address

Authentication type

User name Edit or enter your user name

Password Edit or enter a password

ABOUT CONNECTION SETTINGS

You may be able to receive multimedia connection settings as a text message from your wireless provider. For more information, contact your wireless provider.

SELECT A FONT SIZE FOR YOUR MESSAGES

1 Press Menu 01-7-3-1 (Messages - Message settings - Other settings

- Font size). After a brief pause a list of choices appear in the display.

2 Scrll to Small font or Large font and press Select. A message appears

in the display confirming your selection.

Function

Define the access point

Select from Normal or Secure

Write and send a multimedia message

For availability and subscription to the multimedia messaging service, contact your wireless provider.

1 At the Start screen, press Menu 01-2-1 (Messages - Multimedia

messages - Write message). After a brief pause, the message entry screen appears in the display.

[FCC Draft 73 FCC Draft ]

2 Enter the text of your message and press Options.

3 Scroll to Insert image or Insert sound clip and press Select.

4 Choose your image or sound clip from the list and press Select.

5 Scroll to Send to number or Send to e-mail and press Select.

Note:If you’ve attached a picture or sound clip to the

message, you cannot send the message via e-mail.

6 Enter the number of the recipient, or the email address and press

Select. The message is sent.

Read and reply to a multimedia message

When a multimedia message is being received, appears (blinking) in the display. Once the message has been fully downloaded, and Multimedia message received appears in the display.

1 To view the message, press Show. To view the message later, press

Exit (and then No when asked to discard).

2 While viewing the message, press Options. Some or all of the

following options may appear in the display. Scroll to an option and press Select to activate the option or enter its submenu.

Option Function

Delete message

Reply Reply to the message. Press Options and then Send. The

Forward to no. Forward the message to another number

Forward to e-mail

Edit Edit the message. You can only edit messages that

Details View the message subject, size, and class

Delete a saved message

sender’s phone number or e-mail is used as the default

Forward the message to an e-mail address

you’ve written

[FCC Draft 74 FCC Draft ]

Menu functions

Option Function

Play Listen to a sound clip in the message, if one is included

Save tone Save a ringing tone, if included, to the gallery

Zoom in Enlarge the picture

Save image Save any picture that is attached to your picture gallery

Tip: If blinks and Multimedia memory full, view waiting msg. appears in the display, memory for multimedia

messages is full. You need to delete some of your old messages. See “Erase messages” on page 82 for more information.

Instant messaging

(verify)You can have a conversation with another person using this “faster text messaging” application. You can’t save messages, but you can view them while chatting. Chat messages cost about the same as text messages.

START AN IM SESSION

1 At the Start screen, press Menu ??? (Messages - Chat). After a brief

pause, you’re prompted to enter the recipient’s phone number.

2 Enter the recipient’s number or press Find to retrieve a number from

the phone book, and press OK.

3 Enter your nickname name (up to 5 characters) and press OK.

Another way to start IM: When you have received a message, press Show to read it. To start IM, press Options and select IM.

4 Enter your message using the keypad. For faster ways to write a

message, see “Write with predictive text” on page 40.

5 When you’re ready to send the message, press Options, scroll to Send,

and press Select.

6 When you receive a reply, the message from the other person is shown

above your original message.

[FCC Draft 75 FCC Draft ]

7 To reply to the message, press OK and repeat the steps 4 and 5.

8 To end the IM session, press OK and select Quit.

• To view the latest messages of the current session, press Options and select IM history. The message that you have sent are indicated by "<" and your nickname. The messages from your IM partner are indicated by ">" and that sender’s nickname.

• Press Back to return to the message you are writing. To edit your nickname, press Options, scroll to IM name and press Select.

• VOICE MESSAGES

If you subscribe to voicemail, your wireless provider will furnish you with a voice mailbox number. You need to save this number to your phone to use voicemail. When you receive a voice message, your phone lets you know by beeping, displaying a message, or both. If you receive more than one message, your phone shows the number of messages received.

Save your voice mailbox number

Your wireless provider may have already saved your voice mailbox number to your phone. If so, the number will appear in the display in step 2. Press OK to leave the number unchanged.

1 At the Start screen, press Menu 01-4-2 (Messages - Voice messages -

Voice mailbox number).

2 After a brief pause, the Voice mailbox number screen appears in

the display.

3 If the box is empty, enter the voice mailbox area code and number.

4 Press OK. Your phone confirms the number has been saved.

Tip: Save yourself the trouble of entering the mailbox codes

each time you dial voicemail. See “Automate voicemail” later in this section for more information.

Call and setup your voicemail

1 Once you’ve saved the voice mailbox number, press and hold 1.

[FCC Draft 76 FCC Draft ]

Menu functions

2 When you connect to voicemail and the pre-recorded greeting begins,

follow the service’s automated instructions to setup your voicemail.

Listen to your voice messages

Once you’ve setup voicemail, you can dial the number one of 4 ways:

• Dial the number using the keypad

• Press and hold 1.

• Press Listen if there’s a notification message in the display

• Press Menu 01-4-1 (Messages - Voice messages - Listen to voice messages). After a brief pause, your phone dials the voicemail number.

Once you connect and the pre-recorded greeting begins, follow the automated instructions to listen to your voice messages.

• AUTOMATE VOICEMAIL

You can insert special characters called “dialing codes” into phone numbers such as voicemail and then save the number to a 1-touch dialing location. Dialing codes instruct the receiving system to pause, wait, bypass, or accept the numbers that follow them in the dialing string.

Note: Each voicemail service can vary. The examples and steps that follow are for clarification. Check with your wireless provider if you have specific questions about your voicemail service.

Write down some information

1 Write down your voice mailbox number.

2 Call and check your voicemail as you normally would.

3 Write down your interaction with the recorded prompts step-by-step.

Keep in mind that each voicemail service may vary. However, it should look something like this:

Dial 2145551212, pause 5 seconds, press 1, pause 2 seconds, press

[FCC Draft 77 FCC Draft ]

1234, press pound key.

Important: Be precise, you’ll need this information in “Setup voicemail with dialing codes” on page 78.

LEARN HOW TO INSERT DIALING CODES

Press s repeatedly to cycle through dialing codes. Once the desired code appears in the display, pause briefly and the code is inserted into the dialing string.

For example, press s four times to display the “w” (wait character). Pause briefly and the wait character is inserted into the dialing string. Available dialing codes are as follows:

Dialing codes

Bypasses a set of instructions

+ Precedes an international telephone number

p Pauses for 2.5 seconds before sending any numbers that follow

w Wait. Your phone waits for you to press e before it sends any

numbers or codes that follow.

Setup voicemail with dialing codes

1 At the Start screen, press Names, scroll to 1-touch dialing, and

press Select.

2 Scroll to an empty 1-touch dialing slot and press Assign.

3 Enter your voice mailbox number, including the area code.

4 Refer to the table entitled “dialing codes,” and enter any codes as

necessary using the information that you wrote down earlier.

For example, if you pause for 5 seconds after connecting to voicemail, enter p twice after the voice mailbox number, such as 2145551212pp.

5 Enter any remaining pauses, PIN codes, and other information that

allows you to listen to your messages, then press OK.

[FCC Draft 78 FCC Draft ]

Menu functions

6 Enter a name (such as Voicemail) and press OK. A message appears in

the display confirming your 1-touch dialing location has been saved.

Now, to dial and listen to your voicemail, just press and hold the assigned 1-touch dialing key at the Start screen. No other keypresses should be necessary to connect and listen to your messages.

• MESSAGE OPTIONS

Some or all of the options in the following table are available for text messages, picture messages, multimedia messages, and e-mail.

1 While viewing a text, picture, multimedia message, or e-mail

press Options.

2 Scroll to highlight an option. Press Select to activate the option or

enter its submenu.

Option Function

Delete Delete the message you’re viewing

Forward Forward the message to another recipient

Edit Edit the message

Move Move the message to a folder you specify

Rename Rename the message before it’s saved to a folder

Copy to Calendar

Details View the sender’s name and phone number, the

Use Detail Extract numbers, e-mail addresses and website

Copy text from the beginning of the message to your phone’s calendar as a reminder note for the current day.

message center used, reception date and time.

addresses from the current message

[FCC Draft 79 FCC Draft ]

Option Function

Save picture Save a picture message to the Templates folder

Reply Reply to the message; you’ve the option to include the

Original text in the reply, a template, or empty screen

• ORGANIZE MESSAGES WITH FOLDERS

Save messages to folders

You can save messages to an existing folder or to a folder that you’ve created.

1 Press Menu 01-1-1 (Messages - Text message - Write message).

After a brief pause, the message entry screen appears in the display.

2 Write your message and press Options.

3 Scroll to Save message and press Select.

4 Scroll to the Archive, Templates, or My folders (if you’ve created a

folder of your own) and press Select. The message is saved.

View saved messages

1 At the Start screen, press Menu 01-1 (Messages - Text messages).

2 After a brief pause, scroll to the folder containing the message you

wish to view and press Select.

3 Once the folder opens, scroll to the message you wish to view and

press Select.

Inbox folder

Messages are automatically stored in the inbox after they’ve been read or if you press Back when Message received appears on the Start screen.

Outbox folder

Store messages that you’d like to send at a later date in the Outbox folder.

[FCC Draft 80 FCC Draft ]

Menu functions

Archive folder

Store messages that have been read in the Archive folder.

Templates folder

Pictures and pre-written templates are stored in the Templates folder.

My folders

Keep your messages organized by creating custom folders and saving some of your messages there.

ADD A FOLDER OF YOUR OWN

1 At the Start screen, press Menu 01-1-7 (Messages - Text messages

- My folders). After a brief pause, the folder opens.

2 Press Options. Scroll to Add folder and press Select.

3 Enter a name for the new folder and press OK. The folder is added.

REMOVE A FOLDER

Only folders created in My folders can be deleted. The Inbox, Outbox, Archive, and Template folders are protected. When you delete a folder, all

messages in the folder are also deleted.

1 At the Start screen, press Menu 01-1-7 (Messages - Text messages

- My folders). After a brief pause, the folder opens.

2 Any folders that you’ve created appear in the display. Scroll to the

folder you wish to remove and press Options.

3 Scroll to Delete folder and press Select. You’re asked to confirm the

deletion.

4 Press OK to delete or Back to exit.

Move a message to a folder

1 While viewing the message, press Options.

2 Scroll to Move and press Select.

3 Scroll to the destination folder and press Select.

[FCC Draft 81 FCC Draft ]

Distribution lists

You can save up to 30 distribution lists in the phone’s memory for sending text messages to several people at once. Failed sendings are collected to a separate folder.

1 Press Menu, select Messages and Distribution lists.

2 Select Add list to add a new distribution list. The option is shown, if

you have not saved any lists in the folder.

3 At List name: key in the name for the list and press OK.

To view one of the following options, press Options. Select:

• View list to view or add names and phone numbers in the selected list

• Rename list to change the name of the selected list.

• Clear list to delete all names from the selected list.

• Delete list to remove the selected list from the folder.

4 Failed messages is a fixed list of the recipients to whom the latest

message sending failed. In the list you can, for example, select View message to view the failed message or Resend to list to send the message again.

• ERASE MESSAGES

If your message memory is full and you have more messages waiting at the network, blinks in on Start screen. You can do the following to create more space:

• Read some of the unread messages and then erase them

• Erase messages from some of your folders

Delete a single message

To erase a single message, you need to open it first.

1 Press Menu 01-1 (Messages - Text messages). After a brief pause, a

list of options appear in the display.

[FCC Draft 82 FCC Draft ]

Menu functions

2 Scroll to the folder containing the message you wish to erase and

press Select. A list of messages, if you have any, appears in the display.

3 Scroll to the message you wish to erase and press Select. The

message opens.

4 Press Options, scroll to Delete, and press Select.

5 You’re asked to confirm the erasure. Press OK to delete the message

or Back to exit.

Delete all messages in a folder

1 At the Start screen, press Menu 01-1-8 (Messages - Text messages

- Delete messages). After a brief pause, a list of your folders appears

in the display.

2 Scroll to the folder containing the messages you wish to delete and

press Select. You’re asked to confirm your erasure.

Important: If you select All read, it erases any messages which have been read in all of the folders.

3 Press OK to empty the folder.

Change text, e-mail and picture message settings

1 At the Start screen, press Menu 01-6-1-1 (Messages - Message

Settings - Text messages - Sending profile).

2 If more than one message profile set is supported by your SIM card,

scroll to the set you wish to change and press Select.

Message Setting

Message center number

Messages sent as

Function

Save the phone number of the message center, which is necessary for sending text messages; obtain this number is from your wireless provider

Select the message type Text, E-mail, Page, or Fax

[FCC Draft 83 FCC Draft ]

Message Setting

Message validity

Default recipient number

E-mail server number

Delivery reports

Use GPRS Set GPRS as the preferred method of sending SMS

Reply via same center

Rename sending profile

OVERWRITE SETTINGS FOR TEXT, E-MAIL, AND PICTURE MESSAGES

When the message memory is full, your phone can’t send or receive any new messages. However, you can set your phone to automatically replace old messages in the Inbox and Outbox folders when new ones arrive.

1 Press Menu, 01-7-1 (Messages - Message settings - Text messages).

After a brief pause, a list of options appear in the display.

2 Scroll to Overwriting in sent items or Overwriting in inbox and

press Select.

3 Scroll to Allowed and press Select to replace the old messages with

new ones in the Sent items or Inbox folder, respectively.

Function

Define how long the network attempts to send your messages before it gives up

For text messages, the default number used to send messages

For e-mail messages, the default number used to send e-mail

Request the network to send delivery reports on your messages

Allow the recipient of your message to send you a reply message via your message centre (network service).

Change the name of the selected sending profile; the sending profile sets display only if your SIM card supports more than one set

[FCC Draft 84 FCC Draft ]

Menu functions

Use the info message service

With the info message network service, you can receive short text messages on various topics, such as weather and traffic conditions, from your wireless provider.

1 At the Start screen, press Menu 01-5 (Messages - Info messages).

After a brief pause, the list of options in the following table appear in the display.

2 Scroll to an option. Press Select to activate the option or to enter

its submenu.

Message setting

Info service Select On or Off to activate or deactivate the service

Topics Options for selecting, adding, editing, and deleting

Language Select the language in which info messages

Info topics saved on SIM card

Function

info topics

are received. The language you select does not affect the language you select under the Phone settings menu

Select one or more info topics to save to your SIM card

Note:For more information on topics, contact your wireless provider.

Use service commands

Use the Service commands editor to enter and send service requests (also known as USSD commands) to your wireless provider. Contact your wireless provider for information about specific service commands.

1 At the Start screen, press Menu 01-6 (Messages -

Service commands).

2 Enter a service request, such as an activation command for a specific

network service, and press Send.

[FCC Draft 85 FCC Draft ]

Call log (Menu 2)

Call log stores information about the last 20 missed, received, or dialed calls. It also adds the total duration of all calls. When the number of calls exceed 20, the most recent call replaces the oldest. For Call log to work properly:

• Your wireless provider must support caller ID, and it must be enabled

• Your calls can’t be blocked

• Your phone must be on and within the service area

• CALL LOG OPTIONS

Whether you are viewing missed, received, or dialed calls, each of the menu options will be the same. Please refer to the following table regarding menu options for these features.

Missed, received, and dialed call options

Call time Display the date and time of the call

Send message Send a message to the number

View number Display the number

Edit number Edit the number and associate a name with the number

Save Enter a name for the number and save it to your

Phone book

Add to name Add the number to an existing entry in your Phone

book, if the number is not associated with a name

Erase Delete the number from memory

Call Call the number

[FCC Draft 86 FCC Draft ]

Menu functions

• VIEW MISSED CALLS

Missed calls are calls that were never answered. You can check for missed calls two ways:

1 If # missed call appears in the display, press List. The phone number

appears in the display.

2 Press Options to display the options listed in the table on page 87.

3 Scroll to an option, press Select to activate the option or to enter

its submenu.

1 At the Start screen, press Menu 2-1 (Call log - Missed calls).

After a brief pause, a list of missed calls appear in the display (if any exist).

2 Scroll to a number and press Options to display the options listed in

the table on page 87.

3 Scroll to an option, press Select to activate the option or to enter

its submenu.

• VIEW RECEIVED CALLS

Received calls are calls that have been answered.

1 At the Start screen, press Menu 2-2 (Call log - Received calls).

After a brief pause, a list of received calls appears in the display (if any exist).

2 Scroll to a number and press Options to display the options listed

in the table on page 87.

3 Scroll to an option, press Select to activate the option or enter

its submenu.

[FCC Draft 87 FCC Draft ]

• VIEW DIALED NUMBERS

You can view dialed numbers one of two ways:

1 At the Start screen, press e. Your most recently dialed numbers

appear in the display.

2 At the Start screen, press Menu 2-3 (Call log - Dialed numbers).

After a brief pause, your most recently dialed numbers appear in the display.

3 Scroll to a number and press Options to display the options listed in

the table on page 87.

4 Scroll to an option, press Select to activate the option or enter

its submenu.

Call times

You can receive up to five calls from the same number, and view the time each call occurred. Your clock must be set for this feature to work accurately. See “Set the clock” on page 33 for instructions on setting your clock.

1 While viewing a missed or received call, press Options, scroll to Call

time, and press Select.

2 The time that the last call occurred appears in the display. 3 Press a to view other call times from this number. Press Back to

return to the options list.

• ERASE CALL LISTS

To erase any missed, dialed, or received calls from your phone’s memory:

1 At the Start screen, press Menu 2-4 (Call log - Erase recent call lists).

After a brief pause, All, Missed, Received and Dialed appear in the display.

2 Scroll to the call type you’d like to clear and press Select.

[FCC Draft 88 FCC Draft ]

Menu functions

• VIEW CALL DURATION

1 Duration of last call. At the Start screen, press Menu 2-5-1

(Call log - Call duration - Duration of last call). The duration of your last call appears in the display.

2 Duration of dialed calls. At the Start screen, press Menu 2-5-3

(Call log - Call timers - Duration of dialed calls). The duration of all dialed calls appears in the display.

3 Duration of received calls. At the Start screen, press Menu 2-5-2

(Call log - Call timers - Duration of received calls). The duration of all received calls appears in the display.

4 Duration of all calls. At the Start screen, press Menu 2-5-4

(Call log - Call timers - Duration of all calls). The duration of all calls (missed, dialed, and received) appears in the display.

[FCC Draft 89 FCC Draft ]

Profiles (Menu 3)

Profiles define how your phone reacts when you receive a call or a message, how your keypad sounds when you press a key, and more. Ringing options, keypad tones, and other settings for each of the 5 available profiles can be left at their default setting, or customized to suit your needs. Select and customize the most suitable profile for your situation, such as when you are in a meeting or outdoors. The following profiles are available:

• Normal • Silent • Meeting • Outdoor • Pager

Note: Profiles are also available for accessories such as a headset and car kit. See “Accessory settings” on page 105 for more information about accessory profiles.

• SELECT A PROFILE

1 At the Start screen, press Menu 3 (Profiles).

After a brief pause, the list of profiles appear in the display.

2 Scroll through the available profiles and press Select once the profile

of your choice is highlighted.

3 Scroll to Select and press Select.

Tip: You can briefly press the power key to display the list of

profiles. Each press of the power key thereafter scrolls through the list. Once a profile is highlighted, press and hold the power key to select the profile.

• CUSTOMIZE A PROFILE

You can customize any of the profiles a variety of ways.

[FCC Draft 90 FCC Draft ]

Menu functions

1 At the Start screen, press Menu 3 (Profiles).

After a brief pause, the list of profiles appears in the display.

2 Scroll to the profile you wish to customize and press Select.

3 Scroll to Customize and press Select.

4 Use the joystick to display each of the options in the following table.

Once you arrive at the option you’d like to customize, press Select.

Note: You cannot rename the Normal profile.

Custom profile options

Ringing options Select the ringing tone style

Ringing tone Select the ringing tone for incoming calls

Ringing volume Set the volume of your ringing tone

Vibrating alert Turn the vibrating alert on or off

Message alert tone Select the tone for received messages

Keypad tones Set the volume of your keypad tones (or turn

them off)

Warning tones Turn warning and confirmation tones on or off

Alert for Define which caller groups the selected profile

will accept or decline. See “Caller groups” on page 59 for more information.

Profile name Rename the profile (up to 16 characters)

• SET A TIMED PROFILE

Timed profiles can be used to prevent missed calls. For example, suppose you attend an event that requires your phone be set to Silent before the event starts, but you forget to return it to Normal until long after the

[FCC Draft 91 FCC Draft ]

event. During this time, you’ve missed several calls because the ringing tone was silent. A timed profile can prevent this by automatically returning your phone to the default profile at a time you specify.

Note: Timed profiles can be set up to 24 hours in advance.

1 At the Start screen, press Menu 3 (Profiles).

After a brief pause, the list of profiles appears in the display.

2 Scroll to the profile you wish to activate and set for timed expiration,

then press Select.

3 Scroll to Timed and press Select.

4 Enter the time for the profile to expire and press OK.

The profile you’ve set for expiration is now active and appears in the Start screen along with a small “clock” icon

[FCC Draft 92 FCC Draft ]

Menu functions

Settings (Menu 4)

Set the clock

1 At the Start screen, press Menu 4-1-1

(Settings - Time and date settings - Clock).

After a brief pause, Show clock (or Hide clock) Set the time, and Time format appear in the display with Show clock (or Hide clock) highlighted.

2 Scroll to Set the time and press Select.

3 Enter the time (in hh:mm format) and press OK.

4 Scroll to am or pm and press Select. The time is set.

Show/hide the clock

You have the option of displaying (or not displaying) the clock on the Start screen.

1 At the Start screen, press Menu 4-1-1 (Settings - Time and date

settings - Clock).

After a brief pause, Show clock (or Hide clock) Set the time, and Time format appear in the display with Show clock (or Hide clock) highlighted.

2 Press Select.

• If your clock was previously “hidden,” (not shown on the display), it will now appear in the upper right corner of the Start screen.

• If your clock was previously shown in the display, it will now be hidden from view.

Change the time format

You can set the time format for am/pm or 24 hour format (military time).

1 At the Start screen, press Menu 4-1-1 (Settings - Time and date

settings - Clock).

[FCC Draft 93 FCC Draft ]

After a brief pause, Show clock (or Hide clock) Set the time, and Time format appear in the display with Show clock (or Hide clock) highlighted.

2 Scroll to Time format and press Select.

3 Scroll to 24-hour or am/pm and press Select. A message appears in

the display confirming your selection.

Set the date

1 At the Start screen, press Menu 4-1-2 (Settings - Time and

date settings - Date). After a brief pause, a list of options appear in the display.

2 Scroll to Set the date and press Select.

3 Enter the date and press OK. The date is set.

Set or change the date format

1 At the Start screen, press Menu 4-1-2 (Settings - Time and date

settings - Date).

2 Scroll to Date format and press Select.

3 Scroll to the format of your choice and press Select.

SET THE DATE SEPARATOR

1 At the Start screen, press Menu 4-1-2-4 (Settings - Time and date

settings - Date - Date separator).

2 Scroll to the date separator of your choice (period, slash, or hyphen)

and press Select. A message appears in the display confirming your selection.

• CALL SETTINGS

Call forwarding

Call forwarding tells your network to redirect incoming calls to another number.

[FCC Draft 94 FCC Draft ]

Microsoft NSB-9 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Phone notes

LEGAL INFORMATION

EXPORT CONTROLS

FCC/INDUSTRY CANADA NOTICE

Contents

1 For your safety

ROAD SAFETY COMES FIRST

INTERFERENCE

SWITCH OFF IN HOSPITALS

SWITCH OFF IN AIRCRAFT

SWITCH OFF WHEN REFUELLING

SWITCH OFF NEAR BLASTING

USE SENSIBLY

QUALIFIED SERVICE

OBSERVE INFRARED PRECAUTIONS

ACCESSORIES AND BATTERIES

WATER-RESISTANCE

BACKUP COPIES

CONNECTING TO OTHER DEVICES

FUSE REPLACEMENT

CALLING

EMERGENCY CALLS

• ABOUT ACCESSORIES

2 An overview of functions

• MESSAGING CONCEPT

• MULTIMEDIA MESSAGING SERVICE (MMS)

• POLYPHONIC SOUND (MIDI)

• GENERAL PACKET RADIO SERVICE (GPRS)

Before you can use GPRS technology

PRICING FOR GPRS AND APPLICATIONS

• SPEAKERPHONE

• MIDP JAVATM APPLICATIONS

• FM STEREO RADIO

3 Welcome and quick guide

• GET THE MOST OUT OF THIS GUIDE

Learn text conventions

Follow graphic clues

Access alternate formats

Look for updates

• UNDERSTAND WIRELESS NETWORK SERVICES

• REGISTER YOUR PHONE

• E-NEWSLETTERS

•GET HELP

Find your phone’s label

Contact Nokia

HAVE THE RIGHT INFORMATION AVAILABLE

CONTACT YOUR SERVICE PROVIDER

• UNDERSTAND YOUR PHONE

With flip closed

6 d ends an active call, or exits from any function.

7 Use the keypad to enter numbers and characters.

Opening the flip

With flip open

3 Backspace h deletes characters 4 Enter key i forces line feed in text editing. The enter key also opens

5 Shift keys g and ? enter a space. 6 Space bar keys j and ? enter upper case letters and symbols. You

8 Character key l opens a set of characters and symbols.

Use the antenna

Use the battery

CHARGE THE BATTERY

1 Plug the charger transformer in to a standard AC outlet.

IMPORTANT BATTERY INFORMATION

PROLONG THE BATTERY

REMOVE THE BACK COVER

REMOVE THE BATTERY

Install the SIM card

1 Slide the SIM card holder toward the left..

2 Swing the SIM card holder open.

REPLACE THE BATTERY

REPLACE THE BACK COVER

• SWITCH YOUR PHONE ON OR OFF

2 Enter the PIN code or security code if necessary and press OK.

• CHECK THE START SCREEN

4 The left selection key is Menu.

5 The right selection key is Names.

• GET STARTED WITH THE QUICK GUIDE

• MENU SHORTCUTS
