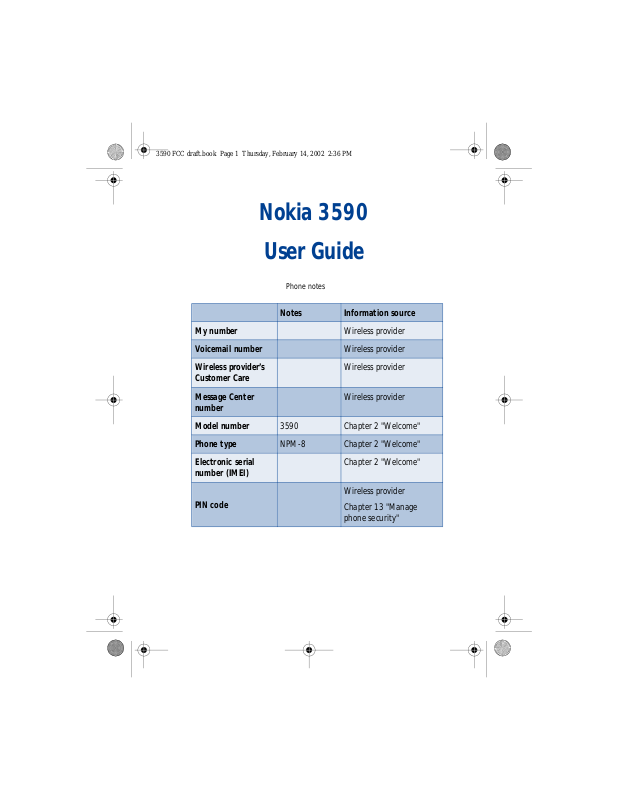

3590 FCC draft.book Page 1 Thursday, February 14, 2002 2:36 PM

Nokia 3590

User Guide

Phone notes

Notes Information source

My number Wireless provider Voicemail number Wireless provider Wireless provider’s

Customer Care Message Center

number Model number 3590 Chapter 2 "Welcome" Phone type NPM-8 Chapter 2 "Welcome" Electronic serial

number (IMEI)

PIN code

Wireless provider

Chapter 2 "Welcome"

Wireless provider Chapter 13 "Manage

phone security"

3590 FCC draft.book Page 2 Thursday, February 14, 2002 2:36 PM

The wireless phone described in this guide is approved for use in GSM networks.

LEGAL INFORMATION

Nokia, Nokia Connecting People and the Original Accessories logos are trademarks of Nokia Corporation and/or its affiliates.

Includes RSA BSAFE cryptographic or security protocol software from RSA Security. The information contained in this user guide was written for Nokia phone NPM-8.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

EXPORT CONTROLS

This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.

3590 FCC draft.book Page i Thursday, February 14, 2002 2:36 PM

Contents

1 For your safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

2 Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Get the most out of this guide. . . . . . . . . . . . . . . . . . .3

Understand wireless network services. . . . . . . . . . . . .4

Learn about accessibility solutions . . . . . . . . . . . . . . .5

Contact Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

E-Newsletters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3 Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Install the SIM card. . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Install the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Charge the battery . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Battery Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Remove the battery. . . . . . . . . . . . . . . . . . . . . . . . . . .12

Set up your headset . . . . . . . . . . . . . . . . . . . . . . . . . .13

4 About your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Keys and features . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Switch on your phone. . . . . . . . . . . . . . . . . . . . . . . . .15

About the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . .16

About the Start screen . . . . . . . . . . . . . . . . . . . . . . . .16

About indicators and icons. . . . . . . . . . . . . . . . . . . . .17

5 Make and answer calls . . . . . . . . . . . . . . . . . . . . . . . .19

[ i ]

3590 FCC draft.book Page ii Thursday, February 14, 2002 2:36 PM

Make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

End a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Answer a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Reject a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Silence an incoming call . . . . . . . . . . . . . . . . . . . . . . 21

Redial the last-dialed number. . . . . . . . . . . . . . . . . . 21

6 The menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Use the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

About menu shortcuts . . . . . . . . . . . . . . . . . . . . . . . . 23

List of menu shortcuts. . . . . . . . . . . . . . . . . . . . . . . . 24

Phone book menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7 Enter letters and numbers. . . . . . . . . . . . . . . . . . . . . 28

ABC mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Predictive text input. . . . . . . . . . . . . . . . . . . . . . . . . . 31

8 Use the phone book . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Save names, numbers and e-mail addresses . . . . . . 35

Edit names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Edit numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Add text entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Find names in the phone book . . . . . . . . . . . . . . . . . 38

Your phone’s memory. . . . . . . . . . . . . . . . . . . . . . . . . 39

Erase names and numbers. . . . . . . . . . . . . . . . . . . . . 40

9 Check call history. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Check dialed calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

[ ii ]

3590 FCC draft.book Page iii Thursday, February 14, 2002 2:36 PM

Check received calls . . . . . . . . . . . . . . . . . . . . . . . . . .41

Check for missed calls. . . . . . . . . . . . . . . . . . . . . . . . .42

Choose options in call lists. . . . . . . . . . . . . . . . . . . . .43

Clear call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Use call timers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Manage call costs . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Check data calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

10 Advanced calling features . . . . . . . . . . . . . . . . . . . . .49

Active call options. . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Use call forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . .53

Use anykey answer . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Use automatic redial. . . . . . . . . . . . . . . . . . . . . . . . . .55

Send your own number in caller ID. . . . . . . . . . . . . .56

Use 1-touch dialing . . . . . . . . . . . . . . . . . . . . . . . . . .56

Use the phone book . . . . . . . . . . . . . . . . . . . . . . . . . .58

Make an international call. . . . . . . . . . . . . . . . . . . . .59

Select a system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

11 Use voice features. . . . . . . . . . . . . . . . . . . . . . . . . . . .60

About voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Save the voice mailbox number. . . . . . . . . . . . . . . . .61

Listen to your voice messages . . . . . . . . . . . . . . . . . .61

Use voice dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

12 Personalize your phone. . . . . . . . . . . . . . . . . . . . . . . .65

What are profiles?. . . . . . . . . . . . . . . . . . . . . . . . . . . .65

[ iii ]

3590 FCC draft.book Page iv Thursday, February 14, 2002 2:36 PM

About accessory profiles . . . . . . . . . . . . . . . . . . . . . .67

Download Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Choose the display language. . . . . . . . . . . . . . . . . . . 71

Set up the time and date. . . . . . . . . . . . . . . . . . . . . .71

Use caller groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Download ringing tones. . . . . . . . . . . . . . . . . . . . . . . 75

Restore factory settings. . . . . . . . . . . . . . . . . . . . . . .76

Change Xpress-on™ color covers. . . . . . . . . . . . . . . . 77

13 Manage phone security . . . . . . . . . . . . . . . . . . . . . . . 80

Lock the keypad (Keyguard). . . . . . . . . . . . . . . . . . . . 80

About security codes . . . . . . . . . . . . . . . . . . . . . . . . . 81

PIN codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

PUK codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Security code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Use fixed dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Restrict calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Set up a closed user group . . . . . . . . . . . . . . . . . . . . 86

14 Communicate with mobile messages . . . . . . . . . . . .87

Message settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Send and receive text messages . . . . . . . . . . . . . . . . 90

Communicate with e-mail. . . . . . . . . . . . . . . . . . . . . 92

Chat with other phone users. . . . . . . . . . . . . . . . . . .94

Store messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Erase messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Use picture messages. . . . . . . . . . . . . . . . . . . . . . . . .99

[ iv ]

3590 FCC draft.book Page v Thursday, February 14, 2002 2:36 PM

Use the info message service. . . . . . . . . . . . . . . . . .102

Use the service command editor . . . . . . . . . . . . . . .102

15 Your WAP browser . . . . . . . . . . . . . . . . . . . . . . . . . .103

Notes on wireless Internet access . . . . . . . . . . . . . .103

Set up for browsing. . . . . . . . . . . . . . . . . . . . . . . . . .104

Sign on to the Internet. . . . . . . . . . . . . . . . . . . . . . .104

Use browser options . . . . . . . . . . . . . . . . . . . . . . . . .105

Navigate the wireless Internet. . . . . . . . . . . . . . . . .106

Use bookmarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Disconnect from the Internet. . . . . . . . . . . . . . . . . .107

Security issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Notes about GPRS. . . . . . . . . . . . . . . . . . . . . . . . . . .109

Online purchases (under development). . . . . . . . . .111

16 Your personal digital assistant. . . . . . . . . . . . . . . . .112

Use the calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Make a to-do list. . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Use the alarm clock. . . . . . . . . . . . . . . . . . . . . . . . . .113

Share business cards. . . . . . . . . . . . . . . . . . . . . . . . .114

Use the calculator. . . . . . . . . . . . . . . . . . . . . . . . . . .115

Use the wallet (under development) . . . . . . . . . . . .116

17 Fun and games . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Game rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Customize Applications . . . . . . . . . . . . . . . . . . . . . .118

18 Reference information . . . . . . . . . . . . . . . . . . . . . . .119

[ v ]

3590 FCC draft.book Page vi Thursday, February 14, 2002 2:36 PM

Batteries, chargers, and accessories . . . . . . . . . . . .119

Important safety information . . . . . . . . . . . . . . . . .120

Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Certification Information (SAR). . . . . . . . . . . . . . . . 125

A message from the CTIA. . . . . . . . . . . . . . . . . . . . .127

A message from the FDA . . . . . . . . . . . . . . . . . . . . .129

Care and maintenance. . . . . . . . . . . . . . . . . . . . . . .134

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Battery information . . . . . . . . . . . . . . . . . . . . . . . . .136

Chargers and other accessories. . . . . . . . . . . . . . . . 137

19 Technical information . . . . . . . . . . . . . . . . . . . . . . .141

20 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

21 NOKIA One Year Limited Warranty. . . . . . . . . . . . . 143

[ vi ]

3590 FCC draft.book Page 1 Thursday, February 14, 2002 2:36 PM

1 For your safety

Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual.

SWITCH OFF WHERE PROHIBITED

Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST

Don't use a wireless phone while driving

INTERFERENCE

All wireless phones may get interference, which could affect performance.

SWITCH OFF IN HOSPITALS

Follow any regulations or rules. Switch the wireless phone off near medical equipment.

SWITCH OFF IN AIRCRAFT

Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELING

Don’t use the wireless phone at a refueling point. Don’t use near fuel or chemicals.

SWITCH OFF NEAR BLASTING

Don’t use the wireless phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.

[ 1 ]

3590 FCC draft.book Page 2 Thursday, February 14, 2002 2:36 PM

USE SENSIBLY

Use only in the normal position. Don't touch the antenna unnecessarily.

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

ACCESSORIES

Use only approved accessories. Do not connect incompatible products.

WATER-RESISTANCE

Your wireless phone is not water-resistant. Keep it dry.

CALLING

Ensure the phone is switched on and in service. Enter the phone number, including the area code, then press . To end a call, press . To answer a call, press .

EMERGENCY CALLS

Ensure the phone is switched on and in service. Press as many times as needed (for example, to exit a call, to exit a menu) to clear the display. Enter the emergency number, then press . Give your location. Do not end the call until told to do so.

[ 2 ]

3590 FCC draft.book Page 3 Thursday, February 14, 2002 2:36 PM

2 Welcome

You’ll find that your Nokia 3590 mobile phone has many useful features for everyday use, such as a calendar, to-do list, text messaging, and alarm clock. Review this chapter to find out more about:

• How to use this guide

• Wireless network services

• Accessibility solutions

• How to contact Nokia

• GET THE MOST OUT OF THIS GUIDE

The tips that follow can help you get the most from this guide as you learn to use your phone.

Notice text conventions

This user guide provides text clues to help make instructions clear and easy to follow. These clues are called conventions.

Convention What it means

bold The word or phrase appears on the phone’s screen.

bold and blue The text refers to an address on the World Wide Web.

italic Italics indicate emphasis. Pay close attention to any

information in italics.

[ 3 ]

3590 FCC draft.book Page 4 Thursday, February 14, 2002 2:36 PM

Follow graphic clues

This guide uses certain icons to alert you to important information.

Tip: Provides information about a shortcut or an alternate method of doing something.

Note: Explains a feature or points out an important concept.

Important: Alerts you to information critical to using a feature

correctly.

Caution: Warns you when you may lose information.

Warning: Helps you avoid personal injury, damage to the phone,

or property damage.

Look for updates

From time to time, Nokia updates this user guide to reflect changes or corrections. The latest version may be available online at:

http://www.nokiausa.com

Also, an interactive tutorial may be available online at:

www.nokiahowto.com

• UNDERSTAND WIRELESS NETWORK SERVICES

A number of features included in this guide are called Network Services. These are special services that you arrange through your wireless service provider. Before you can take advantage of any of these Network Services, you must subscribe to them through your service provider and obtain instructions for their use from your service provider.

[ 4 ]

3590 FCC draft.book Page 5 Thursday, February 14, 2002 2:36 PM

Network services for the Nokia 3590 include:

Voice mail Call waiting, call forwarding, and caller ID Text and picture messages Info Message Service Notifications on SIM update Cell info display Service command editor Selected Internet access services GPRS services

Note: Some networks may not support all languagedependent characters and/or services.

• LEARN ABOUT ACCESSIBILITY SOLUTIONS

Nokia is committed to making mobile phones easy to use for all individuals, including those with disabilities. For more information, visit the Nokia World Wide Web site:

www.nokiaaccessibility.com

Alternate format user guides

This user guide is available in alternate formats, including:

Braille Large print Audiocassette E-text (electronic documents on a 3.5-inch disk, in Microsoft Word or WordPerfect format)

To request any format, call Nokia Customer Care at (888) 665-4228. TTY/ TDD users can contact Nokia at (800) 246-6542.

Note: Alternate format user guides are available in English.

[ 5 ]

3590 FCC draft.book Page 6 Thursday, February 14, 2002 2:36 PM

LPS-3 Mobile Inductive Loopset

The LPS-3 Mobile Loopset gives people with T-coil equipped hearing aids the ability to make and receive calls without noise interference.

Also compatible with the Nokia 3300, 3500, 8200, 8300 and 8800 series digital phones, the loopset gives hearing-impaired users clear access to digital telephony for the first time.

The loopset is easy to use. You wear the loopset around your neck, connect it to your phone, and speak directly toward the microphone. For more information see “Set up the loopset profile” on page68.

Note: The loopset can be purchased separately as an accessory. For detailed instructions, refer to the booklet that comes with the LPS-3.

TTY Adapter (HDA-9)

The TTY Adapter is a Nokia accessory that allows you to connect your mobile phone to a TTY/TDD device to make a call in digital mode.

WHAT YOU’LL NEED

In addition to the Nokia 3590, you’ll need the following for TTY/TDD communication.

• A TTY/TDD device that is “cellular ready” or “cellular compatible”

• A cable for connecting the TTY/TDD to your phone, usually supplied by the manufacturer of the TTY/TDD device

• The Nokia TTY adapter HDA-9, which can be purchased separately as an accessory

[ 6 ]

3590 FCC draft.book Page 7 Thursday, February 14, 2002 2:36 PM

For information on choosing a profile so that the phone recognizes the TTY/TDD device, see “Set up the TTY profile” on page69.

Accessible features

The 3590 has many accessible features, including:

Ability to send and receive short text messages Convenience of one-touch dialing Ability to define ring tones for different caller groups Voice dialing for handsfree operation

• CONTACT NOKIA

If you ever need to call Nokia Customer Care or your service provider, you will need to provide specific information about your phone.

This information is provided on the phone’s label.The label is on the back of the phone (under the battery). It shows the following:

• Phone type

• Phone model

• IMEI

Important: Do not remove or deface the label. Tip: See “Remove the battery” on page12 for instructions on how

to access the phone label.

[ 7 ]

3590 FCC draft.book Page 8 Thursday, February 14, 2002 2:36 PM

Have the phone or accessory handy

Whether you’re calling about your phone or an accessory, have the equipment with you when you call. For example, if you’re calling about a headset, please have it available. If a Nokia representative asks a specific question about the accessory, you will have it available for quick reference.

Nokia Customer Care Center, USA

Nokia Mobile Phones 7725 Woodland Center Boulevard, Suite #150 Tampa, Florida 33614

Tel: 1-888-NOKIA-2U (1-888-665-4228)

Fax: 1-813-249-9619 TTY: 1-800-24-NOKIA (1-800-246-6542)

(for TTY and TDD users only)

• REGISTER YOUR PHONE

Make sure to register your phone at www.warranty.nokiausa.com or 1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs better if you should need to call the center or have your phone repaired.

Customer Interaction Centre, Canada

Nokia Products Ltd. 601 Westney Rd. South Ajax, Ontario L1S 4N7

Tel: 1-905-427-1373 1-888-22-NOKIA (1-888-226-6542)

Fax:1-905-427-1070 Web site: www.nokia.ca

• E-NEWSLETTERS

When you register your phone, you can sign up for Nokia's e-newsletter Nokia Connections if you would like. You will receive tips and tricks on using your phone, accessory information, and special offers

[ 8 ]

3590 FCC draft.book Page 9 Thursday, February 14, 2002 2:36 PM

3 Before you begin

Before you begin, you need to prepare your phone by installing the SIM card and charging the battery.

Instructions for attaching the optional headset can also be found in this chapter.

• INSTALL THE SIM CARD

Important: Switch off the phone before installing the SIM card.

1 With the back of the phone body facing you, locate the SIM card slot. 2 Install the SIM card by sliding it gently into the slot:

beveled corner on the right, gold contact area face down.

Notes about SIM cards

• Keep all miniature SIM cards out of the reach of small children.

• The SIM card and its contacts are easily damaged by scratches or bending, so be careful when handling, inserting, or removing the card.

[ 9 ]

3590 FCC draft.book Page 10 Thursday, February 14, 2002 2:36 PM

• INSTALL THE BATTERY

1 Place the battery in the compartment with the label side facing up

and the golden contact area of the battery aligned with the contact prongs inside the phone.

2 Slide the battery until it snaps into place.

Replace the back cover

1 Direct the back cover towards the locking catches on the phone. 2 Slide the back cover until it locks into place.

[ 10 ]

3590 FCC draft.book Page 11 Thursday, February 14, 2002 2:36 PM

• CHARGE THE BATTERY

1 Connect the lead from the

charger to the bottom of the phone.

2 Connect the charger to a

standard wall outlet. The battery power indicator (or battery bar) appears on the screen and starts scrolling. If the phone is on, Charging appears also.

3 When the battery bar stops scrolling, the battery charge is complete.

Battery full appears also, if the phone is on.

4 Disconnect the charger from the phone.

• BATTERY NOTES

Use the following guidelines to obtain the best performance from your battery:

• Recharge your battery only with a charger approved by Nokia.

• With your phone turned off, charge your new battery for three hours before its first use. Use the battery until it is fully discharged. Repeat this procedure twice for a total of three charging cycles.

• Battery operation time may be less than the estimated times during the first charges. This condition is normal.

• When the battery is fully discharged, the scrolling bars may not appear immediately.

• After the first charge, you can make and receive calls during the charging cycle, but the calls interrupt the charge. When the phone

[ 11 ]

3590 FCC draft.book Page 12 Thursday, February 14, 2002 2:36 PM

call ends, the charge will resume.

• The bars on the screen stop scrolling and remain constant when the phone is charged. If you leave the phone connected to the charger, the battery receives an additional charge.

• If the battery is completely empty, it may take a few minutes before you can make or receive calls.

• The charging time depends on the charger and battery that you use.

Note: The battery will accept a "trickle charge" for an additional two hours. For more details, see “Battery information” on page136.

• REMOVE THE BATTERY

If you purchase a new battery or need to access information on the phone’s label, you may need to remove the battery.

Important: Switch off the phone before removing the battery. Important: Do not puncture or burn the battery. Please recycle or

dispose of properly.

1 With the back of the phone facing you, press and hold the back cover

release button.

2 Slide the cover off. 3 Lift out the battery.

[ 12 ]

3590 FCC draft.book Page 13 Thursday, February 14, 2002 2:36 PM

• SET UP YOUR HEADSET

Your phone may come with a headset you can use while talking on your phone. The headset provides convenient handsfree use of the phone.

Connect the headset

1 Plug the headset jack into the

bottom of your phone.

2 Put the round ear plug into one ear.

Use the headset

With the headset connected, you can make and answer calls as usual, using the keypad to press and or to enter numbers to call.

The microphone for the headset hangs at the side of your head. Although the microphone may seem far from your mouth, you can speak at a normal volume.

[ 13 ]

3590 FCC draft.book Page 14 Thursday, February 14, 2002 2:36 PM

4 About your phone

• KEYS AND FEATURES Front

1 Power key If the battery is fully charged, press

and hold the power key for about 2 seconds and watch the screen light up.

2 Earpiece 3 Display

4 Selection keys

and scroll keys

Use these keys to move through menus and the phone book.

5 Talk key Press to make and answer calls.

6 End key Press to end calls or return to the

Start screen. 7 Number keys Press to enter phone numbers (when you call) and letters (when you add names to the phone book or write text messages). 8 Microphone

Note: When any key is pressed, the keypad and display lights stay on for up to 15 seconds.

[ 14 ]

3590 FCC draft.book Page 15 Thursday, February 14, 2002 2:36 PM

Back

On the back of your phone, you’ll find the back cover release button and an internal antenna.

• SWITCH ON YOUR PHONE

• Press and hold the power key for about 2 seconds.

The phone may ask for a Personal Identification (PIN) code or a security code. See “About security codes” on page81 for more information.

Note: Your service provider supplies the PIN code.

Warning: Do not switch on the phone in places where wireless phone use is prohibited or where the use of the phone could cause interference or danger.

[ 15 ]

3590 FCC draft.book Page 16 Thursday, February 14, 2002 2:36 PM

• ABOUT THE ANTENNA

Your phone has a built-in antenna. As with any other radio transmitting

Not touching the antenna during a call optimizes the antenna performance and the talk-time of your phone. Normal position: Hold the phone as you would any other telephone. with the antenna pointed up and over your shoulder.

device, do not touch the antenna unnecessarily when the phone is switched on.

Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than needed.

• ABOUT THE START SCREEN

When you turn on your phone, the first screen that appears is the Start screen. In the middle of the Start screen, you may see information indicating which wireless network your phone uses. This information can vary between phones. Other indicators and icons appear on this Start screen and are described in the next section.

[ 16 ]

3590 FCC draft.book Page 17 Thursday, February 14, 2002 2:36 PM

• ABOUT INDICATORS AND ICONS

On your phone, you have two types of identifiers: indicators and icons.

Indicators

Indicators show the status of something. The phone uses three types of indicators:

• Signal strength indicator: Shows the strength of the signal to your phone.

• Battery strength indicator: Shows how much power is left in your phone’s battery.

• Volume indicator: Shows the earpiece volume level.

Icons

Icons are graphical representations of a specific item or situation. For example, this icon appears when you have a voice message waiting to be heard. (Some systems use a different method.)

The rest of this section shows examples of each icon that can appear on your phone and tells you what these icons indicate.

Line 1 is selected for outgoing calls. Line 2 is selected for outgoing calls.

[ 17 ]

3590 FCC draft.book Page 18 Thursday, February 14, 2002 2:36 PM

You have an active call.

You have a call on hold. You have one or more new voice messages. You have one or more new text messages.

(If the icon blinks, text message memory is full.) Keyguard is on. Your phone will not accept any key presses.

The alarm clock is set. The Silent profile is selected. Incoming voice calls are being forwarded to another number. You have forwarded all voice calls received on line 1. You have forwarded all voice calls received on line 2. You have forwarded all voice calls received on lines 1 and 2. The phone is ready for you to enter a response.

There is a voice tag attached to a name in your phone book. Indicates an e-mail address in your phone book.

[ 18 ]

3590 FCC draft.book Page 19 Thursday, February 14, 2002 2:36 PM

5 Make and answer calls

This chapter tells you how to make and receive calls and how to adjust certain options.

• MAKE A CALL Check the signal strength

The signal indicator on the left side of your phone’s screen shows the strength of the network radio signal. The indicator scrolls as the signal strength increases and decreases. To get the strongest signal, try moving your phone slightly. If you’re inside a building, move toward a window.

Use the keypad

1 Enter the area code and phone number. 2 Press .

Hold the phone as you would any other telephone, with the antenna pointed up and over your shoulder.

Important: Do not touch the antenna when the phone is switched on. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.

Warning: Do not switch on the phone when wireless phone use is prohibited or when it may cause interference or danger.

[ 19 ]

3590 FCC draft.book Page 20 Thursday, February 14, 2002 2:36 PM

Use the phone book

1 From the Start screen, press or and scroll to the number you

want.

2 Press to make the call.

Tip: To skip ahead quickly in the list, press the number key that matches the first letter of the name.

Adjust the earpiece volume during a call

• To increase the volume of a call, press and watch the volume indicator go up.

• To decrease the volume, press and watch the volume indicator go down.

• END A CALL

Press .

• ANSWER A CALL

When someone calls you, the phone alerts you and Calling flashes on the display.

To answer, press OR Press Options, scroll to Answer call, then press Select.

Caller ID

This is a network service that helps identify incoming calls. Contact your service provider for details.

When Caller ID is active, your phone may display the caller’s phone number. The caller’s name may also appear, if their name and number are stored in the phone book (see “Use the phone book” on page 35).

[ 20 ]

3590 FCC draft.book Page 21 Thursday, February 14, 2002 2:36 PM

• REJECT A CALL

Press OR Press Options, scroll to Decline call, then press Select.

• SILENCE AN INCOMING CALL

You can stop the ring for an incoming call by pressing Silence. Then, answer or reject the call.

• REDIAL THE LAST-DIALED NUMBER

Press twice.

Dial any of the 10 last-dialed numbers

1 Press . 2 Scroll to the number you want to redial. 3 Press again.

[ 21 ]

3590 FCC draft.book Page 22 Thursday, February 14, 2002 2:36 PM

6 The menu

Your phone offers many functions that are grouped in menus and submenus. Access these menus with the selection keys and scroll keys, or by entering the appropriate shortcut number.

• USE THE MENUS Selection keys

Below the screen, you will find two selection keys. Their functions depend on the text above the keys.

For example, in this screen, the word Menu appears above the left selection key. Press the key to enter the menu function. To access phone book functions, press the right selection key under Names.

Scroll keys

Use the scroll keys, located just below the screen, to scroll through your phone’s menus and phone book.

Scroll bar

While you use your phone’s menus, a scroll bar appears at the far right of the screen. This bar indicates where you are in the menu. Each numbered “tab” on the bar represents a different menu item.

[ 22 ]

3590 FCC draft.book Page 23 Thursday, February 14, 2002 2:36 PM

For example, press Menu once. The scroll bar appears with the first (top) tab displayed. A different tab appears each time you press or .

Help text

Many menu items have brief help text. To view the help text, scroll to the menu item and wait for about 15 seconds. Press More to see the next page of the text or Back to exit.

• ABOUT MENU SHORTCUTS

You can use a series of numbers, or shortcuts, to access frequently used features. For example, if you use your phone’s alarm clock each morning, you may want to learn the menu shortcut for quick access.

To use a shortcut, press Menu, then the numbers that correspond to the feature.

For example, to set your Alarm clock, press Menu 4 2 1 ( Settings > Time settings > Alarm clock). For complete instructions on using this feature, see “Use the alarm clock” on page113.

[ 23 ]

3590 FCC draft.book Page 24 Thursday, February 14, 2002 2:36 PM

• LIST OF MENU SHORTCUTS

Here is an abbreviated list of menu items and their menu shortcuts. Later chapters tell you how to work with the menus and explain their functions.

Note: Some items may not appear due to the SIM card configuration and service availability.

For quick access to the Messages menu, press Menu, then 0, then the menu number(s).

For example, to access your Inbox, press Menu 01-4.

1 Messages

1 Write message 2 Write e-mail 3 Chat 4 Inbox 5 Multimedia inbox 6 Outbox 7 Archive 8 Templates 9 Pictures 10 My folders 11 Erase messages 12 Info messages 13 Service command editor 14 Message settings 15 Voice messages

[ 24 ]

3590 FCC draft.book Page 25 Thursday, February 14, 2002 2:36 PM

2 Call log

1 Missed calls 2 Received calls 3 Dialed numbers 4 Clear call lists 5 Call timers 6 Call costs 7 GPRS data counter 8 GPRS connection timer

3 Profiles

1 Normal 2 Silent 3 Meeting 4 Outdoor 5 My profile 1 6 My profile 2

4 Settings

1 Tone settings 2 Time settings 3 Call settings 4 Phone settings 5 Network services 6 Accessory settings 7 Security settings 8 Restore factory settings

5 Organizer

1 Calendar 2 To-do list

[ 25 ]

3590 FCC draft.book Page 26 Thursday, February 14, 2002 2:36 PM

3 Wallet

6 Calculator

7 Applications

8 Games

1 Select game 2 Game services 3 Settings

9 Services

Note: The following menu items depend on network availability.

Contact your service provider for more information.

1 Home 2 Bookmarks 3 Service inbox 4 Settings 5 Go to address 6 Clear the cache

10 SIM services

(For availability, rates and information on using SIM services, contact your SIM card vendor, service provider, or other vendor)

[ 26 ]

3590 FCC draft.book Page 27 Thursday, February 14, 2002 2:36 PM

• PHONE BOOK MENU

1 For access to the phone book, press to return to the Start screen. 2 Press Names.

These options may be available, depending on your SIM card:

1 Find 2 Add entry 3 Edit name 4 Erase 5 Copy 6 Add number 7 Settings

1 Memory in use 2 Phone book view 3 Memory status

8 1-touch dialing 9 Voice tags 10 Caller groups

1 Family 2 VIP 3 Friends 4 Business 5 Other

11 Info numbers* (only shows up if you have Info message service included on SIM card)

12 Service numbers 13 Own numbers

[ 27 ]

3590 FCC draft.book Page 28 Thursday, February 14, 2002 2:36 PM

7 Enter letters and numbers

You can enter letters and numbers into your phone for a person’s name and phone number, writing a text message, and so on. There are two ways to do this:

• ABC mode, for making entries in the phone book and renaming caller

groups.

• Predictive text input, for writing text messages, adding notes to a

picture message, entering calendar notes, adding notes to the To-Do list, entering personal information in the wallet, and entering a web address using WAP services.

• ABC MODE

You can use the ABC mode to enter information into the phonebook. From the Start screen, press Names, then scroll to Add entry.

The ABC icon appears in the left corner as visual confirmation.

Add letters

1 Find the key that has the letter you want

to enter.

2 Press the key as many times as needed for

the letter to appear on the screen.

For example, to enter the name Diane:

Press D Press I Press A Press N Press E

[ 28 ]

3590 FCC draft.book Page 29 Thursday, February 14, 2002 2:36 PM

Depending on the selected display language, the following characters may be available.

Key Characters Key Characters

1 . ,’ ? ! - 1 7 PQRS7 2 ABC2 8 TUV8 3 DEF3 9 WXYZ9 4 GHI4 0 space, 0 5 JKL5

6 MNO6

Note: Some networks may not support all language-dependent characters.

(See page30 for details.)

Changes letter case

Enter spaces and punctuation

• To enter a space, press once.

• To enter punctuation, press repeatedly until the character you want appears.

Erase mistakes

If you make a mistake:

• Press Clear to erase that character.

• Press Clear as needed to erase more than one character, or press and hold Clear to erase the entire field of characters.

Change letter case

To switch between uppercase and lowercase letters, press .

[ 29 ]

3590 FCC draft.book Page 30 Thursday, February 14, 2002 2:36 PM

The ABC icon switches to abc, showing you are using lowercase letters.

Enter numbers

To enter numbers, you can:

• Press and hold and switch to 123 mode. Press the appropriate number key to enter a number.

• While in ABC mode, press and hold the corresponding number key until the number appears.

As with the ABC mode, if you make a mistake:

• Press Clear to erase that character.

• To switch back to the ABC mode, press and hold again.

Use special characters

IN ABC MODE

1 Press and hold . A screen appears with the following special

characters available: . , ‘ ? ! “ - ( ) @ / : _ ; + & % * = < > £ $ ¥ ¤ [ ] { } \ ~ ˆ ¡ ¿ §

2 Use scroll keys to select the character you want, then press Insert.

IN 123 MODE

You can access the following special characters only in 123 mode. There are two places you can use these characters:

• At the Start screen, when you dial a phone number

• At the number prompt, when you add a new entry to the phone book

Press to enter Press to enter + Press to enter p Press to enter w

[ 30 ]

3590 FCC draft.book Page 31 Thursday, February 14, 2002 2:36 PM

Use this character to send command strings to the network. Contact

your service provider for details.

+ Use this character as a prefix for dialing international numbers. p Use this character to create a pause that occurs when dialing a number.

Numbers entered to the right of this special character are automatically sent as touch tones after a 2.5-second pause.

w This character creates a wait; digits to the right of the w are not sent

until you press .

• PREDICTIVE TEXT INPUT

Predictive text input allows you to write messages much faster than the ABC mode. With predictive text input, you only need to press each number key once for each letter. Your phone uses a built-in dictionary to predict or guess what you are writing. You can also add new words to the dictionary.

For example, to write Nokia with the English dictionary selected, press:

(for N) (for o) (for k) (for i) (for a)

The display shows the above words for each key pressed.

Since the displayed word changes after each key stroke, disregard the word until you have keyed in all the characters.

Note: Predictive text input may not be available for all languages.

Select a language and turn on predictive text

1 Press Menu, then press Select. 2 Scroll to Write messages, then press Select. 3 Press Options, scroll to Dictionary, then press Select.

[ 31 ]

3590 FCC draft.book Page 32 Thursday, February 14, 2002 2:36 PM

4 Scroll to the language you want, then press Select.

T9 dictionary on appears.

Turn off predictive text

• To switch from predictive text input to ABC mode, repeat steps 1 through 3 above, then select Dictionary off. OR

• While writing the message, quickly press twice to switch

between predictive text input and ABC mode.

Tip: Your key presses must be quick! Press two times in about

1.5 seconds.

Write words using predictive text

• Press the number key that corresponds to the letter you want to enter. For example to write “hello” press:

, , , , .

• If the displayed word is correct, press

to accept the word and add a

space.

• If the displayed word is not correct, press to see the other possible matches.

• If the word you are trying to write is not in the dictionary, a question mark appears.

• To see how many characters you have left for your message, refer to the counter in the upper right corner of the screen.

• Refer to “Predictive text shortcuts” later in this chapter for more details.

Add a new word to the dictionary

If the word you are trying to enter does not show up as a possible match, you can add the word to the dictionary.

[ 32 ]

3590 FCC draft.book Page 33 Thursday, February 14, 2002 2:36 PM

1 Press repeatedly until Spell appears in place of Options. 2 Press Spell, then enter the word(s) using ABC mode. 3 Press Save to add the word to the dictionary.

Use predictive text shortcuts

Press Menu 01 1 (Messages > Write message) to write messages using the following shortcuts.

- Use letter keys for word entry. Press each key only once for each letter.

Press to view the next matching word if the underlined word is not the word you intended.

Spell Press to add a new word to the dictionary.

Press once to accept a word and add a space. Press and hold to enter a number. Press to change the character case. indicates

uppercase. indicates lowercase.

Press twice to select predictive input or ABC mode.

and indicate ABC mode.

, and indicate predictive text input.

Clear Press once to delete the character to the left of the

cursor. Press once to add a punctuation mark. To change the

underlined symbol, press repeatedly until the desired symbol appears.

[ 33 ]

160

3590 FCC draft.book Page 34 Thursday, February 14, 2002 2:36 PM

The maximum number of characters available appears in the top right corner of the screen and counts down for each character added.

Insert symbols

1 Press and hold until the symbol screen appears.

OR Press Options and scroll to Insert symbol.

2 Scroll to the desired symbol and press Insert.

Insert numbers

1 To add a number to the message, press and hold . 2 Key in the desired numbers, then press and hold to return to

ABC mode.

Write compound words

1 Write the first part of the word and press to accept it. 2 Write the last part of the compound word and press to enter the

word in memory.

[ 34 ]

3590 FCC draft.book Page 35 Thursday, February 14, 2002 2:36 PM

8 Use the phone book

You can keep track of names and numbers in your phone book.

• Names are saved in the phone book memory and/or SIM memory.

• For each name in the phone memory, you can add up to 5 phone numbers, including:

General Mobile Home Work Fax

• For each name in the phone memory, you can also store an e-mail address, a web address and a street address.

• SAVE NAMES, NUMBERS AND E-MAIL ADDRESSES Quick Save

Here’s a quick and easy way to save a name and number into the phone book.

Make sure your phone is at the

Start screen.

Enter the number you want to save,

then press

Options.

Scroll to Save,

then press Select.

Enter the name

and press OK.

[ 35 ]

3590 FCC draft.book Page 36 Thursday, February 14, 2002 2:36 PM

Save a number only

1 Enter the phone number. 2 Press and hold Options.

The number is saved in your phone book. You can add a name or e-mail address to it later.

Save a name and number while in a call

1 Press Options. 2 Scroll to Phone book, then press Select. 3 Scroll to Add entry, then press Select. 4 Enter the name, then press OK. 5 Enter the phone number, then press OK.

Save an E-mail address

You can save an e-mail address for a contact in your phone book. All phone book entries that contain e-mail addresses are saved

automatically in the phone memory.

Tip: Before you can save an e-mail address, you need to make sure you are entering the contact information in the phone’s memory instead of the SIM memory. See “Switch between memory types” on page39.

1 At the Start screen, press or to scroll through the list until

you find the name.

2 Press Details, then press Options. 3 Scroll to Add info, then press Select. 4 Scroll to E-mail and press Select. 5 Enter the e-mail address, then press OK.

[ 36 ]

3590 FCC draft.book Page 37 Thursday, February 14, 2002 2:36 PM

Tip: To switch between letters and numbers, press and hold the # key. To enter @ in the e-mail address, press the * key, scroll to @, then press Insert.

Tip: You may be able to send an e-mail message to a another mobile phone. Check with your service provider for details.

• EDIT NAMES

1 At the Start screen, press or to scroll through the list until

you find the entry you want to change.

2 Press Details, then press Options. 3 Scroll to Edit name, then press Select. 4 Edit the name, then press OK.

• EDIT NUMBERS

1 At the Start screen, press or to scroll through the list until

you find the entry you want to change.

2 Press Details, then press Options. 3 Scroll to Edit number, then press Select. 4 Edit the number, then press OK.

• ADD TEXT ENTRIES

In the phone book memory, you can add a street address or web address for each contact.

1 At the Start screen, press or to scroll through the list until

you find the name.

2 Press Details, then press Options. 3 Scroll to Add info, then press Select. 4 Scroll to Web address, Street address or Note, then press Select. 5 Enter your information, then press OK.

[ 37 ]

3590 FCC draft.book Page 38 Thursday, February 14, 2002 2:36 PM

• FIND NAMES IN THE PHONE BOOK

1 At the Start screen, press Names.

2 With Find highlighted, press

Select.

3 Enter the first two letters of the

name and press Find.

The first matching name appears on the screen.

4 Press Details to show the phone

number.

5 To call the number, press

[ 38 ]

3590 FCC draft.book Page 39 Thursday, February 14, 2002 2:36 PM

• YOUR PHONE’S MEMORY

You can save names and numbers in the phone’s internal memory, in the SIM card memory or in a combination of the two.

Note: The phone’s memory is dynamic. The shorter the names and numbers are, the more entries you can store in the phone book.

Switch between memory types

Note: Whenever you insert a SIM card for the first time, or when

you insert a different SIM card, SIM card memory is automatically selected.

1 At the Start screen, press Names. 2 Scroll to Settings, then press Select. 3 Scroll to Memory in use, then press Select. 4 Scroll to Phone and SIM, Phone, or SIM card then press Select.

Check memory status

You can see how much storage space is left in the phone memory or SIM card memory.

1 From the Start screen, press Names. 2 Scroll to Settings, then press Select. 3 Scroll to Memory status, then press Select. 4 Scroll to Phone or SIM card, then press Select.

If your phone book is full

If your phone book is full, you can save the phone number to another memory or replace an existing entry.

[ 39 ]

3590 FCC draft.book Page 40 Thursday, February 14, 2002 2:36 PM

• ERASE NAMES AND NUMBERS Erase a stored number

Caution: You cannot undo Erase functions, so be careful!

1 At the Start screen, press or to scroll through the list until

you find the entry you want to delete.

2 Press Details, then Options.

3 Scroll to Erase number, then press Select, then OK.

TO ADD A DIFFERENT PHONE NUMBER TO THE NAME

1 Press Options, then scroll to Add number. 2 Press Select. Chose a number type (if you are saving to the phone

memory), then press Select.

3 Enter the new number, then press OK.

TO ERASE THE NAME

1 Press Options, then scroll to Erase. 2 Press Select. Erase all details? appears on the screen. Press OK to

confirm.

Erase your entire phone book

Caution: This feature erases your entire phone book and cannot

be undone!

1 Press Names. 2 Scroll to Erase and press Select. 3 Scroll to Erase all and press Select. 4 Scroll to the memory (Phone or SIM card) you want to erase, then

press Erase.

5 Press OK to confirm. Enter your security code and press OK.

[ 40 ]

3590 FCC draft.book Page 41 Thursday, February 14, 2002 2:36 PM

9 Check call history

Your phone provides a call log that registers information about calls you make and receive. The call log keeps track of the following:

• Missed calls

• Received calls

• Dialed calls

• The amount of data sent and received over GPRS.

• The amount of time spent online for data transfers over GPRS.

• CHECK DIALED CALLS

Your phone saves the last 10 numbers you’ve dialed.

1 Press Menu 2 3 (Call log > Dialed numbers). 2 Scroll to the number you want to see. 3 To dial the number, press ; for other options, press Options

(see “Choose options in call lists” on page43).

• CHECK RECEIVED CALLS

Your phone saves the phone numbers of the 10 most recent calls you’ve answered, if the caller’s number was available.

1 Press Menu 2 2 (Call log > Received calls). 2 Scroll to the number you want to see. 3 To dial the number, press ; for other options, press Options

(see “Choose options in call lists” on page43).

[ 41 ]

3590 FCC draft.book Page 42 Thursday, February 14, 2002 2:36 PM

• CHECK FOR MISSED CALLS

Your phone saves the numbers and names (if available) of the last 10 callers who have tried unsuccessfully to reach you.

The screen tells you how many calls were missed. If the caller’s name and number are stored in memory, that information appears on the display.

After missing a call

1 Press List.

If you have missed more than one call, you can scroll through the list of numbers.

2 To dial the displayed number, press . 3 For other options, press Options. 4 To exit, press Back.

At any time

1 Press Menu 2 1 (Call log > Missed calls). 2 Scroll to the number you want to see. 3 To dial the number, press . 4 For other options, press Options.

[ 42 ]

3590 FCC draft.book Page 43 Thursday, February 14, 2002 2:36 PM

• CHOOSE OPTIONS IN CALL LISTS

When you view the missed calls, received calls, or dialed calls list and press Options, the following choices may appear on your phone’s screen.

Choice What it does

Call Dials the number from the call log.

Shows the date and time of the last call. Use the scroll

Call time

keys to view up to five recent call dates/time for the displayed phone number.

Send message

Edit number

Save

Add to name

Erase Allows you to delete the number from the call list. View

number

View details

Allows you to write a short text message to the person who called you.

Allows you to edit the displayed number and save it with a name to your phone book.

Allows you to enter a name for the number and save both to your phone book.

Allows you to save the number to an existing name in the phone book.

Displays the phone number if the caller’s name is stored in the phonebook.

Allows you to view multiple phone numbers if the caller’s name and numbers are stored in the phone book.

[ 43 ]

3590 FCC draft.book Page 44 Thursday, February 14, 2002 2:36 PM

• CLEAR CALL LISTS

This feature clears all the missed, received, and dialed call lists.

Caution: You cannot undo this operation.

1 Press Menu 2 4 (Call log > Clear call lists). 2 Scroll to All, Missed, Received, or Dialed then press Select.

Caution: Missed, received, and dialed calls lists are also erased

when you change the phone security setting, or if you use a SIM card that is not one of the five most recent cards used with the phone.

• USE CALL TIMERS

Your phone automatically tracks the amount of time you’ve spent on calls.

If you have two phone lines

If you subscribe to a second phone line (see “Work with two phone lines” on page 61), call timers are separate for each phone line. When you view call timers, the call timers that are shown are for the currently selected outgoing line. However, if you view call timers while you are in a call, the call timers that are shown are for the line you are using at that moment.

View the call duration

1 Press Menu 2 5 (Call log > Call timers). 2 Scroll to Duration of last call, Duration of dialed calls, Duration of

received calls, or Duration of all calls.

View the Life timer Reset call timers to 0

Note: The life timer cannot be reset.

[ 44 ]

3590 FCC draft.book Page 45 Thursday, February 14, 2002 2:36 PM

1 Press Menu 2 5 (Call log > Call timers). 2 Scroll to Clear timers, then press Select. 3 Enter your security code, then press OK.

Show call timer during a call

1 While in a call, press Options. 2 Scroll to Menu, then press Select. 3 Scroll to Call log, then press Select. 4 Scroll to Call timers, then press Select.

The time for the active call is shown on the display.

Note: The actual time invoiced for calls by your service provider may vary, depending on network features, and rounding-off for billing.

Show call timer after call

Your phone can display the time spent on a call after you end the call. This feature is called Summary after call.

TURN ON SUMMARY AFTER CALL

1 Press Menu 4 3 3 (Settings > Call settings > Summary after call). 2 Scroll to On, then press Select. 3 After you end a call, the total time for that call appears on the display.

TURN OFF SUMMARY AFTER CALL

1 Press Menu 4 3 3 (Settings > Call settings > Summary after call). 2 Scroll to Off, then press Select.

• MANAGE CALL COSTS

This network service allows you to check call costs. You can view the last call cost, or the total cost of all calls made or received since the counters were reset.

[ 45 ]

3590 FCC draft.book Page 46 Thursday, February 14, 2002 2:36 PM

Note: The actual invoice for calls and services from your service provider may vary, depending upon network features, and taxes.

View call costs Clear call cost counters Show costs in units or currency

This feature allows you to set a limit for the cost of calls if this function is included in the SIM card. The functionality may vary depending on the network. When the limit you set is reached, no calls can be made except for emergency calls.

Note: The actual time invoiced for calls by your service provider may vary, depending on network features, and rounding-off for billing.

Note: When no more charging units or currency units are left, calls may only be possible to the emergency number programmed into your phone (for example, 911, 112, or other official emergency number).

SET A LIMIT REMOVE A LIMIT

• CHECK DATA CALLS

In addition to keeping track of voice calls, your phone’s call log records information about data calls. You can check the amount of data transferred over the network via GPRS. You can also keep track of how much time you spend online.

Limit your call costs

[ 46 ]

3590 FCC draft.book Page 47 Thursday, February 14, 2002 2:36 PM

Note: Text messages sent over GPRS are not counted and therefore not included in the data counter or connection timer. For details on pricing and availability, contact your service provider.

Check the data counter

All data counters are displayed in bytes (B).

Note: The actual invoice for calls and services from your service provider may vary, depending upon network features, roundingoff for billing, taxes, and so forth.

1 Press Menu 2 7 (Call log > GPRS data counter). 2 Scroll to the information you are interested in viewing. Your options

include the following:

• Data sent in last session

• Data received in last session

• All sent data

• All received data

Clear the data counter

1 Press Menu 2 7 (Call log > GPRS data counter). 2 Scroll to Clear counters, then press Select. 3 Enter your security code, then press OK.

Check the connection timer

The time is displayed in hh:mm:ss format.

Note: The actual time invoiced for calls by your service provider may vary, depending upon network features, rounding-off for billing, and so forth.

1 Press Menu 2 8 (Call log > GPRS connection timer). 2 Scroll to the information you are interested in viewing.

[ 47 ]

3590 FCC draft.book Page 48 Thursday, February 14, 2002 2:36 PM

Your options include the following:

• Duration of last session

• Duration of all sessions

Clear the connection timer

1 Press Menu 2 8 (Call log > GPRS connection timer). 2 Scroll to Clear timers and press Select. 3 Enter your security code, then press OK.

[ 48 ]

3590 FCC draft.book Page 49 Thursday, February 14, 2002 2:36 PM

10 Advanced calling features

• ACTIVE CALL OPTIONS Use call waiting

This network service lets you receive an incoming call when you’re already in a call. Contact your service provider for availability. The phone beeps to let you know of the incoming call.

ACTIVATE/CANCEL CALL WAITING CONFIRM CALL WAITING STATUS ANSWER A WAITING CALL REJECT A WAITING CALL SWITCH BETWEEN CALLS

Press or Swap. The icon represents the active call and the icon represents the call

on hold.

END THE ACTIVE CALL

Press . The held call becomes active. OR

1 Press Options and scroll to End call. 2 Press Select.

THIRD CALL WAITING

If you have both an active and a held call and a third call is waiting, follow the following steps to answer the third call and end the other calls.

END THE ACTIVE CALL AND HELD CALL TO ANSWER THE WAITING CALL

1 Press Options. 2 Scroll to End all calls.

[ 49 ]

3590 FCC draft.book Page 50 Thursday, February 14, 2002 2:36 PM

3 Press Select. 4 Press to answer the third call.

Use in-call options

During a call, press Options to see the In-call menu. Your choices are:

Choice What it does

Put a call on hold

1 To put a call on hold, press Hold. 2 To return to the call, press Unhold.

Make a new call

1 Enter the second phone number, or recall it from the phone book. 2 Press .

1 Press Options. 2 Scroll to New call, then press Select. 3 Enter the second phone number, or recall it from the phone book. 4 Press Call.

[ 50 ]

3590 FCC draft.book Page 51 Thursday, February 14, 2002 2:36 PM

With either method, the first call is automatically put on hold.

SWITCH BETWEEN TWO CALLS IN PROGRESS

Press or Swap. The icon represents the active call and the icon represents the call

on hold.

END THE ACTIVE CALL

Press . The held call becomes the active call.

Send touch tones End all calls

1 Press Options. 2 Scroll to End all calls, then press Select.

Access the phone book

You can access the phone book while in a call. This option appears in the menu as Phone book.

1 Press Options. 2 Scroll to Phone book and press Select. Now your phone book

functions are available. See “Use the phone book” on page35.

Access menus

Scroll to Menu and press Select to access any of your phone’s menus.

Mute/unmute the microphone

You can mute and unmute your phone’s microphone while a call is in progress. The difference between mute and hold is that mute lets you hear the other caller.

[ 51 ]

3590 FCC draft.book Page 52 Thursday, February 14, 2002 2:36 PM

1 Press Options. 2 Scroll to Mute, then press Select. 3 To unmute the microphone, press Unmute.

Muting and unmuting also affects the microphones of any connected to the phone.

Make a conference call

This network service allows you to make conference calls with your phone. Check with your service provider for details.

1 Place a call to the first person. 2 Press Options and scroll to New call.

3 Press Select, recall or dial the number of the next party you want to

include, then press Call.

4 After the other party answers, press Options. 5 Scroll to Conference, then press Select. 6 To add other parties to the call, repeat steps 2 through 5. 7 To end the conference call, press .

HAVE A PRIVATE CONVERSATION WITH A PARTICIPANT

1 While in a conference call, press Options. 2 Scroll to Private, then press Select.

A list of the participants appears.

3 Scroll to the person you want to speak with, then press OK.

The other participants can continue talking with each other.

4 To rejoin the conference call, press Options. 5 Scroll to Conference, then press Select.

DROP A PARTICIPANT FROM THE CONFERENCE CALL

1 While in a conference call, press Options.

[ 52 ]

3590 FCC draft.book Page 53 Thursday, February 14, 2002 2:36 PM

2 Scroll to Private, then press Select.

A list of the participants appears.

3 Scroll to the person you want to drop, then press OK.

The other participants can continue talking with each other.

4 Press Options. 5 Scroll to End active call, then press Select.

Transfer a call

When you have one active and one held call, you can connect the two calls and disconnect yourself from the call.

Note: Your network must support this feature. Contact your service provider for availability.

During a call, press Options, scroll to Transfer, then press Select.

• USE CALL FORWARDING

This network service lets you forward your incoming calls to another phone number.

Note: If you subscribe to a second phone line, call forwarding works separately for each line. Make sure you have selected the line you want before you set up any call forwarding.

The following icons appear on your phone’s screen:

Incoming voice calls are being forwarded to another number.

You have forwarded all voice calls that are received on line 1.

You have forwarded all voice calls that are received on line 2. You have forwarded all voice calls that are received on lines 1 and 2.

[ 53 ]

3590 FCC draft.book Page 54 Thursday, February 14, 2002 2:36 PM

Activate call forwarding

1 Press Menu 4 5 1 (Settings > Call

settings > Forwarding).

Scroll to one of the following options:

• Forward all voice calls

• Forward if busy

• Forward if not answered

• Forward if out of reach

• Forward when not able to take calls

• Cancel all call forwarding

2 Press Select. 3 Activate is highlighted; press OK. 4 Select To voice mailb.

OR Select To other no.

5 If you choose To other no., enter the phone number to which you

want to forward calls, then press OK. You can press Number to see if you entered the phone number

correctly.

Cancel call forwarding

1 Press Menu 4 5 1 (Settings > Call settings > Forwarding). 2 Scroll to Cancel all call forwarding and press Select.

Note: Canceling all call forwarding may also cancel any automatic

forwarding of calls to voice mail that your service provider has activated for you. Also, this option may cancel your call forwarding service. Contact your service provider for details.

[ 54 ]

3590 FCC draft.book Page 55 Thursday, February 14, 2002 2:36 PM

Check call forwarding status

1 Press Menu 4 5 1 (Settings > Call settings > Forwarding). 2 Scroll to the call forwarding option you want to check, press Select. 3 Scroll to Check status, then press OK.

Note: Status is not available for Forward when not able to take calls.

To see the phone number where the calls are being forwarded, press

Number.

• USE ANYKEY ANSWER

This feature allows you to press any key to answer an incoming call.

Note: Anykey answer does NOT work with the Power button, , or left and right selection keys.

Turn on Anykey answer

1 Press Menu 4 3 4 (Settings > Call settings > Anykey answer). 2 Scroll to On and press Select.

Turn off Anykey answer

1 Press Menu 4 3 4 (Settings > Call settings > Anykey answer). 2 Scroll to Off and press OK.

• USE AUTOMATIC REDIAL

This feature redials the number you’re trying to call up to ten times.

Note: Automatic redial will not work while you make or answer another call.

[ 55 ]

3590 FCC draft.book Page 56 Thursday, February 14, 2002 2:36 PM

Activate automatic redial

1 Press Menu 4 3 1 (Settings > Call settings > Automatic redial). 2 Scroll to On, then press Select. 3 Press and hold Back to return to the Start screen.

If the number you dial is busy, your phone immediately redials the number. If it is still busy, your phone will redial the number up to nine more times.

• SEND YOUR OWN NUMBER IN CALLER ID

You can determine, for each call you make, whether your telephone number appears on another phone’s caller ID.

In most service areas, when you call others, your name is presented to their caller ID (if they subscribe to this service). With Send own caller ID when calling, you can block or send the display of your number when you make a call.

Note: This feature may not be available in all wireless systems. Contact your service provider for details and availability. Also note that this feature is effective only when you call a number that is equipped with caller ID.

1 Press Menu 4 5 3 (Settings > Call settings > Send own caller ID

when calling).

2 Chose one of the following options:

• Default: your phone number is sent according to the network.

• Yes: your phone number is sent to the other person’s caller ID.

• No: your phone number is not sent to the other person’s caller ID.

• USE 1-TOUCH DIALING

Assign a name and number to a 1-touch dialing location so that when you press this key, the phone automatically dials the associated number.

[ 56 ]

3590 FCC draft.book Page 57 Thursday, February 14, 2002 2:36 PM

Key 1 is used to access your voice mail. Check with your service provider for details. Also, any key can be set up to dial emergency numbers such as 911.

Assign a number to a 1-touch dialing key

1 Press Names and scroll to 1-touch dialing. 2 Press Select.

2 (empty) appears.

If Assign appears, Key 2 does not have a phone number assigned to it. If

Options appears, then the number shown is assigned to Key 2.

3 Press Assign. Enter a phone number OR 4 Press Search. Scroll to the phone book entry you want, then press

Select twice.

Activate 1-touch dialing

1 Press Menu 4 3 2(Settings > Call settings > 1-touch dialing). 2 Scroll to On, then press Select.

Call a 1-touch dial number

From the Start screen, press and hold the appropriate key, or press the key then press .

The phone dials the number.

1-TOUCH DIALING FOR KEY 1

• If your phone is set up for voice mail, you can press and hold

and your phone dials voice mail.

• If you assign a 1-touch number to key 1, press , then press . The

phone dials the 1-touch number.

Change 1-touch dialing numbers

1 Press Names.

[ 57 ]

3590 FCC draft.book Page 58 Thursday, February 14, 2002 2:36 PM

2 Scroll to 1-touch dialing and press Select. 3 Scroll to the key that you want to change, and press Options. 4 Scroll to Change and press Select. 5 Enter a phone number, then press OK. 6 Enter a name, then press OK.

Erase 1-touch dialing numbers

1 Press Names. 2 Scroll to 1-touch dialing and press Select. 3 Scroll to the key that you want to erase and press Options.

4 Scroll to Erase and press Select. 5 Press OK to confirm.

• USE THE PHONE BOOK

To use phone book menus, begin at the Start screen and press Names. Then, scroll through the menus to select a particular menu or option.

Option Action

[ 58 ]

3590 FCC draft.book Page 59 Thursday, February 14, 2002 2:36 PM

• MAKE AN INTERNATIONAL CALL

1 Press twice to enter the international dialing prefix (+). 2 Enter the country code, area code, and phone number, and press .

• SELECT A SYSTEM

You can select how your phone chooses a wireless network, as there may be more than one available. The selection you make stays active until you change it or change the SIM card.

1 Press Menu 4 5 5 (Settings > Network services> System selection). 2 Scroll to Automatic or Manual, then press Select.

• Automatic:The phone automatically selects one of the available

systems.

• Manual:The phone searches for available systems and then lists them.

Scroll to the one you want, then press Select. The phone looks for a network and displays the result. If you lose connection while in Manual mode, the phone asks you to select a network again.

[ 59 ]

3590 FCC draft.book Page 60 Thursday, February 14, 2002 2:36 PM

11 Use voice features

The voice features in your phone make communication more convenient. You can check messages from friends or business associates, record a voice tag for contacts in the phone book, and use voice dialing for handsfree operation.

• ABOUT VOICE MAIL

Voice mail is a network feature that allows callers to leave a voice message for you when you are not able to take the call.

To use voice mail, you must have:

• A voice mail subscription

• A voice mailbox number

• A temporary password These items are assigned by your service provider. Your service provider

should also tell you how to record a greeting for your voice mailbox and how to change the temporary password.

After you obtain this information from your service provider, you must then save the voice mailbox number to your phone.

Voice mail indicators

When you receive a voice message, your phone lets you know by beeping, displaying an icon on the screen, or showing a text message. The method of notification depends upon your carrier.

Additionally, if you receive more than one voice mail message, your phone may display the number of messages that you have received. Finally, if you subscribe to two different phone lines, the message would indicate the line to which the message was addressed.

Note: If you have difficulty using the voice mail feature, contact your service provider.

[ 60 ]

3590 FCC draft.book Page 61 Thursday, February 14, 2002 2:36 PM

• SAVE THE VOICE MAILBOX NUMBER

1 Press Menu then press Select. Scroll to Voice messages, then

press Select.

2 Scroll to Voice mailbox number, then press Select. 3 Enter your voice mailbox number, then press OK.

The voice mailbox number must meet the following conditions:

• the number must be longer than 2 characters

• emergency numbers, such as 911, are not allowed

• the letters p and w can be used

• the special characters +, * and # can be used

Work with two phone lines

If your particular SIM card supports it, your phone can have two phone lines. Your service provider can tell you if your SIM card allows the use of this feature and can give you access to two phone lines.

If you decide to use two phone lines, you can select one of the two lines for outgoing calls, but you can still answer calls on both lines.

If you use two phone lines, you will be given a voice mailbox number for each line. You need to save each phone line’s voice mailbox number separately.

To do this, first select the outgoing line and save its voice mailbox number. Then, select the other line and save its number.

• LISTEN TO YOUR VOICE MESSAGES

If there’s a notification message on your screen, you can get your voice messages using one of the following methods:

• If you’ve saved your voice mailbox number in your phone, press and

hold to call your voice mailbox.

• Press Listen to call your voice mailbox and follow the directions

[ 61 ]

3590 FCC draft.book Page 62 Thursday, February 14, 2002 2:36 PM

provided.

• Call your voice mailbox number as you would any other telephone number, then follow the directions provided.

To check your voice messages anytime, press Menu 01 15 1 (Messages >

Voice messages > Listen to voice messages).

• USE VOICE DIALING

Your phone’s voice dialing feature allows handsfree operation while you place a call. Before using this feature, you need to create entries in the phone book so you can associate a "voice tag" with a name and number.

Add a voice tag to a phone book entry

To create entries in the phone book, see “Here’s a quick and easy way to

save a name and number into the phone book.” on page35.

1 At the Start screen, scroll to the name you want to give a voice tag. 2 Press Details, then Options, and scroll to Add voice tag. 3 Press Select. The phone displays Press Start, then speak after tone. 4 Press Start.

You will hear several beeps, and Please speak now appears. If you’re using the

headset, release the button.

5 Speak clearly into the microphone.

Note: Do NOT press Quit unless you

want to cancel the recording.

The phone automatically stops recording, then saves and replays the voice tag.

If the recording is not successful, your phone displays an error message. Press Options, scroll to Add voice tag, and repeat steps 3 - 5.

[ 62 ]

3590 FCC draft.book Page 63 Thursday, February 14, 2002 2:36 PM

Notes about voice tags

• Voice tags are not language dependent. Any clearly spoken word or phrase can serve as a voice tag.

• Voice tags are dependent on the speaker’s voice.

• Very short names are not accepted. Use long names and avoid similar names for different numbers.

• Voice tags must be shorter than 2 seconds.

• Voice tags are sensitive to background noise. For best results, record them and make calls in a quiet environment.

• If you delete a name, any associated voice tag is also deleted.

• The recording process stops automatically. Pressing Quit cancels the recording.

• You must say the name exactly as you said it when you recorded it. This may be difficult in, for example, a noisy environment or during an emergency, so you should not rely soley upon voice dialing in all circumstances.

• You can record voice tags while the headset is connected. Simply speak clearly into the headset microphone when prompted.

• You cannot use the voice tag or voice dialing feature if you are actively sending or receiving data using the GPRS connection.

Make a call using voice recognition

Warning: Do not rely only on a voice tag for dialing emergency

numbers. In emergencies, stress causes changes in your voice, which may keep the phone from recognizing the command.

[ 63 ]

3590 FCC draft.book Page 64 Thursday, February 14, 2002 2:36 PM

1 Hold the phone up to your ear, then press and

hold Names. You can also press the volume key down. When you hear several beeps and Please

speak now appears, release the button.

2 Pronounce the voice tag clearly into the

microphone. Searching appears. When the phone finds the voice tag, Found appears, and the phone automatically dials the number.

If the phone does not locate a number, Nomatchfound.Tryagain? appears.

3 Press Yes to try again or Exit to cancel and return to the Start screen.

If you’re using the headset and the phone does not locate the number,

you will hear an error tone and No match found appears. To start voice dialing again, press and hold the headset button immediately after the error tone.

Listen to a voice tag Change a voice tag Erase a voice tag

[ 64 ]

3590 FCC draft.book Page 65 Thursday, February 14, 2002 2:36 PM

12 Personalize your phone

• WHAT ARE PROFILES?

Profiles let you set your phone’s sound settings to your environment, whether it’s a meeting or a soccer game. Each profile contains settings for your phone’s ringing option, ringing tone, ringing volume, vibrating alert, message alert tone, keypad tones, and warning tones. Just pick the profile that suits your current environment: Normal, Silent, Outdoor, or Meeting.

Your phone also has profiles for Nokia accessories such as a headset, car kit, loopset and TTY adapter.

Note: The accessory profiles do not appear until you attach these accessories for the first time.

Select a profile

1 Press Menu 3 (Profiles). 2 Scroll to the profile you want to use, then press Select. 3 Scroll to Select, then press Select.

Customize the profile

1 Press Menu 3 (Profiles). 2 Scroll to the profile you want to customize, then press Select. 3 Scroll to Customize, then press Select. 4 Use the scroll keys to display each of the options listed in the

following table. Once you find the option you’d like to customize, press Select.

[ 65 ]

3590 FCC draft.book Page 66 Thursday, February 14, 2002 2:36 PM

Option What it does

Allows you to chose a ringing style. Your

Ringing options

Ringing tone

Ringing volume Allows you to set the volume for incoming calls.

Vibrating alert

Message alert tone

choices include Ring, Ascending, Ring once, Beep once and Silent.

Allows you to chose from 35 pre-programmed tones. You can also download up to 5 ringing tones, see “Download ringing tones” on page75 for more information.

Allows you to turn the vibrating alert on or off. Note: your phone has an internal vibrating mechanism so you do not need a special battery to use this feature.

Allows you to chose an alert style. Your choices include No tone, Standard, Special, Beep

once, Ascending and Personal.

Keypad tones Allows you to set the volume for keypad tones.

Warning tones

Alert for

Profile name

Allows you to turn warning and confirmation tones on or off.

You can chose to have your phone sound an audible alert only when a member of a selected caller group is calling. For more information about Caller groups, see “Use caller groups” on page80.

Allows you to give a new name to the following profiles: Silent, Meeting, Outdoor or Pager.

[ 66 ]

3590 FCC draft.book Page 67 Thursday, February 14, 2002 2:36 PM

Set a timed profile

Timed profiles can be useful in preventing missed calls. For example, if you attend an event that requires you to set your phone to the Silent profile, you may forgot to return the phone to the Normal profile after the event is over. You may not notice incoming calls. With the timed profile, you can have the phone automatically return to the Normal profile at a time you specify.

1 Press Menu 3 (Profiles). 2 Scroll to the profile you wish to activate, then press Select. 3 Scroll to Timed, then press Select. 4 Enter the time for the profile to expire and press OK. 5 If you are using a 12-hour time format, scroll to am or pm then press

Select.

The profile you’ve set for expiration is now active and appears in the start screen along with a small clock icon.

• ABOUT ACCESSORY PROFILES

You can use your phone with these Nokia accessories:

• Headset

• Car kit )

• Loopset )

• TTY adapter

Note: The profile used with the car kit is called Handsfree.

The accessory profiles do not appear in the phone’s menu until you connect the headset, car kit, loopset or TTY adapter.

You can adjust settings related to the accessory, such as ring tone.

[ 67 ]

3590 FCC draft.book Page 68 Thursday, February 14, 2002 2:36 PM

Set automatic answer

This profile lets your phone answer incoming calls after just one ring.

Note: This profile is available only when your phone is connected to a headset, loopset or to an approved car kit. This feature applies only to voice calls.

1 Press Menu 4 6 (Settings > Accessory settings). 2 Scroll to Headset, Handsfree, or Loopset, then press Select. 3 Scroll to Automatic answer, then press Select. 4 Scroll to On and press Select.

Set the default profile

When you use the headset, car kit or loopset, you have the option of

choosing a profile. You can use the currently selected profile (for example,

Normal) or you can chose from the list.

1 Press Menu 4 6 (Settings > Accessory settings). 2 Scroll to Headset, Handsfree or Loopset, then press Select. 3 Scroll to Default profile, then press Select. 4 Scroll to the profile you want, then press Select.

Set up the car profile

If you are using your phone with a Nokia-approved car kit, you can set lights to On (lights stay on) or Automatic (after 15 seconds, lights turn off until the next key is pressed or the phone rings).

Set up the loopset profile

The LPS-3 Loopset gives people with T-coil equipped hearing aids the ability to make and receive calls without noise interference.

Important: Refer to the booklet that comes with the LPS-3 for complete instructions and safety information.

[ 68 ]

3590 FCC draft.book Page 69 Thursday, February 14, 2002 2:36 PM

1 Plug the loopset jack into the bottom of

your phone, as shown in the illustration.

2 Press Menu 4 6 3 (Settings > Accessory

settings > Loopset).

3 Scroll to Use loopset, then press Select. 4 Scroll to Yes, then press Select.

Note: If you want to use the headset or

TTY adapter, you need to follow steps 2-3 above, then select No to deactivate the loopset profile.

Set up the TTY profile

You can connect your phone to a TTY/TDD device using the Nokia HDA-9 TTY adapter. In order for your phone to recognize the TTY, you’ll need to set up the TTY profile, under Accessory settings.

1 First, connect the TTY/TDD device via cable to the HDA-9 adapter.

Next, plug the HDA-9 adapter into the connector on the bottom of your phone, as shown in the illustration.

2 Press Menu 4 6 4 1 (Settings > Accessory settings > TTY/TDD > Use

TTY).

3 Scroll to Yes, then press Select.

[ 69 ]

3590 FCC draft.book Page 70 Thursday, February 14, 2002 2:36 PM

NOTES ABOUT TTY/TDD CALLS

• The Nokia TTY adapter HDA-9 is for use with compatible TTY/TDD devices only. Check with the manufacturer of the TTY/TDD device to ensure that the connection is compatible. See page6 for more details.

• Check with the manufacturer of the TTY/TDD device for the connecting cable.

• TTY/TDD communications depend on network availability. Check with your service provider for availability and description of services.

MAKE A TTY/TDD CALL

Tip: Before making a TTY/TDD call with your Nokia phone, check the

signal strength. See page19 for more details.

1 From the Start screen, enter the number you wish to call and press

2 When the receiving party answers, begin typing your conversation on

the TTY/TDD.

RECEIVE A TTY/TDD CALL

Tip: You may find it helpful to use the vibrating alert under the

Profiles menu. See “Customize the profile” on page65 for details.

1 Make sure the TTY/TDD device is connected to your phone. 2 Press to answer the call, then type your responses on the TTY/TDD.

END A TTY/TDD CALL

Press .

• DOWNLOAD PROFILES

You can customize your phone with personal profiles. Each profile contains a name, graphic and ring tone. For details about how to download profiles over the wireless network, contact your service provider.

[ 70 ]

3590 FCC draft.book Page 71 Thursday, February 14, 2002 2:36 PM

Notification of received profile

When your phone receives a profile, it displays Profile received and sounds an alert tone.

Listen to received tone

View received graphic Save a profile or replace an existing profile Delete received profile

• CHOOSE THE DISPLAY LANGUAGE

You can choose your phone’s display language.

1 Press Menu 4 4 1 (Settings > Phone

settings > Language).

2 Scroll to the language you want, then

press Select.

• SET UP THE TIME AND DATE

Your phone has an internal clock that can be displayed on the Start screen. It also features an alarm clock (see “Use the alarm clock” on page113).

Set the time

1 Press Menu 4 2 2 (Settings > Time settings > Clock). 2 Scroll to Set the time, then press Select. 3 Enter the current time, using two digits for both hours and minutes.

[ 71 ]

3590 FCC draft.book Page 72 Thursday, February 14, 2002 2:36 PM

OR Enter hours and minutes in 24-hour format.

4 Press OK. 5 Select am or pm and press Select.

Note: If you entered the time in the 24-hour format, am and pm

do not appear.

If this is the first time you have set the clock, the phone asks you to enter the date. Enter the date in mmddyyyy format and press OK.

Select the time format

1 Press Menu 4 2 2 3 (Settings > Time settings > Clock > Time format). 2 Scroll to 24-hour or am/pm. 3 Press Select.

Set the date

1 Press Menu 4 2 3 (Settings > Time settings > Date). 2 Scroll to Set the date, then press Select. 3 Enter the date in DD/MM/YYYY format, then press OK.

Set the date format

1 Press Menu 4 2 3 (Settings > Time settings > Date). 2 Scroll to Date format, then press Select. 3 Choose one of these formats, then press Select:

• DD MM YYYY

• MM DD YYYY

• YYYY MM DD

[ 72 ]

3590 FCC draft.book Page 73 Thursday, February 14, 2002 2:36 PM

Display the clock

This feature lets you continuously display the time on the Start screen.

1 Press Menu 4 2 1 (Settings > Time settings > Clock ). 2 Scroll to Hide clock or Display clock (only one choice appears,

depending on the current setting).

3 Press Select.

Set automatic update of date and time

If this feature is supported by your wireless service provider, it automatically updates the clock in your phone in accordance with the current time zone. This may be helpful if you are traveling from New York to California, for example, and want to receive the local time from the wireless network.

1 Press Menu 4 2 4 (Settings > Time settings > Auto update of date

and time).

2 Scroll to one of the following options, then press Select:

• On: Updates the date and time automatically.

• Confirm first: Requires you to confirm that you want the update.

• Off: Prevents the date and time from being automatically updated.

• USE CALLER GROUPS

You can create groups of names in your phone book and give each group a different ringing tone. When someone from that group calls, you’ll know because of the ringing tone.

Add names to a caller group

The name you add to a caller group must first be stored in the phone book.

1 From the Start screen, scroll to the name or number you want. 2 Press Details, then press Options. 3 Scroll to Caller groups and press Select.

[ 73 ]

3590 FCC draft.book Page 74 Thursday, February 14, 2002 2:36 PM

4 Chose Family, VIP, Friends, Business or Other, then press Select.

Remove names from a caller group

1 Follow steps 1 through 3 above. 2 Scroll to No group and press Select.

Assign a ringing tone to a caller group

1 From the Start screen, press Names. 2 Scroll to Caller groups and press Select. 3 Scroll to the group you want and press Select. 4 Scroll to Group ringing tone and press Select. 5 Scroll to the tone you want to hear for this caller group and press

Select.

Tip: You can set your phone to ring only when people from certain caller groups call you, and to be silent for all other call groups.

Rename a caller group

You can rename any call group with a name of your own.

1 Follow steps 1 through 3 above. 2 Scroll to Rename group and press Select. 3 Enter the group name, then press OK.

Assign group graphics

Each caller group has a picture associated with it. When you get a call from someone in a caller group, the graphic flashes on the screen.

To turn the graphic on for a caller group:

1 Press Names, scroll to Caller groups, and press Select. 2 Scroll to the name of the group and press Select.

[ 74 ]

3590 FCC draft.book Page 75 Thursday, February 14, 2002 2:36 PM

3 Scroll to Group logo and press Select.

Note: To see the group graphic before you select it, scroll to View graphic and press Select. Press Back to return to the menu.

4 Scroll to On and press Select.

To turn the graphic off, follow the steps above, but scroll to Off in the last step.

SEND A GRAPHIC TO SOMEONE ELSE

1 Follow steps 1 through 3 above. 2 Scroll to Send logo, then press Select. 3 Enter the phone number or scroll to find it in your phone book, then

press OK.

VIEW A RECEIVED GRAPHIC

1 When you receive a graphic from someone else, Group logo received

appears.

2 To view the graphic, press Show. 3 After viewing the graphic, press Options and then choose one of the

following:

• Save to save it (you must choose which caller group gets the new graphic)

• Discard to delete it

4 Press Select.

• DOWNLOAD RINGING TONES

In addition to the ringing tones that come with your phone, you can download up to 5 more over the Internet, or have them sent to your phone via SMS.

[ 75 ]

3590 FCC draft.book Page 76 Thursday, February 14, 2002 2:36 PM

Note: Methods for downloading ringing tones vary. Some wireless providers allow you to send ringing tones to your phone via the Internet, but may charge for this service. For details about downloading ringing tones, contact your wireless service provider.

Notification of received ringing tone

When your phone receives a ringing tone, it displays Ringing tone received.

Listen to received ringing tones Save received ringing tones Discard received ringing tones

• RESTORE FACTORY SETTINGS

You can use Menu 4 8 (Settings > Restore factory settings) to reset some of the phone settings to their original values.

Caution: Restoring factory settings does not erase your phone book. However, it does erase all customized settings you may have entered.

1 Press Menu 4 8 (Settings > Restore factory settings). 2 Enter the Security code, then press OK.

[ 76 ]

3590 FCC draft.book Page 77 Thursday, February 14, 2002 2:36 PM

• CHANGE XPRESS-ON™ COLOR COVERS

To personalize your 3590, you can change the front and back covers. Nokia Xpress-onTM covers are available in several fashion colors. Extra covers may be purchased from your authorized Nokia dealer.

Important: Always store the phone with the covers attached. Important: Before changing the cover, always switch off the phone

and disconnect the phone from the charger or any other device.

Remove the back cover

1 With the back of the phone facing you, press and hold the back cover

release button.

2 Slide the cover up 3 Lift the cover off of the phone.

[ 77 ]

3590 FCC draft.book Page 78 Thursday, February 14, 2002 2:36 PM

Remove the phone from the front cover

1 With the back of the phone facing you, find the plastic tabs on the top

of the phone.

2 Grasp the plastic tabs and gently separate the cover from the phone

body.

Change the keypad

1 Lift the keypad from inside the old front cover. 2 Place the keypad into the new front cover.

[ 78 ]

3590 FCC draft.book Page 79 Thursday, February 14, 2002 2:36 PM

Replace the new front cover

1 To replace the front cover,

align the top of the phone with the top of the front cover. Make sure both sets of plastic tabs line up with their slots, as shown at right.

2 Align the cover and snap it

shut all the way around the edge of the phone.

Replace the back cover

1 Direct the back cover towards the locking catches on the phone. 2 Slide the back cover until it locks into place.

[ 79 ]

3590 FCC draft.book Page 80 Thursday, February 14, 2002 2:36 PM

13 Manage phone security

Your phone is equipped with different security features that allow you to do the following:

• avoid making accidental calls,

• prevent unauthorized use of your phone, and

• restrict outgoing or incoming calls.

• LOCK THE KEYPAD (KEYGUARD)

The keypad lock (Keyguard) disables your keypad to prevent accidental key presses (for example, when your phone is in your pocket or purse).

• To lock the keys, press Menu, then .

• To unlock the keys, press Unlock, then .

Notes about Keyguard

• Keyguard does not prevent unauthorized use of your phone.

• Connecting your phone to a car kit automatically disables Keyguard.

• When Keyguard is on, calls may be possible to the emergency number

programmed into your phone (for example, 911, 112, or other official emergency number). Key in the emergency number and press . The number is displayed only after you have keyed in its last digit.

[ 80 ]

3590 FCC draft.book Page 81 Thursday, February 14, 2002 2:36 PM

• ABOUT SECURITY CODES

The following table summarizes how different types of security codes are used in your phone.

Code Purpose

Security code

PIN code You can use the PIN code to protect against

PIN2 code Enter the PIN2 code for the following procedures:

Use the security code for the following procedures:

• Reset call timers (page44)

• Clear the data counter (page47)

• Clear the connection timer (page48)

• Restore factory settings (page76)

• Reset the wallet code (page132)

• Erase your entire phone book (page40) If phone security is on, the phone requests the security

code the first time you use it after installing a new SIM card.

unauthorized calls if the following conditions are met:

• The PIN code request is turned on

• The phone is powered off The next time the phone is turned on, you must enter

the correct PIN code to make calls or use the menus.

• Use fixed dialing (page84)

• Clear call cost counters (page46)

• Show costs in units or currency (page46)

• Limit your call costs (page46)

Restriction password

Required by the restrict calls feature.

[ 81 ]

3590 FCC draft.book Page 82 Thursday, February 14, 2002 2:36 PM

• PIN CODES

The PIN (Personal Identity Number) and PIN2 codes are 4- to 8-digit numbers that usually come from your service provider along with the SIM card. Use the PIN code to protect your phone and SIM card against unauthorized use. The PIN2 code activates some of your phone’s functions, such as Call cost limit. See “Manage call costs” on page45.

When the phone requires the PIN or PIN2 code, it displays Enter PIN code: or Enter PIN2 code:.

Enter the code then press OK.

Set PIN code request

You can activate the PIN code request to prevent unauthorized use of your phone. If you set the PIN code request to On, your phone will ask for the code each time you turn the phone on.

Note: When the phone is locked, calls may be possible to the

emergency number programmed into your phone (for example, 911, 112, or other official emergency number).

1 Press Menu 4 7 1 (Settings > Security settings > PIN code request). 2 Enter the PIN code supplied by your service provider, and press OK. 3 Scroll to On and press OK.

To turn off this feature, repeat steps 1 through 3 above, but select Off in step 3.

Change your PIN or PIN2 code

You can change your PIN or PIN2 code to any 4- to 8-digit number.

Tip: You need to activate the PIN code request before you can change the PIN code.

1 Press Menu 4 7 6 (Settings > Security settings > Change access codes). 2 Scroll to Change PIN code, then press Select.

[ 82 ]

3590 FCC draft.book Page 83 Thursday, February 14, 2002 2:36 PM

3 Enter the current PIN code and press OK. 4 Enter the new PIN code and press OK. 5 Enter the new PIN code again to verify, and press OK.

Note: If you make a mistake while entering the code, Code Error

appears. Start again at step 2 and be careful to enter the correct code. If you enter the wrong code three times in a row, the PIN code is blocked. To unblock the PIN code, you need a Personal Unblocking Key (PUK) from your service provider.

• PUK CODES

The PUK (Personal Unblocking Key) and PUK2 codes are 4- to 8-digit codes that also usually come from your service provider along with the SIM card. The PUK code unblocks a blocked PIN code, and the PUK2 code unblocks a blocked PIN2 code.

If you block your phone, you may need to contact your service provider. When you enter the PUK code given by your service provider, the phone will ask you to enter and then confirm a new PIN code.

• SECURITY CODE

Note: The default security code is 12345.

You need the security code to access certain phone features. When the phone requires the security code, it displays Security code:

Enter the code then press OK. If you enter an incorrect security code five times in a row, the phone will

not accept the correct code for 5 minutes.

Change the security code

1 Press Menu 4 7 6 (Settings > Security settings > Change access codes). 2 Scroll to Change security code and press Select.

[ 83 ]

3590 FCC draft.book Page 84 Thursday, February 14, 2002 2:36 PM

3 Enter the current security code, then press OK. 4 Enter the new security code, then press OK. 5 Enter the security code again to verify, then press OK.

Important: Keep the code secret and in a safe place, separate from

the phone.

• USE FIXED DIALING

If supported by your SIM card, this feature lets you restrict your outgoing calls to phone numbers included in the fixed dialing list or beginning with the same digit(s) as an entry in the list.

Note: If you turn fixed dialing on and don’t have any numbers in the fixed dialing list, you can’t make any calls!

Note: When fixed dialing is set to on, calls may be possible to certain emergency numbers in some networks (such as 911 or other official

emergency numbers).

Turn fixed dialing on or off Add numbers to the fixed dialing list

• RESTRICT CALLS

This network service lets you restrict the calls your phone can make and receive. Check with your service provider for details.

Note: When calls are restricted, calls may be possible to certain emergency numbers in some networks (such as 911 or other official emergency number).

Turn on call restrictions

1 Press Menu 4 7 2 (Settings > Security settings > Call restrictions).

[ 84 ]

3590 FCC draft.book Page 85 Thursday, February 14, 2002 2:36 PM

2 Scroll through the types of calls you can restrict, and press Select

when you see the one you want.

Outgoing calls: Calls cannot be made. International calls: Calls cannot be made to foreign countries. International except to home country: When abroad, calls can be

made only within the current country and to your home country (that is, the country where your home network operator is located).

Incoming calls: Calls cannot be received. Incoming calls if roaming: Calls cannot be received outside your

home area. Cancel all call restrictions: Turns off all call restrictions. Calls can be

made and received in the usual way.

Note: If you selected Cancel all call restrictions, the following steps are not available. Also, you can cancel call restrictions on each option, allowing restrictions on other options to stay in force.

3 Scroll to one of the following options:

Activate: Enter the restriction password and press OK. Cancel: Enter the restriction password and press OK. Check Status: The phone lists the call types with call restriction

active.

4 Press OK.

About your restriction password

Contact your service provider for the restriction password.

[ 85 ]

3590 FCC draft.book Page 86 Thursday, February 14, 2002 2:36 PM

Change your restriction password

• SET UP A CLOSED USER GROUP

This network service specifies the group of people to whom you can call and who can call you. Default resets the phone to use a user group that the SIM card owner has agreed upon with the service provider.

Note: When calls are limited to closed user groups, calls may be possible to certain emergency numbers in some networks (such as 911 or other official emergency number).

Turn on closed user group

1 Press Menu 4 7 4 (Settings >Security settings > Closed user group). 2 Scroll to On, enter the group number, then press OK.

Turn off closed user group

1 Press Menu 4 7 4 (Settings >Security settings > Closed user group). 2 Scroll to Off, then press OK.

[ 86 ]

3590 FCC draft.book Page 87 Thursday, February 14, 2002 2:36 PM

14 Communicate with mobile

messages

The text message network service allows you to send short text messages to other phones that have text message capability. You can also ask the service provider to convert the message to other formats such as e-mail and fax.

Your phone has additional messaging features including:

• E-mail

• Chat for quick online conversations

• Multimedia inbox for receiving text, audio and video clips

• Picture messages

• MESSAGE SETTINGS

Before you can send and receive messages you must:

• Have a text messaging subscription through your service provider.

• Know your message center number.

• Save your message center number in your phone.

• Set up other message settings, such as GPRS.

Save your message center number

Note: Your service provider supplies the message center number.

1 Press Menu 01 14 (Messages > Message settings). 2 Scroll to a message profile, then press Select.

[ 87 ]

3590 FCC draft.book Page 88 Thursday, February 14, 2002 2:36 PM

3 Scroll to Message center number, then press Select . 4 Enter your message center number, then press OK.

Set the message mode

You can choose the type of message sent by your phone. The message modes include Text, E-mail, Fax and Page.

Note: The default message type is text. Note: This feature must be supported by your service provider.

1 Press Menu, then press Select. 2 Scroll to Message settings, then press

Select. If your SIM supports more than

one message profile, chose a profile, then press Select.

3 Scroll to Messages sent as, then press

Select.

4 Scroll to Text, E-mail, Page, or Fax, then press OK.

Note: In order to receive a converted message, the recipient needs

to have the appropriate terminal device, such as a fax machine, pager, or e-mail account.

[ 88 ]

3590 FCC draft.book Page 89 Thursday, February 14, 2002 2:36 PM

Choose other message settings

You can modify the following message settings (see “List of menu shortcuts” on page24 for menu numbers):

Choice What it does

Allows you to select the length of time that the message center will try to deliver a

Message validity

message. You can choose a time from 1 hour to 1 week. If the message center can not deliver the message within this time, the message is deleted.

Default recipient number

E-mail server

Delivery reports

Use GPRS

Reply via same center

Allows you to specify a single recipient for all your messages. This option is not available when you chose “Messages sent as e-mail.”

Allows you to store e-mail server information in your phone so that you do not have to enter the number each time you compose a new e-mail message. Contact your service provider for the server number.

Allows you to ask the network for a report about message delivery.

Allows you to send your messages via the General Packet Radio System (GPRS).

Choose this when you want your recipient to reply through the same message center.

Note: Do not choose Yes unless you know the recipient has the same service provider.

[ 89 ]

3590 FCC draft.book Page 90 Thursday, February 14, 2002 2:36 PM

Choice What it does

Allows you to name the profile. This option

Rename sending profile

depends on SIM card. Note: This option is not available for the

default profile.

• SEND AND RECEIVE TEXT MESSAGES

You can use the text message feature to compose and send a short text message to another phone .

Tip: Review ABC mode and predictive text input from “Enter letters and numbers” on page28 before reading this section.

Send text messages

1 Press Menu 01 1 (Messages > Write message). 2 Enter a message of up to 160 characters.

The number of available characters appears in the top right corner of the screen.

3 Once you have finished writing, press Options, scroll to Send, then

press Select.

4 Enter or recall the recipient’s phone number, then press OK.

A confirmation note appears when the message is sent.

Note: When sending messages via the SMS network service, your phone may display the words Message Sent. This is an indication that the message has been sent by your phone to the message center number programmed into your phone. This is not an indication that the message has been received at the intended destination. For more details about SMS services, check with your service provider.

[ 90 ]

3590 FCC draft.book Page 91 Thursday, February 14, 2002 2:36 PM

Caution: If you need to exit while writing the message, press anytime. Later, press Menu 01 1 to return and finish writing the message. If you turn off the phone without saving the message, the message will be lost.

Save messages in the outbox

When you write a text message, it’s a good idea to save it in the outbox. Then if there is a message delivery problem, you can easily resend the message.

1 While writing the message, press Options. 2 Scroll to Save message, then press Select. 3 Scroll to Outbox, then press OK.

Resend a message from the outbox

1 Press Menu, then press Select. 2 Scroll to Outbox, then press Open. 3 Scroll to the message you want to resend, then press Select.

The message appears on the screen.

4 Press Options and scroll to Send. 5 Enter the number and press OK to send the message.

Read a new text message

When you receive a text message, the phone beeps and displays Message received and the indicator in the top left corner of the screen.

To read the message now, press Show.

Read a new text message later

1 When you receive a text message, press Exit.

[ 91 ]

3590 FCC draft.book Page 92 Thursday, February 14, 2002 2:36 PM

2 Later when you want to read the message, press Menu, then press Select. 3 Scroll to Inbox, then press Open. 4 Scroll to the message you want, then press Select. 5 If the message is long, use the scroll keys to scroll through the message.

Read linked messages

Your phone can receive one long message (up to 459 characters) in sequences. You can start reading the first part before the phone has received the entire message.

While viewing the message, you may see *some text missing* on the display. This is normal, and the message content will be updated as soon as the missing sequence arrives.

If the memory is full, you may have to delete a message from your inbox or outbox before your phone can update the missing text.

• COMMUNICATE WITH E-MAIL

You can send e-mail messages to friends and family directly from your phone if your service provider offers this network service.

There are two ways of sending an e-mail message.

• You can send an e-mail message from the Messages menu.

• You can send an e-mail message from the phone book.

Note: Before you send e-mail messages, you need to set up a profile to define the e-mail server or gateway. Contact your service provider for more information.

Define an e-mail sending profile

1 Press Menu 01 14 (Messages > Message settings). 2 Scroll to a message profile, then press Select. 3 Scroll to Messages sent as, then press Select.

[ 92 ]

Microsoft NPM-8 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
