Microsoft NPC-1BG User Guide

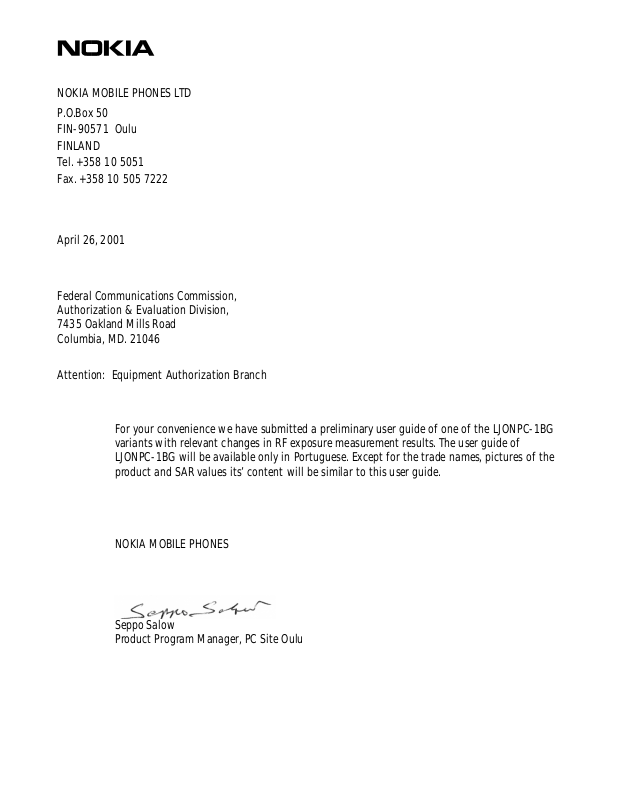

NOKIA MOBILE PHONES LTD P.O.Box 50
FIN-90571 Oulu FINLAND Tel. +358 10 5051 Fax. +358 10 505 7222
April 26, 2001
Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046
Attention: Equipment Authorization Branch
For your convenience we have submitted a preliminary user guide of one of the LJONPC-1BG variants with relevant changes in RF exposure measurement results. The user guide of LJONPC-1BG will be available only in Portuguese. Except for the trade names, pictures of the product and SAR values its’ content will be similar to this user guide.
NOKIA MOBILE PHONES
Seppo Salow Product Program Manager, PC Site Oulu
Nokia 3320
User Guide
Draft V0.1
Not For Distribution
[ 1 ]
The wireless phone described in this guide is approved for use in TDMA and AMPS networks.
Legal information
Part No. 9353391, Issue No. 1
© 2001 Nokia Inc. All rights reserved.
Nokia is a registered trademark of Nokia Corporation. Printed in Canada XX/2001 Nokia, Nokia Connecting People and the Original Accessories logos are trademarks
of Nokia Corporation and/or its affiliates. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1999-2001. Tegic Communications, Inc.
All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
The information contained in this Owner’s Manual was written for Nokia phone NPC-1 and NPW-1. The right to make changes and improvements to any of the products described in this guide without prior notice is reserved.
Export Controls
This product may also be subject to United States export controls. The United States export laws currently prohibit the export of certain technical data and software into Cuba, Iran, Iraq, Libya, North Korea, Sudan, and Syria, or any national or resident of those countries, or to anyone on the United States Treasury Department’s list of Specially Designated Nationals or the U.S. Commerce Department’s Table of Deny Orders. You agree that you shall not export this product in contravention of United States export laws.
FCC/Industry Canada Notice
Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility.
This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.
[ 2 ]
[ 3 ]
[ 4 ]
Safety first 1
Safety guidelines 1
Road safety comes first 1 Switch off in hospitals 1 Switch off while aboard aircraft 1 Switch off when refueling 1 Switch off near blasting 1 Observe infrared precautions 1
Quick tips 2
Be aware of interference 2 Use your phone sensibly 2 Use only qualified service personnel 2 Use approved accessories and batteries 2 Read instructions before you connect to other de­vices 2 Make sure the phone is on 2
Your phone’s label 3
Welcome 4
Get the most out of this guide 4
Understand the terms 4 Notice text conventions 4 Follow graphic clues 5 Look for updates 5
Understand wireless network services 6
Sign up with a service provider 6 Note differences among service providers 6
Learn about accessibility solution 6
The Nokia commitment 6
Alternate format user guides 7 LPS-3 Mobile Inductive Loopset 7 Find information about your phone 8 Contact Nokia 9
Have the right information available 9
Have the phone or accessory handy 9
Contact your service provider 10
Set up your phone 11
Attach the battery 11 Charge the battery 11 Remove the battery 12 Important battery information 12 Prolong battery life 12 Connect the headset 13 Use the carrying case 13 Adjust the volume 13 Adjust screen contrast 13 Choose the look of your screen 13
Review the basics 14
Antenna 14
Possible overheating 15 Learn the keys 15 Make and answer calls 16 Check the Start screen 16
Return to the Start screen 17
Check the header line and scroll bar 17
[ 2 ]
Review phone symbols 18 Use the selection keys 20 Check in-phone help 20 Browse phone menus 20
Scroll through menus 21
Use a shortcut 21 Shortcuts 22 Phone book menu 26
Use the phone book 28
Review ABC and 123 entries 28
Enter letters 28
Enter numbers 29
Enter punctuation and other characters 29 Use special characters in names and phone numbers 30
In ABC mode 30
In 123 mode 30
Check call history 31
Check the call log 31
Check missed calls 32
Check previously dialed calls 32
Check received calls 33
Clear call lists 33 Check call timers 34
Turn on a current call timer 34
Clear call timers 35
Use advanced calling features 36
Set in-call options 36 Use call waiting 37
Store the call waiting feature code 37 Activate call waiting 37
Manage calls 37
Make a conference call 37 Lookup a number during a conference call 38
Use call forwarding 39
Store the call forwarding feature code 39
Activate call forwarding 39 Redial automatically 41 Use a calling card 41
Save calling card information (step 2) 42
Choose a calling card to use 43
Make a calling card call 43 Send your own number in caller ID 43
Store the Send Own Number feature code 44 Select a phone number 45
Select the phone number 45
Select digital or analog 45 Set touch tones 46
Set touch tone length 46
Store touch tone sequences (strings) 47
Use voice mail 49
Check for messages 49 Set up your voice mailbox 49
[ 4 ]
Set greetings and passwords 50 Listen to your voice messages 50
Personalize rings & tones 51
What is a profile? 51 Select a different profile 51 Customize a profile 52
Set ring options 53 Set the ring volume 53 Set the ring tone 54 Set a vibrating alert 55 Set keypad tones 55 Set warning and game tones 55 Set the message alert tone 56 Set your phone to answer automatically 56 Set the lights (car kit only) 57
Rename profiles 58
Personalize phone settings 59
Set the display language 59 Set and display the clock 59
Set the clock 59 Display the clock 60
Select the time format 60 Add a welcome note 60 Use 1-touch dialing 61
Set up a 1-touch dial key 61
Change 1-touch dialing numbers 61
Erase 1-touch dialing numbers 62
Restore factory settings 62
Manage phone security 63
Change your security code 63 Protect your phone with the lock code 64
Turn on the phone lock 64 Store an unlocked phone number 65 Call an unlocked phone number 65 Answer a call while using a lock code 65 Change your lock code 65 Turn off the lock code 66
Lock the keypad 66
Activate keyguard 66 Deactivate keyguard 66 Answer a call while keyguard is active 67
Restrict calls 67
Restrict outgoing calls 67 Restrict incoming calls 68
Manage prepaid services 69
Activate the Prepaid menu 69 Deactivate the Prepaid menu 69 Save access phone numbers 70 Check the prepaid balance 70 Add money to your prepaid account 70 Check prepaid balances 71 Make calls using Prepaid service 71
Set network services features 72
[ 6 ]
Set up how your phone selects a system 72
Set up the way your phone selects a network 73
Switch between private and public systems 73
Select a public system 74 Use your phone on the road 75
Communicate with text messages 76
About text messages 76 Write with standard text entry 76 Write with predictive text 77
Keys and tools for predictive text 78
Turn on predictive text input 78
Turn off predictive text input 79
Tips for predictive text 79
Add a word to the match list 80
Insert numbers 80
Insert symbols 80
Write compound words 80 Use folders to store text messages 81 Write and send a text message 81 Save a message in the saved folder 82 Resend a message from the outbox 82 Receive a text message 82 Read a text message 83
Choose options for a message 83 When your phone’s memory is full 84 Erase a message 84 Reply to a message 85
Forward a message 85 Send and receive e-mail messages 85
Save e-mail addresses 85 Send an e-mail message 87
Other options for a completed message 88 Reply to or forward an e-mail message 88 Chat with other phone users 89
Use special features 90
Send and receive business cards 90
Send a business card 90
View a received business card 90
Save a viewed business card 90
Delete a viewed business card 91 Download ringing tones 91
Receive a ringing tone 91
Save a received ringing tone 91
Discard received ringing tones 92 Use the Alarm clock 92 Use the Calculator 93
Convert currency 94
Use Infrared 96
Sending and receiving data 96
Check the status of an IR connection 96
Other types of IR connections 97
Phone book 97
Reminders 98
[ 8 ]
Connect to the Internet* 99
Learn about the Services menu 99 Set up for browsing 100 Your service provider and WAP 100 Launch the browser* 100
Navigate a WAP card 100 The browser menu 101
The Options menu 102 Bookmarks 103 Download a ring tone 104 Play, save, or erase a ring tone 104
Play games 105
Start a new game 105 Snake II 105 Space Impact 105 Pairs II 105
Frequently asked questions (FAQ) 106 Glossary 110 Reference information 116
Batteries, chargers, accessories and Technical infor­mation 116 Important safety information 117
Traffic safety 118
Operating environment 118
Electronic devices 118
Potentially explosive atmospheres 120
Vehicles 120
Emergency calls 121
Make an emergency call 121 Radio frequency (RF) signals 122
Care and maintenance 123 Accessories 124 Batteries 125
Charging times 125
Standby and talk times 126 Chargers and other accessories 126
When a charger is not in use 127
Standard Travel Charger (ACP-7) 127
Travel Charger (ACP-8) 127
Rapid Cigarette Lighter Charger (LCH-9) 127
Desktop Charging Stand (DCV-10) 128
Headset (HDE-2) 128
Nokia Xpress-on™ color covers 128 Troubleshooting 129 Technical Information 130
NOKIA One-Year Limited Warranty 132
[ 10 ]
1 Safety first
Read these simple guidelines before you use your phone. Failure to comply with these guidelines may be dangerous or illegal.
• SAFETY GUIDELINES
Following are important safety precautions for phone use.
Road safety comes first
Do not use a hand-held phone while driving. Park the vehicle first.
[road_saf]
Switch off in hospitals
Follow any regulations or rules. Switch your phone off near medical equipment. [off_hosp]
Switch off while aboard aircraft
Wireless phones can cause interference. Using your phone aboard an aircraft is illegal at certain times. Observe the rules as announced on the aircraft. [off_airc]
Switch off when refueling
Do not use your phone at a refueling point. Do not use it near fuel or chemicals. [off_refu]
Switch off near blasting
Do not use your phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. [off_blas]
1
Observe infrared precautions
Do not point the IR beam at anyone’s eyes or allow it to interfere with other IR devices. [art]
[ 1 ]
• QUICK TIPS
1
Observe these brief guidelines to get the best performance from your mobile phone.
Be aware of interference
All wireless phones may get interference that could affect performance.
[interfer]
Use your phone sensibly
Use your phone only in the normal position (next to the ear). Do not touch the antenna unnecessarily.
[use_sens]
Use only qualified service personnel
Equipment must be installed or repaired only by qualified service personnel. [qua_svc]
Use approved accessories and batteries
Use only approved accessories and batteries. Do not connect incompatible products. [acc_batt]
Read instructions before you connect to other devices
When you connect your phone to any other device, read the device’s user guide for detailed safety instructions. Do not connect incompatible products. Remember to make backup copies of all important data. [art]
Make sure the phone is on
Before you make a call, be sure your phone is switched on. To make and receive calls, you must sign up with a cellular service provider.
[make_cal]
[ 2 ]
• YOUR PHONE’S LABEL
The label found on the back of your phone (under the battery) contains important information about your phone, including the model and serial numbers. You will be required to provide information from this label, in the event you call Nokia Customer Service (or call your service provider). Therefore, please do not remove or deface this label.
1
[ 3 ]
2
2 Welcome
Congratulations on your purchase of a Nokia 3320 mobile phone, a new tool for the mobile information society.
Nokia recommends that you read this chapter before you use your new phone. You will find useful information about:
• How to use this guide
• Cellular network services
• How to contact Nokia
• GET THE MOST OUT OF THIS GUIDE
The tips that follow can help you get peak performance from this guide as you learn to use your phone.
Understand the terms
This guide uses certain terms for certain actions.
Press means to briefly press and then release a key. For example, press means press the zero key.
[Art for press menu] Press means to press the key that is below the
word Menu on the screen.
[Art for press menu] Press and hold means to press and hold a key for 1
to 3 seconds (depending on the feature you’re using), and then release the key.
Notice text conventions
This user guide provides text “clues” to help make instructions clear and easy to follow. These clues are called conventions.
[ 4 ]
Convention What it means
bold The word or phrase appears on the phone’s screen. bold and blue The word is an address on the World Wide Web.
2
bold, blue, and italic
italic Italics indicate emphasis. Pay close attention to any
A definition for the word or phrase appears in the terms list near the end of the user guide.
information in italics.
Follow graphic clues
This guide uses certain icons (small pictures) to alert you to important information.
Tip: Provides information about a shortcut or an alternate method of doing something.
Note: Explains a feature or points out an important concept. Important: Alerts you to information critical to using a feature correctly. Caution: Warns you when you may lose information. Warning: Helps you avoid personal injury, damage to the phone, or
property damage.
Look for updates
From time to time, Nokia updates this user guide to reflect changes or corrections. The latest version may be available at the Nokia site on the World Wide Web: http://www.NokiaUSA.com
1 On the home page, click Nokia Phones, scroll to the section about
your phone, and click Phone details.
2 Click an item to download the user guide, quick guide, or interactive
guide (if available).
[ 5 ]
• UNDERSTAND WIRELESS NETWORK SERVICES
2
A wireless network service provides the connections you need to use your mobile phone. The network also can give you access to special wireless services, including:
• Voice mail and voice privacy
• Call waiting, call forwarding, and caller ID
• Text and picture messages
• Ability to send your own number
• News and information services
• Selected Internet access services
Sign up with a service provider
Before you can take advantage of any of network services, you much sign up with a wireless service provider. Your service provider will make available descriptions of its services and instructions for their use.
Note differences among service providers
Wireless network providers differ from each other in certain ways. For example, some networks may not support all language-dependent characters. When you sign up for service, make sure your provider offers the services you need.
• LEARN ABOUT ACCESSIBILITY SOLUTIONS The Nokia commitment
Nokia is committed to making mobile phones easy to use for all individuals, including those with disabilities. Nokia maintains a site on the World Wide Web that is dedicated to accessibility solutions. For more information about phone features, accessories, and other Nokia products designed with your needs in mind, visit the Nokia World Wide Web site at
www.nokiaaccessibility.com.
[ 6 ]
Alternate format user guides
This user guide is available in alternate formats, including:
• Braille
• Large print
• Audiocassette
• E-text (3.5-inch disk in Microsoft Word or WordPerfect). To request any format, call Nokia Customer Care at (888) 665-4228.
Hearing-impaired and other TTY users can contact Nokia at (800) 246-
6542.
LPS-3 Mobile Inductive Loopset
The LPS-3 Loopset is a Nokia accessory designed to make the 3300 series phone more accessible to hearing-aid users. The LPS-3 Loopset is also compatible with the Nokia 8200- and 8800- series digital phones.
The Nokia Loopset gives hearing-impaired wireless customers clear access to digital telephony for the first time. With the Loopset, people who use a T-coil equipped hearing aid can make and receive calls without noise interference.
HOW THE LOOPSET WORKS
The LPS-3 Loopset uses inductive technology to transmit sound to a hearing aid equipped with a T-coil. With inductive technology, the sound from the phone is amplified more efficiently and background noise is eliminated.
The loopset is easy to use. You wear the loopset around your neck, connect it to your phone, and speak directly toward the microphone.
For detailed instructions on using the loopset, refer to the booklet that comes with the LPS-3.
Note: The Loopset can be purchased separately as an accessory.
2
[ 7 ]
2
Accessible features
The 3300 has many accessible features including:
• Nibs beneath the 5-key for quick reference to the keypad
• Tactile feedback when a key has been pressed
• Adjustable display contrast
• Adjustable font size
• Ability to send and receive short text messages
• Convenience of one-touch dialing
• Vibrating alert for incoming calls and messages
• Ability to define ring tones for different caller groups
• FIND INFORMATION ABOUT YOUR PHONE
If you ever need to call Nokia Customer Service or your cellular service provider, you will need to provide specific information about your phone. This information is provided on the phone’s label.
The label is on the back of the phone (under the battery). It shows the:
• Model number [Need picture of label]
• Phone type (a technical designation)
• Electronic serial number (ESN) Do not remove or deface the label.
• CONTACT NOKIA
When you need help, the Nokia Customer Service department can provide information about Nokia products.
Have the right information available
We recommend that you have the following information available before you contact the Nokia Customer Service department:
[ 8 ]
• The phone’s model number (3360)
• The ESN (serial number)
• Your ZIP code The serial number is on the phone’s label. See “Find information about
your phone” for help.
Have the phone or accessory handy
Whether you’re calling your phone or an accessory, you should have the the equipment with you when you call. For example, if you’re calling about a headset, please have it handy. That way, if a Nokia representative asks a specific question about the accessory, you will have it available for quick reference.
Nokia Customer Care Center, USA Customer Service, Canada
2
Nokia Mobile Phones, Inc. 7725 Woodland Center Boulevard,
Suite #150 Tampa, Florida 33614 Tel: 1-888-NOKIA2U (1-888-665-4228) Fax: 1-813-249-9619 TTY: 1-800-24NOKIA (1-800-246-6542)
[ 9 ]
Nokia Products Ltd. 575 Westney Rd. South Ajax, Ontario L1S 4N7 Tel: 1-888-22NOKIA (1-888-226-6542) Fax: 1-905-427-1070
2
Contact your service provider
Some service providers program a one-key customer support number into the phone. This number can be useful if you’re having trouble dialing a number, especially when you’re traveling outside your home area.
This one-key feature might not be available on all systems. Contact your service provider for availability.
When you need to get in touch with your wireless service provider:
• Press and hold the <xxx> key (or the key that your service provider
instructed you to use) for 2 seconds. Your phone will automatically dial the provider’s customer support
number.
If your service provider determines that the problem is Nokia-related, their representative will direct you to the Nokia Customer Care Center (USA) or Nokia Customer Service (Canada).
[ 10 ]
3 Set up your phone
Before you use your phone, you need to:
• Charge the battery.
• Connect any accessories you want to use and set up for infrared transfer.
• Adjust a few phone settings to suit your needs.
• ATTACH THE BATTERY
This section tells you how to install a new battery. If you’re installing a replacement battery, make sure you use only a Nokia-approved part.
<Attaching/removing the battery - need to illustrate and get input for the instructions>
1 If the back cover is attached to your phone, carefully remove it. (See
Reference Information for instructions on removing the back cover. )
2 Locate the metal connectors on the bottom edge of your battery. 3 Holding the battery with the label facing you, place the battery in the
phone bottom first so that the connectors on the battery and the connectors in the phone will be touching.
4 Snap the top of the battery in so that the bar comes down snuggly
next to the battery.
3
• CHARGE THE BATTERY
Follow these guidelines to charge the battery.
1 With your phone on or off, connect the lead from the charger to the
bottom of the phone.
2 Connect the charger to an AC wall outlet.
The battery indicator bar starts to scroll up and down after a few
[ 11 ]
3
seconds.
3 Disconnect the charger from the phone and AC outlet when the
battery is fully charged.
After the indicator bar stops scrolling, the battery will accept a “trickle charge” for an additional 2 hours until it is fully charged. See “Reference Infromation” for more information on batteries.
• REMOVE THE BATTERY
You will need to remove the existing battery if you want to install a new battery or if you’ve purchased a spare battery.
1 Make sure the phone has been turned off for 10 seconds. 2 Remove the back cover of the phone. 3 Locate the battery latch that runs along the end of the battery
nearest the top of the phone.
4 Using your thumbnails, press the bar away from the battery until it
snaps and the battery lifts slightly. Once the battery has lifted, you can remove it from the phone.
Note: Use only your hands to remove the battery. Do not use any objects
which may damage the phone or the battery.
• IMPORTANT BATTERY INFORMATION
• Recharge your battery only with a charger approved by Nokia.
• You can switch the phone on and use it for calls while the battery is charging.
• If the battery is totally empty, it may take a few minutes before the charging indication appears on the screen.
• If the phone is switched on when charging is completed, the screen momentarily shows the message Battery full.
• The BMC-2 battery does not need to be fully discharged before
[ 12 ]
recharging.
• Charging time depends on the charger and battery used. See “Batteries” for charging times.
• PROLONG BATTERY LIFE
A NiMH battery lasts longer and performs better if you fully discharge it from time to time. To discharge your battery, follow either of these steps.
• Leave your phone switched on until the battery is drained. Ignore any
messages to recharge your battery.
• Use the battery discharge feature of any approved accessory available for your phone.
Important: Do not attempt to discharge the battery by any means other
than those just described.
• CONNECT THE HEADSET
• USE THE CARRYING CASE
• ADJUST THE VOLUME
• ADJUST SCREEN CONTRAST
3
• CHOOSE THE LOOK OF YOUR SCREEN
<personalize>
[ 13 ]
4
4 Review the basics
This section gives you a brief introduction to the phone and shows quick steps for making, answering, and managing your calls. The rest of this guide provides complete details on phone use.
[keys picture of phone]
• ANTENNA
Your phone has a built-in antenna. As with any other radio transmitting device, do not touch the antenna unnecessarily when the phone is switched on. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.
[graphic of the back of the phone showing the antenna]
[ 14 ]
Possible overheating
It is normal for your phone to become hot during use. If the phone becomes too hot, it automatically drops the current call and returns to the Start screen. You won’t be able to make or receive calls until the phone cools.
• LEARN THE KEYS
Here is a summary of how the various keys on your phone work.
Key What it does
Power: Press and hold to switch the phone on or off.
4
-
Selection: Press to choose the option shown by the word above the key.
Talk: Press to make a call to the name or number shown on the screen or to answer a call. Press once at the Start screen to view the first in a list of numbers you’ve most recently dialed.
Press to review the list. Press again to call a number shown on the list.
End: Press to end a call or to silence the ring from an incoming call. Also, press to return to the start screen.
Number: Use keys 2 through 9 to enter numbers and letters.
Press if you want to insert a blank space while entering text.
1 Key: Press and hold to call your voice mailbox.
[ 15 ]
Loading...
+ 122 hidden pages
