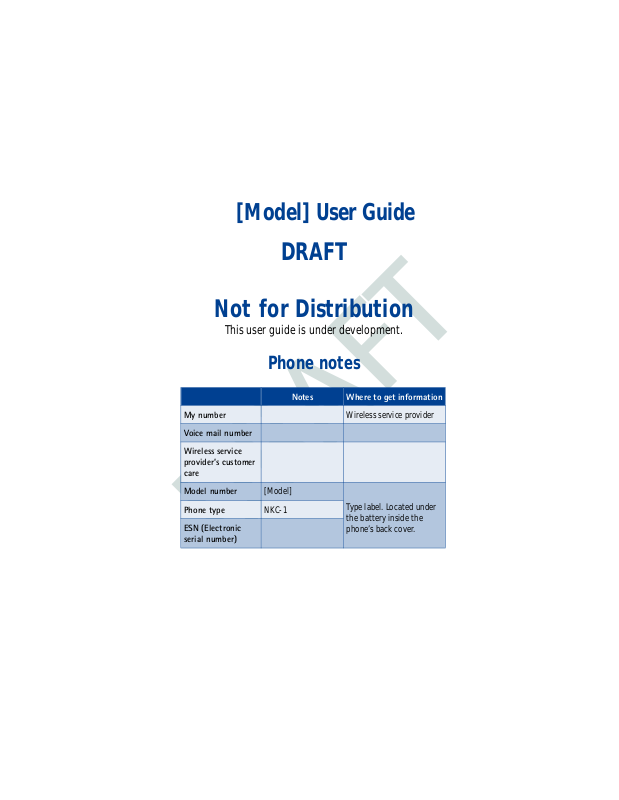

Microsoft NKC-1 Users Manual

[Model] User Guide

DRAFT

Not for Distribution

This user guide is under development.

Phone notes

Notes Where to get information

My number

Voice mail number

Wireless service provider’s customer care

Model number

Phone type

ESN (Electronic serial number)

DRAFT

[Model] NKC-1

Wireless service provider

Type label. Located under the battery inside the phone’s back cover.

The wireless phone described in this guide is approved for use in TDMA and AMPS networks.

LEGAL INFORMATION

________, Issue No. 1

Nokia, Nokia Connecting People and the Original Accessories logos are trademarks of Nokia Corporation and/or its affiliates.

The information contained in this user guide was written for Nokia phone [Model]. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PRO VIDED “ AS I S.” EX CEPT AS REQU IRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CO NTENTS OF THIS DOCUMENT . NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

EXPORT CONTROLS

This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.

__/2002

Includes RSA BSAFE cryptographic or security protocol software from RSA Security.

DRAFT

Contents

1 Safety first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

2 Welcome and quick guide . . . . . . . . . . . . . . . . . . . . . .3

Get the most out of this guide. . . . . . . . . . . . . . . . . . .3

Understand wireless network services. . . . . . . . . . . . .5

E-newsletters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Understand your phone . . . . . . . . . . . . . . . . . . . . . . . .6

Get started with the quick guide. . . . . . . . . . . . . . . .11

Get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3 Basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Switch your phone ON or OFF . . . . . . . . . . . . . . . . . .15

Make and answer calls . . . . . . . . . . . . . . . . . . . . . . . .16

Check the Start screen . . . . . . . . . . . . . . . . . . . . . . . .18

Use the selection keys. . . . . . . . . . . . . . . . . . . . . . . . .20

Scroll keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Check in-phone help. . . . . . . . . . . . . . . . . . . . . . . . . .21

Browse phone menus . . . . . . . . . . . . . . . . . . . . . . . . .21

Set up your phone. . . . . . . . . . . . . . . . . . . . . . . . . . . .26

4 Text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Standard text input. . . . . . . . . . . . . . . . . . . . . . . . . . .27

Write with predictive text . . . . . . . . . . . . . . . . . . . . .28

DRAFT

5 Phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

View the phone book . . . . . . . . . . . . . . . . . . . . . . . . . 31

Save names, numbers and email addresses . . . . . . . 31

Use phone book menus . . . . . . . . . . . . . . . . . . . . . . . 31

Recall names and numbers . . . . . . . . . . . . . . . . . . . . 31

Edit a name or number . . . . . . . . . . . . . . . . . . . . . . . 31

Add a second number to a name . . . . . . . . . . . . . . . 32

Change the number type . . . . . . . . . . . . . . . . . . . . . . 32

Specify the primary number . . . . . . . . . . . . . . . . . . . 32

Erase names and numbers. . . . . . . . . . . . . . . . . . . . . 32

Check memory status. . . . . . . . . . . . . . . . . . . . . . . . . 32

6 Call log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Check missed calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Check dialed calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Check received calls. . . . . . . . . . . . . . . . . . . . . . . . . . 34

Use call timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7 Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Text messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

picture messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Email messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

8 Personalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

DRAFT

9 Advanced calling features . . . . . . . . . . . . . . . . . . . . .45

Understand active-call options . . . . . . . . . . . . . . . . .45

Make an international call. . . . . . . . . . . . . . . . . . . . .46

Use Call forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . .46

Use automatic redial. . . . . . . . . . . . . . . . . . . . . . . . . .47

Use 1-touch dialing . . . . . . . . . . . . . . . . . . . . . . . . . .47

Customize your phone book. . . . . . . . . . . . . . . . . . . .47

Select a system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Use your phone while traveling . . . . . . . . . . . . . . . . .49

10 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Use Keyguard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Understand the security code . . . . . . . . . . . . . . . . . .51

Change your security code . . . . . . . . . . . . . . . . . . . . .51

Restrict calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

11 Special features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Use the alarm clock [ Personalization?] . . . . . . . . . .53

Send phone book information . . . . . . . . . . . . . . . . . .53

Download a ringing tone . . . . . . . . . . . . . . . . . . . . . .54

12 Use prepaid services . . . . . . . . . . . . . . . . . . . . . . . . . .55

Manage prepaid service . . . . . . . . . . . . . . . . . . . . . . .55

Save your access numbers . . . . . . . . . . . . . . . . . . . . .56

Add money to your account. . . . . . . . . . . . . . . . . . . .56

Check your prepaid balance . . . . . . . . . . . . . . . . . . . .56

DRAFT

13 Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Start a new game. . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Snake II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Space impact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Pairs II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

14 Reference information . . . . . . . . . . . . . . . . . . . . . . . . 61

Understand important safety information . . . . . . . . 61

Make emergency calls . . . . . . . . . . . . . . . . . . . . . . . . 65

Certification information (SAR). . . . . . . . . . . . . . . . . 66

A message from the CTIA. . . . . . . . . . . . . . . . . . . . . . 68

A Message from the FDA . . . . . . . . . . . . . . . . . . . . . . 71

Maintain the phone . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Batteries, chargers and accessories . . . . . . . . . . . . . 78

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Technical information . . . . . . . . . . . . . . . . . . . . . . . . 90

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Nokia One-Year Limited Warranty . . . . . . . . . . . . . . 92

DRAFT

Safety first

1 Safety first

Read these simple guidelines before you use your phone. Failure to comply with these guidelines may be dangerous or illegal.

Switch off where prohibited

Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

Road safety comes first

Don't use a wireless phone while driving.

Interference

All wireless phones may get interference, which could affect performance.

Switch off in hospitals

Follow any regulations or rules. Switch the wireless phone off near medical equipment.

Switch off in aircraft

Wireless devices can cause interfe rence in aircraft.

Switch off when refueling

Don't use the wireless phone at a refueling point. Don't use near fuel or chemicals.

Switch off near blasting

Don't use the wireless phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.

DRAFT

Use sensibly

Use only in the normal position. Don't touch the antenna unnecessarily.

FCC Draft [ 1 ]

Qualified service

Only qualified personnel may install or repair phone equipment.

Accessories and batteries

Use only approved accessories and batteries. Do not connect incompatible products.

Water-resistance

Your wireless phone is not water-resistant. Keep it dry.

Calling

Ensure the phone is switched on and in service. Enter the phone number, including the area code, then press [talk]. To end a call, press [end]. To answer a call, press [talk].

Emergency calls

Ensure the phone is switched on and in service. Press [end] as many times as needed (for example, to exit a call, to exit a menu) to clear the display. Enter the emergency number, then press

[talk]. Give your location. Do not end the call until told to do so.

DRAFT

FCC Draft [ 2 ]

Welcome and quick guide

2 Welcome and quick guide

Congratulations on your purchase of a Nokia mobile phone, a new tool for the mobile information society.

Nokia recommends that you read this chapter before you use your new phone. You will find useful information about:

• How to use this guide

• How to understand network services

• How to contact Nokia

• GET THE MOST OUT OF THIS GUIDE

The tips that follow can help you get the most from this guide as you learn to use your phone.

Understand the terms

This guide provides instructions for certain actions.

• Press means to briefly press and release a key. For example, press [0] means press the zero key for 1 second and release.

• Press and hold means to press and hold a key for 1 to 3 seconds (depending on the feature being used), then release the key.

• Press Menu means to press the selection key, located below the word Menu on the phone’s screen.

• Highlighted means that an option on the screen is enclosed in a black box. When an

DRAFT

option is highlighted, it can be activated by pressing [left selection].

FCC Draft [ 3 ]

Follow graphic clues

This guide uses the following icons to alert you to important information.

Tip: Provides information about a quick way or an alternate method for performing an action.

Note: Explains a feature or points out an important concept. Important: Alerts you to information critical to using a feature

correctly.

Caution: Warns you when you may lose information. Warning: Helps you avoid personal injury, damage to the phone,

or property damage.

Learn text conventions

This user guide provides text clues to help make instructions clear and easy to follow. These clues are called conventions.

Convention What it means

bold

bold and blue

italic

Access alternate formats

To request a user guide in one of the following alternate formats, call Nokia Customer Care:

• Braille

Indicates one of the following items:

• The word or phrase appears on the phone’s screen.

• Special text such as Notes and Warnings.

The word is an address on the World Wide Web. Italics indicate emphasis. Pay close attention to any

information in italics.

DRAFT

FCC Draft [ 4 ]

Welcome and quick guide

• Large print

• Audiocassette

• E-text (3.5-inch disk in Microsoft Word or WordPerfect)

Nokia Customer Care Center , USA TTY/TDD Users Onl y

Tel: 1-888-NOKIA-2U (1-888-665-4228) Fax: 1-813-249- 9619

Note: Alternate format user guides are available in English.

Look for updates

From time to time, Nokia may update this user guide to reflect changes or corrections. The latest version may be available at the Nokia site on the internet at

www.nokia.com.

An interactive user guide that provides step-by-step instructions for any of your phone features is available at

www.nokiahowto.com

• UNDERSTAND WIRELESS NETWORK SERVICES

A number of features included in this guide are called Network Services. These are special services that you arrange through your wireless service provider. Before you can take advantage of any of these Network Services, you must subscribe to them through your service provider and obtain instructions for their use from your service provider.

Network services for the Nokia [Model] include:

• Voice mail and voice privacy

• Call waiting, cal l fo rwa r ding an d ca lle r ID

DRAFT

Tel: 1-800-24-NOKIA (1-888-246-6542)

FCC Draft [ 5 ]

• Text and picture messages

• Ability to send your own number

Before you can use any network services, you must sign up with a wireless service provider. Your service provider will supply descriptions of special features and instructions for using their services.

Note: Before you sign up with a provider, make sure they offer the services and features you want. For example, some networks may not suppor t a ll la ngua ge- depen den t c hara cte rs.

• REGISTER YOUR PHONE

Make sure to register your phone at www.warranty .nokiausa.com or 1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs better if you should need to call the center or have your phone repaired.

• E-NEWSLETTERS

When you register your phone, you can sign up for Nokia's e-newsletter Nokia Connections if you would like. You will receive tips and tricks on using your phone, accessory information, and special offers.

• UNDERSTAND YOUR PHONE

[Diagram with cross references - include sentence that tells user to press a key to display li ghts]

DRAFT

FCC Draft [ 6 ]

Welcome and quick guide

Use the antenna

Your phone has a built-in antenna. As with any other radio transmitting device, do not touch the antenna unnecessarily when the phone is switched on.

Contact with the antenna affects c all quality and may cause the phone to operate at a higher power level than needed.

Not touching the antenna during a call optimizes the antenna performance and the talk-time of your phone. Normal position: Hold the phone as you would any other telephone. with the antenna pointed up and over your shoulder.

Use the battery

Before you begin, you need to prepare your phone by charging the battery. Instructions for attaching the optional headset can also be found in this chapter.

INSTALL THE BATTERY

1 Place the battery in the compartment with the label side facing up

and the golden contact area of the battery aligned with the contact prongs inside the phone.

DRAFT

FCC Draft [ 7 ]

2 Press down on the bottom of the battery until it snaps into place.

CHARGE THE BATTERY

1 Con n ect th e le ad from th e

charger to the bottom of the phone. [Need graphic]

2 C on ne ct th e ch a rg er to a

standard wall outlet. The battery power indicator (or battery bar) appears on the screen and starts scrolling. If the phone is on, Charging appears also.

3 When the battery bar stops scrolling, the battery charge is comp lete.

Battery full appears also, if the phone is on.

4 Disconnect the charger from the phone.

REMOVE THE BA T TE RY

If you purchase a new battery or need to access information on the phone’s label, you may need to remove the battery.

DRAFT

Important: Switch off the phone before removing the battery.

FCC Draft [ 8 ]

Welcome and quick guide

Do not puncture or burn the battery. Please recycle or dispose of properly.

1 Remove the back cover of the phone. 2 Look for the battery latch that runs along

the end of the battery nearest the top of the phone.

3 With your thumbs, push the latch away

from the battery until the latch snaps and the battery lifts slightly.

4 T ake out the battery.

Caution: Use only your hands to remove the battery. Do not use any objects that may damage the phone or the battery.

IMPORTANT BATTERY INFO RMATION

Use the following guidelines to obtain the best performance from your battery:

• With your phone turned off, charge your new battery for three hours before its first use. Use the battery until it is fully discharged. Repeat this procedure twice for a total of three charging cycles.

• Battery operation time may be less than the estimated times during the first charges. This condition is normal.

• When the battery is fully discharged, the scrolling bars may not appear immediately.

• After the first charge, you can make and receive calls during the charging cycle, but the calls interrupt the charge. When the phone call ends, the charge will resume.

• The bars on the screen stop scrolling and remain constant when the phone is charged. If you leave the phone connected to the charger,

DRAFT

the battery receives an additional charge.

Note: The battery will accept a “trickle charge” for an additional two hours. See “Reference information” on page 61 for more information on batteries.

FCC Draft [ 9 ]

• Charging time depends on the charger and battery used. See “Batteries” on page80 for charging, talk, and standby times.

PROLONG BATTERY LIFE

A NiMH battery may last longer and have better performance if you fully discharge it from time to time. To discharge your battery leave your phone switched on until the battery drains completely and the phone turns itself off. Ignore any messages to recharge your battery and let the battery completely discharge.

Important: Do not attempt to discharge the battery by any means other than those just described.

DRAFT

FCC Draft [ 10 ]

Welcome and quick guide

• GET STARTED WITH THE QUICK GUIDE

All information needs to be updated.

Make a call Enter phone number, press Answer a call Press Answer with call waiting Press End a call Press Ignore a call Press Redial Press Adjust call volume During a call, press [

Use the in-call menu In a call, press Options. Use 1-touch dialing Press and hold one of keys 2 through 9. Save a name and number Enter a number , pre ss Save, then enter a name and press

Retrieve a name/number Press Names, select Find.

Retrieve a name/number during a call

Check voice mail Press and hold Send a text message Press

Send an E-mail message Press Menu 1-2. Select Write e-mail, enter the recipient’s

Read new message Press Show

Reply to a message

Reply to an E-mail message

Send a business card Retrieve a name from the phone book, press Options,

DRAFT

[talk] or [talk]. [End]. [End]. [talk]

[down]

OK.

Press Options, scroll New call, press Select, press Find, enter first letter of the name.

Menu 1-1

scroll to Send, press OK, enter the recipient’s number, press Send.

address, press OK, enter the subject, pr e ss OK, write the message, press Options, select Send and press OK.

select Send bus. card, enter the recipient’s number, p r ess

Send.

Answer.

twice.

for softer

[1 key]

then press Select. [

[talk].

] for louder

or call your voice mailbox number.

. Write the message. Press Options,

]

Check

FCC Draft [ 11 ]

•GET HELP

Find your phone’s label

When you call Nokia Customer Service or your service provider, you will need to provide specific information about your phone. This information is recorded on the phone’s type label. The type label is located under the battery inside the phone’s back cover. It contains the model and serial numbers as well as other important information about your phone. Please

do not remove or deface the label.

Contact Nokia

If you have a question and have already checked the Troubleshooting section (see page 91), we recommend that you have the following information available before contacting the Nokia Customer Service department or the service provider:

• Your phone’s model number

• ESN (Electronic serial number – located on the label under the

• Your billing address ZIP code

• The phone or accessory in question

battery)

Nokia Customer Care Center , USA

Nokia Mobile Phones 7725 Woodland Center Blvd. Suite #150 Tampa, Florida 33614

Tel:1-888-NOKIA-2U (1-888-665-4228 ) Fax: 1-813-249- 9619

DRAFT

FCC Draft [ 12 ]

Customer Interaction Centre,

Canada

Nokia Products Ltd. 601 Westney Road South Ajax, Ontario L1S 4N7

Tel: 1-888-22-NOKIA (1-888-226-6542) Fax: 1-905-42 7-1070

Welcome and quick guide

Contact your service provider

You may want to save your service provider’s customer support telephone number into your phone. This will let you easily contact your provider if you have questions or issues with your phone service.

Receive accessibility information

Nokia is committed to making mobile phones easy to use for all individuals, including those with disabilities. Nokia maintains an internet site that is dedicated to accessibility solutions. For more information about phone features, accessories and other Nokia products designed with your needs in mind, visit the web site at

www.nokiaaccessibility.com.

ACCESSIBLE FEATURES

The Nokia [Model] wireless phone has many accessible features, including:

• Nibs under the five key for quick reference to the keypad

• Tactile fe edback when you press a key

• Ability to send and receive short text and e-mail messages

• Convenience of 1-touch dialing

• Vibrating alert for incoming calls a nd messages

• Customizable ring tones

LPS-3 MOBILE INDUCTIVE LOOPSET

[Mention activation of Loopset under settings x-ref] The LPS-3 Loopset is a Nokia accessory designed to make the phone more

accessible to hearing-aid users. The loopset gives hearing-impaired users clear access to digital telephony for the first time. It allows people with T-coil equipped hearing aids to make and receive calls without noise interference.

DRAFT

Note: The Loopset is sold as an accessory to the phone.

FCC Draft [ 13 ]

HOW THE LOOPSET WORKS

The LPS-3 Loopset uses inductive technology to transmit sound to a hearing aid equipped with a T-coil. The sound from the phone is amplified more efficiently and background noise is eliminated.

The loopset is easy to use. You wear the loopset around your neck, connect it to your phone, and speak directly toward the microphone. For detailed instructions on using the loopset, refer to the booklet that comes with the LPS-3.

DRAFT

FCC Draft [ 14 ]

Basic operations

3 Basic operations

• SWITCH YOUR PHONE ON OR OFF

[Note: Cross reference the Safety text here Add note - tells u ser what to do if phone s upports mul tiple language s

and display text is not appearing in the correct language, then cross reference to “Set the display language”]

Switch ON your phone

Press and hold the power key [power key] for 2 seconds.

Do not swi tch on t he ph on e whe n wireless phone use is prohibited or when the phone may cause interference or danger.

Switch OFF your phone

Press the power key [power key ]. When Switch off! is highlighted on the screen, Press OK.

DRAFT

FCC Draft [ 15 ]

• MAKE AND ANSWER CALLS

How Do You Action

Make a call 1 Enter the phone number, including area code if

needed.

2 Press [talk]. 3 Hold the phone as you would any other telephone,

with the earpiece over your ear and the microphone near your mouth.

End a call Press [end] to end the call or cancel the call attempt. Answer a call When your phone rings, press .

[mention Keyguard here]

Tip: Press [end] to mute the ringing of an incoming call.

Redial last dialed number

Redial any one of the last 10 dialed numbers

DRAFT

Press [talk] two times. If the number is not there, press [end] to return to the Start screen.

1 Press [talk] to display the first number. 2 Scroll to the number you want to redial. 3 Press [talk] again to dial the number.

FCC Draft [ 16 ]

Basic operations

USE THE KEYPAD

1 Enter the area code and phone number. 2 Press [Talk].

Hold the phone as you would any other telephone, with the antenna pointed up and over your shoulder.

Important: Do not touch the antenna when the phone is switched on. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.

Do not switch on the phone when wireless phone use is prohibited or when it may cause interference or danger.

USE THE PHONE BOOK

1 From the Start screen, press or and scroll to the number you

want.

2 Press to make the call.

To skip ahead quickly in the list, press the number key that matches the first letter of the name.

[List the followin g actions and a cross reference for eac h :]

Make an international call Call service numbers Make a 1-touch dial call [reference Use 1-Touch Dialing]

DRAFT

FCC Draft [ 17 ]

Adjust the earpiece volume

You can adjust the earpiece volume during a call by pressing the scroll keys located just below the screen.

• Press the [up] key to increase the volume.

• Press the [down] key to decrease the volume.

• CHECK THE START SCREEN

When you switch on your phone, a welcome appears, then you see the

Start screen.

The Start screen appears when the phone is idling or standing by.

Understand the Scroll Bar

When you press Menu, a vertical scroll bar appears on the right side of the screen. This scroll bar has a tab which moves up or down to indicate your location in the menu.

Understand indicators & icons

You have two types of identifiers on your phone: icons and indicators. Indicators show the status of something. The phone uses three types of

indicators: signal strength, battery power and handset volume. Icons are graphical representations of a specific item or situation. For

example, an icon appears when you have a voice message in your mailbox.

DRAFT

urrent volume

Start screen

FCC Draft [ 18 ]

Indicators

Basic operations

Signal

strength

indicator

1 Sig nal strength – s hows the signal strength of the wireless network

at your current location. The higher the bar, the stronger the signal.

2 Battery power – shows the battery charge level. The higher the bar,

the more power in the battery.

3Handset volume – shows the earpiece volume level during a call. This

indicator appears only when you press the volume key.

Icons

Screen

Icon

Active call in progress.

Silent has been selected as the current profile.

The phone’s keypad is locked to prevent any accidental key presses.

One (or more) new voice messages waiting.

What it means

Battery

power

indicator

One or more new text messages waiting.

DRAFT

(If blinking, the text message memory is full.) Digital service is available.

FCC Draft [ 19 ]

Screen

Icon

Standard text input mode for entering alpha characters. Press to switch between uppercase and lowercase input.

Predictive text mode for quickly entering text messages. Press to switch between uppercase and lowercase input.

123 mode. This icon appears when you press and hold

while entering text. You can now enter only numbers (not alpha characters). Press and hold again to return to text entry mode.

Special character mode. This appears when you press

while storing names. Once the characters appear, you can select a special character by selecting Insert.

Alarm clock i s set.

• USE THE SELECTION KEYS

The selection key allows you to select various phone options.

At the bottom of the Start screen, two options appear: Menu and Names. The selection keys are located just below these options.

The left selection key is located under Menu. The right selection key is located under Names.

When you press the left selection key at the Start screen, the word Messages appears. The text above the left selection key changes to Select and the text above the right selection key changes to Exit.

DRAFT

What it means

FCC Draft [ 20 ]

Basic operations

When you press the right selection key at the Start screen, options for the

Names feature appear. The text above the left selection key changes to Select and the text above the right selection key changes to Exit.

• SCROLL KEYS

Use the scroll keys, located just below the screen, to scroll through your phone’s menus and phone book.

• CHECK IN-PHONE HELP

Many menu items have brief explanations of menu items. To view the help text, scroll to the menu item and wait for about 10 seconds. Press More to see the next page of the text or Back to exit.

• BROWSE PHONE MENUS

A menu is a list of choic es y ou c an m ake to change settings on you r phone or use various phone features. Each menu can con tai n s eve ral levels of submenus. You can use menus and submenus two ways: by scrolling or by using a shor tc ut .

Scroll through menus

1 At th e Start screen, press Menu, then scroll through the menus using

the and keys.

2 Select Options, Select, or OK by pressing the selection key for the

option you want.

3 Use the scroll and selection keys to navigate the submenus; press

DRAFT

to return to the Start screen

FCC Draft [ 21 ]

Return to the previous menu level

You can return to the previous menu level by pressing the selection key labeled Exit or Back. You can return to the start screen from any menu level by [End].

Exit the menu without changing any settings

Press [End].

Use shortcuts

Menus an d o pti ons ar e nu mbe red so that you can quickly find your wa y t o an o ption . The numbe rs appear in the top right corner of the screen and show your location in t he menu.

1 Press Menu. 2 Within 3 seconds, enter the first number of the menu function you

want to access. Repeat unt i l y o u ha v e ent ered all the numbers.

For example, to select the Silent profile, press Menu 3-2-1 (Menu > Profiles > Silent > Select).

TIPS

• You can scroll upward (backward, so to speak) as well as downward to find some of the most frequently used submenu options.

• You can return to the previous menu level by pressing Back.

• To exit a menu and return to the Start screen, press . If you leave a menu by pressing , you cancel any changes you made.

• Some menus may not appear. Ask your service provider for details.

DRAFT

FCC Draft [ 22 ]

Menu structure

1 MESSAGES

Note: The Messages menu is the only m enu

that requires pressing “0”

Write me ssag e. . . . . . . . . . . . . . . . . . . . . . . 1-1

Write e-m ail . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Outbox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Archive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Erase all. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Picture messa ges. . . . . . . . . . . . . . . . . . . . . 1-7

Voice m e ssa ges. . . . . . . . . . . . . . . . . . . . . . 1-8

Listen to voice m ess ages . . . . . . . . . 1-8-1

Voice m a ilbo x nu m be r . . . . . . . . . . . 1-8-2

2 CALL LOG

Missed calls. . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Dialed calls . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Received calls . . . . . . . . . . . . . . . . . . . . . . . 2-3

Clear call lists . . . . . . . . . . . . . . . . . . . . . . . 2-4

All . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-1

Missed . . . . . . . . . . . . . . . . . . . . . . . . 2-4-2

Dialed. . . . . . . . . . . . . . . . . . . . . . . . . 2-4-3

Received. . . . . . . . . . . . . . . . . . . . . . . 2-4-4

Call timers. . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Dura t ion of la s t c a l l . . . . . . . . . . . . . 2-5-1

Dura t ion of di a le d calls . . . . . . . . . . 2-5-2

DRAFT

Dura t ion of al l c a l ls . . . . . . . . . . . . . 2-5-3

Life t imer. . . . . . . . . . . . . . . . . . . . . . 2-5-4

Clear timers. . . . . . . . . . . . . . . . . . . . 2-5-5

Basic operations

FCC Draft [ 23 ]

3PROFILES

Normal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Select . . . . . . . . . . . . . . . . . . . . . . . . . 3-1-1

Customize. . . . . . . . . . . . . . . . . . . . . . 3-1-2

Ring i n g o p t ions . . . . . . . . . . . .3-1 - 2-1

Ring i n g v o lume . . . . . . . . . . . . 3-1-2-2

Ringing tone. . . . . . . . . . . . . . . 3-1-2-3

Keypad to nes . . . . . . . . . . . . . . 3-1-2-4

Warnin g ton e s . . . . . . . . . . . . . 3-1-2-5

Message a lert ton e . . . . . . . . . 3-1-2-6

Silent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Select . . . . . . . . . . . . . . . . . . . . . . . . . 3-2-1

Customize. . . . . . . . . . . . . . . . . . . . . . 3-2-2

Rename. . . . . . . . . . . . . . . . . . . . . . . . 3-2-3

Meeting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Select . . . . . . . . . . . . . . . . . . . . . . . . . 3-3-1

Customize. . . . . . . . . . . . . . . . . . . . . . 3-3-2

Rename. . . . . . . . . . . . . . . . . . . . . . . . 3-3-3

Outdoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Select . . . . . . . . . . . . . . . . . . . . . . . . . 3-4-1

Customize. . . . . . . . . . . . . . . . . . . . . . 3-4-2

Rename. . . . . . . . . . . . . . . . . . . . . . . . 3-4-3

Pager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Select . . . . . . . . . . . . . . . . . . . . . . . . . 3-5-1

Customize. . . . . . . . . . . . . . . . . . . . . . 3-5-2

Rename. . . . . . . . . . . . . . . . . . . . . . . . 3-5-3

4 SETTINGS

Alarm clock . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Automatic redia l . . . . . . . . . . . . . . . . . . . . . 4-2

DRAFT

On. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1-1

Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1-2

On. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2-1

FCC Draft [ 24 ]

+ 73 hidden pages
