Nokia 3620 and
Nokia 3660
User Guide
The wireless phones described in this guide are approved for use in the GSM network.
LEGAL INFORMATION
Part No. 9310245, Issue No. 1
Copyright ©2003 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Nokia 3620, Nokia 3660, and the Nokia Original Accessories logos are trademarks or registered trademarks of Nokia Corporation. All other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Printed in Canada October 2003
US Patent No 5818437 and other pending patents.
T9 text input software Copyright ©1999-2003. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
The information in this user guide was written for the Nokia 3620 and Nokia 3660 phones. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS
This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law
is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. This device contains a radio transceiver and digital circuitry that supports its features. Operation of the digital device circuitry is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Modifications to this device not authorized by Nokia may void the authority granted for operation of this device and should not be made.
Contents
1 For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 General information . . . . . . . . . . . . . . . . . . . . . . . . . 3
Register your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Follow graphic clues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Network services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Contact Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Learn about accessibility solutions . . . . . . . . . . . . . . . . . . . . . . . . 5 Nokia 3620 and Nokia 3660 phones at a glance . . . . . . . . . . . . . 6 Understand your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Options lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Navigation bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Actions common to all applications . . . . . . . . . . . . . . . . . . . . . . 18 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Shared memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3 Your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answer a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Log—Call log and general log . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 SIM folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4 Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
[ iii ]
Change general settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Phone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Call settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Connection settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Access points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Call restriction (system service). . . . . . . . . . . . . . . . . . . . . . . . . . 50 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Accessory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5 Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Create contact cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Copy between SIM card and phone memory . . . . . . . . . . . . . . . 52 Edit contact cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 View a contact card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Manage contact groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Import data from other Nokia phones . . . . . . . . . . . . . . . . . . . . 60

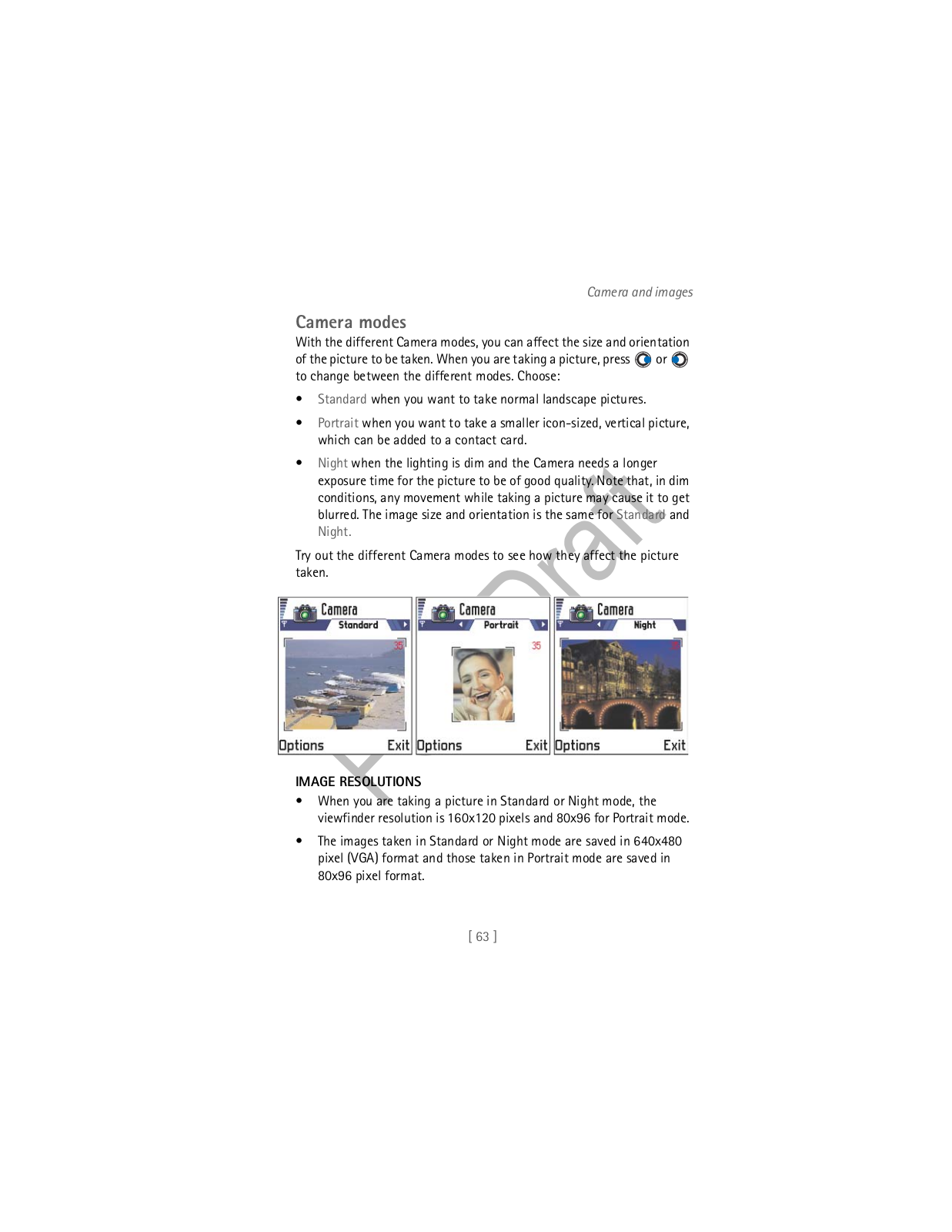

6 Camera and images . . . . . . . . . . . . . . . . . . . . . . . . 61
Take pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Store pictures in images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
7 Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Record a video clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Watch a video clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8 RealOne Player™ . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Play media files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
[ iv ]
Send media files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Change the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

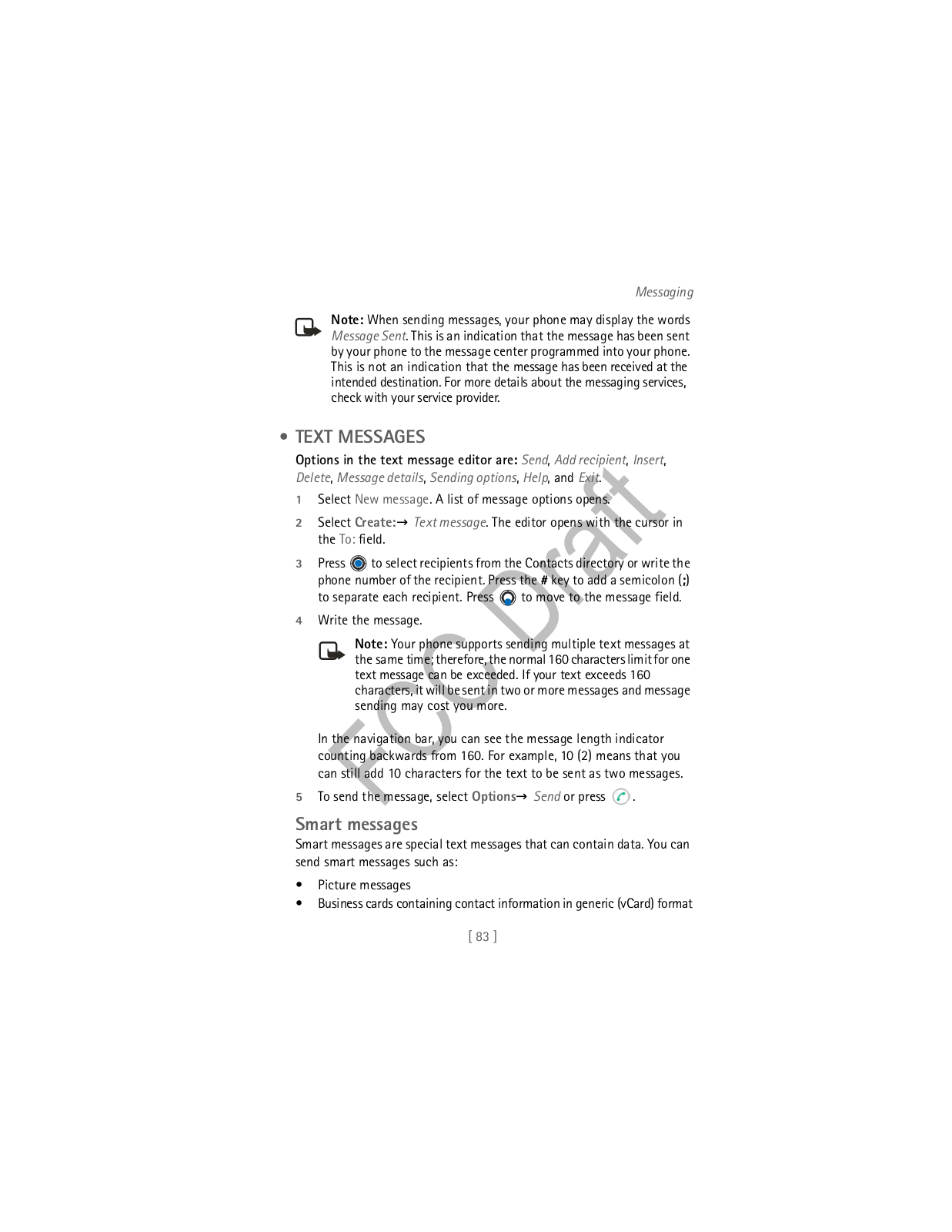

9 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Messaging—General information . . . . . . . . . . . . . . . . . . . . . . . . 77 Write text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Copy text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Create and send new messages. . . . . . . . . . . . . . . . . . . . . . . . . . 82 Text messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Multimedia messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 E-mail messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 My folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Remote mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Outbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 View messages on a SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Cell broadcast (system service) . . . . . . . . . . . . . . . . . . . . . . . . . 101 Service command editor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Messaging settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
10 Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Change the profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Customize profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
11 Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Add shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Shortcut options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
12 Calendar and To-do . . . . . . . . . . . . . . . . . . . . . . . . 113
[ v ]
Create calendar entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Set calendar alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Send calendar entries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 To-do . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Import data from other Nokia phones . . . . . . . . . . . . . . . . . . . 118
13 Extras. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Composer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Converter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 Memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
14 Services (XHTML) . . . . . . . . . . . . . . . . . . . . . . . . . 128
Basic steps for accessing the web. . . . . . . . . . . . . . . . . . . . . . . 128 Phone browser service settings . . . . . . . . . . . . . . . . . . . . . . . . . 129 Browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 View saved pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Download through the browser. . . . . . . . . . . . . . . . . . . . . . . . . 134 End a connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 Browser settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
15 Java™ Applications . . . . . . . . . . . . . . . . . . . . . . . . 137
Install a Java application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 Java application settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
16 Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
[ vi ]
Install applications and software . . . . . . . . . . . . . . . . . . . . . . . 140 Install software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 Remove software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 View memory consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
17 Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Bluetooth connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Infrared connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Connect your phone to a computer . . . . . . . . . . . . . . . . . . . . . 152 Use your phone as a modem . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
18 PC Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
PC Suite documentation and help. . . . . . . . . . . . . . . . . . . . . . . 154 Software and hardware requirements . . . . . . . . . . . . . . . . . . . 155 Install PC Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 Connect your phone to the PC. . . . . . . . . . . . . . . . . . . . . . . . . . 157 Start PC Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Online and offline modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 Connection status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 PC Suite applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 Remove PC Suite from your PC . . . . . . . . . . . . . . . . . . . . . . . . . 161
19 Reference information. . . . . . . . . . . . . . . . . . . . . . 163
Battery statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 Use proper care and maintenance. . . . . . . . . . . . . . . . . . . . . . . 164 Understand important safety information . . . . . . . . . . . . . . . . 165 Certification information (SAR). . . . . . . . . . . . . . . . . . . . . . . . . 169 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Nokia 3620 technical information . . . . . . . . . . . . . . . . . . . . . . 176
[ vii ]
Nokia 3660 technical information . . . . . . . . . . . . . . . . . . . . . . 177 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Message from the CTIA . . . . . . . . . . . . . . . . . . . . 187 Message from the FDA . . . . . . . . . . . . . . . . . . . . . 191 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
[ viii ]
For your safety
Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this user guide.
Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Don’t use a hand-held phone while driving.
INTERFERENCE
All wireless phones may get interference, which could affect performance.
SWITCH OFF IN HOSPITALS
Follow any regulations or rules. Switch the phone off near medical equipment.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Don’t use the phone at a refuelling point. Don’t use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Don’t use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.
USE SENSIBLY
Use only in the normal position. Don’t touch the antenna unnecessarily.
[ 1 ]
QUALIFIED SERVICE
Only qualified personnel may install or repair phone equipment.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect incompatible products.
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
BACKUP COPIES
Remember to make backup copies of all important data.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products.
CALLING
Ensure the phone is switched on and in service. Enter the phone number, including the area code, then press . To end a call, press
. To answer a call, press
.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press as many times as needed (e.g. to exit a call, to exit a menu, etc.) to clear the display. Enter the emergency number, then press
. Give your location. Do not end the call until told to do so.
[ 2 ]
General information
Congratulations on your purchase of a Nokia mobile phone. Your phone provides many functions which are practical for daily use, such as a digital camera, a video recorder, messaging, e-mail, a clock, an alarm clock, a calculator, and a calendar. A variety of Xpress-on™ color covers are also available. Your phone can connect to a PC, laptop, or other device using a data cable, Bluetooth technology, or the built-in IR port. For more information on connectivity, refer to the PC Connectivity Guide. The PC Connectivity guide, Nokia PC Suite, and all related software can be downloaded from the U.S. Mobile Phone products section of www.nokia.com.
• REGISTER YOUR PHONE
Make sure to register your phone at www.warranty.nokiausa.com or call 1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs better if you should need to call the center or have your phone repaired.
When you register your phone, you can sign up for the Nokia e-newsletter, Nokia Connections. You will receive tips and tricks on using your phone, accessory information, and special offers.
• FOLLOW GRAPHIC CLUES
This guide uses certain icons to alert you to important information.
Note: Explains a feature or points out an important concept.
Important: Indicates critical information on using a feature.
Warning: Helps you avoid personal injury, damage to the phone, or property damage.
• NETWORK SERVICES
The wireless phones described in this guide are approved for use on the following networks:
[ 3 ]
•Nokia 3620: GSM 850 and 1900
•Nokia 3660: GSM 900, 1800, and 1900
A number of features included in this guide are called Network Services. These are special services that you arrange through your wireless service provider. Before you can take advantage of any of these Network Services, you must subscribe to them through your service provider and obtain instructions for their use from your service provider.
Note: Some networks may not support all language-dependent characters and/or services.
Warning:All of the features in this device, other than the alarm, require the phone to be switched on to use the features. Do not switch the phone on when wireless phone use may cause interference or danger.
Check the model number of any charger before use with this device. This device is intended for use when supplied with power from ACP-12U, ACP-8U, LCH-9, and LCH-12.
Warning:Use only batteries, chargers, and accessories approved by the phone manufacturer for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone and may be dangerous.
For availability of approved accessories, please check with your dealer.
When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord.
• CONTACT NOKIA
To help Nokia promptly answer your questions, please have the following information available before contacting the Nokia Customer Care Center:
•Your phone model number: Nokia 3620
Nokia 3660
[ 4 ]
General information
•Type number
•IMEI number
•Your local zip code
•The phone or accessory in question
Note: The model, type, and IMEI numbers are located on the back of your phone under the battery and memory card.
Nokia Customer Care Center, USA |
Customer Care, |
|
Canada |
||
|
||
|
|
|
Nokia Mobile Phones |
Nokia Products Ltd. |
|
7725 Woodland Center Blvd. |
601 Westney Road South |
|
Suite #150 |
Ajax, Ontario L1S 4N7 |
|
Tampa, Florida 33614 |
Tel: 1-888-22-NOKIA |
|
|
||
Tel: 1-888-NOKIA-2U |
(1-888-226-6542) |
|
(1-888-665-4228) |
Website: www.nokia.ca |
|
Fax: 1-813-249-9619 |
||
|
||
For TTY/TDD users: 1-800-24-NOKIA |
|
|
(1-800-246-6542) |
|
|
|
|
• LEARN ABOUT ACCESSIBILITY SOLUTIONS
Nokia is committed to making mobile phones easy to use for all individuals including those with disabilities. For more information, visit www.nokiaaccessibility.com.
For more information on accessibility accessories, see “Mobile Inductive Loopset LPS-3” on p. 173 and “Phone Adapter HDA-9” on p. 173.
[ 5 ]
•NOKIA 3620 AND NOKIA 3660 PHONES AT A GLANCE
1Power key ( )
(on top of the phone)
2Earpiece
3Display screen
4Left selection key
5Send key ( )
6Edit key () Insert numbers,
symbols, or punctuation into text messages.
7Menu key ( ) Opens the main
menu screen. Accesses all applications.
8* key ( )
9# key ( )
10Clear key ( )
11End key ( )
12Right selection key
1
2
3
4 |
|
|
13 |
|||||||
|
||||||||||
|
|
|
|
|
|
12 |
||||
|
|
|
|
|||||||
5 |
|
|
|
|
|
|
11 |
|||
|
|
|
||||||||
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
|
|
|
|
10 |
|||
|
|
|
|
|
|
|
|
|
||
|
|
|
8 9
13Scroll key
Used to navigate up, down, left, and right on the display screen and adjust volume during a call. Press the center to select or open items, snap pictures, etc.
[ 6 ]
General information
• UNDERSTAND YOUR PHONE
Insert the SIM card and load the battery
Important:Keep all miniature SIM cards out of the reach of small children.
Note: Before removing the covers, always switch off the power and disconnect the phone from the charger or any other device. Always store and use the phone with the covers attached.
1Open the cover with the back of the phone facing you. Press the locking catch (1) in
the direction of the |
1 |
arrow and slide the cover (2).
2 Remove the battery and find the SIM card slot (3).
3Place the SIM card carefully into the slot. Make sure that the beveled corner on the SIM card faces the bottom of the phone and that the golden contact area on the card faces downward.
2
Camera lens
3
4 |
4 Slide the silver catch over the SIM card to |
|
secure it. (4). |
||
|
[ 7 ]
5 Replace the battery (5). |
|
Align the golden contacts |
|
of the battery with the |
5 |
corresponding connectors on the phone, and push the opposite end of the battery until it snaps into place. Replace the cover.
Charge the battery
1Connect the lead to the charger. You will hear it click into place.
2Connect the charger to an ac wall outlet.
3 Connect the lead from the charger to the base of the phone. The battery indicator bar starts scrolling. Note, that you can use the phone while charging.
4When the battery is fully charged, the bar stops scrolling. Disconnect
the charger from the phone and then from the ac outlet. See also “Battery statements” on p. 163.
Note: Remove the battery only when the phone is switched off.
[ 8 ]
General information
Switch the phone on or off
Press and hold the power key located on top of the phone.
Warning:Do not switch on the phone when wireless phone use is prohibited or when it may cause interference or danger.
Antenna
Your phone has a built-in antenna (gray area in picture). As with any other radio transmitting device, do not touch the antenna unnecessarily when the phone is switched on.
Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed. Not touching the antenna area during a phone call optimizes the antenna performance and the talk time of your phone.
PIN code
The PIN code is usually supplied with the SIM card. If you are requested to enter a PIN code, Key in the code (displayed as ****) and press OK.
Security code
If you are requested to enter a security code, key in the security code (displayed as *****) and press OK.
The factory setting for the security code is 12345. For more information on the access codes, see “Security” on p. 46.
[ 9 ]
Time and date
Use the number keys 1–9 to key in the current time and then the date. Press OK to accept the settings.
The Scroll key
Press the Scroll key on the top , bottom
, left
and right
(shown with blue arrows 1 to 4) to move in the Menu. Scroll to an application or a folder and press the Scroll key in the middle
(shown with blue arrow 5) to open it. For example:
1To open an Options list, press Options. The small arrow at the bottom
of the display (1) indicates if the list contains more items. The lighter the arrow, the fewer the items left in the list.
2To scroll down the Options list, press
. A small arrow to the right (2) indicates a sublist. To open a sublist, press
.
To start an action, scroll to a command and press .
3Press to go to a tab (3), a new page, or view in an application.
Make a call
3 5
1
4 2
2
1
3
1In the standby mode, key in the phone number, including the area code. If you make a mistake, press to clear numbers.
2Press and wait for the answer.
3Press to finish the call (or to cancel the call attempt).
[ 10 ]
General information
Copy from SIM card to phone memory
If you have stored names and phone numbers on a SIM card, you can copy them to the phone memory.
1Press to open the main Menu.
2Use the Scroll key to move to Contacts.
3Press to open Contacts.
4When you open Contacts for the first time, the phone asks you if you
want to copy all your contact data from the SIM card to the phone memory. Press OK.
See also “Copy between SIM card and phone memory” on p. 52.
Keyguard
Use the keyguard (keypad lock) to prevent the keys from being accidentally pressed.
To lock: Press and the * key. When the keys are locked,
appears on the display.
To unlock: Press and the * key.
When the keyguard is on, press to answer a call. During a call, the phone can be operated normally.
Note: When Keyguard is on, calls to the emergency number programmed into your phone (for example, 911) may be possible. Key in the emergency number and press . The number is displayed after you have keyed in the last digit.
Shortcuts in the standby mode
•Press to open the main Menu.
•Press to open a list of the last dialed numbers. You can then press
to view received and missed calls lists.
•Press to open Contacts.
•To change the profile, press briefly and select the profile.
•Press the 1 key and to call your voice mailbox. See “Call your
[ 11 ]
voice mailbox” on p. 23.
Shortcuts in editors
•Press to open a list of commands related to writing and editing text. Press
to switch between predictive, traditional text input
and number mode (Predictive text→ Predictive text on, Alpha mode, or Number mode).
•As you write, press the 1 key repeatedly to access different kinds of special characters, or press the * key to open a list of special characters.
•Press the 0 key to enter a space.
•Use to mark items. Press and hold
and at the same time, move the Scroll key to mark text to be copied or erased.
Other shortcuts
In the main Menu, press and hold to view all the applications that are currently open. From this view, you can switch between applications by scrolling to one and pressing
.
Standby mode
The indicators described are |
|
|
B |
C |
|||||
shown when the phone is ready |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
for use, with no characters |
A |
|
|
|
|
|
|
|
D |
|
|
|
|
|
|
|
|||
keyed in. In this state, the |
|
|
|
|
|
|
|||
|
|
||||||||
|
|
|
|
|
|
||||
phone is in the standby mode. |
|
|
|
|
|
|
|
|
|
AShows the signal strength of the cellular network at your current location. The higher the bar, the stronger the signal. The antenna symbol is replaced with the GPRS symbol when the
E
F
[ 12 ]
General information
GPRS connection has been set to When available and a connection is available in the system or in the current cell. See “GPRS Packet data” on p. 39, and “GPRS” on p. 45.
BShows an analog or a digital clock. Also see settings for “Date and time” on p. 45 and settings for Background image in “Standby mode” on p. 36.
CIndicates which cellular system the phone is currently using.
DShows the battery charge level. The higher the bar, the more charge there is left in the battery.
ENavigation bar: shows the currently active profile. If the selected profile is Normal, the current date is displayed instead of the profile name. For further information, see “Navigation bar” on p. 18 and “Profiles” on p. 109.
FShows the current shortcuts assigned for the selection keys and
.
Note: Your phone has a screen saver. If there are no actions for five minutes, the display is cleared and a screen saver becomes visible. To deactivate the screen saver, press any key. See “Display” on p. 36.
You can change the selection key shortcuts and the background image. See the settings for “Standby mode” on p. 36.
Icons
Several icons may appear on the main screen while the phone is in the standby mode. The icons that are displayed depend on whether they are related to activity, data connections, or accessories.
[ 13 ]
ACTIVITY INDICATORS
One or more of the following icons may be shown to indicate that an activity has occurred:
Indicates that you have received new messages to the Inbox in Messaging. If the indicator is blinking, the phone memory is low and you must delete some data. For further information, see “Memory low” on p. 178.
Indicates that you have received new e-mail.
Indicates that you have received one or more voice messages. See “Call your voice mailbox” on p. 23.
Indicates that there are messages waiting to be sent in Outbox. See “Outbox” on p. 100.
Indicates that Ringing options has been set to Silent and Message alert tone to None in the currently active profile. See “Profiles” on p. 109.
Indicates that the phone’s keypad is locked.
Indicates that you have an active alarm. See “Clock” on p. 123.
Indicates that a Bluetooth connection is active. Note that, when data is transmitted using a Bluetooth connection, is shown.
Indicates that all calls to the phone are forwarded. Indicates that all calls to the phone are forwarded to a voice mailbox. See “Settings for call forwarding” on p. 27. If you have two phone lines, the forward indicator for the first line is and for the second line
. See “Line in use (system service)” on p. 37.
Indicates that you can make calls using phone line 2 only (system service). See “Line in use (system service)” on p. 37.
[ 14 ]
General information
DATA CONNECTION INDICATORS
When an application is establishing a data connection, one of the indicators below blinks in the standby mode. When an indicator is shown continuously, the connection is active.
for a data call
for a high-speed data call
shown instead of the antenna symbol when there is an active GPRS connection
for when the GPRS connection is put on hold during voice calls
for a fax call
for a Bluetooth connection
for an infrared connection
Note: Check with your service provider for availability of high-speed data calls.
ACCESSORY INDICATORS
The following icons indicate that an accessory is connected to your phone:
a headset is connected
a Loopset is connected
[ 15 ]
• MENU
Press (Menu key) to open the main Menu. In the Menu, you can access all the applications in your phone.
Options in the Menu are: Open, List view /
Grid view, Move, Move to folder, New folder,
Help, and Exit.
•Move in the Menu—Press the Scroll key
on the top , bottom
, left
and right
(shown with blue arrows 1 to 4) to move in the Menu.
•Open applications or
folders—Scroll to an application or a folder and press the Scroll key in the middle to open it.
• Close applications— |
|
Backstep by pressing |
|
Back or Exit as |
|
many times as is needed to |
|
return to the standby mode |
Use the Scroll key to move |
or select Options→ Exit. |
|
If you press and hold , the phone returns to the standby mode and the application is left open in the background.
Pressing always ends a call, even if another application is active and displayed.
When you switch the phone off, applications are closed and any unsaved data is saved automatically.
Select Options→ List view if you want to view the applications in a list.
[ 16 ]
General information
Rearrange the Menu
You can rearrange the Menu in any order you like. You can move applications that you use more often from a folder to the Menu, and place applications you use less often in folders. You can also create new folders.
1Scroll to the item you want to move and select Options→ Move. A check mark is
placed beside the application.
2Move the selection where you want the application to be and press OK.
Switch between applications
If you have several applications open and want to switch from one application to another press and hold (Menu key). The application switching window opens showing a list of open applications. Scroll to an application and press
.
Note: If memory is getting low, the phone may close some applications. The phone saves any unsaved data before an application is closed.
• OPTIONS LISTS
In this user guide, you can see the Options list commands that tell you what commands are available in different views and situations. The available commands change depending on the view you are in. In some situations, when you press the Scroll key, a shorter options list appears showing only the main commands available in the view.
Online help
Your phone has a help function that you can access from any application or view. Press Options→ Help to access the online help.
[ 17 ]
• NAVIGATION BAR
In the navigation bar, you can see:
•Small arrows or tabs which tell you if there are more views, folders, or files you can move to.
•Editing indicators, see “Write text” on p. 78.
•Other information, for example, 2/14 in the following figure means
that the current picture is the second of 14 pictures in the folder. Press to see the next picture.
•ACTIONS COMMON TO ALL APPLICATIONS Open items for viewing
If you want to open an item when you are viewing a list of files or folders, scroll to the item and press the Scroll key, or select Options→ Open.
Edit items
To open an item for editing, you sometimes need to first open it for viewing and then select Options→ Edit, if you want to change its contents.
Rename items
To give a new name to a file or folder, scroll to it and select
Options→ Rename.
Remove, delete items
Scroll to the item and select Options→ Delete or press . To delete many items at a time, you first need to mark them.
Mark an item
There are several ways to select items when you are in a list.
• |
To select one item at a time, scroll to it and select Options→ |
Mark/ |
|
|
Unmark→ Mark or press |
and the Scroll key at the same time. |
|
|
A check mark is placed next to the item. |
|
|
• |
To select all items in the list, select Option→ Mark/Unmark→ |
Mark all. |
|
|
|
[ 18 ] |
|
General information
For information on how to insert text and numbers, see “Write text” on p. 78.
Mark multiple items
Press and hold and at the same time move the Scroll key down or up. As the selection moves, a check mark is placed next to the items. To end the selection, stop the scrolling with the Scroll key and then release
.
•After you have selected all the items you want, you can move or
delete them by selecting Options→ Move to folder or Delete.
• To unmark an item, scroll to it and select Options→ Mark/Unmark→ Unmark or press and the Scroll key at the same time.
Create folders
To create a new folder, select Options→ New folder. You are asked to give a name to the folder (max. 35 letters).
Move items to a folder
To move items to a folder or between folders, select Options→ Move to folder (not shown if there are no folders available). When you select Move to folder, a list of available folders opens and you can also see the root level of the application (for moving an item out of a folder). Select the location you want the item to be moved to and press OK.
Search for items
You can search for a name, file, folder, or shortcut by using the search field. In some situations the search field is not visible automatically, and you can activate it by selecting Options→ Find or just by starting to key in letters.
1To search for an item, start to key in text in the search field. The phone immediately starts to search for matches and moves the selection to the best match.
[ 19 ]
To make the search more accurate, key in more letters and the selection moves to the item that best matches the letters.
2 When the correct item is found, press to open it.
•VOLUME CONTROL
When you have an active call or are listening to a sound, press to increase or
to decrease the volume level.
• LOUDSPEAKER
Your phone has a loudspeaker for handsfree use. The loudspeaker allows you to speak and listen to the phone from a short distance without having to hold the phone to your ear. The loudspeaker can be used during a call, with sound applications, and when viewing multimedia messages. RealOne Player™ uses the loudspeaker by default when you watch a video. Using the loudspeaker makes it easier to use other applications during a call.
Voice volume icons:
—for earpiece mode.
—for loudspeaker mode.
ACTIVATE THE LOUDSPEAKER
To use the loudspeaker during an already active call, select Options→ Activate loudsp. or press Loudsp.. A tone is played,
is shown in the navigation bar, and the volume indicator changes.
Volume indicators for earpiece and loudspeaker modes are shown in the navigation bar.
Note: The loudspeaker cannot be activated when you have a headset connected to the phone.
Important:Do not hold the phone near your ear when the loudspeaker is in use because the volume may be extremely loud.
[ 20 ]
General information
The loudspeaker needs to be activated separately each time for phone calls, but the sound applications such as Composer and Recorder use the loudspeaker by default.
TURN OFF THE LOUDSPEAKER
When you have an active call or a sound is playing, select Options→
Activate handset or press Handset.
• HEADSET
To adjust the volume level when a headset is connected to your phone, press or
or use the headset’s keys.
• SHARED MEMORY
The following features in your phone use shared memory: contacts, text, text messages, multimedia messages, images and ringing tones, video recorder and player, calendar and to-do notes, and downloaded applications. Using any of these features leaves less memory for other features. This is especially true with heavy use of any of the features. For example, saving many images may take all of the shared memory and your phone may display that the memory is full. In this case, delete some of the information or entries reserving the shared memory.
[ 21 ]
•MAKE A CALL
1In the standby mode, key in the phone number, including the area
code. Press or
to move the cursor. Press
to remove a number.
For international calls, press the * key twice for the international prefix (the + character replaces the international access code) and then key in the country code, the area code without 0, and the phone number.
To adjust the volume during a call, press to increase and
to decrease the volume level.
Note: Calls described here as international may, in some cases, be made between regions of the same nation.
2Press to call the number.
3Press to end the call (or to cancel the call attempt).
Normal position: Hold the phone as you would hold any other telephone.
Note: Pressing will always end a call, even if another application is active and displayed on the display.
[ 22 ]
