■ Introduction
This installation guide has been prepared to provide the basic information necessary to
install the car kit. This guide is not intended to be definitive, because different types and
models of vehicles will require different installation work. The information given is for
general guidance only.
The terms of warranty demand that this car kit be installed by an experienced installer and only genuine Nokia parts are used. An end user
should never attempt to install this car kit without professional assistance as the installation requires special tools and knowledge.
All installations should take into account any special requirements of
the customer. However, should the customer require an installation
that is illegal or unsafe these facts must be pointed out to the customer and a policy of non-compliance adopted.
Please refer to the phone's User's Guide for instructions on the phone's
operation, care and maintenance, including important safety information.
Copyright © Nokia 2003. All rights reserved.
Note: Read the warnings below before beginning the installation procedure.
Nokia Corporation 935XXXX issue 1
2
CK-IW IG_en1.fm Page 3 Tuesday, February 25, 2003 9:57 AM
■ WARNINGS
1. ENSURE THAT THE VEHICLE'S BATTERY IS DISCONNECTED BEFORE
YOU START THE INSTALLATION PROCEDURE, AND THAT IT REMAINS
DISCONNECTED DURING THE PROCEDURE.
2. DO NOT SMOKE OR USE OPEN FLAMES WHEN WORKING NEAR THE
VEHICLE'S FUEL SYSTEM.
3. ENSURE THAT THE VEHICLE'S ELECTRICAL CABLES, HYDRAULIC
LINES, FUEL LINES, AND SAFETY EQUIPMENT ARE NOT DAMAGED
DURING INSTALLATION.
4. ENSURE THAT NORMAL CONTROL AND OPERATION OF THE VEHICLE
IS NOT IMPAIRED BY THE INSTALLATION, PARTICULARLY THE BRAKES
AND STEERING. ENSURE THAT AIRBAG OPERATION IS NOT
OBSTRUCTED.
5. ELECTRONIC AND OTHER SOPHISTICATED SYSTEMS (e.g. SPEED
CONTROL, ABS ANTI-LOCK BRAKE, FUEL INJECTION-, NAVIGATION-,
AND AIR-BAG SYSTEMS) ARE RELATIVELY IMMUNE TO
MALFUNCTION CAUSED BY NEARBY RADIO TRANSMISSIONS. HOW
EVER, SHOULD YOU EXPERIENCE FALSE OPERATION OF THESE
SYSTEMS OR ARE IN ANY DOUBT WHATSOEVER AS TO THEIR
FUNCTIONALITY, PLEASE CONSULT THE VEHICLE'S DEALER.
6. THE CAR KIT IS SUITABLE FOR USE ONLY IN VEHICLES WITH A 12 V
NEGATIVE GROUNDING. USE ON OTHER SUPPLY VOLTAGES OR
ALTERNATIVE POLARITY WILL DAMAGE THE EQUIPMENT.
7. THE PHONE SHOULD NOT BE LEFT SWITCHED ON FOR EXTENDED
PERIODS WITHOUT RUNNING THE VEHICLE'S ENGINE. FAILURE TO
COMPLY COULD DRAIN THE VEHICLE'S BATTERY.
3
CK-IW IG_en1.fm Page 4 Tuesday, February 25, 2003 9:57 AM
■ Unpacking
Carefully unpack the equipment and ensure that the following
items are present.

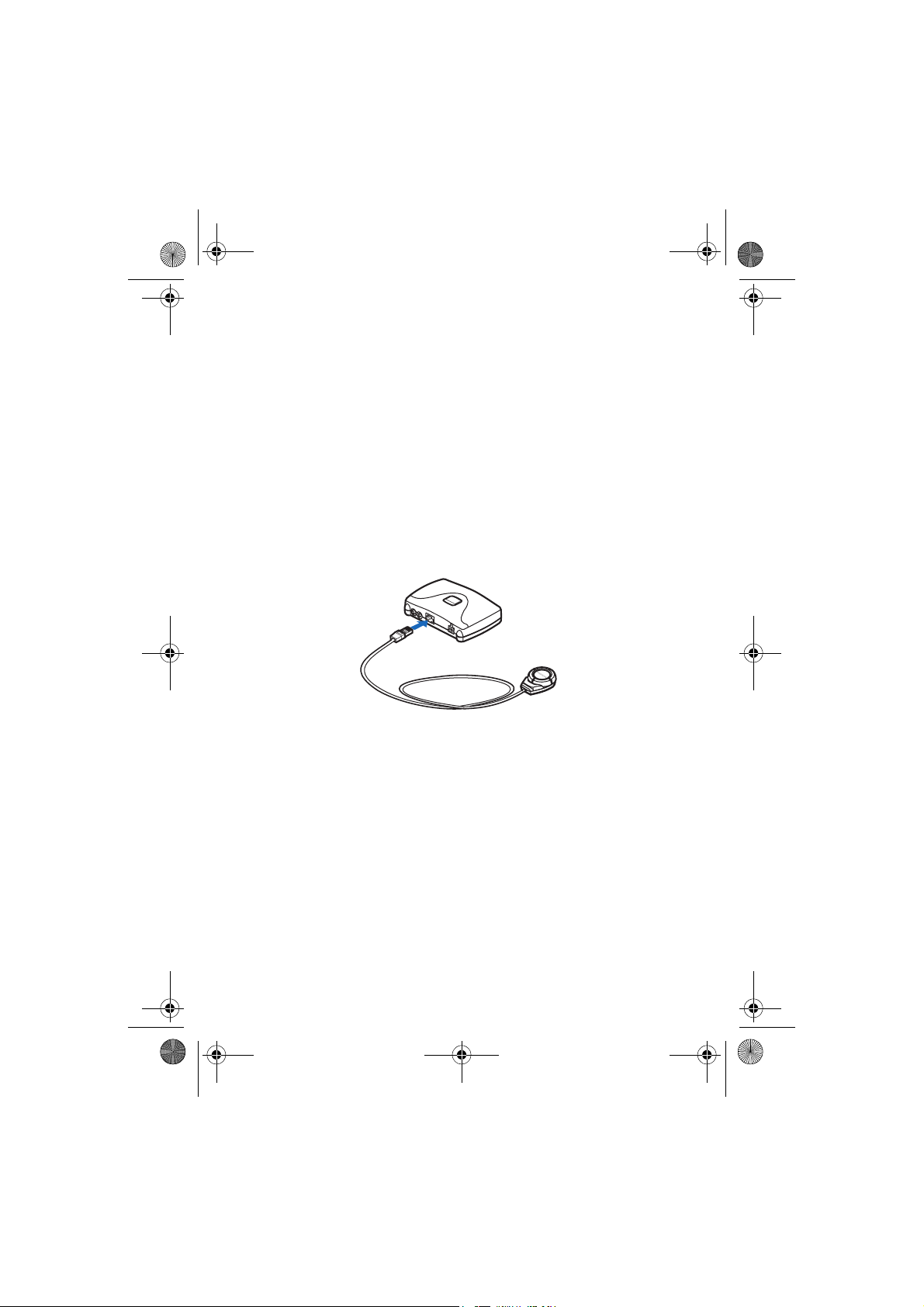

Wireless Hands Free Unit HF-1W
Remote Control Button CU-2
Power Cable CA-7P
Mounting Plate HH-1
HF Microphone HFM-8
HF Speaker HFS-12
