Microsoft BH-111 Users Manual
Nokia Bluetooth Stereo Headset
Cyan
Magenta
Yellow
Black
BH-111
9227195/1
Cyan
Magenta
Yellow
Black
Cyan
Cyan
Magenta
Yellow
Black
Magenta
Yellow
Black
Introduction
Cyan
Magenta
Yellow
Black
About your headset
With the Nokia Bluetooth Stereo
Headset BH-111, you can handle
calls hands-free and enjoy your
favourite music on the go. The
headset is easy to pair with
compatible devices, and you can
switch smoothly between music
and calls.
The surface of this product is nickelfree.
Warning: This product may
contain small parts. Keep them out
of the reach of small children.
Parts of the product are magnetic.
Metallic materials may be attracted
to the product. Do not place credit
cards or other magnetic storage
media near the product, because
information stored on them may be
erased.
ENGLISH
Read this user guide carefully before
using the product. Also, read the user
guide for the device that you connect
to the product.
For support, go to
www.nokia.com/support.
About Bluetooth
connectivity
You can use Bluetooth to make a
wireless connection to other
compatible devices, such as
mobile devices.
Devices do not need to be in direct
line-of-sight, but they must be
within 10 metres (33 feet) of each
other. The connection may be
affected by obstructions such as
walls or other electronic devices.
This device is compliant with
Bluetooth Specification 2.1 + EDR
supporting the following profiles:
Cyan
Magenta
Yellow
Black
Headset Profile (HSP) 1.0, Hands-Free
Cyan
Magenta
Yellow
Black
Profile (HFP) 1.5, Advanced Audio
Distribution Profile (A2DP) 1.2, and
Audio Video Remote Control Profile
Get started

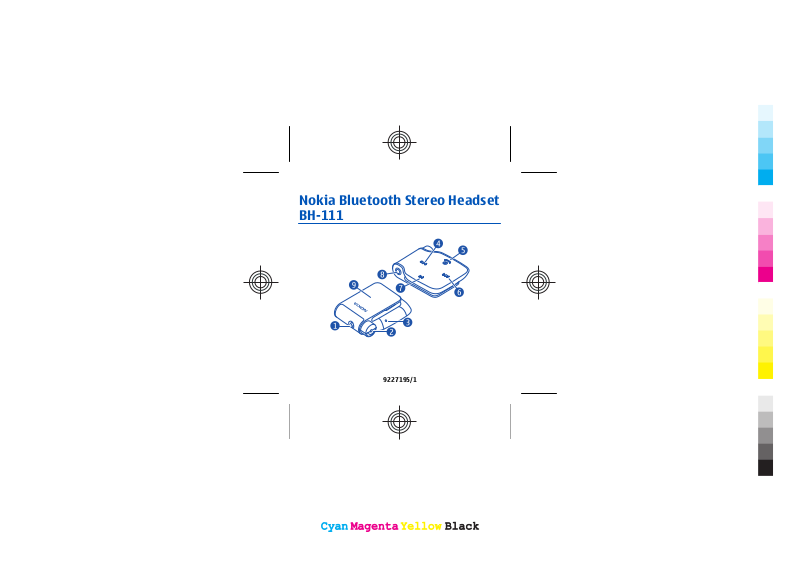

Keys and parts
1 Charger connector
2 Volume knob and indicator light
3 Microphone
4 Rewind key
5 Multifunction key
6 Fast-forward key
7 Play/Pause key
8 Audio connector (3.5 mm)
9 Clip
Charge the battery
Before using the headset, you
must charge the battery.
ENGLISH
(AVRCP) 1.0. Check with the
manufacturers of other devices to
determine their compatibility with
this device.
When you unplug a charger, hold
and pull the plug, not the cord.
1. Connect the charger to a wall
outlet.
2. Connect the charger cable to
the charger connector on the
headset. The red indicator light
turns green when the battery i s
fully charged.
3. Disconnect the charger from
the headset, then from the wall
outlet.
The fully charged battery has
power for up to 7 hours of talk
time, up to 6 hours of music
playing time, or up to 120 hours of
standby time.
Cyan
Magenta
Yellow
Black
When the battery charge is low,
Cyan
Magenta
Yellow
Black
the headset beeps every 5
minutes and the red indicator
light flashes. When the battery is
charging, the red indicator light is
on.
Check the battery charge —
With your headset connected to
your mobile device, press
green light indicates a sufficient
charge level. If the light is yellow,
you may need to recharge the
battery soon. If the light is red,
recharge the battery.
. A
Switch the headset on
Press and hold for 2 seconds.
The headset beeps, and a green
indicator light flashes once. The
headset automatically connects
to the last connected device. If you
have never paired your headset
with a device, or you have cleared
ENGLISH
the pairings, pairing mode is
activated.
Switch the headset off — Press
and hold
headset beeps, and a red indicator
light flashes once.
If the headset is not connected to
a device within 30 minutes, it
switches off.
for 4 seconds. The
Pair and connect your
headset
Before using the headset, you
must pair and connect it with a
compatible device.
1. Make sure the headset is
switched off.
2. Activate the Bluetooth feature
on your compatible device.
3. Switch the headset on. If you
have never paired your headset
with a device, or you have
cleared the pairings, pairing
Cyan
Magenta
Yellow
Black
