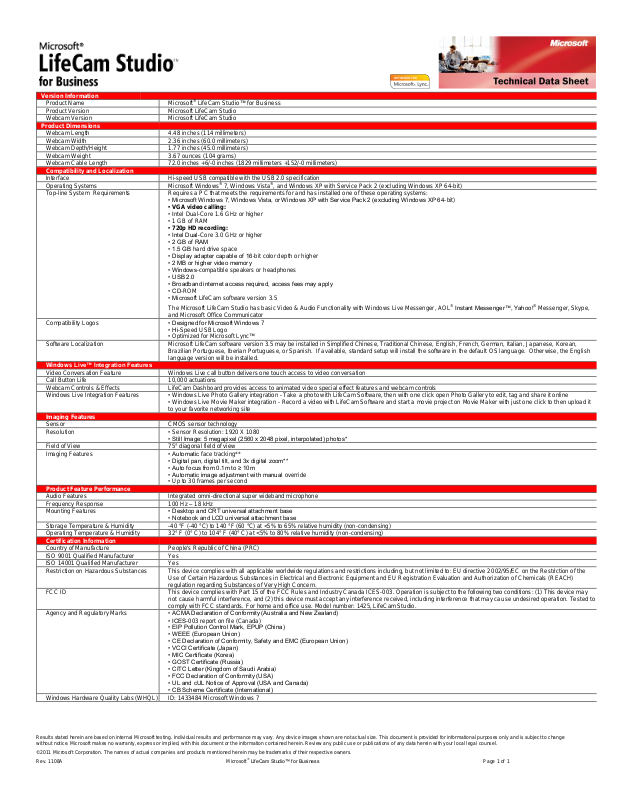

Microsoft 5WH-00002 Product Data Sheet

Version Information

Product Name

Microsoft® LifeCam Studio™ for Business

Product Version

Microsoft LifeCam Studio

Webcam Version

Microsoft LifeCam Studio

Product Dimensions

Webcam Length

4.48 inches (114 millimeters)

Webcam Width

2.36 inches (60.0 millimeters)

Webcam Depth/Height

1.77 inches (45.0 millimeters)

Webcam Weight

3.67 ounces (104 grams)

Webcam Cable Length

72.0 inches +6/-0 inches (1829 millimeters +152/-0 millimeters)

Compatibility and Localization

Interface

Hi-speed USB compatible with the USB 2.0 specification

Operating Systems

Microsoft Windows® 7, Windows Vista®, and Windows XP with Service Pack 2 (excluding Windows XP 64-bit)

Top-line System Requirements

Requires a PC that meets the requirements for and has installed one of these operating systems:

• Microsoft Windows 7, Windows Vista, or Windows XP with Service Pack 2 (excluding Windows XP 64-bit)

• VGA video calling:

• Intel Dual-Core 1.6 GHz or higher

• 1 GB of RAM

• 720p HD recording:

• Intel Dual-Core 3.0 GHz or higher

• 2 GB of RAM

• 1.5 GB hard drive space

• Display adapter capable of 16-bit color depth or higher

• 2 MB or higher video memory

• Windows-compatible speakers or headphones

• USB 2.0

• Broadband internet access required, access fees may apply

• CD-ROM

• Microsoft LifeCam software version 3.5

The Microsoft LifeCam Studio has basic Video & Audio Functionality with Windows Live Messenger, AOL® Instant Messenger™, Yahoo!® Messenger, Skype, and Microsoft Office Communicator

Compatibility Logos

• Designed for Microsoft Windows 7

• Hi-Speed USB Logo

• Optimized for Microsoft Lync™

Software Localization

Microsoft LifeCam software version 3.5 may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

Windows Live™ Integration Features

Video Conversation Feature

Windows Live call button delivers one touch access to video conversation

Call Button Life

10,000 actuations

Webcam Controls & Effects

LifeCam Dashboard provides access to animated video special effect features and webcam controls

Windows Live Integration Features

• Windows Live Photo Gallery integration - Take a photo with LifeCam Software, then with one click open Photo Gallery to edit, tag and share it online

• Windows Live Movie Maker integration - Record a video with LifeCam Software and start a movie project on Movie Maker with just one click to then upload it

to your favorite networking site

Imaging Features

Sensor

CMOS sensor technology

Resolution

• Sensor Resolution: 1920 X 1080

• Still Image: 5 megapixel (2560 x 2048 pixel, interpolated) photos*

Field of View

75° diagonal field of view

Imaging Features

• Automatic face tracking**

• Digital pan, digital tilt, and 3x digital zoom**

• Auto focus from 0.1m to ≥ 10m

• Automatic image adjustment with manual override

• Up to 30 frames per second

Product Feature Performance

Audio Features

Integrated omni-directional super wideband microphone

Frequency Response

100 Hz – 18 kHz

Mounting Features

• Desktop and CRT universal attachment base

• Notebook and LCD universal attachment base

Storage Temperature & Humidity

-40 °F (-40 °C) to 140 °F (60 °C) at <5% to 65% relative humidity (non-condensing)

Operating Temperature & Humidity

32° F (0° C) to 104° F (40° C) at <5% to 80% relative humidity (non-condensing)

Certification Information

Country of Manufacture

People's Republic of China (PRC)

ISO 9001 Qualified Manufacturer

Yes

ISO 14001 Qualified Manufacturer

Yes

Restriction on Hazardous Substances

This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals (REACH) regulation regarding Substances of Very High Concern.

FCC ID

This device complies with Part 15 of the FCC Rules and Industry Canada ICES-003. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model number: 1425, LifeCam Studio.

Agency and Regulatory Marks

• ACMA Declaration of Conformity (Australia and New Zealand)

• ICES-003 report on file (Canada)

• EIP Pollution Control Mark, EPUP (China)

• WEEE (European Union)

• CE Declaration of Conformity, Safety and EMC (European Union)

• VCCI Certificate (Japan)

• MIC Certificate (Korea)

• GOST Certificate (Russia)

• CITC Letter (Kingdom of Saudi Arabia)

• FCC Declaration of Conformity (USA)

• UL and cUL Notice of Approval (USA and Canada)

• CB Scheme Certificate (International)

Windows Hardware Quality Labs (WHQL)

ID: 1433484 Microsoft Windows 7

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
