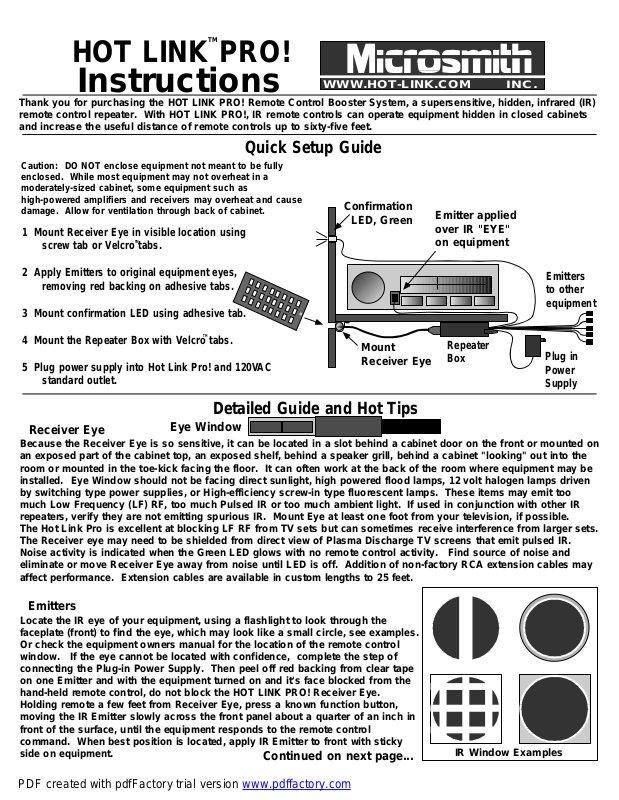

Microsmith EXPX6 User Manual

TM

HOT LINK PRO!

Instructions

Thank you for purchasing the HOT LINK PRO! Remote Control Booster System, a supersensitive, hidden, infrared (IR)
remote control repeater. With HOT LINK PRO!, IR remote controls can operate equipment hidden in closed cabinets
and increase the useful distance of remote controls up to sixty-five feet.

WWW.HOT-LINK.COM

INC.

Quick Setup Guide

Caution: DO NOT enclose equipment not meant to be fully
enclosed. While most equipment may not overheat in a
moderately-sized cabinet, some equipment such as
high-powered amplifiers and receivers may overheat and cause
damage. Allow for ventilation through back of cabinet.

1 Mount Receiver Eye in visible location using
screw tab or Velcro tabs.

2 Apply Emitters to original equipment eyes,
removing red backing on adhesive tabs.

3 Mount confirmation LED using adhesive tab.

4 Mount the Repeater Box with Velcro tabs.

5 Plug power supply into Hot Link Pro! and 120VAC
standard outlet.

TM

TM

Confirmation
LED, Green

Mount
Receiver Eye

Emitter applied
over IR "EYE"
on equipment

Repeater
Box

Emitters
to other
equipment

Plug in
Power
Supply

Detailed Guide and Hot Tips

Receiver Eye

Because the Receiver Eye is so sensitive, it can be located in a slot behind a cabinet door on the front or mounted on
an exposed part of the cabinet top, an exposed shelf, behind a speaker grill, behind a cabinet "looking" out into the
room or mounted in the toe-kick facing the floor. It can often work at the back of the room where equipment may be
installed. Eye Window should not be facing direct sunlight, high powered flood lamps, 12 volt halogen lamps driven
by switching type power supplies, or High-efficiency screw-in type fluorescent lamps. These items may emit too
much Low Frequency (LF) RF, too much Pulsed IR or too much ambient light. If used in conjunction with other IR
repeaters, verify they are not emitting spurious IR. Mount Eye at least one foot from your television, if possible.
The Hot Link Pro is excellent at blocking LF RF from TV sets but can sometimes receive interference from larger sets.
The Receiver eye may need to be shielded from direct view of Plasma Discharge TV screens that emit pulsed IR.
Noise activity is indicated when the Green LED glows with no remote control activity. Find source of noise and
eliminate or move Receiver Eye away from noise until LED is off. Addition of non-factory RCA extension cables may
affect performance. Extension cables are available in custom lengths to 25 feet.

Emitters

Locate the IR eye of your equipment, using a flashlight to look through the
faceplate (front) to find the eye, which may look like a small circle, see examples.
Or check the equipment owners manual for the location of the remote control
window. If the eye cannot be located with confidence, complete the step of
connecting the Plug-in Power Supply. Then peel off red backing from clear tape
on one Emitter and with the equipment turned on and it's face blocked from the
hand-held remote control, do not block the HOT LINK PRO! Receiver Eye.
Holding remote a few feet from Receiver Eye, press a known function button,
moving the IR Emitter slowly across the front panel about a quarter of an inch in
front of the surface, until the equipment responds to the remote control
command. When best position is located, apply IR Emitter to front with sticky
side on equipment.

Eye Window

Continued on next page...

IR Window Examples

PDF created with pdfFactory trial version www.pdffactory.com

Emitters, Continued...

Route wires to avoid covering tape/disc slots and doors on equipment that might pull Emitter wires upon opening or
jamb on wires when closing. Lengthening emitter wires requires marking polarity before cutting.
Factory custom lengths available to 25 feet.

Non-contact option: Peel off double-stick tape
from Emitter, tape wire to shelf or clamp wire
under a foot of one piece of equipment. Then
bend wire so that it holds the Emitter in front
of, and pointing at, the "EYE" on the
equipment, up to three inches away.

CD Loader

RIGHT

Stay clear of doors

WRONG

Green Confirmation LED

Mount the Green LED in a very discrete slot using the adhesive tab. When functioning properly, the LED
is off when not receiving a remote command, blinks when activated by a remote control, or blinks once upon
unplugging the Receiving Eye's RCA connector at the Repeater Box. The LED lights inadvertently if detecting
spurious IR or LF RF entering the Receiver Eye. See Receiver Eye details for tips on eliminating noise.

Repeater Box and Emitter Wires

The Repeater Box is well shielded by an internal metal box and stands up to a great deal of RF noise injection.
However, with enough RF noise it is possible to inject noise into the Emitter wires if they are too close to the fly-back
transformer in a TV set. Avoid bundling emitter wires near the back of the TV. For rear screen projection sets, the
fly-back transformers are mounted in the lower part of the TV set and can be easily avoided.

Power Supply

Hook up the Plug-in Power Supply by simply plugging in the connector at the end of the cord into the power input
connector on the back of the Repeater Box, then plug Power Supply into suitable 110-120 Volt standard wall outlet.

Do not block doors

System Check

Verify operation by first turning your system on with the remote control. Verify further by testing various remote
commands with the equipment hidden. Next try aiming remote control at furniture, walls, floor and ceiling, etc. to find
infrared light reflecting objects to bounce commands to the HOT LINK PRO! Remote Control Booster and your home
theater system.

Operating Tips

The HOT LINK PRO! automatically extends its range as ambient light decreases, and hence has more sensitivity the
darker the surrounding light. It may perform slightly differently in the day than at night. HOT LINK PRO! receives
remote commands even if your equipment is behind you or overhead, like projection televisions. High-efficiency
screw-in type fluorescent lights and some radio-type IR repeaters can interfere with HOT LINK PRO! Some receivers
use high frequency remote controls above 60Khz that are not repeatable through Hot Link Pro!
Remember to keep your remote batteries fresh.

Accessories

Additional Receiver Eye for connecting to other IR emitters, supplied with "Y" RCA adapter
Coax Extender Cable, custom lengths to 25 feet. (additional length may reduce IR distance)
12 Volt Adapter with fuse for use in motor homes
Power Supply for use with 120VAC
Replacement adhesive tape, free for the asking

For indoor use only.
Liability of product limited to cost of product replacement.
Non-specified use is the responsibility of the user.
DO NOT OPEN Power Supply or Repeater Box: No user serviceable parts inside.
Do not expose HOT LINK PRO! to water, moisture or rain.
Connect only to 110-120 VAC. Or 12VDC using fused Power Adapter
Refer servicing to qualified personnel. Read all instructions before use, retain for future reference.

For service, and accessories,
call: 800-999-8846
WWW.HOT-LINK.COM

PDF created with pdfFactory trial version www.pdffactory.com

WWW.HOT-LINK.COM

INC.

P.O. BOX 7829
Jackson, WY 83002
