Product Operation Manual
MSH-RD080PTW IR Middle Speed P/T IP Camera
Microseven Systems, Inc.
Walnut, California 91789, USA
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
- 2 -
First Edition (April 2008)
Copyright Notice
Copyright © 2002-2008 Microseven Systems, Inc.
All Rights Reserved.
Microseven Systems, Inc. provides this operation manual “as is” without warranty of any kind, either
express or implied, including, but not limited to the implied warranties of merchantability and fitness
for a particular purchase. Microseven Systems, Inc. may make improvements and/or changes in the
product(s) and/or the program(s) described in this manual at any time and without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are made
periodically to the information herein; these changes will be incorporated in new editions of this
publication.
Microseven Systems, Inc.
675 Brea Canyon Road, Suite 12
Walnut, California, USA
TEL (909) 598 – 8553
FAX (909) 598 – 1415
Email support@microseven.com
Website www.microseven.com
Trademarks
Any product names used herein are for identification purposes only and may be trademarks of their
respective companies. Microseven is a registered trademark of Microseven Systems, Inc.
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
Notes:
Please read the following label before connecting or operating the equipment.
VER:1.0
CAUTION
RISK OF E LECT RICS HOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
- 3 -
CAUTION:
SHOCK,DO NOT REMOVE COVER
(OR BACK).
PARTS INSIDE.REFER SERVICING
TO QUALIFIED SER VICE PERSONNEL。
NO USER -SERVICEABLE
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of exposed
wiring within the product’s enclosure that
may be of sufficient magnitude to constitute
a risk of electric shock to people.
ELECTRIC TO RE DUCE T HE R ISK OF
The serial number of this product can be
found on the top of the unit. Please note
the serial number of this unit in the space
provide and retain this book as a
permanent record of your purchase to aid
identification in the event of theft.
Model:
Product №:
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
- 4 -
Contents
1. Preface ………………………………………………………………………………… 5
2. Key Features ………………………………………………………………………………… 5
3. Notes …………………………………………………………………………………………… 6
4. Instructions of Main Parts ……………………………………………………………… 7
5. Connections ……………………………………………………………………… 8
6. Camera Operation Instruction …………………………………………………………..……… 10
7. Installation ………………………………………………………….……………………….……… 10
8. Basic System Diagram and Operating Circumstance ………………………………… 12
9. Specification …………………………………………………………………………….…… 12
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
1. Preface
MSH-RD080PTW IR Middle Speed P/T IP Camera adopts SONY CCD, with bright and exquisite
images. As video & audio multi-media equipment that based on network transmission, which
adopts built-in and multi-media communication technology, the camera is a multi-media network
terminal that can directly connect to the network.
The camera adopts all-built-in technology, which can be connected to the TCP/IP network without
any other equipment and realize the video & audio collection, code compression and
transmission function. Outstanding H.264 compression code arithmetic guarantees the minimum
occupation of bandwidth, and built-in Web Server enables users to visit the IP camera through IE
or special surveillance management software.
Furthermore, the camera adopts big body design, which not only makes it have good appearance,
but also guarantees the reliable running of the camera.
2. Key Features
- 5 -
Minimum Illumination: 0.5Lux
Horizontal resolutions: 480TVL
H.264 compression format can optimize the image quality and the bandwidth occupation.
Realize NTSC/PAL switch.
Dual-channel output for analog & digital signal.
Built in web server, can be viewed directly by IE.
E-mail and FTP network linkage alarm.
Built in Linux operation system.
Built in SD card storage (SD card not included).
Can be equipped with wireless transmission module to provide IEEE 802.11b/g standard
wireless transmission, and to improve the flexibility of installation.
Other Features
Powerful software function: provide network video server hardware as well as total software
solution.
Unique video decoding function: can decode the data package of network camera to
composite video signal, and display it on monitors.
Flexible visit mode: one end to multi-end, multi-end to one end.
Motion detection alarm, I/O status alarm and LOGO update alarm function, with 12x16
detecting areas& 9 level sensitivity ;When the moving objects are discovered in set areas, an
alarm signal will be transmitted to appointed client-end through network, image capturing &
recording or other relevant actions can be set.
Digital matrix function: can realize common analog matrix functions like switch & setup auto
switch time etc. Special keyboard can be directly connected to the network, controlled speed
domes and switched images.
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
Built in multi network protocol: Support TCP/IP protocol, allow data sending and receiving by
WAN or LAN.
Intercom function, can realize site to remote client-end intercom by audio I/O of network
camera.
Unique video decoding function: can decode the IP video data to composite video signal, and
display it on monitors
Can get high quality black/white image in low illumination
Pan range: 355°, tilt range: 90°
Provide SDK interface to realize multi-system integration, easy for second development for
more functions.
Supports dual-stream, can select different saving code ratio and remote transmit ratio
according to demand.
3. Notes
A. Do not attempt to disassemble the camera yourself.
- 6 -
To prevent electric shock, do not remove screws or covers. No part inside should be repaired
by inexperienced users. Ask a qualified service person for serving.
B. Handle the camera with care.
Avoid striking or shaking. The camera could be damaged by improper handling or storage.
C. Do not expose the camera to rain or moisture.
If rain or moisture, turn the power off immediately and ask a qualified service person for
servicing. Moisture can damage the camera and also create the danger of electric shock.
D. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry soft
cloth to clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent
and wipe gently.
E. Pay great attention to the CCD faceplate cleaning
Do not clean the CCD with strong or abrasive detergents. Use lens tissue or a cotton tipped
applicator and ethanol.
F. Never face the camera towards the sun.
Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at
the sun or other very bright objects. Otherwise, blooming or smear maybe caused.
G. Do not operate the camera beyond the specified temperature, humidity or power source.
Use the camera under conditions where temperature is between -10°
- + 50° and humidity is
below 95%.
H. The power supply for MSH-RD080PTW is DC12V.
The adapter with electric current of over 2A is recommended.
I. The pictures in the manual are for reference.
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
4. Instructions for Main Parts
①
T
U
O
N
1
2
3
4
I
②
- 7 -
⑦
⑤
⑥
④
③
⑧
⑨
⑩
① Audio out put terminal (yellow)
② Video output terminal
③ Audio input terminal (black)
④ Power Supply Connector
DC 12V power supply connector (please connect according to the marked polarity.)
⑤ USB Port
⑥ Alarm input/output cable
⑦ RJ45 network connector
⑧ Dome body
⑨ IR LED board
⑩ Lens
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
5. Connections
5.1 Power terminal connections
5.2 Video output terminal connection
- 8 -
5.3 Audio input terminal connection
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
5.4 Audio output terminal connection
5.5 Audio output terminal connection
4 Alarm Lines
- alarm input A
- alarm input B
- 9 -
- alarm output A
- alarm output B
5.6 Network socket terminal connection
5.7 USB interface conne ctor
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
5.8 Audio output terminal connection
- 8PIN standard GM line
- Ultra-five
- Recommended maximum length: 80m
- 10 -
6. Camera Operation Instruction
5.1 PTZ operation
Users can use control the PTZ by client software to realize “up, down, left, right” movements to
track moving targets or mobile video images.
5.1 PTZ auto scan operation
Auto scan function is a continuous action of 355 ° even speed when the lens is on a fixed status.
a. Make sure that the other action of the PTZ should be stopped before activate the “Auto
Scan” operation.
b. Click the button “ “ to activate this function.
c. During PTZ “Auto Scan” operation, double-click the button to stop scanning.
7. Installation
" The following installation should be undertaken by qualified service personnel or
system installers.
" The following installation method is indoor hoisting.
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
" Ask an expert about the bearing capability and structure of the installation surface,
if the surface is not solid enough, the camera may drop down. To get the weight of
camera please refer to the product specification.
7.1 Fix the screws
Get the fixed screws to fix the pedestals onto the installing surface, with back side upward
and front side downward.

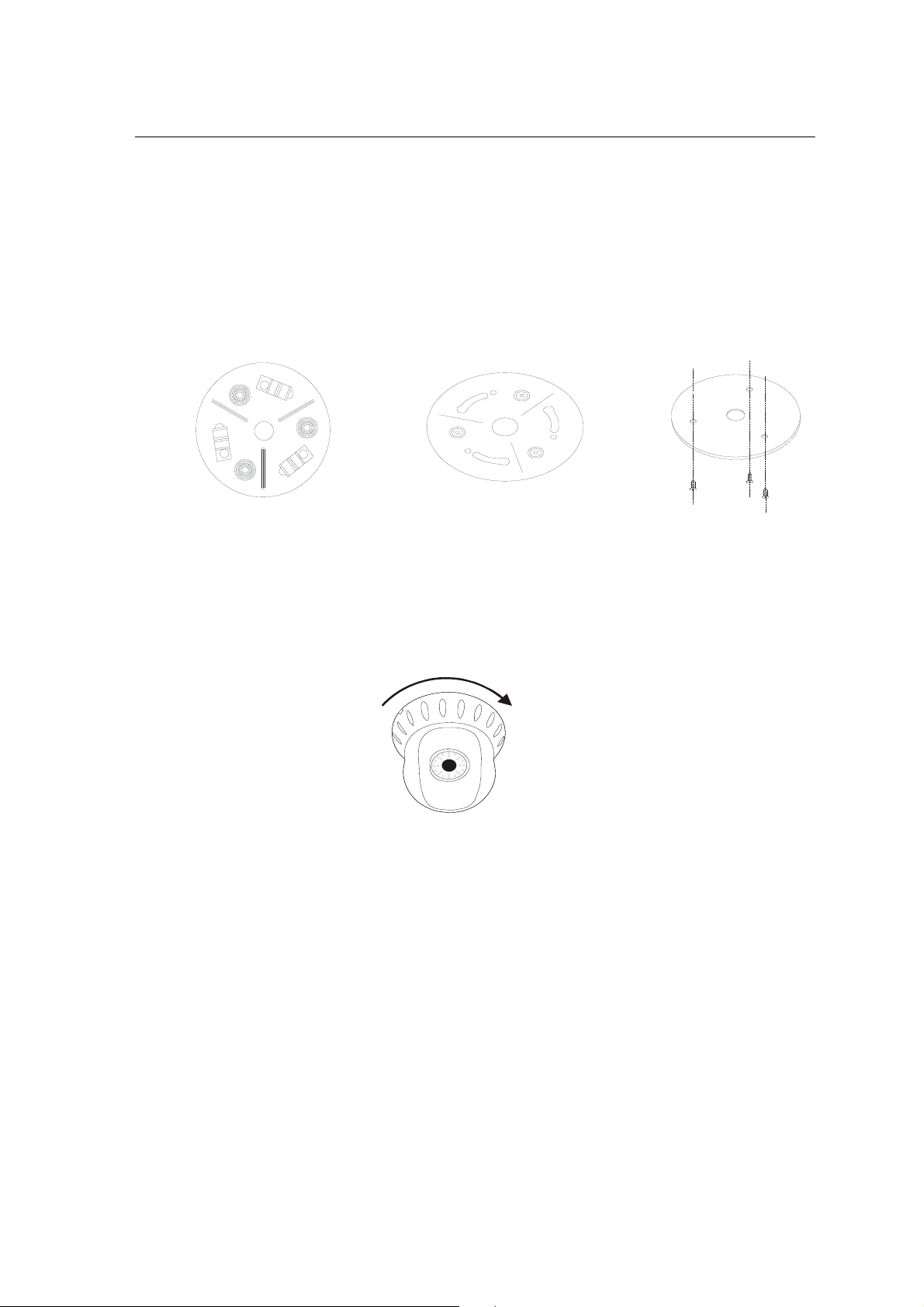

Fig.1 A Pedestal (back side) Fig.2 B Pedestal (front side) Fig.3 Install Pedestal
- 11 -
7.2 Install cameras
Aim the screw remaining outside part into the hole of the camera, twist the camera
clockwise to the end.
Fig. 4 camera installation
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
8. Basic System Diagram and Operating Circumstance
-
Operating environment
After the equipment installed and connected to the network, it should be operated on Server
Software Platform of Microseven Digital Video Server.
- 12 -
9. Specifications
Model
Pick-up Device 1/3″ SONY Super HAD CCD
Scanning Area 4.89mm (H) × 3.67mm (V)
Pixels
Horizontal Resolution 480 Lines
Minimum Illumination 0.5Lux (Color); 0Lux (Black/white, IR on)
Scanning
Scanning Mode Interline scanning
Video Output 1.0V[p-p] Composite Video Signal/75Ω,
Image / Audio
Compression Standard
S/N Ration ≥ 48dB (AGC OFF, Weight On)
AGC ≥ 18dB
ELC 1/120S
Synchronization Mode Internal/Power supply synchronization selectable
Lens 4mm/6mm/8mm optional
MSH-RD080PTW
795(H)×597(V)PAL 768(H)×494(V) NTSC
625 Lines/50 Fields/25 Frame(PAL)
525 Lines/60 Fields/30 Frame(NTSC)
H.264 / G.711
F Coefficient F2.0/2.5
Pan Range 20° - 355°
Tilt Range 0° - 90°
Pan/Tilt Speed 12°/s (Pan) 10°/s (Tilt)
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Microseven® MSH-RD080PTW IR Middle Speed P/T IP Camera
Basic Function UP, down, left, right and auto pan/tilt
IR night vision distance Max. 20m
LED IR wavelength 850mm, φ5 x 24 pcs
QCIF: 176 * 144 (PAL), 176*120 (NTSC)
Resolution
Frame Rate 25 fps (PAL), 30 fps (NTSC)
Bit Stream 100 Kbps - 3 Mbps, CBR/VBR adjustable
Network Interface 1 RJ-45, 10M/100M self-adjustable
Network Protocol
Network Time Check Provide the interface for network clock check
Equipment Search Support equipment searching by Ethernet broadcasting
Built-in Watchdog Timing detection of chips & software work status, auto system reset
Remote Reposition Realize remote reposition through network
Audio Input 1 channel, RCA interface, single track
CIF: 352 * 288 (PAL), 352*240 (NTSC)
H-D1: 720 x 288 (PAL), 360*480 (NTSC)
D1: 720 x 576 (PAL), 720*480 (NTSC)
TCP/IP, UDP/IP, HTTP, FTP, ICMP, Telnet, IGMP, PPPOE, DDNS,
DNS, DHCP
- 13 -
Compressed Code Rate 32Kps
Wireless Function IEEE 802.11b/g wireless module
Built-in Storage SD card built-in storage
Temperature/Humidity - 10°C - +50°C, ≤ 95%
Power Supply DC 12V, 2A
Dimensions/Weight (with lens) Φ6.6 in X 6.3 in (H) / 1.9 lb.
© 2002-2008 Microseven Systems, Inc. All Rights Reserved.
Loading...
