Microseven Systems MSHRC080W Product Operation Manual

Product Operation Manual

MSHRC080W Network IP Camera

Microseven Systems, Inc.

Walnut, California 91789, USA

Microseven® MSHRC080W IR Network IP Camera

- 2 -

First Edition (April 2008)

Copyright Notice

Microseven Systems, Inc. provides this operation manual “as is” without warranty of any kind, either express or implied, including, but not limited to the implied warranties of merchantability and fitness for a particular purchase. Microseven Systems, Inc. may make improvements and/or changes in the product(s) and/or the program(s) described in this manual at any time and without notice.

This publication could contain technical inaccuracies or typographical errors. Changes are made periodically to the information herein; these changes will be incorporated in new editions of this publication.

Microseven Systems, Inc.

675 Brea Canyon Road, Suite 12 Walnut, California, USA

TEL (909) 598 – 8553 FAX (909) 598 – 1415 Email support@microseven.com Website www.microseven.com

Trademarks

Any product names used herein are for identification purposes only and may be trademarks of their respective companies. Microseven is a registered trademark of Microseven Systems, Inc.

Microseven® MSHRC080W IR Network IP Camera

- 3 -

Notes:

Please read the following label before connecting or operating the equipment.

Notes: Please not mov e the cover (or back) to reduce the danger of electric shock. No part insid e can be repaired by users. Refer servicing to qualified personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of exposed wiring within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to people.

The serial number of this product can be found on the top of the unit. Please note the serial number of this unit in the space provide and retain this book as a permanent record of your purchase to aid identification in the event of theft.

Model:

Product №:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Notes： Please not move the cover (or back) to reduce the danger of electric shock. No part inside can be repaired by users. Refer servicing to qualified personnel.

Microseven® MSHRC080W IR Network IP Camera

- 4 -

Contents

1. Preface ………………………………………………………………………………… 5

2. Key Features ………………………………………………………………………………… 5

3. Notes …………………………………………………………………………………………… 6

4. Instructions of Main Parts ………………………………………………………….…… 7

5. Connections …………………………………………………………………………………. 7

6. Installation …………………………………………………………………………………………… 9

7. Basic System Diagram and Operating Circumstance ………………….……………… 11

8. Specification …………………………………………………………………..……………… 11

9. Frequently Asked Questions ……………………………………………….……………… 13

10. Accessories …………………………………………………………………..……………… 13

Microseven® MSHRC080W IR Network IP Camera

- 5 -

1. Preface

MSHRC080W Network IP cameras adopts SONY CCD, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network.

The camera adopts all-built-in technology, which can be connected to the TCP/IP network without any other equipment and realize the video & audio collection, code compression and transmission function. Outstanding H.264 compression code arithmetic guarantees the minimum occupation of bandwidth, and built-in Web Server enables users to visit the IP camera through IE or special surveillance management software.

Furthermore, the camera adopts big body design and built-in fans, which not only makes it have good appearance, but also guarantees the reliable running of the camera.

2. Key Features

 Minimum Illumination:

Color : 0.5 Lux

B&W : 0 Lux

 Horizontal resolutions: 480TVL

 H.264 compression format can optimize the image quality and the bandwidth occupation.

 Built in web server, can be viewed directly by IE

 Image capture

 Email and FTP network linkage alarm.

 Can be equipped with wireless transmission module to provide IEEE 802.11b/g standard

wireless transmission, and to improve the flexibility of installation.

Other Features

 Powerful software function: provide network video server hardware and total software solution.

 Unique video decoding function: can decode the data package of network camera to

composite video signal, and display it on monitors.

 Flexible visit mode: one end to multi-end, multi-end to one end.

 Adopt high quality IR LED, night vision distance reaches up to 40m.

 Motion detection alarm, I/O status alarm and LOGO update alarm function, with 12x16

detecting areas& 9 level sensitivity ;When the moving objects are discovered in set areas, an alarm signal will be transmitted to appointed client-end through network, image capturing & recording or other relevant actions can be set.

 Built in multi network protocol: Support TCP/IP protocol, allow data sending and receiving by

WAN or LAN.

 Built-in Linux operation system.

Microseven® MSHRC080W IR Network IP Camera

- 6 -

3. Notes

A. Do not attempt to disassemble the camera yourself.

To prevent electric shock, do not remove screws or covers. No part inside can be repaired by users. Ask a qualified service person for serving.

B. Handle the camera with care.

Avoid striking or shaking. The camera could be damaged by improper handling or storage.

C. Wireless model does not support waterproof.

D. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry soft

cloth to clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent and wipe gently.

E. Never face the camera towards the sun.

Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the sun or other very bright objects. Otherwise, blooming or smear maybe caused.

F. Do not operate the camera beyond the specified temperature, humidity or power source.

Use the camera under conditions where temperature is between -10°

- + 50° and humidity is

below 90%.

G. The power supply for MSHRC080W is DC12V.

The adapter with electric current of over 2A is recommended.

Microseven® MSHRC080W IR Network IP Camera

- 7 -

4. Instructions for Main Parts

O U T

I

N

⑨

1

2

3

4

1 2

11

12

①

②

③

④

⑤

⑥

⑦

⑧

① Network connector

② Video output terminal

③ Alarm input/output cable

④ Audio input terminal (black)

⑤ Power supply terminal

⑥ RS485 port

⑦ Shell

⑧ Shield

⑨ LED panel

⑩ Lens

5. Connections

5.1 Power Supply Connection

5.2 Video Output Connection

Microseven® MSHRC080W IR Network IP Camera

- 8 -

5.3 Audio Input Connection

5.4 Alarm Connection

5.5 Network Port Connection

5.6 RS485 Communication Port Connection

Alarm cable:

Green cable: passive alarm input A

Brown cable: passive alarm input B

Red cable: passive alarm output A

Purple cable: passive alarm output B

Microseven® MSHRC080W IR Network IP Camera

- 9 -

5.7 Connection Mode of RJ45

● RJ45 network cable

● Ultra-five cable

● Recommended maximum length: 80mm

6. Installation

6.1 Preparation

● Check product packing and if any accessories missing.

● Select proper installing position with enough bearing, such as surface of concrete

wall or metal bracket.

6.2 Outdoor Wall Installation

6.3 Installation Steps:

Step 1. Preparation

Select wall or hang installing brackets.

a. Selection of installation surface

Microseven® MSHRC080W IR Network IP Camera

- 10 -

Note: Please consult with expert about weight bearing capacity of installation

surface and structure. If the bearing capacity is not enough, the camera may drop and damage. Please refer to weight of camera in specification sheet.

b. Prepare hardware which will be used on installing surface, e.g. nut or fixing

bolt, etc.

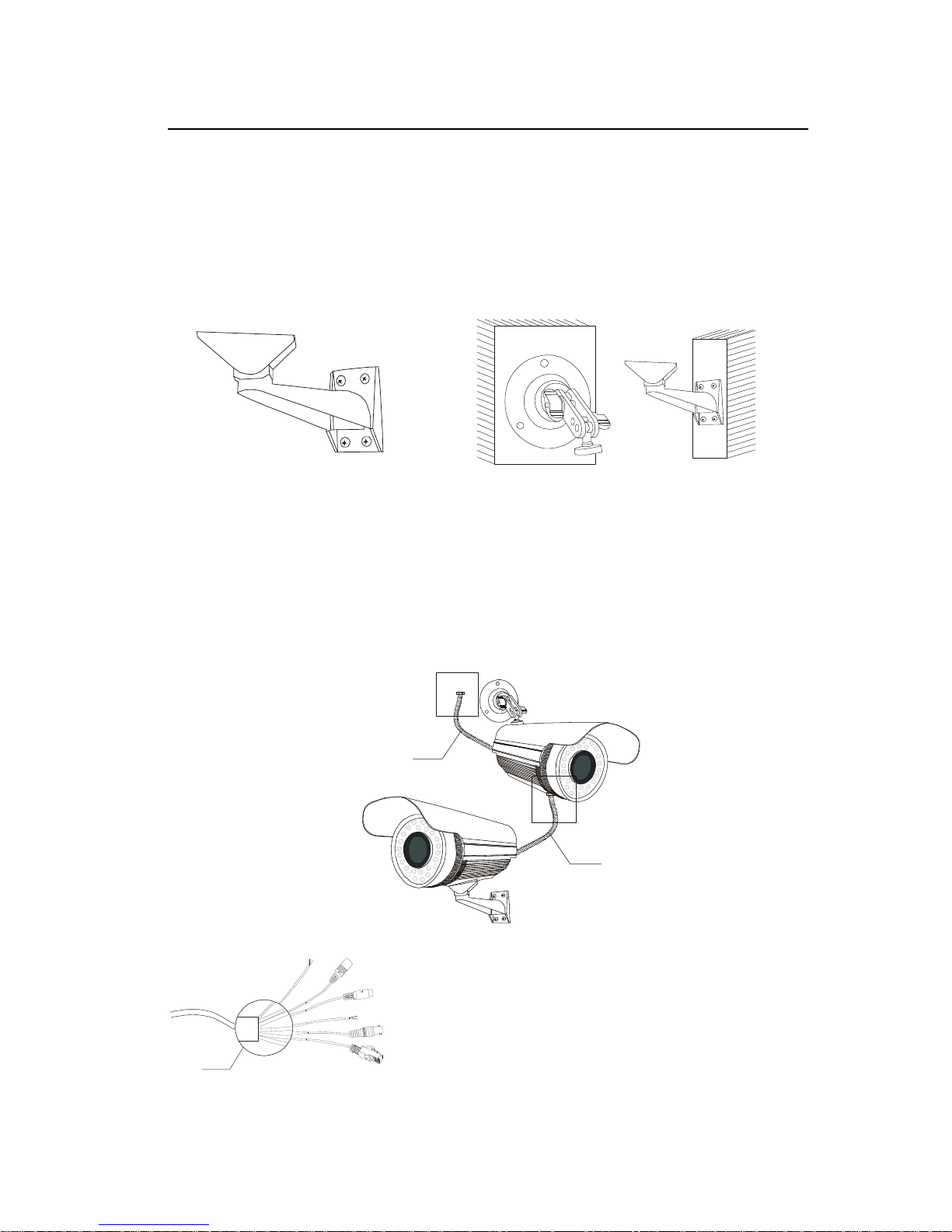

Step 2. Installing bracket

Install bracket on installing surface by using bolts, which come with product.

A: The bracket B: Wall installation

Step 3. Install camera

Bracket above camera

As the following figure shows, the camera can be installed from the bottom. Size of install

hole should be fit for standard camera bolt size.

Bracket above camera

As the following figure shows, the camera can be installed from the bottom. Size of install

hole should be fit for standard camera bolt size.

< Bracket above camera >

Junction box

< Bracket under camera >

②

I

N

1

2

3

4

1 2

①

Microseven® MSHRC080W IR Network IP Camera

- 11 -

Bracket under camera Loosen the two fixing bolts, remove the installing adapter from top of camera and install it under the camera, then install camera on bracket.

Note: Install adapter by using the original two bolts, bolt with too large length may damage internal parts.

" ① is 3-inch plastic hose. During installation one 3-inch plastic hose need to be used

outside the connection cables.

" ② cannot be exposed during installation so that the camera would not be damaged by

the rain.

7. Basic System Diagram and Operating Circumstance

Operating environment

After the equipment installed and connected to the network, it should be operated on Server Software Platform of Microseven Digital Video Server.

8. Specifications

Item Sub-item Index

Camera Parameter

Pick-up Device 1/3’’ Sony Super HAD CCD

Pixel 795(H)×597(V)PAL 768(H)×494(V) NTSC

Horizontal Resolution 480TVL

Scanning Area 4.9mm(H)×3.7mm(V)

Scanning Mode

625 Lines/50 Fields/25 Frame(PAL) 525 Lines/60 Fields/30 Frame(NTSC)

Horizontal 15.625KHz (PAL), 15.750KHz (NTSC)

Vertical 50Hz(PAL), 60Hz(NTSC)

Video

Video Output 1 channel PAL/NTSC, 1.0V[p-p] 75Ω (BNC)

Image Compression Standard

H.264

Resolution QCIF: 176 * 144 (PAL), 176*120 (NTSC)

-

Microseven® MSHRC080W IR Network IP Camera

- 12 -

CIF: 352 * 288 (PAL), 352*240 (NTSC) H-D1: 720 x 288 (PAL), 360*480 (NTSC) D1: 720 x 576 (PAL), 720*480 (NTSC)

Frame rate Max: 25fps(PAL), 30fps(NTSC)

Bit Stream 100Kbps ~ 3Mbps，CBR/VBR adjustable

LOGO overlay Support character and time overlay on image

Alarm Alarm function Support 1 channel alarm input/output

Audio

Audio Input

1channel, RCA interface, microphone or other audio input, single track

Audio Sampling Rate 8KHz

Compression Standard G.711

IR IR distance 40M

Network

Interface

One RJ45, 10M/100M self-adjustable, connect Ethernet switch or Ethernet HUB, etc.

Protocol

TCP/IP, UDP/IP, HTTP, FTP, ICMP, Telnet, IGMP, PPPOE, DDNS, DNS, DHCP

IE Application Built-in web server, allows IE browsing and controlling

Network Time Check Provide the interface for network time checking

Equipment Search Support equipment searching by Ethernet broadcasting

Wireless Network

Net speed: 54Mbps

Indoor wireless transmit distance with barrier: 20 ~ 30m

Indoor wireless transmit distance without barrier: within 100m

Safety

User Administration Provide multi-level user administration

Built-in Watchdog

Timing detection of chips & software work status, auto system reset

Remote reposition Realize remote reposition through network

Others

Local storage (optional) Support SD card

Communication Port RS485

Waterproof IP66

Power Supply DC12V 2A

Consumption 12W

Working Temperature -10℃ ~ +50℃

Working Humidity ≤95

Size/Weight (with lens) 9.1 in X 4 in X 4 in / 3.10 lb

9. Frequently Asked Questions

Microseven® MSHRC080W IR Network IP Camera

- 13 -

" Q: System operation could not be activated, the power indicator does not light.

A: Check if the power is connected, and if the input voltage is normal.

" Q: Network indicator does not light and cannot login the system.

A: Check if the network is connected, and if the net line is inserted properly.

" Q: Unable to upgrade or failed in upgrade.

A: Check if the network is connected, and the path of the upgraded files are correct, and check if there is any access authority allowed.

Note: Please contact us at support@microseven.com

if above problems still cannot be

solved by following this manual.

10. Accessories

Body cover................................................................................................................................1 pcs

ALC lens connector (YFE4191J100)........................................................................................1 pcs

Network cable ..........................................................................................................................1 pcs
