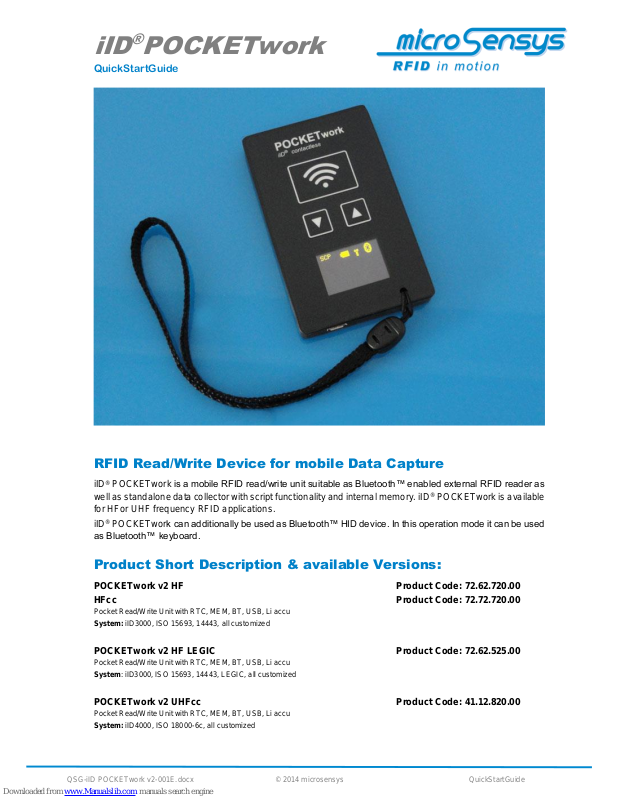

iID®POCKETwork

QuickStartGuide

QSG-iID POCKETwork v2-001E.docx © 2014 microsensys QuickStartGuide

RFID Read/Write Device for mobile Data Capture

iID® POCKETwork is a mobile RFID read/write unit suitable as Bluetooth™ enabled external RFID reader as
well as standalone data collector with script functionality and internal memory. iID® POCKETwork is available
for HFor UHF frequency RFID applications.

iID® POCKETwork can additionally be used as Bluetooth™ HID device. In this operation mode it can be used
as Bluetooth™ keyboard.

Product Short Description & available Versions:

POCKETwork v2 HF Product Code: 72.62.720.00
HFcc Product Code: 72.72.720.00

Pocket Read/Write Unit with RTC, MEM, BT, USB, Li accu

System: iID3000, ISO 15693, 14443, all customized

POCKETwork v2 HF LEGIC Product Code: 72.62.525.00

Pocket Read/Write Unit with RTC, MEM, BT, USB, Li accu

System: iID3000, ISO 15693, 14443, LEGIC, all customized

POCKETwork v2 UHFcc Product Code: 41.12.820.00

Pocket Read/Write Unit with RTC, MEM, BT, USB, Li accu
System: iID4000, ISO 18000-6c, all customized

iID®POCKETwork

QuickStartGuide

QSG-iID POCKETwork v2-001E.docx © 2014 microsensys QuickStartGuide

Performance description

iID® POCKETwork is suitable for standalone mobile data capture using its integrated real time clock and
memory as well as a wireless RFID reading / writing device, which can be connected via its integrated
BluetoothTM-Interface to a phone, tablet computer or PC in DOC mode.

Based on iID® SPC functionality, scripts can be used for definition of display, buzzer and button support as
well as communication functionalities as RF, USB and Bluetooth™.

The device comes in several types supporting HF systems, LEGIC® based HF systems as well as UHF
environments. In addition microsensys provides HFcc and UHFcc devices for closed coupling communication
with very small sized RFID transponders.

First commissioning

Before using your device the first time, please charge the internal rechargeable battery using included
micro USB cable.

Manner of functioning

iID® POCKETwork may be used as USB/Bluetooth™ RFID read/write interface, data collector or RFID
scanner with emulated Bluetooth™ keyboard. See following table for available configurations, for further
information see iID® SPC/MPC related documents.

Functionality

Operation mode

configuration

Bluetooth™

configuration

Remark

Read/write interface

DOC

SPP

Bi-directional communication, based
on iID® driver engine

Data collector

SPC

SPP

Bi-directional communication, script
with MPC functionality on device

Bluetooth™ HID input

device (keyboard)

SPC

HID

One-directional communication,
script with output functionality on
device

(1) F1 function key

ON/OFF button

(3) F2 function key

(2) SCAN­button

Graphical display

Micro-USB
connector

Planar or focused RFID
antenna, main RF field
direction

Hole for hand strap
