8 10/100/1000T Industrial Switch
User Manual
MS655208(X)
Content
Overview ............................................................. 1
Introduction .............................................................. 1
Features ................................................................... 3
Packing List .............................................................. 4
Safety Precaution ..................................................... 4
Hardware Description ......................................... 5
Front Panel ............................................................... 5
Top View .................................................................. 6
Wiring the Power Inputs ........................................... 6
LED Indicators .......................................................... 7
Ports ......................................................................... 8
Cabling ..................................................................... 9
Mounting Installation ........................................ 10
DIN-Rail Mounting .................................................. 10
Wall Mount Plate Mounting .................................... 12
Hardware Installation ........................................ 13
Installation Steps .................................................... 13
Troubles shooting ............................................. 15
Technical Specification ..................................... 16
Overview
Introduction

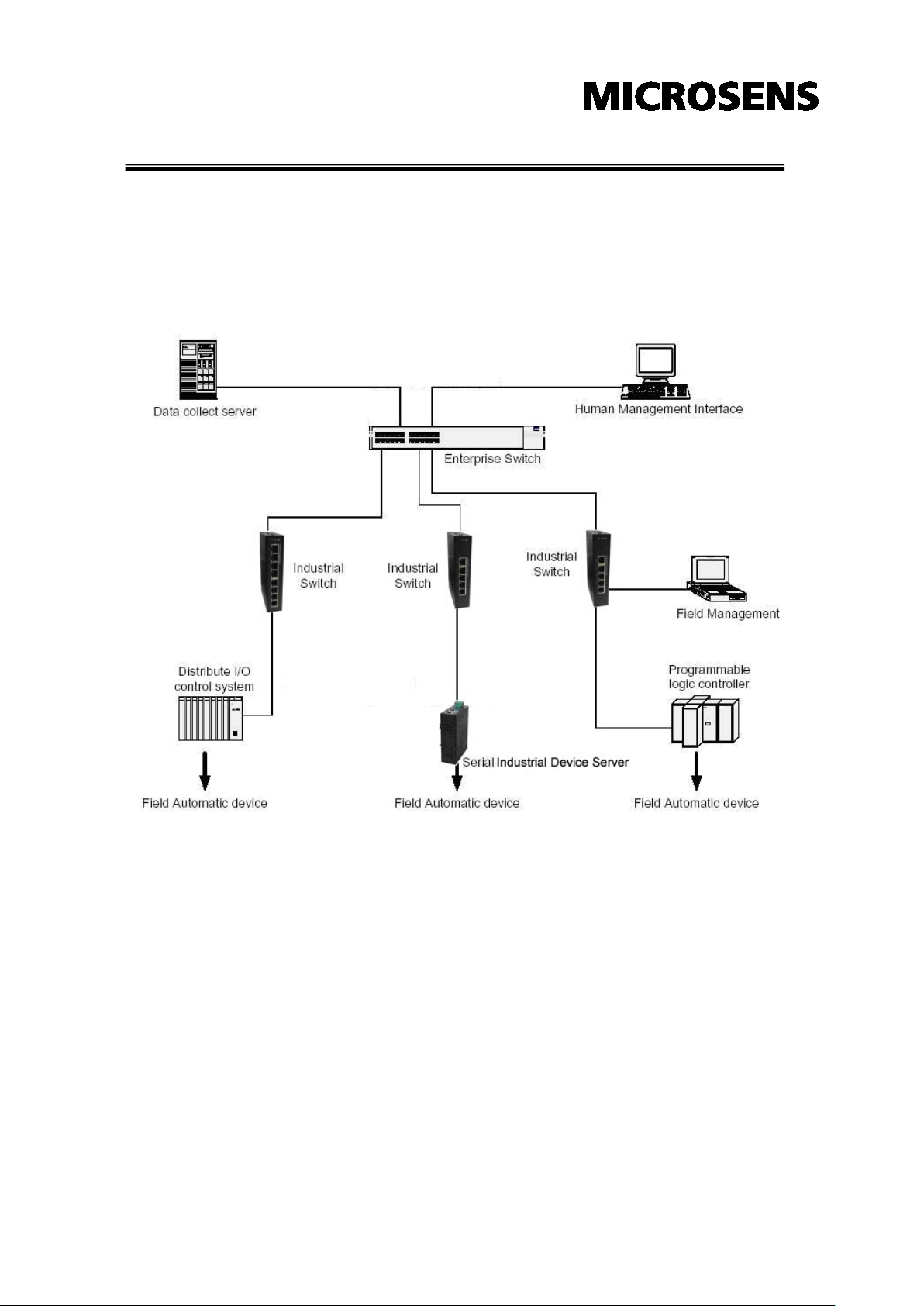

The unmanaged industrial switch is a cost-effective solution and meets
the high reliability requirements demanded by industrial application s .
High-Speed Transmissions
The Industrial switch includes a switch controller that can automatically
sense transmission speeds (10/100/1000 Mbps). The RJ-45 interface
can also be auto-detected, so MDI or MDI-X is automatically select ed
and a crossover cable is not required. All Ethernet ports have memory
buffers that support the store-and-forward mechanism. This assures
that data is properly transmitted.
Dual Power Input
To reduce the risk of power failure, the Industrial switch provides +12 ~
48 VDC dual power inp uts. If there is power failure, Industrial switch will
automatically switch to the secondary power input.
Flexible Mounting
The industrial switch is extremely compact and can be mounted on a
DIN-rail or a panel, so it is suitable for any space-constrained
environment.
Advanced Protection
The power line of Industrial switch supports up to 3,000 VDC EFT
protection, which secure equipment against unregulated voltage and
make systems safer and more reliable. Meanwhile, 6,000 VDC ESD
protections for Ethernet ports make Industrial switch more suitable for
harsh environments.
1
Wide Operating Temperature
The operating temperature of the Industrial switch is from -10 ~ 60oC
(standard model) or -40 ~ 75oC (wide operating temperature model).
With such a wide range, you can use the Industrial switch in some of the
harshest industrial environments that exist.
Easy Troubleshooting
LED indicators make troubleshooting quick and easy. Each
10/100/1000T port has 2 LEDs that display the link status, tr ansmission
speed and collision status. Also the three power indicators P1, P2 and
Fault help you diagnose immediately.
2
Features
Provides 8 x 10/100/1000Base-T Mbps Ethernet ports.
Store-and-Forward switching architecture
Back-plane (switching fabric): 16Gbps
Provides 136Kbits memory buffer
Supports full/half duplex flow control
Supports broadcast storm control
Supports MDI/MDI-X auto-crossover
Supports Jumbo Frame of 9Kbytes
Supports surge (EFT) protection 3,000 VDC for power line
Supports 6,000 VDC Ethernet ESD protection
Supports redundant +12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail, Panel Mounting
Supports operating temperatures from -10 ~ 60oC (standard model) or
-40 ~ 75oC (wide operating temperature model)
3
Packing List
1 x 8-port 10/100/1000Base-T Industrial Ethernet Switch
1 x User Manual
2 x Wall Mounting Bracket and Screws
Safety Precaution
Attention IF DC voltage is supplied by an external circuit, please use a
protection device on the power supply input.
4
Hardware Description
In this paragraph, we will introduce the Industrial switch’s hardware
spec, port, cabling information, and wiring inst alla tion.
Front Panel
The Front Panel of the 8-port 10/100/1000Base-T Industrial Switch is
shown as below.
Front Panel of the 8-port 10/100/1000Base-T Industrial Switch
5
V- V+
V- V+
1. Insert the positive and negative wires into the V+ and V-
Top View

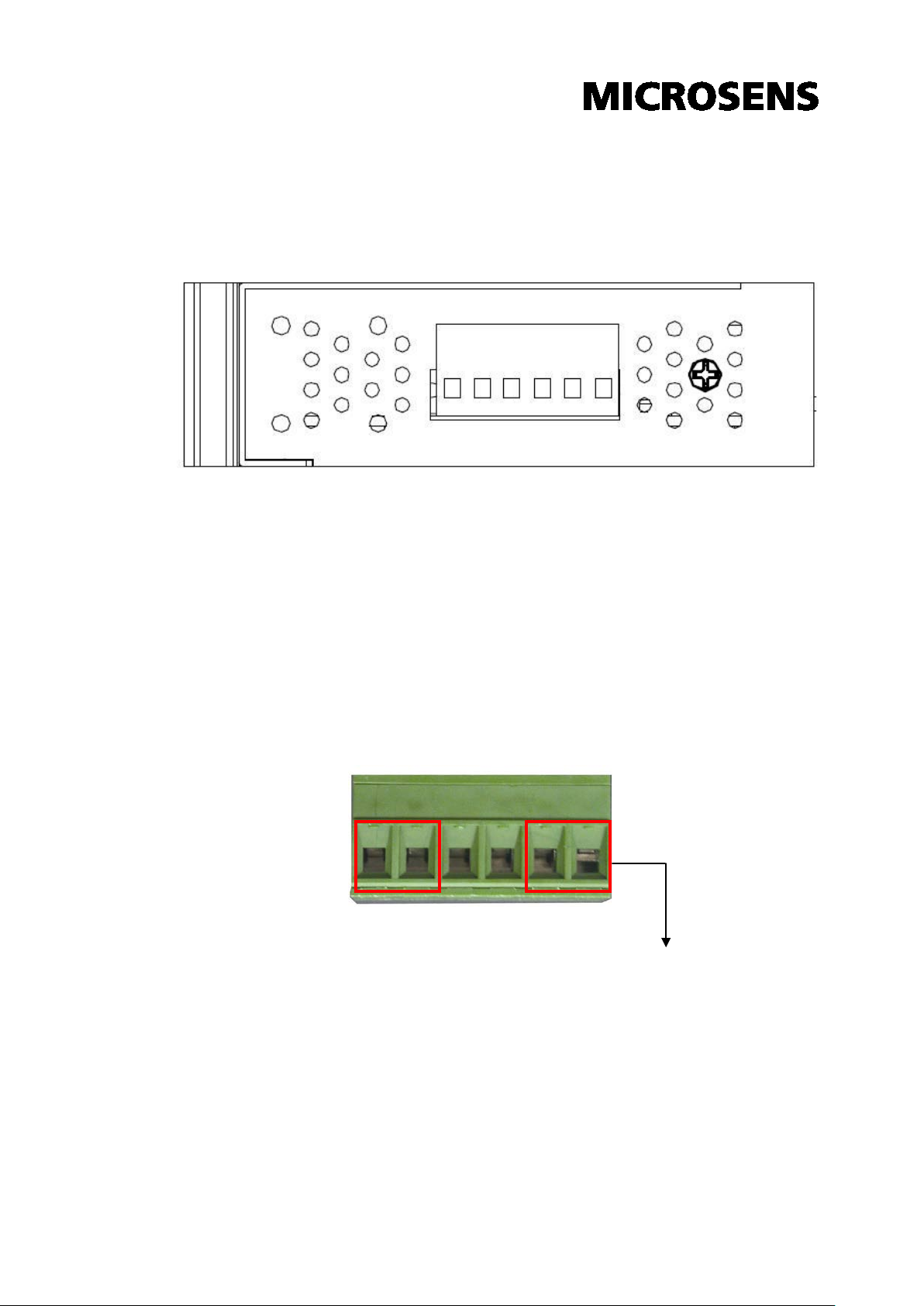

The top panel of the 8-port 10/100/1000Base-T Industrial Switch is
equipped one terminal block connector of two DC power inputs.
Top panel of the 8-port 10/100/1000BaseTX Industrial Switch
Wiring the Power Inputs

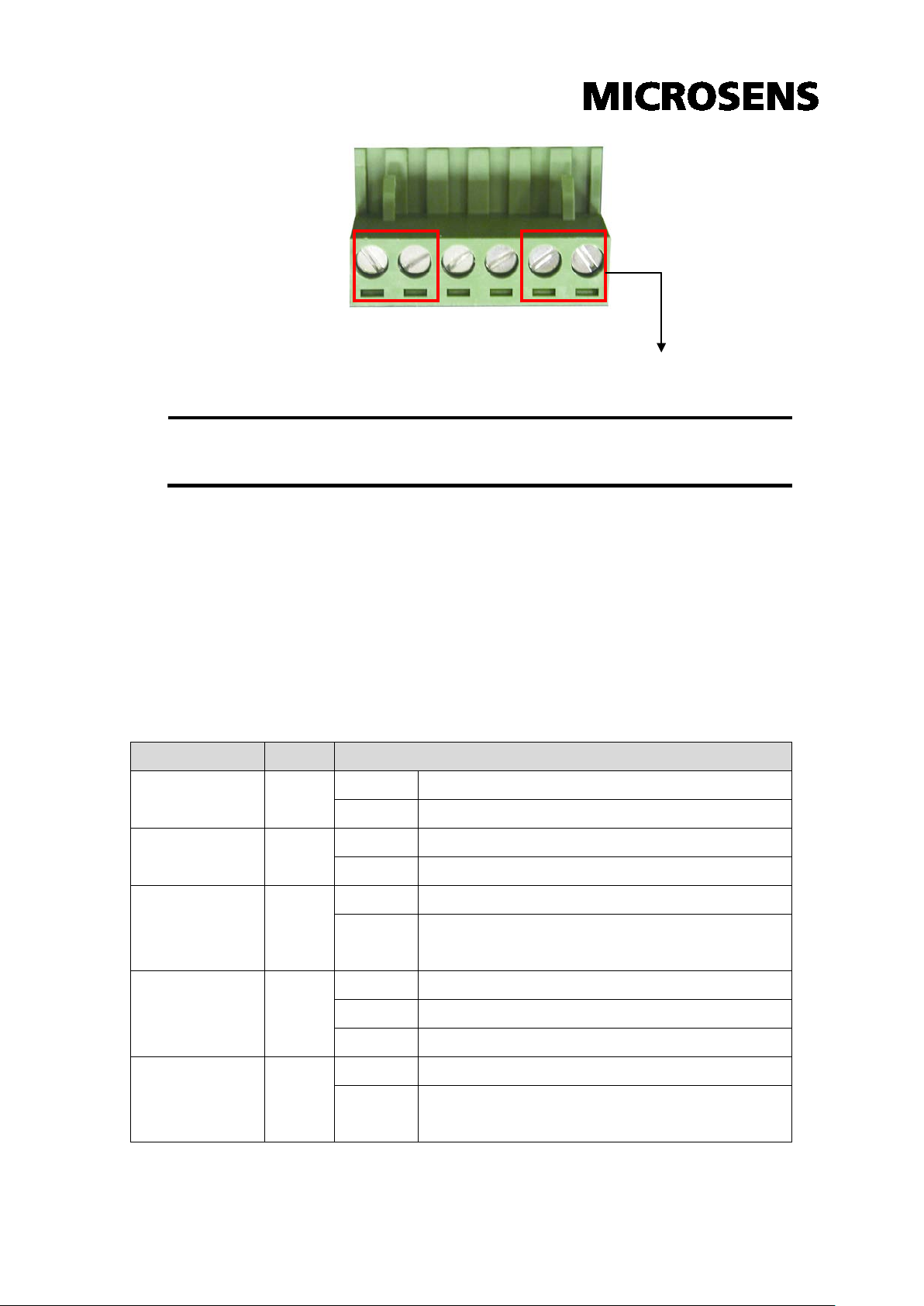

Please follow the steps below to insert the power wire.
connector on the terminal block connector.
6
Note
The wire gauge for the terminal block should be in the range
2. To tighten the wire-clamp screws for preventing the DC
wires to loose.
between 12~ 24 AWG.
LED Indicators
There are few LEDs display the power status and network status
located on the front panel of the Industrial switch, each of them has their
own specific meaning as the table below.
LED
P1 Green
Color Description
On Power input 1 is active
Off Power input 1 is inactive
P2 Green
Fault Red
1 ~ 8
Green
(Upper LED)
1 ~ 8
Green
(Lower LED)
On Power input 2 is active
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
Power input 1 and 2 are both functional, or no pow er
Off
inputs
On Connected to network
Flashing Networking is active
Off Not connected to network
On Connected to network at speed of 1000Mbps
Not connected to network or not workin g at spee d of
Off
1000Mbps
7
Pin Number
Assignment
1
Tx+
2
Tx-
3
Rx+
6
Rx-
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Ports
RJ-45 ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for
10Base-T, 100Base-TX, or 1000Base-T devices connections. Auto
MDI/MDIX means that you can connect to another switch or workstation
without changing straight through or crossover cabling. See figures as
below for straight through and crossover cable schematic.
RJ-45 Pin Assignments
Note
“+” and “-” signs represent the polarity of the wires that make up
each wire pair.
All ports on this industrial switch support automatic MDI/MDI-X
operation, you can use straight-through cables (See Figure below) for
all network connections to PCs or servers, or to other switches or hubs.

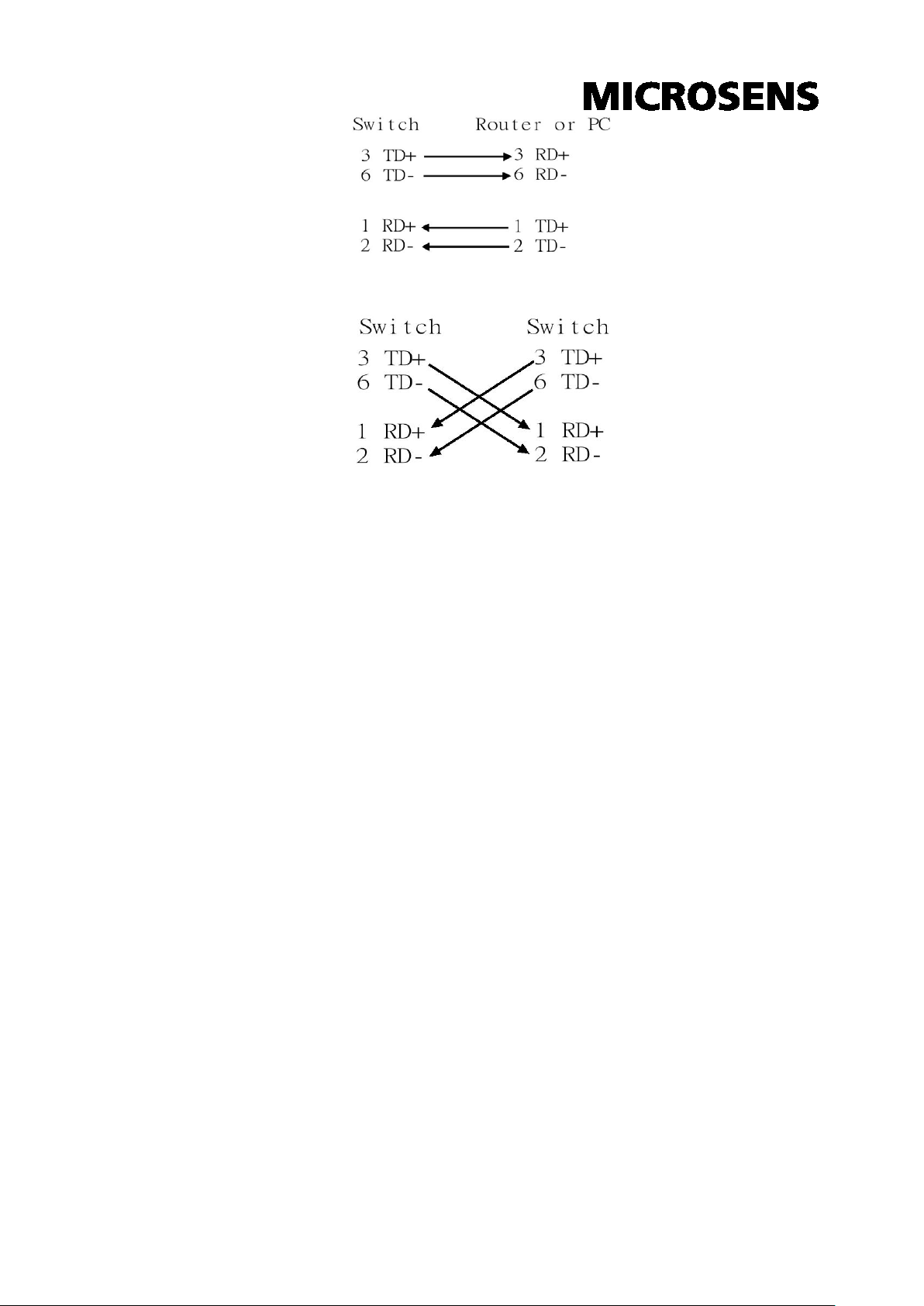

In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the
cable. The table below shows the 10BASE-T/100BASE-TX/1000Base-T
MDI and MDI-X port pin outs.
Pin MDI-X Signal Name MDI Signal Name
8
Straight Through Cable Schematic
Cross Over Cable Schematic
Cabling
Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable
for RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps
connections, 100Ω Category 5 cable for 100Mbps, or 100Ω Category
5e/above cable for 1000Mbps connections.
The cable between the switch and the link partner (switch, hub,
workstation, etc.) must be less than 100 meters (328 ft.) long.
9
Rear Panel of
DIN-Rail
Mounting Installation
DIN-Rail Mounting

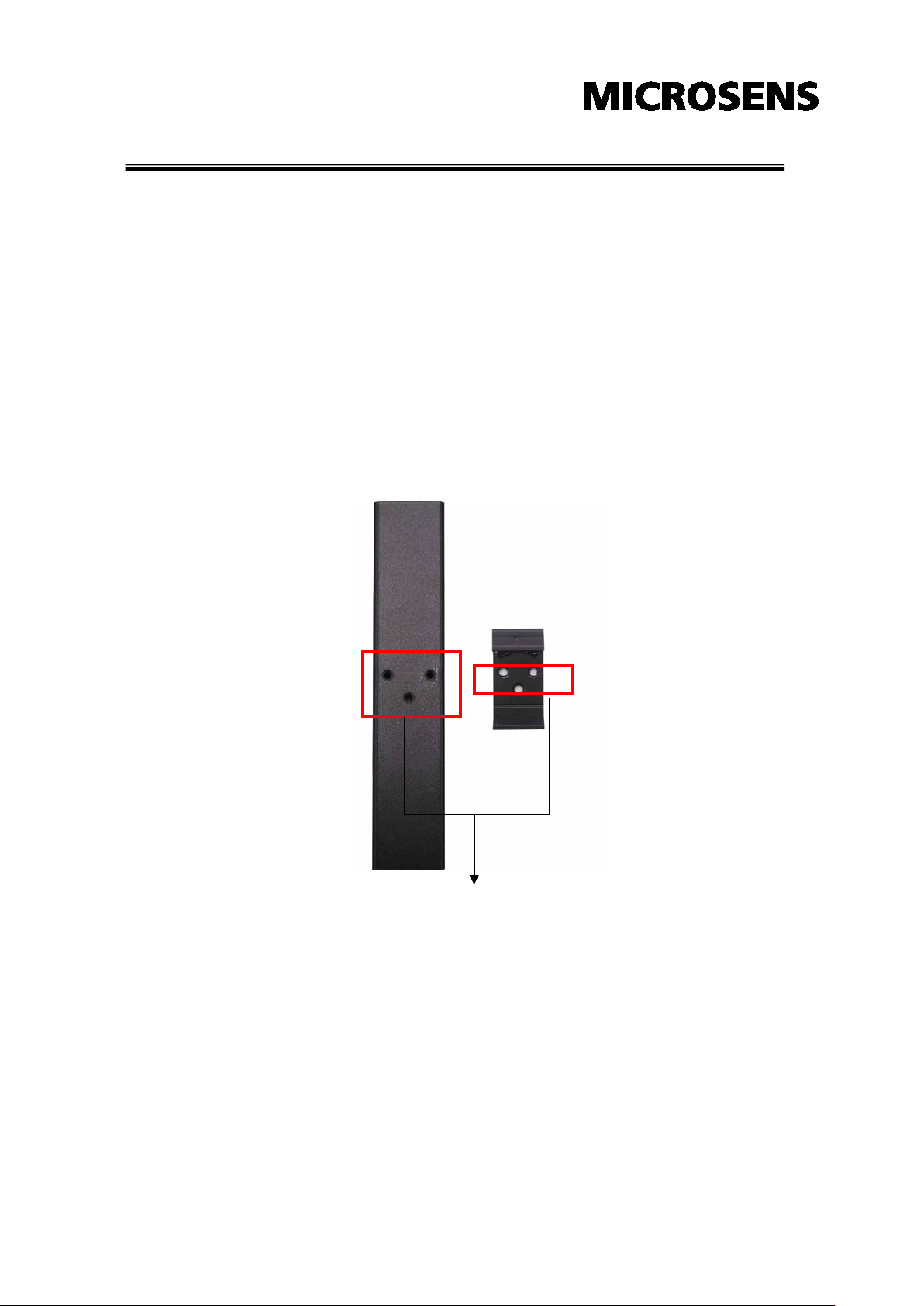

The DIN-Rail is screwed on the industrial switch when out of f actory. If
the DIN-Rail is not screwed on the industrial switch, please see the
following figure to screw the DIN-Rail on the switch. Follow the steps
below to hang the industrial switch.
1. Use the screws to screw on the DIN-Rail on the industrial switch
the switch
2. To remove the DIN-Rail, reverse step 1.
10

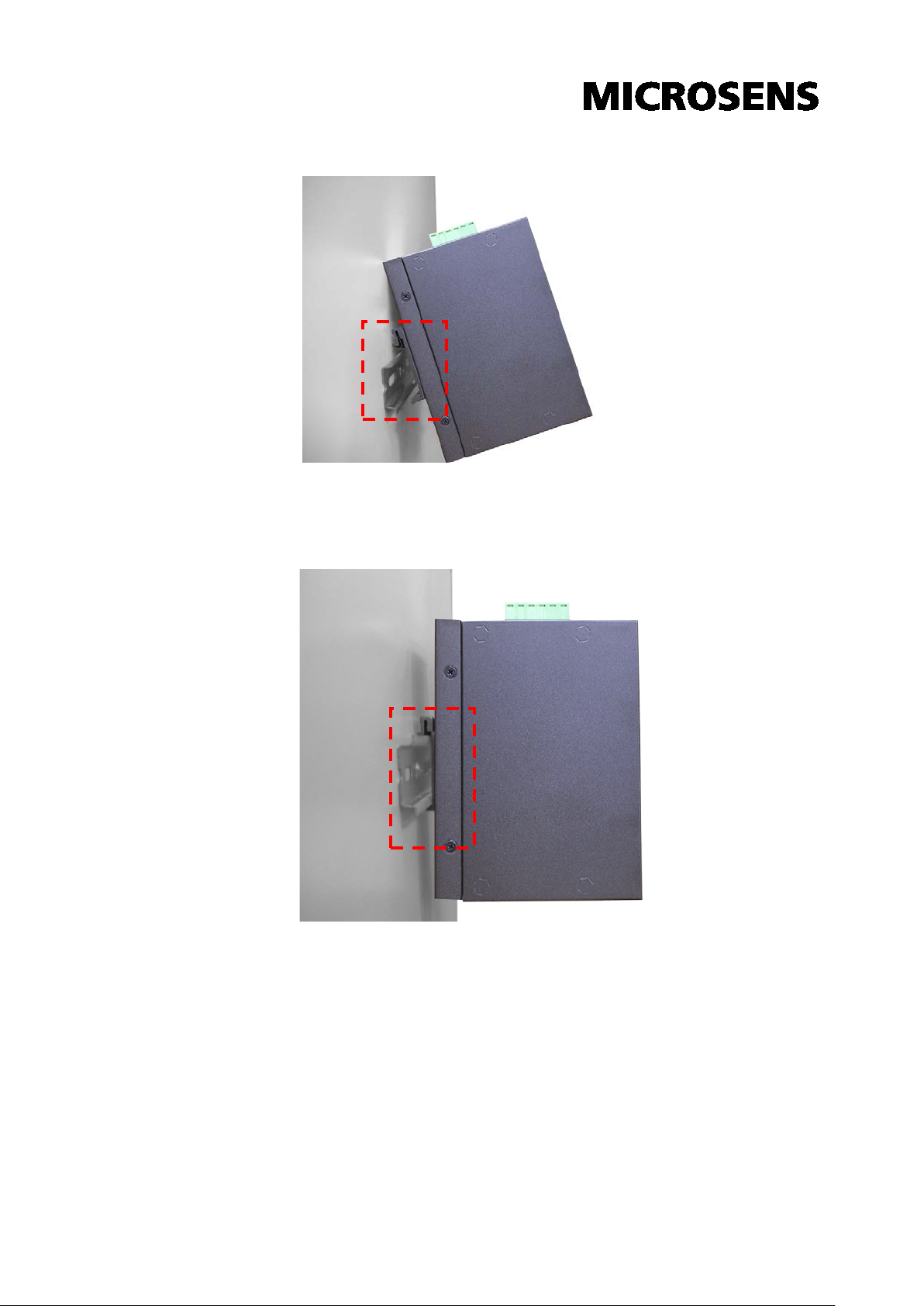

3. First, insert the top of DIN-Rail into the track.
4. Then, lightly push the button of DIN-Rail into the track.
5. Check the DIN-Rail is tightly on the track.
6. To remove the industrial switch from the track, reverse the steps above.
11
Wall Mount Plate Mounting

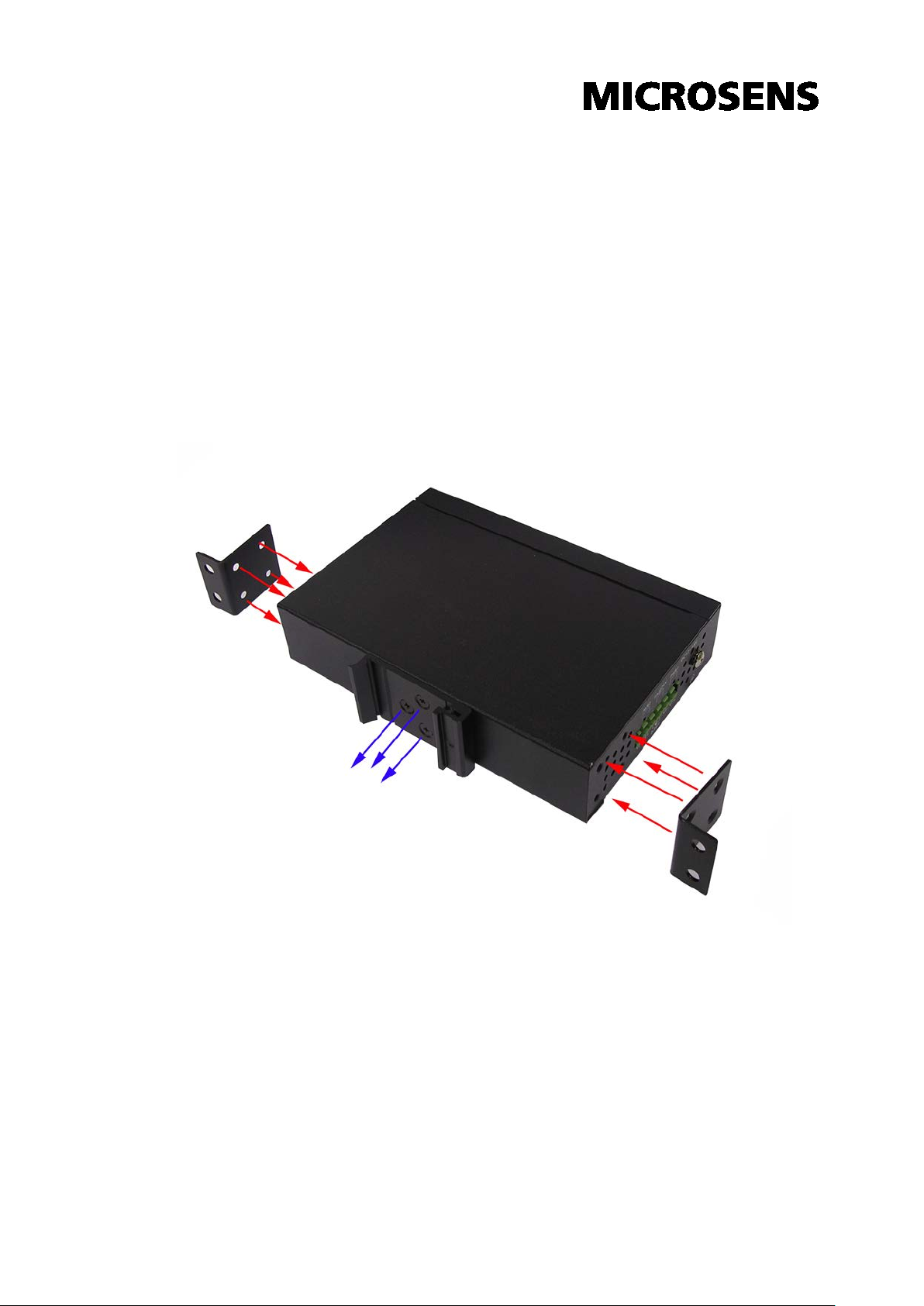

Follow the steps below to mount the industrial switch with wall mount plate.
1. Remove the DIN-Rail from the industrial switch; loose the screws to
remove the DIN-Rail.
2. Place the wall mount plate on the rear panel of the industrial switch.
3. Use the screws to screw the wall mount plate on the industrial switch.
4. Use the hook holes at the corners of the wall mount plate to hang the
industrial switch on the wall.
5. To remove the wall mount plate, reverse the steps above.
12
Hardware Installation
In this paragraph, we will describe how to install the 8-port
10/100/1000Base-TX Industrial Switch and the installation points for the
attention.
Installation Steps
1. Unpacked the Industrial switch packing.
2. Check whether the DIN-Rail is screwed on the Industrial switch. If not,
please refer to DIN-Rail Mounting section for DIN-Rail installation. If you
want to wall mount the Industrial switch, then please refer to Wall Mount
Plate Mounting section for wall mount plate installation.
3. To hang the Industrial switch on the DIN-Rail track or wall, please refer to
the Mounting Installation section.
13
4. Power on the Industrial switch. How to wire the power; please refer to the
Wiring the Power Inputs section. The power LED on the Industrial switch
will light up. Please refer to the LED Indicators section for meaning of
LED indicators.
5. Prepare the twisted-pair, straight through Category 5e/above cable for
Gigabit Ethernet connection.
6. Insert one end of Category 5e or above cables into the Industrial switch
Ethernet port (RJ-45 port) and another end of category 5e or above cables
to the network devices’ Ethernet port (RJ-45 port), ex: switch, PC or
Server. The UTP port (RJ-45) LED on the Industrial switch will light up
when the cable is connected with the network device. Please refer to the
LED Indicators section for LED light meaning.
Note
Be sure that the connected network devices support MDI/MDI-X. If
it does not support, then use the crossover cable.
7. When all connections are all set and LED indicators all show in normal,
the installation is complete.
14
Troubles shooting
Verify that you are using the right power cord/adapter (DC 12 - 48V),
please don ’t use the power adapter with DC output higher than 48V, or it
will burn this switch down.
Select the proper UTP/STP cable to construct your network. Please check
that you are using the right cable. Use unshielded twist ed-pair (UTP) or
shielded twisted-pair (STP) cable for RJ-45 connection s: 100Ω Category
3, 4 or 5 cable for 10Mbps connections, 100Ω Category 5 cable for
100Mbps, or 100Ω Category 5e/above cable for 1000Mbps connections.
Also be sure that the length of any twisted-pair connection does not
exceed 100 meters (328 feet).
Diagnosing LED Indicators: The Switch can be easily monitored through
panel indicators, which describes common problems you may encounter
and where you can find possible solutions, to assist in identifying
problems.
IF the power indicator does not light on when the power cord is plugged in,
you may have a problem with power cord. Then check for loose power
connections, power losses or surges at power outlet. IF you still cannot
resolve the problem, contact your local dealer for assistance.
If the Industrial switch LED indicators are normal and the connected
cables are correct and the packets still cannot transmit. Please check your
system’s Ethernet devices’ configuration or status.
15
Technical Specification
The technical specifications of the Industrial Switch are listed as fo llows.
Communications
Compatibility
LAN
Transmission Distance
Transmission Speed
Interface
Connectors
LED Indicators
IEEE 802.3, 802.3u, 802.3ab
IEEE 802.3x
10/100/1000Base-T
Up to 100 m
Up to 1000 Mbps
8 x RJ-45 (8-port 10/100/1000TX)
6-pin removable screw terminal
(power & relay)
Unit: P1, P2, Fault
Ethernet port: Link/Active (100Mbps)
Speed (1000Mbps)
Power
Power Consumption
Power Input
Fault Output
Mechanism
7.788 W
2 x Unregulated +12 ~ 48 VDC
1 Relay Output
16
Dimensions (WxDxH)
Enclosure
Protection
ESD (Ethernet)
Surge (EFT for power)
Power Reverse
Environment
Operating Temperature
30 x 95 x 140 mm
IP-30, Metal shell with solid
mounting kits
6,000 VDC
3,000 VDC
Yes
-10 ~ 60oC (standard model)
Operating Humidity
Storage Temperature
Certifications
Safety
EMC
-40 ~ 75oC (wide operating
temperature model)
5% ~ 95% (non-condensing)
-40 ~ 85oC
CE EN60950-1
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-4-11
CE EN61000-4-12
CE EN61000-6-2
CE EN61000-6-4
17
Free Fall
Shock
Vibration
IEC60068-2-32
IEC60068-2-27
IEC60068-2-6
18
Loading...
