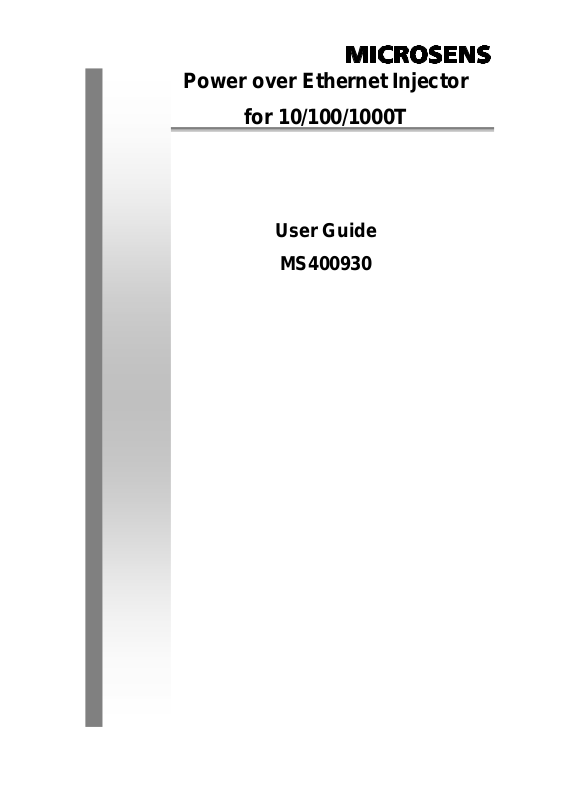

Power over Ethernet Injector
for 10/100/1000T
User Guide
MS400930
Content
Overview ...................................................................... 1
Features ....................................................................... 2
Hardware Description .................................................. 2
Package Contents ....................................................... 3
Installation .................................................................... 3
Technical Specification ................................................ 5
2
Overview
The Power over Ethernet Injector provides data and AC power through the
Ethernet cable to PoE-equipped device, such as AP, PoE splitter or other
equipments support IEEE 802.3af. The injector is typically installed near
the Ethernet hub/switch. The following figure shows the Power over
Ethernet Injector application.
Power over Ethernet Injection Application Figure
1
Features
Power Over Ethernet Injector
Remote power feeding
Short circuit protection
Mix Ethernet and power into RJ-45 port
Deliver power up to 100 meters
Light weight and compact size
Plug-and-Play
Hardware Description
The Power over Ethernet Injector has three connection ports and one LED
indicator. We will describe each part as follows.
Data In port: It is an RJ-45 Ethernet interface port for data transmit
into the PoE Injector. It is for connecting with the switch.
The Data In and Power in port figure
Power In port: The Power In port is for supplying the power into the
Injector.
Data Out port: It is an RJ-45 Ethernet port to connect with PoE
Splitter, PD, or PoE Hub via an RJ-45 cable.
2
Data Out port figure
Package Contents
One Power over Ethernet Injector
Power Cord
User Manual
The Power over Ethernet Injector Power Cord User Guide
Figure 1-1. Package Contents
Compare the contents of your Power over Ethernet Injector package with
the standard checklist above. IF any item is missing or damaged, please
contact your local dealer for service.
Installation
To install the Power over Ethernet Injector, please follow the steps below.
1. Use one end of the RJ-45 cable, which another end is connected to
Data in port on the Power over Ethernet Injector, to connect with the
Switch/HUB.
2. Connect the RJ-45 cable between the Data out port of the Power over
Ethernet Injector and the PoE Splitter, PD (Such as Router, Access
Point…etc.) or PoE Hub.
3. Plug in the power cord of the Power over Ethernet Injector to the wall
power plug.
4. Before starting, make sure all connections are correct.
The Power over Ethernet Injector connects to the Splitter, POE
Hub or PD via Data Out port.
3
The Power over Ethernet Injector connects to the switch via Data
In port.
The Power In port is to get the power supply to Power over
Ethernet Injector from wall power plug.
4
Standard
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab Gigabit Ethernet
IEEE802.2af Power over Ethernet
Connector
DC out: Power pin: 1,2(V+), 3,6(V-)
Network Cable
10BASE-T: 2-pair UTP/STP Cat.3, 4,5 cable
EIA/TIA-568 100-ohm (100m)
100BASE-TX: 2-pair UTP/STP Cat.5 cable
EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair UTP/STP Cat. 5e cable
EIA/TIA-568 100-ohm (100m)
LED
Feeding Power (green)
Power Input
100~240V, 50~60Hz, 0.3A
Feeding Power
15.4Watts (48VDC)
Operating
environment
0 ℃~ 40 ℃
Operating
Humidity
10% ~ 90% Humidity (non-condensing)
Storage
Temperature
-40 ℃~ 70 ℃
Dimension
117mm x 60mm x 35mm (W x D x H)
EMI & Safety
CE, CE/EN60950-1
Technical Specification
The following table provides the technical specification of the Power over
Ethernet Injector.
5
